Model GE 911.41789992 Electric Built-In Oven (Kenmore 91141789992) – Common Parts & Diagrams
WIRE HARNESS/WIRING COMPONENTS

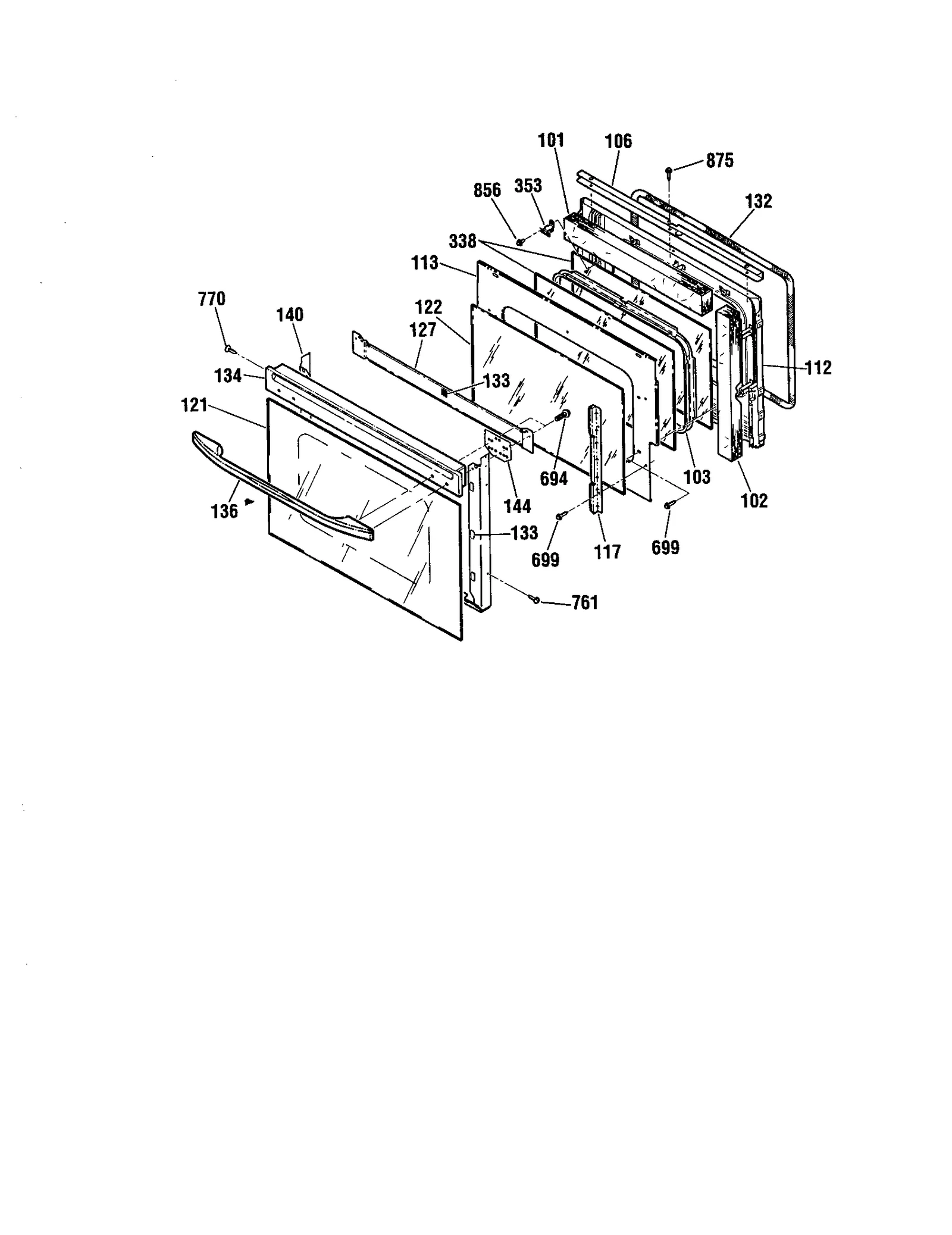

DOOR

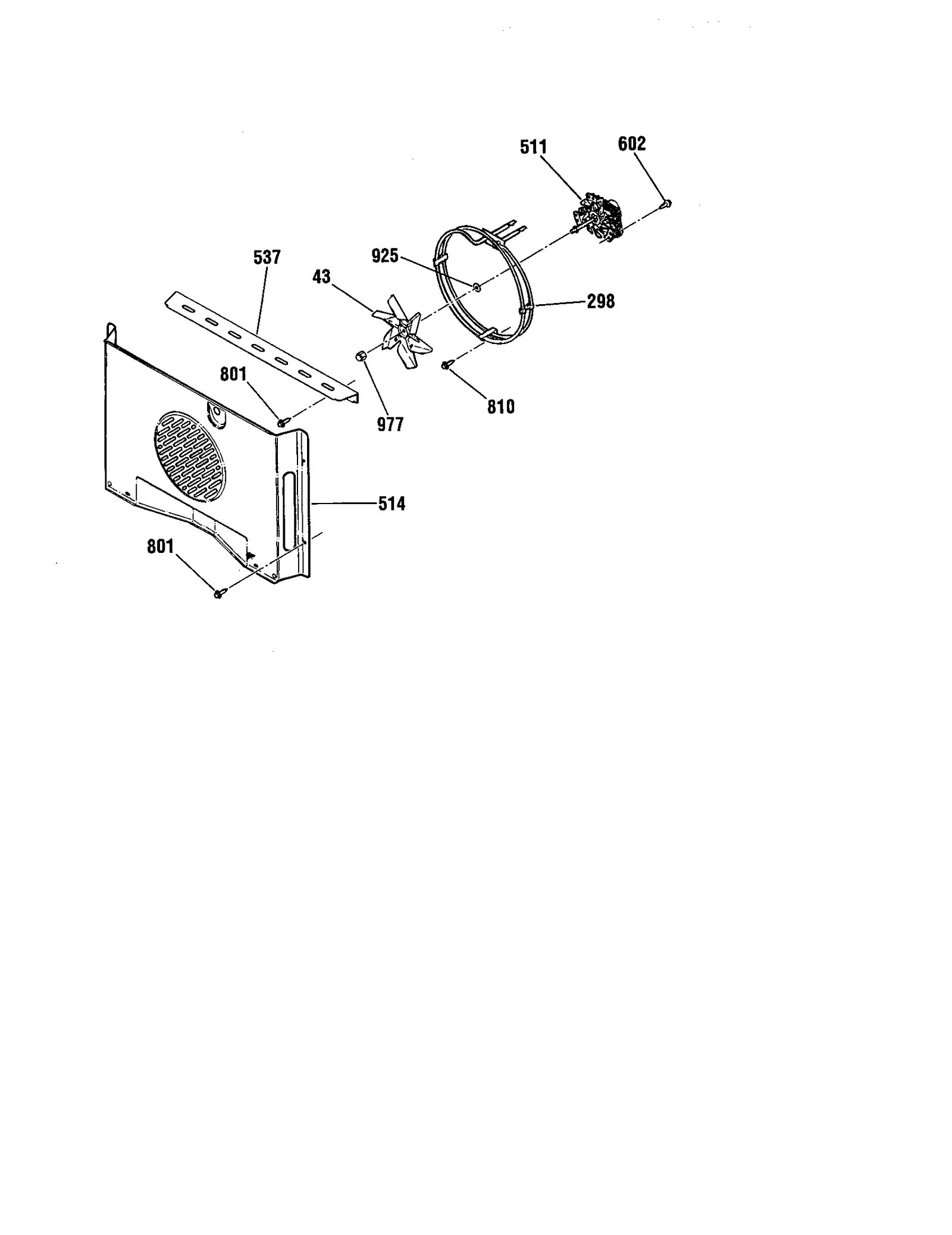

CONVECTION FAN

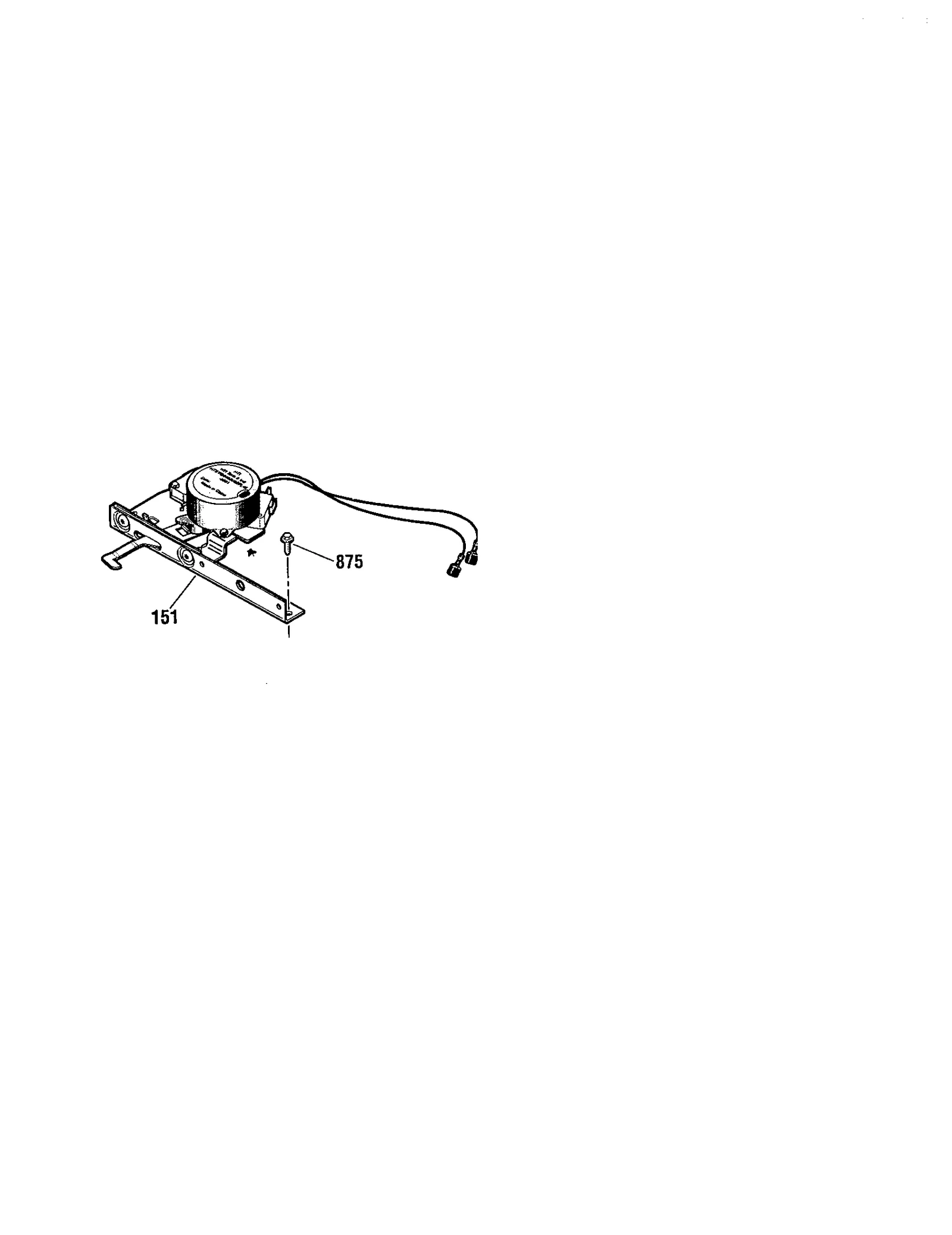

DOOR LOCK

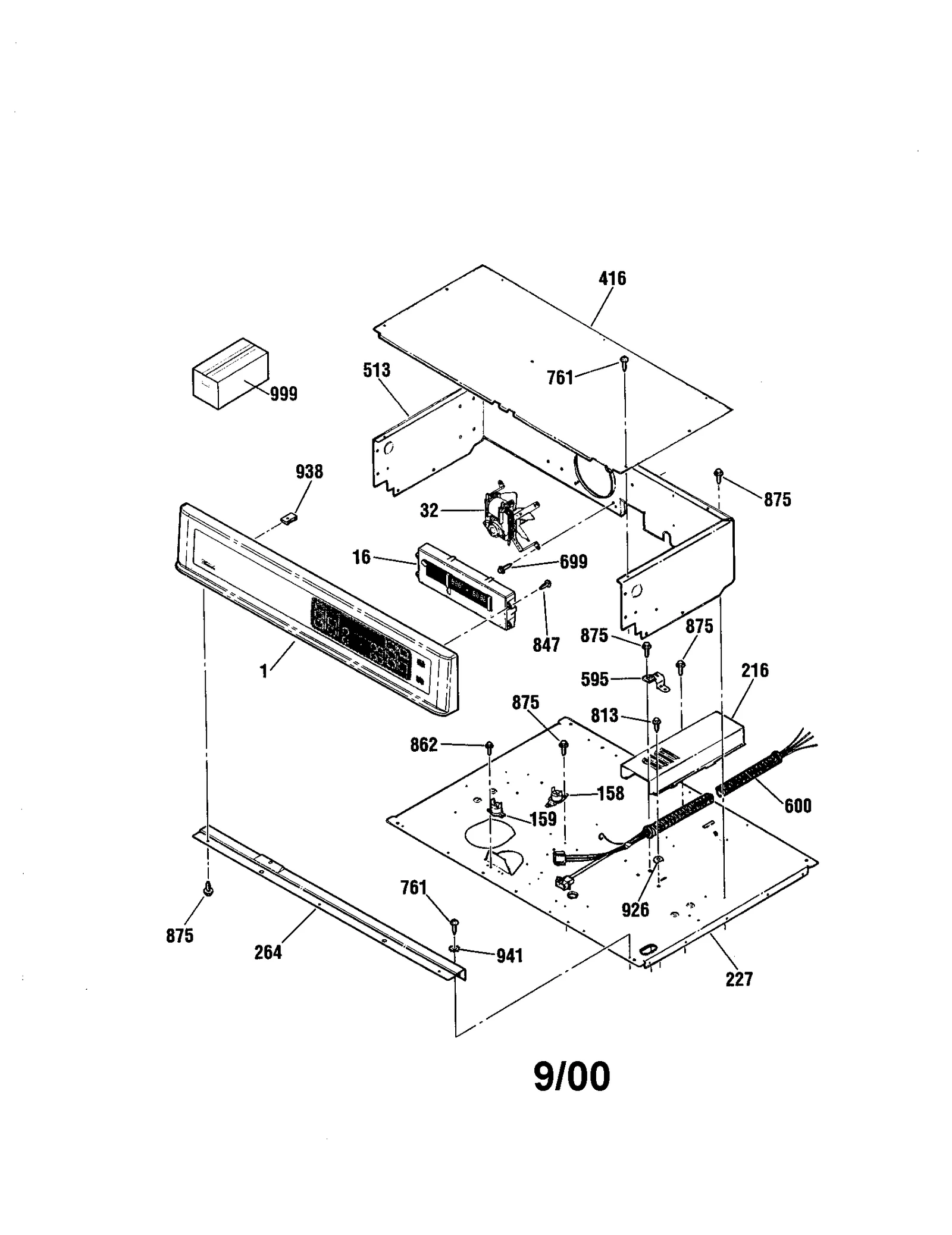

CONTROL

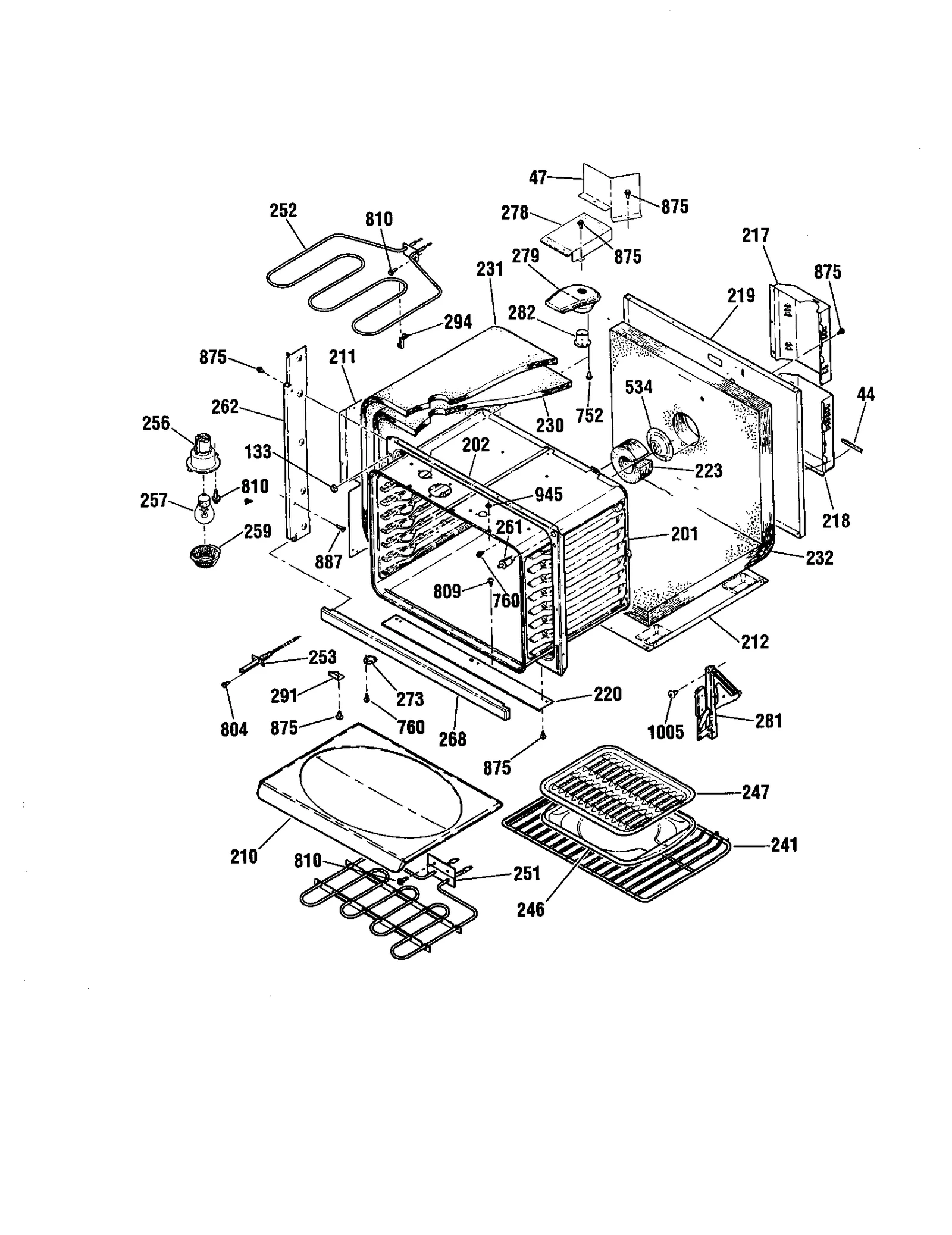

BODY
Common parts from model GE 911.41789992 Electric Built-In Oven (Kenmore 91141789992)
1
Control Panel GEN WB36T10166 Contact Us For Availability
1A
Control Panel GEN WB36T10165 Contact Us For Availability
16
CLOCK/OVEN CONTROL GEN WB27T10212 Contact Us For Availability
44
Grommet Strap GEN WB02K5225 Contact Us For Availability
47
Air Deflector GEN WB39T10002 Contact Us For Availability
121A
Wall Oven Door Outer Panel (Black) GEN WB57T10091 Contact Us For Availability
151
Wall Oven Door Lock Assembly GEN WB14T10008 Contact Us For Availability
158
Range Limit Switch GEN WB24T10033 Contact Us For Availability
159
Limit Switch GEN WB24T10045 Contact Us For Availability
201
Oven Wrapper GEN WB63T10033 Contact Us For Availability
202
Frame GEN WB63T10058 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Insulation Retainer GEN WB02K5305 Contact Us For Availability
216
Wire Cover GEN WB34K5216 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
Bk Insul Ret GEN WB02K5307 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Retainer Insert GEN WB02T10082 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
241
Oven Rack GEN WB48K5022 Contact Us For Availability
251
Range Bake Element GEN WB44T10006 Contact Us For Availability
252
Range Broil Element, 4,400-watt GEN WB44K5030 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
262
Trim Vert Si GEN WB07T10040 Contact Us For Availability
262A
Trim Vert Si GEN WB07T10041 Contact Us For Availability
262B
Trim Vert Si GEN WB07T10042 Contact Us For Availability
262C
Trim Vert Si GEN WB07T10043 Contact Us For Availability
264
Vent Trim GEN WB07T10177 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
278
Heat Shield GEN WB34T10024 Contact Us For Availability
279
Condenser Kit GEN WB50T10039 Contact Us For Availability
281
Wall Oven Door Hinge, Right GEN WB14T10005 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
416
Fan Hous Cvr GEN WB34K5217 Contact Us For Availability
511
Fan Motor GEN WB26T10006 Contact Us For Availability
513
Fan Housing GEN WB26K5063 Contact Us For Availability
514
Fan Cover GEN WB26T10002 Contact Us For Availability
534
Oven Support GEN WB26T10003 Contact Us For Availability
537
Fan Cover GEN WB26T10001 Contact Us For Availability
600
Condenser Wire GEN WB18K5473 Contact Us For Availability
602
Screw-12-pk GEN WH02X0941 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
999
Installation GEN SR10259 Contact Us For Availability
999A
MANUAL MINI & WD ASM GEN 31-13647 Contact Us For Availability
999B
Owner's Manual GEN SR10405 Contact Us For Availability
999C
Parts List GEN 31-13792 Contact Us For Availability
× ![]()
