Model GE 911.41185991 Electric Built-In Oven (Kenmore 91141185991) – Common Parts & Diagrams

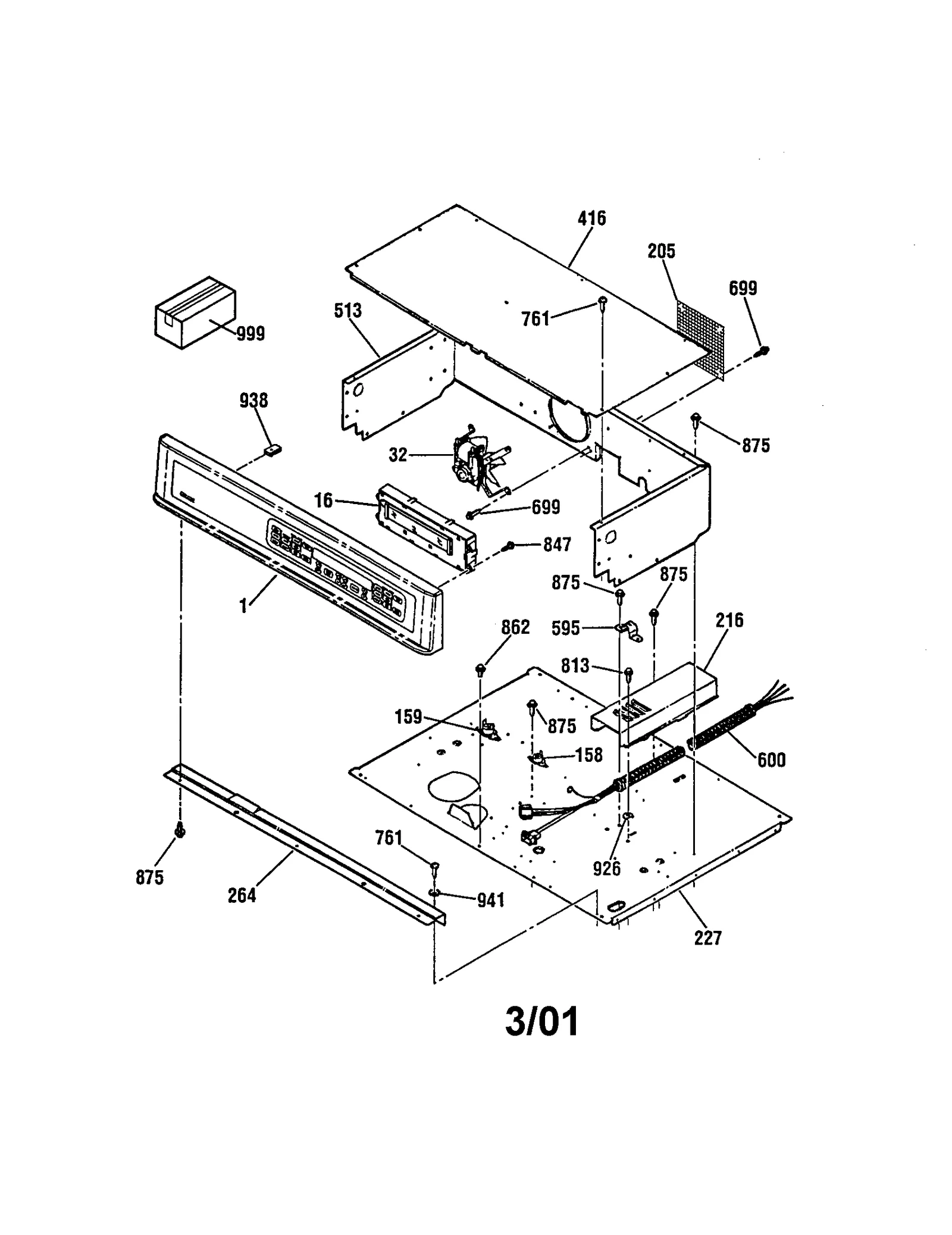

CONTROL

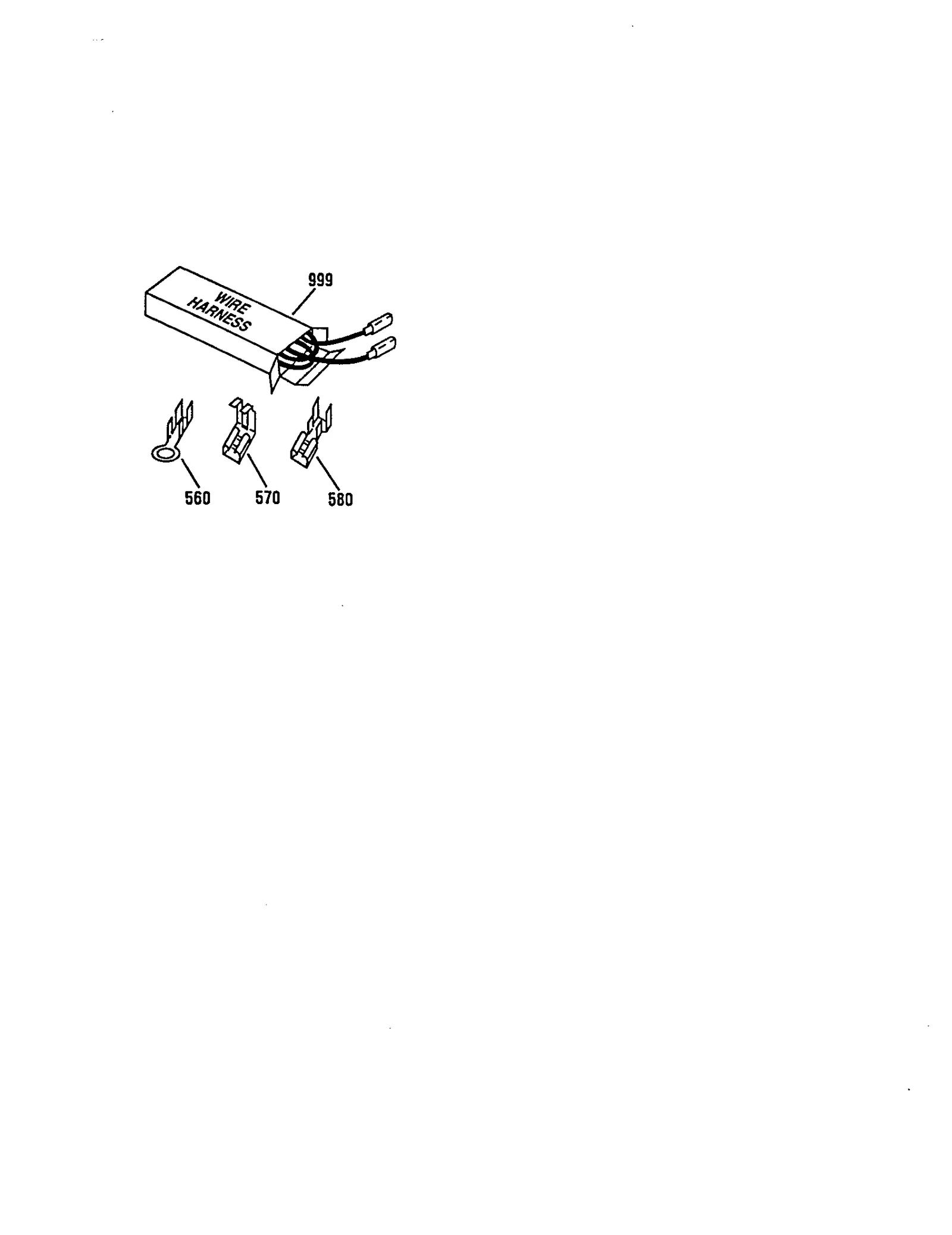

WIRE HARNESSES AND CONPONENTS

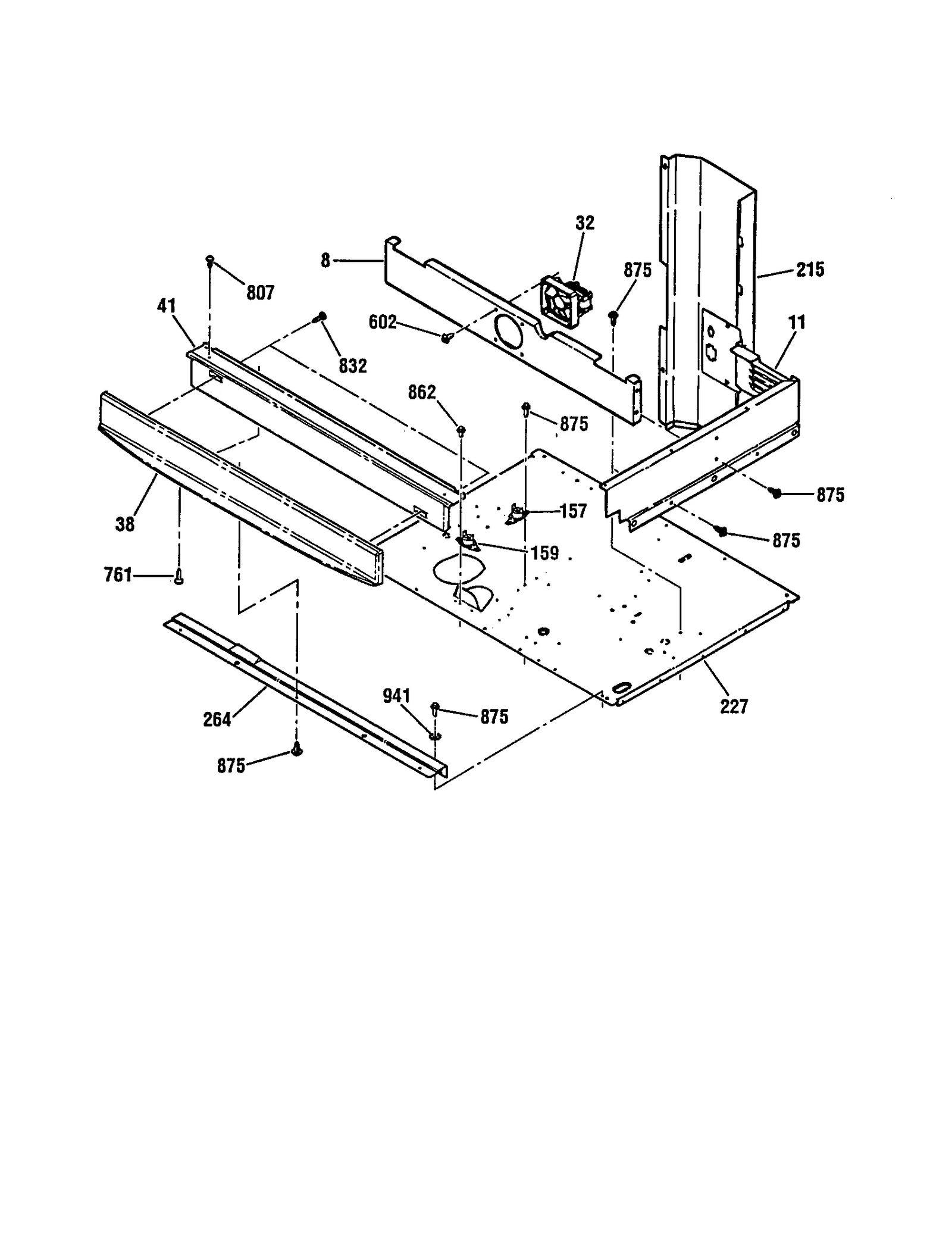

CENTER SPACE

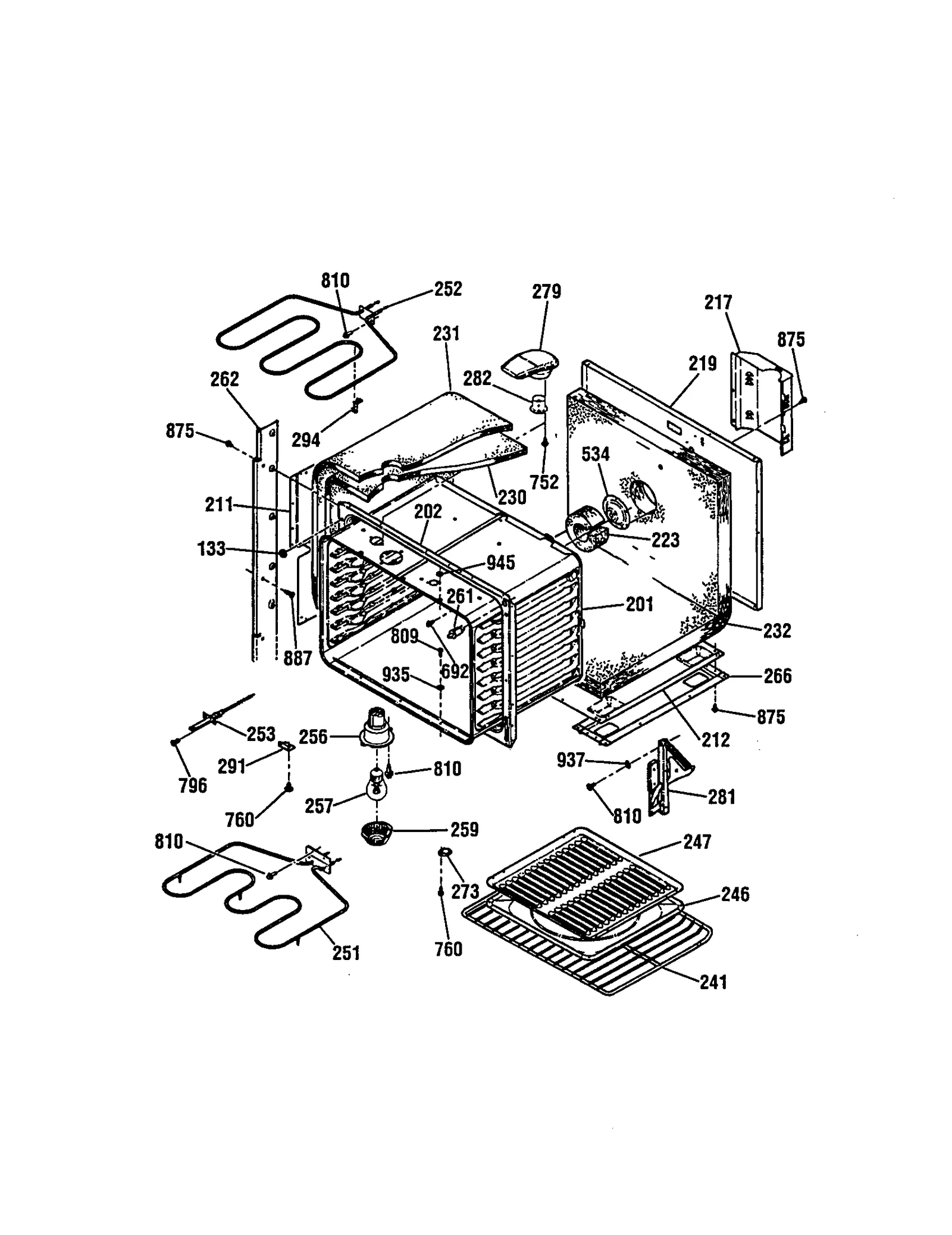

UPPER BODY

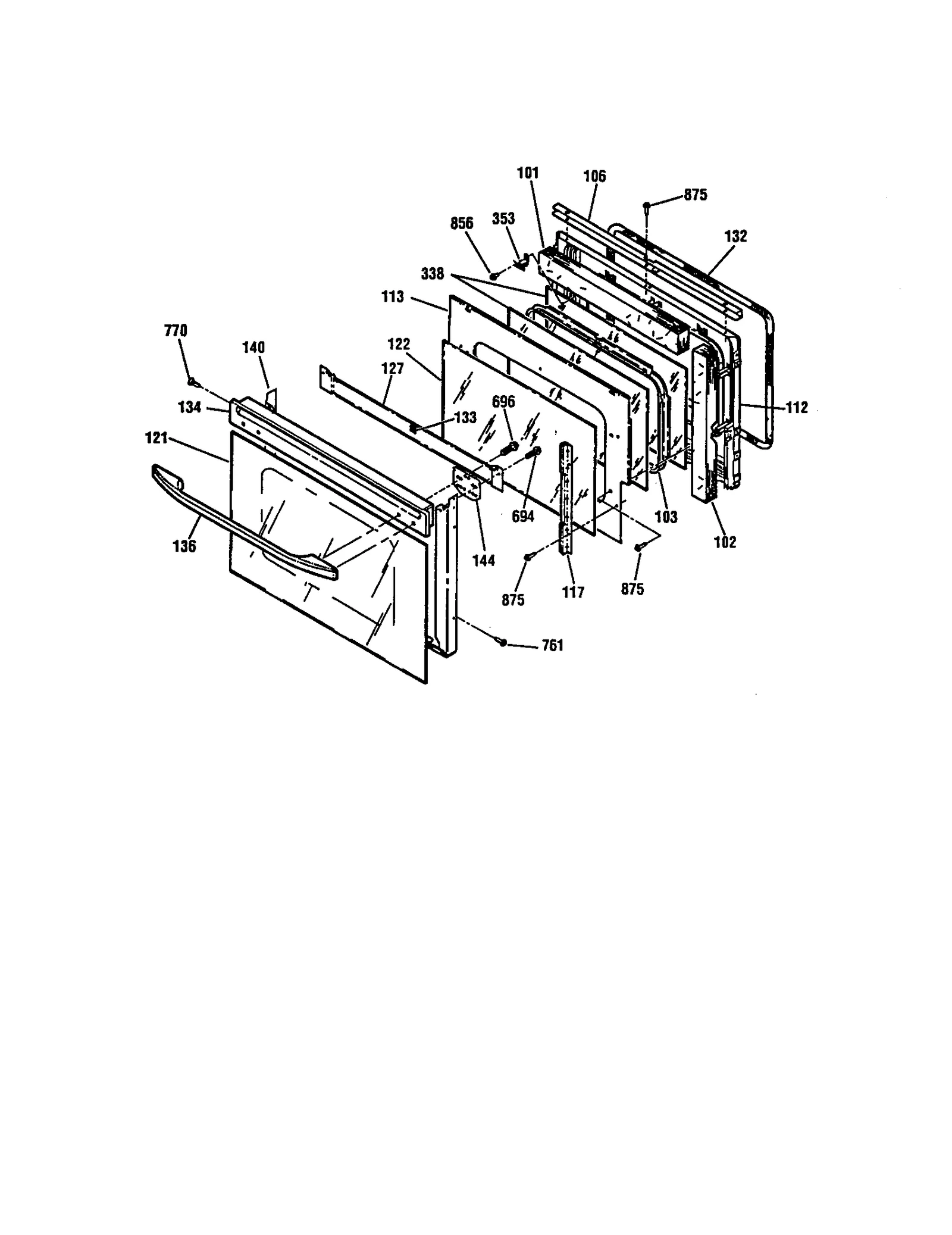

DOOR

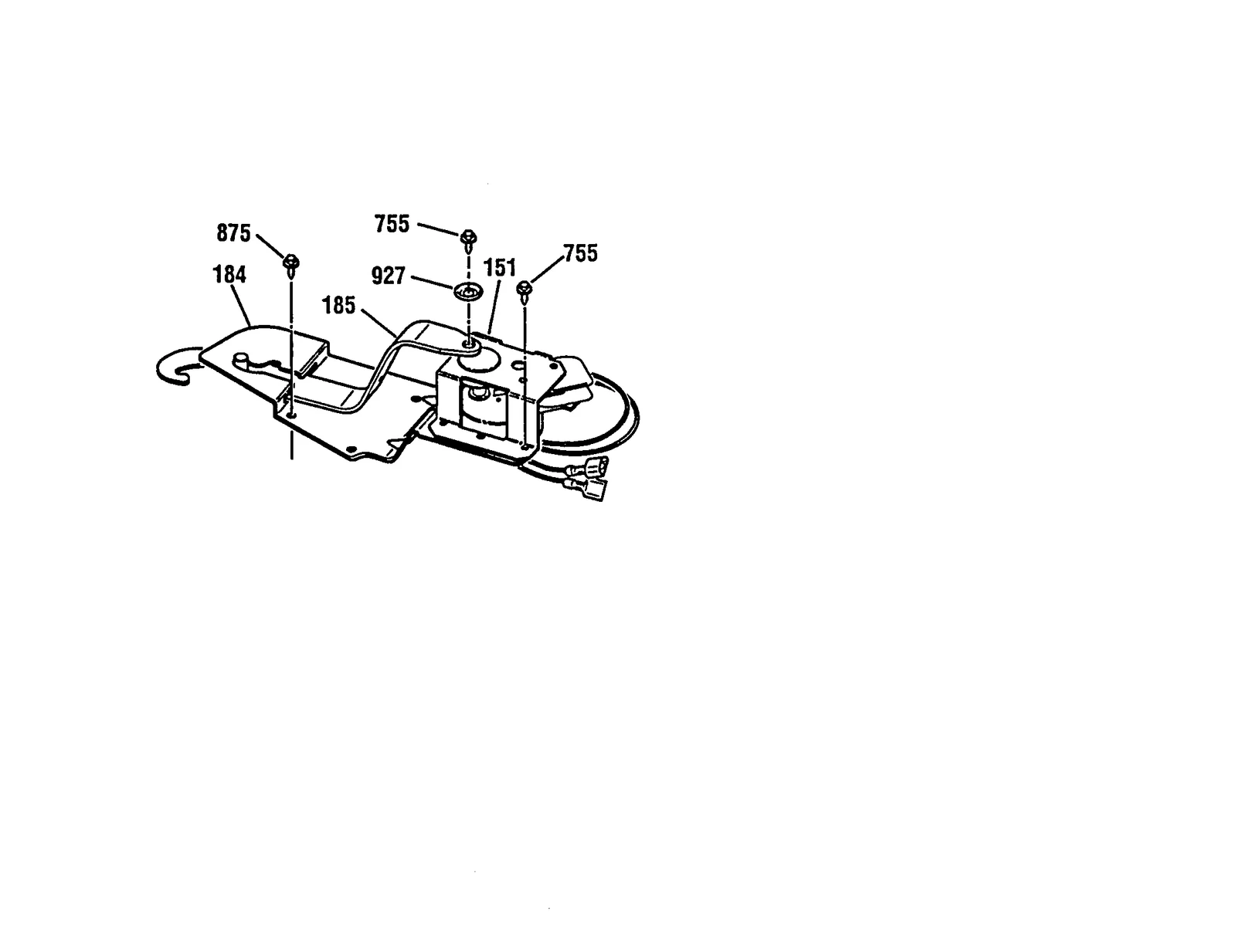

DOOR LOCK

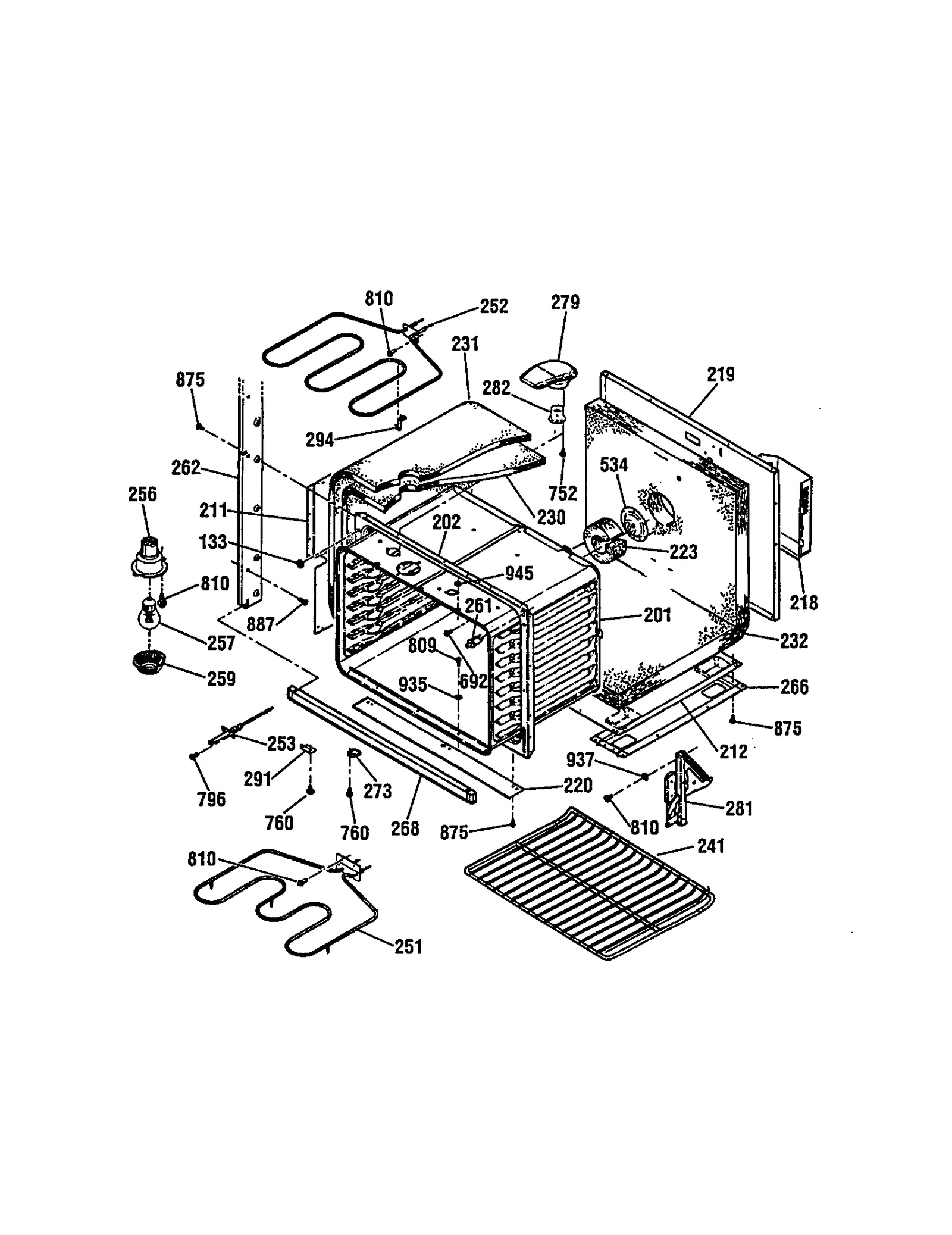

LOWER BODY
Common parts from model GE 911.41185991 Electric Built-In Oven (Kenmore 91141185991)
1
Range Control Panel Assembly (White) GEN WB36T10161 Contact Us For Availability
1A
Range Control Panel GEN WB36T10160 Contact Us For Availability
11
Side Ext-rt GEN WB37K5037 Contact Us For Availability
11A
Side Ext-lt GEN WB37K5038 Contact Us For Availability
38
Filler White GEN WB07K5448 Contact Us For Availability
38A
Filler Trim GEN WB07K5447 Contact Us For Availability
41
Shield W/ins GEN WB34K5252 Contact Us For Availability
41A
Filler Trim GEN WB34K5241 Contact Us For Availability
103
Window Spacer GEN WB02K5321 Contact Us For Availability
106
Trim Shield GEN WB07T10036 Contact Us For Availability
112
Ov Dr Lining GEN WB55T10017 Contact Us For Availability
113
Insulation Retainer GEN WB02K5322 Contact Us For Availability
121
Wall Oven Door Outer Panel (White) GEN WB57T10090 Contact Us For Availability
121A
Wall Oven Door Outer Panel (Black) GEN WB57T10091 Contact Us For Availability
127
Drive Vent Shield GEN WB34K5197 Contact Us For Availability
133
Felt Pad GEN WB01K5115 Contact Us For Availability
134
Door Vent Trim GEN WB07T10044 Contact Us For Availability
134A
Door Vent Trim GEN WB07T10045 Contact Us For Availability
136
Oven Door Handle GEN WB15K10006 Contact Us For Availability
136A
Oven Door Handle GEN WB15K10005 Contact Us For Availability
140
Oven Drive Frame GEN WB55T10070 Contact Us For Availability
140A
Frame (Black) GEN WB55T10071 Contact Us For Availability
157
Wall Oven High-Limit Thermostat GEN WB24T10039 Contact Us For Availability
158
Range Limit Switch GEN WB24T10033 Contact Us For Availability
159
Limit Switch GEN WB24T10045 Contact Us For Availability
184
Drive Lock Plate GEN WB34K5200 Contact Us For Availability
185
Wall Oven Door Lock Lever GEN WB15K5075 Contact Us For Availability
201
Oven Wrapper GEN WB63T10057 Contact Us For Availability
202
Frame GEN WB63T10058 Contact Us For Availability
211
Sd Insul Ret GEN WB02K5306 Contact Us For Availability
212
Insulation Retainer GEN WB02K5305 Contact Us For Availability
215
Wire Cover GEN WB34K5224 Contact Us For Availability
217
Wire Cover GEN WB34K5193 Contact Us For Availability
218
Lower Wire Cover GEN WB34K5192 Contact Us For Availability
219
Bk Insul Ret GEN WB02K5307 Contact Us For Availability
220
Btm Trim Shd GEN WB34K5195 Contact Us For Availability
227
Retainer GEN WB02K5387 Contact Us For Availability
230
Insulation GEN WB35K5118 Contact Us For Availability
231
Insulation GEN WB35K5119 Contact Us For Availability
246
Grid Broiler GEN WB48T10017 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
262
Trim GEN WB07T10049 Contact Us For Availability
262A
Trim GEN WB07T10050 Contact Us For Availability
262B
Trim GEN WB07T10051 Contact Us For Availability
262C
Trim GEN WB07T10052 Contact Us For Availability
264
Inner Trim Vent GEN WB07T10165 Contact Us For Availability
268
Body Trim GEN WB07T10038 Contact Us For Availability
268A
Lower Trim GEN WB07T10037 Contact Us For Availability
273
COVER GEN WB02K5365 Contact Us For Availability
279
Box Vent GEN WB38T10014 Contact Us For Availability
281
Wall Oven Door Hinge, Right GEN WB14T10005 Contact Us For Availability
282
Vent Tube GEN WB28K5010 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
534
Oven Support GEN WB26T10003 Contact Us For Availability
602
Screw-12-pk GEN WH02X0941 Contact Us For Availability
692
Screw GEN WZ04X0416 Contact Us For Availability
761
Screw (White) GEN WB01K5185 Contact Us For Availability
770
Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
937
Washer GEN WB01X1140 Contact Us For Availability
941
Washer GEN WB01X1399 Contact Us For Availability
× ![]()
