GE 911.41085991 Wall Oven (Kenmore 91141085991) Parts List

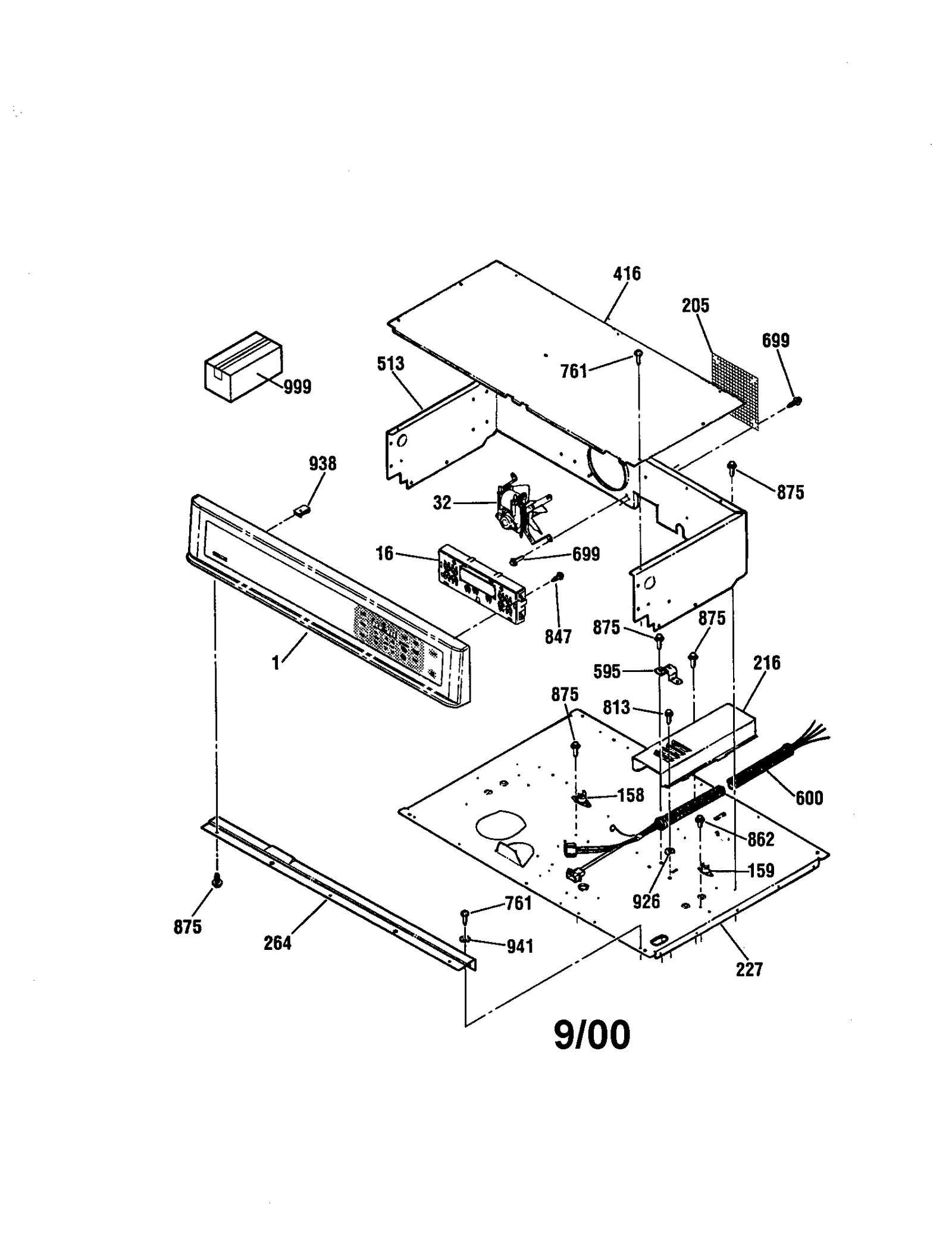

1

Range Touch Control Panel (White) GEN WB36T10163 Contact Us For Availability

View on Model

1A

Wall Oven Control Panel GEN WB36T10162 Contact Us For Availability

View on Model

1B

Range Control Panel Assembly (Almond) GEN WB36T10164 Contact Us For Availability

View on Model

16

Oven Control GEN WB27T10066 Contact Us For Availability

View on Model

32

WB26K5061 GE Oven Upper Fan Assembly In Stock GEN WB26K5061 $138.06

View on Model

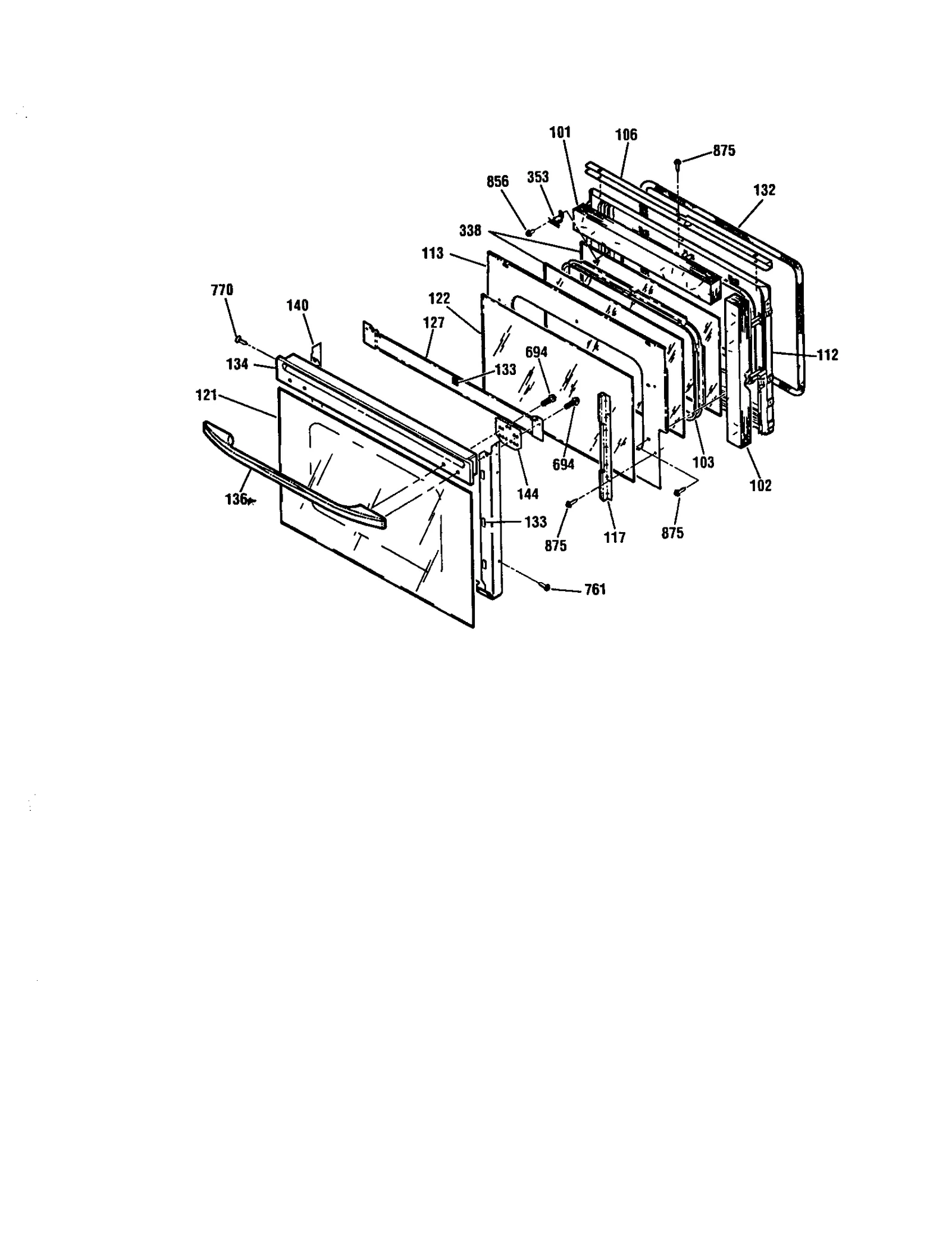

101

WB35K5097 GE Oven Door Insulation SD Backorder GEN WB35K5097 $8.07

View on Model

103

Window Spacer GEN WB02K5321 Contact Us For Availability

View on Model

106

Trim Shield GEN WB07T10036 Contact Us For Availability

View on Model

112

Ov Dr Lining GEN WB55T10017 Contact Us For Availability

View on Model

113

Insulation Retainer GEN WB02K5322 Contact Us For Availability

View on Model

117

WB56T10373 GE Oven Door Retainer Kit Backorder GEN WB56T10373 $984.18

View on Model

121

Wall Oven Door Outer Panel (White) GEN WB57T10090 Contact Us For Availability

View on Model

121A

Wall Oven Door Outer Panel (Black) GEN WB57T10091 Contact Us For Availability

View on Model

121B

Oven Door Glass GEN WB57T10094 Contact Us For Availability

View on Model

122

WB57K5230 GE Oven Inner Glass Door Backorder GEN WB57K5230 $178.17

View on Model

127

Drive Vent Shield GEN WB34K5197 Contact Us For Availability

View on Model

132

WB04T10008 GE Oven Door Gasket Backorder GEN WB04T10008 $117.94

View on Model

133

WB01T10022 GE Oven Door Bumper Backorder GEN WB01T10022 $8.07

View on Model

133

Felt Pad GEN WB01K5115 Contact Us For Availability

View on Model

133A

WB01T10026 GE Oven Door Pad Backorder GEN WB01T10026 $8.07

View on Model

134

Door Vent Trim GEN WB07T10044 Contact Us For Availability

View on Model

134A

Door Vent Trim GEN WB07T10045 Contact Us For Availability

View on Model

134B

Door Vent Trim GEN WB07T10048 Contact Us For Availability

View on Model

136

Oven Door Handle GEN WB15K10006 Contact Us For Availability

View on Model

136A

Oven Door Handle GEN WB15K10005 Contact Us For Availability

View on Model

136B

Door Handle GEN WB15K10007 Contact Us For Availability

View on Model

140

Oven Drive Frame GEN WB55T10070 Contact Us For Availability

View on Model

140A

Frame (Black) GEN WB55T10071 Contact Us For Availability

View on Model

140B

Oven Door Frame GEN WB55T10074 Contact Us For Availability

View on Model

144

WB2K5395 GE Oven Reinforcement Plate Backorder GEN WB2K5395 $11.92

View on Model

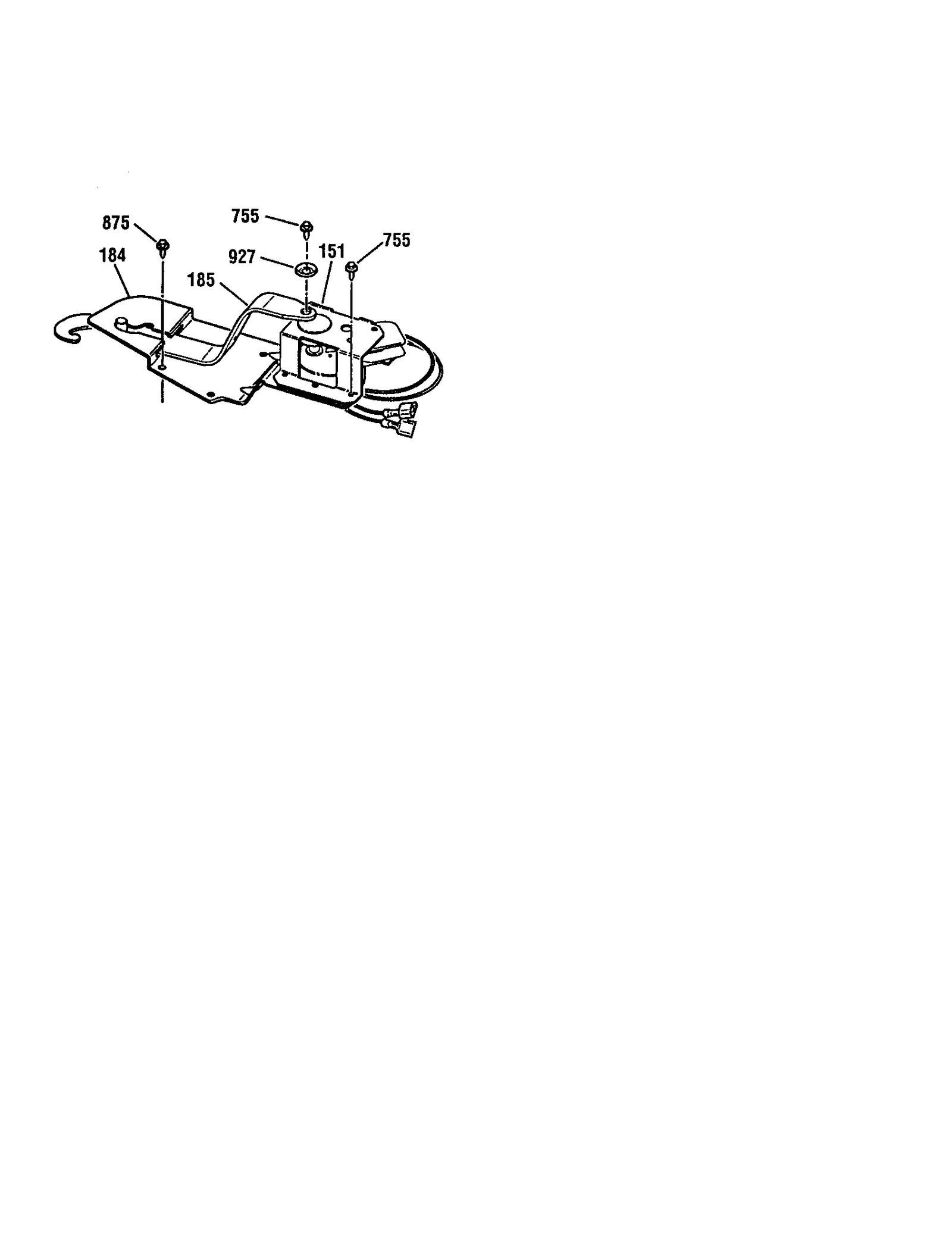

151

WB49T10020 GE Stove Oven Lock Motor Latch Ass In Stock GEN WB49T10020 $138.83

View on Model

158

Range Limit Switch GEN WB24T10033 Contact Us For Availability

View on Model

159

Limit Switch GEN WB24T10045 Contact Us For Availability

View on Model

184

Drive Lock Plate GEN WB34K5200 Contact Us For Availability

View on Model

185

Wall Oven Door Lock Lever GEN WB15K5075 Contact Us For Availability

View on Model

205

Screw Fan Housing GEN WB06K5041 Contact Us For Availability

View on Model

216

Wire Cover GEN WB34K5216 Contact Us For Availability

View on Model

227

Retainer GEN WB02K5387 Contact Us For Availability

View on Model

232

WB35T10090 GE Oven Back & Bottom Insulation Backorder GEN WB35T10090 $126.19

View on Model

251

WB44T10018 GE Oven Bake Element In Stock GEN WB44T10018 $102.01

View on Model

252

WB44K5017 GE Oven Broil Element Backorder GEN WB44K5017 $219.36

View on Model

253

WB23X5340 GE Oven Heat Sensor Probe Assembly In Stock GEN WB23X5340 $124.78

View on Model

256

WB08T10002 GE Oven 40W 120V Cooktop Lamp Bulb In Stock GEN WB08T10002 $20.46

View on Model

259

WB25T10002 GE Oven Bulb Lens In Stock GEN WB25T10002 $9.05

View on Model

264

Inner Trim Vent GEN WB07T10165 Contact Us For Availability

View on Model

268

Body Trim GEN WB07T10038 Contact Us For Availability

View on Model

268B

Trim Btm (ad GEN WB07T10039 Contact Us For Availability

View on Model

273

COVER GEN WB02K5365 Contact Us For Availability

View on Model

279

Box Vent GEN WB38T10014 Contact Us For Availability

View on Model

281

Wall Oven Door Hinge, Right GEN WB14T10005 Contact Us For Availability

View on Model

281A

WB14T10006 GE Oven Hinge Assembly Left Backorder GEN WB14T10006 $127.68

View on Model

282

Vent Tube GEN WB28K5010 Contact Us For Availability

View on Model

291

COVER GEN WB02X9152 Contact Us For Availability

View on Model

294

WB2X9719 GE Oven Support Bracket Clip In Stock GEN WB2X9719 $9.98

View on Model

338

Oven Door Glass GEN WB56K0020 Contact Us For Availability

View on Model

353

WB2X8320 GE Range Window Clip Backorder GEN WB2X8320 $8.07

View on Model

416

Fan Hous Cvr GEN WB34K5217 Contact Us For Availability

View on Model

513

Fan Housing GEN WB26K5063 Contact Us For Availability

View on Model

534

Oven Support GEN WB26T10003 Contact Us For Availability

View on Model

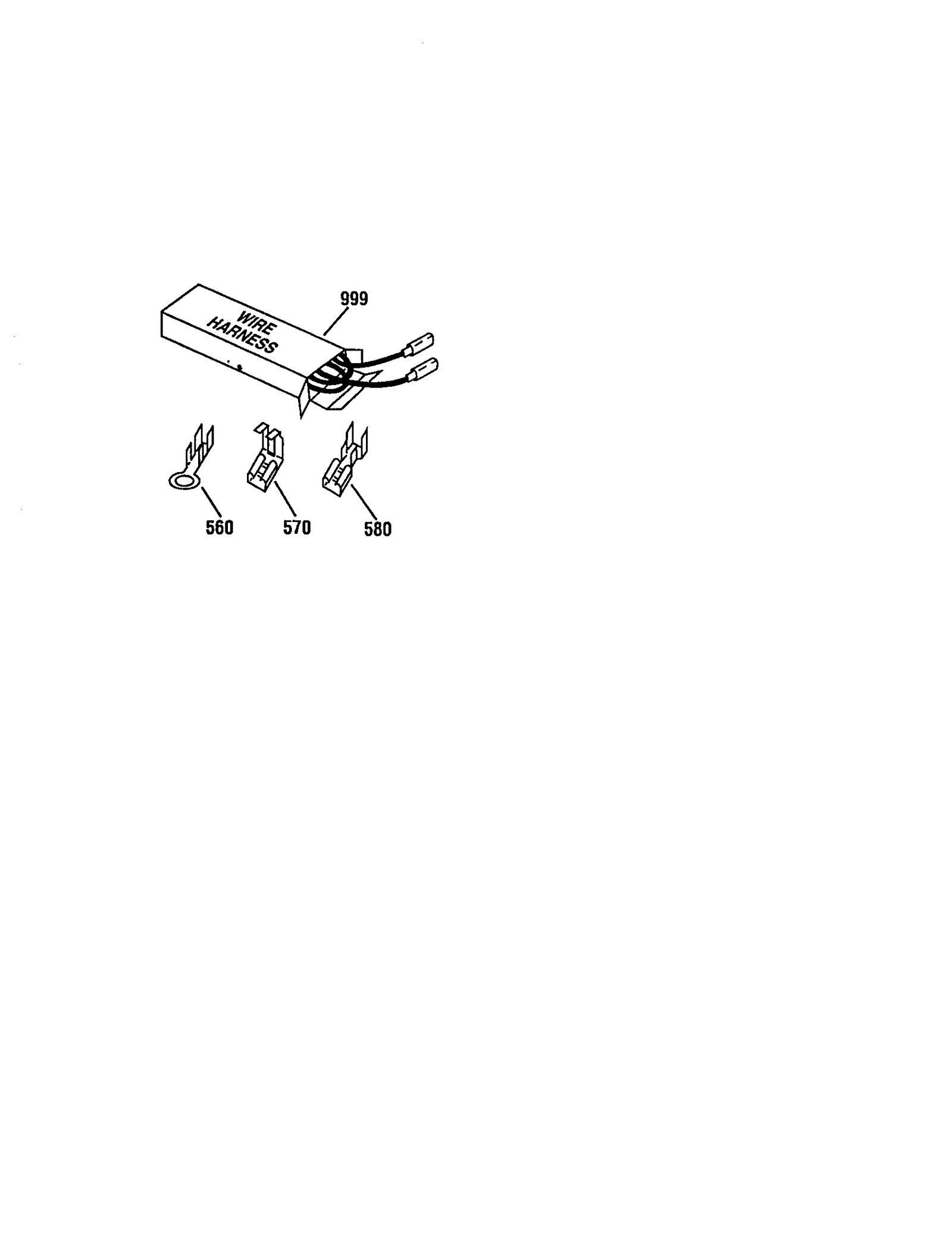

560

Eyelet Terminal GEN WB18M0001 Contact Us For Availability

View on Model

570

250 Flag GEN STD374251 Contact Us For Availability

View on Model

580

187 Push On GEN STD374180 Contact Us For Availability

View on Model

580A

250 Push On GEN STD374250 Contact Us For Availability

View on Model

595

WB2K5126 GE Oven Condenser Clamp Backorder GEN WB2K5126 $9.56

View on Model

600

Condenser Wire GEN WB18K5473 Contact Us For Availability

View on Model

692

Screw GEN WZ04X0416 Contact Us For Availability

View on Model

694

WB1K5157 GE Oven Black Screw Backorder GEN WB1K5157 $8.07

View on Model

696

WB1K5156 GE Range Screw Backorder GEN WB1K5156 $8.07

View on Model

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $7.75

View on Model

752

WB1K5200 GE Oven Screw 340531 Backorder GEN WB1K5200 $8.07

View on Model

755

WZ4X44D GE Screw Package Backorder GEN WZ4X44D $41.76

View on Model

760

WB1X536 GE Oven Screw Backorder GEN WB1X536 $9.85

View on Model

761

WB1K5029 GE Oven Screw Backorder GEN WB1K5029 $8.07

View on Model

761

Screw (White) GEN WB01K5185 Contact Us For Availability

View on Model

761B

Trim Screw GEN WB01K5211 Contact Us For Availability

View on Model

770

Range Screw, #8-18 x 3/8-in GEN WB01T10011 Contact Us For Availability

View on Model

770A

WB01T10012 GE Oven Screw Backorder GEN WB01T10012 $8.07

View on Model

770B

Screw-ad GEN WB01T10007 Contact Us For Availability

View on Model

796

WB1K5116 GE Oven Screw Backorder GEN WB1K5116 $8.07

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $8.88

View on Model

810

WB1X1130 GE Oven Screw 10-32 Backorder GEN WB1X1130 $8.07

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $8.07

View on Model

847

WB1X1118 GE Oven Screw 6-32T Backorder GEN WB1X1118 $8.07

View on Model

856

WB1X1293 GE Oven Screw In Stock GEN WB1X1293 $8.07

View on Model

862

SCREW GEN WB01X1178 Contact Us For Availability

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $8.07

View on Model

887

WB1K5172 GE Oven Screw Backorder GEN WB1K5172 $16.46

View on Model

887A

WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black Backorder GEN WB1K5173 $8.07

View on Model

887B

Trim Screw GEN WB01K5178 Contact Us For Availability

View on Model

926

GROUND WASHER GEN WB01X1260 Contact Us For Availability

View on Model

927

WB1X119D GE Oven Range Washer In Stock GEN WB1X119D $16.09

View on Model

935

WB1K5174 GE Oven Washer Backorder GEN WB1K5174 $8.07

View on Model

937

Washer GEN WB01X1140 Contact Us For Availability

View on Model

938

WB1K5209 GE Oven Clip Backorder GEN WB1K5209 $13.12

View on Model

941

Washer GEN WB01X1399 Contact Us For Availability

View on Model

945

WB1K5046 GE Oven Washer Backorder GEN WB1K5046 $7.17

View on Model

999

WB18K5490 GE Oven Door Switch Wire Harness Backorder GEN WB18K5490 $42.67

View on Model

999

Installation GEN SR10259 Contact Us For Availability

View on Model

999A

Wire Harness GEN WB18T10031 Contact Us For Availability

View on Model

999A

MANUAL MINI & WD ASM GEN 31-13648 Contact Us For Availability

View on Model

999B

Lck Mtr Harn GEN WB18K5491 Contact Us For Availability

View on Model

999B

Wall Oven Owner's Manual GEN SR10403 Contact Us For Availability

View on Model

999C

Parts List GEN 31-13735 Contact Us For Availability

View on Model
