Model Whirlpool 8720VV ELECTRIC COOK-TOP – Common Parts & Diagrams

1
SCREW (8BX3/8-NI)
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
View on Model
1
BLOCK, TERMINAL
BLOCK, TERMINAL WPL 7401P01560 Contact Us For Availability
View on Model
1
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 74002074 Contact Us For Availability
View on Model
2
CONNECTOR, TUBING
CONNECTOR, TUBING WPL 74003068 Contact Us For Availability
View on Model
2
CONNECTOR, TUBING
CONNECTOR, TUBING WPL 74003912 Contact Us For Availability
View on Model
2
CONNECTOR, CONDUIT
CONNECTOR, CONDUIT WPL 7417P00560 Contact Us For Availability
View on Model
3
TUBING, FLEXIBLE
TUBING, FLEXIBLE WPL 3414F03444 Contact Us For Availability
View on Model
3
BRACKET, CONDUIT
BRACKET, CONDUIT WPL 3801F07245 Contact Us For Availability
View on Model
3
WIRES, CONDUIT TUBING
WIRES, CONDUIT TUBING WPL 74002075 Contact Us For Availability
View on Model
3
TUBING, 3/8`` FLEX 25``
TUBING, 3/8`` FLEX 25`` WPL 74004060 Contact Us For Availability
View on Model
3
GROMMET
GROMMET WPL 8008P01760 Contact Us For Availability
View on Model
3
SLEEVE, TUBE
SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 7101P34960 Contact Us For Availability
View on Model
4
HOUSING, UNIT
HOUSING, UNIT WPL 74001966 Contact Us For Availability
View on Model
4
HOUSING, UNIT
HOUSING, UNIT WPL 74005303 Contact Us For Availability
View on Model
5
ELEMENT (8``)
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
View on Model
5
NUT, SNAP
NUT, SNAP WPL 7103P01660 Contact Us For Availability
View on Model
6
ELEMENT (6``)
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
View on Model
6
STRAP
STRAP WPL 8019P00260 Contact Us For Availability
View on Model
7
COVER, HOUSING
COVER, HOUSING WPL 4005F08651 Contact Us For Availability
View on Model
7
SCREW
SCREW WPL 7101P05960 Contact Us For Availability
View on Model
7
SCREW (10ABX1.0-ZN)
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
View on Model
8
KNOB, INFINITE SWITCH (WHT)
KNOB, INFINITE SWITCH (WHT) WPL 74002090 Contact Us For Availability
View on Model
8
GROMMET, NYLON
GROMMET, NYLON WPL 8008P01460 Contact Us For Availability
View on Model
9
NUT, SWITCH
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
View on Model
9
SCREW
SCREW WPL 7118P00460 Contact Us For Availability
View on Model
10
HOUSING, SWITCH
HOUSING, SWITCH WPL 74002068 Contact Us For Availability
View on Model
10
BRACKET, MAIN TOP SUPPORT
BRACKET, MAIN TOP SUPPORT WPL 3801F18345 Contact Us For Availability
View on Model
11
SWITCH, INFINITE (1400W)
SWITCH, INFINITE (1400W) WPL 74002069 Contact Us For Availability
View on Model
12
TOP, MAIN (WHT)
TOP, MAIN (WHT) WPL 74002191 Contact Us For Availability
View on Model
13
PANEL, CONTROL (WHT)
PANEL, CONTROL (WHT) WPL 74002192 Contact Us For Availability
View on Model
14
LIGHT, INDICATOR
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
View on Model
15
LENS, INDICATOR LIGHT
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
View on Model
16
HARNESS, CONTROL PANEL
HARNESS, CONTROL PANEL WPL 74002072 Contact Us For Availability
View on Model
18
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 74002073 Contact Us For Availability
View on Model
NI

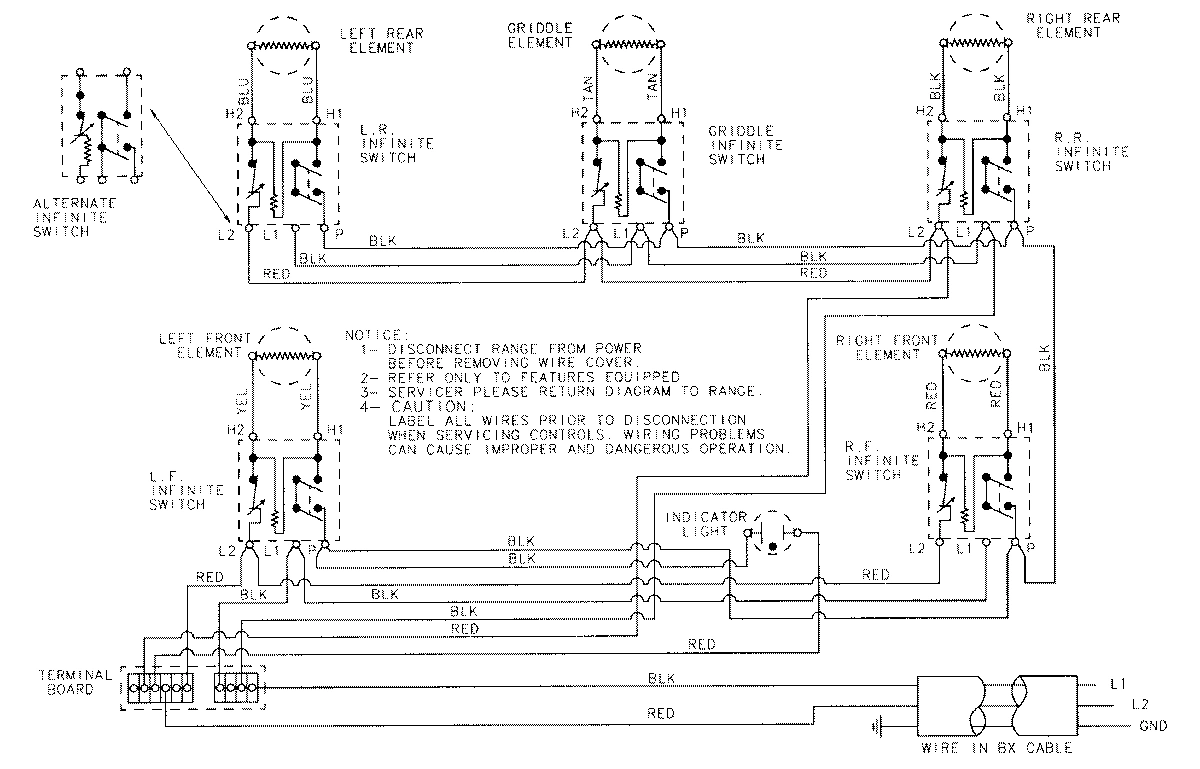

WIRING INFORMATION
WIRING INFORMATION WPL 15001543 Contact Us For Availability
View on Model
