Model Whirlpool 7MGVW9959KL0 Automatic Washer – Common Parts & Diagrams
COVER

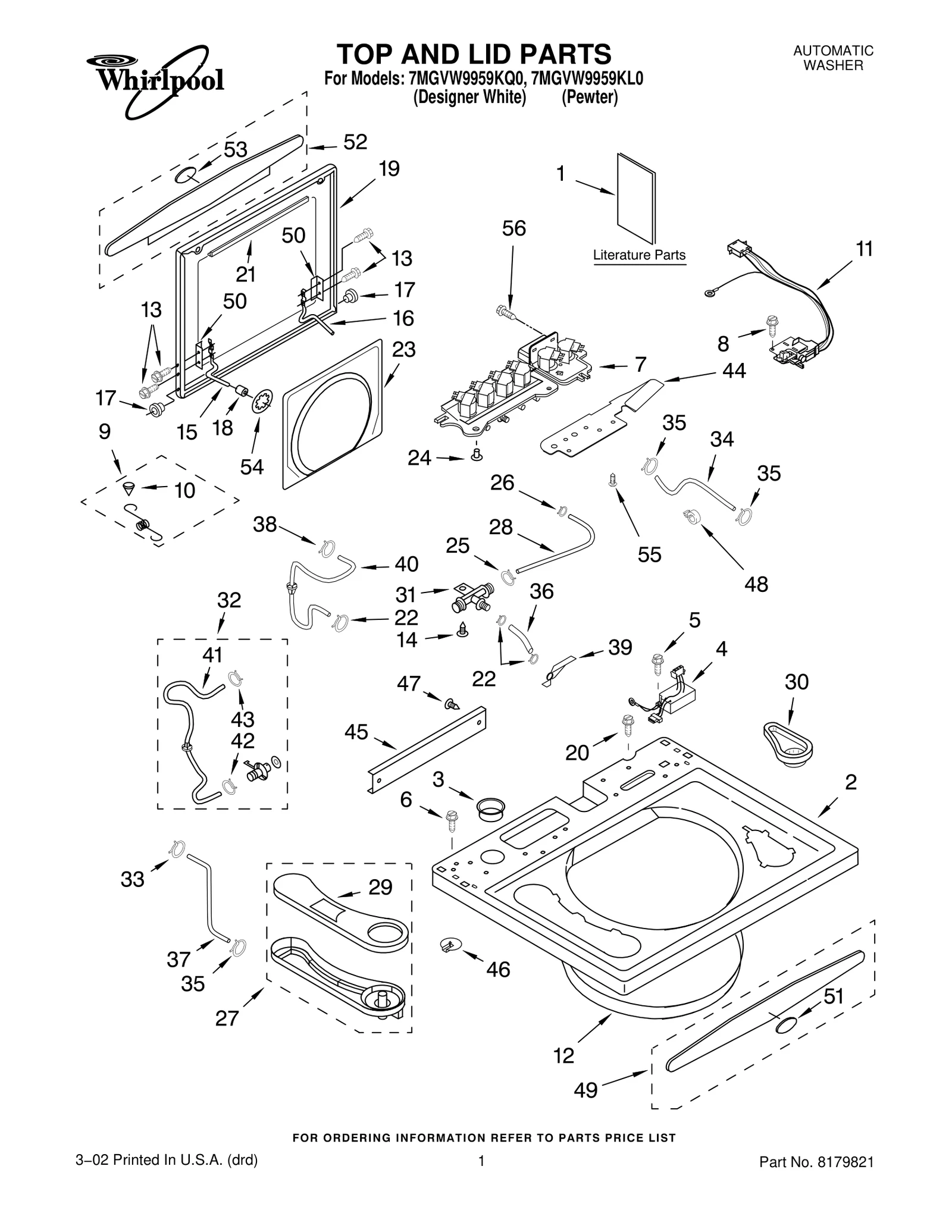

TOP AND LID PARTS
CABINET AND FRAME PARTS
WASHPLATE, BASKET AND TUB PARTS
CONTROL PANEL PARTS
BRAKE, MOTOR AND PUMP PARTS
SUSPENSION PARTS
BRAKE AND DRIVE TUBE PARTS
MISCELLANEOUS PARTS
Common parts from model Whirlpool 7MGVW9959KL0 Automatic Washer
1
Tube Assembly WPL 8271972 Contact Us For Availability
1
Damper Asm (4) WPL 9723241 Contact Us For Availability
1
Miscellaneous Parts Bag WPL 8529946 Contact Us For Availability
2
Panel, Front — Pewter WPL 8522246 Contact Us For Availability
2
Washplate (Outer) WPL 8522194 Contact Us For Availability
2
Shaft, Washplate WPL 8055094 Contact Us For Availability
2
Ball, Suspension WPL 8055179 Contact Us For Availability
2
Ring, Thrust WPL 9724189 Contact Us For Availability
3
Bracket, Top Lock WPL 8526005 Contact Us For Availability
3
Bolt WPL 8282519 Contact Us For Availability
3
Spring Assembly WPL 8055224 Contact Us For Availability
3
Socket, Suspension WPL 8054964 Contact Us For Availability
3
Tube, Spin WPL 8318243 Contact Us For Availability
4
Stabilizer, Suspension WPL 9723335 Contact Us For Availability
4
Brace, Cabinet WPL 8283274 Contact Us For Availability
4
Washplate (Inner) WPL 8299753 Contact Us For Availability
4
Bracket, Control WPL 8299690 Contact Us For Availability
4
Pulley, Drive WPL 8282498 Contact Us For Availability
5
White (Uncut) LUBRICANT WPL 799344 Contact Us For Availability
5
Leveler WPL 8519518 Contact Us For Availability
5
Control, Motor WPL 661646 Contact Us For Availability
5
Bearing Plate, Lower Drive WPL 8055091 Contact Us For Availability
5
Stud, Ball (2) WPL 8312710 Contact Us For Availability
5
Foot PAINT, TOUCH−UP (1/2oz.) WPL 8281198 Contact Us For Availability
5
Shoe, Brake WPL 8271887 Contact Us For Availability
5
Pewter PAINT, BULK (1 qt.) WPL 4396175 Contact Us For Availability
5
Lubricant (Use Only in Brake Shoe Assembly On WPL 285208 Contact Us For Availability
6
Support, Tub WPL 8054942 Contact Us For Availability
6
Hinge, Top to Panel WPL 8519823 Contact Us For Availability
6
Nut, Lock WPL 8520855 Contact Us For Availability
6
Link, Leveling WPL 8271819 Contact Us For Availability
6
Cap, Brake Spring (2) WPL 8055260 Contact Us For Availability
7
Valve, Water Inlet WPL 9724754 Contact Us For Availability
7
Pad, Front Panel WPL 8317308 Contact Us For Availability
7
Seal, Inner Washplate WPL 8519203 Contact Us For Availability
7
Cap, End (L.H.) — White WPL 8299683 Contact Us For Availability
7
Cap, End (L.H.) — Pewter WPL 8299685 Contact Us For Availability
7
Clip, Leveling (2) WPL 8054532 Contact Us For Availability
7
Spring, Brake WPL 8271969 Contact Us For Availability
8
Foot, Rear (2) WPL 8054747 Contact Us For Availability
8
Screw, 10−32 x 1/2 WPL 3400085 Contact Us For Availability
8
Tub Ring Assembly WPL 8317383 Contact Us For Availability
8
Switch, Pressure (Operating − Marked "OPR") WPL 8054766 Contact Us For Availability
8
Plate, Motor WPL 8283349 Contact Us For Availability
8
Sleeve, Cam WPL 8055314 Contact Us For Availability
9
Seal, Tub Ring WPL 8054355 Contact Us For Availability
9
Panel, Console — Pearl WPL 8532066 Contact Us For Availability
9
Panel, Console — Pewter WPL 8532067 Contact Us For Availability
9
Socket, Isolator WPL 8054912 Contact Us For Availability
9
Cam, Brake Release WPL 8055263 Contact Us For Availability
10
Panel, Back WPL 8518896 Contact Us For Availability
10
Basket WPL 8529754 Contact Us For Availability
10
Cap, End (R.H.) — White WPL 8299686 Contact Us For Availability
10
Cap, End (R.H.) — Pewter WPL 8299688 Contact Us For Availability
10
Isolator, Motor WPL 8054996 Contact Us For Availability
10
Driver, Brake Cam WPL 8054992 Contact Us For Availability
11
Switch, Lid WPL 8272124 Contact Us For Availability
11
Balance Ring WPL 9724323 Contact Us For Availability
11
Control, Machine WPL 661640 Contact Us For Availability
11
Motor, Main Drive WPL 9724551 Contact Us For Availability
11
Bearing, Thrust WPL 8282568 Contact Us For Availability
12
Pan, Bottom WPL 8283364 Contact Us For Availability
12
U−Joint WPL 8272000 Contact Us For Availability
12
Screw WPL 1166054 Contact Us For Availability
12
Isolator, Motor WPL 8054913 Contact Us For Availability
13
Frame, Cabinet WPL 8054500 Contact Us For Availability
13
Tub WPL 8529943 Contact Us For Availability
13
Belt, Drive WPL 9724037 Contact Us For Availability
14
Clip, Pine Tree WPL 8282566 Contact Us For Availability
14
Switch, Motor (2) WPL 8300022 Contact Us For Availability
14
Harness, Wiring WPL 8529923 Contact Us For Availability
14
Stud, Ball (2) WPL 8272127 Contact Us For Availability
15
Hinge, Lid WPL 8055257 Contact Us For Availability
15
Spacer, Cabinet WPL 8283353 Contact Us For Availability
15
Gasket Centerpost WPL 8055288 Contact Us For Availability
15
Panel, Rear WPL 8299987 Contact Us For Availability
15
Screw WPL 3400214 Contact Us For Availability
16
Tube, Overflow WPL 8283307 Contact Us For Availability
16
Screw, 1/4 x 3/4 WPL 8055225 Contact Us For Availability
17
Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability
17
Harness, Lower WPL 8299814 Contact Us For Availability
17
Plug, Overflow WPL 8283308 Contact Us For Availability
17
Isolator, Pump Motor (3) WPL 8283536 Contact Us For Availability
18
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
18
Hose, Drain WPL 9724100 Contact Us For Availability
18
Bag, Overflow WPL 8055135 Contact Us For Availability
18
Clip, Pressure Hose WPL 8055297 Contact Us For Availability
18
Motor, Pump WPL 8054968 Contact Us For Availability
19
Clip, Tub Retainer (4) WPL 9724609 Contact Us For Availability
19
Capacitor, Pump Motor WPL 9724548 Contact Us For Availability
20
Spacer WPL 8271831 Contact Us For Availability
20
Screw WPL 3400206 Contact Us For Availability
21
Seal, Lid WPL 8054939 Contact Us For Availability
21
Lock, Top (Front) WPL 8318449 Contact Us For Availability
21
Absorber, Sound WPL 8055279 Contact Us For Availability
21
Pump (Complete) WPL 8527775 Contact Us For Availability
22
Retainer, Drain Hose (Storage) WPL 9724106 Contact Us For Availability
22
Retainer, Pump (2) WPL 8054967 Contact Us For Availability
23
Tube, Water Recirculation WPL 8054989 Contact Us For Availability
23
Power Cord Assembly WPL 8310666 Contact Us For Availability
23
Bracket, Motor Connector WPL 9725000 Contact Us For Availability
24
Cover, Harness WPL 8283348 Contact Us For Availability
24
Strap, Absorber WPL 8055280 Contact Us For Availability
25
Strain Relief WPL 8054328 Contact Us For Availability
25
Clip, Absorber WPL 8055272 Contact Us For Availability
25
Screw WPL 3400215 Contact Us For Availability
26
Hose, Tub to Pump WPL 8054944 Contact Us For Availability
26
Strap, Absorber WPL 8055273 Contact Us For Availability
27
Dispenser, Bleach & Fabric Softener WPL 8055022 Contact Us For Availability
27
Retainer, Push−In WPL 3351189 Contact Us For Availability
28
Hose, Tub to Pump WPL 8054988 Contact Us For Availability
28
Hose, Diverter to Venturi WPL 8054366 Contact Us For Availability
28
Shield, Splash WPL 8318231 Contact Us For Availability
29
Cover, Dispenser WPL 8272009 Contact Us For Availability
29
Pulley Assembly− Drive (Complete) WPL 8055089 Contact Us For Availability
29
U−Bend, Drain Hose WPL 8528318 Contact Us For Availability
30
Clip, Harness (3) WPL 8310651 Contact Us For Availability
31
Gusset, Harness WPL 8528279 Contact Us For Availability
33
Clip, Drain Hose WPL 9724675 Contact Us For Availability
36
Retainer, Drain Hose WPL 8318208 Contact Us For Availability
37
Hose, Fabric Softener WPL 8054365 Contact Us For Availability
38
Screw, 8−18 x 1.187 WPL 3400811 Contact Us For Availability
40
Hose, Fresh Rinse WPL 8316761 Contact Us For Availability
× ![]()
