LG 795.78403804 Refrigerator (Kenmore 79578403804) Parts List

103C

3550JJ0006D LG Refrigerator Toe Kickplate Gri Backorder LGE 3550JJ0006D $14.35

View on Model

103E

5218JJ3001A LG Refrigerator Slide Rail Backorder LGE 5218JJ3001A $7.08

View on Model

104E

Refrigerator Door Gasket Retainer LGE 4931JJ3002A Contact Us For Availability

View on Model

105A

5251JA3003B LG Drain Tube Assembly Backorder LGE 5251JA3003B $20.63

View on Model

113E

4970JA3011C LG Refrigerator Lever Spring In Stock LGE 4970JA3011C $7.08

View on Model

113F

4930JA3043A LG Refrigerator Holder Lever Backorder LGE 4930JA3043A $7.08

View on Model

128A

4975JJ2002A LG Refrigerator Right Side Drawer Backorder LGE 4975JJ2002A $26.61

View on Model

128B

4975JJ2002B LG Refrigerator Left Side Drawer Backorder LGE 4975JJ2002B $26.61

View on Model

128E

MEG54557902 LG Refrigerator Rail Holder Backorder LGE MEG54557902 $93.59

View on Model

128F

Refrigerator Drawer Track LGE MEG54557901 Contact Us For Availability

View on Model

131A

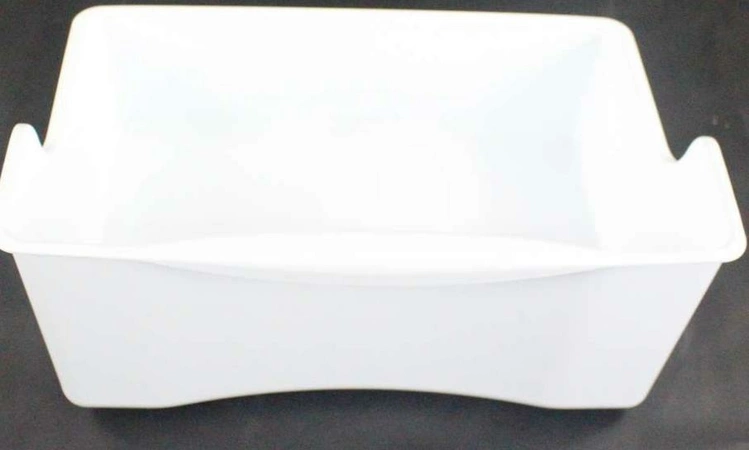

MKK42001801 LG Refrigerator Ice Bucket Backorder LGE MKK42001801 $88.89

View on Model

136A

Refrigerator Freezer Drawer LGE AJP72909002 Contact Us For Availability

View on Model

136B

Refrigerator Drawer Tray LGE MJS42003601 Contact Us For Availability

View on Model

145C

LG Refrigerator Drawer Slide Rail LGE 4975JJ2028C Contact Us For Availability

View on Model

145F

LG Refrigerator Drawer Track LGE 4975JJ2028D Contact Us For Availability

View on Model

154A

Refrigerator Vegetable Tray Cover LGE MCK49494001 Contact Us For Availability

View on Model

158A

3550JJ1104A LG Refrigerator Lamp Cover Backorder LGE 3550JJ1104A $34.08

View on Model

158E

Refrigerator Light Cover LGE MCK62661401 Contact Us For Availability

View on Model

167B

Refrigerator Glass Shelf LGE 4890JL1002N Contact Us For Availability

View on Model

212J

4620JJ3007B LG Handle Stopper Backorder LGE 4620JJ3007B $7.08

View on Model

233C

ACQ67902601 LG Cover Assembly Front Backorder LGE ACQ67902601 $65.22

View on Model

233D

ACQ67902602 LG Front Cover Assembly Backorder LGE ACQ67902602 $26.61

View on Model

233E

Refrigerator Door Gasket Retainer LGE 4930JJ2028B Contact Us For Availability

View on Model

233F

Refrigerator Door Gasket Retainer LGE 4930JJ2028A Contact Us For Availability

View on Model

233G

4430JJ2005B LG Refrigerator Left Side Door Cl Backorder LGE 4430JJ2005B $16.85

View on Model

233H

4430JJ2005A LG Refrigerator Left Side Door Cl Backorder LGE 4430JJ2005A $16.85

View on Model

241C

Refrigerator Door Deep Bin LGE 5005JJ2022A No Longer Available

View on Model

241G

AAP37000301 LG Refrigerator Door Basket Assem Backorder LGE AAP37000301 $93.59

View on Model

243A

Refrigerator Door Stop LGE 4620JJ3006D Contact Us For Availability

View on Model

243B

4620JJ2009A LG Refrigerator Door Stopper In Stock LGE 4620JJ2009A $7.78

View on Model

248E

Refrigerator Freezer Basket Front Cover LGE 3806JJ1048A Contact Us For Availability

View on Model

248F

Refrigerator Freezer Basket Front Cover Namep LGE 3806JL2011C Contact Us For Availability

View on Model

249E

5218JA1010E LG Refrigerator Right Side Drawer In Stock LGE 5218JA1010E $138.03

View on Model

249F

5218JA1010F LG Refrigerator Left Side Drawer In Stock LGE 5218JA1010F $178.30

View on Model

250A

4270JJ3001A LG Refrigerator Bar Backorder LGE 4270JJ3001A $26.61

View on Model

250B

4403JJ3001A LG Refrigerator Drawer Glide Gear Backorder LGE 4403JJ3001A $20.63

View on Model

262A

4004JA3002A LG Refrigerator Ice Maker Water S Backorder LGE 4004JA3002A $16.85

View on Model

262E

4350JA3005B LG Refrigerator Snap Retaining Ri In Stock LGE 4350JA3005B $7.78

View on Model

278A

Refrigerator Guide LGE 3017JA2008B Contact Us For Availability

View on Model

278D

MDR42523603 LG Funnel Backorder LGE MDR42523603 $17.93

View on Model

280A

Refrigerator Dispenser Cover Assembly LGE ACQ37160707 Contact Us For Availability

View on Model

281H

Refrigerator Freezer Door Tilt-Out Hinge LGE 4775JJ2011D No Longer Available

View on Model

282E

ACQ36833807 LG Hinge Cover Assembly Backorder LGE ACQ36833807 $93.59

View on Model

282G

Refrigerator Dispenser Ice Chute Door Kit LGE ABN72910201 Contact Us For Availability

View on Model

286A

4984JJ3003A LG Refrigerator Door Hinge Bushin In Stock LGE 4984JJ3003A $7.78

View on Model

301A

5421JJ1001B LG Refrigerator Evaporator Assemb Backorder LGE 5421JJ1001B $444.54

View on Model

305B

4580JJ3001A LG Refrigerator Tray Roller Backorder LGE 4580JJ3001A $20.63

View on Model

305C

4J04238A LG Common Pin Backorder LGE 4J04238A $7.08

View on Model

307A

TCA37091210 LG Compressor Set Assembly In Stock LGE TCA37091210 $361.61

View on Model

308A

Refrigerator Temperature Sensor LGE EBG42993601 Contact Us For Availability

View on Model

309A

Refrigerator Compressor Overload Protector LGE EAF39584205 Contact Us For Availability

View on Model

310A

3550C-0042C LG Relay Cover Backorder LGE 3550C-0042C $16.85

View on Model

317A

ADH73150210 LG Dryer Assembly In Stock LGE ADH73150210 $80.39

View on Model

318A

4930JA3034A LG Dryer Holder Backorder LGE 4930JA3034A $7.08

View on Model

327A

5006JA3034A LG Refrigerator Drain Tube Cap Backorder LGE 5006JA3034A $6.14

View on Model

328A

4J03020A LG Refrigerator Damper Pipe Backorder LGE 4J03020A $7.08

View on Model

329A

5901JJ1005A LG Fan Assembly Backorder LGE 5901JJ1005A $20.63

View on Model

329C

ADP36665702 LG Fan Assembly Backorder LGE ADP36665702 $26.61

View on Model

401A

6615JB2005C LG Refrigerator Defrost Control A Backorder LGE 6615JB2005C $46.04

View on Model

402A

6600JB3007B LG Refrigerator Door Switch Push Backorder LGE 6600JB3007B $20.63

View on Model

404A

4681JB1027C LG Evaporator Fan Motor In Stock LGE 4681JB1027C $108.91

View on Model

405C

5040JA2009B LG Refrigerator Damper Support Mo Backorder LGE 5040JA2009B $7.08

View on Model

405F

5040JA2004B LG Refrigerator Motor Rubber Grom Backorder LGE 5040JA2004B $7.08

View on Model

405G

4811JJ2002L LG Motor Bracket Assembly Backorder LGE 4811JJ2002L $218.26

View on Model

405H

6421JB2002L LG Reversing Valve Solenoid Backorder LGE 6421JB2002L $36.58

View on Model

406B

6600JB1010A LG Refrigerator Push Button Door In Stock LGE 6600JB1010A $10.75

View on Model

409D

3034JJ1002B LG Refrigerator Reflector Backorder LGE 3034JJ1002B $65.53

View on Model

410A

Refrigerator Light Socket LGE 6621JK2003B Contact Us For Availability

View on Model

418A

5300JB1100J LG Refrigerator Defrost Heater El Backorder LGE 5300JB1100J $111.87

View on Model

420A

EAU61644105 LG Refrigerator DC Motor Backorder LGE EAU61644105 $167.37

View on Model

500B

EBR60070706 LG Refrigerator Circuit Board Ass Backorder LGE EBR60070706 $74.64

View on Model

501A

Refrigerator Electronic Control Board LGE EBR41956108 Contact Us For Availability

View on Model

503D

3110JJ1021A LG Refrigerator Case Display Backorder LGE 3110JJ1021A $74.64

View on Model

503F

ABQ33905306 LG Refrigerator Display Case Asse Backorder LGE ABQ33905306 $196.71

View on Model

600A

AEQ36756907 LG Refrigerator Ice Maker Kit Backorder LGE AEQ36756907 $539.68

View on Model

600B

AKC37000402 LG Refrigerator Ice Bucket Assemb Backorder LGE AKC37000402 $481.27

View on Model

606A

Refrigerator Motor Assembly LGE EAU60943403 Contact Us For Availability

View on Model

610A

Refrigerator Temperature Sensor Cover LGE 3550JJ2020A Contact Us For Availability

View on Model

611E

Refrigerator Water Filter Head LGE 5231JA2005E Contact Us For Availability

View on Model

614A

Refrigerator Ice Dispenser Solenoid LGE 6421JA3001X Contact Us For Availability

View on Model

616A

5210JA3005X LG Plastic Tube In Stock LGE 5210JA3005X $20.63

View on Model

616B

5210JA3005E LG Refrigerator PE Water Supply T In Stock LGE 5210JA3005E $15.02

View on Model

616K

MCD38280806 LG Tube Connector Backorder LGE MCD38280806 $17.93

View on Model

617A

Refrigerator Dispenser Rubber Cap LGE 5040JA3032A Contact Us For Availability

View on Model

617B

4970JA3004G LG Spring Backorder LGE 4970JA3004G $3.46

View on Model

619A

MJX41869201 LG Refrigerator Water Inlet Valve Backorder LGE MJX41869201 $93.59

View on Model

623B

Refrigerator Ice Maker Water Fill Tube Gromme LGE 5006JJ2003A Contact Us For Availability

View on Model

623C

4770JA3001A LG Refrigerator Band Backorder LGE 4770JA3001A $7.08

View on Model

625A

Refrigerator Water Supply Tube Cover LGE 3550JA2184A Contact Us For Availability

View on Model

627B

4930JA3091A LG Refrigerator Water Line Connec Backorder LGE 4930JA3091A $7.08

View on Model

627C

4770JA3001E LG Refrigerator Band Backorder LGE 4770JA3001E $7.08

View on Model

630A

Refrigerator Ice Bank Door Assembly LGE 3581JA1182G Contact Us For Availability

View on Model

630C

Refrigerator Door Gasket LGE MDS41996601 Contact Us For Availability

View on Model

630F

AEH36582801 LG Upper Hinge Assembly Backorder LGE AEH36582801 $41.29

View on Model

630G

AEH36582701 LG Refrigerator Lower Hinge Assem Backorder LGE AEH36582701 $49.89

View on Model

630H

Refrigerator Cover Bar LGE MCK42523301 Contact Us For Availability

View on Model

630J

Refrigerator Door Gasket Assembly LGE 4987JA3025J Contact Us For Availability

View on Model

630K

Refrigerator Spring LGE 4970JA3044A Contact Us For Availability

View on Model

903E

6500JB2002T LG Refrigerator Freezer Temperatu Backorder LGE 6500JB2002T $20.63

View on Model

B01

1STZJA3004F LG Customized Screw In Stock LGE 1STZJA3004F $7.54

View on Model

S01

1SZZJJ3010A LG Customized Screw Backorder LGE 1SZZJJ3010A $2.17

View on Model

S22

4J01425B LG Customized Screw Backorder LGE 4J01425B $7.08

View on Model

S24

1SZZJA3011B LG Refrigerator Customized Drawin In Stock LGE 1SZZJA3011B $7.54

View on Model

S27

4J01424C LG Screw Customized Backorder LGE 4J01424C $7.08

View on Model

S38

4J00415D LG Refrigerator Customized Screw Backorder LGE 4J00415D $7.08

View on Model
