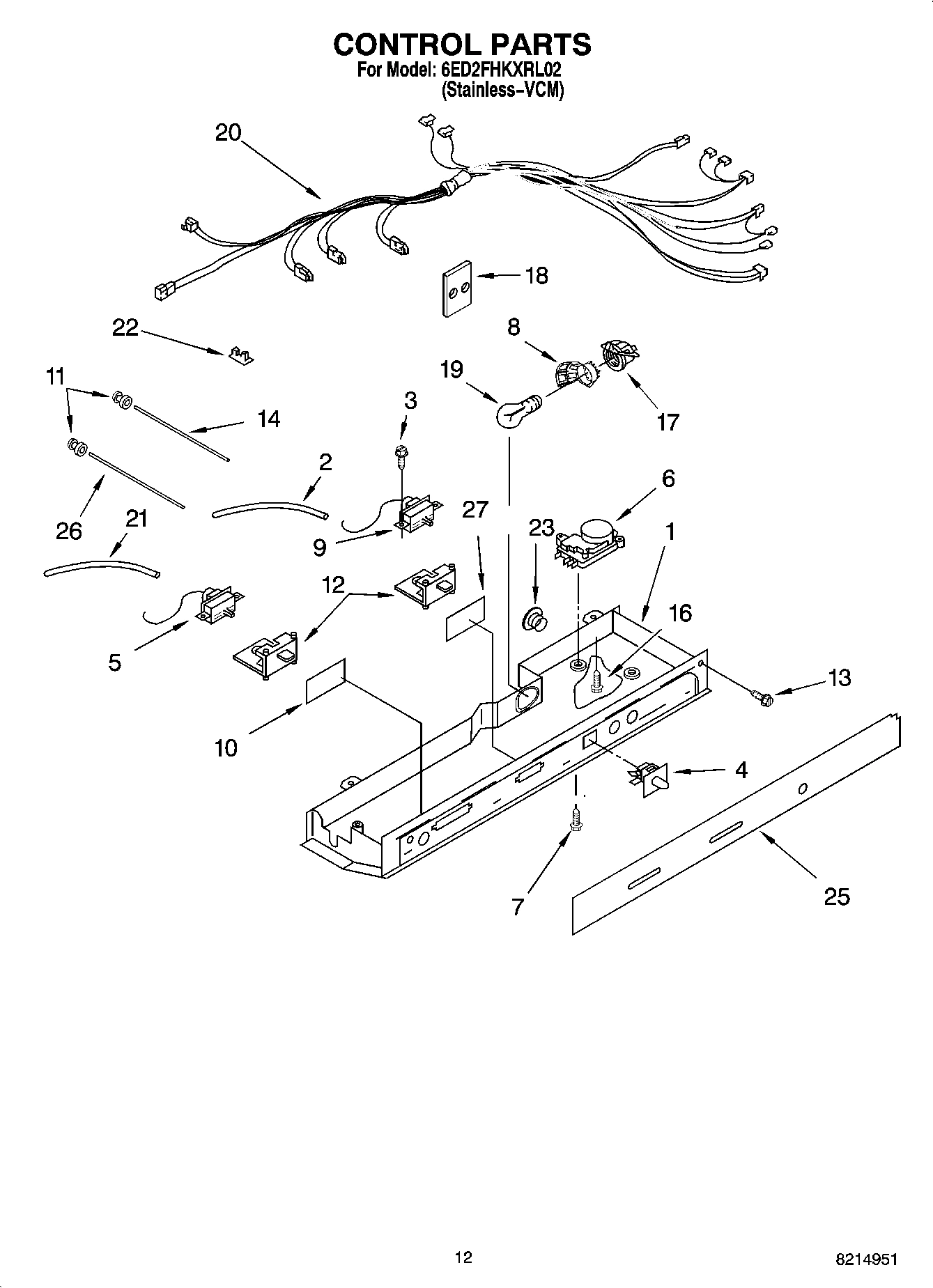

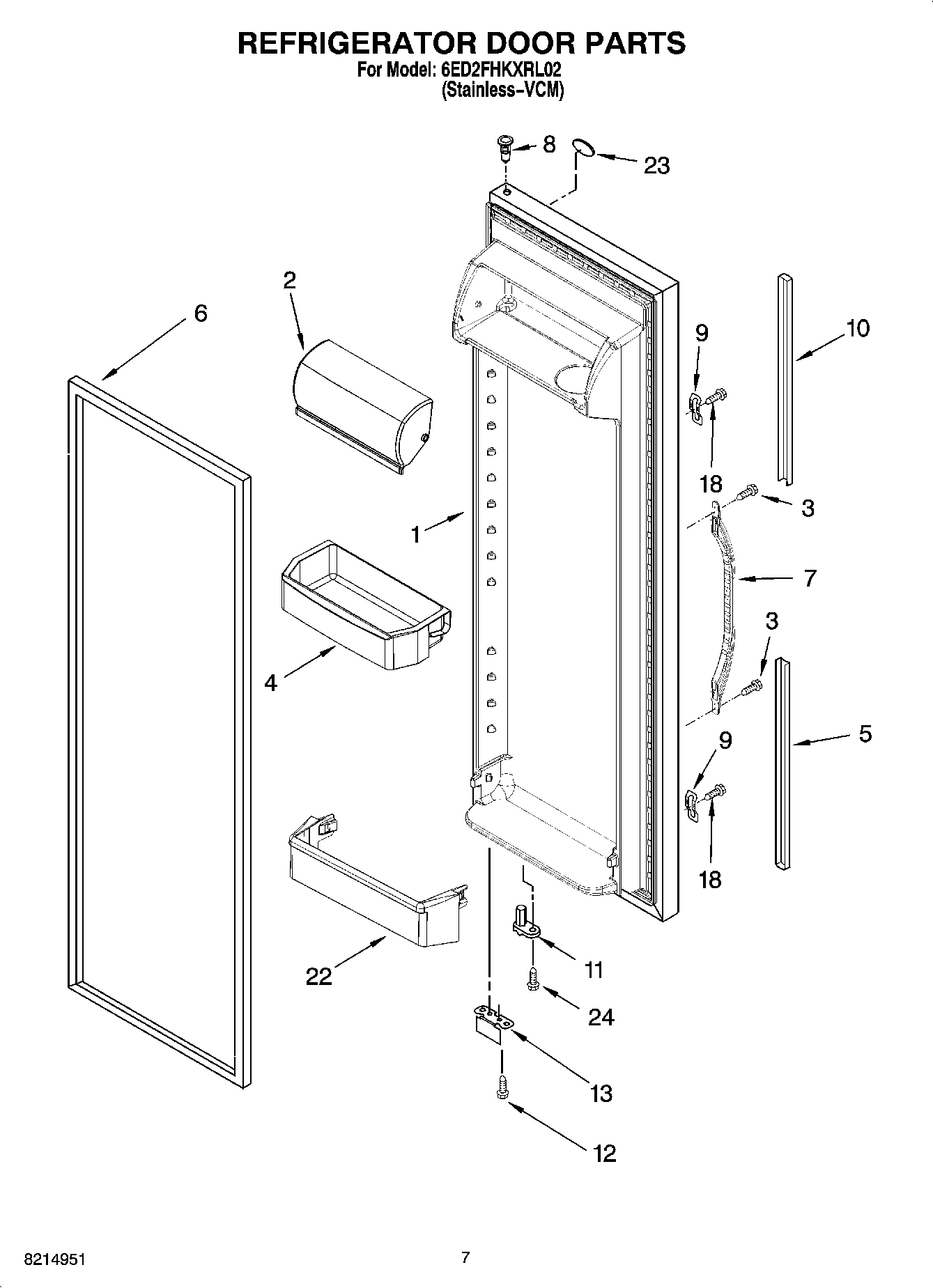

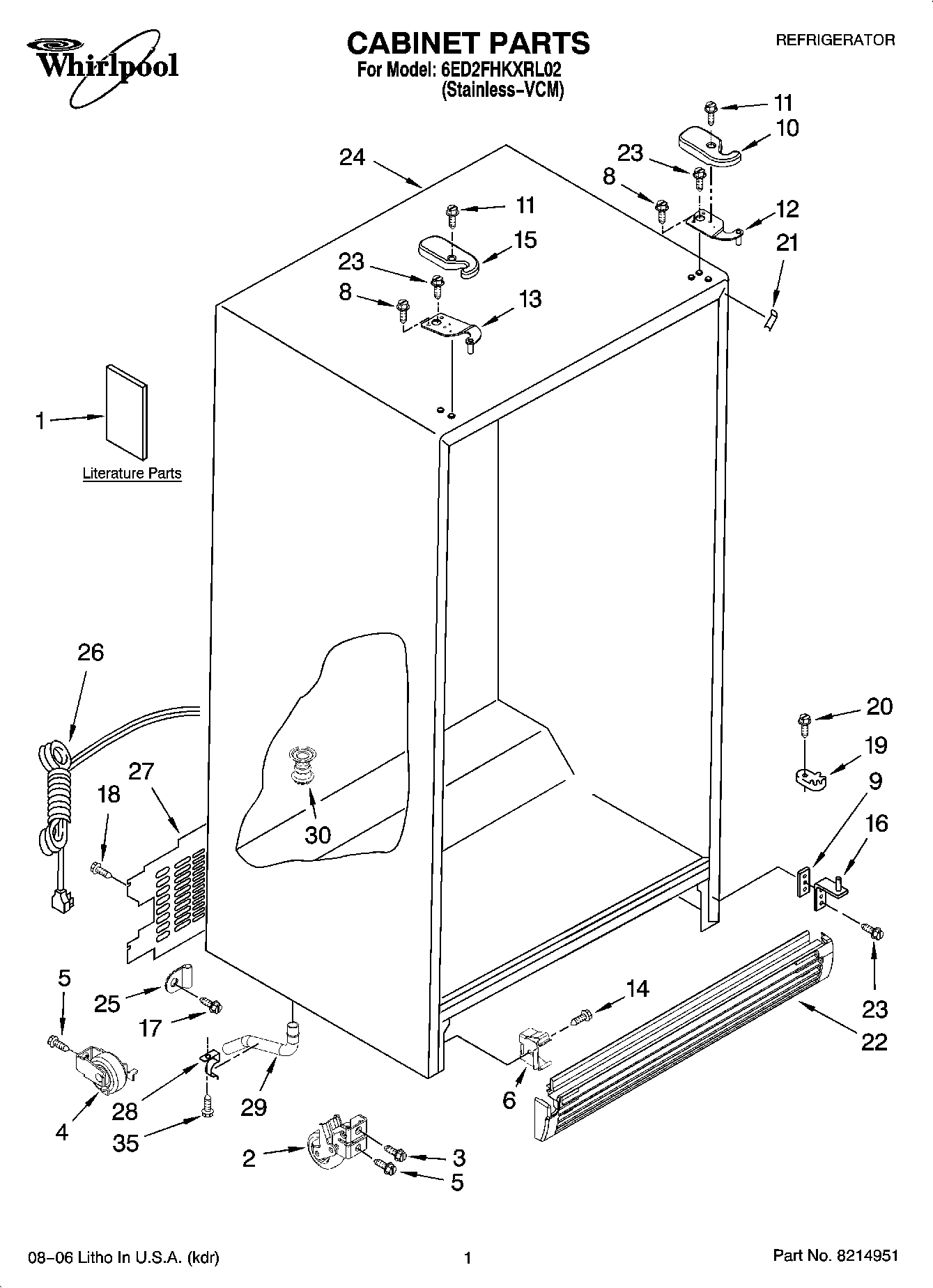

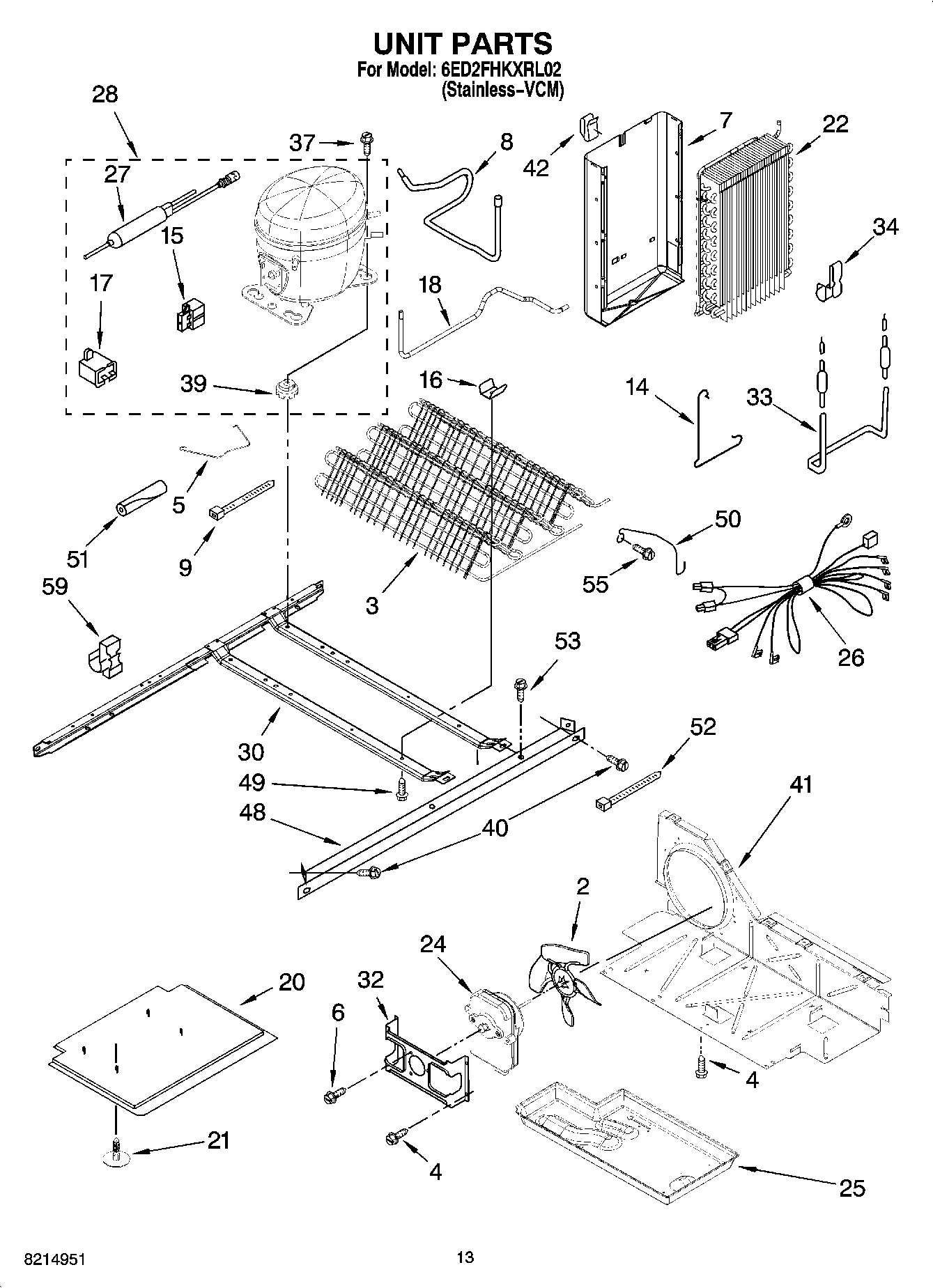

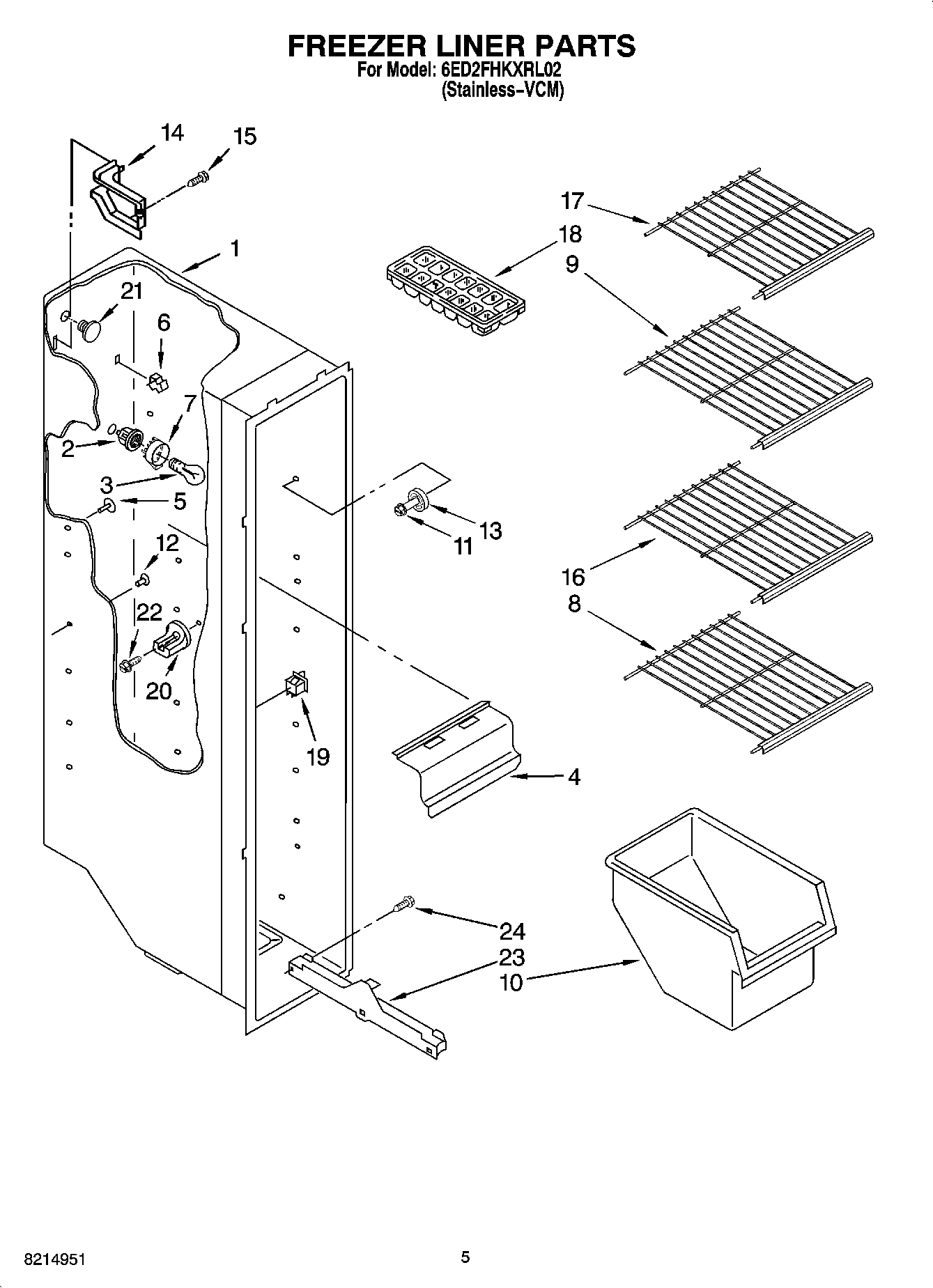

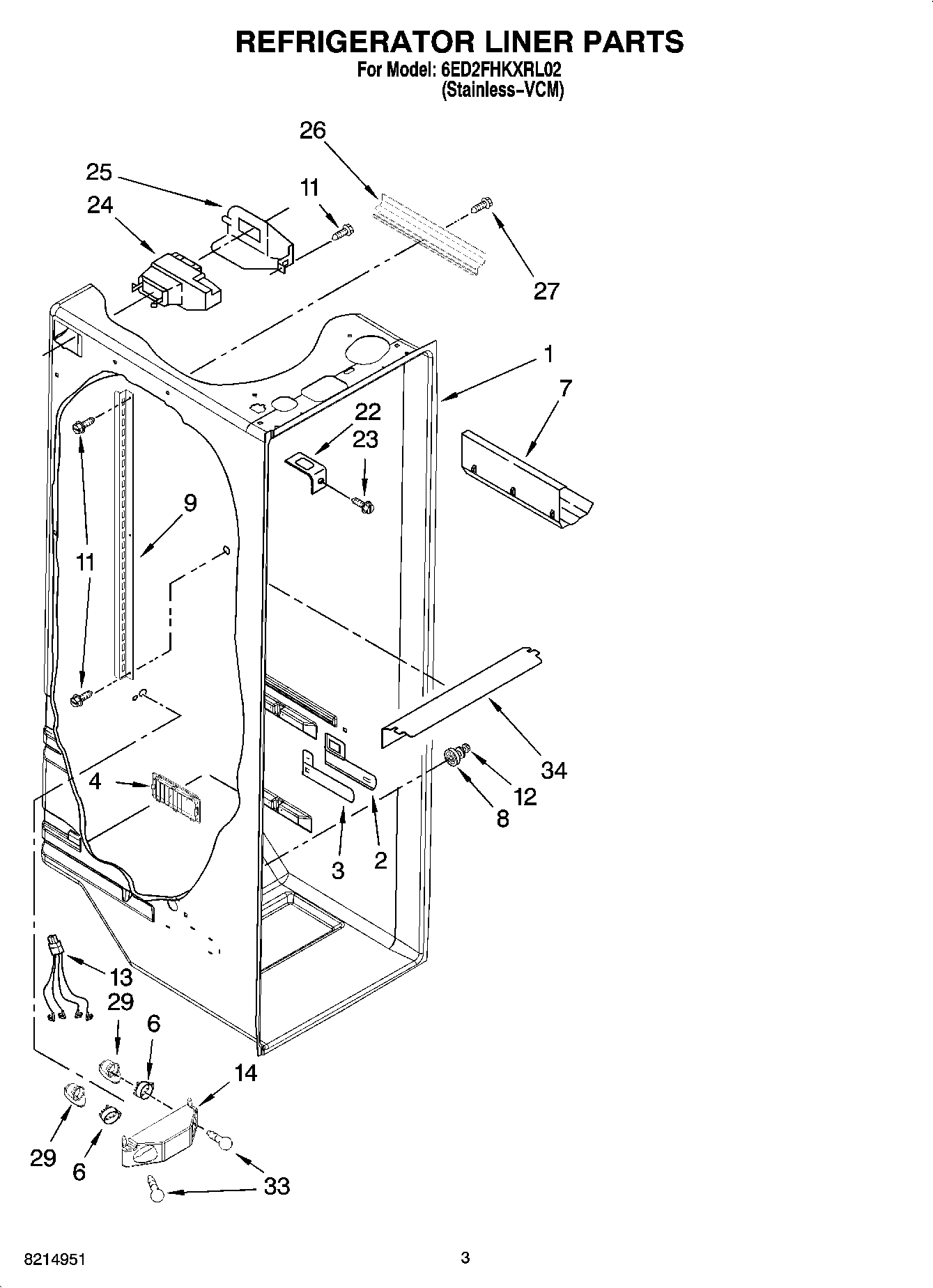

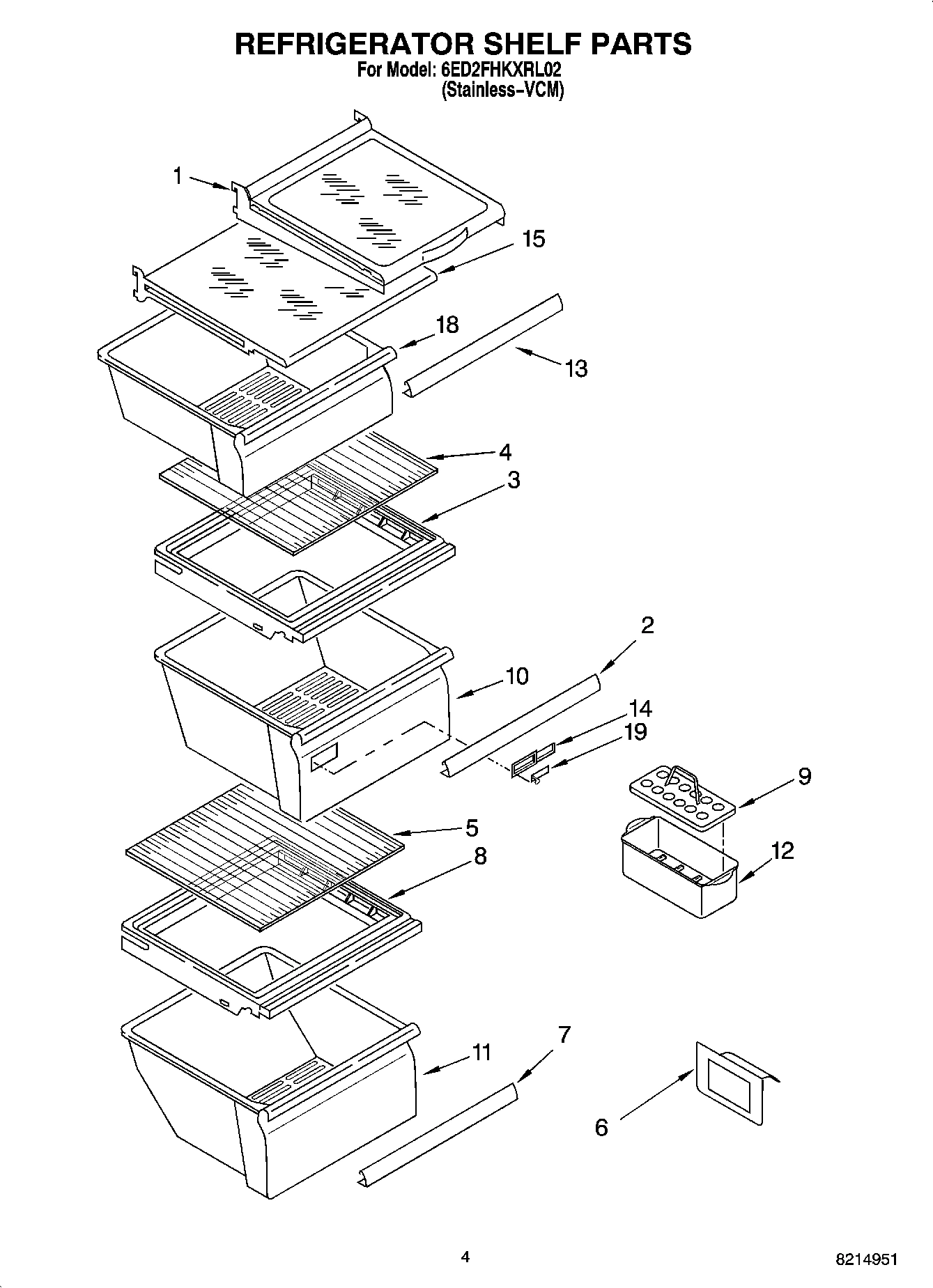

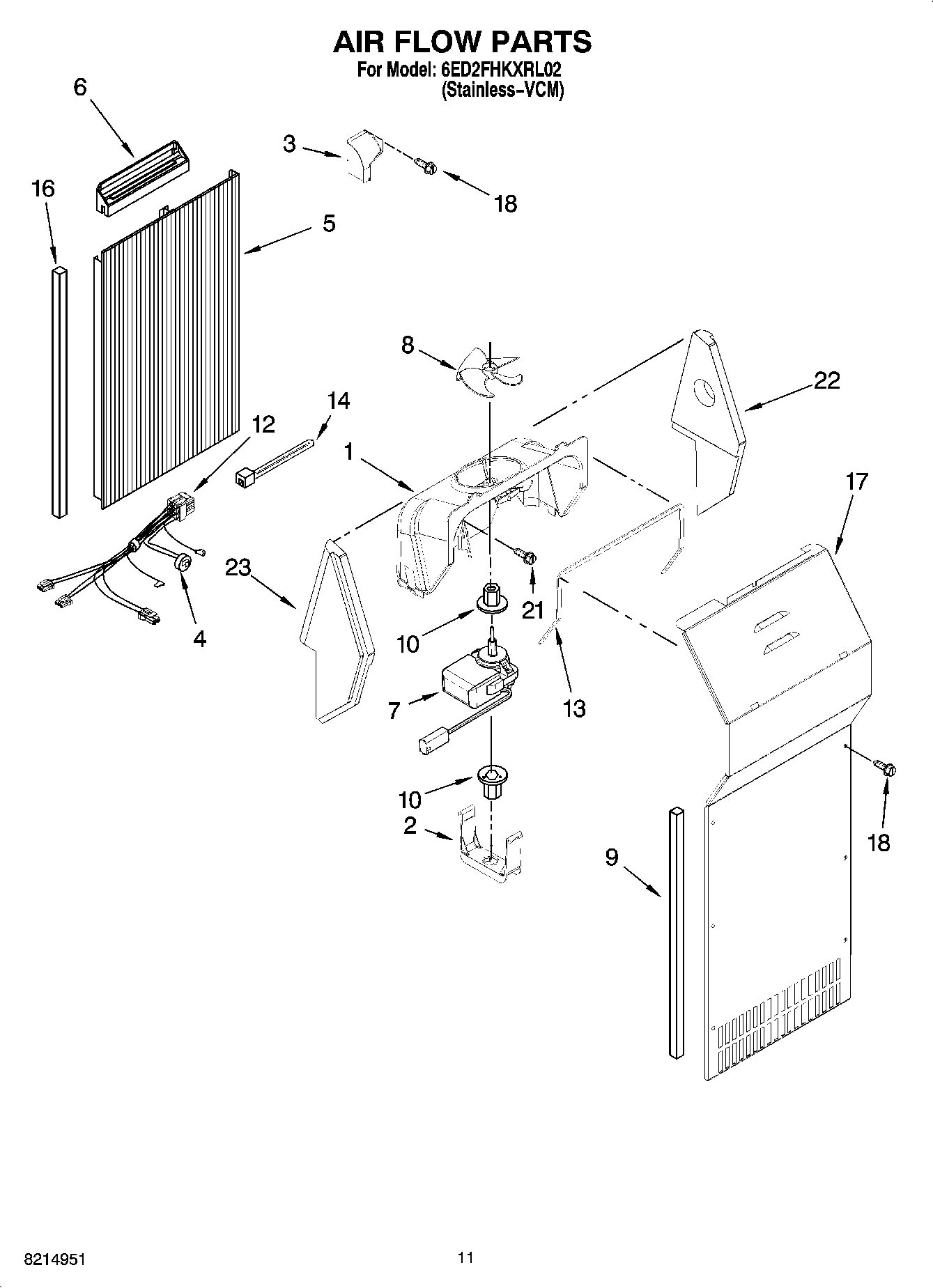

Model Whirlpool 6ED2FHKXRL02 REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 80051 WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

2200135 Whirlpool Refrigerator Control Box Backorder WPL 2200135 $97.87

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

Liner (Not A Serviceable Part) WPL ARI141622A Contact Us For Availability

1

Shelf, Cantilever (2) WPL 2188695 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI141623A Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

3

WP67002552 Whirlpool Refrigerator Light Bulb In Stock WPL WP67002552 $6.68

3

Slide Meat WPL 2182757 Contact Us For Availability

4

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP2155595 Whirlpool Refrigerator Light Lens Backorder WPL WP2155595 $56.39

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Louver Pan Control WPL 2257741 Contact Us For Availability

5

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

5

Thermostat (FC) WPL 2187158 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.95

6

WP2188379 Whirlpool Refrigerator Defrost Time Backorder WPL WP2188379 $138.15

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

7

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

7

Trivet, Door Shelf (5) WPL 2182776K Contact Us For Availability

7

Shroud, Light WPL 2167012 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $129.49

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $176.93

9

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $10.72

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

9

Shim WPL 2209697 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2206270 Contact Us For Availability

9

Shelf WPL 2179325K Contact Us For Availability

2172940 Whirlpool Window Backorder WPL 2172940 $13.22

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

Freezer Bin WPL 2171707 Contact Us For Availability

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

Grommet (10) WPL 2176134 Contact Us For Availability

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $100.16

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

NLA:SCREW Backorder WPL WPW10141645 $4.82

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

Cover, Wiring WPL 2160912 Contact Us For Availability

15

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

15

Shelf Assembly WPL 2206347 Contact Us For Availability

16

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $78.31

16

Shelf WPL 2174266K Contact Us For Availability

17

Shelf (2) WPL 2174265K Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $8.99

19

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

19

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

20

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

20

Stud, Rear WPL 2196207 Contact Us For Availability

20

Control Box Harness WPL 2206509 Contact Us For Availability

21

2223173 Whirlpool Refrigerator Tube Plug Backorder WPL 2223173 $5.60

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $23.85

CLIP, WIRING WPL 1115375 Contact Us For Availability

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $4.82

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability

24

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $8.89

24

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

24

WPW10129864 Whirlpool Refrigerator Diffuser Backorder WPL WPW10129864 $208.86

25

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

25

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $93.96

25

Escutcheon, Control Box WPL 2261750 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

26

Light Bar (FC) WPL 2179921 Contact Us For Availability

27

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

27

Window WPL 2172941 Contact Us For Availability

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

29

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

34

Light Lens WPL 2209769 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
