Model Whirlpool 6892VVA ELECTRIC RANGE – Common Parts & Diagrams
01 - BODY

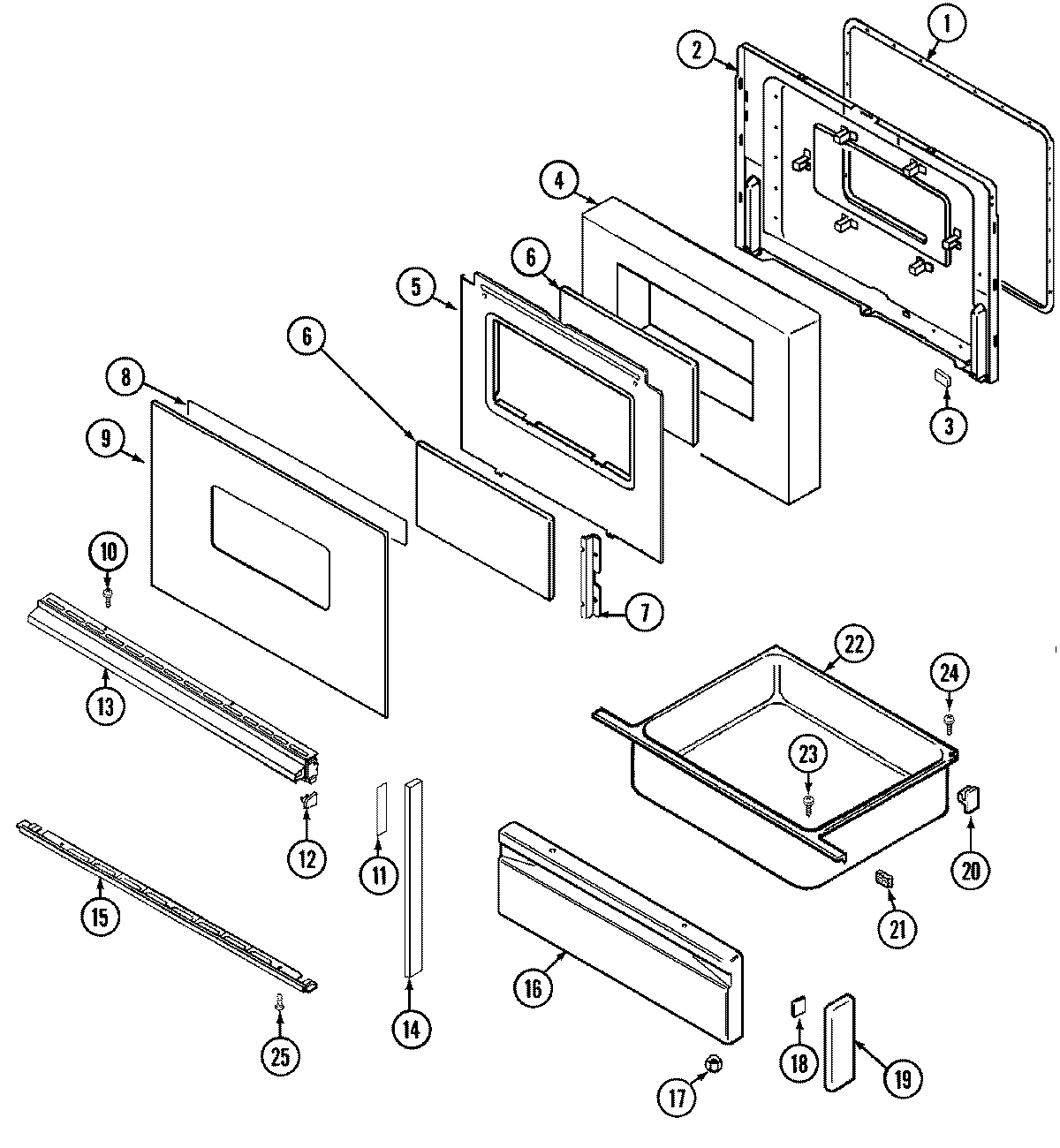

03 - DOOR/DRAWER (SERIAL PREFIX 12)

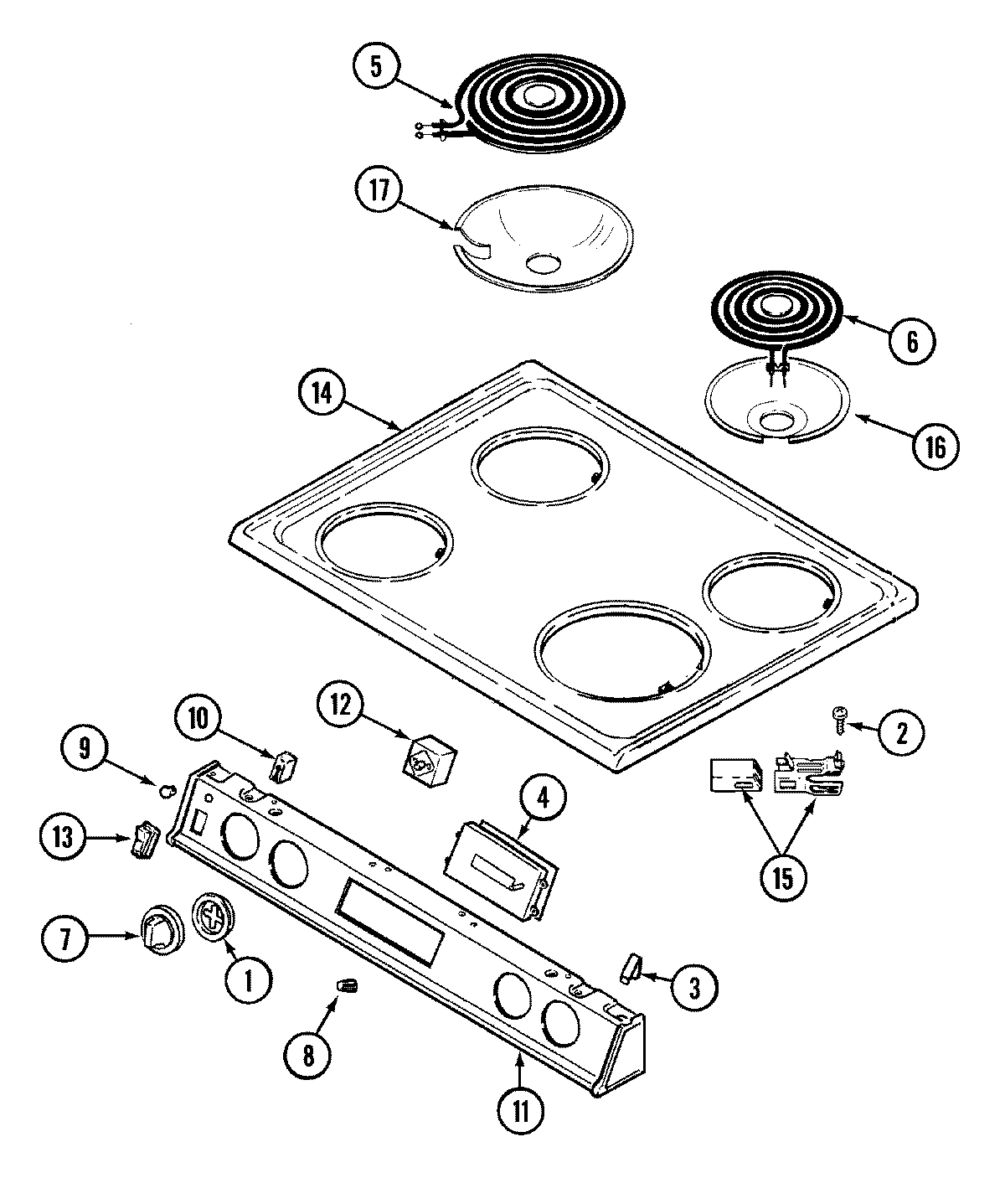

06 - TOP ASSEMBLY

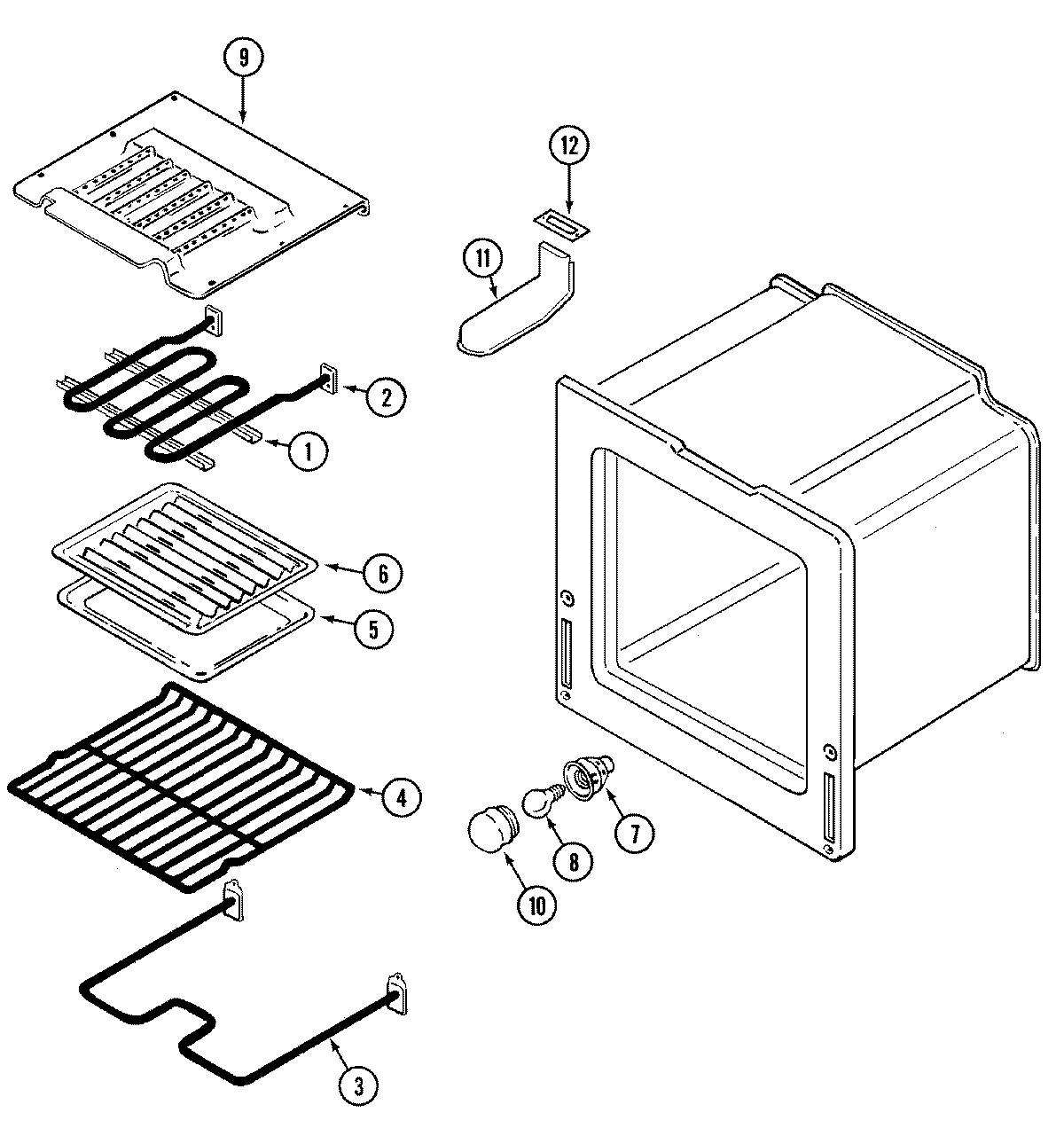

05 - OVEN

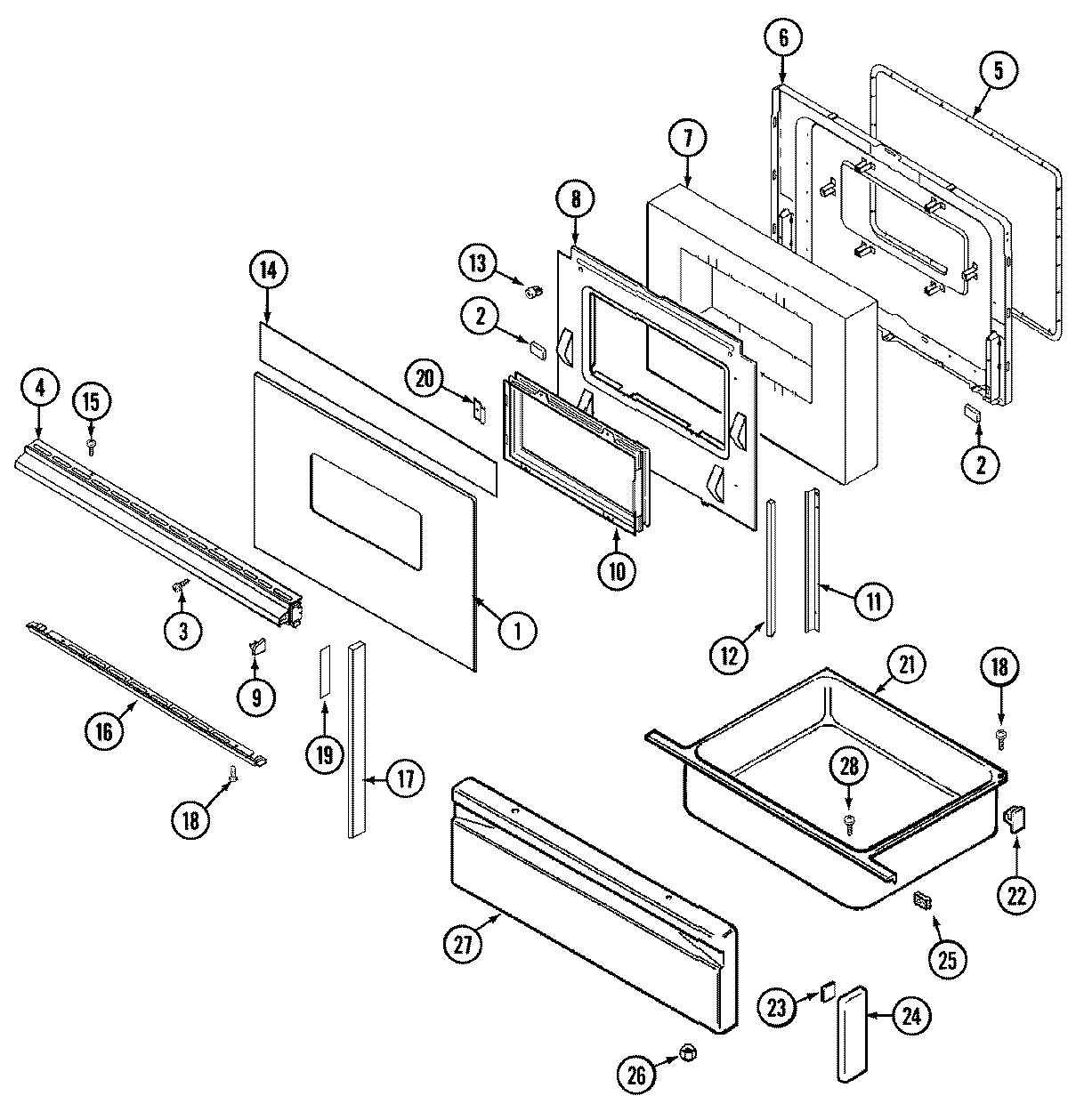

02 - DOOR/DRAWER

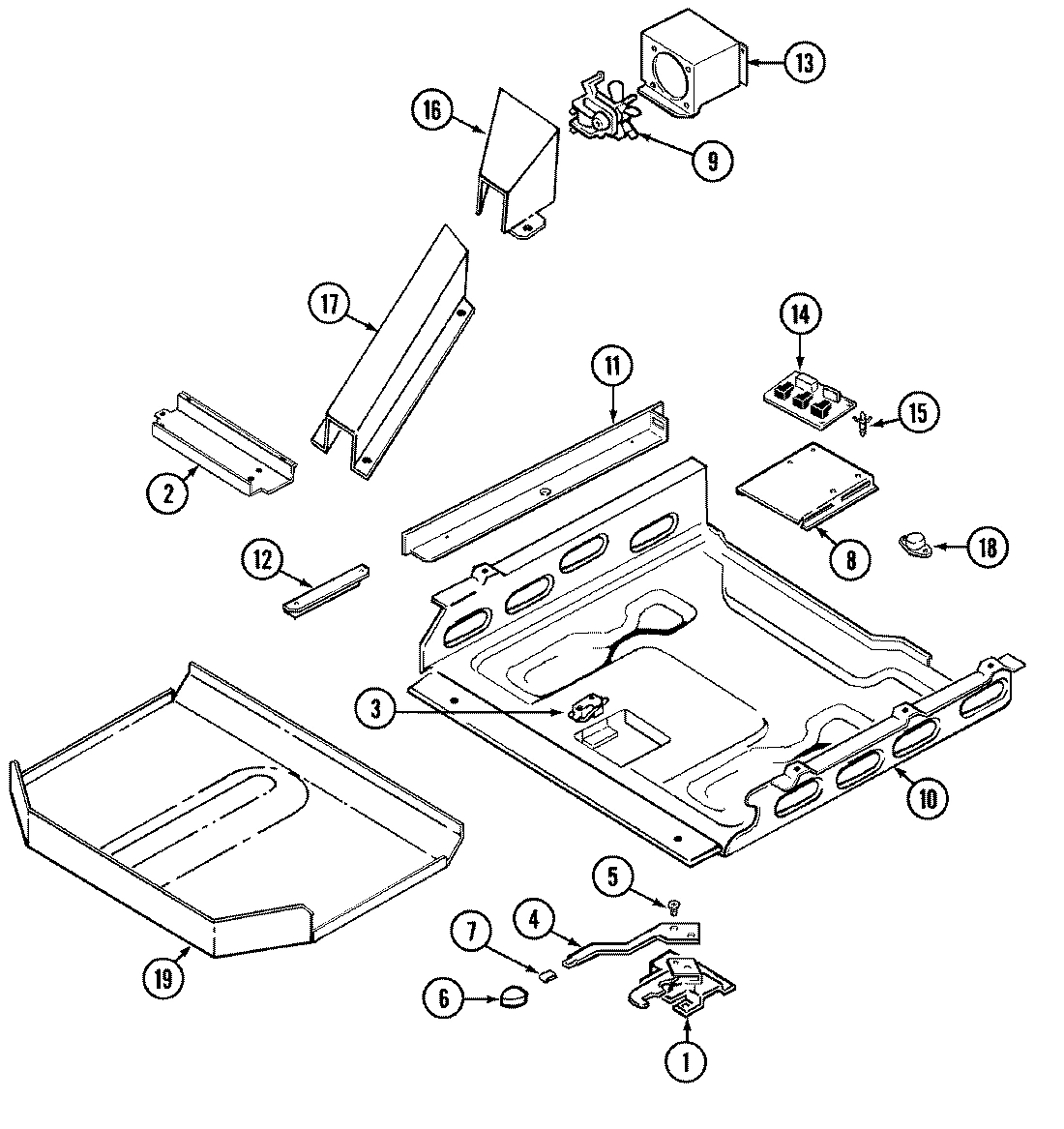

04 - INTERNAL CONTROLS

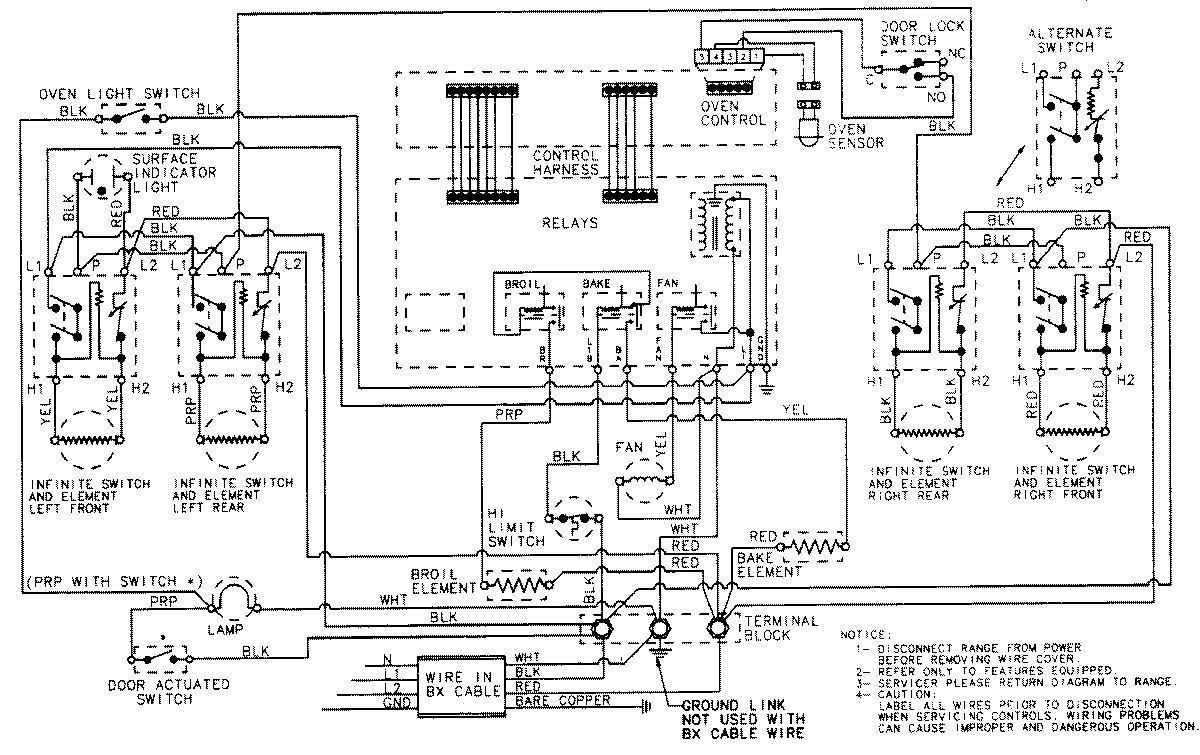

07 - WIRING INFORMATION
Common parts from model Whirlpool 6892VVA ELECTRIC RANGE
1
BACK, MAIN WPL 74001582 Contact Us For Availability
1
GLASS, DOOR (ALM) WPL 7902P35860 Contact Us For Availability
1
BEZEL, KNOB (BLK) WPL 7740P02060 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
SHIELD INSULATION, CATCH WPL 3604F15945 Contact Us For Availability
1
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
1
LATCH ASSY. WPL 74003032 Contact Us For Availability
1
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
2
PANEL, SIDE (LT-ALM) WPL 74001576 Contact Us For Availability
2
PANEL, SIDE (RT-ALM) WPL 74001577 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
SCREW WPL 7101P34960 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P06560 Contact Us For Availability
2
CHANNEL, AIR WPL 3818F05951 Contact Us For Availability
2
SCREW WPL 7101P06160 Contact Us For Availability
3
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
3
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
3
ELEMENT, BAKE WPL 7406P09260 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
SCREW WPL 7101P03160 Contact Us For Availability
3
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
4
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
HANDLE, DOOR (ALM) WPL 7701P11560 Contact Us For Availability
4
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
4
SCREW WPL 7101P34660 Contact Us For Availability
4
CLOCK (BLK) WPL 74002271 Contact Us For Availability
4
BRACKET, CLOCK WPL 74003191 Contact Us For Availability
4
CLOCK (BLK) WPL 7601P27860 Contact Us For Availability
4
RACK, OVEN WPL 7801P04760 Contact Us For Availability
4
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
4
LEVER, LATCH WPL 8009P02860 Contact Us For Availability
5
SCREW WPL 7101P33460 Contact Us For Availability
5
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
SCREW WPL 7101P29060 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
ELEMENT (6``) WPL 7406P03760 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
5
BOLT WPL 7116P00360 Contact Us For Availability
6
COVER, LEVELING LEG WPL 4005F42080 Contact Us For Availability
6
LEG, LEVELING WPL 74001311 Contact Us For Availability
6
LINING, DOOR WPL 2402W20919 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
ELEMENT (8``) WPL 7406P03960 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
HANDLE, DOOR LATCH (BLK) WPL 7701P13260 Contact Us For Availability
7
HINGE WPL 7106P05660 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
7
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
INSULATION, DOOR WPL 7002P15560 Contact Us For Availability
7
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
8
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
8
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
8
KNOB, CLOCK (BLK) WPL 7711P49260 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F23647 Contact Us For Availability
8
COVER, DOOR LATCH WPL 4005F44351 Contact Us For Availability
9
INSULATION, BACK & BOTTOM WPL 4804F03060 Contact Us For Availability
9
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23745 Contact Us For Availability
9
FAN WPL 7427P01260 Contact Us For Availability
10
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
10
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
10
SCREW (1/2``-ALM) WPL 7101P37460 Contact Us For Availability
10
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
10
BOX, BURNER WPL 4011F25080 Contact Us For Availability
11
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
11
PANEL, CONTROL (BLK) WPL 74003008 Contact Us For Availability
11
PANEL, CONTROL (BLK) WPL 7722P13460 Contact Us For Availability
11
BOX, VENT WPL 4006W11245 Contact Us For Availability
11
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
11
SHIELD, HEAT (LT) WPL 3604F21351 Contact Us For Availability
11
SHIELD, HEAT (RT) WPL 3604F21451 Contact Us For Availability
12
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
12
END CAP, HANDLE (RT-ALM) WPL 74002713 Contact Us For Availability
12
END CAP, HANDLE (LT-ALM) WPL 74002714 Contact Us For Availability
12
SCREW WPL 7101P30960 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
12
GASKET, VENT WPL 7201P06060 Contact Us For Availability
12
SEAL WPL 7208P00260 Contact Us For Availability
12
BRACKET WPL 3801F32751 Contact Us For Availability
13
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
13
HANDLE, DOOR (ALM) WPL 74001172 Contact Us For Availability
13
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
13
NUT, NYLON WPL 7103P04560 Contact Us For Availability
13
HOUSING, FAN WPL 4001F08051 Contact Us For Availability
14
COVER, WIRE WPL 4005F44751 Contact Us For Availability
14
END CAP, DOOR (ALM) WPL 74002343 Contact Us For Availability
14
TOP ASSY. (ALM) WPL 74001249 Contact Us For Availability
14
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
14
BOARD, RELAY WPL 7428P02160 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01580 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003003 Contact Us For Availability
15
SCREW (ALM) WPL 7101P30760 Contact Us For Availability
15
SUPPORT, RELAY WPL 8004P03260 Contact Us For Availability
16
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
16
TRIM, BOTTOM (ALM) WPL 7744P10460 Contact Us For Availability
16
BOWL, DRIP (6``-CHR) WPL 7725P04860 Contact Us For Availability
16
DUCT, AIR WPL 3818F05651 Contact Us For Availability
17
SUPPORT, DRAWER WPL 8004P02560 Contact Us For Availability
17
END CAP, OVEN DOOR (ALM) WPL 7744P08560 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
BOWL, DRIP (8``-CHR) WPL 7725P04760 Contact Us For Availability
17
CHANNEL, AIR TOP WPL 3818F05351 Contact Us For Availability
18
SCREW WPL 7101P10360 Contact Us For Availability
18
THERMOSTAT, SNAP ACTING WPL 7403P30760 Contact Us For Availability
19
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
19
TAPE, SEALING ROLL WPL 8270P04860 Contact Us For Availability
19
END CAP, DRAWER (ALM) WPL 74002806 Contact Us For Availability
19
HARNESS, SENSOR & LOCK WPL 5170P22860 Contact Us For Availability
19
HARNESS WPL 5195D10360 Contact Us For Availability
19
HARNESS, CLOCK/RELAY WPL 74001583 Contact Us For Availability
19
SHIELD, WIRE WPL 74001549 Contact Us For Availability
20
RETAINER, BOTTOM INSULATION WPL 3804F10951 Contact Us For Availability
20
MANUAL, USE & CARE WPL 16007454 Contact Us For Availability
20
INSERT, INSTR SHEET (CLOCK) WPL 8113P02660 Contact Us For Availability
20
MANUAL, USE & CARE WPL 8113P06860 Contact Us For Availability
20
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
20
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
21
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
21
SEAL, DOOR PANEL WPL 7208P00960 Contact Us For Availability
21
DRAWER, STORAGE WPL 3405F01880 Contact Us For Availability
21
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
22
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
22
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
23
SCREW WPL 7101P11560 Contact Us For Availability
24
END CAP, DRAWER (ALM) WPL 7744P11260 Contact Us For Availability
25
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
26
NUT, LOCK WPL 7103P08560 Contact Us For Availability
27
PANEL, DRAWER (ALM) WPL 2416F03864 Contact Us For Availability
28
SCREW WPL 7101P07260 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001375 Contact Us For Availability
× ![]()
