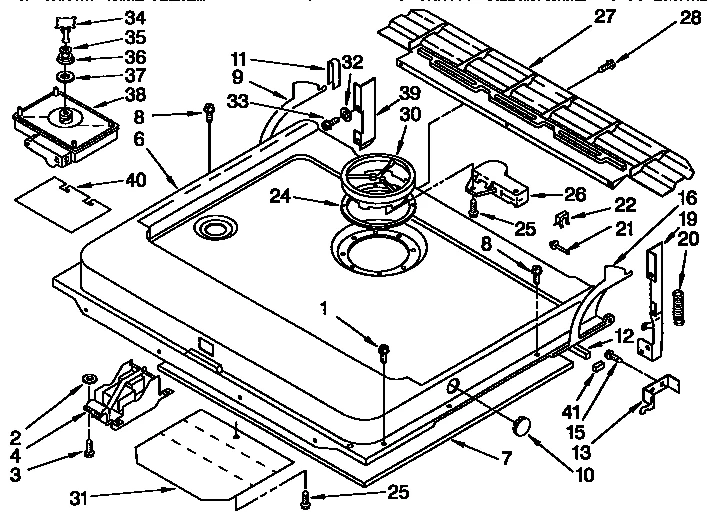

DOOR AND LATCH PARTS

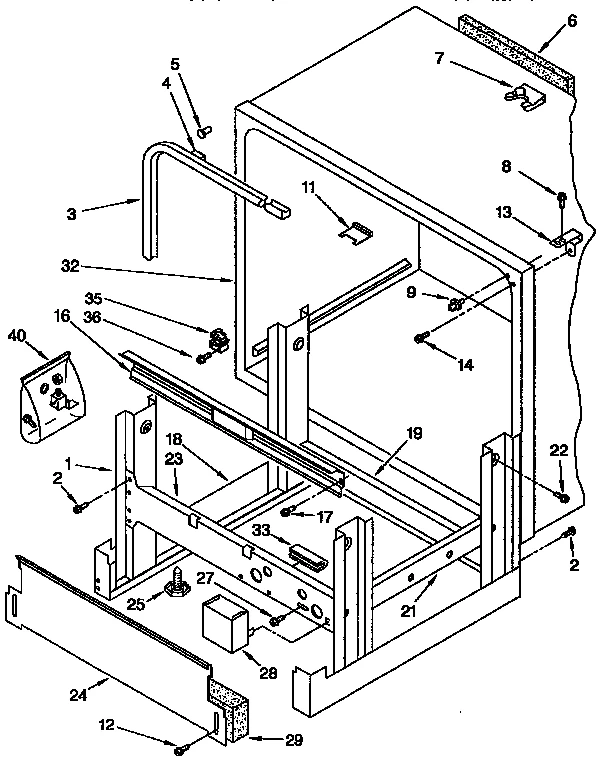

FRAME AND TANK PARTS

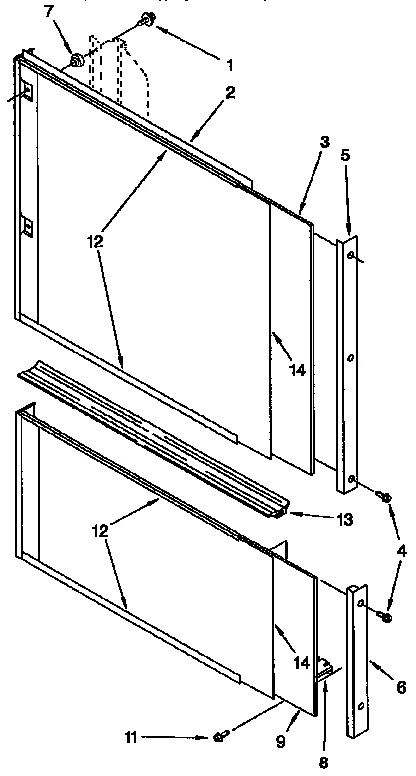

DOOR AND PANEL PARTS

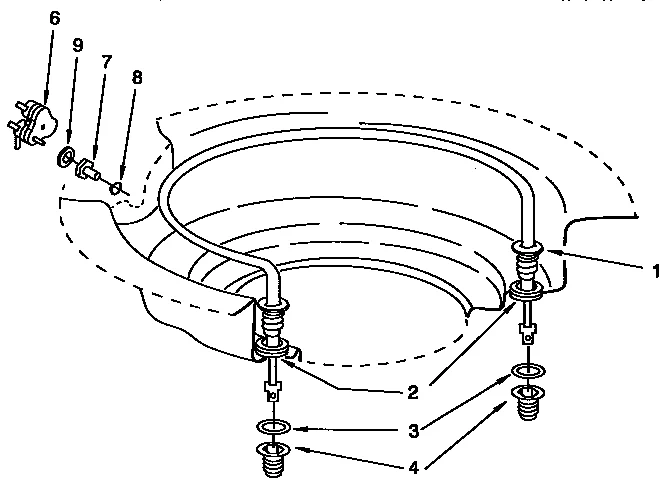

HEATER PARTS

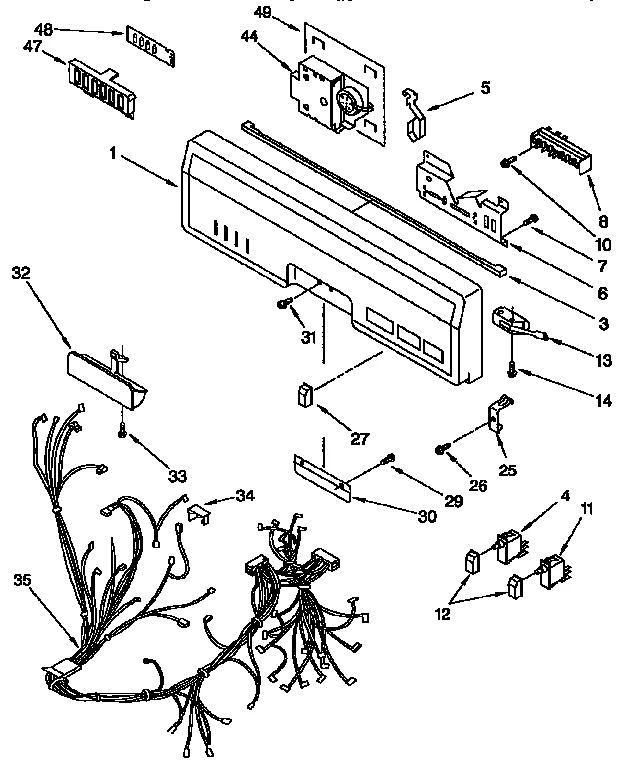

CONTROL PANEL PARTS

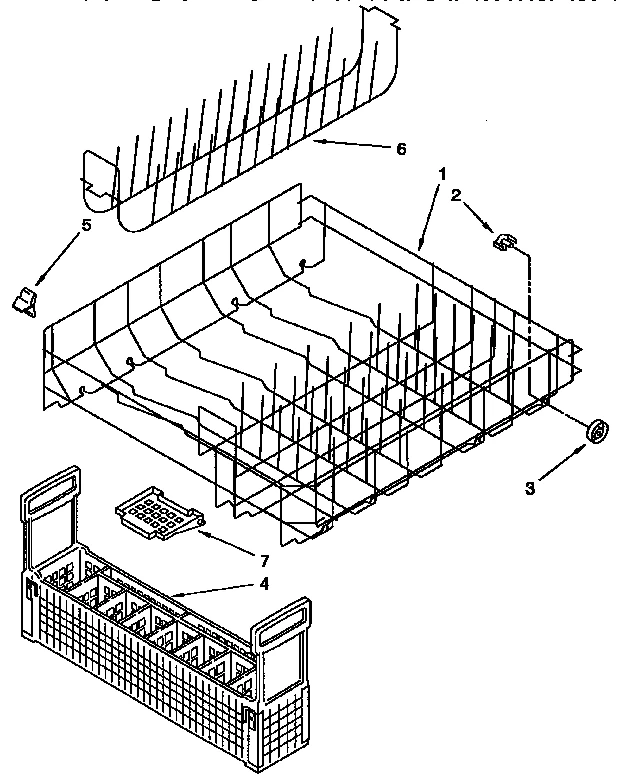

LOWER RACK PARTS

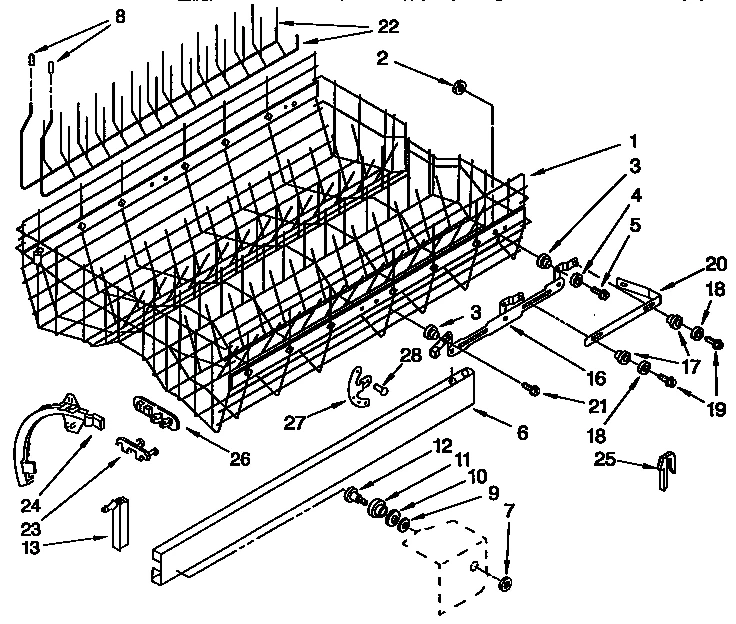

UPPER RACK AND TRACK PARTS

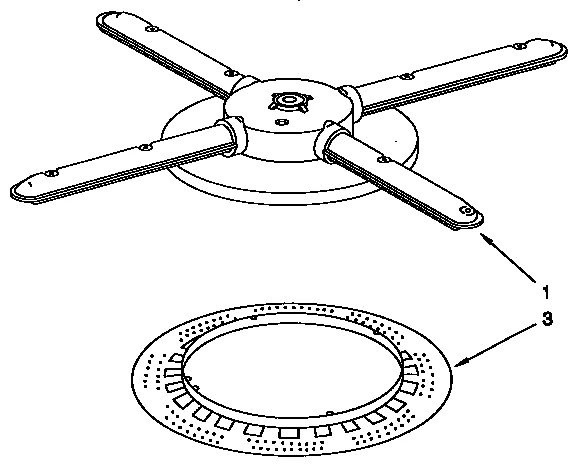

LOWER WASHARM AND STRAINER PARTS

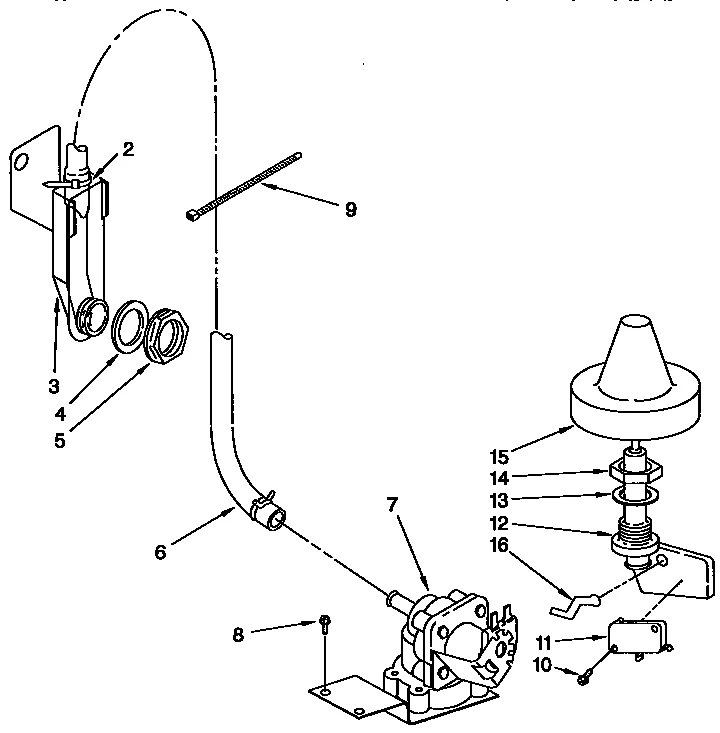

FILL AND OVERFILL PARTS

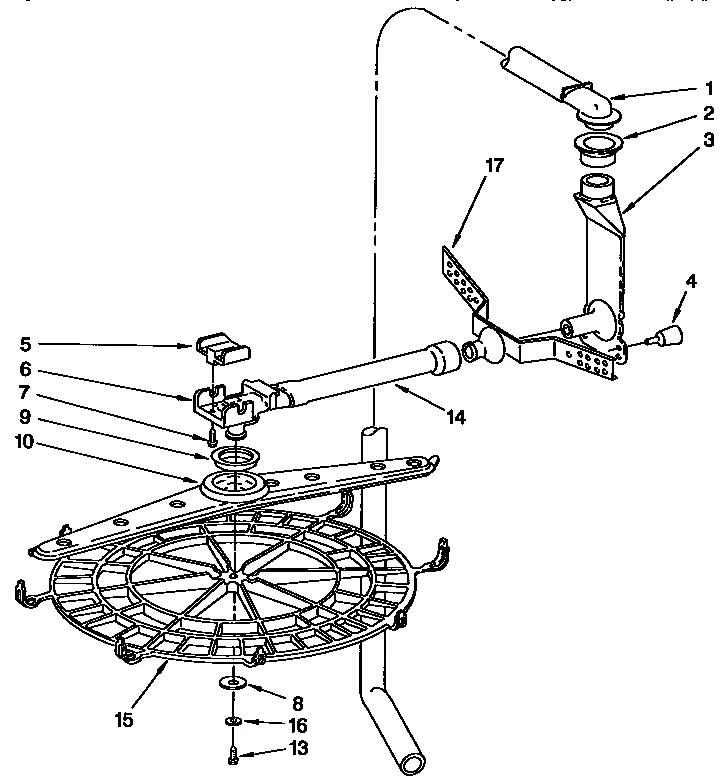

UPPER WASH AND RINSE PARTS

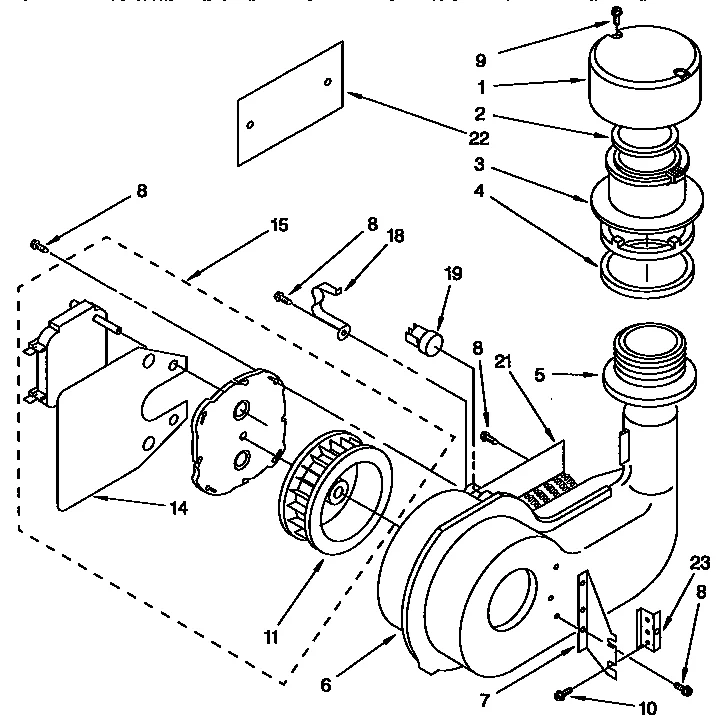

BLOWER PARTS

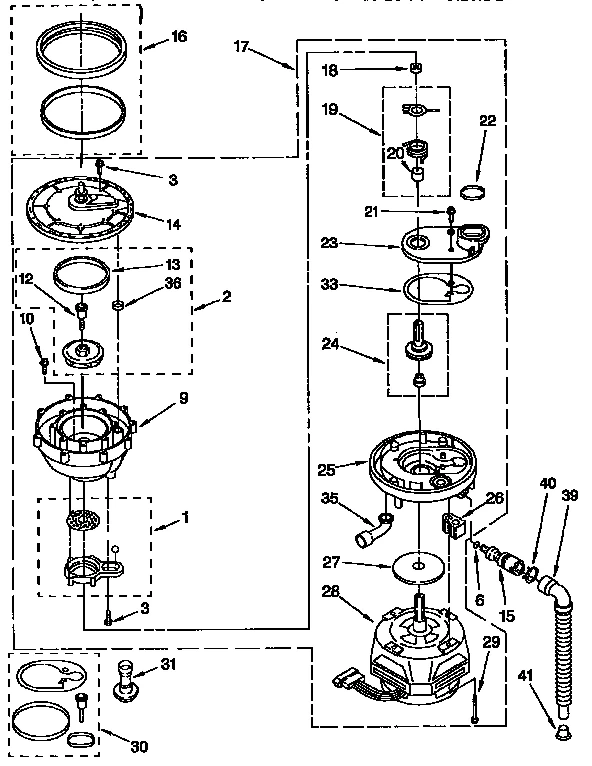

PUMP AND MOTOR PARTS
Common parts from model Whirlpool 665KUDS23HB0 Dishwasher (Kenmore 665KUDS23HB0)
1
Frame Assembly WPL 4171627 Contact Us For Availability
1
Screw WPL 4162215 Contact Us For Availability
1
Heater WPL 9742072 Contact Us For Availability
1
Dishrack WPL 9741002 Contact Us For Availability
1
Spray Arm WPL 9740787 Contact Us For Availability
1
Dishwasher Tube WPL 9740307 Contact Us For Availability
1
Inlet Cap WPL 9740633 Contact Us For Availability
1
Inlet Base WPL 675704 Contact Us For Availability
1A
Control Panel WPL 9741946 Contact Us For Availability
1A
Dishrack WPL 9741955 Contact Us For Availability
1B
Control Panel WPL 9741947 Contact Us For Availability
1B
Dishrack WPL 4171546 Contact Us For Availability
1C
Control Panel WPL 9741948 Contact Us For Availability
2
Dishwasher Dishrack Roller Stud WPL 4162321 Contact Us For Availability
2
Screw WPL 9740980 Contact Us For Availability
2
Grommet WPL 4162521 Contact Us For Availability
2
Nut WPL 4161226 Contact Us For Availability
2
Wire Tie WPL 4162103 Contact Us For Availability
2
Connector WPL 9740763 Contact Us For Availability
2
Float Check WPL 4161590 Contact Us For Availability
2A
Panel WPL 9742085 Contact Us For Availability
2B
Panel WPL 9742083 Contact Us For Availability
2C
Panel WPL 9742084 Contact Us For Availability
3
Dishwasher Door Seal WPL 4161631 Contact Us For Availability
3
Screen WPL 9741049 Contact Us For Availability
3
Spacer Panel WPL 4171421 Contact Us For Availability
3
Washer WPL 4163554 Contact Us For Availability
3
Seal WPL 9741864 Contact Us For Availability
3
Water Inlet WPL 9741568 Contact Us For Availability
3
Conduit WPL 4162655 Contact Us For Availability
3
Vent Tube WPL 9740634 Contact Us For Availability
4
Gasket WPL 4161545 Contact Us For Availability
4
Clip Seal WPL 4161608 Contact Us For Availability
4
Nut WPL 718537 Contact Us For Availability
4
Switch WPL 9741877 Contact Us For Availability
4
Washer WPL 4162452 Contact Us For Availability
4
Retainer WPL 4162609 Contact Us For Availability
4
Seal WPL 9740635 Contact Us For Availability
4A
Screw WPL 9740957 Contact Us For Availability
4B
Screw WPL 4171463 Contact Us For Availability
4C
Screw WPL 9741604 Contact Us For Availability
5
Bumper WPL 4171555 Contact Us For Availability
5
Nut Tube WPL 4171300 Contact Us For Availability
5
Bumper WPL 4161626 Contact Us For Availability
5
Spring WPL 9741863 Contact Us For Availability
5
Screw WPL 4159428 Contact Us For Availability
5
Retainer WPL 4171540 Contact Us For Availability
5
Retainer WPL 9740632 Contact Us For Availability
5A
Trim Panel WPL 9742089 Contact Us For Availability
5B
Trim Panel WPL 9742087 Contact Us For Availability
5C
Trim Panel WPL 9742088 Contact Us For Availability
6
Pad Insert WPL 4171910 Contact Us For Availability
6
Tri-stat WPL 4163522 Contact Us For Availability
6
Switch Bracket WPL 9741861 Contact Us For Availability
6
Adptr-rack WPL 4171556 Contact Us For Availability
6
Track WPL 3369071 Contact Us For Availability
6
Clamp WPL 4161505 Contact Us For Availability
6
Manifold WPL 4171541 Contact Us For Availability
6
Housing WPL 9740638 Contact Us For Availability
6
O-Ring WPL 95080 Contact Us For Availability
6A
Access Trim WPL 4172054 Contact Us For Availability
6B
Access Trim WPL 4171673 Contact Us For Availability
6C
Access Trim WPL 9741628 Contact Us For Availability
7
Dishwasher Water Inlet Valve WPL 9741906 Contact Us For Availability
7
Clip WPL 9740303 Contact Us For Availability
7
Grommet WPL 4162735 Contact Us For Availability
7
Probe WPL 9741277 Contact Us For Availability
7
Lid WPL 4171554 Contact Us For Availability
7
Nut WPL 718829 Contact Us For Availability
7
Screw WPL 4161737 Contact Us For Availability
7
Bracket WPL 4162703 Contact Us For Availability
8
O-Ring WPL 4159822 Contact Us For Availability
8
Switch WPL 9741811 Contact Us For Availability
8
Tip WPL 9740023 Contact Us For Availability
8
Screw WPL 3369139 Contact Us For Availability
8
Bearing WPL 4162625 Contact Us For Availability
8
Screw WPL 4159442 Contact Us For Availability
8A
Panl-bl WPL 4172053 Contact Us For Availability
8B
Panel (White) WPL 4171672 Contact Us For Availability
8C
Panl Al WPL 9741635 Contact Us For Availability
9
Dishwasher Door Hinge Support Bracket WPL 4161592 Contact Us For Availability
9
Actuator WPL 9741676 Contact Us For Availability
9
Filler WPL 4162734 Contact Us For Availability
9
Gasket-hea WPL 4161644 Contact Us For Availability
9
Washer WPL 9741062 Contact Us For Availability
9
Bearing WPL 4162491 Contact Us For Availability
9
Screw WPL 9740664 Contact Us For Availability
9
Separator Box WPL 9740676 Contact Us For Availability
10
Screw WPL 4159432 Contact Us For Availability
10
Washer WPL 718817 Contact Us For Availability
10
Screw WPL 4159424 Contact Us For Availability
10
Dishwasher Spray Arm WPL 9742178 Contact Us For Availability
10
Screw WPL 4159178 Contact Us For Availability
10
Screw WPL 9741258 Contact Us For Availability
11
Bearing WPL 4160355 Contact Us For Availability
11
Keeper WPL 4160092 Contact Us For Availability
11
Screw WPL 9741435 Contact Us For Availability
11
Motor Switch WPL 9741876 Contact Us For Availability
11
Dishwasher Dishrack Track Roller WPL 300844 Contact Us For Availability
11
Dishwasher Blower Wheel WPL 4162741 Contact Us For Availability
12
Screw WPL 9741951 Contact Us For Availability
12A
Trim Panel WPL 4172052 Contact Us For Availability
12A
Switch WPL 9741845 Contact Us For Availability
12B
Trim Panel WPL 4171671 Contact Us For Availability
12B
Switch WPL 9741846 Contact Us For Availability
12C
Trim Panel WPL 9741620 Contact Us For Availability
12C
Push Button WPL 9741847 Contact Us For Availability
13
Dishwasher Dishrack Slide Rail Stop, Upper WPL 300845 Contact Us For Availability
13
Channel WPL 9740868 Contact Us For Availability
13
Switch WPL 4160658 Contact Us For Availability
14
Dishwasher Upper Dishrack Spray Arm Feed Tube WPL 4171544 Contact Us For Availability
14
Screw WPL 9741257 Contact Us For Availability
14
Nut WPL 4161596 Contact Us For Availability
14
Housing Cover WPL 4162443 Contact Us For Availability
14
Outlet Pump WPL 9741379 Contact Us For Availability
14A
PANEL INSERT KIT, WHITE / BLACK WPL 4171594 Contact Us For Availability
14B
PANEL INSERT KIT, HARVEST GOLD / ALMOND WPL 4171593 Contact Us For Availability
14C
Panl Al Bl WPL 4171534 Contact Us For Availability
14D
Ins-wh Al WPL 4162836 Contact Us For Availability
14E
Panl Ht Ob WPL 4171096 Contact Us For Availability
14F
Fan Complete Insert WPL 4162835 Contact Us For Availability
14G
Dishwasher Door Outer Panel WPL 4169400 Contact Us For Availability
14H
Panl Pl To WPL 4169402 Contact Us For Availability
14I
Panl Sa Ob WPL 4169403 Contact Us For Availability
14J
Panl Si Ob WPL 4169404 Contact Us For Availability
15
Float WPL 4171216 Contact Us For Availability
15
Guard WPL 4171543 Contact Us For Availability
15
Dishwasher Blower WPL 4162742 Contact Us For Availability
16
Dishwasher Circulation Pump Gasket WPL 717000 Contact Us For Availability
16
Dishwasher Door Hinge, Right WPL 4161594 Contact Us For Availability
16
Support WPL 9741276 Contact Us For Availability
16
Lever WPL 4171116 Contact Us For Availability
16
Washer WPL 4162624 Contact Us For Availability
16A
Track-lh WPL 9741829 Contact Us For Availability
16B
Track-rh WPL 9741828 Contact Us For Availability
17
Screw WPL 4162151 Contact Us For Availability
17
Roller WPL 9741816 Contact Us For Availability
17
Dishwasher Receiver WPL 4171545 Contact Us For Availability
17
Pump Motor WPL 9740665 Contact Us For Availability
18
Frame-l.h. WPL 4171620 Contact Us For Availability
18
Washer WPL 4159593 Contact Us For Availability
18
Clip WPL 4162990 Contact Us For Availability
18
Bushing WPL 302707 Contact Us For Availability
19
Bracket WPL 4161587 Contact Us For Availability
19
Rear Frame WPL 9741173 Contact Us For Availability
19
Screw WPL 9741677 Contact Us For Availability
19
Thermostat WPL 4160464 Contact Us For Availability
20
Sleeve WPL 302705 Contact Us For Availability
20A
Dishrack Bracket WPL 9741974 Contact Us For Availability
20B
Dishrack Bracket WPL 9741975 Contact Us For Availability
21
Frame-r.h. WPL 4171619 Contact Us For Availability
21
Heater WPL 9740629 Contact Us For Availability
22
Screw WPL 9741690 Contact Us For Availability
22
Adptr-rack WPL 4171548 Contact Us For Availability
22
Cover WPL 4163186 Contact Us For Availability
22
Seal WPL 302704 Contact Us For Availability
23
Dishwasher Dishrack Adjuster Arm Positioner C WPL 4160480 Contact Us For Availability
23
Frame WPL 4161368 Contact Us For Availability
23
Bracket WPL 9740631 Contact Us For Availability
23
Cover WPL 302723 Contact Us For Availability
24
Seal WPL 4171447 Contact Us For Availability
24
Kick Board WPL 4171618 Contact Us For Availability
24A
Adjuster WPL 4171549 Contact Us For Availability
24B
Adjuster WPL 4171550 Contact Us For Availability
25
Dishwasher Level Foot WPL 4162911 Contact Us For Availability
25
Clip WPL 9742169 Contact Us For Availability
25
Stop WPL 3369046 Contact Us For Availability
25
Base Pump WPL 9740671 Contact Us For Availability
26
Screw WPL 9741365 Contact Us For Availability
26
Clip WPL 4171551 Contact Us For Availability
26
Dishwasher Sump Mounting Support WPL 3367197 Contact Us For Availability
27
Low Baffle WPL 4161295 Contact Us For Availability
27
SCREW, 10-32 X 3/8 WPL 4159372 Contact Us For Availability
27A
Push Button WPL 9741849 Contact Us For Availability
27A
Stop WPL 4171291 Contact Us For Availability
27B
Push Button WPL 9741850 Contact Us For Availability
27B
Stop WPL 4171292 Contact Us For Availability
27C
Push Button WPL 9741851 Contact Us For Availability
28
Rivet WPL 4171491 Contact Us For Availability
28
Pump Motor WPL 3369330 Contact Us For Availability
28A
Cover WPL 4161369 Contact Us For Availability
29
Shield WPL 3382404 Contact Us For Availability
29
Screw WPL 4159364 Contact Us For Availability
29
Screw WPL 3369331 Contact Us For Availability
30
Dishwasher Pump Seal Kit WPL 675703 Contact Us For Availability
30
Dishwasher Detergent Dispenser WPL 9740171 Contact Us For Availability
30
Handle Bracket WPL 4171364 Contact Us For Availability
31
Dishwasher Pump Installation Centering Tool WPL 303918 Contact Us For Availability
31
Barrier WPL 9742181 Contact Us For Availability
31A
Screw WPL 4172012 Contact Us For Availability
32
Washer WPL 4159594 Contact Us For Availability
32
Tank Dish WPL 9741965 Contact Us For Availability
32A
Handle WPL 9741857 Contact Us For Availability
32B
Handle WPL 9741858 Contact Us For Availability
32C
Handle WPL 9741859 Contact Us For Availability
33
Protector WPL 4171215 Contact Us For Availability
33
Screw WPL 9741328 Contact Us For Availability
34
Fillh. Plug WPL 4162490 Contact Us For Availability
34
Harness Clip WPL 4163372 Contact Us For Availability
35
Washer WPL 4162496 Contact Us For Availability
35
Relay WPL 304658 Contact Us For Availability
35
Connector WPL 4161605 Contact Us For Availability
35A
Wire Harness WPL 9741884 Contact Us For Availability
35B
Screw WPL 4159349 Contact Us For Availability
36
Screw WPL 4159403 Contact Us For Availability
37
Bottom Panel WPL 9740042 Contact Us For Availability
38
Dispenser WPL 9741234 Contact Us For Availability
39
Drain Tube WPL 9741366 Contact Us For Availability
39
Bracket WPL 4161589 Contact Us For Availability
40
Shield WPL 9741866 Contact Us For Availability
40
GROUND LUG KIT WPL 675708 Contact Us For Availability
41
Gasket WPL 4162950 Contact Us For Availability
41
Cap WPL 9741415 Contact Us For Availability
47
Sequence Board WPL 9741887 Contact Us For Availability
48
COVER SEQUENCE LIGHT WPL 9741888 Contact Us For Availability
49
Barrier WPL 9741378 Contact Us For Availability
NI
Paint 1qt WPL 799344 Contact Us For Availability
× ![]()
Login and Registration Form
