Model Whirlpool 665KUDI23HB0 Dishwasher (Kenmore 665KUDI23HB0) – Common Parts & Diagrams
DOOR AND LATCH PARTS

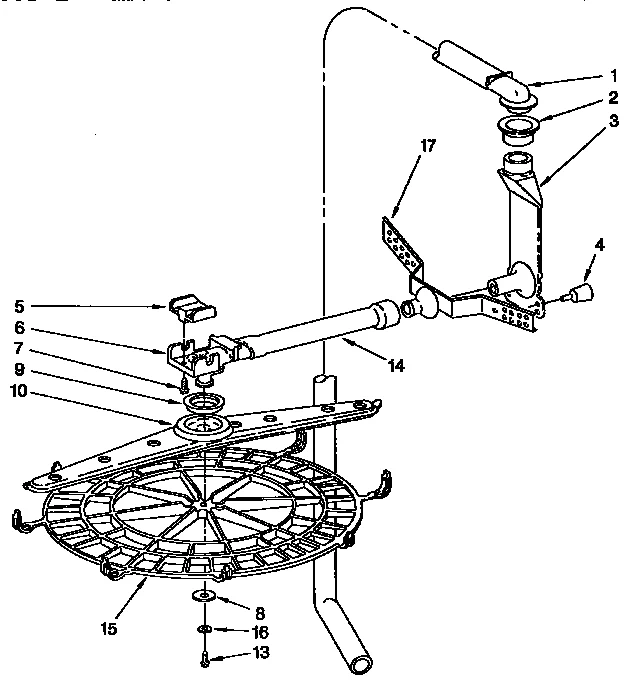

UPPER WASH AND RINSE PARTS

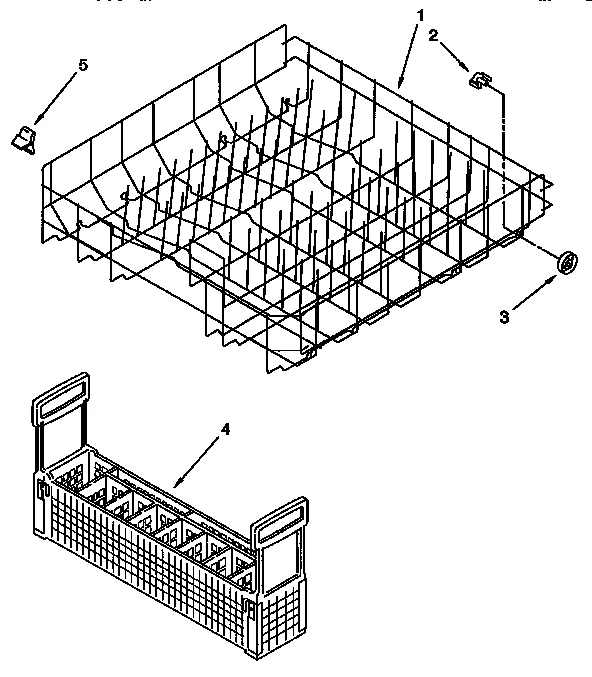

LOWER RACK PARTS

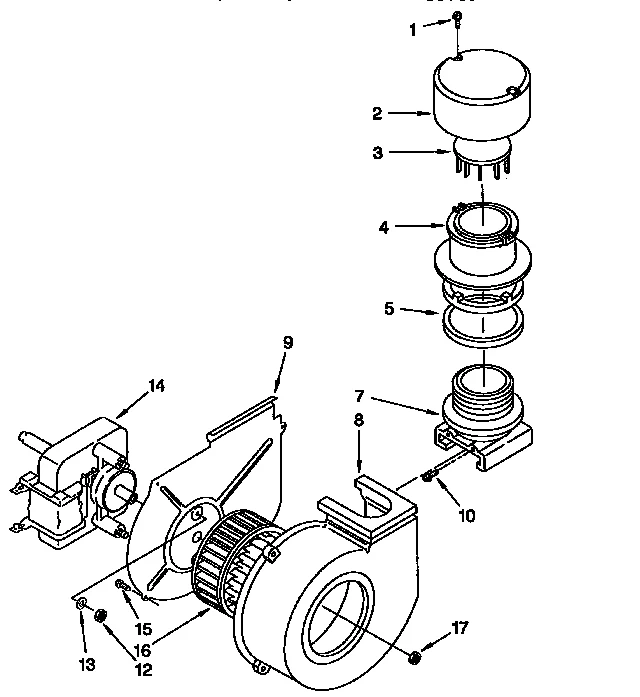

BLOWER PARTS

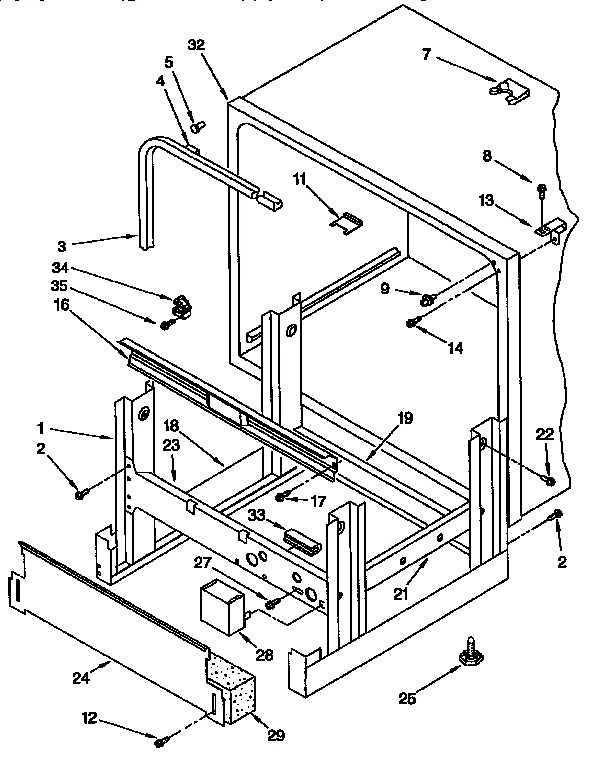

FRAME AND TANK PARTS

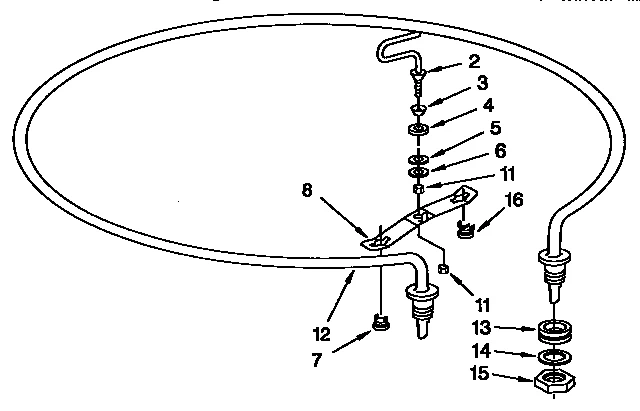

HEATER PARTS

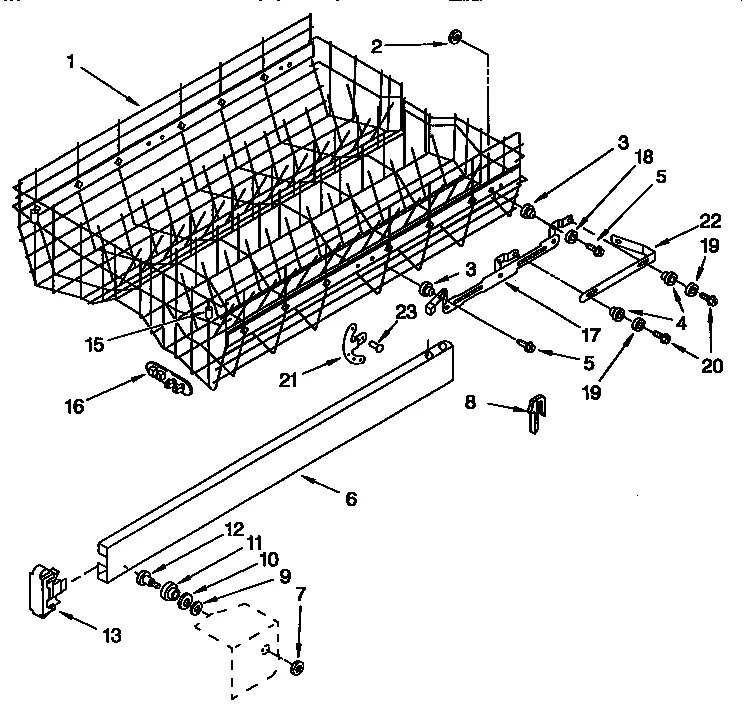

UPPER RACK AND TRACK PARTS

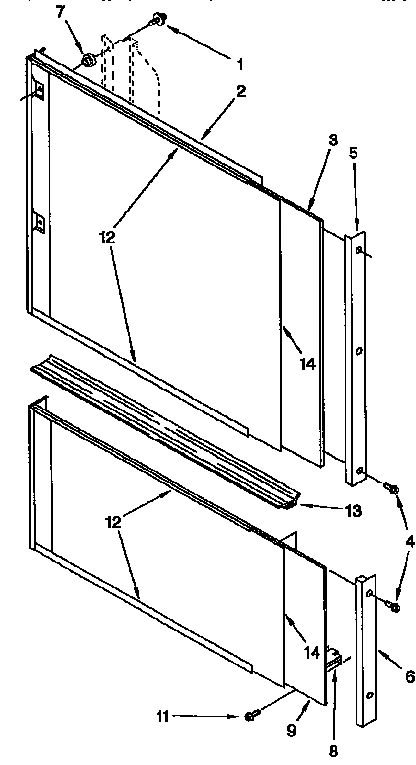

DOOR AND PANEL PARTS

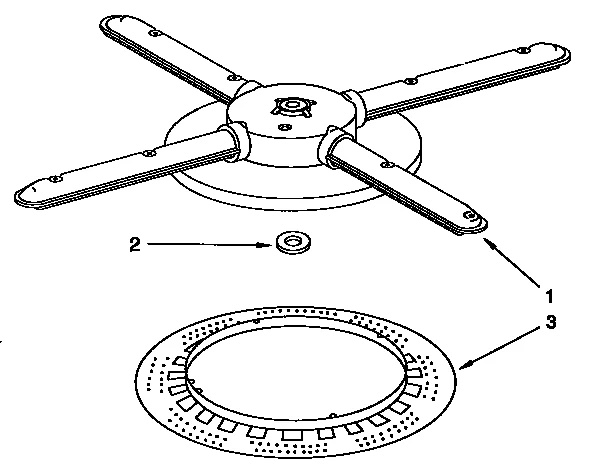

LOWER WASHARM AND STRAINER PARTS
All Parts

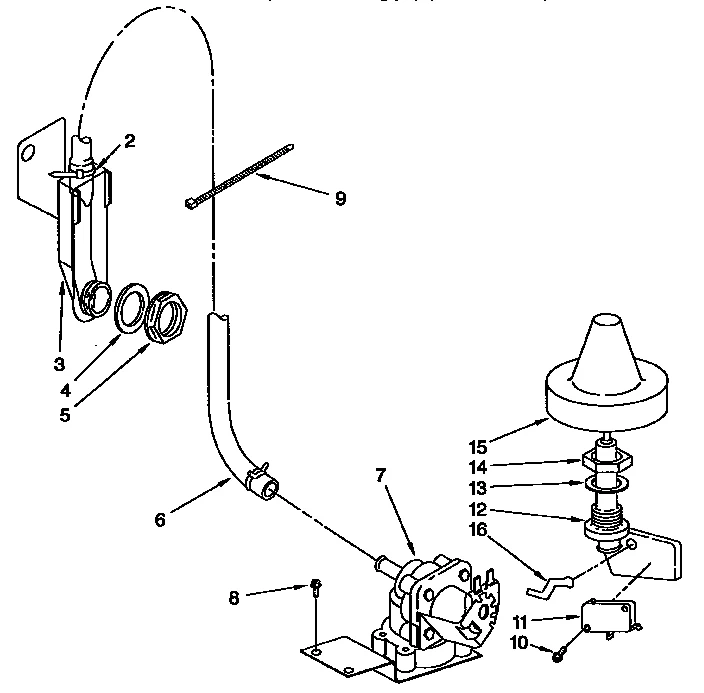

FILL AND OVERFILL PARTS

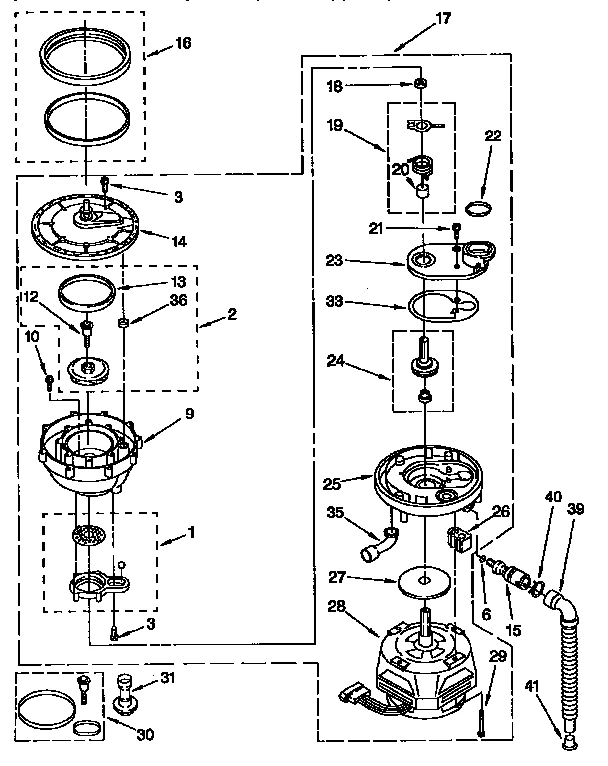

PUMP AND MOTOR PARTS

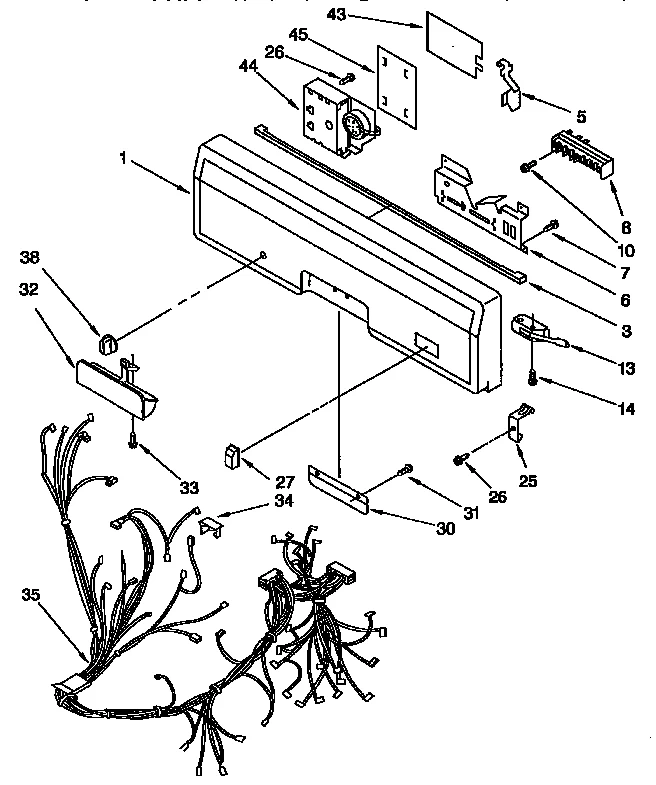

CONTROL PANEL PARTS
Common parts from model Whirlpool 665KUDI23HB0 Dishwasher (Kenmore 665KUDI23HB0)
1
Dishrack WPL 4171638 Contact Us For Availability
1
Screw WPL 4159436 Contact Us For Availability
1
SHORT FRAME ASSEMBLY (INCL 2, 18, 19, 21 AND WPL 41719627 Contact Us For Availability
1
Dishrack WPL 9741954 Contact Us For Availability
1
Screw WPL 4162215 Contact Us For Availability
1
Spray Arm WPL 9740787 Contact Us For Availability
1
Inlet Base WPL 675704 Contact Us For Availability
1A
Control Panel WPL 9741939 Contact Us For Availability
1B
Control Panel WPL 9741940 Contact Us For Availability
2
Dishwasher Dishrack Roller Stud WPL 4162321 Contact Us For Availability
2
Inlet Cap WPL 4162482 Contact Us For Availability
2
Screw WPL 9740980 Contact Us For Availability
2
Hook WPL 4163549 Contact Us For Availability
2
Nut WPL 4161226 Contact Us For Availability
2
Washer WPL 4162892 Contact Us For Availability
2
Wire Tie WPL 4162103 Contact Us For Availability
2A
Panel WPL 9742085 Contact Us For Availability
2B
Panel WPL 9742083 Contact Us For Availability
3
Dishwasher Door Seal WPL 4161631 Contact Us For Availability
3
Screen WPL 9741049 Contact Us For Availability
3
Damper WPL 4162485 Contact Us For Availability
3
Washer WPL 4159477 Contact Us For Availability
3
Bearing WPL 4171288 Contact Us For Availability
3
Spacer Panel WPL 4171421 Contact Us For Availability
3
Water Inlet WPL 9741568 Contact Us For Availability
3
Seal WPL 9741864 Contact Us For Availability
4
Tube WPL 4162483 Contact Us For Availability
4
Clip Seal WPL 4161608 Contact Us For Availability
4
Washer WPL 4160051 Contact Us For Availability
4
Roller WPL 9741816 Contact Us For Availability
4
Gasket WPL 4161545 Contact Us For Availability
4A
Screw WPL 9740957 Contact Us For Availability
4B
Screw WPL 4171463 Contact Us For Availability
5
Bumper WPL 4171555 Contact Us For Availability
5
Seal WPL 4162481 Contact Us For Availability
5
Bumper WPL 4161626 Contact Us For Availability
5
Washer WPL 4159567 Contact Us For Availability
5
Nut Tube WPL 4171300 Contact Us For Availability
5
Spring WPL 9741863 Contact Us For Availability
5A
Trim Panel WPL 9742089 Contact Us For Availability
5B
Trim Panel WPL 9742087 Contact Us For Availability
6
Washer WPL 4159583 Contact Us For Availability
6
Track WPL 3369071 Contact Us For Availability
6
Clamp WPL 4161505 Contact Us For Availability
6
O-Ring WPL 95080 Contact Us For Availability
6
Switch Bracket WPL 9741861 Contact Us For Availability
6A
Access Trim WPL 4172054 Contact Us For Availability
6B
Access Trim WPL 4171673 Contact Us For Availability
7
Dishwasher Water Inlet Valve WPL 9741906 Contact Us For Availability
7
Support WPL 9740989 Contact Us For Availability
7
Clip WPL 9740303 Contact Us For Availability
7
Thermostat WPL 9741196 Contact Us For Availability
7
Nut WPL 718829 Contact Us For Availability
7
Grommet WPL 4162735 Contact Us For Availability
8
Housing WPL 4162487 Contact Us For Availability
8
Thermostat Bracket WPL 9741192 Contact Us For Availability
8
Stop WPL 3369046 Contact Us For Availability
8
Screw WPL 3369139 Contact Us For Availability
8
Switch WPL 9741813 Contact Us For Availability
8A
Panl-bl WPL 4172053 Contact Us For Availability
8B
Panel (White) WPL 4171672 Contact Us For Availability
9
Dishwasher Door Hinge Support Bracket WPL 4161592 Contact Us For Availability
9
Plate Motor WPL 9740961 Contact Us For Availability
9
Actuator WPL 9741676 Contact Us For Availability
9
Washer WPL 9741062 Contact Us For Availability
9
Filler WPL 4162734 Contact Us For Availability
9
Separator Box WPL 9740676 Contact Us For Availability
10
Screw WPL 9740973 Contact Us For Availability
10
Screw WPL 4159428 Contact Us For Availability
10
Washer WPL 718817 Contact Us For Availability
10
Screw WPL 4159424 Contact Us For Availability
10
Screw WPL 9741258 Contact Us For Availability
11
Bearing WPL 4160355 Contact Us For Availability
11
Keeper WPL 4160092 Contact Us For Availability
11
Screw WPL 9741435 Contact Us For Availability
11
Dishwasher Dishrack Track Roller WPL 300844 Contact Us For Availability
12
Nut WPL 4159071 Contact Us For Availability
12
Heater WPL 9740416 Contact Us For Availability
12
Screw WPL 9741951 Contact Us For Availability
12A
Trim Panel WPL 4172052 Contact Us For Availability
12B
Trim Panel WPL 4171671 Contact Us For Availability
13
Dishwasher Dishrack Slide Rail Stop, Upper WPL 300845 Contact Us For Availability
13
Lock Washer WPL 4159491 Contact Us For Availability
13
Grommet WPL 4162521 Contact Us For Availability
13
Channel WPL 9740868 Contact Us For Availability
13
Switch WPL 4160658 Contact Us For Availability
14
Dishwasher Upper Dishrack Spray Arm Feed Tube WPL 4171544 Contact Us For Availability
14
Dishwasher Blower Motor WPL 9740267 Contact Us For Availability
14
Screw WPL 9741257 Contact Us For Availability
14
Washer WPL 4163554 Contact Us For Availability
14
Nut WPL 4161596 Contact Us For Availability
14
Outlet Pump WPL 9741379 Contact Us For Availability
14A
PANEL INSERT KIT, WHITE / BLACK WPL 4171594 Contact Us For Availability
14B
Ins-ht Al WPL 4162834 Contact Us For Availability
14C
Panl Al Bl WPL 4171534 Contact Us For Availability
14D
Ins-wh Al WPL 4162836 Contact Us For Availability
14E
Panl Ht Ob WPL 4171096 Contact Us For Availability
14F
Fan Complete Insert WPL 4162835 Contact Us For Availability
14G
Dishwasher Door Outer Panel WPL 4169400 Contact Us For Availability
14H
Panl Pl To WPL 4169402 Contact Us For Availability
14I
Panl Sa Ob WPL 4169403 Contact Us For Availability
14J
Panl Si Ob WPL 4169404 Contact Us For Availability
15
Screw WPL 4171131 Contact Us For Availability
15
Nut WPL 718537 Contact Us For Availability
15
Bumper WPL 4162048 Contact Us For Availability
15
Float WPL 4171216 Contact Us For Availability
16
Dishwasher Circulation Pump Gasket WPL 717000 Contact Us For Availability
16
Dishwasher Door Hinge, Right WPL 4161594 Contact Us For Availability
16
Wheel WPL 4162499 Contact Us For Availability
16
Support WPL 9741276 Contact Us For Availability
16
Thermostat WPL 9741786 Contact Us For Availability
16
Clip WPL 4171551 Contact Us For Availability
16
Lever WPL 4171116 Contact Us For Availability
17
Nut Motor WPL 9740265 Contact Us For Availability
17
Screw WPL 4162151 Contact Us For Availability
17
Pump Motor WPL 9740665 Contact Us For Availability
17A
Track-rh WPL 9741828 Contact Us For Availability
17B
Track-lh WPL 9741829 Contact Us For Availability
18
Frame-l.h. WPL 4171620 Contact Us For Availability
18
Washer WPL 4162452 Contact Us For Availability
18
Bushing WPL 302707 Contact Us For Availability
19
Bracket WPL 4161587 Contact Us For Availability
19
Rear Frame WPL 9741173 Contact Us For Availability
19
Washer WPL 4159593 Contact Us For Availability
20
Screw WPL 9741677 Contact Us For Availability
20
Sleeve WPL 302705 Contact Us For Availability
21
Frame-r.h. WPL 4171619 Contact Us For Availability
21A
Stop WPL 4171291 Contact Us For Availability
21B
Stop WPL 4171292 Contact Us For Availability
22
Screw WPL 9741690 Contact Us For Availability
22
Seal WPL 302704 Contact Us For Availability
22A
Dishrack Bracket WPL 9741974 Contact Us For Availability
22B
Dishrack Bracket WPL 9741975 Contact Us For Availability
23
Frame WPL 4161368 Contact Us For Availability
23
Rivet WPL 4159166 Contact Us For Availability
23
Cover WPL 302723 Contact Us For Availability
24
Seal WPL 4171447 Contact Us For Availability
24
Kick Board WPL 4171618 Contact Us For Availability
25
Dishwasher Level Foot WPL 4162911 Contact Us For Availability
25
Base Pump WPL 9740671 Contact Us For Availability
25
Clip WPL 9742169 Contact Us For Availability
26
Dishwasher Sump Mounting Support WPL 3367197 Contact Us For Availability
26
Screw WPL 9741365 Contact Us For Availability
27
Low Baffle WPL 4161295 Contact Us For Availability
27
SCREW, 10-32 X 3/8 WPL 4159372 Contact Us For Availability
27A
Push Button WPL 9741849 Contact Us For Availability
27B
Push Button WPL 9741850 Contact Us For Availability
28
Pump Motor WPL 3369330 Contact Us For Availability
28A
Cover WPL 4161369 Contact Us For Availability
29
Shield WPL 3382404 Contact Us For Availability
29
Screw WPL 3369331 Contact Us For Availability
30
Dishwasher Pump Seal Kit WPL 675703 Contact Us For Availability
30
Handle Bracket WPL 4171364 Contact Us For Availability
31
Dishwasher Pump Installation Centering Tool WPL 303918 Contact Us For Availability
31A
Screw WPL 4172012 Contact Us For Availability
32
Tank Dish WPL 9741966 Contact Us For Availability
32A
Handle WPL 9741857 Contact Us For Availability
32B
Handle WPL 9741858 Contact Us For Availability
33
Protector WPL 4171215 Contact Us For Availability
33
Screw WPL 9741328 Contact Us For Availability
34
Dishwasher Rinse-Aid Dispenser Cap WPL 4171221 Contact Us For Availability
34
Relay WPL 304658 Contact Us For Availability
34
Harness Clip WPL 4163372 Contact Us For Availability
35
Screw WPL 4159403 Contact Us For Availability
35
Connector WPL 4161605 Contact Us For Availability
35A
Wire Harness WPL 9741882 Contact Us For Availability
35B
Screw WPL 4159349 Contact Us For Availability
38A
Dishwasher Timer Knob (Black) WPL 9741853 Contact Us For Availability
38B
Timer Knob WPL 9741854 Contact Us For Availability
39
Drain Tube WPL 9741366 Contact Us For Availability
39
Bracket WPL 4161589 Contact Us For Availability
41
Cap WPL 9741415 Contact Us For Availability
43
Shield WPL 9742182 Contact Us For Availability
44
Dishwasher Timer WPL 9741693 Contact Us For Availability
45
Barrier WPL 9741378 Contact Us For Availability
NI
Paint 1qt WPL 799344 Contact Us For Availability
NI
Spray Ng WPL 261890 Contact Us For Availability
NI
Spray Ng WPL 261891 Contact Us For Availability
NI
Paint WPL 285365 Contact Us For Availability
NI
Paint (Platinum) WPL 285366 Contact Us For Availability
NI
Paint To WPL 285367 Contact Us For Availability
NI
Paint Pl WPL 285368 Contact Us For Availability
NI
Thinner WPL 350941 Contact Us For Availability
NI
Top-wood WPL 4162841 Contact Us For Availability
NI
Shield WPL 4171179 Contact Us For Availability
NI
Kick Board WPL 4171476 Contact Us For Availability
NI
Pnl Wh Rh WPL 4171632 Contact Us For Availability
NI
Pnl Al Rh WPL 4171633 Contact Us For Availability
NI
Pnl Wh Lh0 WPL 4171634 Contact Us For Availability
NI
Pnl Al Lh WPL 4171635 Contact Us For Availability
NI
Tine WPL 675506 Contact Us For Availability
NI
Touch-Up WPL 72112 Contact Us For Availability
NI
Epoxy WPL 799640 Contact Us For Availability
NI
Drain Hose WPL 9741358 Contact Us For Availability
NI
Wiring Diagram WPL 9741870 Contact Us For Availability
NI
Dishwasher Owner's Manual WPL 9742002 Contact Us For Availability
NI
Energy Guide Tag WPL 9742141 Contact Us For Availability
NI
Paint WPL 978883 Contact Us For Availability
× ![]()
Login and Registration Form
