Model Whirlpool 665.75023102 Range – Common Parts & Diagrams
COVER

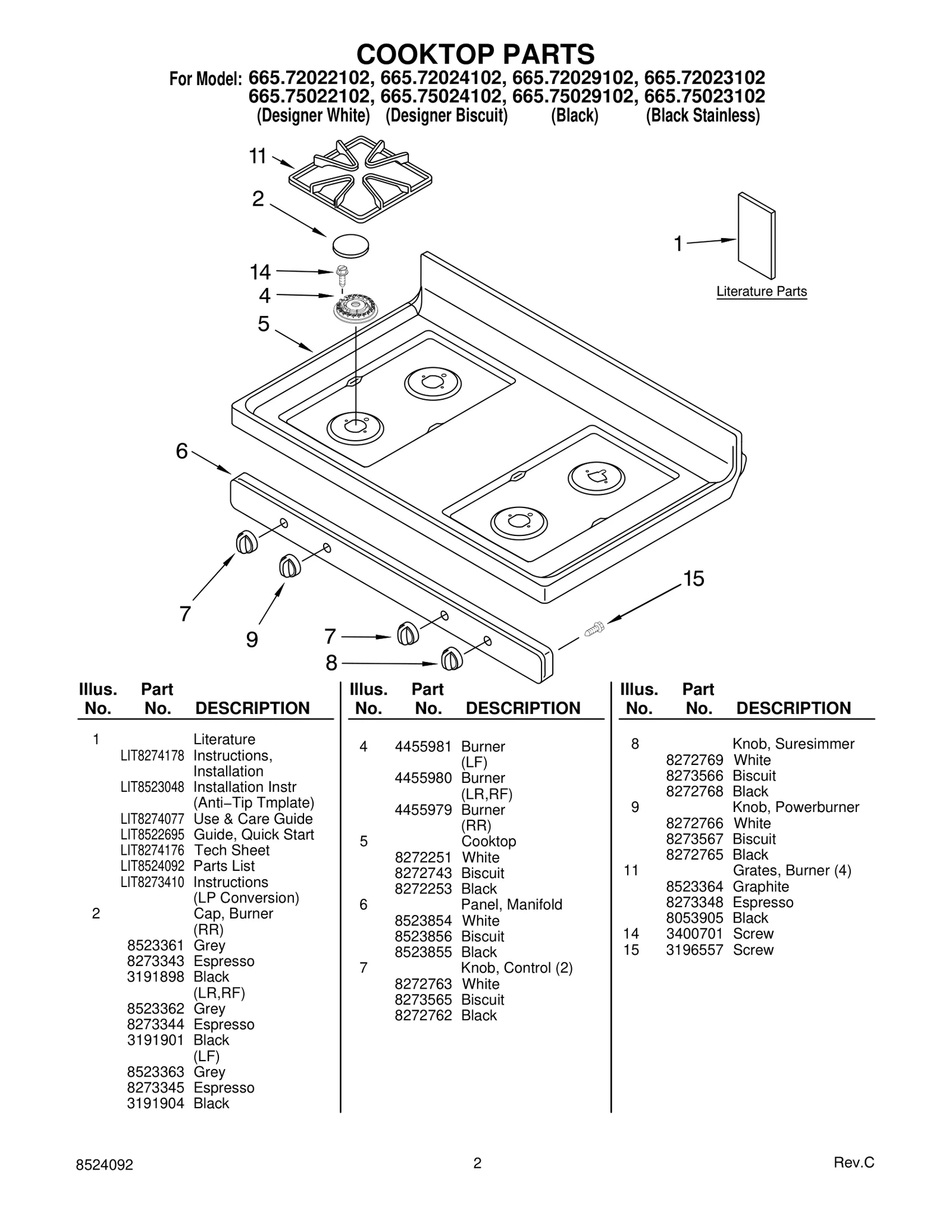

COOKTOP PARTS

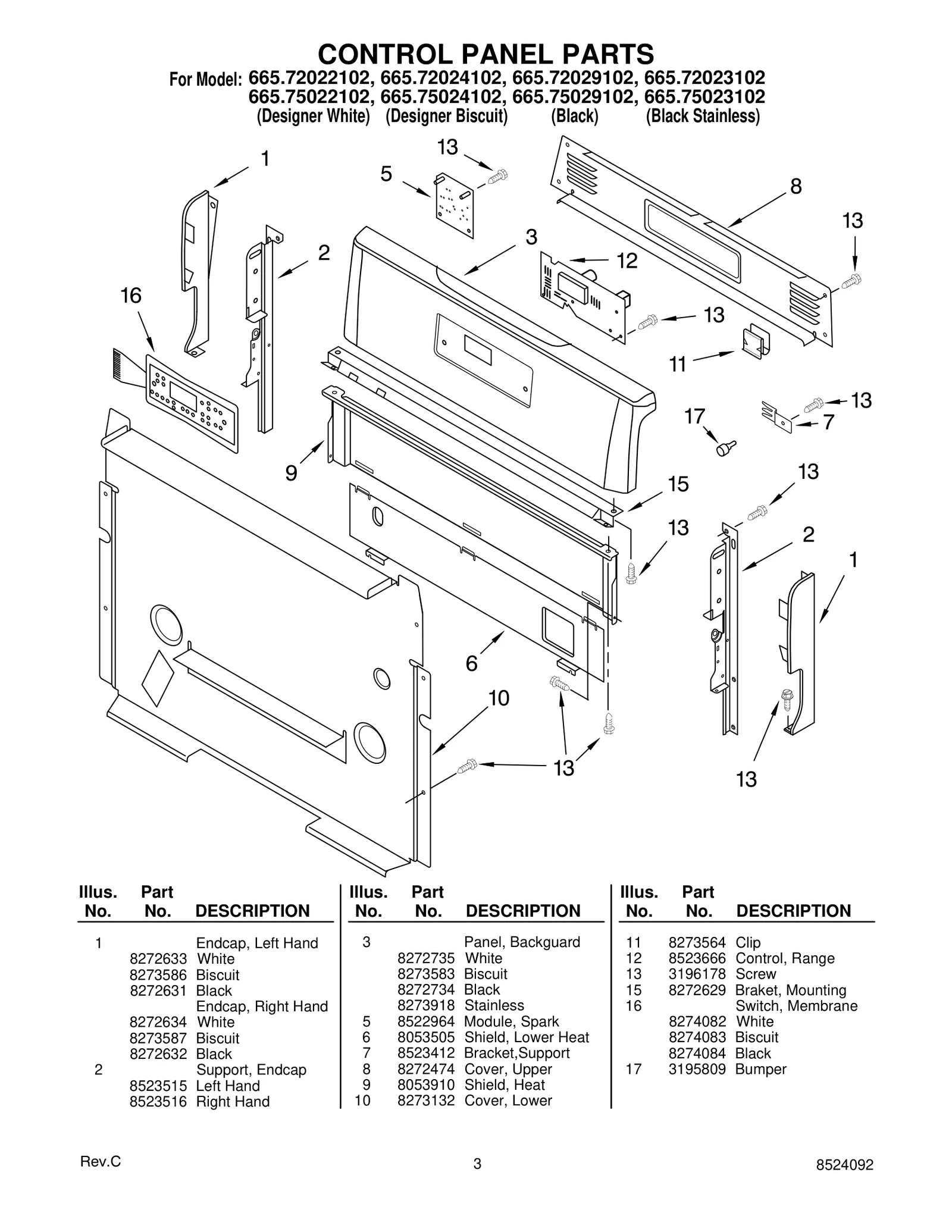

CONTROL PANEL PARTS

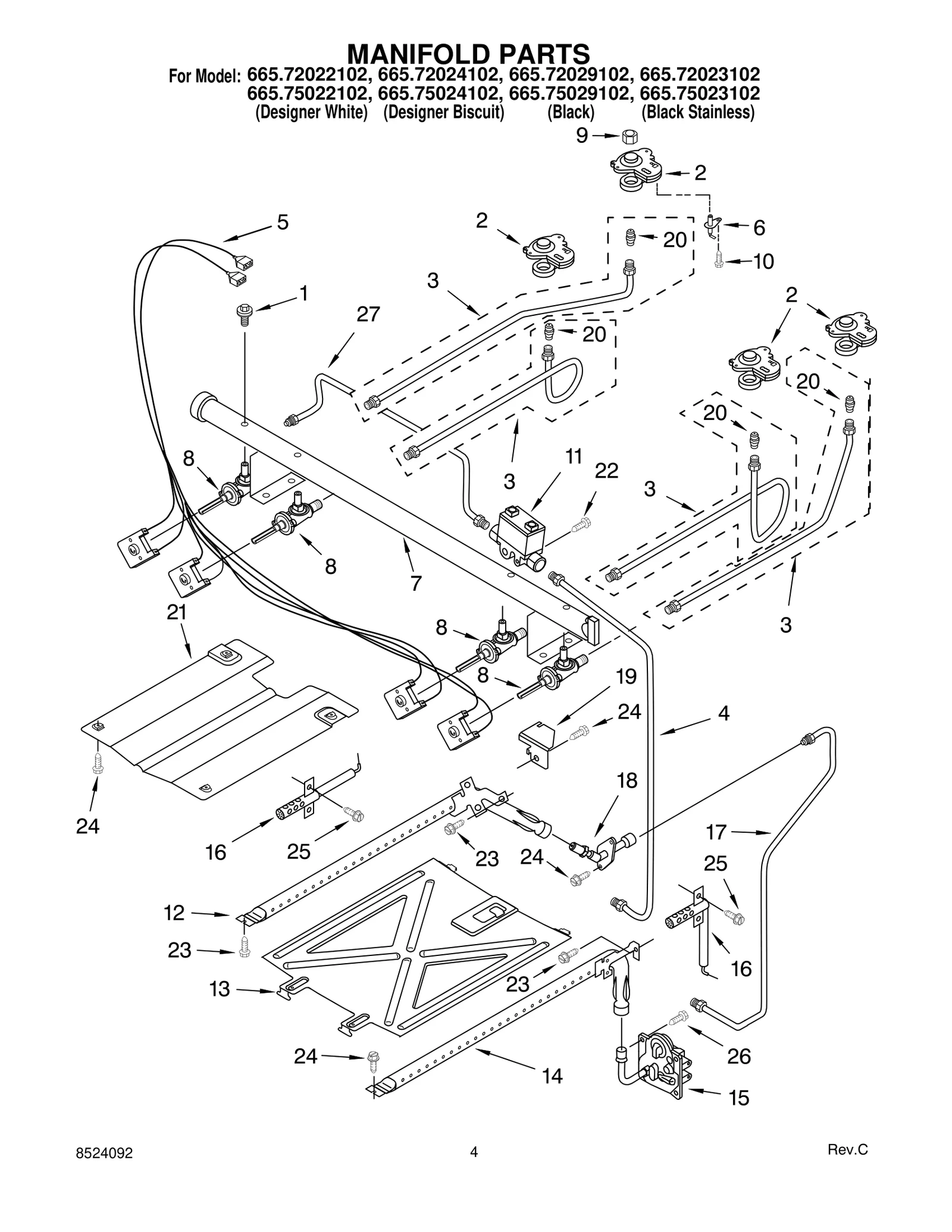

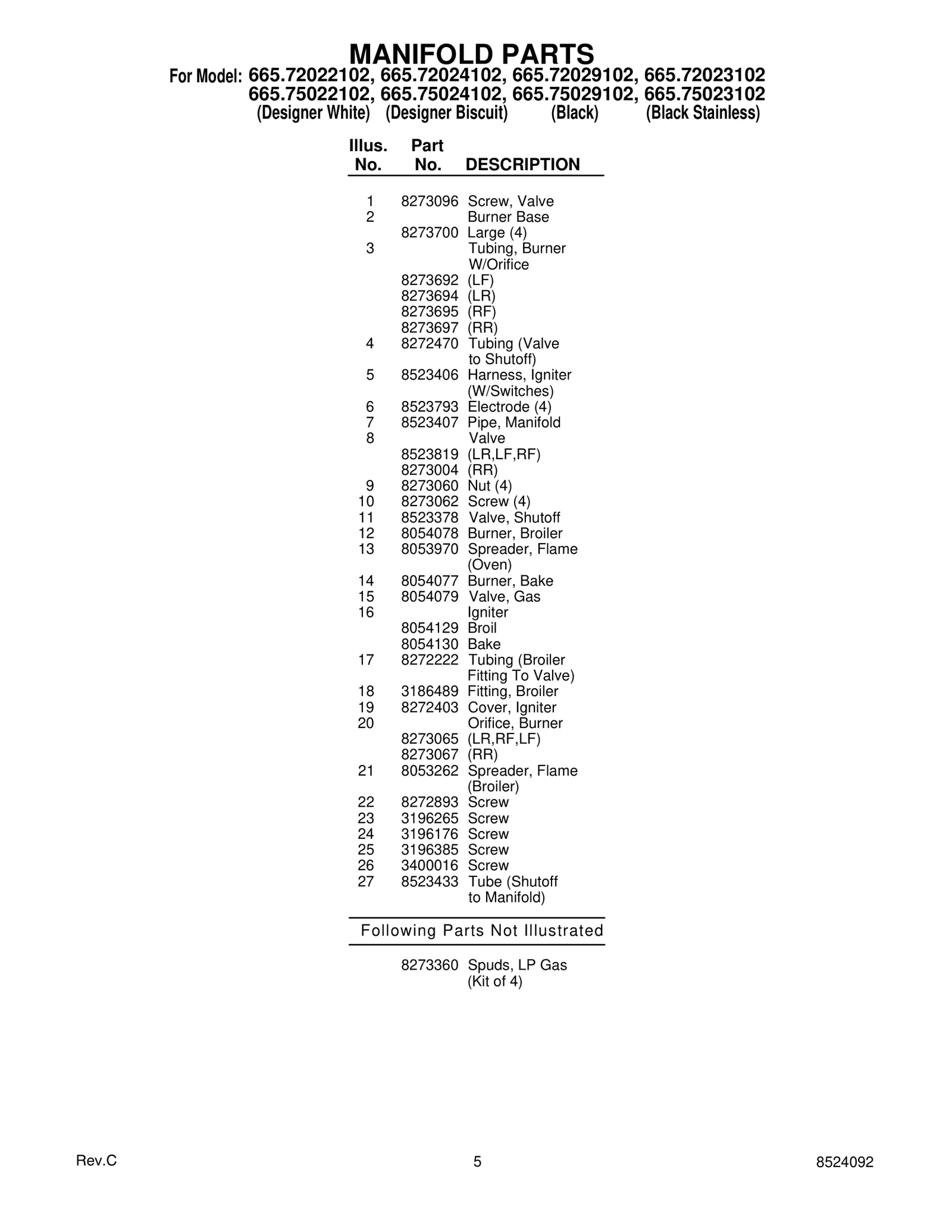

MANIFOLD PARTS
MANIFOLD PARTS

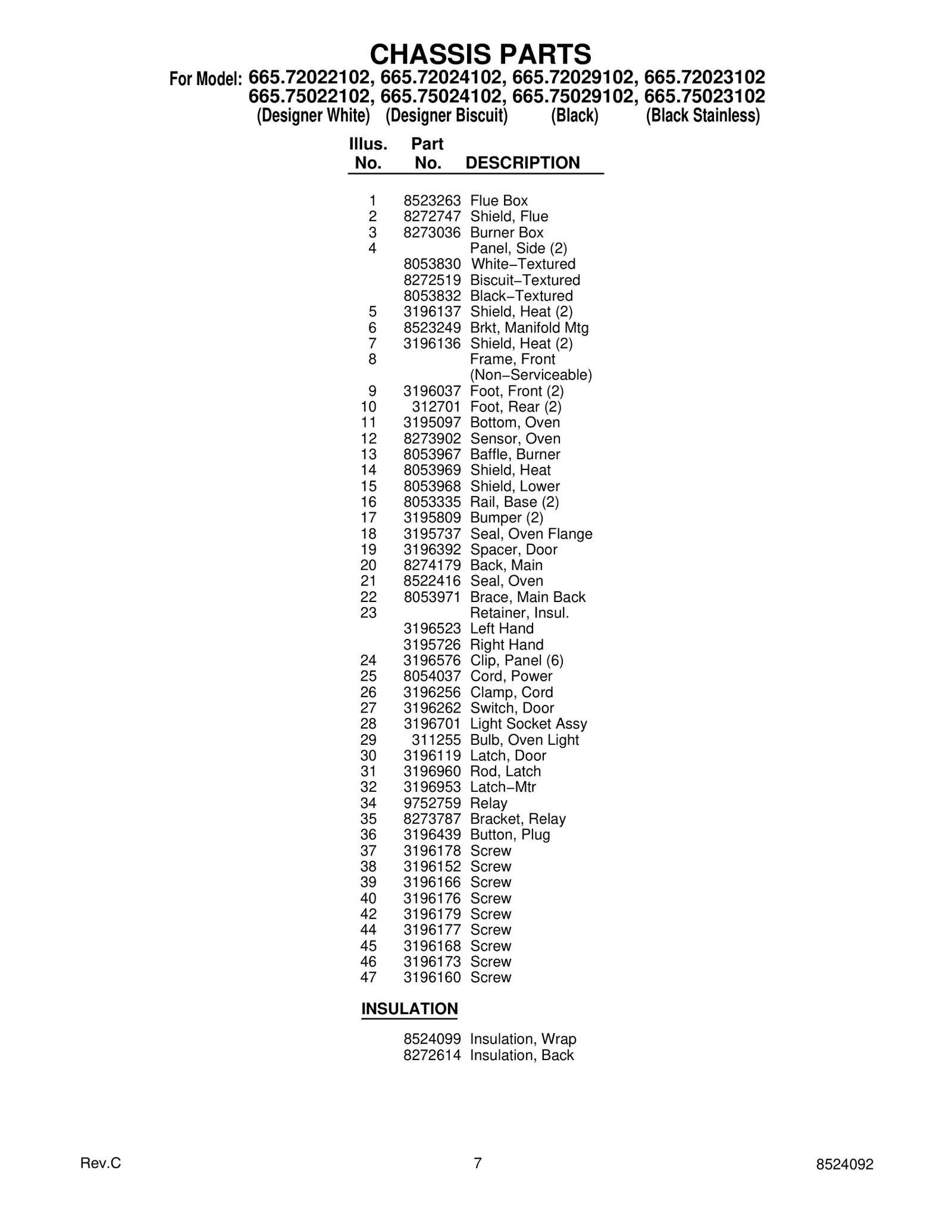

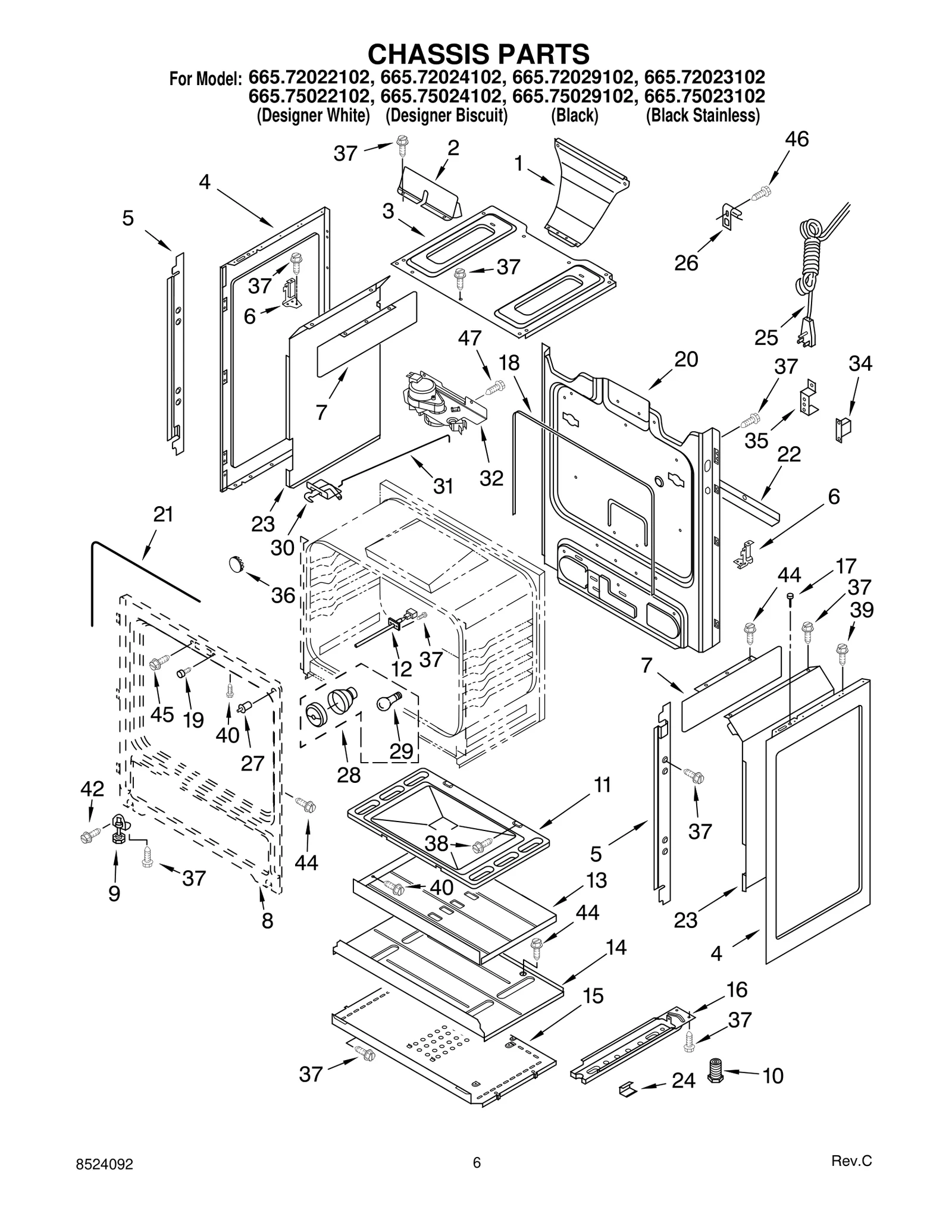

CHASSIS PARTS
CHASSIS PARTS

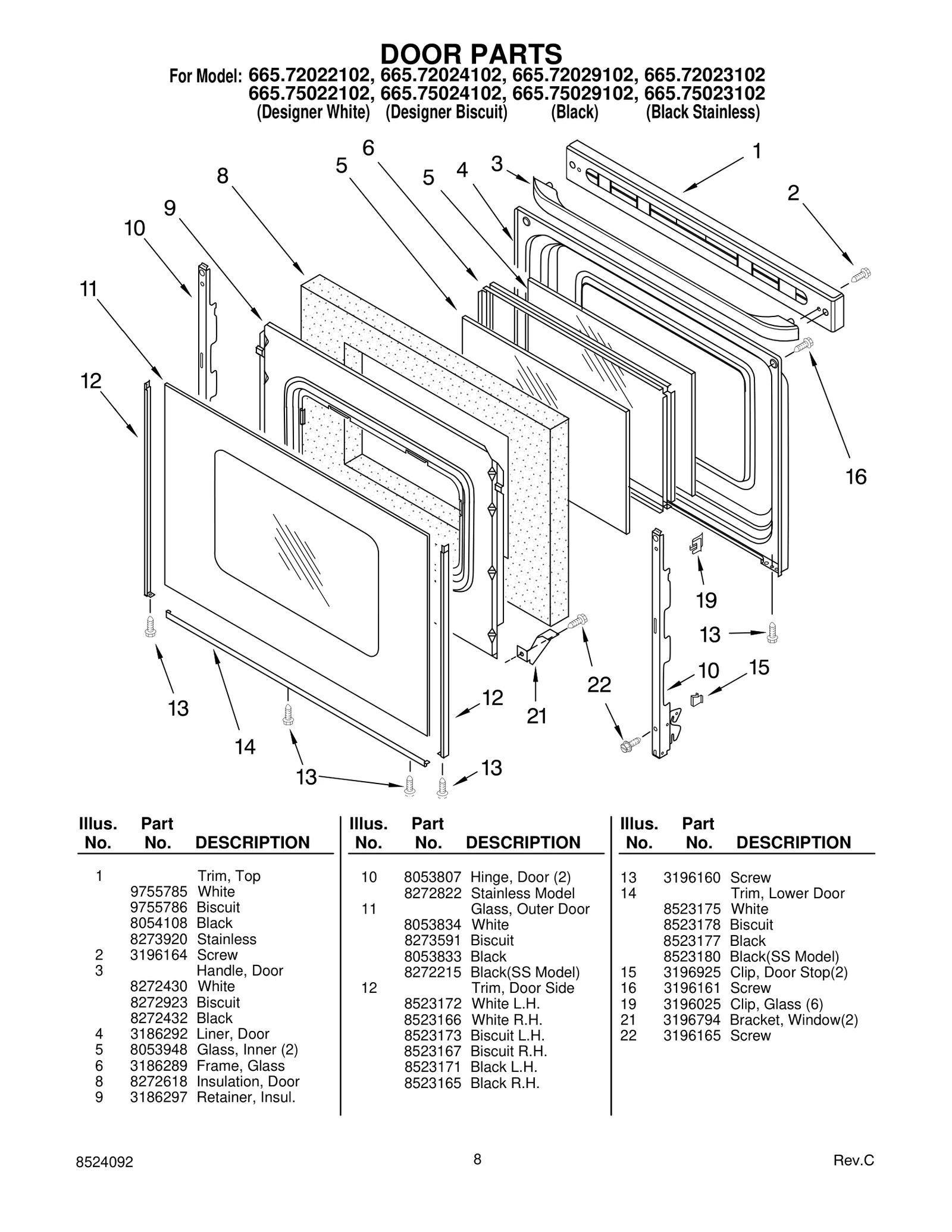

DOOR PARTS

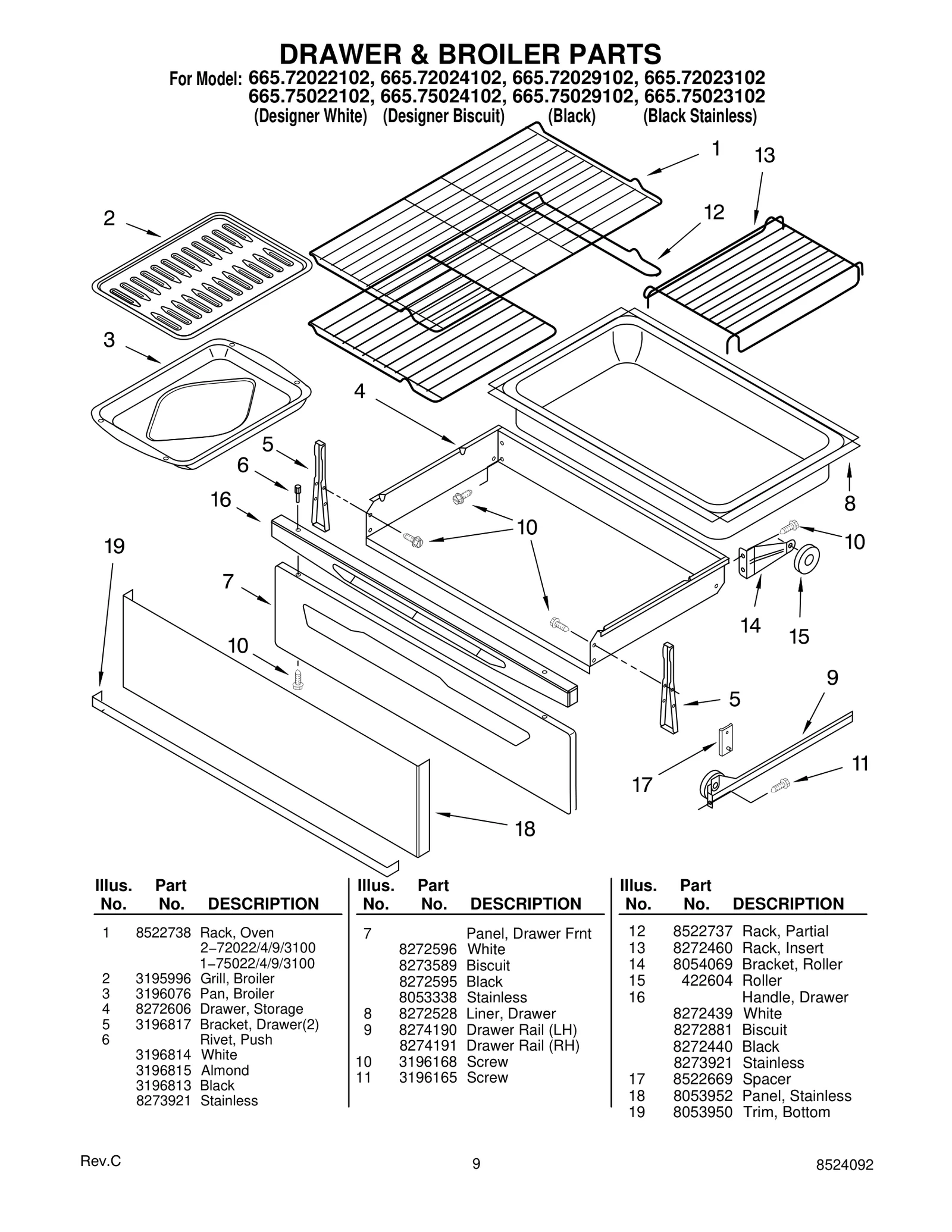

DRAWER & BROILER PARTS

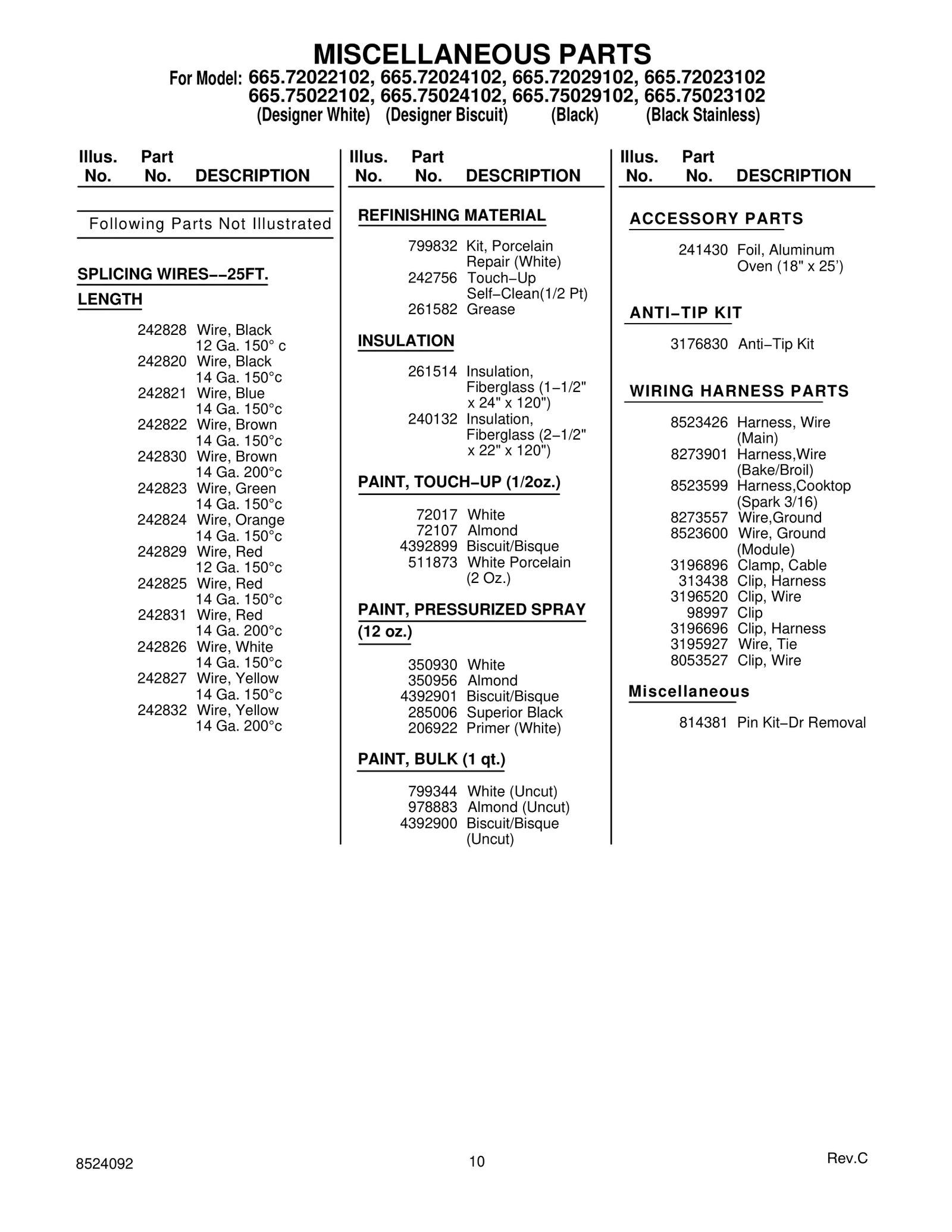

MISCELLANEOUS PARTS
Common parts from model Whirlpool 665.75023102 Range
1
Screw, Valve WPL 8273096 Contact Us For Availability
1
Rack, Oven 2−72022/4/9/3100 1−75022/4/9/3 WPL 8522738 Contact Us For Availability
1
Trim, Top — White WPL 9755785 Contact Us For Availability
1
Trim, Top — Biscuit WPL 9755786 Contact Us For Availability
1
Trim, Top — Black WPL 8054108 Contact Us For Availability
1
Trim, Top — Stainless WPL 8273920 Contact Us For Availability
3
(RF) WPL 8273695 Contact Us For Availability
3
(LF) WPL 8273692 Contact Us For Availability
3
(RR) WPL 8273697 Contact Us For Availability
3
Handle, Door — White WPL 8272430 Contact Us For Availability
3
Handle, Door — Biscuit WPL 8272923 Contact Us For Availability
3
Handle, Door — Black WPL 8272432 Contact Us For Availability
4
Burner WPL 4455979 Contact Us For Availability
4
Liner, Door WPL 3186292 Contact Us For Availability
4
Drawer, Storage WPL 8272606 Contact Us For Availability
6
Rivet, Push — Almond WPL 3196815 Contact Us For Availability
7
Knob, Control (2) — Biscuit WPL 8273565 Contact Us For Availability
7
Panel, Drawer Frnt — White WPL 8272596 Contact Us For Availability
7
Panel, Drawer Frnt — Biscuit WPL 8273589 Contact Us For Availability
7
Panel, Drawer Frnt — Black WPL 8272595 Contact Us For Availability
8
(RR) WPL 8273004 Contact Us For Availability
8
Liner, Drawer WPL 8272528 Contact Us For Availability
9
Nut (4) WPL 8273060 Contact Us For Availability
9
Drawer Rail (LH) WPL 8274190 Contact Us For Availability
9
Drawer Rail (RH) WPL 8274191 Contact Us For Availability
10
Stainless Model WPL 8272822 Contact Us For Availability
11
Grates, Burner (4) — Black WPL 8053905 Contact Us For Availability
11
Grates, Burner (4) — Espresso WPL 8273348 Contact Us For Availability
11
Glass, Outer Door — Biscuit WPL 8273591 Contact Us For Availability
12
Control, Range WPL 8523666 Contact Us For Availability
12
Rack, Partial WPL 8522737 Contact Us For Availability
13
Spreader, Flame WPL 8053970 Contact Us For Availability
14
Bracket, Roller WPL 8054069 Contact Us For Availability
15
Clip, Door Stop(2) WPL 3196925 Contact Us For Availability
16
Switch, Membrane — Black WPL 8274084 Contact Us For Availability
16
Handle, Drawer — Stainless WPL 8273921 Contact Us For Availability
16
Handle, Drawer — White WPL 8272439 Contact Us For Availability
16
Handle, Drawer — Biscuit WPL 8272881 Contact Us For Availability
16
Handle, Drawer — Black WPL 8272440 Contact Us For Availability
17
Tubing (Broiler Fitting To Valve) WPL 8272222 Contact Us For Availability
17
Spacer WPL 8522669 Contact Us For Availability
18
Fitting, Broiler WPL 3186489 Contact Us For Availability
18
Panel, Stainless WPL 8053952 Contact Us For Availability
19
Trim, Bottom (Designer White) (Designer Biscu WPL 8053950 Contact Us For Availability
19
Clip, Glass (6) WPL 3196025 Contact Us For Availability
21
Bracket, Window(2) WPL 3196794 Contact Us For Availability
22
Brace, Main Back WPL 8053971 Contact Us For Availability
23
Retainer, Insul. — Left Hand WPL 3196523 Contact Us For Availability
23
Retainer, Insul. — Right Hand WPL 3195726 Contact Us For Availability
24
Clip, Panel (6) WPL 3196576 Contact Us For Availability
35
Bracket, Relay WPL 8273787 Contact Us For Availability
36
Button, Plug WPL 3196439 Contact Us For Availability
38
Screw WPL 3196152 Contact Us For Availability
42
Screw WPL 3196179 Contact Us For Availability
× ![]()
