Model Whirlpool 665.68680890 Microwave (Kenmore 66568680890) – Common Parts & Diagrams
MAGNETRON AND TURNTABLE

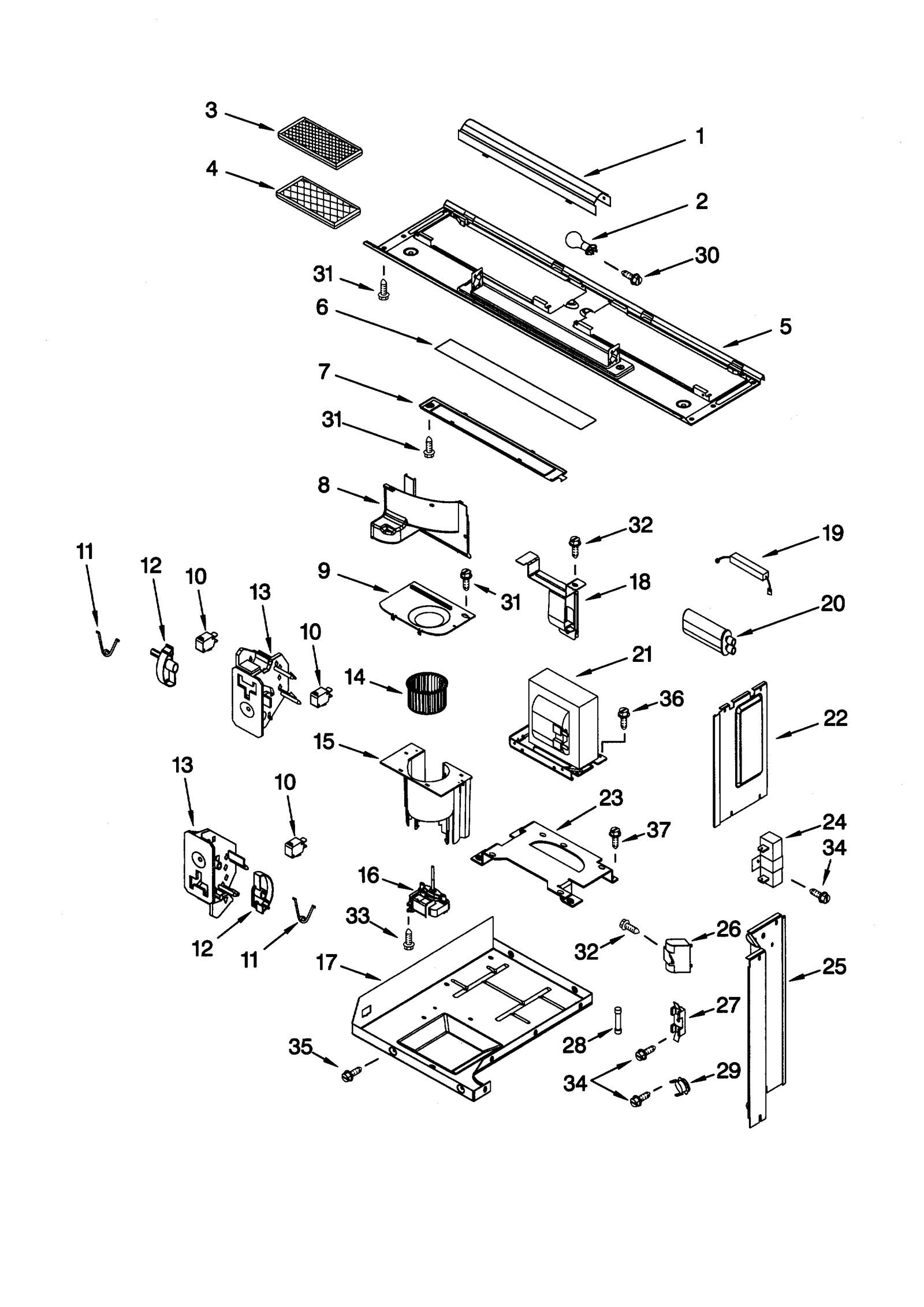

INTERIOR AND VENTILATION
All Parts

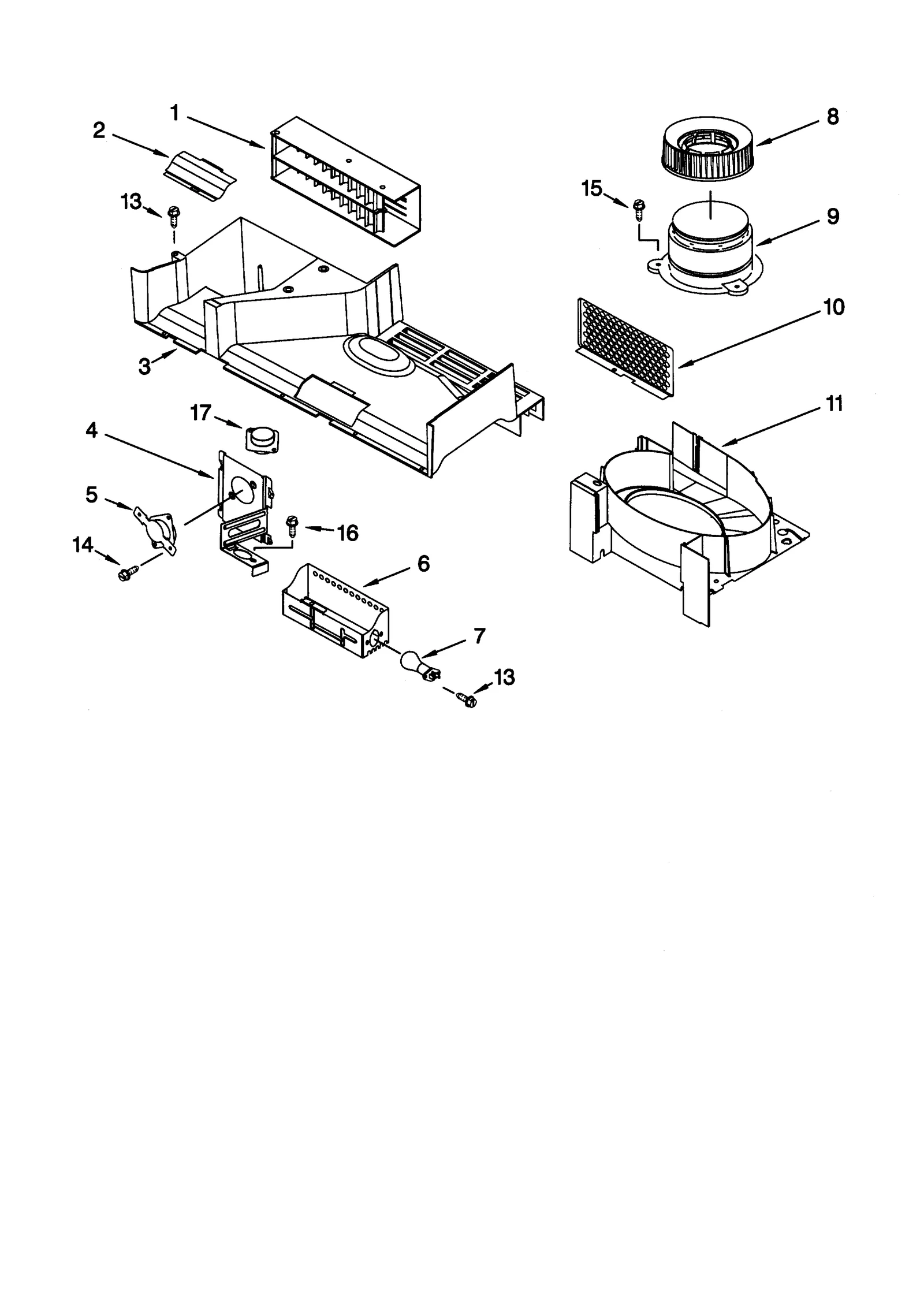

AIR FLOW

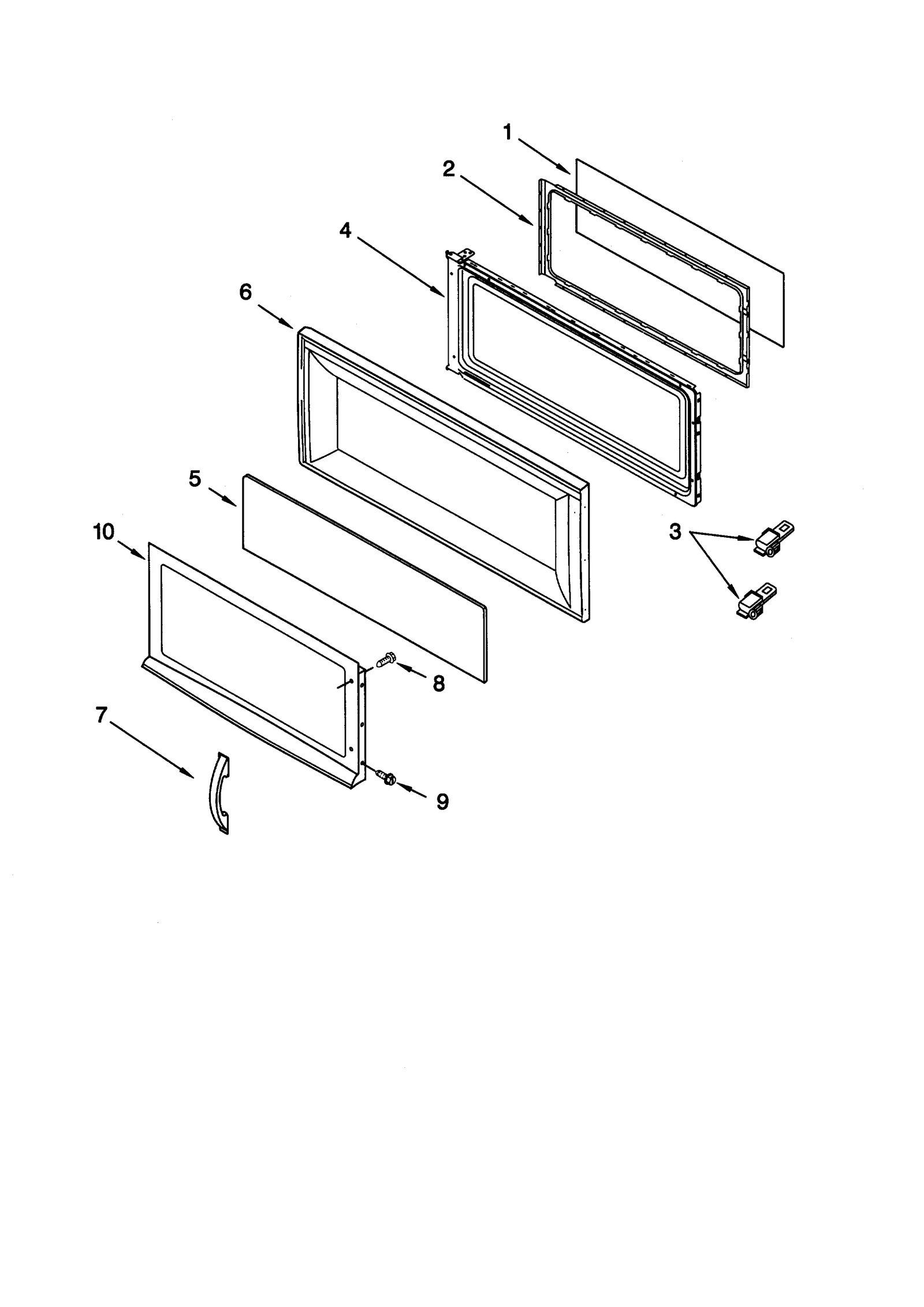

DOOR

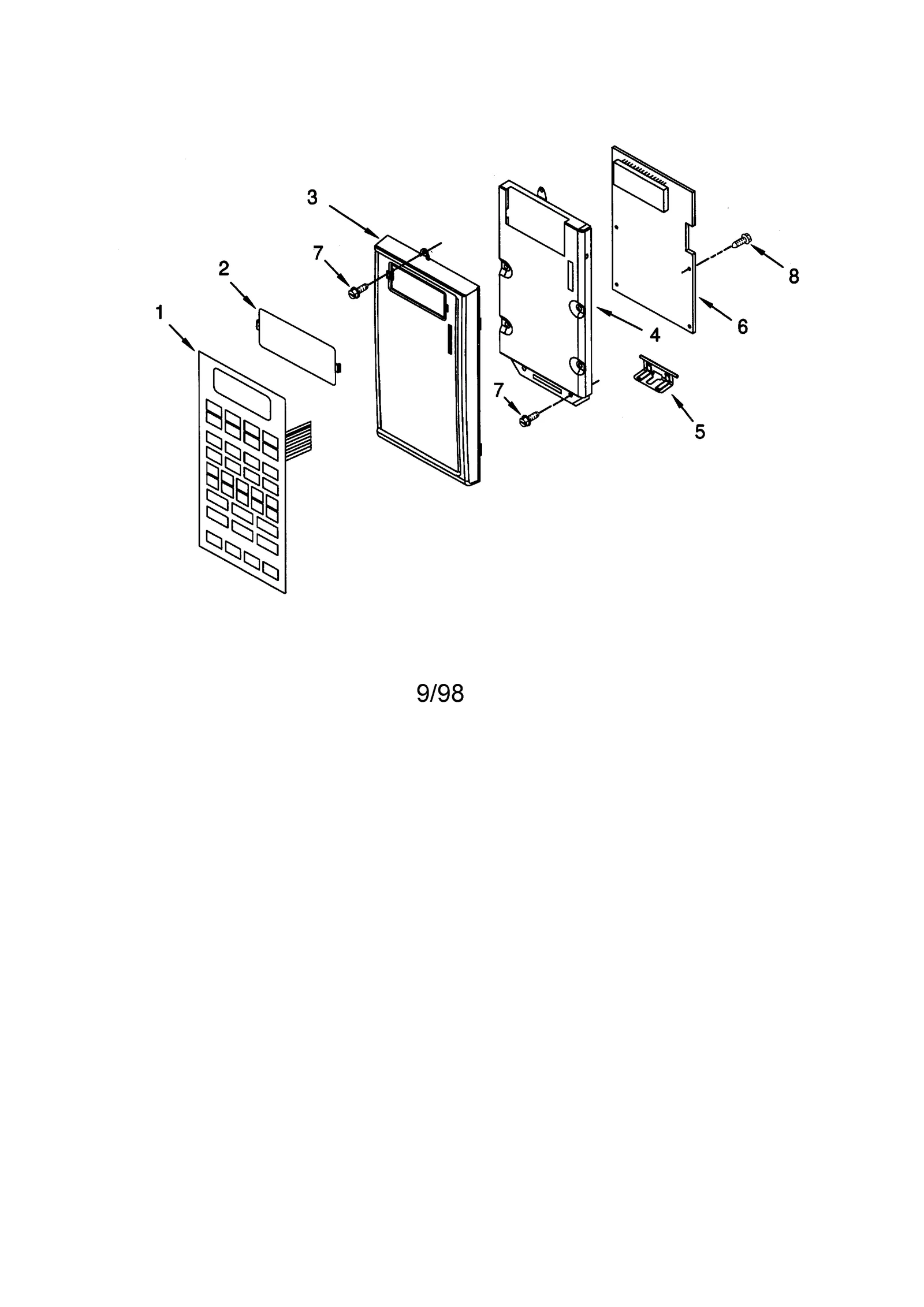

CONTROL PANEL

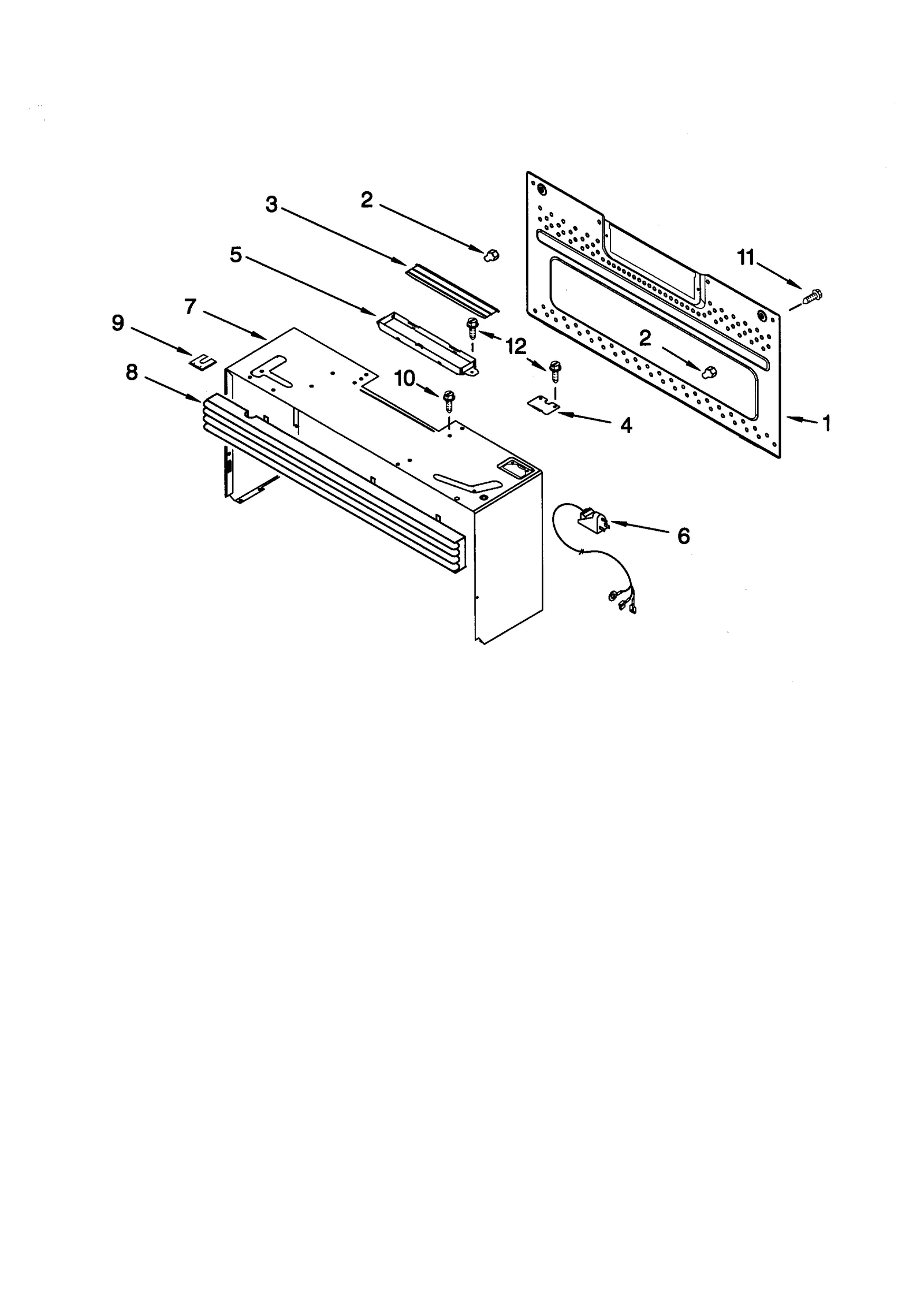

CABINET AND INSTALLATION
Common parts from model Whirlpool 665.68680890 Microwave (Kenmore 66568680890)
1
Reflector WPL 4393810 Contact Us For Availability
1
Deflct-ar WPL 4393807 Contact Us For Availability
1
Film Diffuser WPL 4393720 Contact Us For Availability
1
Switch WPL 4393843 Contact Us For Availability
1A
Switch WPL 4393842 Contact Us For Availability
1B
Switch WPL 4393844 Contact Us For Availability
2
Reflector WPL 4393677 Contact Us For Availability
2
Choke Cover WPL 8169300 Contact Us For Availability
2
Window WPL 4393739 Contact Us For Availability
2
Stud Ball WPL 4393771 Contact Us For Availability
3
Air Duct WPL 4393678 Contact Us For Availability
3
Door Latch WPL 4393614 Contact Us For Availability
3
Control Panel WPL 4393845 Contact Us For Availability
3A
Control Panel WPL 4393846 Contact Us For Availability
3B
Control Panel WPL 4393847 Contact Us For Availability
4
Thermostat Bracket WPL 4393679 Contact Us For Availability
4
Microwave Door WPL 4393722 Contact Us For Availability
4
Control Bracket WPL 4393743 Contact Us For Availability
4
Coverplate WPL 4393714 Contact Us For Availability
4A
Microwave Door WPL 4393723 Contact Us For Availability
4B
Microwave Door WPL 4393724 Contact Us For Availability
5
Base WPL 4393776 Contact Us For Availability
5
Thermostat WPL 4393580 Contact Us For Availability
5
Door Glass WPL 4393812 Contact Us For Availability
5
Hinge Plate WPL 4393744 Contact Us For Availability
5A
Door Glass WPL 4393811 Contact Us For Availability
5B
Door Glass WPL 4393813 Contact Us For Availability
6
Lamp Glass WPL 4393693 Contact Us For Availability
6
Housing WPL 4393680 Contact Us For Availability
6
Panel WPL 4393814 Contact Us For Availability
6
PCB WPL 4393848 Contact Us For Availability
6
Power Cord WPL 4393793 Contact Us For Availability
6A
Panel WPL 4393815 Contact Us For Availability
6B
Panel WPL 4393816 Contact Us For Availability
7
Light Cover WPL 4393694 Contact Us For Availability
7
Wrapper Cabinet WPL 4393717 Contact Us For Availability
7A
Microwave Door Handle (Black) WPL 4393824 Contact Us For Availability
7A
Wrapper Cabinet WPL 4393718 Contact Us For Availability
7B
Microwave/Hood Door Handle WPL 4393825 Contact Us For Availability
7B
Wrapper Cabinet WPL 4393719 Contact Us For Availability
8
Microwave Turntable Tray WPL 4393799 No Longer Available
8
Microwave Screw WPL 4393833 Contact Us For Availability
8
Air Guide WPL 4393695 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
Fan Wheel WPL 4393682 Contact Us For Availability
9
Lid Fan WPL 4393696 Contact Us For Availability
9
Fan Motor WPL 4393789 Contact Us For Availability
10
Shield WPL 4393683 Contact Us For Availability
10B
Door Frame WPL 4393822 Contact Us For Availability
11
Spring WPL 4393914 Contact Us For Availability
11
Screw WPL 4393839 Contact Us For Availability
11
Housng-blw WPL 4393684 Contact Us For Availability
12
Screw WPL 4393828 Contact Us For Availability
12
Cam Plate WPL 4393597 Contact Us For Availability
13
Terminal Cover WPL 4393756 Contact Us For Availability
13
Screw WPL 4393827 Contact Us For Availability
14
Fan Wheel WPL 4393698 Contact Us For Availability
15
Thermostat WPL 4393603 Contact Us For Availability
15
Housing WPL 4393699 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Connector WPL 4393797 Contact Us For Availability
16
Fan Motor WPL 4393700 Contact Us For Availability
17
Connector WPL 4393686 Contact Us For Availability
17
Base WPL 4393701 Contact Us For Availability
17
Sensor WPL 4393808 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Capacitor Bracket WPL 4393702 Contact Us For Availability
21
Microwave Turntable Motor Screw WPL 4393832 Contact Us For Availability
21
Transformer WPL 4393809 Contact Us For Availability
22
Plate WPL 4393705 Contact Us For Availability
23
Mounting Plate WPL 4393706 Contact Us For Availability
24
Resistor WPL 4393707 Contact Us For Availability
25
Plate WPL 4393708 Contact Us For Availability
26
Microwave Vent Motor Capacitor WPL 4393709 Contact Us For Availability
27
Fuse Block WPL 4393538 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
35
Ul-switch WPL 4393448 Contact Us For Availability
NI
Filler Panel (Black) WPL 4158311 Contact Us For Availability
NI
Filler Panel (White) WPL 4158439 Contact Us For Availability
NI
Filler Panel WPL 4378403 Contact Us For Availability
NI
Mounting Hardware WPL 4393757 Contact Us For Availability
NI
Meat Rack WPL 4393826 Contact Us For Availability
NI
Trmplate WPL 8169298 Contact Us For Availability
NI
Template WPL 8169299 Contact Us For Availability
NI
Cook Guide WPL LIT4393456 Contact Us For Availability
NI
Technical Sheet WPL LIT4393768 Contact Us For Availability
NI
Installation Instructions WPL LIT4393804 Contact Us For Availability
NI
Owner's Manual WPL LIT4393854 Contact Us For Availability
× ![]()
