Model Whirlpool 665.60659000 Microwave/Hood Combo (Kenmore 66560659000) – Common Parts & Diagrams
All Parts

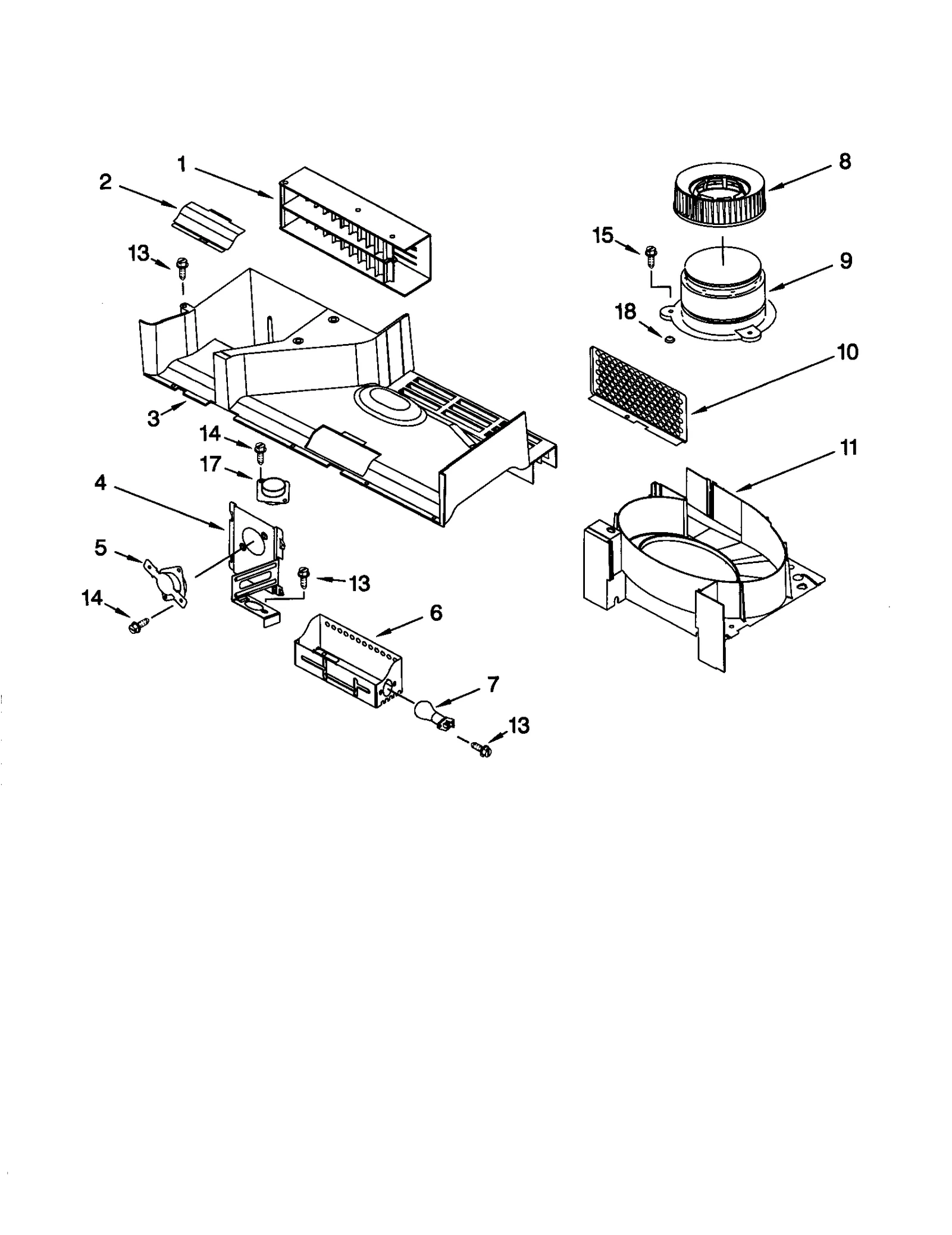

AIR FLOW

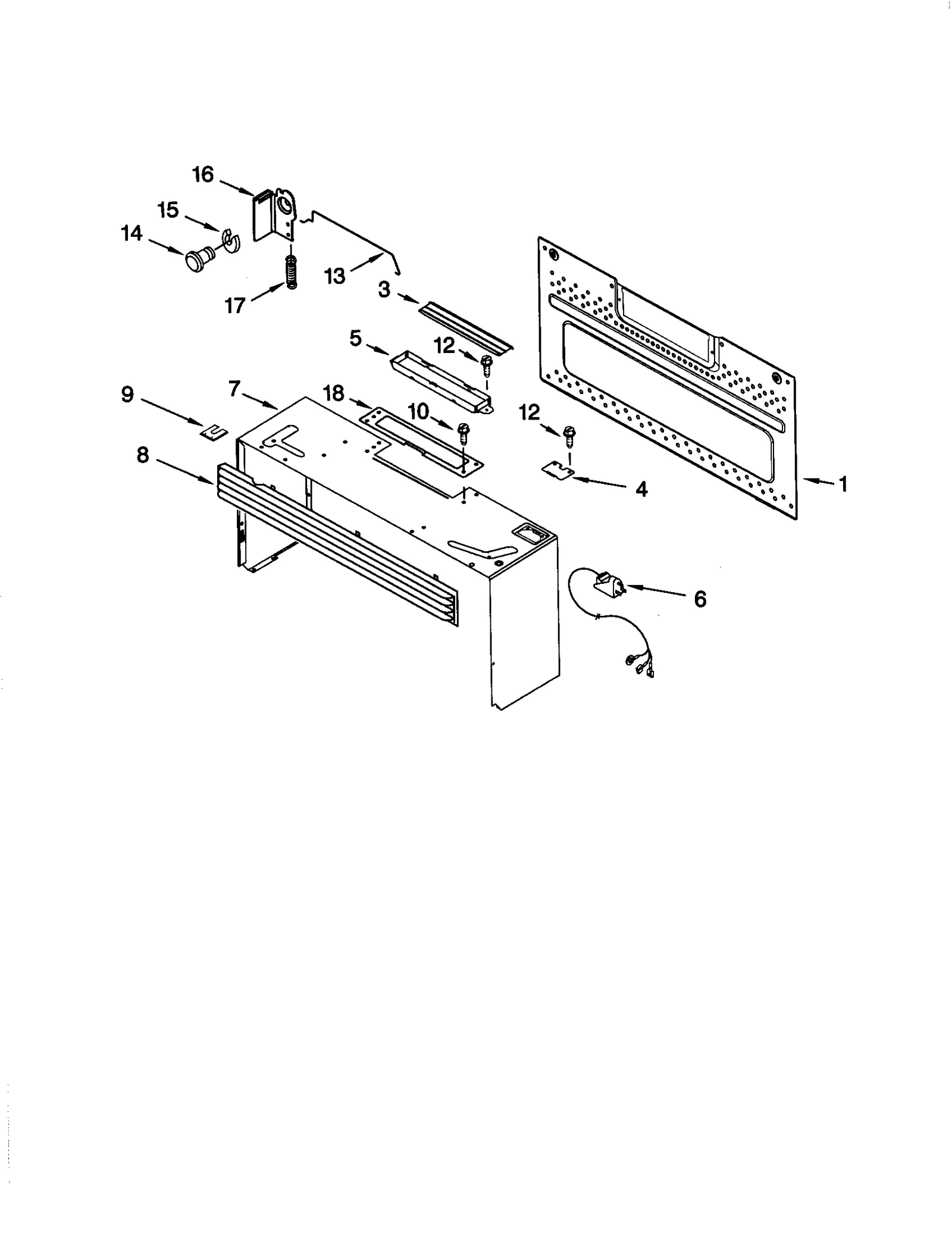

CABINET AND INSTALLATION

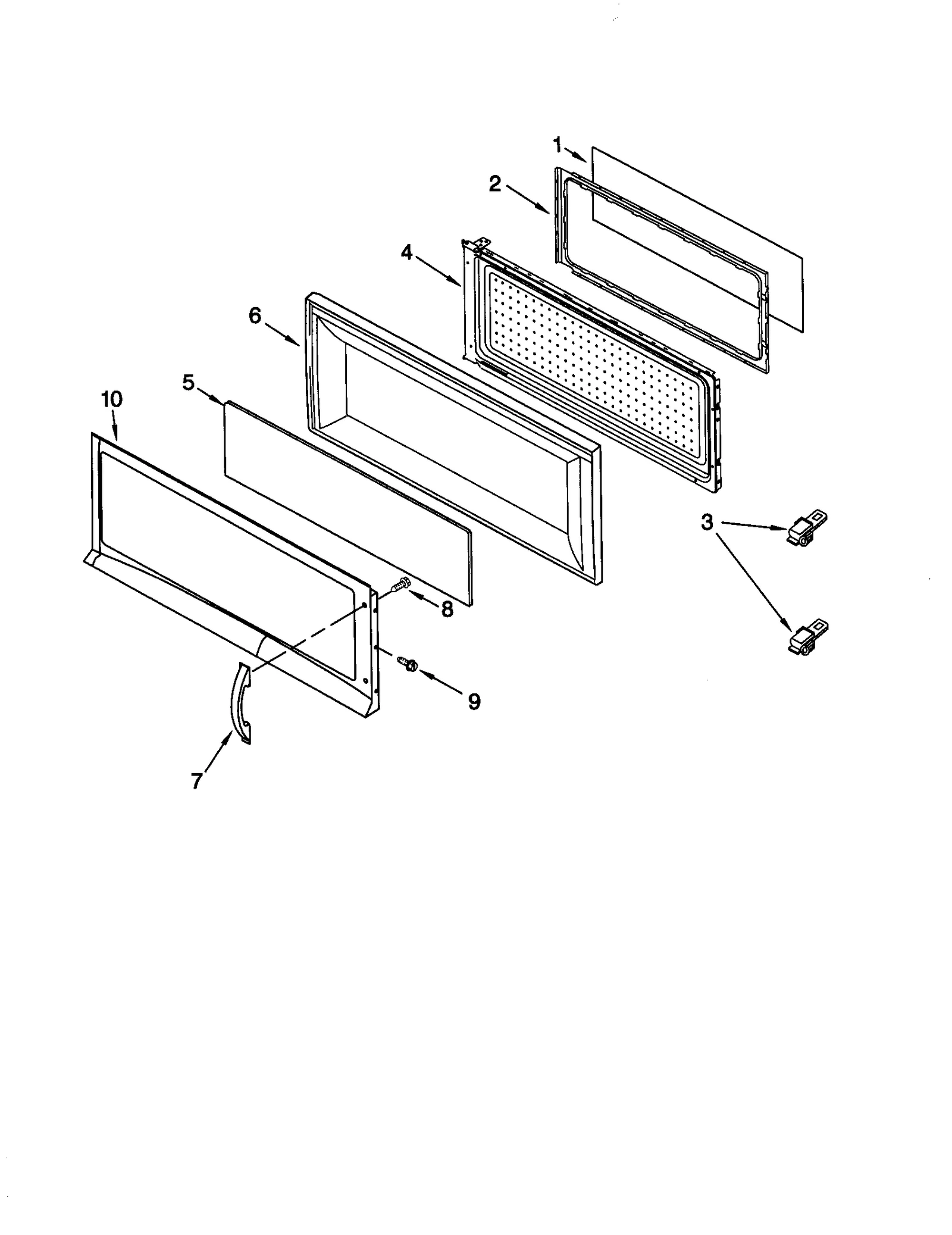

DOOR

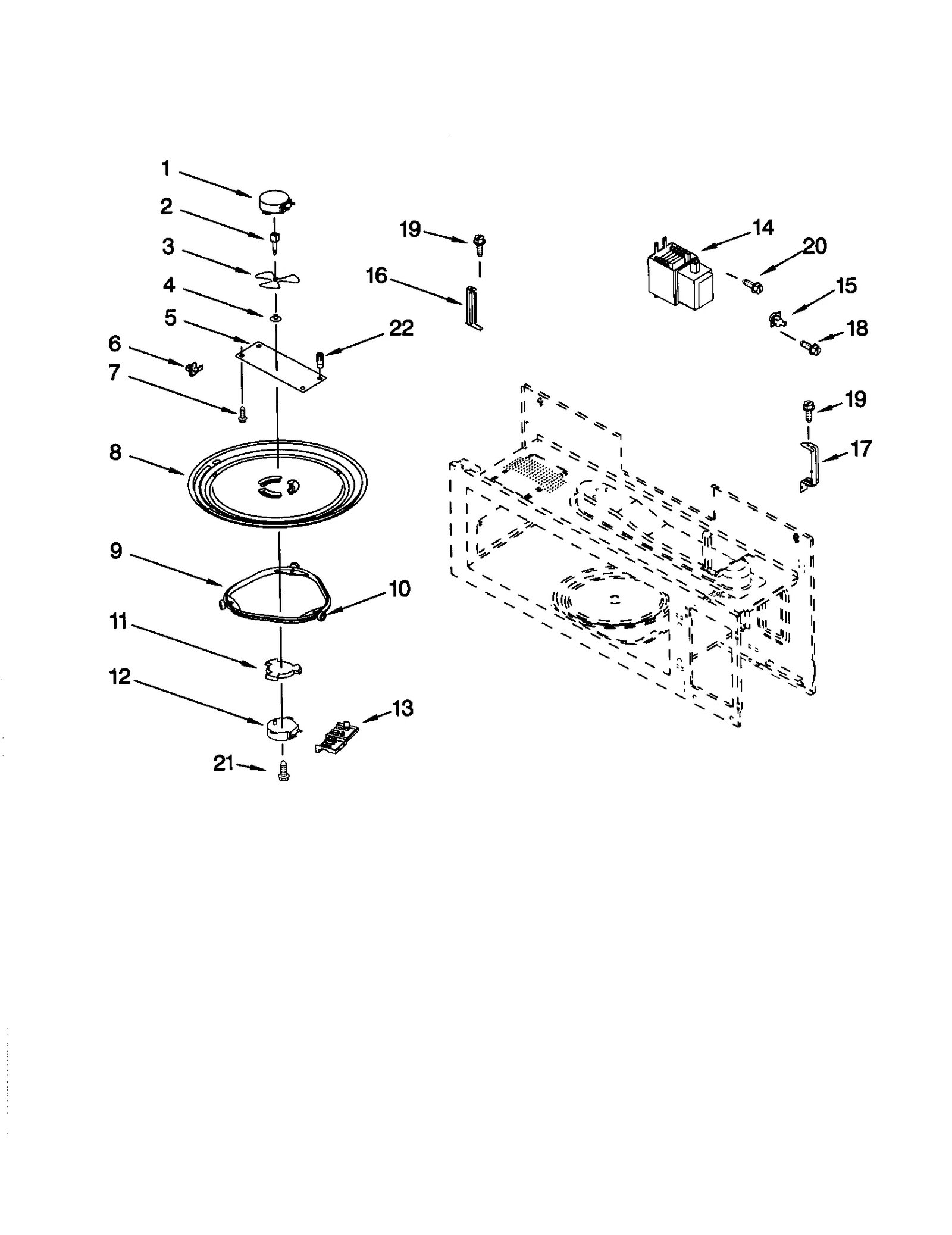

MAGNETRON AND TURNTABLE

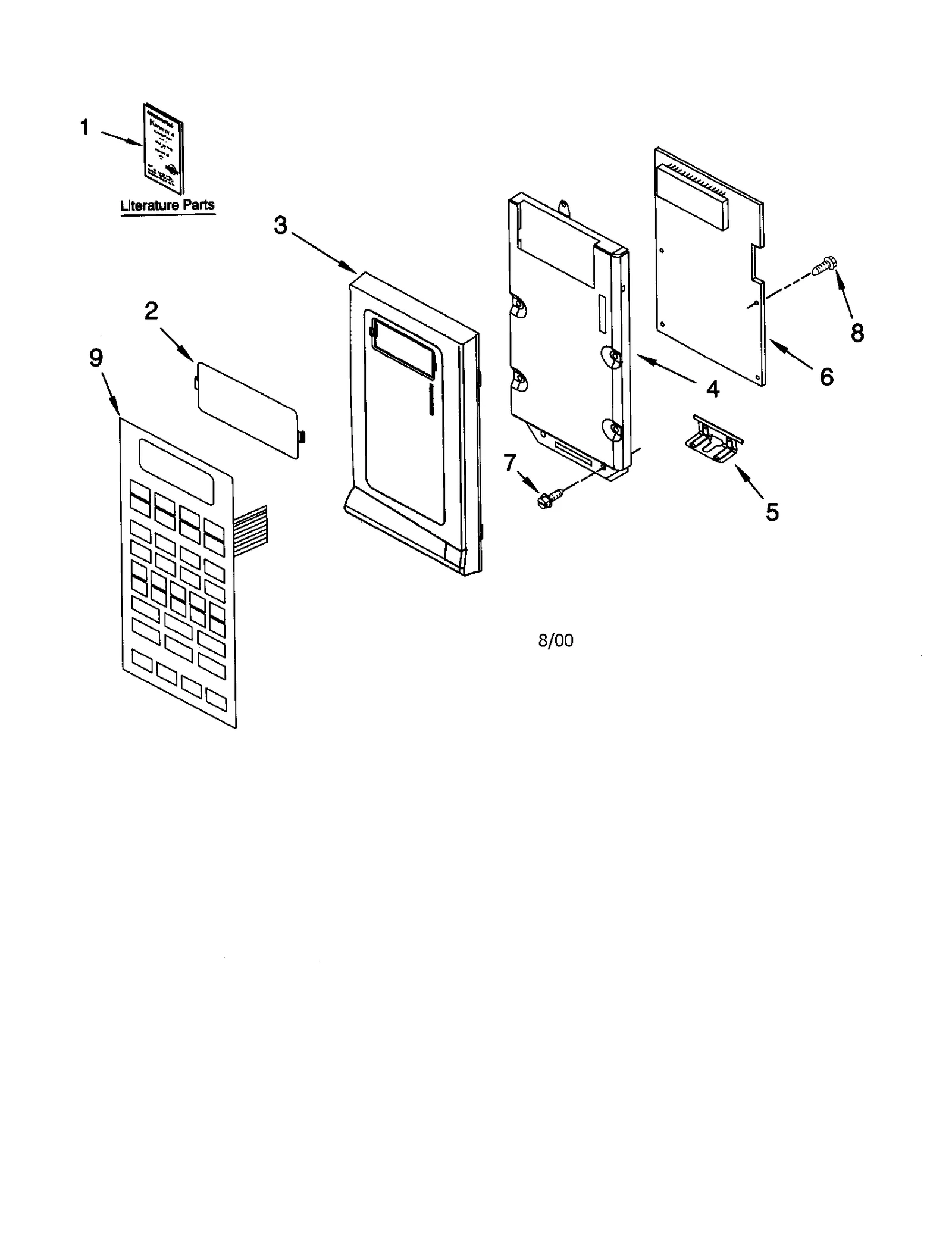

CONTROL PANEL

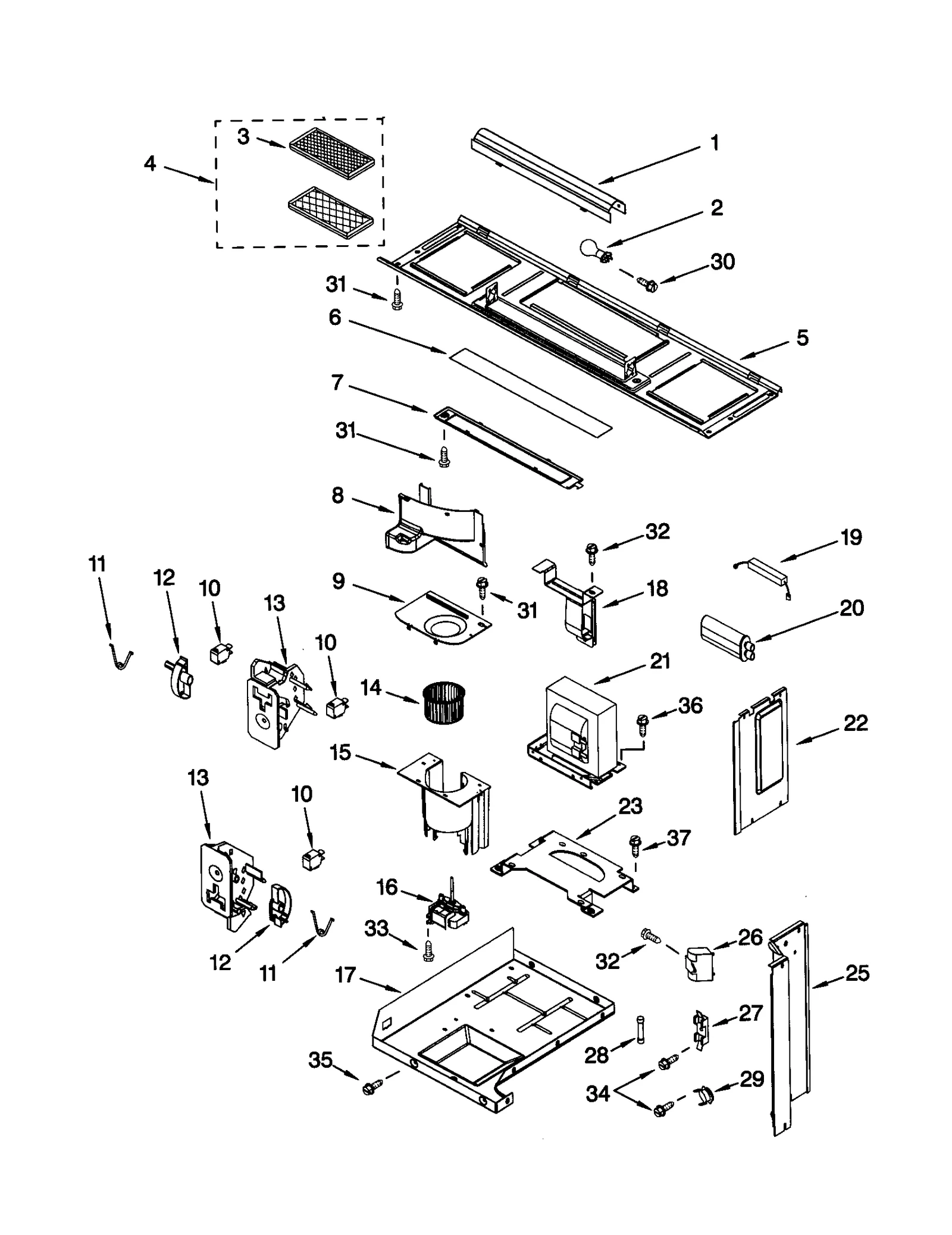

INTERIOR AND VENTILATION
Common parts from model Whirlpool 665.60659000 Microwave/Hood Combo (Kenmore 66560659000)
0
Microwave/Hood Door Assembly (White) WPL 8169393 Contact Us For Availability
0
Microwave Door (Black) WPL 8169394 Contact Us For Availability
0
Microwave Door WPL 8169395 Contact Us For Availability
0
Microwave Door WPL 8183785 Contact Us For Availability
1
Microwave Door Film WPL 4393870 Contact Us For Availability
1
Stirrer Motor WPL 4393746 Contact Us For Availability
1
Owner's Manual WPL LIT8169681 Contact Us For Availability
1
Reflector WPL 4393810 Contact Us For Availability
1A
Technical Sheet WPL LIT8169683 Contact Us For Availability
1B
Cook Guide WPL LIT8169682 Contact Us For Availability
1C
Installation Instructions WPL LIT8183728 Contact Us For Availability
2
Microwave Door Choke WPL 8169545 Contact Us For Availability
2
Stirrer Shaft WPL 4393794 Contact Us For Availability
2
Window WPL 8183729 Contact Us For Availability
3
Microwave Door Latch WPL 4393913 Contact Us For Availability
3
Stirrer Blade WPL 4393748 Contact Us For Availability
3
Control Panel WPL 8169761 Contact Us For Availability
3A
Control Panel WPL 8169762 Contact Us For Availability
3B
Control Panel WPL 8169764 Contact Us For Availability
3C
Control Panel WPL 8169763 Contact Us For Availability
4
Microwave Door (White) WPL 8169653 Contact Us For Availability
4
Disk Holder WPL 4393749 Contact Us For Availability
4
Control Bracket WPL 8183712 Contact Us For Availability
4A
Microwave Door WPL 8169460 Contact Us For Availability
4B
Microwave Door WPL 8169429 Contact Us For Availability
4C
Microwave Door WPL 8169546 Contact Us For Availability
5
Door Glass WPL 8169749 Contact Us For Availability
5
Stirrer Cover WPL 4393750 Contact Us For Availability
5
Hinge Plate WPL 4393744 Contact Us For Availability
5
Plate WPL 8169578 Contact Us For Availability
5A
Door Glass WPL 4393811 Contact Us For Availability
5B
Door Glass WPL 8183735 Contact Us For Availability
6
Panel WPL 4393814 Contact Us For Availability
6
Microcomputer WPL 8169760 Contact Us For Availability
6
Lamp Glass WPL 8169564 Contact Us For Availability
6A
Panel WPL 4393815 Contact Us For Availability
6B
Panel WPL 4393816 Contact Us For Availability
6C
Door Panel WPL 8169612 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Nail WPL 4393291 Contact Us For Availability
7
Light Cover WPL 8169316 Contact Us For Availability
7A
Microwave Door Handle (Black) WPL 4393824 Contact Us For Availability
7A
Wrapper Cabinet WPL 8169661 Contact Us For Availability
7B
Wrapper Cabinet WPL 8169662 Contact Us For Availability
7B
Microwave/Hood Door Handle WPL 4393825 Contact Us For Availability
7C
Wrapper Cabinet WPL 8169664 Contact Us For Availability
7C
Microwave/Hood Door Handle WPL 8169618 Contact Us For Availability
8
Microwave Turntable Tray WPL 4393799 No Longer Available
8
Screw WPL 4393346 Contact Us For Availability
8
Air Guide WPL 8183699 Contact Us For Availability
8C
Microwave/Hood Grille Vent WPL 8169614 Contact Us For Availability
9
Switch WPL 8183550 Contact Us For Availability
9
Lid Fan WPL 8183700 Contact Us For Availability
9A
Switch WPL 8183551 Contact Us For Availability
9B
Switch WPL 8183553 Contact Us For Availability
9C
Switch WPL 8183552 Contact Us For Availability
10
Microwave Door Outer Frame (White) WPL 8169572 Contact Us For Availability
10
Microwave Turntable Tray Support Wheel WPL 4393861 Contact Us For Availability
10B
Microwave Door Outer Frame WPL 8169574 Contact Us For Availability
10C
Microwave Door Outer Frame WPL 8169616 Contact Us For Availability
11
Microwave Door Interlock Spring WPL 8169438 Contact Us For Availability
12
Cam Plate WPL 8169469 Contact Us For Availability
13
Release Rod WPL 8169318 Contact Us For Availability
13
Terminal Cover WPL 4393756 Contact Us For Availability
14
Latch WPL 8169319 Contact Us For Availability
14
Fan Wheel WPL 8183701 Contact Us For Availability
15
Microwave Thermal Cut-Off WPL 4393943 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
15
Housing WPL 8183702 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
16
Connector WPL 8169540 Contact Us For Availability
16
Fan Motor WPL 4393700 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Connector WPL 8169705 Contact Us For Availability
17
Base WPL 8169740 Contact Us For Availability
18
Adapter WPL 8169697 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Capacitor Bracket WPL 4393702 Contact Us For Availability
21
Microwave Turntable Motor Screw WPL 4393832 Contact Us For Availability
21
Transformer WPL 4393809 Contact Us For Availability
22
Bushing WPL 4393290 Contact Us For Availability
22
Plate WPL 4393705 Contact Us For Availability
23
Mounting Plate WPL 4393706 Contact Us For Availability
25
Plate WPL 8169470 Contact Us For Availability
26
Microwave Vent Motor Capacitor WPL 4393709 Contact Us For Availability
27
Fuse Block WPL 4393538 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
30
Microwave Screw WPL 8169474 Contact Us For Availability
33
Microwave Screw WPL 4393833 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
NI
Microwave Trim Kit (Black) WPL 8171337 Contact Us For Availability
NI
Microwave Trim Kit Front Panel (White) WPL 8171336 Contact Us For Availability
× ![]()
