Model Whirlpool 665.15751790 Undercounter Dishwasher (Kenmore 66515751790) – Common Parts & Diagrams
DISHRACKS

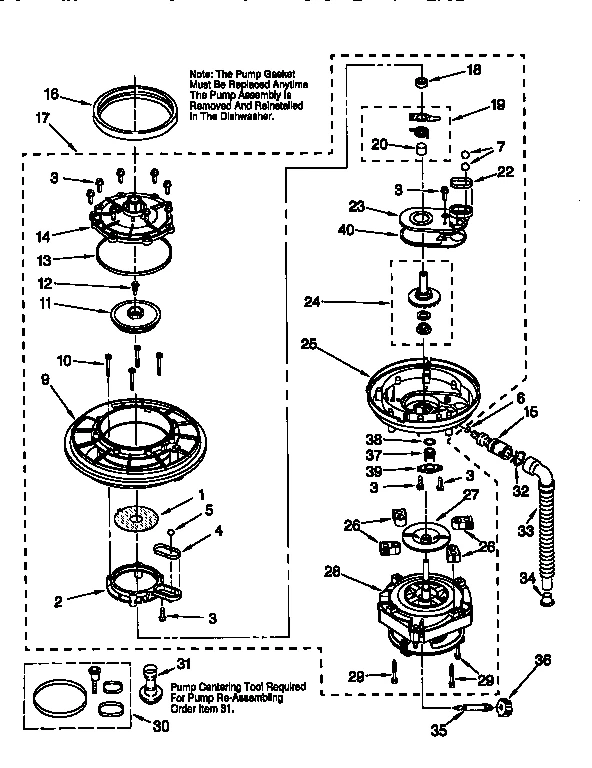

PUMP AND MOTOR

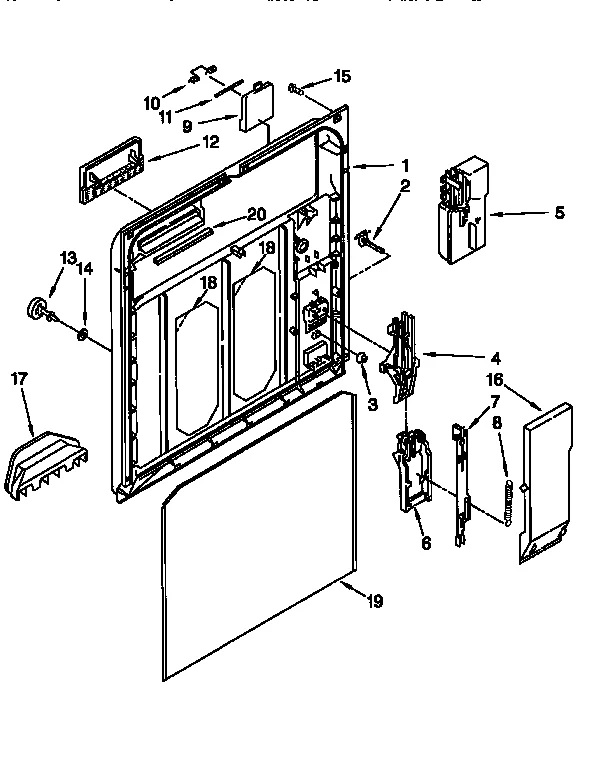

INNER DOOR

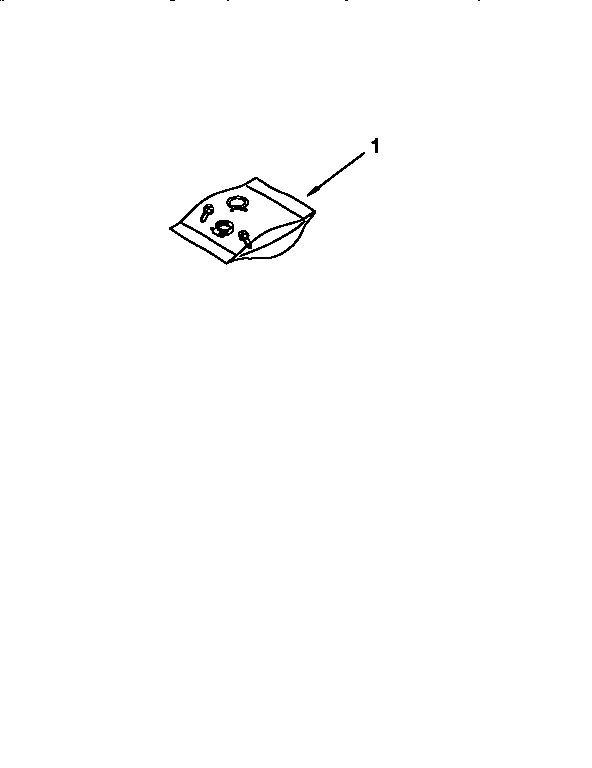

MISCELLANEOUS

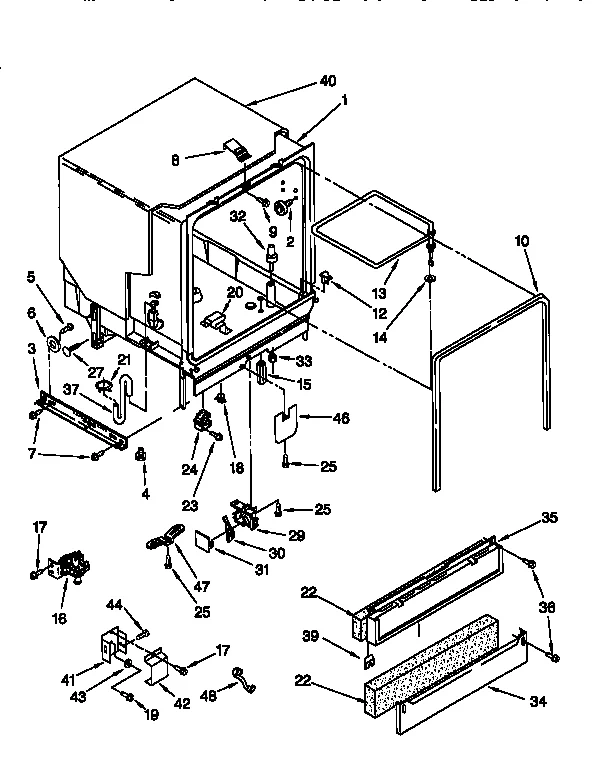

TUB ASSEMBLY

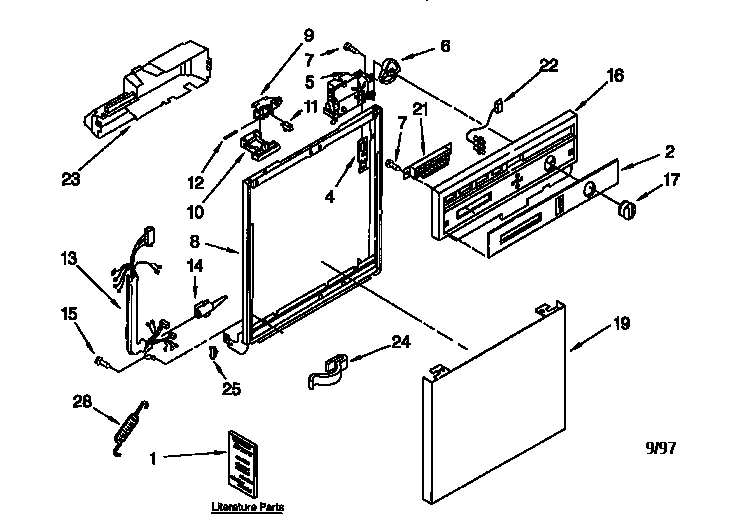

FRAME AND CONSOLE
All Parts
Common parts from model Whirlpool 665.15751790 Undercounter Dishwasher (Kenmore 66515751790)
1
Dishwasher Door Inner Panel WPL 3371435 Contact Us For Availability
1
Clip WPL 303722 Contact Us For Availability
1
Energy Guide WPL LIT3379881 Contact Us For Availability
1A
Installation Instructions WPL LIT3373979 Contact Us For Availability
1B
Technical Sheet WPL LIT3379527 Contact Us For Availability
1C
Owner's Manual WPL LIT3378918 Contact Us For Availability
1D
Parts List WPL LIT3380711 Contact Us For Availability
1E
Dishwasher Owner's Manual WPL LIT4321605 Contact Us For Availability
2
Tub Wheel WPL 3380371 Contact Us For Availability
2
Dishwasher Upper Spray Arm Support WPL 3368290 Contact Us For Availability
2
Insert WPL 3380632 Contact Us For Availability
5
Timer WPL 3379501 Contact Us For Availability
6
Draw Bar WPL 3369000 Contact Us For Availability
6
Dishwasher Wheel WPL 302819 Contact Us For Availability
6
Cam WPL 3378124 Contact Us For Availability
8
Frame (Black) WPL 9743028 Contact Us For Availability
8
Dishwasher Dishrack Spray Arm Mount Lock WPL 3374702 Contact Us For Availability
9
Dishwasher Filter Assembly WPL 9742968 Contact Us For Availability
10
Lever WPL 3380779 Contact Us For Availability
11
Dishwasher Dishrack Slide Rail Stop WPL 3379941 Contact Us For Availability
11
Dishwasher Switch WPL 3369325 Contact Us For Availability
12
Pin WPL 3368955 Contact Us For Availability
13
Wire Harness WPL 3379518 Contact Us For Availability
14
Dishwasher Wire Harness Retainer WPL 3376405 Contact Us For Availability
15
Clip WPL 3377464 Contact Us For Availability
16
Dishwasher Circulation Pump Gasket WPL 717000 Contact Us For Availability
16
Dishwasher Rinse-Aid Dispenser Drip Cover WPL 3371569 Contact Us For Availability
16
Console WPL 3380201 Contact Us For Availability
19
Dishwasher Door Panel WPL 3379376 Contact Us For Availability
20
Dishwasher Heating Element Support Bracket WPL 3379740 Contact Us For Availability
21
Switch WPL 3380882 Contact Us For Availability
22
Light-inc WPL 3370161 Contact Us For Availability
23
Dishwasher Nozzle Cap WPL 3367910 Contact Us For Availability
23
Dishwasher Sump Cap Cover WPL 3376845 Contact Us For Availability
23
Cover Timer WPL 3379954 Contact Us For Availability
24
Bearing WPL 719576 Contact Us For Availability
24
Dishwasher Motor Start Relay WPL 3369447 Contact Us For Availability
29
Dishwasher Float Switch Housing WPL 3369048 Contact Us For Availability
31
Dishwasher Pump Installation Centering Tool WPL 303918 Contact Us For Availability
33
Dishwasher Self Threading Nut, 1/8-in WPL 717488 Contact Us For Availability
34
Dishwasher Drain Hose Cap WPL 3371748 Contact Us For Availability
35
Panel WPL 3379909 Contact Us For Availability
37
Inlet Hose WPL 3369414 Contact Us For Availability
38
Seal WPL 3376723 Contact Us For Availability
39
Clip WPL 3378123 Contact Us For Availability
41
Terminal Box WPL 3378131 Contact Us For Availability
42
Dishwasher Terminal Block Cover WPL 300068 Contact Us For Availability
46
Shield WPL 3378959 Contact Us For Availability
48
Relief WPL 3370307 Contact Us For Availability
NI
Dishwasher Outer Panel Kit (Black) WPL 675775 Contact Us For Availability
NI
Glisten WPL 4319102 Contact Us For Availability
NI
Panl Blk WPL 4378868 Contact Us For Availability
NI
Panl Al WPL 4378869 Contact Us For Availability
NI
Tip-tines-bl WPL 675677 Contact Us For Availability
NI
Outer Door WPL 675776 Contact Us For Availability
NI
Outer Door WPL 675777 Contact Us For Availability
NI
Paint 1qt WPL 799340 Contact Us For Availability
NI
Paint WPL 978883 Contact Us For Availability
× ![]()
