Model Whirlpool 664KERH507YWH0 Electric Range (Kenmore 664KERH507YWH0) – Common Parts & Diagrams
OVEN

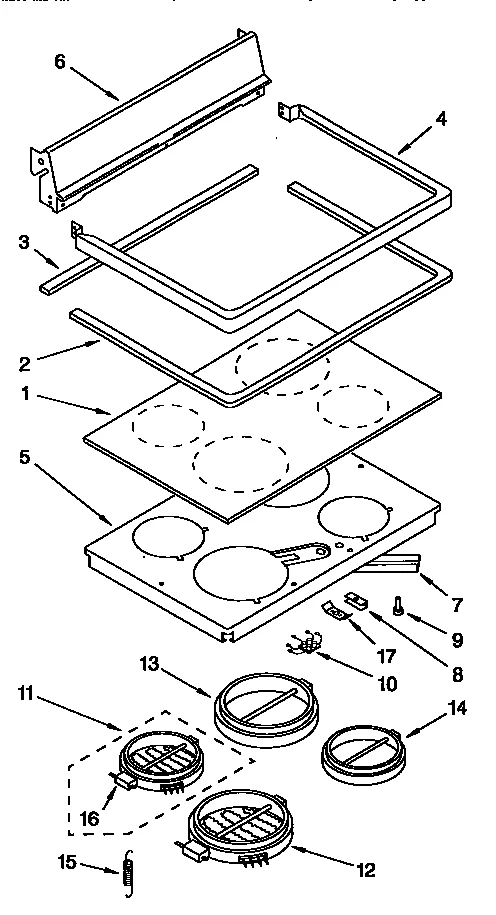

COOKTOP

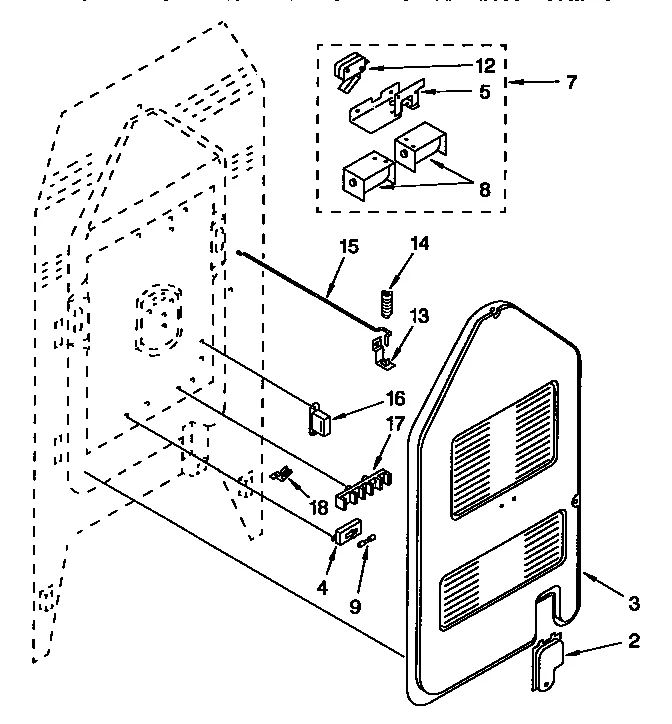

REAR CHASSIS

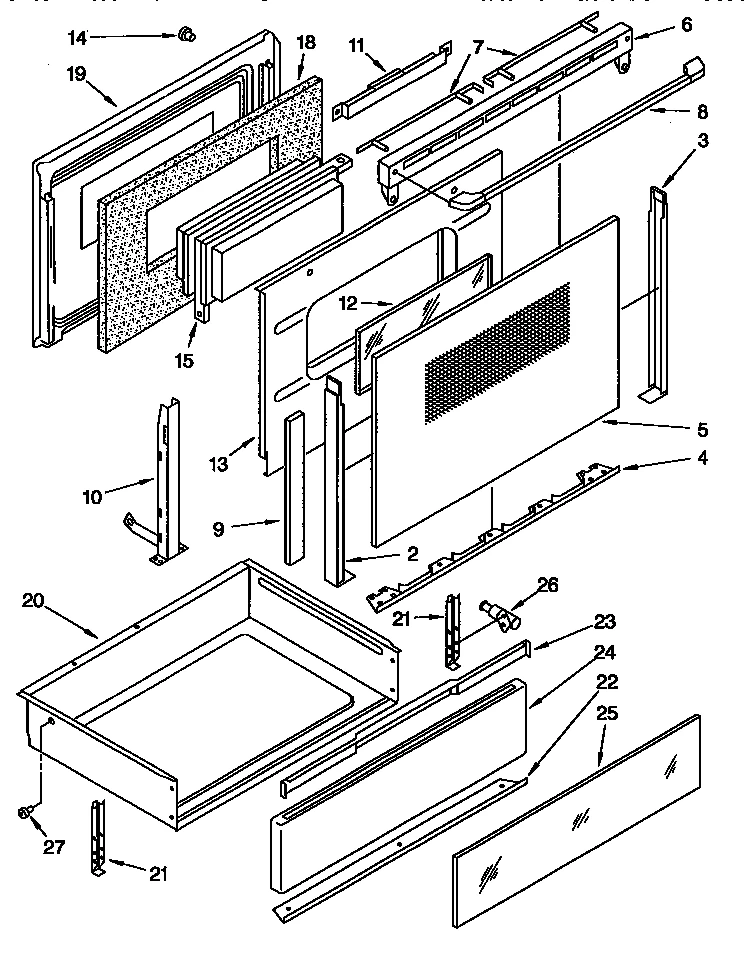

DOOR AND DRAWER
All Parts

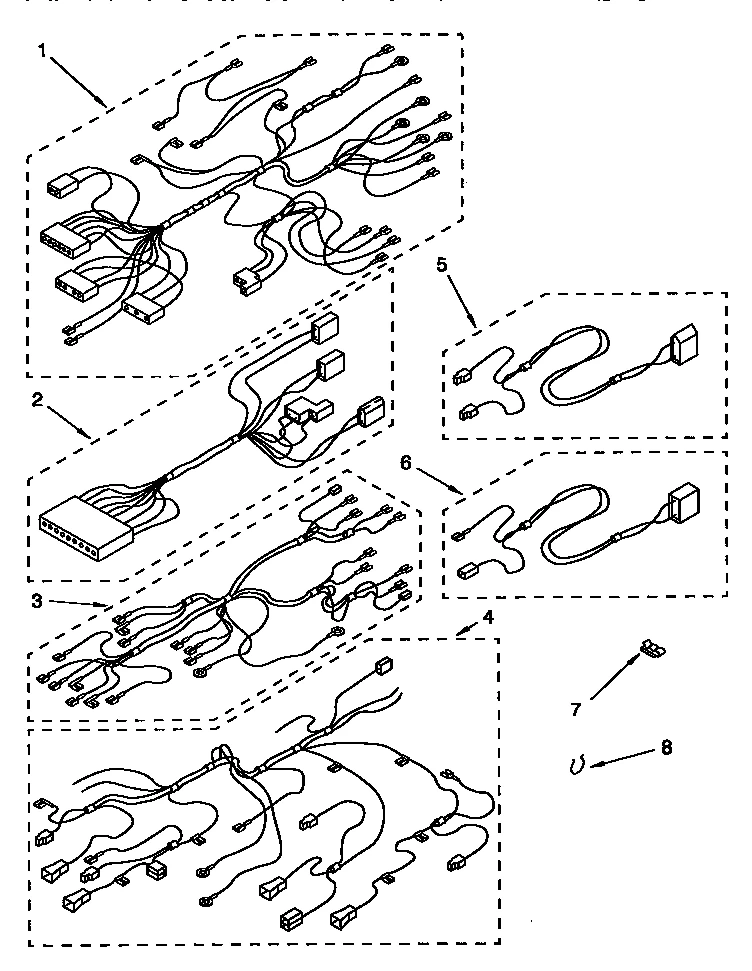

WIRING HARNESS

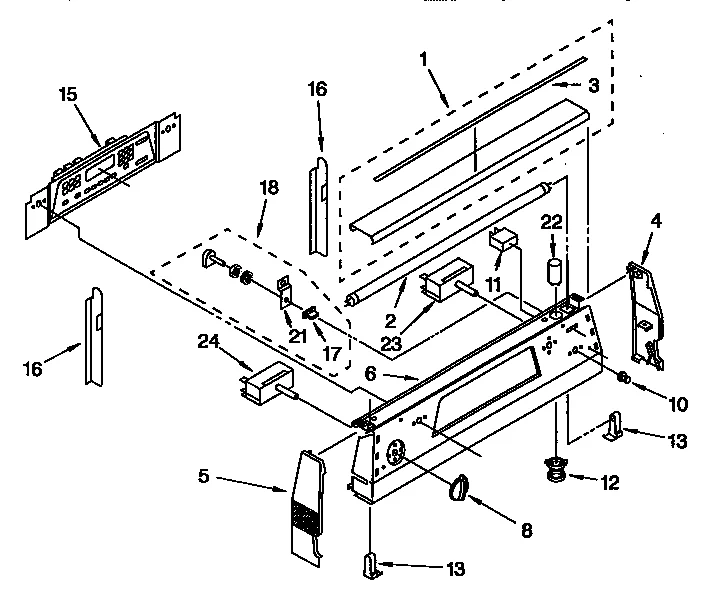

CONTROL PANEL

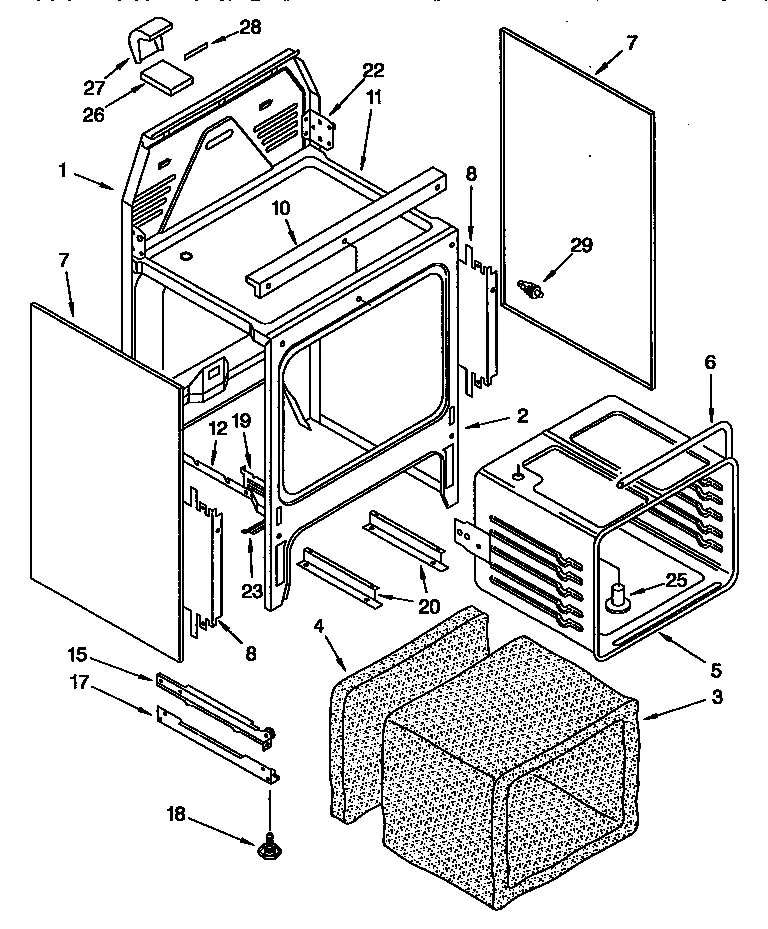

OVEN CHASSIS
Common parts from model Whirlpool 664KERH507YWH0 Electric Range (Kenmore 664KERH507YWH0)
1
Range Broil Element WPL 9750967 Contact Us For Availability
1
Wire Harness WPL 9780315 Contact Us For Availability
1
Rear Cover WPL 9750146 Contact Us For Availability
1A
Light Cover (White) WPL 9780580 Contact Us For Availability
1B
Light Cover (Almond) WPL 9780581 Contact Us For Availability
1C
Light Cover WPL 9780734 Contact Us For Availability
2
Range Bake Element WPL 9750213 Contact Us For Availability
2
Wire Harness WPL 9751155 Contact Us For Availability
2
Frame WPL 4211893 Contact Us For Availability
2A
Access Cover WPL 9750490 Contact Us For Availability
2A
Door Trim (White) WPL 4211912 Contact Us For Availability
2B
Door Trim (Almond) WPL 4211914 Contact Us For Availability
2C
Door Trim WPL 4211899 Contact Us For Availability
3
Wire Harness WPL 9751111 Contact Us For Availability
3
Insulation WPL 9750222 Contact Us For Availability
3A
Rear Cover WPL 9750245 Contact Us For Availability
3A
Door Trim (White) WPL 4211910 Contact Us For Availability
3A
Insert (White) WPL 9780295 Contact Us For Availability
3B
Screw WPL 4211813 Contact Us For Availability
3B
Door Trim (Almond) WPL 4211911 Contact Us For Availability
3B
Insert (Almond) WPL 9780332 Contact Us For Availability
3C
Door Trim WPL 4211900 Contact Us For Availability
3C
Insert WPL 9780731 Contact Us For Availability
4
Wire Harness WPL 9780320 Contact Us For Availability
4
Insulation WPL 9750221 Contact Us For Availability
4A
Fuse Block WPL 9750941 Contact Us For Availability
4A
Door Trim (White) WPL 4211925 Contact Us For Availability
4A
End Cap Panel (White) WPL 4211934 Contact Us For Availability
4B
Screw WPL 9750904 Contact Us For Availability
4B
Door Trim (Almond) WPL 4211926 Contact Us For Availability
4B
End Cap Panel (Almond) WPL 4211933 Contact Us For Availability
4C
Door Trim WPL 4211924 Contact Us For Availability
4C
End Cap Panel WPL 4211935 Contact Us For Availability
5
Panel WPL 9750455 Contact Us For Availability
5
Range Wire Harness WPL 9750376 Contact Us For Availability
5
Oven Main WPL 4211892 Contact Us For Availability
5A
Actuator Bracket WPL 9750526 Contact Us For Availability
5A
Door Glass (White) WPL 9780314 Contact Us For Availability
5A
End Cap Panel (White) WPL 4211937 Contact Us For Availability
5B
Door Glass (Almond) WPL 9780328 Contact Us For Availability
5B
End Cap Panel (Almond) WPL 4211936 Contact Us For Availability
5C
Door Glass WPL 9750850 Contact Us For Availability
5C
End Cap Panel WPL 4211938 Contact Us For Availability
6
Wire Harness WPL 9751139 Contact Us For Availability
6
Door Gasket WPL 9750247 Contact Us For Availability
6A
Range Backsplash (White) WPL 4211921 Contact Us For Availability
6A
Door Vent (White) WPL 4211907 Contact Us For Availability
6A
Control Panel (White) WPL 9780293 Contact Us For Availability
6B
Range Backsplash (Almond) WPL 4211922 Contact Us For Availability
6B
Door Vent (Almond) WPL 4211908 Contact Us For Availability
6B
Control Panel (Almond) WPL 9780329 Contact Us For Availability
6C
Range Backsplash (Black) WPL 4211923 Contact Us For Availability
6C
Door Vent WPL 4211898 Contact Us For Availability
6C
Control Panel WPL 9780726 Contact Us For Availability
6D
Screw WPL 3149333 Contact Us For Availability
6D
Screw WPL 9780852 Contact Us For Availability
6E
Retainer WPL 3148187 Contact Us For Availability
7
Vent WPL 9750898 Contact Us For Availability
7A
Support WPL 422404 Contact Us For Availability
7A
Latch-mech WPL 9750522 Contact Us For Availability
7A
Panel (White) WPL 4211896 Contact Us For Availability
7B
Panel (Almond) WPL 4211897 Contact Us For Availability
7C
Front Panel (Black) WPL 4211895 Contact Us For Availability
8
Hanger Wire WPL 9750984 Contact Us For Availability
8A
Bracket Support WPL 9750821 Contact Us For Availability
8A
Solenoid WPL 9750524 Contact Us For Availability
8A
Door Handle (White) WPL 9750705 Contact Us For Availability
8A
Shield WPL 9780664 Contact Us For Availability
8B
Surface Knob (Almond) WPL 4211913 Contact Us For Availability
8B
Screw WPL 4211831 Contact Us For Availability
8B
Screw WPL 4211945 Contact Us For Availability
8B
Door Handle (Almond) WPL 9750706 Contact Us For Availability
8C
Washer WPL 4211875 Contact Us For Availability
8C
Door Handle WPL 9750704 Contact Us For Availability
8C
KNOBS, CONTROL WPL 42119011 Contact Us For Availability
9
Fuse WPL 9750940 Contact Us For Availability
9
Door Gasket WPL 9750694 Contact Us For Availability
10
Indicator Light WPL 9750966 Contact Us For Availability
10
Range Wire Harness Shield WPL 9780585 Contact Us For Availability
11
Surface Element WPL 3183199 Contact Us For Availability
11
Indicator Light WPL 9750964 Contact Us For Availability
11A
Channel WPL 9750693 Contact Us For Availability
11A
Burner Sc Box WPL 9750478 Contact Us For Availability
11C
Frame (Black) WPL 3148223 Contact Us For Availability
11C
Screw WPL 9780275 Contact Us For Availability
12
Range Oven Door Middle Glass WPL 9750634 Contact Us For Availability
12
Surface Element WPL 9750755 Contact Us For Availability
12
Holdr-strt WPL 9750866 Contact Us For Availability
12A
Limit Switch WPL 9750965 Contact Us For Availability
12A
Retainer WPL 9750142 Contact Us For Availability
12B
Screw WPL 9750887 Contact Us For Availability
12C
Nut WPL 9750888 Contact Us For Availability
13
Surface Element WPL 9750663 Contact Us For Availability
13
Supt-sprng WPL 9750834 Contact Us For Availability
13
Shield WPL 4211941 Contact Us For Availability
13
Hldr-fluor WPL 9750273 Contact Us For Availability
14
Surface Element WPL 3182862 Contact Us For Availability
14
Spring WPL 9750833 Contact Us For Availability
15
Spring WPL 9780679 Contact Us For Availability
15
Latch Rod WPL 9750523 Contact Us For Availability
15
Pack Window WPL 9751245 Contact Us For Availability
15A
Oven Control (White) WPL 9750700 Contact Us For Availability
15A
Drawer Track WPL 9750223 Contact Us For Availability
15B
Drawer Track WPL 9750224 Contact Us For Availability
15B
Oven Control (Almond) WPL 9750699 Contact Us For Availability
15C
Oven Control WPL 9750917 Contact Us For Availability
15C
Screw WPL 9780270 Contact Us For Availability
16
Brace Panel WPL 9780655 Contact Us For Availability
16A
Limiter WPL 3149129 Contact Us For Availability
16A
Lamp Ballast WPL 9780881 Contact Us For Availability
16B
Limiter WPL 3149124 Contact Us For Availability
16C
Limiter WPL 3183975 Contact Us For Availability
16D
Limiter WPL 3149130 Contact Us For Availability
17
Range Oven Meat Probe Sensor WPL 3150144 Contact Us For Availability
17
Anchor WPL 915720 Contact Us For Availability
17A
Push Button WPL 4212112 Contact Us For Availability
17A
Base WPL 9750147 Contact Us For Availability
17B
Push Button WPL 4212113 Contact Us For Availability
17C
Screw WPL 98884 Contact Us For Availability
17C
Push Button (Black) WPL 4212111 Contact Us For Availability
18
Light Switch WPL 9751110 Contact Us For Availability
18
FOOT (4) WPL 312701J Contact Us For Availability
18A
Ground Strap WPL 308498 Contact Us For Availability
18B
Magic Chef Range Wire Harness Retainer WPL 313660 Contact Us For Availability
19
Door Liner WPL 4212163 Contact Us For Availability
19A
Hinge Bracket WPL 9750149 Contact Us For Availability
20
Utility Drawer WPL 9750257 Contact Us For Availability
20A
Support WPL 421771 Contact Us For Availability
21
Switch Bracket WPL 9750721 Contact Us For Availability
21A
Drawer Bracket WPL 9750169 Contact Us For Availability
21B
Screw WPL 9780272 Contact Us For Availability
22
Starter WPL 9781118 Contact Us For Availability
22A
Drawer Trim (White) WPL 4211905 Contact Us For Availability
22A
Hinge-lh WPL 9750258 Contact Us For Availability
22B
Drawer Trim (Almond) WPL 4211906 Contact Us For Availability
22B
Hinge-rh WPL 9750416 Contact Us For Availability
22C
Drawer Trim WPL 4211902 Contact Us For Availability
23A
Drawer Trim (White) WPL 4211931 Contact Us For Availability
23A
Bracket Cord WPL 9750491 Contact Us For Availability
23B
Drawer Trim (Almond) WPL 4211932 Contact Us For Availability
23C
Drawer Trim WPL 4211930 Contact Us For Availability
24A
Panel Gr WPL 4211916 Contact Us For Availability
24B
Panel Tp WPL 4211917 Contact Us For Availability
24B
Screw WPL 9780268 Contact Us For Availability
24C
Front Panel (Black) WPL 4211915 Contact Us For Availability
25
Vent Tube WPL 9750736 Contact Us For Availability
25A
Glass Drawer WPL 9750612 Contact Us For Availability
25B
Glass Drawer WPL 9780326 Contact Us For Availability
25C
Glass Drawer WPL 9750611 Contact Us For Availability
26
Cover WPL 9750393 Contact Us For Availability
26A
Latch Magnet WPL 9751248 Contact Us For Availability
26B
Screw WPL 9780806 Contact Us For Availability
27A
Rear Cover WPL 9750394 Contact Us For Availability
28
Vent Gasket WPL 9750767 Contact Us For Availability
29
Light Switch WPL 9750897 Contact Us For Availability
NI
Aluminum Foil WPL 241430 Contact Us For Availability
NI
Paint 1qt WPL 799344 Contact Us For Availability
NI
Spray Th WPL 206925 Contact Us For Availability
NI
Wire (Black) WPL 242820 Contact Us For Availability
NI
Wire (Blue) WPL 242821 Contact Us For Availability
NI
Wire (Brown) WPL 242822 Contact Us For Availability
NI
Wire (Green) WPL 242823 Contact Us For Availability
NI
Wire (Orange) WPL 242824 Contact Us For Availability
NI
Wire (Red) WPL 242825 Contact Us For Availability
NI
Wire (White) WPL 242826 Contact Us For Availability
NI
Appliance Splicing Wire, 25-ft, 14-gauge (Yel WPL 242827 Contact Us For Availability
NI
Wire (Black) WPL 242828 Contact Us For Availability
NI
Wire WPL 242829 Contact Us For Availability
NI
Wire (Brown) WPL 242830 Contact Us For Availability
NI
Cooking Appliance 14-gauge Splicing Wire, 200 WPL 242831 Contact Us For Availability
NI
Wire (Yellow) WPL 242832 Contact Us For Availability
NI
Grease WPL 261582 Contact Us For Availability
NI
Spray WPL 261888 Contact Us For Availability
NI
Spray WPL 261890 Contact Us For Availability
NI
Natural Gas Paint WPL 261891 Contact Us For Availability
NI
Spray-to WPL 285365 Contact Us For Availability
NI
Spray Pl WPL 285366 Contact Us For Availability
NI
Paint-to WPL 285367 Contact Us For Availability
NI
Paint Pl WPL 285368 Contact Us For Availability
NI
Touchup Cf WPL 72108 Contact Us For Availability
NI
Touchup To WPL 72112 Contact Us For Availability
NI
Epoxy WPL 799832 Contact Us For Availability
NI
Paint-al WPL 978883 Contact Us For Availability
NI
Cookbook WPL LIT3150693 Contact Us For Availability
NI
Oven Video WPL LIT3183790 Contact Us For Availability
NI
AUTO SET GUIDE WPL LIT3183987 Contact Us For Availability
NI
Owner's Manual WPL LIT9750519 Contact Us For Availability
NI
Installation Instructions WPL LIT9750520 Contact Us For Availability
NI
Wiring Diagram WPL LIT9750876 Contact Us For Availability
NI
Technical Sheet WPL LIT9750877 Contact Us For Availability
NI
LABEL, INSTRUCTION, LAMP COVER WPL LIT9780322 Contact Us For Availability
NI
LITERATURE PARTS: QUICK SET GUIDE WPL LIT9780689 Contact Us For Availability
× ![]()
Login and Registration Form
