Whirlpool 5KSM5EER4 MIXER | Reliable Parts

1

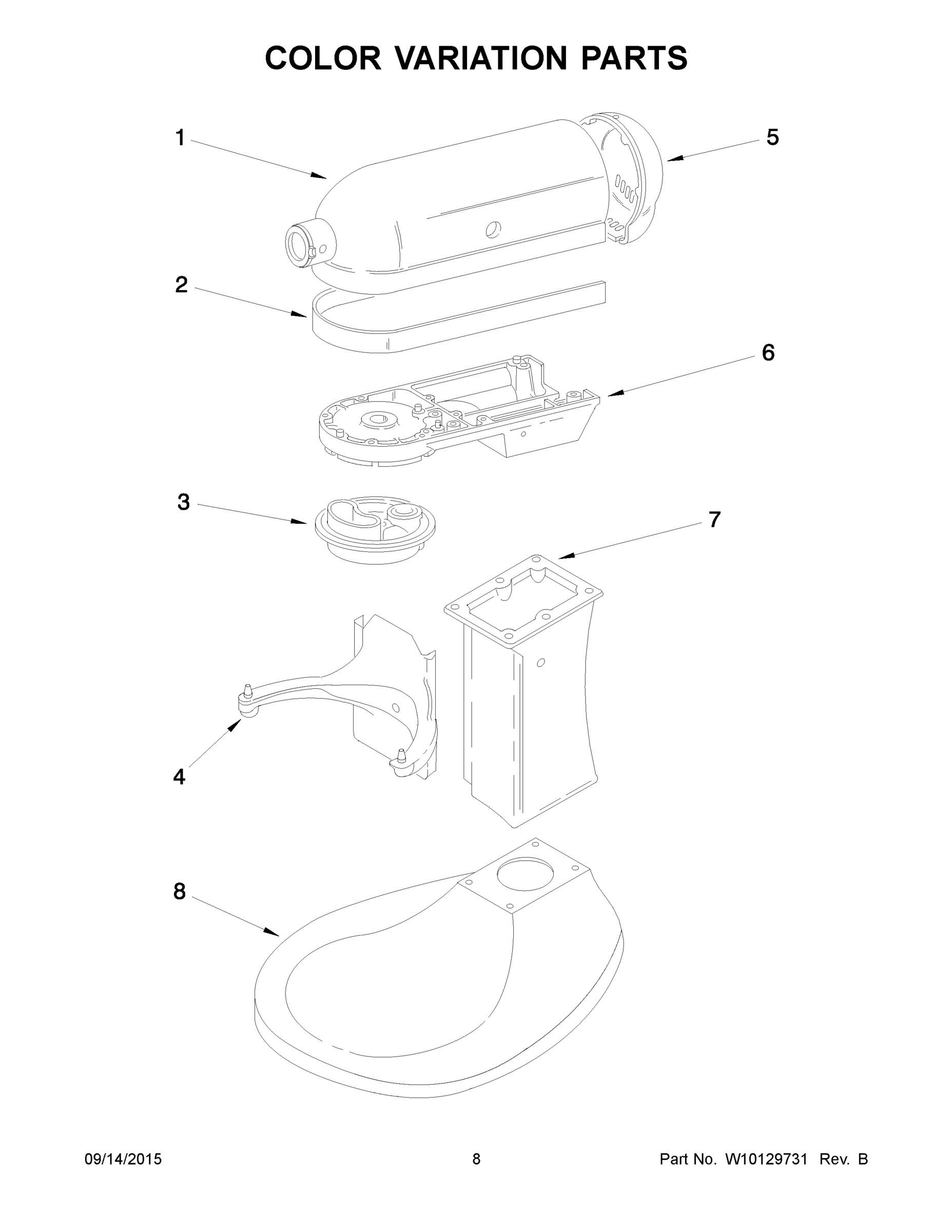

MOTOR HOUSING (EMPIRE RED) WPL 24029121 Contact Us For Availability

View on Model

1

GUIDE, USE & CARE (EUROPE) WPL 9705170 Contact Us For Availability

View on Model

1A

MOTOR HOUSING (MAJESTIC YELLOW) WPL 24029120 Contact Us For Availability

View on Model

2

WP9708649 Whirlpool Foot Backorder WPL WP9708649 $2.81

View on Model

2

TRIM BAND (BLACK) WPL 9705172 Contact Us For Availability

View on Model

3

WP9709194 Whirlpool Black Thumb Screw In Stock WPL WP9709194 $19.99

View on Model

3

WP9709276 Whirlpool Speed Control Lever In Stock WPL WP9709276 $3.99

View on Model

3

PLANETARY (EMPIRE RED) WPL 24028623 Contact Us For Availability

View on Model

3A

PLANETARY (MAJESTIC YELLOW) WPL 24028622 Contact Us For Availability

View on Model

4

SUPPORT Backorder WPL 3179318 $40.02

View on Model

4

WP3183680 Whirlpool Spring Backorder WPL WP3183680 $2.81

View on Model

4A

SUPPORT Backorder WPL 3179319 $40.02

View on Model

5

WP3182857 Whirlpool Spring In Stock WPL WP3182857 $10.76

View on Model

5

LINK, SPEED AND CAM ASSEMBLY WPL 3184176 Contact Us For Availability

View on Model

5

END COVER (EMPIRE RED) WPL 24025322 Contact Us For Availability

View on Model

5A

END COVER (MAJESTIC YELLOW) WPL 24025321 Contact Us For Availability

View on Model

6

GEARCASE Backorder WPL 9704499 $43.85

View on Model

6

WP241764 Whirlpool Mixer Lift Arm Bowl In Stock WPL WP241764 $11.99

View on Model

6

WPW10112253 Whirlpool Gear Assembly In Stock WPL WPW10112253 $9.99

View on Model

6A

GEARCASE Backorder WPL 9704501 $43.85

View on Model

7

W10598834 Whirlpool Lift Rod Backorder WPL W10598834 $19.34

View on Model

7

COLUMN (EMPIRE RED) WPL 9702393 Contact Us For Availability

View on Model

7A

COLUMN (MAJESTIC YELLOW) WPL 9702394 Contact Us For Availability

View on Model

8

BASE Backorder WPL 3179299 $49.98

View on Model

8

W11082541 Whirlpool Bearing In Stock WPL W11082541 $13.99

View on Model

8

WP9704608 Whirlpool Cotter Pin Backorder WPL WP9704608 $2.67

View on Model

8A

BASE & FOOT ASSEMBLY (MAJESTIC YELLOW) WPL 9704505 Contact Us For Availability

View on Model

9

W11708396 Whirlpool Washer Backorder WPL W11708396 $2.86

View on Model

10

4159622 Whirlpool PP Spring Backorder WPL 4159622 $2.67

View on Model

11

8533907 Whirlpool Dishwasher Nut Backorder WPL 8533907 $17.05

View on Model

11

W11170663 Whirlpool Washer Backorder WPL W11170663 $2.67

View on Model

11

WP9705444 Whirlpool Pin Groove In Stock WPL WP9705444 $4.99

View on Model

12

W11376375 Whirlpool Handle Backorder WPL W11376375 $21.08

View on Model

13

W11192794 Whirlpool HUB Gear In Stock WPL W11192794 $40.99

View on Model

13

WP16998 Whirlpool Drive Stud Backorder WPL WP16998 $2.67

View on Model

13

WP9703442 Whirlpool Roll Pin Backorder WPL WP9703442 $2.67

View on Model

14

WPW10714130 Whirlpool Mixer Bowl Backorder WPL WPW10714130 $72.45

View on Model

15

W10807813 Whirlpool Mixer Beater In Stock WPL W10807813 $25.70

View on Model

16

WP3180526 Whirlpool Bearing Bracket In Stock WPL WP3180526 $20.88

View on Model

16

WPW10674621 Whirlpool Dough Hook Assembly Backorder WPL WPW10674621 $30.69

View on Model

17

WP9705443 Whirlpool Pin Groove Backorder WPL WP9705443 $2.81

View on Model

17

WPW10731415 Whirlpool Stand Mixer Wire Whip In Stock WPL WPW10731415 $24.99

View on Model

18

W11656718 Whirlpool Insert In Stock WPL W11656718 $3.29

View on Model

18

WP4162324 Whirlpool Case Gasket In Stock WPL WP4162324 $11.49

View on Model

18

BRACKET, BOWL LIFT WPL 240169 Contact Us For Availability

View on Model

19

WP240185 Whirlpool Bowl Retaining Pin Backorder WPL WP240185 $2.67

View on Model

20

W10861883 Whirlpool Screw Backorder WPL W10861883 $2.67

View on Model

20

W11176201 Whirlpool Screw Backorder WPL W11176201 $2.67

View on Model

21

WP116286 Whirlpool Spring Cap Backorder WPL WP116286 $2.67

View on Model

21

WP4162403 Whirlpool Screw Backorder WPL WP4162403 $2.67

View on Model

22

WP116287 Whirlpool Spring Cap Backorder WPL WP116287 $2.67

View on Model

22

WP4159193 Whirlpool Screw In Stock WPL WP4159193 $4.98

View on Model

23

WP3184212 Whirlpool Stand Mixer Black Brush H Backorder WPL WP3184212 $2.81

View on Model

23

BASE & FOOT ASSEMBLY (REFER TO COLOR VARIATIO WPL NP Contact Us For Availability

View on Model

24

3182904 Whirlpool Screw Backorder WPL 3182904 $17.69

View on Model

24

WPW10330804 Whirlpool Speed Governor In Stock WPL WPW10330804 $17.90

View on Model

25

W11312468 Whirlpool Pour Shelf In Stock WPL W11312468 $30.63

View on Model

25

WP240285 Whirlpool Drip Ring In Stock WPL WP240285 $5.17

View on Model

25

CONTROL PLATE ASSEMBLY WPL 2409042 Contact Us For Availability

View on Model

26

W11112762 Whirlpool Power Cord Backorder WPL W11112762 $10.90

View on Model

26

WP9706090 Whirlpool Washer In Stock WPL WP9706090 $4.98

View on Model

27

W11133645 Whirlpool Pinion Gear Backorder WPL W11133645 $2.86

View on Model

27

W11174552 Whirlpool Stand Mixer Phase Board In Stock WPL W11174552 $17.88

View on Model

28

W10900799 Whirlpool Armature Backorder WPL W10900799 $47.19

View on Model

28

WP3400025 Whirlpool Screw Backorder WPL WP3400025 $2.67

View on Model

29

W11210996 Whirlpool Sleeve Backorder WPL W11210996 $2.67

View on Model

30

SCREW Backorder WPL 3184609 $16.25

View on Model

31

WP3179908 Whirlpool Brush Holder Backorder WPL WP3179908 $2.81

View on Model

32

4162546 Whirlpool Brush Holder In Stock WPL 4162546 $24.53

View on Model

35

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $3.93

View on Model

Model Whirlpool 5KSM5EER4 MIXER – Common Parts & Diagrams

Common parts from model Whirlpool 5KSM5EER4 MIXER
