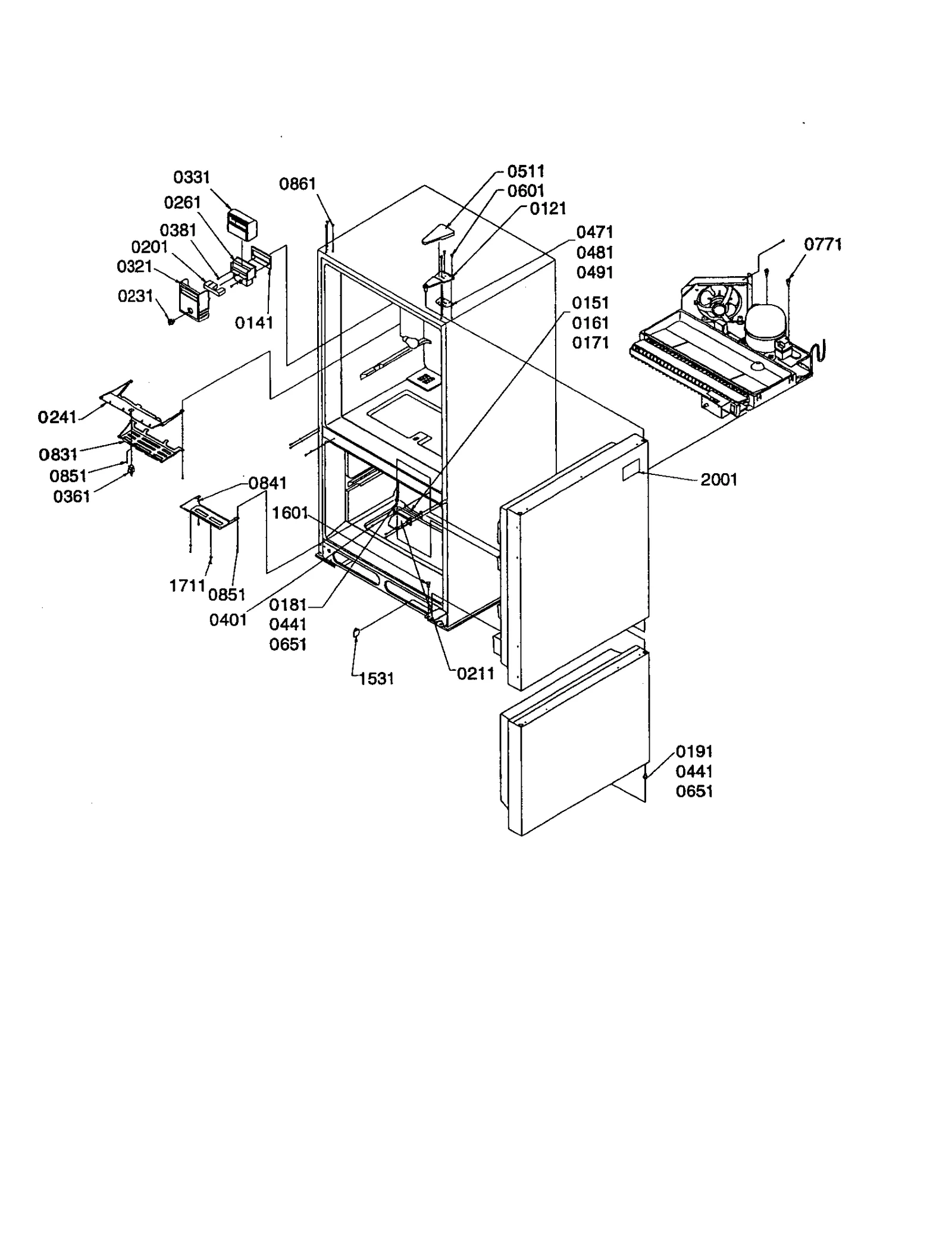

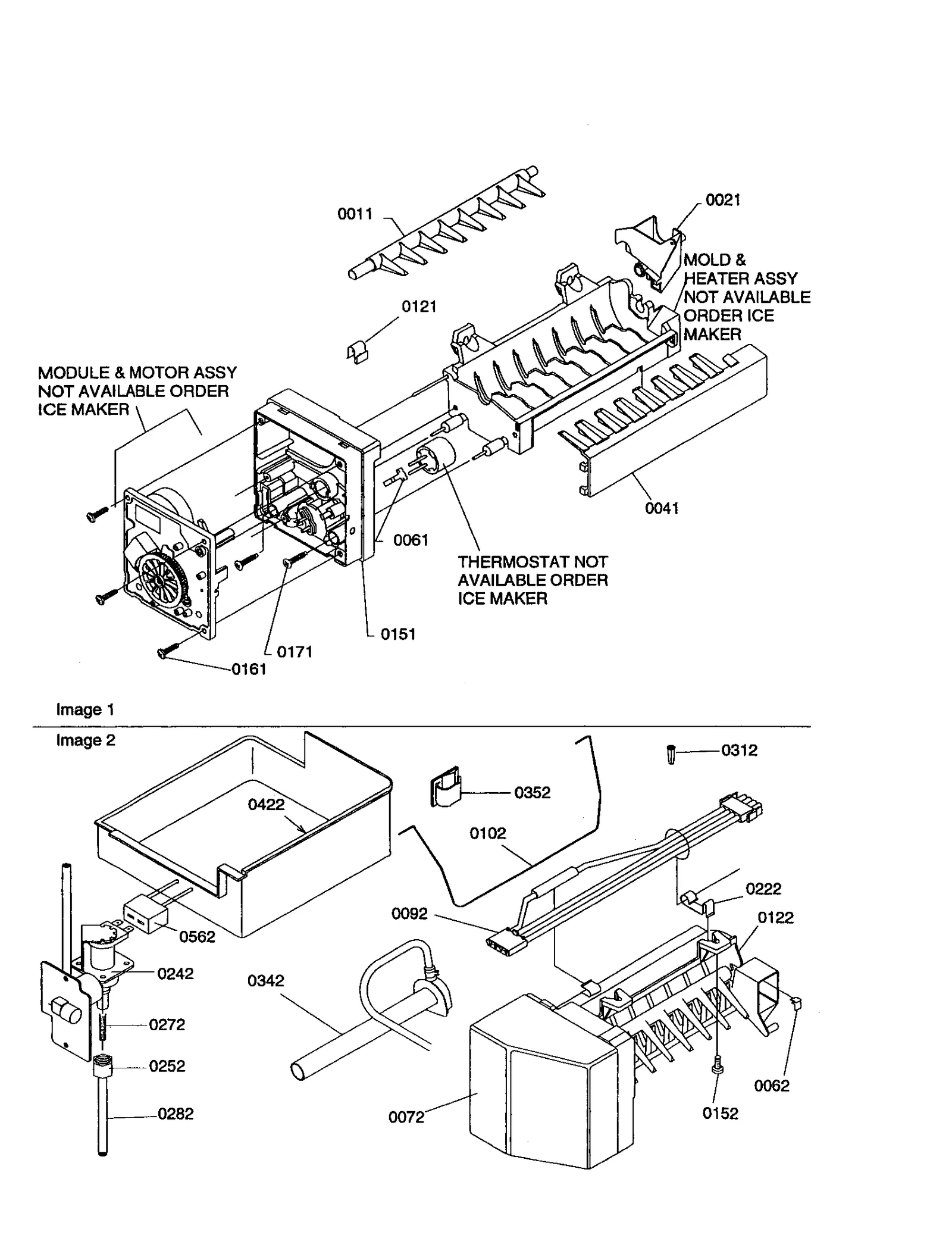

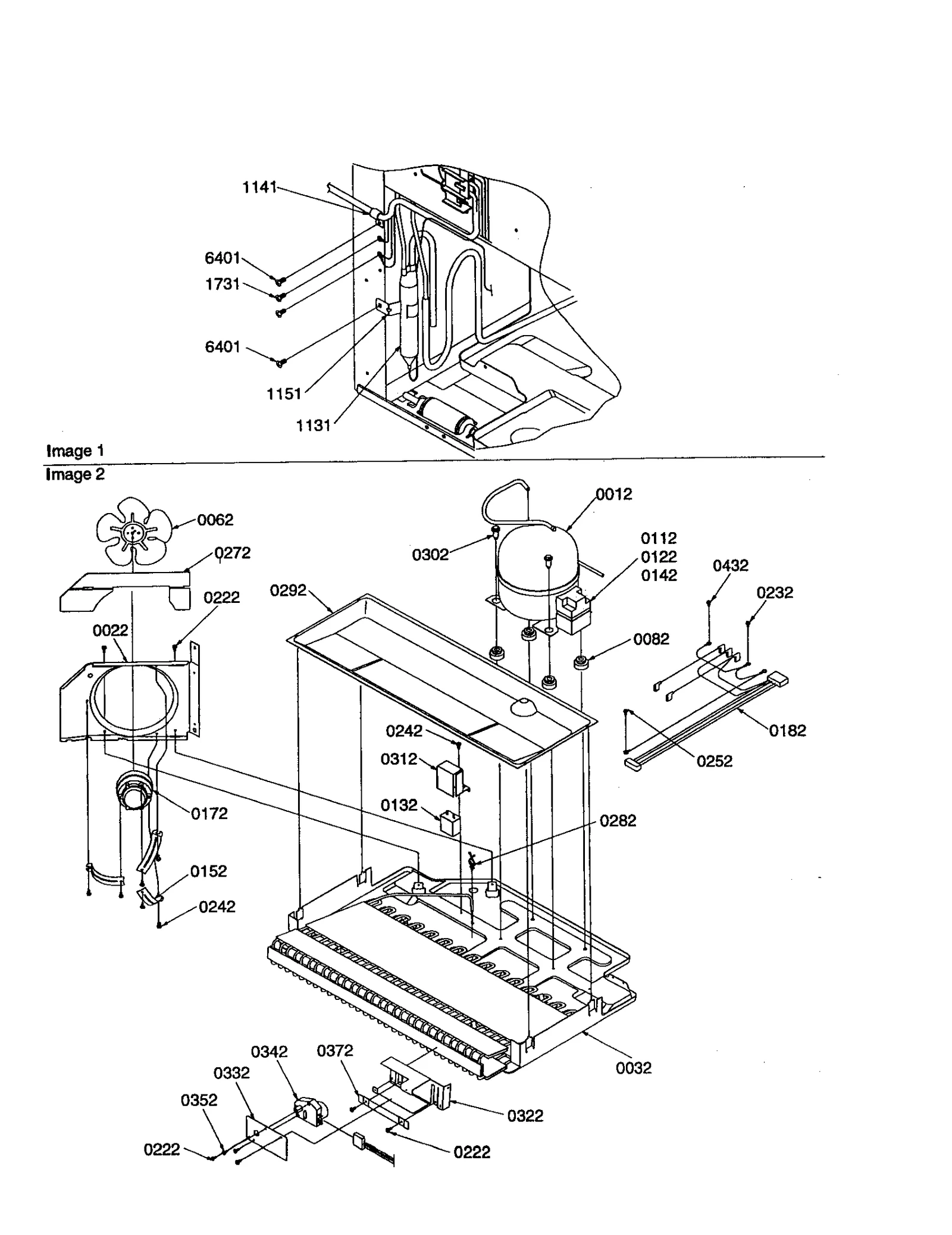

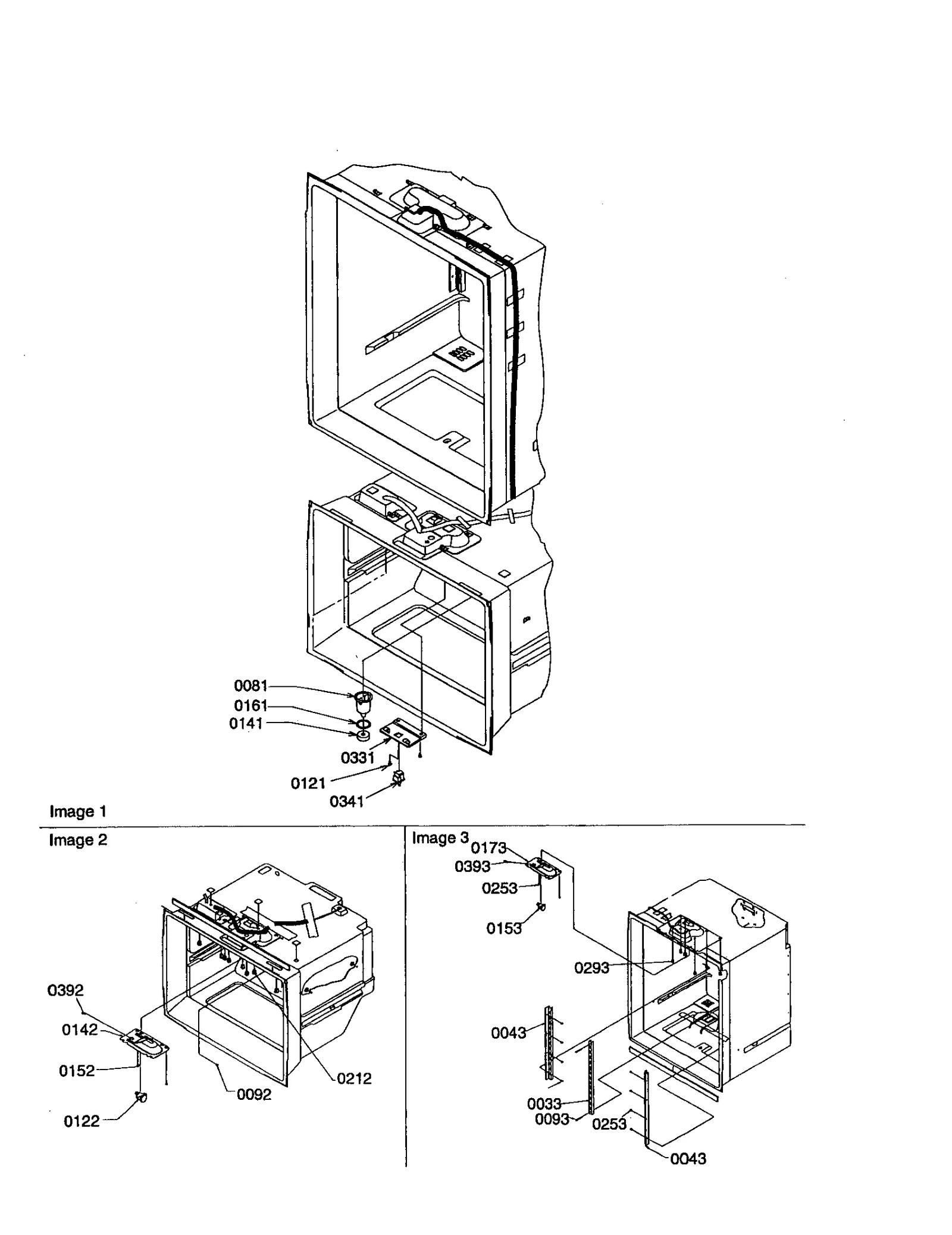

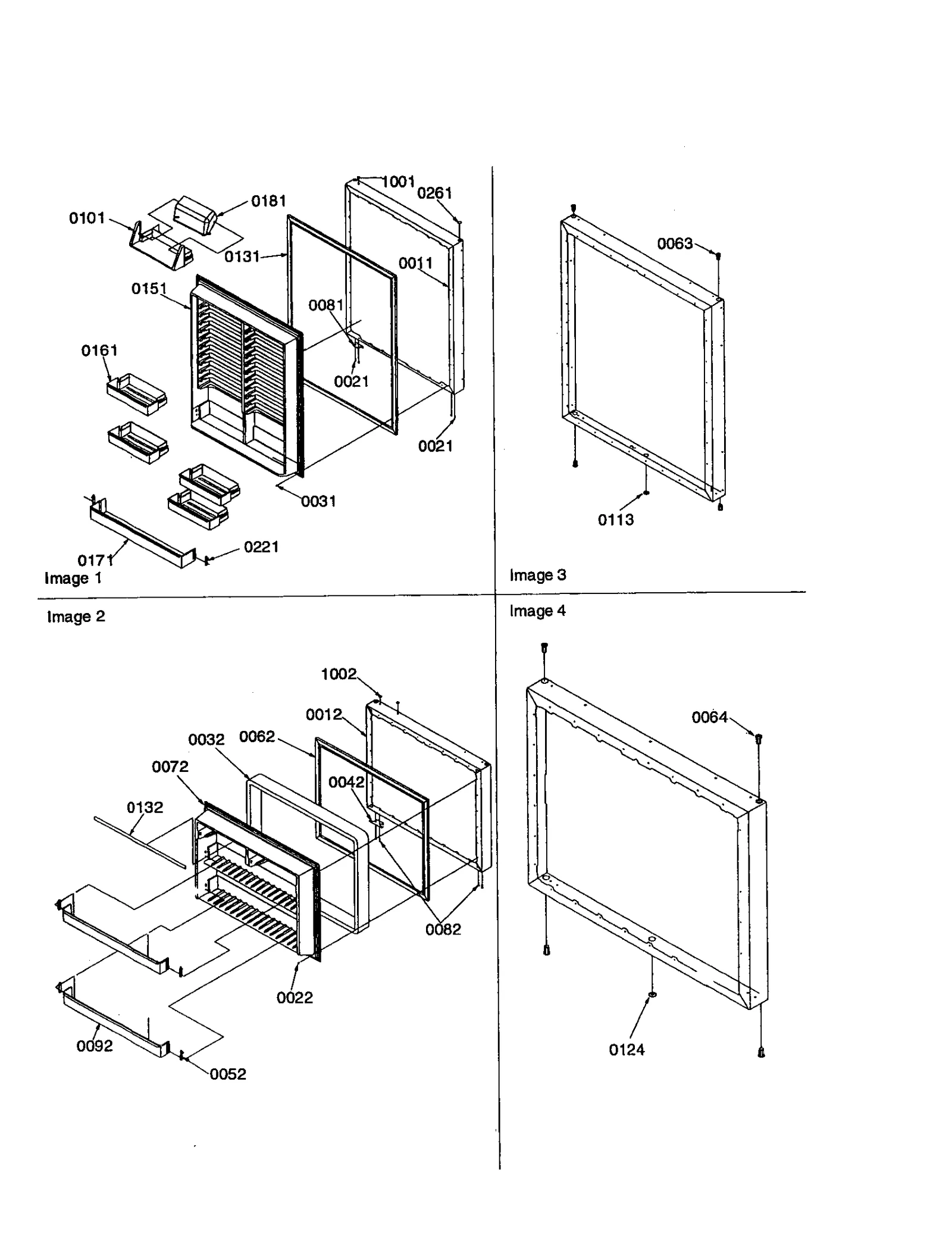

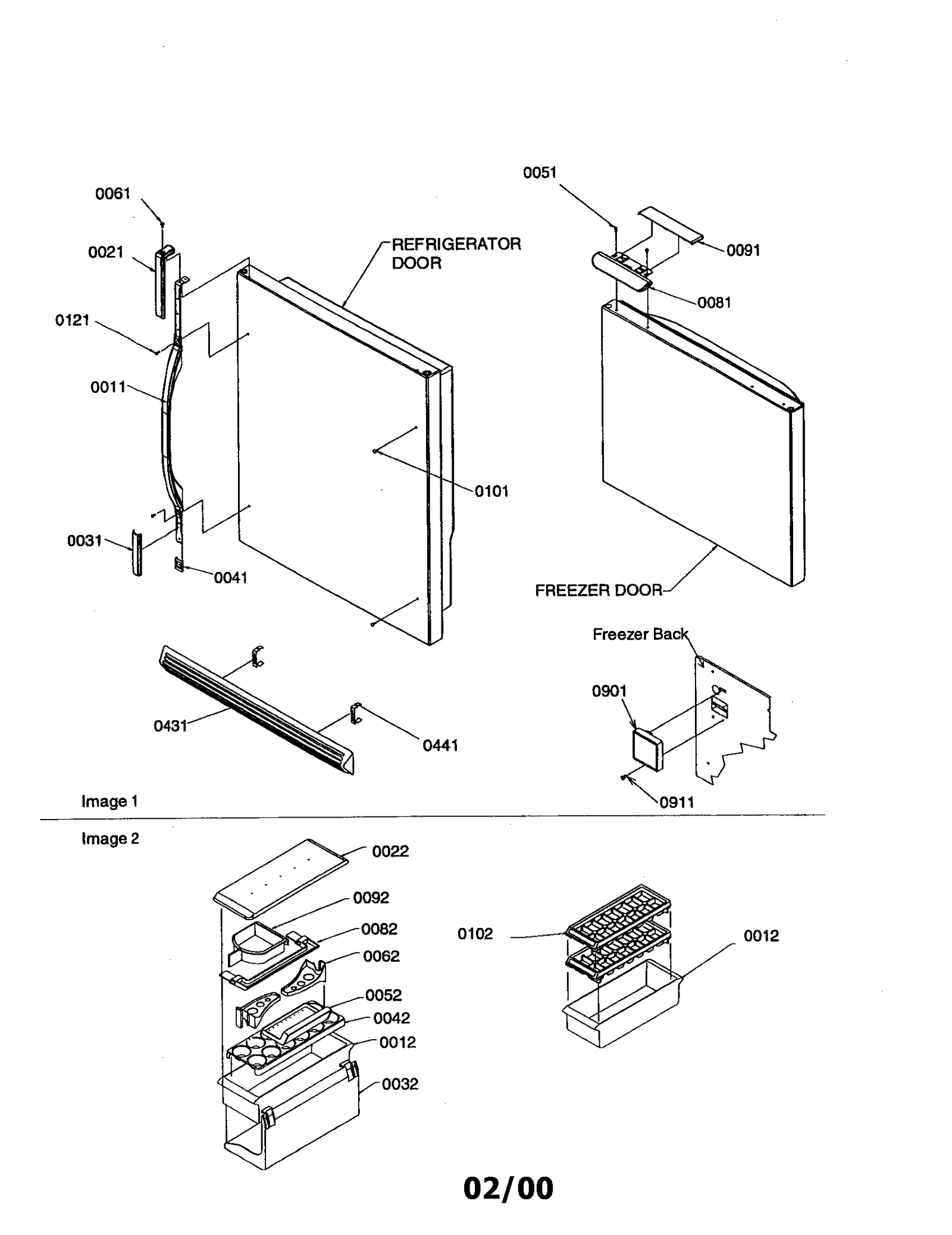

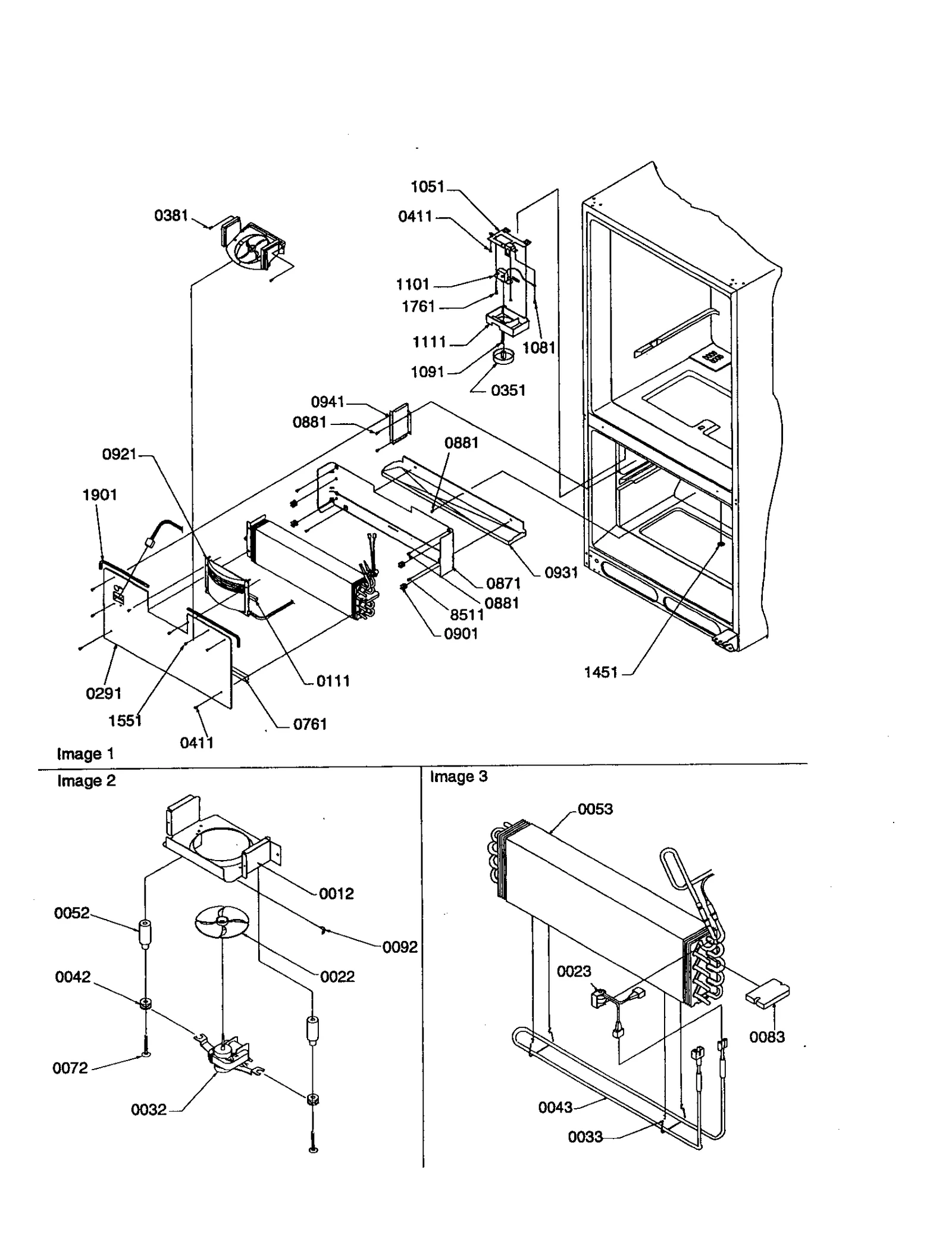

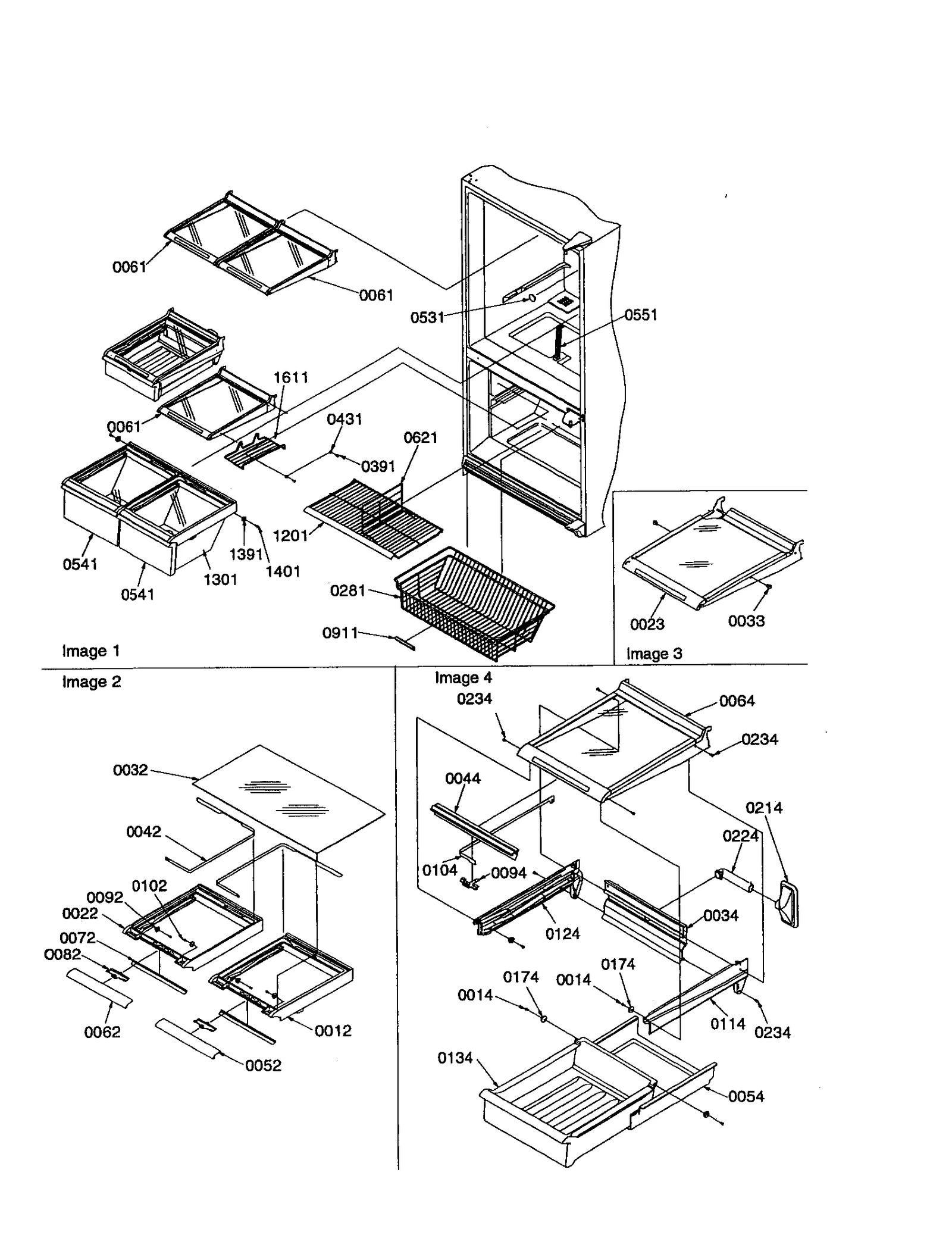

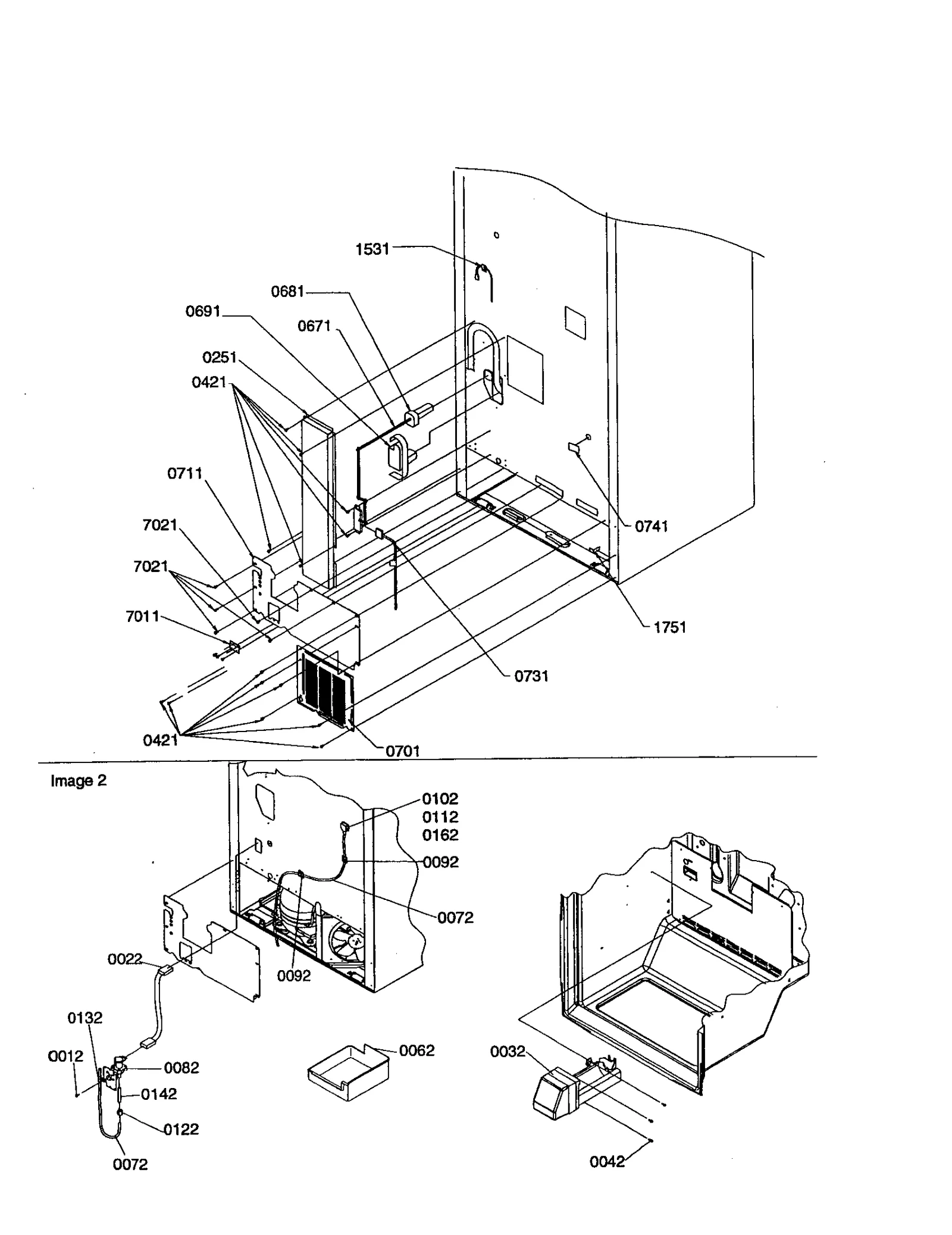

Model Whirlpool 596.79272991 Bottom-Mount Refrigerator (Kenmore 59679272991) – Common Parts &amp; Diagrams

11

REF DR FOAM ASSEMBLY (P1325006W C, P1325007W WPL 12558308C Contact Us For Availability

11

Refrigerator Handle WPL 12272810 Contact Us For Availability

11A

Refrigerator Door Foam WPL 12258308E Contact Us For Availability

11A

Refrigerator Handle WPL 12272809 Contact Us For Availability

11B

Refrigerator Door Foam WPL 12258308L Contact Us For Availability

11B

Refrigerator Handle WPL 12272808 Contact Us For Availability

11C

Refrigerator Door WPL 12258308W Contact Us For Availability

11C

Refrigerator Handle WPL 12272807 Contact Us For Availability

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $358.95

Refrigerator Shroud WPL 10619306 Contact Us For Availability

Freezer Out Panel WPL 10537406C Contact Us For Availability

Refrigerator Frame WPL 10485901 Contact Us For Availability

Refrigerator Bin WPL 10423127 Contact Us For Availability

12A

Refrigerator Door Foam WPL 10537406E Contact Us For Availability

12B

Refrigerator Door Foam WPL 10537406L Contact Us For Availability

12C

Refrigerator Door Foam WPL 10537406W Contact Us For Availability

14

SCREW-SHOULDER (QTY 4) WPL M0338105 Contact Us For Availability

21

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

21

Refrigerator Handle Trim WPL 12443304 Contact Us For Availability

21A

Refrigerator Trim WPL 12443303 Contact Us For Availability

21B

Refrigerator Trim WPL 12443302 Contact Us For Availability

21C

Refrigerator Trim WPL 12443301 Contact Us For Availability

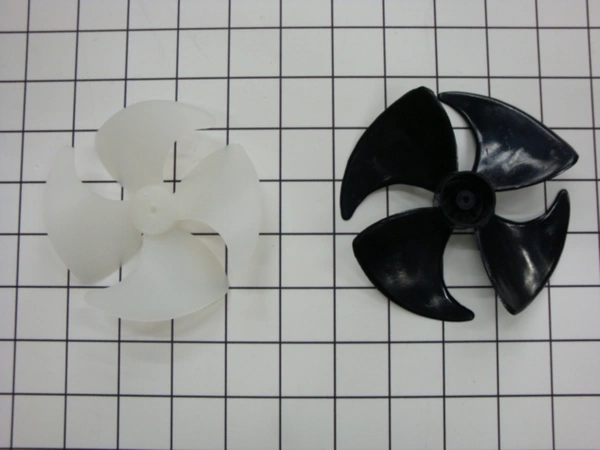

W10116797 Whirlpool Refrigerator Fan Blade Backorder WPL W10116797 $4.82

Screw WPL M0219730 Contact Us For Availability

Refrigerator Shroud WPL 10426911 Contact Us For Availability

Refrigerator Frame WPL 10485902 Contact Us For Availability

Refrigerator Lid WPL 10436404 Contact Us For Availability

23

WP10442411 Whirlpool Bimetal Defrost Thermost In Stock WPL WP10442411 $29.95

23

Refrigerator Shelf WPL 10895812 Contact Us For Availability

31

Refrigerator Trim WPL 12273516 Contact Us For Availability

31A

Refrigerator Trim WPL 12273515 Contact Us For Availability

31B

Refrigerator Handle Trim WPL 12273514 Contact Us For Availability

31C

Refrigerator Trim WPL 12273513 Contact Us For Availability

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

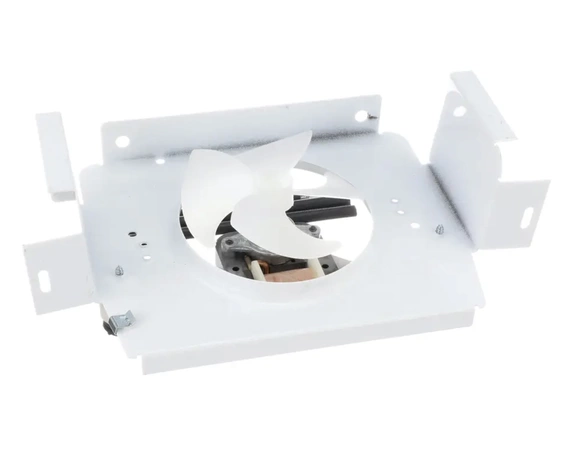

WP12013209Q Whirlpool Refrigerator Evaporator In Stock WPL WP12013209Q $268.40

Pan Condenser WPL 10481210 Contact Us For Availability

Refrigerator Glass WPL 12216720 Contact Us For Availability

Refrigerator Rack WPL 10448902 Contact Us For Availability

33

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

33

Refrigerator Ladder WPL 12435801 Contact Us For Availability

33

Shelf Stop WPL 10875101 Contact Us For Availability

34

Refrigerator Extrusion WPL 10934903 Contact Us For Availability

41

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

41

Refrigerator Trim WPL 12273402 Contact Us For Availability

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $57.93

Refrigerator Grommet WPL 12442501 Contact Us For Availability

SCREW-SM ( P1325007W E, P1325007W L, P13250 WPL M021101B Contact Us For Availability

Refrigerator Band WPL 10514002 Contact Us For Availability

Refrigerator Egg Tray WPL 10436504 Contact Us For Availability

42A

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

42B

Refrigerator Stop WPL 10447107 Contact Us For Availability

42C

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

43

WP10428409 Whirlpool Refrigerator Evaporator Backorder WPL WP10428409 $126.05

43

Refrigerator Ladder WPL 12435701 Contact Us For Availability

44

Refrigerator Extrusion WPL 10920303 Contact Us For Availability

51

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.08

Refrigerator Post WPL 12442401 Contact Us For Availability

Refrigerator Clip WPL 10202001 Contact Us For Availability

Refrigerator Trim WPL 10530322 Contact Us For Availability

Refrigerator Butter Tray WPL 10310901 Contact Us For Availability

53

Low Side WPL R0170047 Contact Us For Availability

54

Refrigerator Sleeve WPL 10437305 Contact Us For Availability

61

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

61

Refrigerator Shelf WPL 10926206Q Contact Us For Availability

61

Refrigerator Screw WPL 12248201 Contact Us For Availability

WP12550101Q Whirlpool Refrigerator Gasket Backorder WPL WP12550101Q $168.82

Refrigerator Pan WPL 12045503 Contact Us For Availability

Refrigerator Clip WPL B5720302 Contact Us For Availability

Refrigerator Fan Blade WPL B5742604 Contact Us For Availability

Refrigerator Trim WPL 10530323 Contact Us For Availability

Refrigerator Snugger WPL 12103905 Contact Us For Availability

62A

WP12550116Q Whirlpool Refrigerator Gasket In Stock WPL WP12550116Q $91.95

63

Bushing Do WPL 10961002 Contact Us For Availability

63A

Refrigerator Door Bushing WPL 10961001 Contact Us For Availability

64

BUSHING-E DOOR (P1306303WE) (QTY 4) WPL 10931002 Contact Us For Availability

64

Stationary Deli WPL 10895713 Contact Us For Availability

64A

BUSHING-W DOOR (P1325006WL, P1325006WC, P1325 WPL 10921001 Contact Us For Availability

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Refrigerator Screw WPL M0219711 Contact Us For Availability

Refrigerator Liner WPL 12372501 Contact Us For Availability

81

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

81

WP67005141 Whirlpool Refrigerator Handle Backorder WPL WP67005141 $102.12

81A

67005125 Whirlpool Refrigerator Door Handle ( In Stock WPL 67005125 $71.01

81B

Refrigerator Freezer Handle WPL 12285405 Contact Us For Availability

81C

WP67005140 Whirlpool Door Handle In Stock WPL WP67005140 $129.31

82

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

82

Refrigerator Slide WPL 10797501 Contact Us For Availability

82

Refrigerator Retainer WPL 10468004 Contact Us For Availability

83

Refrigerator Block WPL 10519101 Contact Us For Availability

91

Cap-hndle WPL 12285504 Contact Us For Availability

91A

Refrigerator Cap WPL 12285503 Contact Us For Availability

91B

Refrigerator Cap WPL 12285502 Contact Us For Availability

91C

Refrigerator Cap WPL 12285501 Contact Us For Availability

12991101 Whirlpool Refrigerator Screw Backorder WPL 12991101 $8.89

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $34.18

Refrigerator Roller WPL 10481001 Contact Us For Availability

Refrigerator Hugger WPL 10441102 Contact Us For Availability

93

Refrigerator Screw WPL M0231426 Contact Us For Availability

94

Refrigerator Slide WPL 10920401 Contact Us For Availability

101

Dairy Shelf WPL 12348002 Contact Us For Availability

101

Refrigerator Plug WPL M0310730 Contact Us For Availability

101A

Refrigerator Button Plug WPL M0310738 Contact Us For Availability

101B

Refrigerator Plug WPL M0310731 Contact Us For Availability

101C

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $4.82

67006692 Whirlpool Refrigerator Screw Backorder WPL 67006692 $6.84

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $37.31

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $26.05

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

104

Refrigerator Band WPL 10935002 Contact Us For Availability

111

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

111

Refrigerator Gasket WPL B5759611 Contact Us For Availability

112

Refrigerator Overload WPL 10377015 Contact Us For Availability

113

Refrigerator Plug WPL M0310338 Contact Us For Availability

113A

Refrigerator Button Plug WPL M0310344 Contact Us For Availability

113B

Refrigerator Plug Button (Black) WPL M0310336 Contact Us For Availability

113C

Refrigerator Button Plug WPL M0310308 Contact Us For Availability

114

Glide-rh WPL 10880202 Contact Us For Availability

R9800670 Whirlpool Refrigerator Screw Kit In Stock WPL R9800670 $4.78

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

Refrigerator Cover WPL 10462706 Contact Us For Availability

Refrigerator Hinge WPL 12077305 Contact Us For Availability

121A

Refrigerator Cover WPL 10462701 Contact Us For Availability

121B

Refrigerator Hinge Cover WPL 10462705 Contact Us For Availability

121C

Refrigerator Cover (White) WPL 10462702 Contact Us For Availability

122

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

122

WP10097202 Whirlpool Refrigerator Start Devic Backorder WPL WP10097202 $81.28

122

Refrigerator Socket WPL D7714408 Contact Us For Availability

124

Left Glide WPL 10897102 Contact Us For Availability

131

Refrigerator Roller WPL 10450701 Contact Us For Availability

131

Refrigerator Door Gasket WPL 10456852 Contact Us For Availability

131A

WP12550115Q Whirlpool Door Gasket In Stock WPL WP12550115Q $134.54

132

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

132

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $44.02

134

Refrigerator Meat Pan WPL 10417013 Contact Us For Availability

141

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

141

Refrigerator Axle WPL 10450901 Contact Us For Availability

141

Refrigerator Damper Gasket WPL B8345401 Contact Us For Availability

142

Refrigerator Terminal Cover WPL 10757301 Contact Us For Availability

142

Refrigerator Housing WPL 12427502 Contact Us For Availability

151

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

151

Refrigerator Drive Liner WPL 10462101 Contact Us For Availability

151

Refrigerator Shim WPL 10562201 Contact Us For Availability

151A

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $4.82

152

Refrigerator Bracket WPL 10582501 Contact Us For Availability

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

Refrigerator Screw WPL M0204336 Contact Us For Availability

Rf Dr Shelf WPL 10183019 Contact Us For Availability

Refrigerator Screw WPL R0186041 Contact Us For Availability

Refrigerator Retainer WPL 10582202 Contact Us For Availability

Refrigerator Roller Bracket WPL 12452601Q Contact Us For Availability

Refrigerator Shelf WPL 10183123 Contact Us For Availability

Refrigerator Screw WPL R0186040 Contact Us For Availability

Refrigerator Shim WPL 10562203 Contact Us For Availability

172

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $55.94

181

WP67006744 Whirlpool Refrigerator Center Pin Backorder WPL WP67006744 $4.82

181

Refrigerator Screw WPL M0260242 Contact Us For Availability

181

Refrigerator Dairy Door WPL 12348101 Contact Us For Availability

182

Refrigerator Harness WPL 12458101 Contact Us For Availability

191

67007018 Whirlpool Refrigerator Bottom Hinge Backorder WPL 67007018 $4.82

191

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

201

Refrigerator Insulation WPL 12403603 Contact Us For Availability

201

Refrigerator Insert Control WPL C8902601 Contact Us For Availability

211

Refrigerator Hinge WPL 12446508 Contact Us For Availability

211A

Refrigerator Hinge WPL 12446507 Contact Us For Availability

212

Refrigerator Grommet Screw WPL M0581001 Contact Us For Availability

214

Refrigerator Grommet WPL 10501901 Contact Us For Availability

222

Refrigerator Clamp WPL 10526701 Contact Us For Availability

224

Refrigerator Tunnel WPL 10486401 Contact Us For Availability

231

Knob, White WPL D7795826 Contact Us For Availability

232

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

241

Refrigerator Shield WPL 12056201 Contact Us For Availability

242

W10833899 Whirlpool Refrigerator Water Inlet In Stock WPL W10833899 $153.85

242

Refrigerator Screw WPL M0223816 Contact Us For Availability

251

Refrigerator Cabinet WPL 10427112 Contact Us For Availability

251

Refrigerator Cover WPL 10502303 Contact Us For Availability

252

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

252

Screw WPL M0253916 Contact Us For Availability

261

Refrigerator Damper Control WPL R0161050 Contact Us For Availability

261

Refrigerator Plug WPL 10686402 Contact Us For Availability

261A

Refrigerator Button Plug WPL 10686407 Contact Us For Availability

261B

Refrigerator Plug WPL 10686404 Contact Us For Availability

261C

Refrigerator Plug WPL 10686401 Contact Us For Availability

272

Spring WPL A1055101 Contact Us For Availability

272

Refrigerator Gasket WPL 10442702 Contact Us For Availability

281

Refrigerator Basket WPL 12433501 Contact Us For Availability

282

Plastic Tube WPL B570530B Contact Us For Availability

282

Refrigerator Clip WPL B5667304 Contact Us For Availability

291

Refrigerator Cover WPL 10485406 Contact Us For Availability

292

Refrigerator Drain Pan WPL 10427405 Contact Us For Availability

312

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

312

Refrigerator Shield WPL 10266402 Contact Us For Availability

321

Refrigerator Cover WPL D7687535 Contact Us For Availability

322

Refrigerator Bracket WPL 10503201 Contact Us For Availability

331

Insulation Damper WPL D7687701 Contact Us For Availability

331

Refrigerator Cover WPL D7297604 Contact Us For Availability

332

Refrigerator Cover WPL 10503102 Contact Us For Availability

332A

Refrigerator Cover WPL 12515801 Contact Us For Availability

341

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $23.68

342

R0131577 Whirlpool Defrost Timer In Stock WPL R0131577 $35.28

342

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $54.88

351

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.78

351

Refrigerator Knob WPL D7689905 Contact Us For Availability

352

Refrigerator Screw WPL M0216705 Contact Us For Availability

372

Washer WPL 10542701 Contact Us For Availability

381

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

391

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $4.99

392

Ground Clip WPL B5733302 Contact Us For Availability

401

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

421

Refrigerator Screw WPL M0227217 Contact Us For Availability

422

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

431

Refrigerator Toe Grille WPL 10474806 Contact Us For Availability

431A

Refrigerator Grille WPL 10474801 Contact Us For Availability

431B

Refrigerator Grille WPL 10474805 Contact Us For Availability

431C

Refrigerator Grille (White) WPL 10474802 Contact Us For Availability

432

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

441

WPM0274062 Whirlpool Refrigerator Shim In Stock WPL WPM0274062 $20.60

441

Clip Grill WPL 10551502 Contact Us For Availability

441A

WPM0274057 Whirlpool Refrigerator Shim In Stock WPL WPM0274057 $4.99

471

Refrigerator Shim WPL 10451301 Contact Us For Availability

481

Refrigerator Shim WPL 10451302 Contact Us For Availability

491

Refrigerator Shim WPL 10451303 Contact Us For Availability

511

Refrigerator Hinge Cover WPL 10444810 Contact Us For Availability

511A

Refrigerator Cover (Black) WPL 10444804 Contact Us For Availability

511B

Refrigerator Cover WPL 10444809 Contact Us For Availability

511C

Refrigerator Cover WPL 10444808 Contact Us For Availability

531

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.10

531

Refrigerator Plug WPL M0310342 Contact Us For Availability

541

Refrigerator Crisper Pan WPL 10432008 Contact Us For Availability

551

10461901 Whirlpool Refrigerator Crisper Suppo In Stock WPL 10461901 $18.82

562

Refrigerator Harness WPL 10525901 Contact Us For Availability

601

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $4.99

621

Refrigerator Divider WPL D7806002 Contact Us For Availability

651

Refrigerator Shim (Black) WPL M0274063 Contact Us For Availability

651A

Refrigerator Shim WPL M0274058 Contact Us For Availability

671

Refrigerator Harness WPL 12509301 Contact Us For Availability

681

Refrigerator Grommet WPL 10699301 Contact Us For Availability

691

Refrigerator Plug WPL 10428001 Contact Us For Availability

701

Refrigerator Back WPL 12039807 Contact Us For Availability

711

Refrigerator Back WPL 12041850 Contact Us For Availability

711A

Refrigerator Back WPL 12041851 Contact Us For Availability

731

Refrigerator Power Cord WPL 10916502 Contact Us For Availability

741

Refrigerator Plug WPL 10544301 Contact Us For Availability

761

Refrigerator Gasket WPL A3189320 Contact Us For Availability

771

Refrigerator Compressor Mounting Screw WPL M0221523 Contact Us For Availability

831

Refrigerator Cover WPL 12056301 Contact Us For Availability

841

Cover-fz L WPL 10493302 Contact Us For Availability

851

Refrigerator Screw WPL M0238846 Contact Us For Availability

871

Evaporator Shield WPL 10427716 Contact Us For Availability

901

Refrigerator Clip WPL 10623002 Contact Us For Availability

901

Refrigerator Plug Cover WPL D7874403 Contact Us For Availability

911

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

911

Refrigerator Handle WPL 10508511 Contact Us For Availability

921

Refrigerator Grille WPL 10502401 Contact Us For Availability

931

Refrigerator Drip Tray WPL 10486104 Contact Us For Availability

941

Refrigerator Duct WPL 10638601 Contact Us For Availability

1051

Refrigerator Bracket WPL 12271401 Contact Us For Availability

1091

Refrigerator Screw WPL M0216531 Contact Us For Availability

1101

W10752646 Whirlpool Control Thermostat In Stock WPL W10752646 $105.59

1111

COVER-FZ CONTROL WPL D7678824 Contact Us For Availability

1131

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

1141

Speed Clamp WPL M0103904 Contact Us For Availability

1151

Refrigerator Clip WPL 10547001 Contact Us For Availability

1201

Refrigerator Freezer Shelf WPL 12204704 Contact Us For Availability

1301

Refrigerator Crisper WPL 12431804Q Contact Us For Availability

1531

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

1551

Refrigerator Plug WPL M0310305 Contact Us For Availability

1601

Refrigerator Button Plug WPL M0310330 Contact Us For Availability

1611

Refrigerator Rack WPL 12228201 Contact Us For Availability

1711

Washer WPL M0270538 Contact Us For Availability

1751

Refrigerator Clip WPL B5720303 Contact Us For Availability

1761

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

1901

Refrigerator Gasket WPL A3030353 Contact Us For Availability

2001

Refrigerator Nameplate WPL 12329504 Contact Us For Availability

2001A

Refrigerator Tag WPL 12329503 Contact Us For Availability

2001B

Refrigerator Tag WPL 12329502 Contact Us For Availability

2001C

Refrigerator Tag WPL 12329501 Contact Us For Availability

6401

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

7011

Refrigerator Water Valve WPL 12047201 Contact Us For Availability

7021

Refrigerator Screw WPL M0219704 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

W10887190 Whirlpool Refrigerator Light Bulb Backorder WPL W10887190 $10.86

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Refrigerator Owner's Manual WPL 10075039 Contact Us For Availability

Refrigerator Technical Sheet WPL 10096835 Contact Us For Availability

Instl-manl WPL 10527028 Contact Us For Availability

Instl-manl WPL 10527047 Contact Us For Availability

Refrigerator Owner's Manual WPL 10937045 Contact Us For Availability

Instl-manl WPL 12123315 Contact Us For Availability

Labelwarrant WPL A3036901 Contact Us For Availability

Refrigerator Button Plug WPL M0311301 Contact Us For Availability

LABEL, DIAGNOSIS WPL P10834701 Contact Us For Availability
