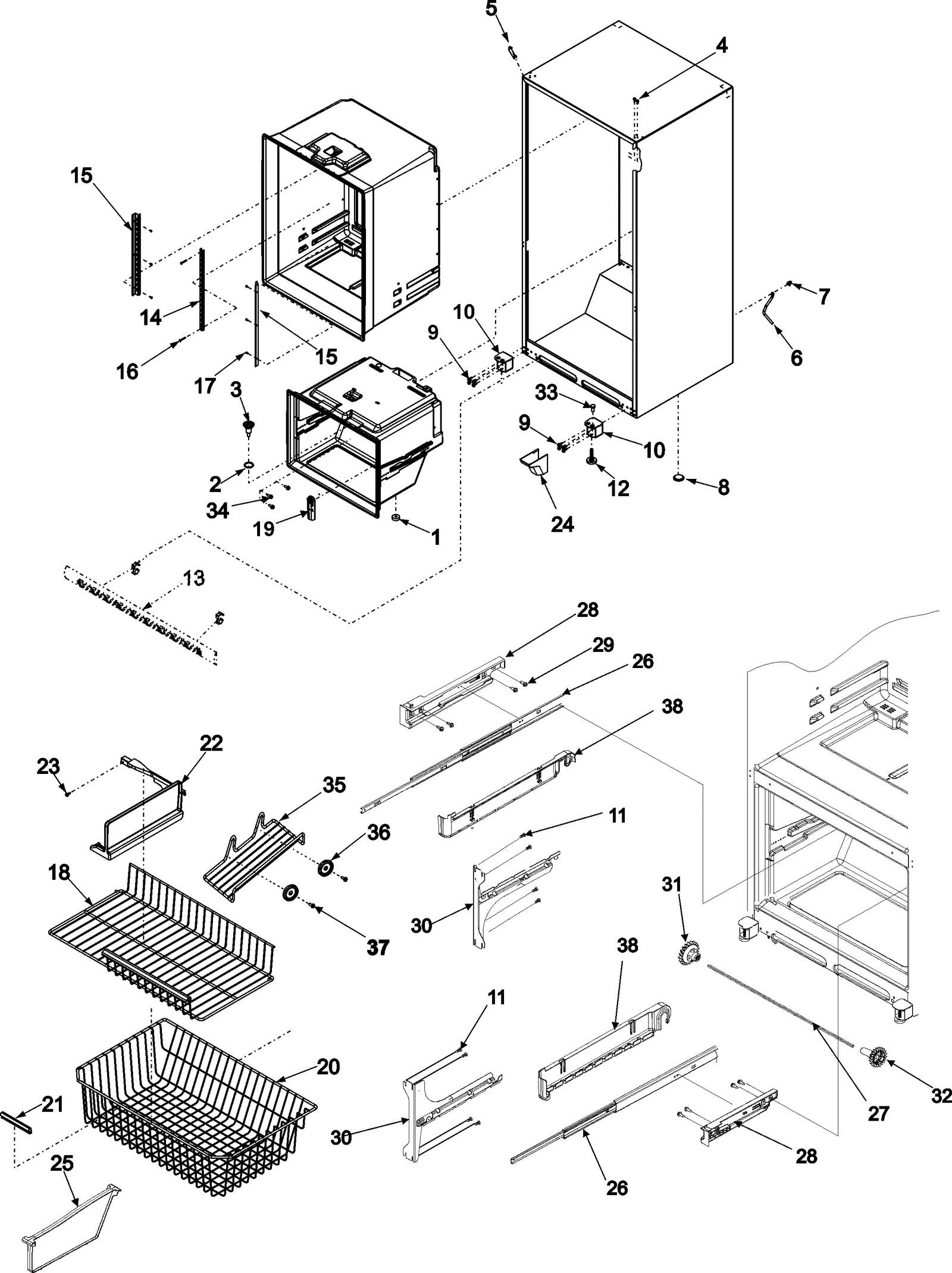

Model Whirlpool 596.66253400 Refrigerator (Kenmore 59666253400) – Common Parts &amp; Diagrams

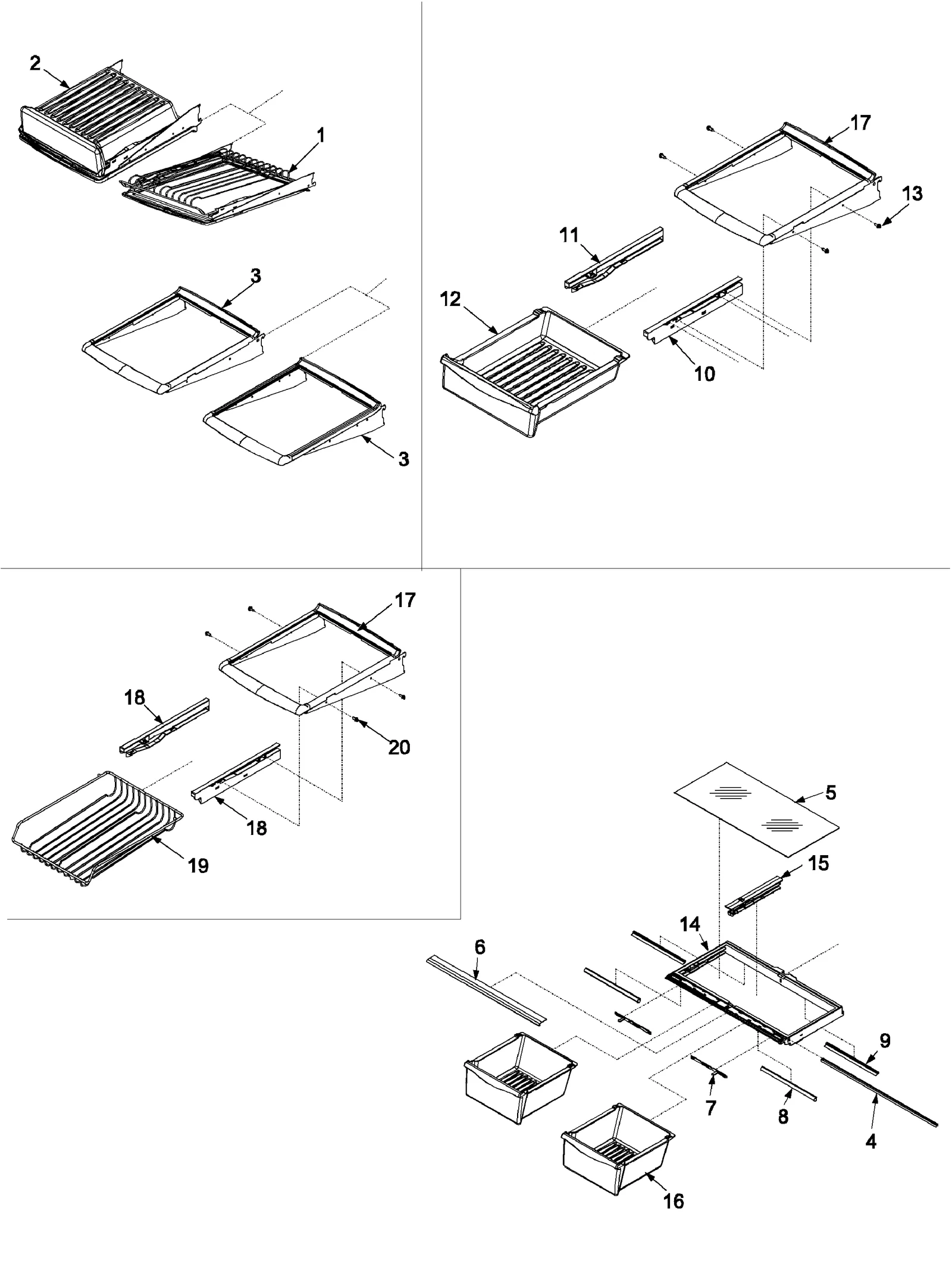

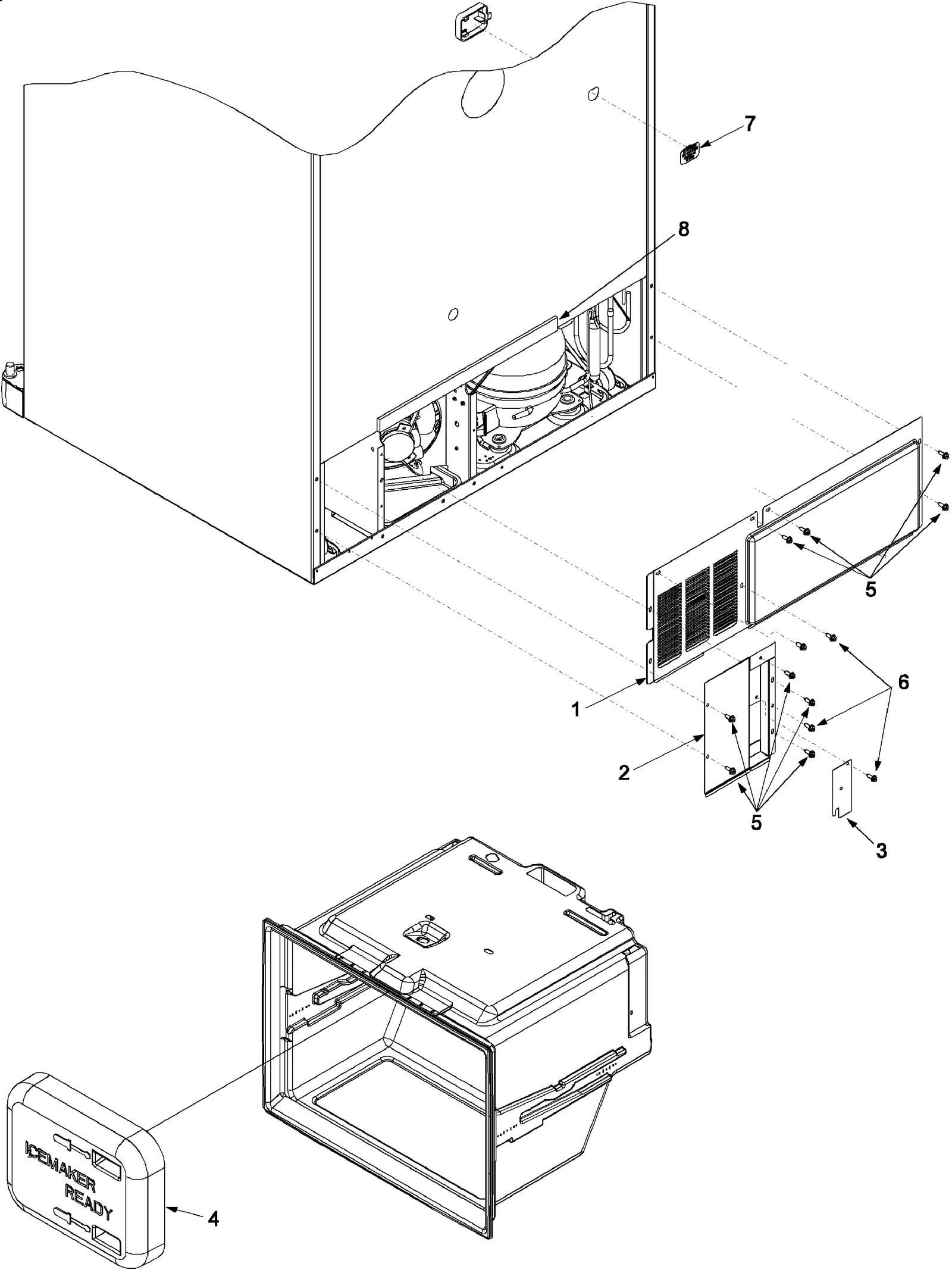

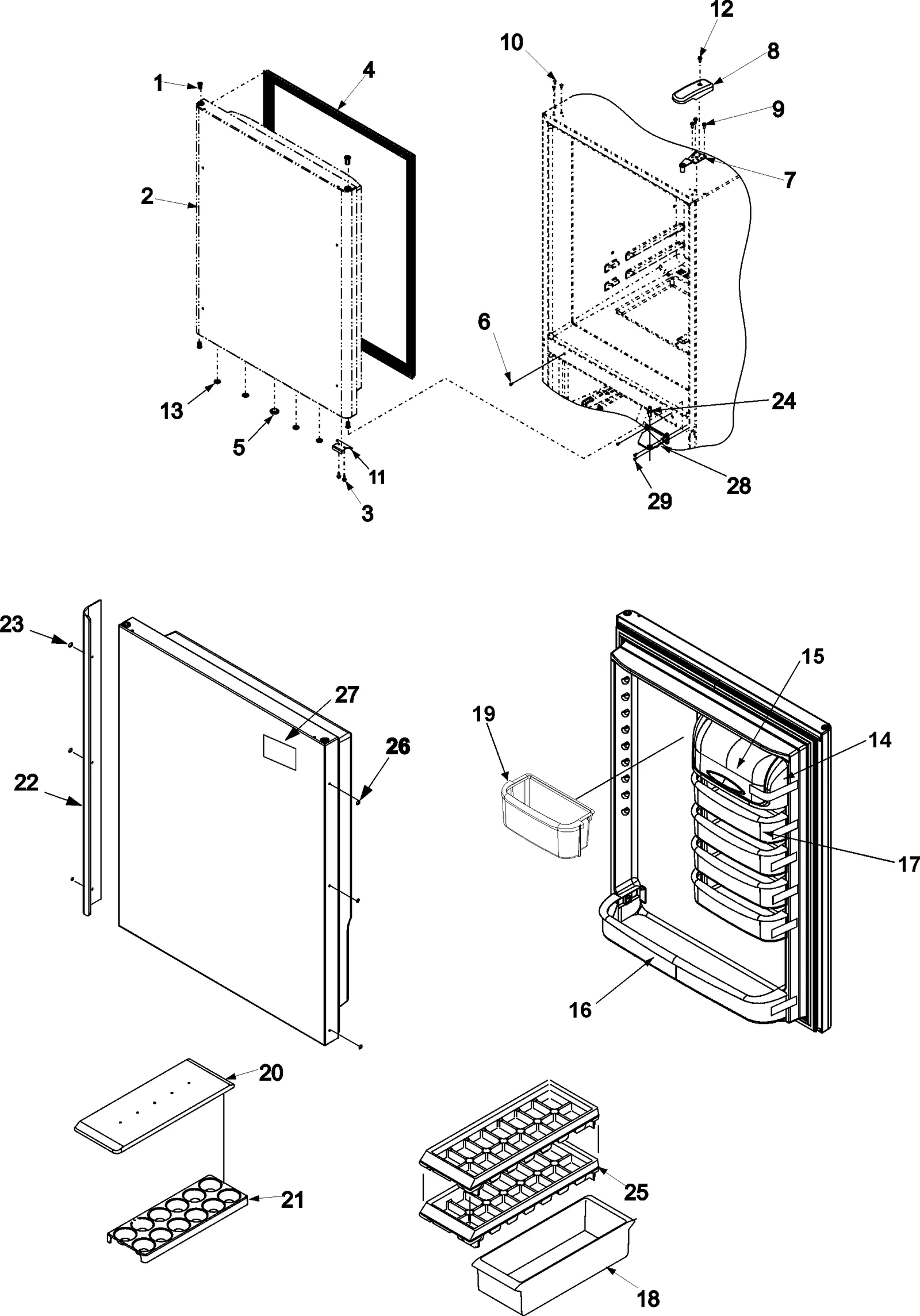

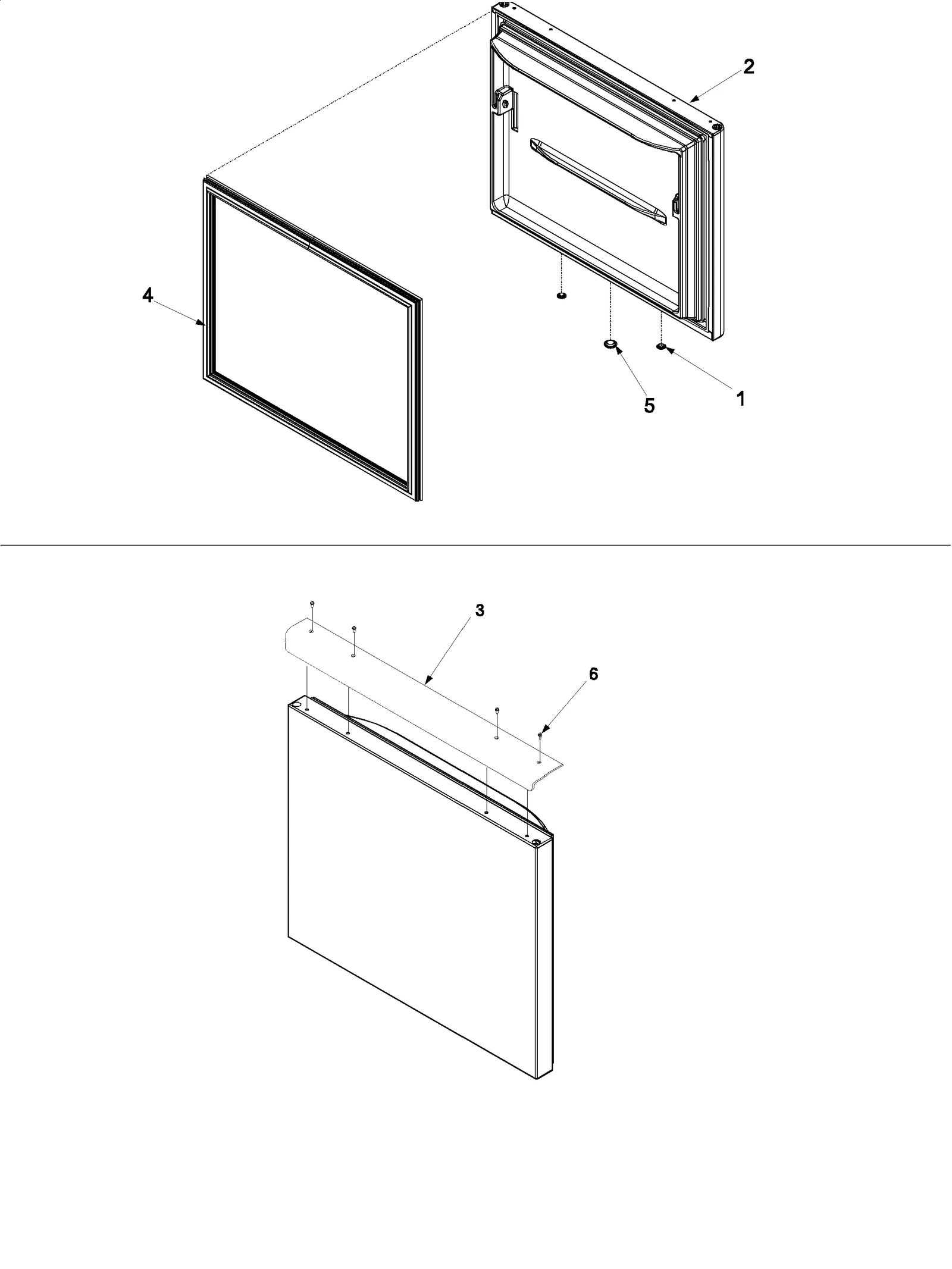

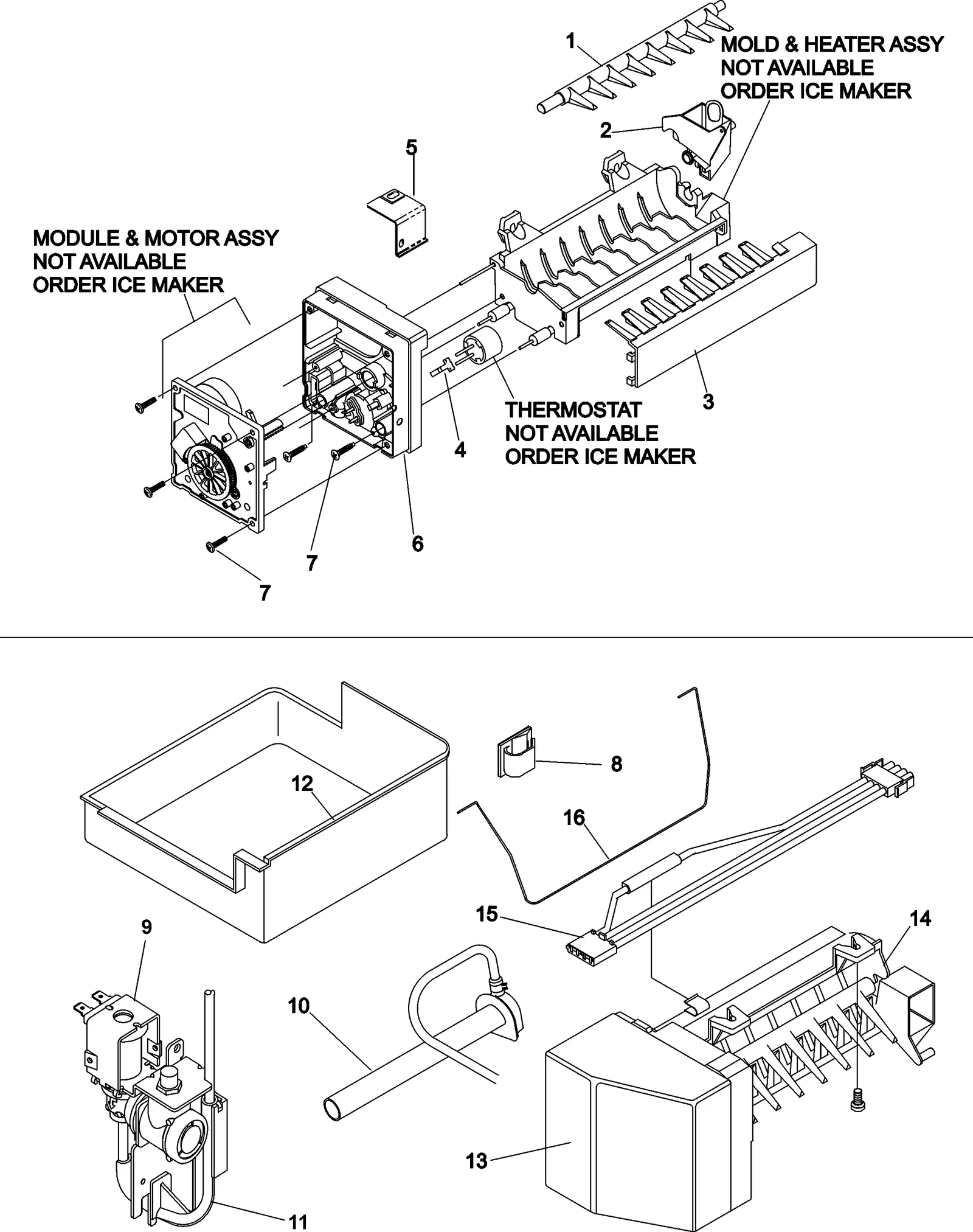

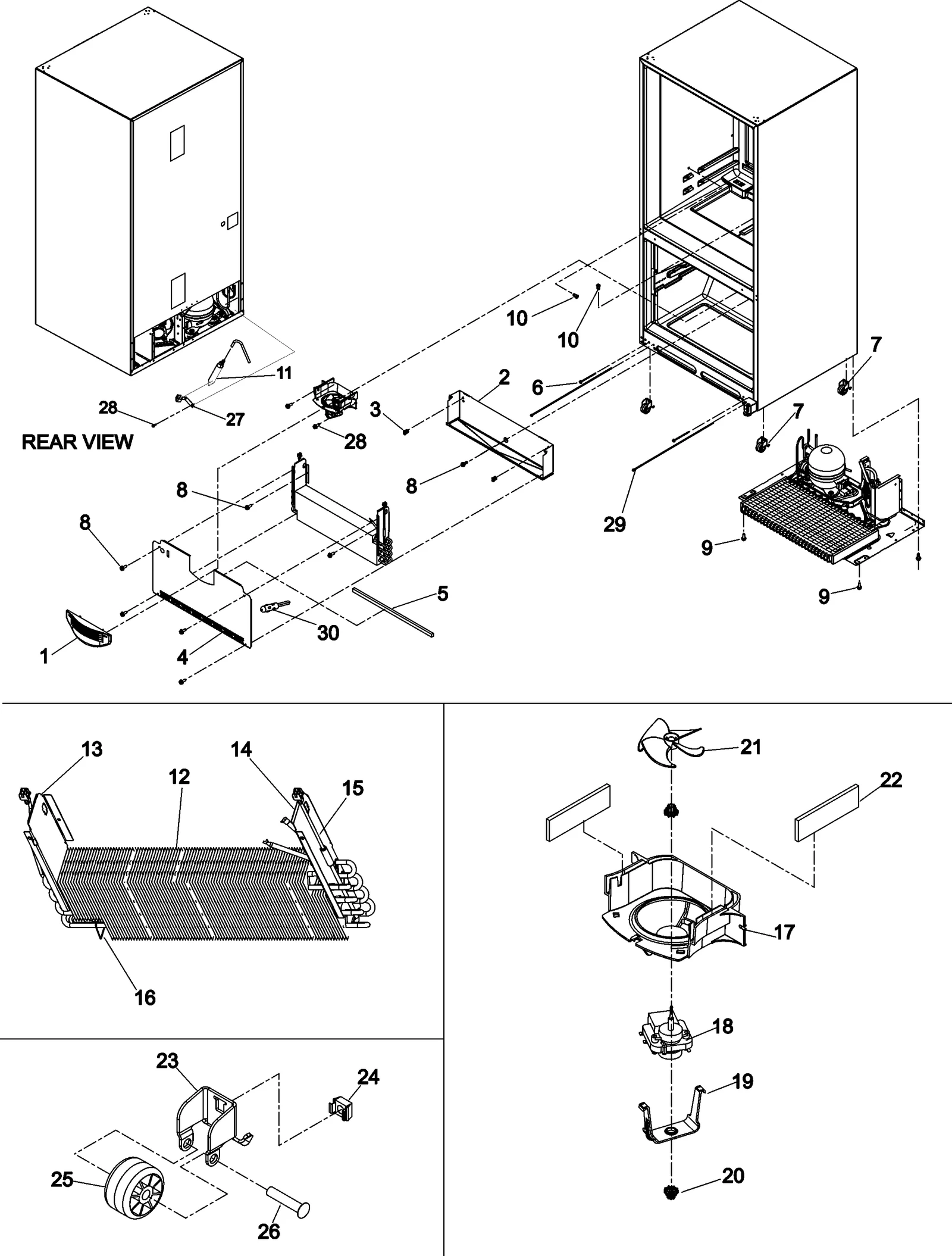

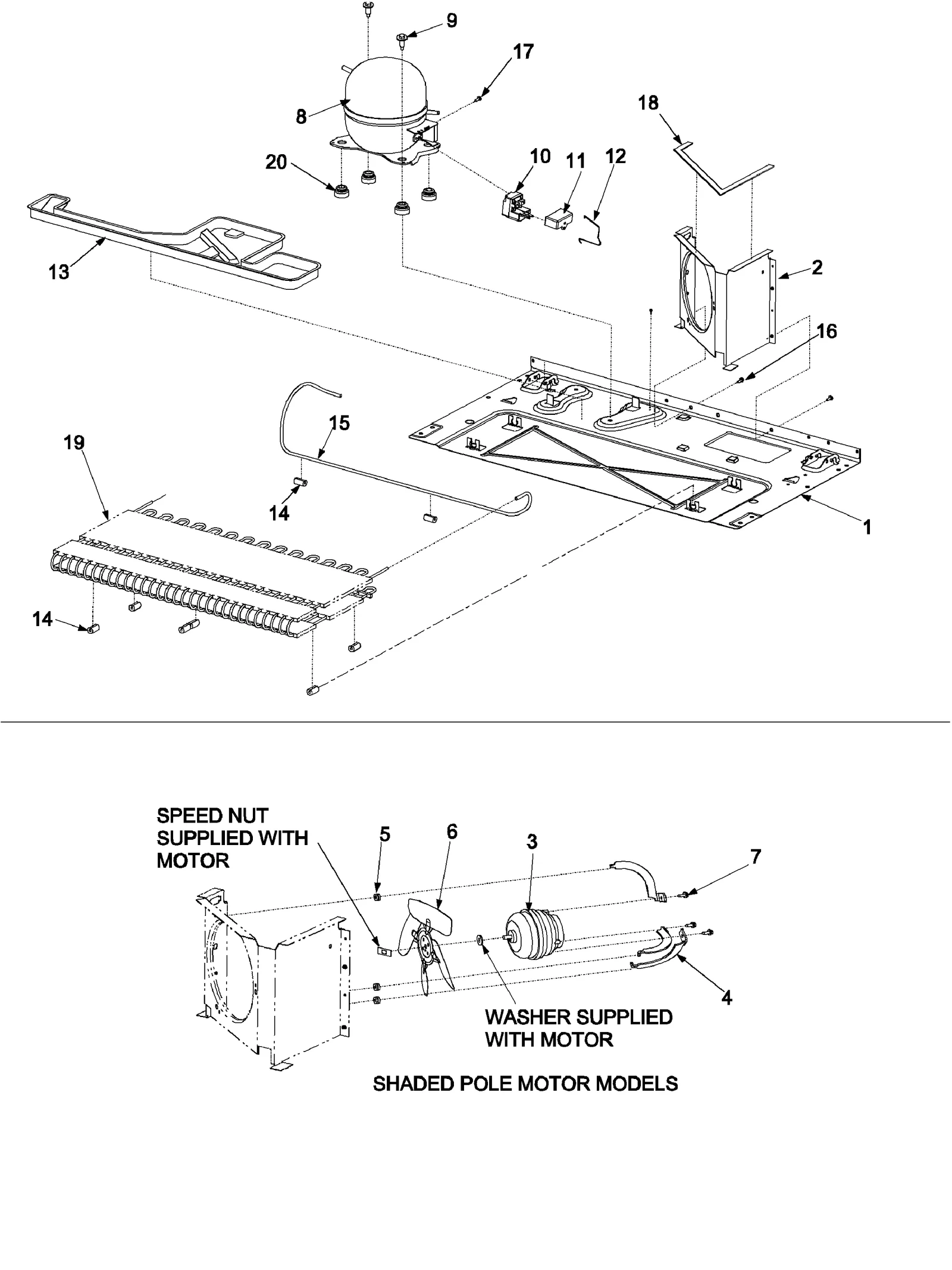

1

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $4.82

1

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $5.99

1

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $35.95

1

Can Rack Assembly WPL 67003536 Contact Us For Availability

1

Refrigerator Back WPL 12575101ED Contact Us For Availability

1

Basepan, Mac WPL 67001089 Contact Us For Availability

1A

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $14.02

1A

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $14.02

2

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

2

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $7.11

2

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $126.06

2

Deli Shelf A WPL 67003535 Contact Us For Availability

2

Refrigerator Parts Manual WPL 67004264 Contact Us For Availability

2

Freezer Door Foam WPL 67001222 Contact Us For Availability

2

Refrigerator Water Cover WPL 67001097 Contact Us For Availability

2

Refrigerator Shroud Condenser WPL 67001090 Contact Us For Availability

2

Refrigerator Door Foam WPL 67001207 Contact Us For Availability

2A

12658904CQ Whirlpool Refrigerator DOR-FIP Boa Backorder WPL 12658904CQ $458.96

2A

Refrigerator Door WPL 67001208 Contact Us For Availability

2B

Freezer Door Foam WPL 67001224 Contact Us For Availability

2B

Refrigerator Door Foam WPL 67001209 Contact Us For Availability

2C

Refrigerator Door WPL 67001225 Contact Us For Availability

2C

Refrigerator Door Foam WPL 67004259 Contact Us For Availability

3

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $55.94

3

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $33.98

3

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

3

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.08

3

Refrigerator Shelf WPL 67001052 Contact Us For Availability

3

SHEET, TECH DATA (Series 10) (Non-Illus) WPL 67004265 Contact Us For Availability

3

Refrigerator Handle WPL 67001230 Contact Us For Availability

3

Refrigerator Cover Plate WPL 12479901 Contact Us For Availability

3

Refrigerator Clip WPL 10623002 Contact Us For Availability

3A

Refrigerator Freezer Door Handle WPL 67001231 Contact Us For Availability

3B

Refrigerator Freezer Handle WPL 67001232 Contact Us For Availability

3C

Refrigerator Freezer Door Handle WPL 67001233 Contact Us For Availability

4

W10443313 Whirlpool Door Gasket In Stock WPL W10443313 $136.00

4

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $121.85

4

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $71.65

4

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

4

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $4.82

4

AMANA REFRIGERATION (Non-Illus) WPL NLA Contact Us For Availability

4

Refrigerator Pop Rivet WPL A4539607 Contact Us For Availability

4

Refrigerator Evaporator Cover WPL 67003936 Contact Us For Availability

4

Refrigerator Control Bracket WPL 67003354 Contact Us For Availability

4A

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $146.60

4A

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $133.30

5

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $13.22

5

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $8.01

5

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $67.88

5

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $129.65

5

Refrigerator Use and Care Manual WPL 67004266 Contact Us For Availability

5

Button Plug WPL A3080001 Contact Us For Availability

5

Grommet Bracket WPL 61004743 Contact Us For Availability

5A

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $14.02

5A

Refrigerator Door Liner Button Hole Plug (Whi WPL A3080002 Contact Us For Availability

5B

Corner Cover WPL 67003486 Contact Us For Availability

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.67

6

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $89.06

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

6

WPW10231481 Whirlpool Refrigerator Shelf Trim In Stock WPL WPW10231481 $82.58

6

Refrigerator Drain Tube WPL 67001066 Contact Us For Availability

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $6.54

7

67003900 Whirlpool Refrigerator Insert Damper Backorder WPL 67003900 $5.99

7

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $30.88

7

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

7

Refrigerator Screw WPL M0223816 Contact Us For Availability

7

Humidity Slide WPL 67001287 Contact Us For Availability

7

Fill Label WPL 67002306 Contact Us For Availability

7

Refrigerator Roller Bracket WPL 67002227 Contact Us For Availability

8

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $34.64

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.83

8

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $379.31

8

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $4.82

8

Refrigerator Seal WPL 67001158 Contact Us For Availability

8

Gasket, Mc B WPL B5759649 Contact Us For Availability

8A

Top Cover WPL 67001013 Contact Us For Availability

8B

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $14.02

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $4.99

9

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $70.72

9

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $26.20

9

Rear Seal WPL 67001768 Contact Us For Availability

9

Lower Screw WPL 67003858 Contact Us For Availability

9

Refrigerator Screw WPL M0260242 Contact Us For Availability

9

Refrigerator Compressor Mounting Screw WPL M0221523 Contact Us For Availability

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $53.27

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $54.88

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $4.53

Refrigerator Hinge WPL 67001238 Contact Us For Availability

Refrigerator Stud WPL M0580205 Contact Us For Availability

10A

Refrigerator Hinge WPL 67001239 Contact Us For Availability

10A

Refrigerator Plug WPL M0310731 Contact Us For Availability

10B

Refrigerator Button Plug WPL M0310738 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $46.55

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $17.24

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $44.02

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $4.82

WP98165 Whirlpool Screw Backorder WPL WP98165 $4.82

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $96.34

11A

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $8.39

11B

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $57.93

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $259.39

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.78

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $140.55

WP67001314 Whirlpool Snack Pan Backorder WPL WP67001314 $108.34

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

Refrigerator Strap WPL 12576801 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $106.96

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Toe Grille WPL 67003843 Contact Us For Availability

Double Bracket Damper Washer WPL 67001083 Contact Us For Availability

Refrigerator Drain Pan WPL 67001091 Contact Us For Availability

13A

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $7.10

13A

Toe Grille WPL 67003845 Contact Us For Availability

13B

Toe Grille WPL 67003849 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $37.25

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $14.02

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $100.10

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $57.50

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $81.22

Dam, Right R WPL 67001084 Contact Us For Availability

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $74.69

WP67001794 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67001794 $89.95

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $34.18

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $43.72

Refrigerator Ladder WPL 67001317 Contact Us For Availability

Refrigerator Discharge Tube WPL 67004262 Contact Us For Availability

67001019 Whirlpool Door Shelf Trim In Stock WPL 67001019 $74.89

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $4.99

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.70

W11673433 Whirlpool Clip Backorder WPL W11673433 $99.38

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $99.60

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $37.31

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $20.12

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $7.06

W11402523 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402523 $150.81

WPW10324005 Whirlpool Refrigerator Cantilever Backorder WPL WPW10324005 $50.24

Refrigerator Shroud Evaporator WPL 67002777 Contact Us For Availability

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $8.27

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $52.18

Basket, Uppe WPL 67002918 Contact Us For Availability

Eggbin WPL 10423131 Contact Us For Availability

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $4.82

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $4.82

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $225.96

Refrigerator Can Rack WPL 67001289 Contact Us For Availability

Retainer WPL 67001258 Contact Us For Availability

Tall Bucket WPL 67004003 Contact Us For Availability

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $4.82

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $5.99

Refrigerator Freezer Basket WPL 67004260 Contact Us For Availability

Refrigerator Lid WPL 10436404 Contact Us For Availability

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $4.82

Refrigerator Basket Handle WPL 10508506 Contact Us For Availability

Harness, Mc WPL 67003823 Contact Us For Availability

Refrigerator Tray WPL 10436506 Contact Us For Availability

W10856123 Whirlpool Refrigerator Gasket In Stock WPL W10856123 $4.82

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $6.89

Refrigerator Divider Base WPL 67004127 Contact Us For Availability

Refrigerator Handle WPL 67001218 Contact Us For Availability

22A

Refrigerator Handle WPL 67001219 Contact Us For Availability

22B

Refrigerator Handle WPL 67001220 Contact Us For Availability

22C

Refrigerator Handle WPL 67001221 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $36.93

67006529 Whirlpool Refrigerator Screw Backorder WPL 67006529 $8.89

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $51.96

Refrigerator Screw WPL 67001310 Contact Us For Availability

23A

W10759523 Whirlpool Screw Backorder WPL W10759523 $4.55

23B

67003215 Whirlpool Refrigerator Screw, SM (Wh Backorder WPL 67003215 $8.89

23C

Screw, Sm (b WPL 67003216 Contact Us For Availability

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $33.13

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $33.41

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $4.82

Refrigerator Freezer Harness WPL 67003908 Contact Us For Availability

Refrigerator Hinge Cover (Black) WPL 12561901B Contact Us For Availability

24A

Bisq Hng Cov WPL 12561901C Contact Us For Availability

24B

Lo Hnge Cov WPL 12561901W Contact Us For Availability

25

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $6.49

25

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $26.05

25

Refrigerator Divider Base WPL 67004064 Contact Us For Availability

26

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $4.82

26

Refrigerator Drawer Slide WPL 67004065 Contact Us For Availability

26

Refrigerator Rivet WPL M1205302 Contact Us For Availability

26A

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $5.99

26C

WP12246610 Whirlpool Refrigerator Handle Plug In Stock WPL WP12246610 $5.30

27

W11715937 Whirlpool Shaft Backorder WPL W11715937 $44.90

27

Clip-drier WPL 10547002 Contact Us For Availability

27

Refrigerator Tag WPL 12329501 Contact Us For Availability

27A

Refrigerator Tag WPL 12329503 Contact Us For Availability

27B

Refrigerator Nameplate WPL 12329504 Contact Us For Availability

28

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $101.60

28

Refrigerator Adapter WPL 67004010 Contact Us For Availability

28A

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $44.94

28A

Refrigerator Adapter WPL 67004011 Contact Us For Availability

28B

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $5.30

28C

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $43.23

29

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $8.89

29

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $4.92

29

Refrigerator Screw WPL 10093313 Contact Us For Availability

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $26.77

30

Bracket, Dra WPL 67004012 Contact Us For Availability

30A

Bracket, Dra WPL 67004013 Contact Us For Availability

31

Refrigerator Evaporator Harness WPL 67003931 Contact Us For Availability

32

12001937 Whirlpool Refrigerator 42-Degree Def In Stock WPL 12001937 $64.60

32

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $10.50

33

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $7.10

34

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

35

Ice Save Rck WPL 12646501 Contact Us For Availability

37

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $4.99

38

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $60.60

38A

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $60.60
