Model Maytag 4KMVWC415FW0 LAUNDRY, RESIDENTIAL, WASHER – Common Parts & Diagrams
01 - COVER SHEET

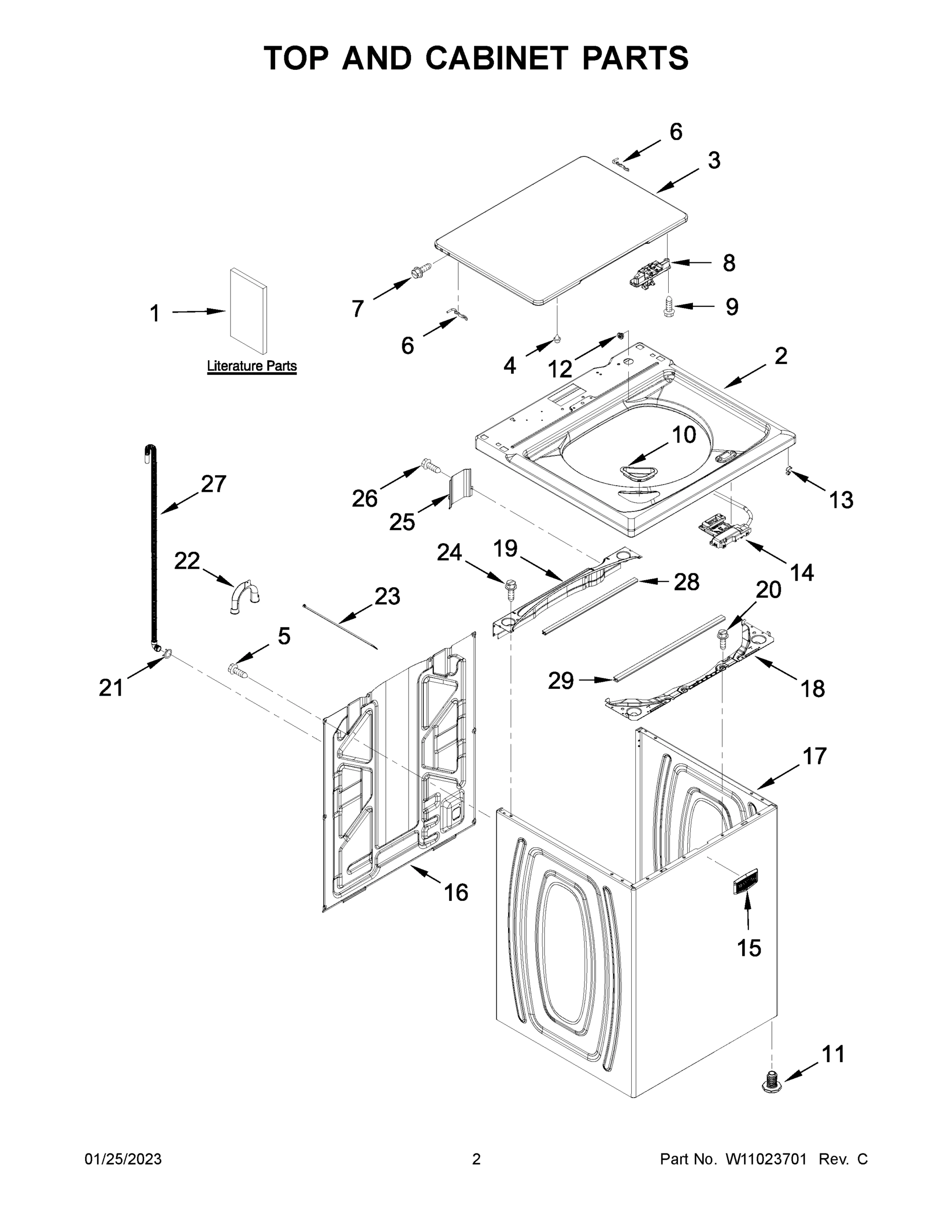

02 - TOP AND CABINET PARTS

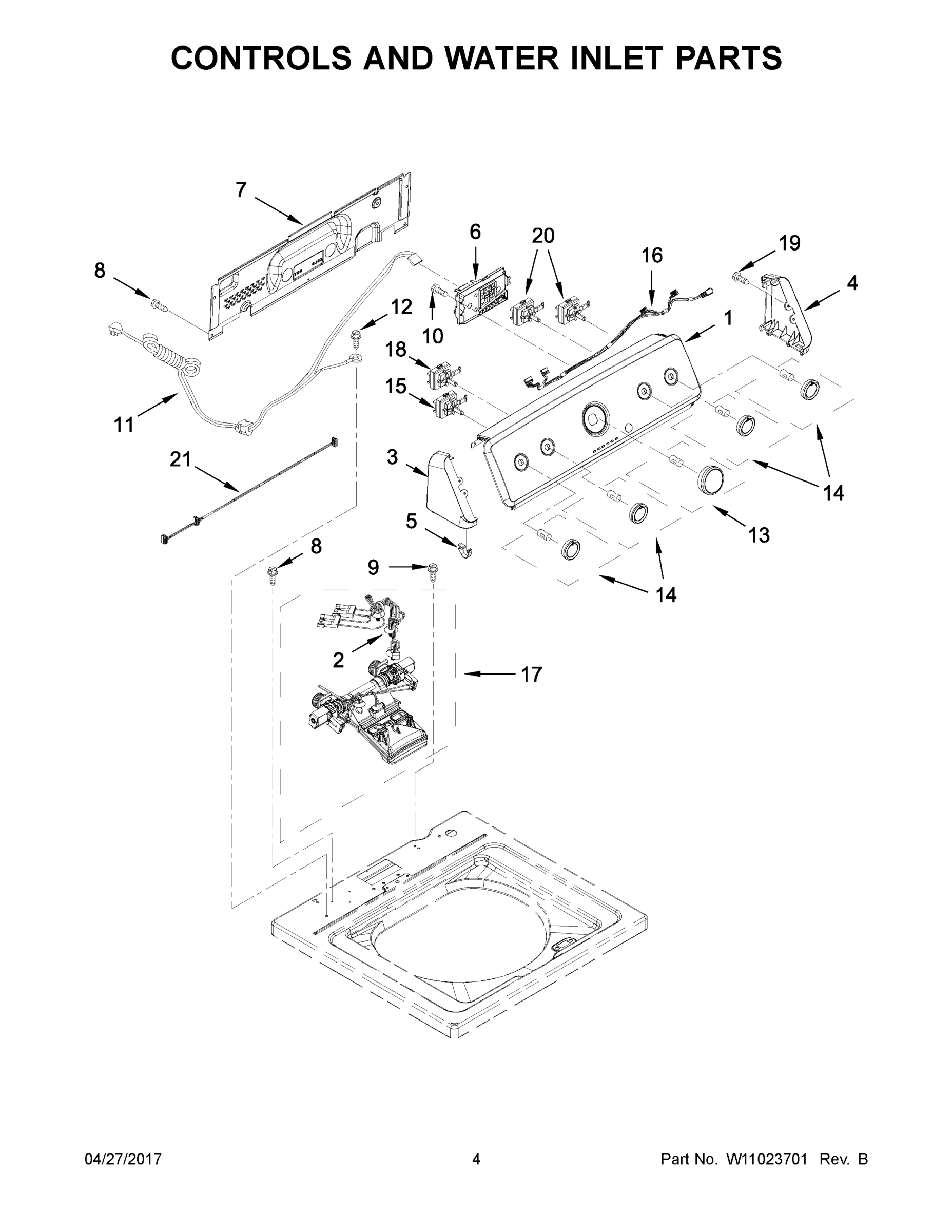

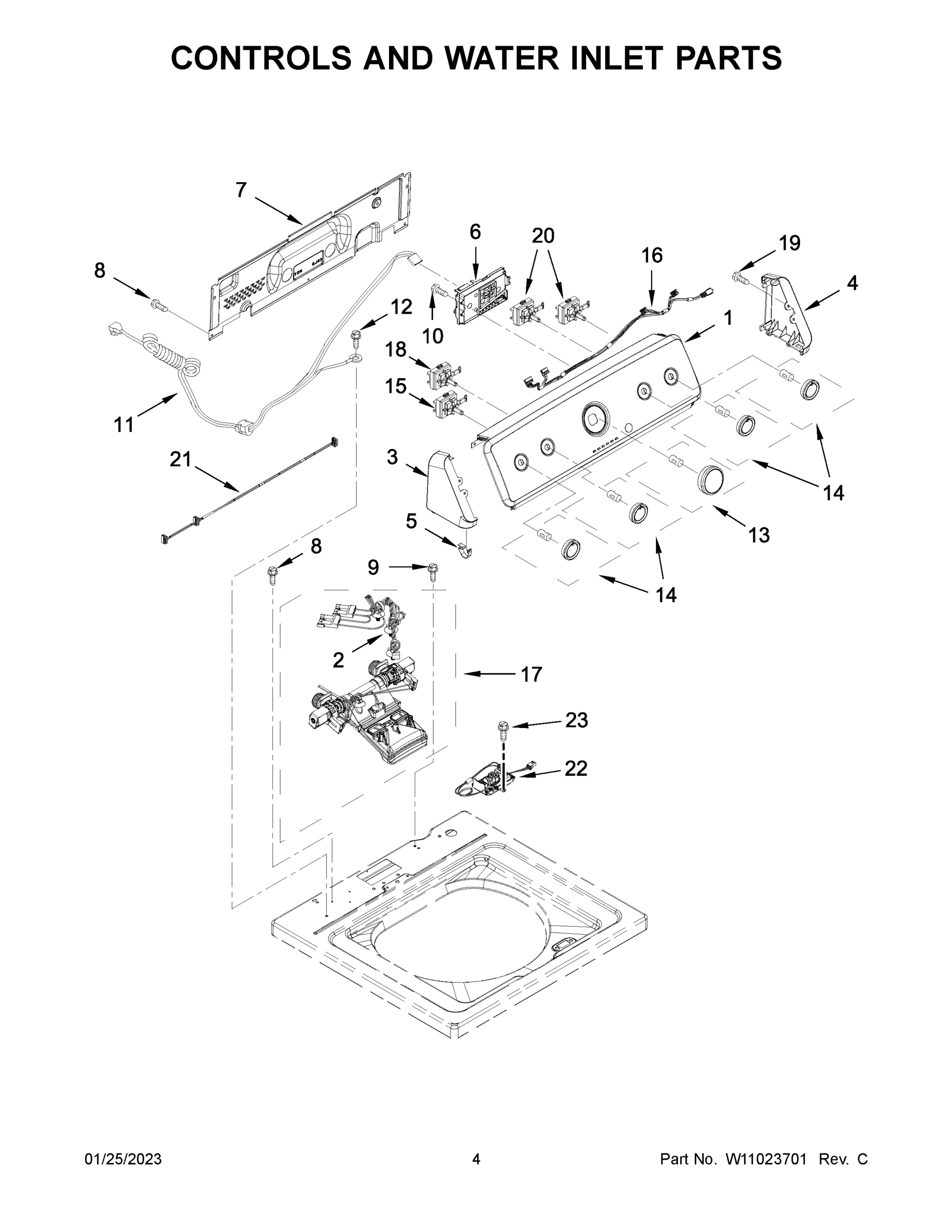

03 - CONTROLS AND WATER INLET PARTS

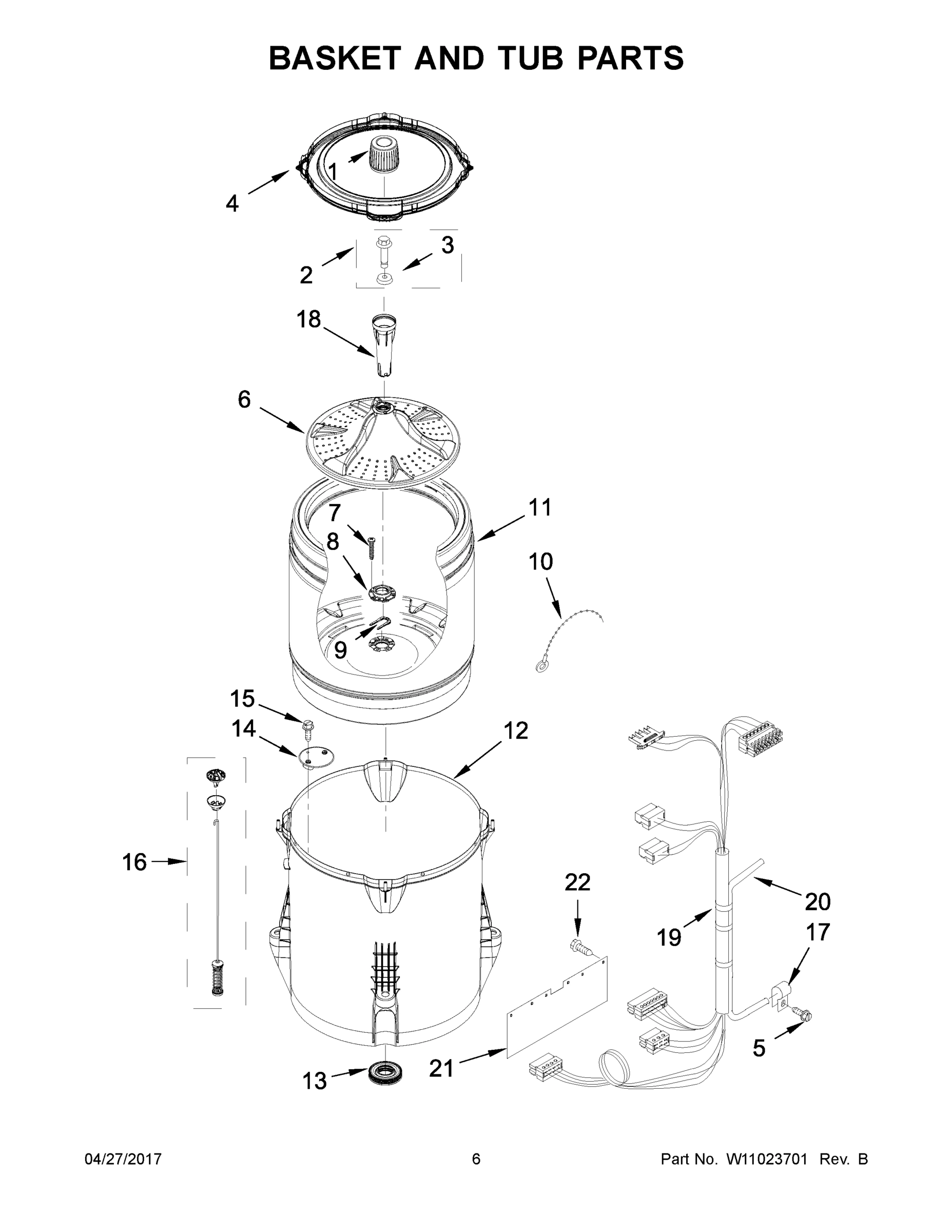

04 - BASKET AND TUB PARTS

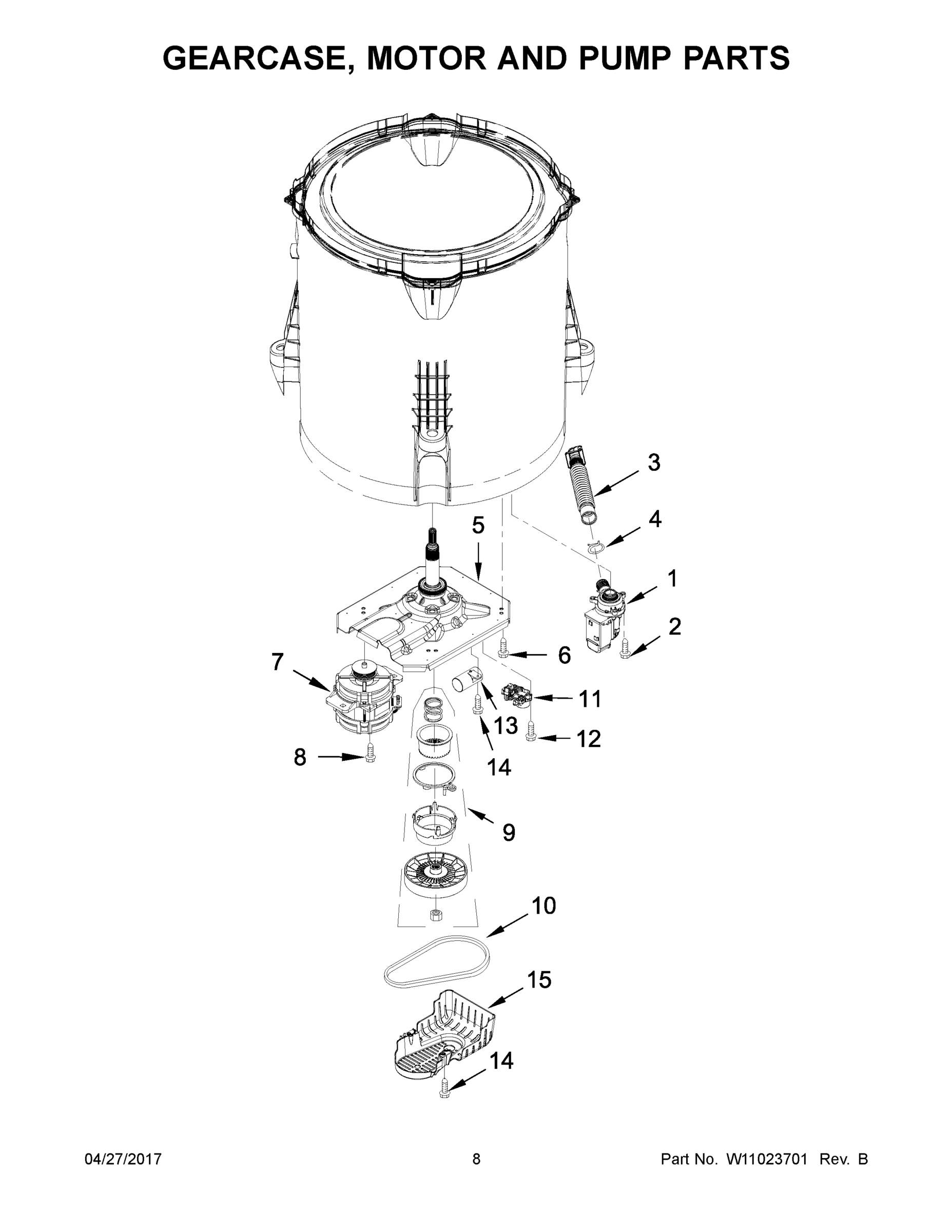

05 - GEARCASE, MOTOR AND PUMP PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 4KMVWC415FW0 LAUNDRY, RESIDENTIAL, WASHER
1
TECH SHEET MAY W10845896 Contact Us For Availability
1
PANEL, CONSOLE MAY W10774530 Contact Us For Availability
1
DISPENSER, FABRIC SOFTENER MAY W10863011 Contact Us For Availability
1
PUMP ASSEMBLY, DRAIN MAY W10297344 Contact Us For Availability
1A
INSTALLATION INSTRUCTIONS MAY W10849505 Contact Us For Availability
1B
OWNERS MANUAL MAY W10849502 Contact Us For Availability
1C
ENERGY GUIDE MAY W10811317 Contact Us For Availability
2
TOP (WHITE) MAY W10686433 Contact Us For Availability
2
HARNESS, VALVE MAY W10917060 Contact Us For Availability
2
SCREW AND WASHER MAY W10003790 Contact Us For Availability
2
SCREW MAY W10004910 Contact Us For Availability
3
ASSEMBLY, LID AND BUMPER (WHITE) MAY W10251302 Contact Us For Availability
3
END CAP (LEFT) (WHITE) MAY W10193826 Contact Us For Availability
3
WASHER MAY 3949550 Contact Us For Availability
3
HOSE, INNER DRAIN ASSEMBLY MAY W10763078 Contact Us For Availability
4
BUMPER MAY 9724509 Contact Us For Availability
4
END CAP (RIGHT) (WHITE) MAY W10193823 Contact Us For Availability
4
TUB RING MAY W10556325 Contact Us For Availability
4
CLAMP, HOSE MAY 8317496 Contact Us For Availability
5
SCREW MAY 9740848 Contact Us For Availability
5
CLIP, CONSOLE MAY 8312709 Contact Us For Availability
5
SCREW MAY 8533943 Contact Us For Availability
5
GEARCASE ASSEMBLY MAY W10795114 Contact Us For Availability
6
HINGE, LID MAY 91770 Contact Us For Availability
6
MAY W11084952 MAY W11084952 Contact Us For Availability
6
IMPELLER (WASHPLATE) MAY W10680217 Contact Us For Availability
6
SCREW MAY W10249633 Contact Us For Availability
7
SCREW MAY W10119872 Contact Us For Availability
7
PANEL, CONSOLE REAR COVER MAY W10461159 Contact Us For Availability
7
SCREW MAY 8533953 Contact Us For Availability
7
MAY W11028436 MAY W11028436 Contact Us For Availability
8
STRIKE, LID LOCK (WHITE) MAY W10714899 Contact Us For Availability
8
SCREW MAY 1157158 Contact Us For Availability
8
HUB - DRIVEN, BASKET MAY W10396887 Contact Us For Availability
8
SCREW MAY W10094780 Contact Us For Availability
9
SCREW MAY W10273971 Contact Us For Availability
9
SCREW MAY W10213953 Contact Us For Availability
9
RETAINER, DRIVE BLOCK MAY W10402178 Contact Us For Availability
9
SPLUTCH KIT (60HZ) MAY W10721967 Contact Us For Availability
10
DISPENSER, BLEACH MAY W10192089 Contact Us For Availability
10
SCREW MAY 90767 Contact Us For Availability
10
CABLE TIE MAY W10339680 Contact Us For Availability
10
BELT, DRIVE MAY W10006384 Contact Us For Availability
11
FOOT ASSEMBLY, LEVELING MAY W10732708 Contact Us For Availability
11
POWER CORD, UNIVERSAL MAY W10834290 Contact Us For Availability
11
BASKET ASSEMBLY MAY W10521298 Contact Us For Availability
11
ACTUATOR, SHIFT MAY W10815027 Contact Us For Availability
12
BEARING, LID HINGE MAY 21258 Contact Us For Availability
12
SCREW MAY 3400076 Contact Us For Availability
12
TUB MAY W10238301 Contact Us For Availability
12
SCREW MAY 9741052 Contact Us For Availability
13
CLIP, HARNESS MAY 90016 Contact Us For Availability
13
ASSEMBLY, TIMER KNOB (GREY) MAY W10558463 Contact Us For Availability
13
SEAL, TUB MAY W10006371 Contact Us For Availability
13
CAPACITOR, MOTOR RUN MAY W10625044 Contact Us For Availability
14
LATCH, LID LOCK ASSEMBLY MAY W10828830 Contact Us For Availability
14
ASSEMBLY, CONTROL KNOB (GREY) MAY W10562155 Contact Us For Availability
14
FILTER, DRAIN PUMP MAY W10215093 Contact Us For Availability
14
SCREW MAY 357640 Contact Us For Availability
15
BADGE MAY W10612925 Contact Us For Availability
15
SWITCH, ROTARY ENCODER (3 POSITION) MAY W10285517 Contact Us For Availability
15
SCREW MAY 8533928 Contact Us For Availability
15
SHIELD, PULLEY COVER MAY W10550173 Contact Us For Availability
16
PANEL, REAR MAY W10250884 Contact Us For Availability
16
HARNESS, UPPER MAY W10694685 Contact Us For Availability
16
DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INC MAY W10821954 Contact Us For Availability
17
CABINET (WHITE) MAY W10478060 Contact Us For Availability
17
INLET ASSEMBLY, WATER MAY W11026622 Contact Us For Availability
17
CLAMP, CABLE MAY W10005430 Contact Us For Availability
18
BRACE, CABINET TOP - FRONT MAY W10215098 Contact Us For Availability
18
SWITCH, ROTARY ENCODER (4 POSITION) MAY W10285512 Contact Us For Availability
18
BARREL, AGITATOR MAY W10680218 Contact Us For Availability
19
BRACE, CABINET TOP - REAR MAY W10512626 Contact Us For Availability
19
SCREW MAY 359625 Contact Us For Availability
19
HARNESS, LOWER MAY W10908271 Contact Us For Availability
20
SWITCH, ROTARY ENCODER (2 POSITION) MAY W10285511 Contact Us For Availability
20
HOSE PRESSURE SWITCH MAY 8572540 Contact Us For Availability
21
CLAMP, HOSE MAY 356138 Contact Us For Availability
21
HARNESS, JUMPER MAY W10694669 Contact Us For Availability
21
SHIELD, SPLASH MAY W10339098 Contact Us For Availability
22
U-BEND, DRAIN HOSE MAY W10280024 Contact Us For Availability
22
RETAINER, PUSH-IN MAY W10429200 Contact Us For Availability
23
TIE, CABLE MAY W10339879 Contact Us For Availability
24
SCREW MAY W10142728 Contact Us For Availability
25
COVER, HARNESS MAY W10676061 Contact Us For Availability
27
HOSE, OUTER DRAIN ASSEMBLY MAY W10221546 Contact Us For Availability
28
BRACE-GUARD, CABINET REAR TOP MAY W10521454 Contact Us For Availability
29
BRACE-GUARD, CABINET FRONT TOP MAY W10521453 Contact Us For Availability
NI
(PARTS NOT SHOWN) MAY N/P Contact Us For Availability
NI
10A CORD LOCK MAY W10446855 Contact Us For Availability
NI
10A CORD ADAPTER (TYPE B) MAY W10475423 Contact Us For Availability
NI
10A CORD ADAPTER (BRITISH) MAY W10476820 Contact Us For Availability
NI
10A CORD ADAPTER (EUROPEAN) MAY W10476822 Contact Us For Availability
NI
SEALER, GASKET (.20 FL. OZ.) (6ML) MAY 285195 Contact Us For Availability
NI
ACCESSORY PARTS, HOSE WASHERS (PACKAGE OF 4) MAY 285448A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE SCREEN (PACKAGE OF 2) MAY 285452A Contact Us For Availability
NI
WATER SYSTEM PARTS, SIPHON BREAK KIT MAY 285834 Contact Us For Availability
NI
WATER SYSTEM PARTS, CONNECTOR ASSEMBLY MAY 285835 Contact Us For Availability
NI
WATER SYSTEM PARTS, 4' DRAIN HOSE W/CLAMP MAY 285863 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
COUPLING, HOSE EXTENSION KIT MAY 384496 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BRAI MAY 8212487 Contact Us For Availability
NI
ACCESSORY PARTS, WASHER, DRIP TRAY MAY 8212526 Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (ONE RED MAY 8212545RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 4 FT. (TWO BLAC MAY 8212546RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BLAC MAY 8212637RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 6 FT. (TWO BRAI MAY 8212638RP Contact Us For Availability
NI
ACCESSORY PARTS, INLET HOSES, 5 FT. (TWO BL MAY 8212641RP Contact Us For Availability
NI
MAY 8212656RP MAY 8212656RP Contact Us For Availability
NI
MAY DRNEXT4 MAY DRNEXT4 Contact Us For Availability
NI
MAY W10135699 MAY W10135699 Contact Us For Availability
NI
MAY W10355010 MAY W10355010 Contact Us For Availability
× ![]()
