Model Whirlpool 3822KVA-D ELECTRIC RANGE – Common Parts & Diagrams

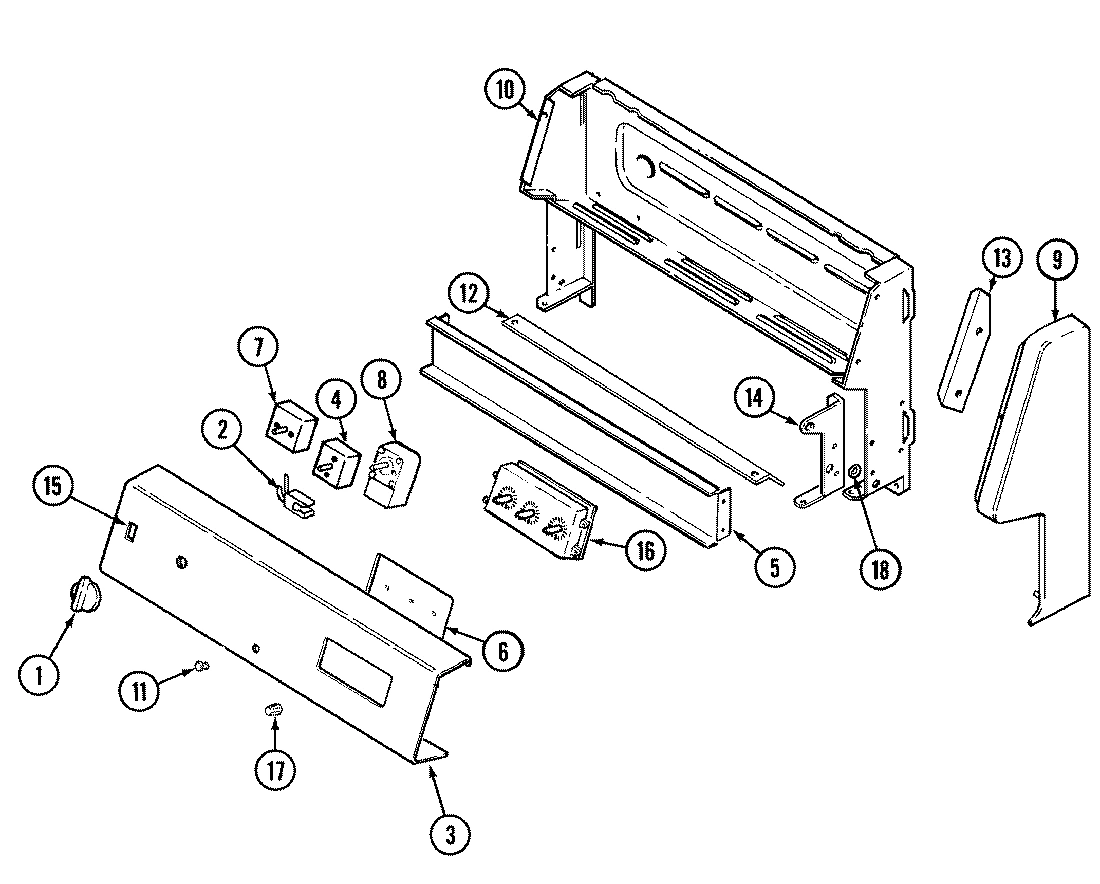

02 - CONTROL PANEL

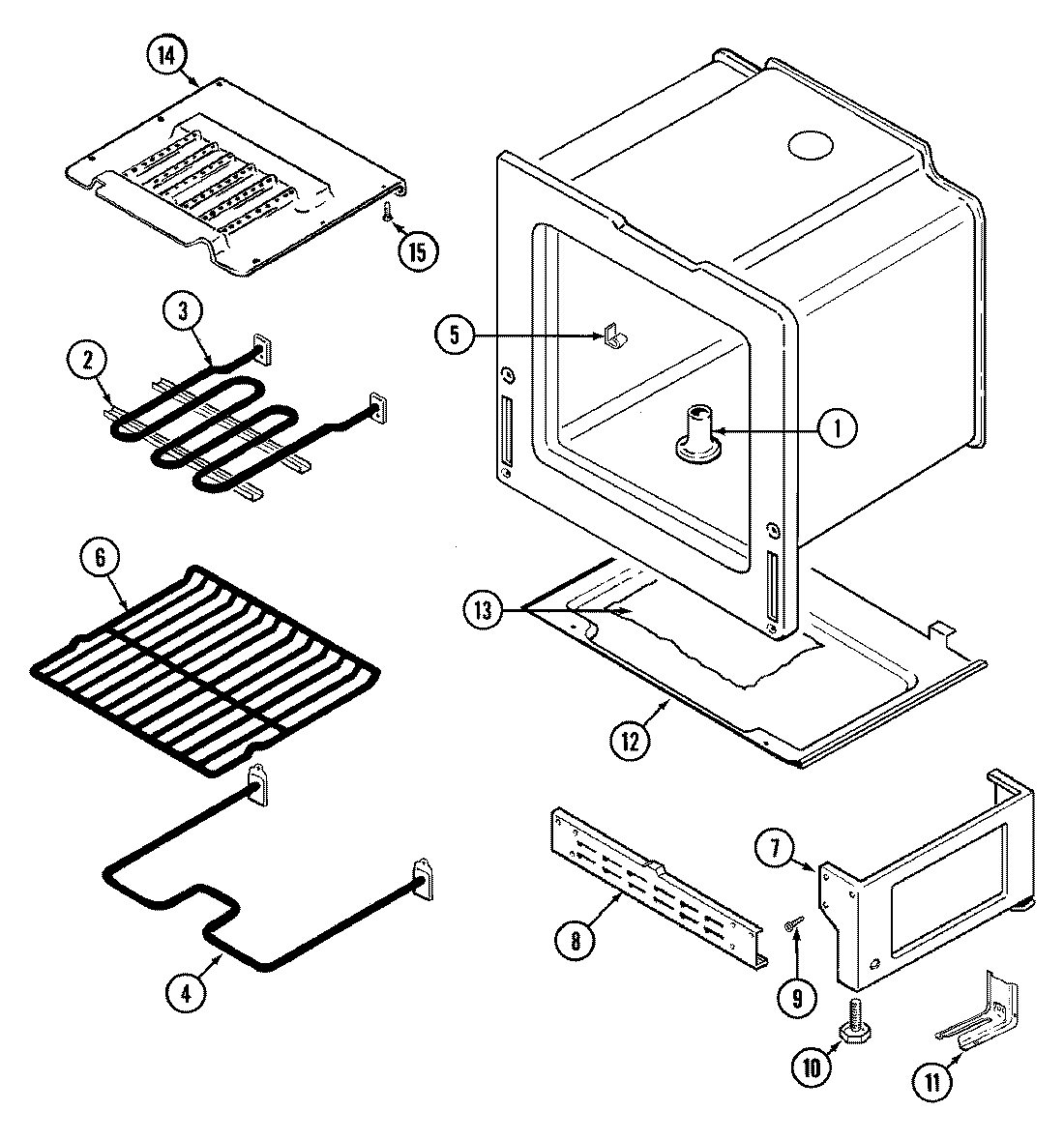

04 - OVEN/BASE

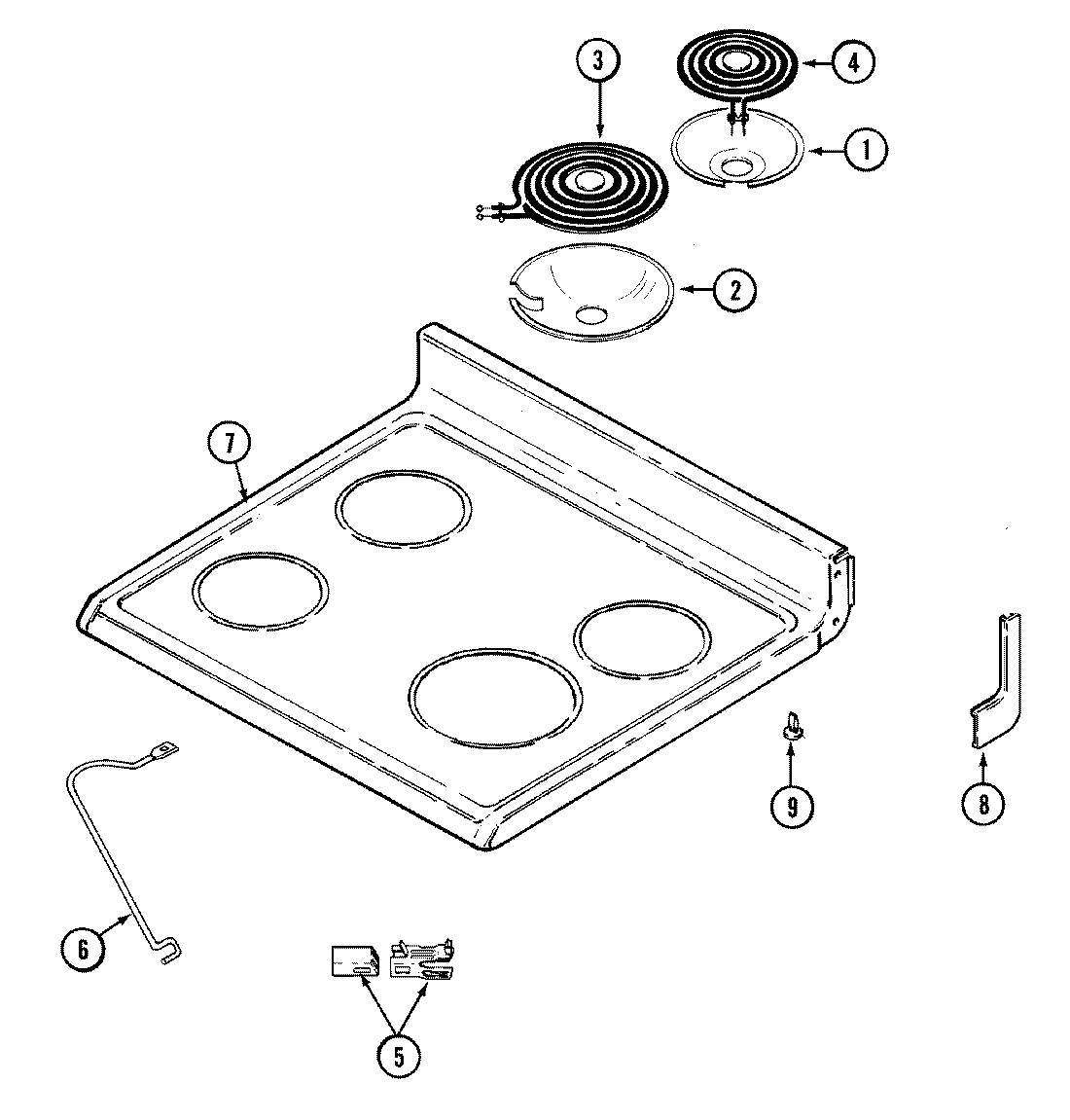

05 - TOP ASSEMBLY

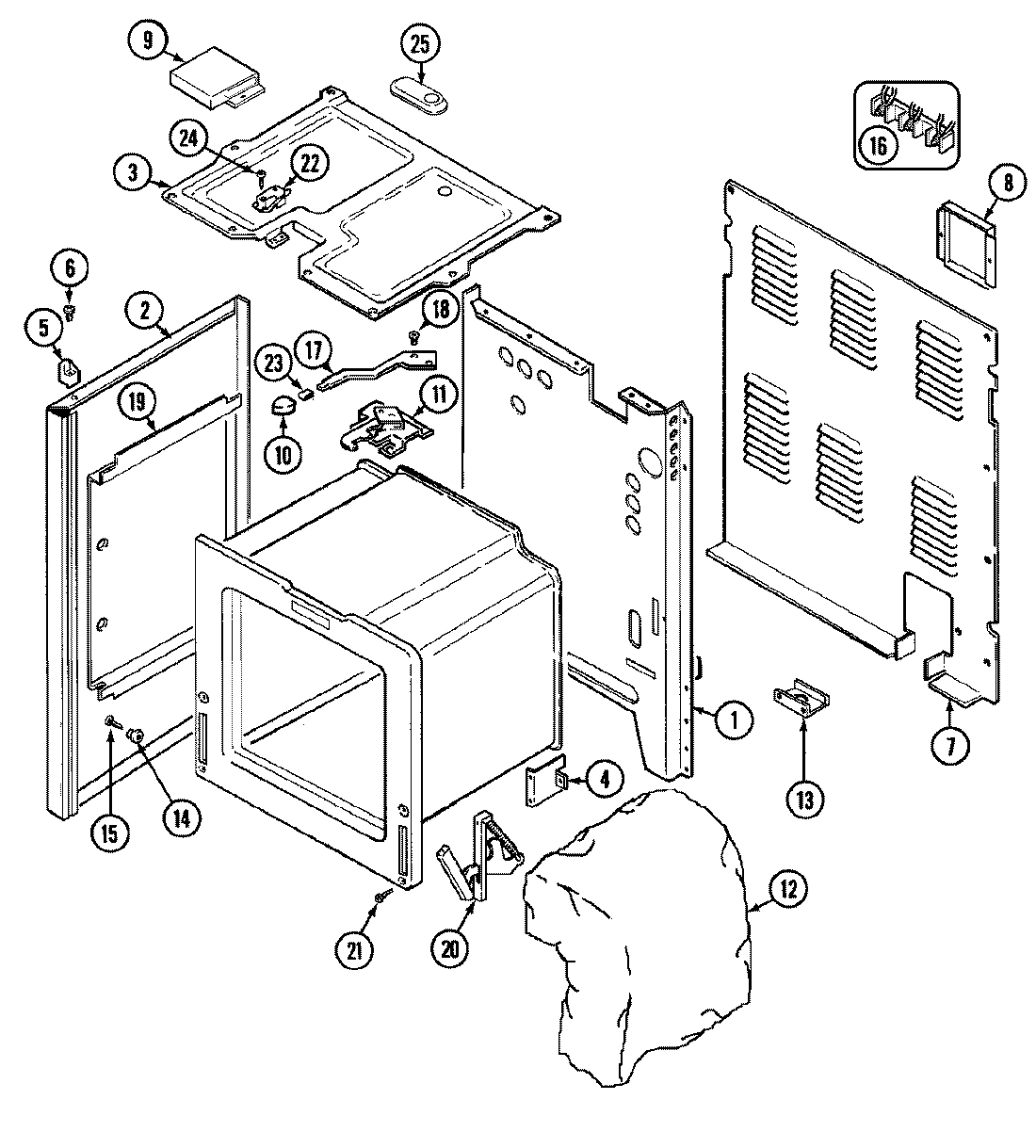

01 - BODY

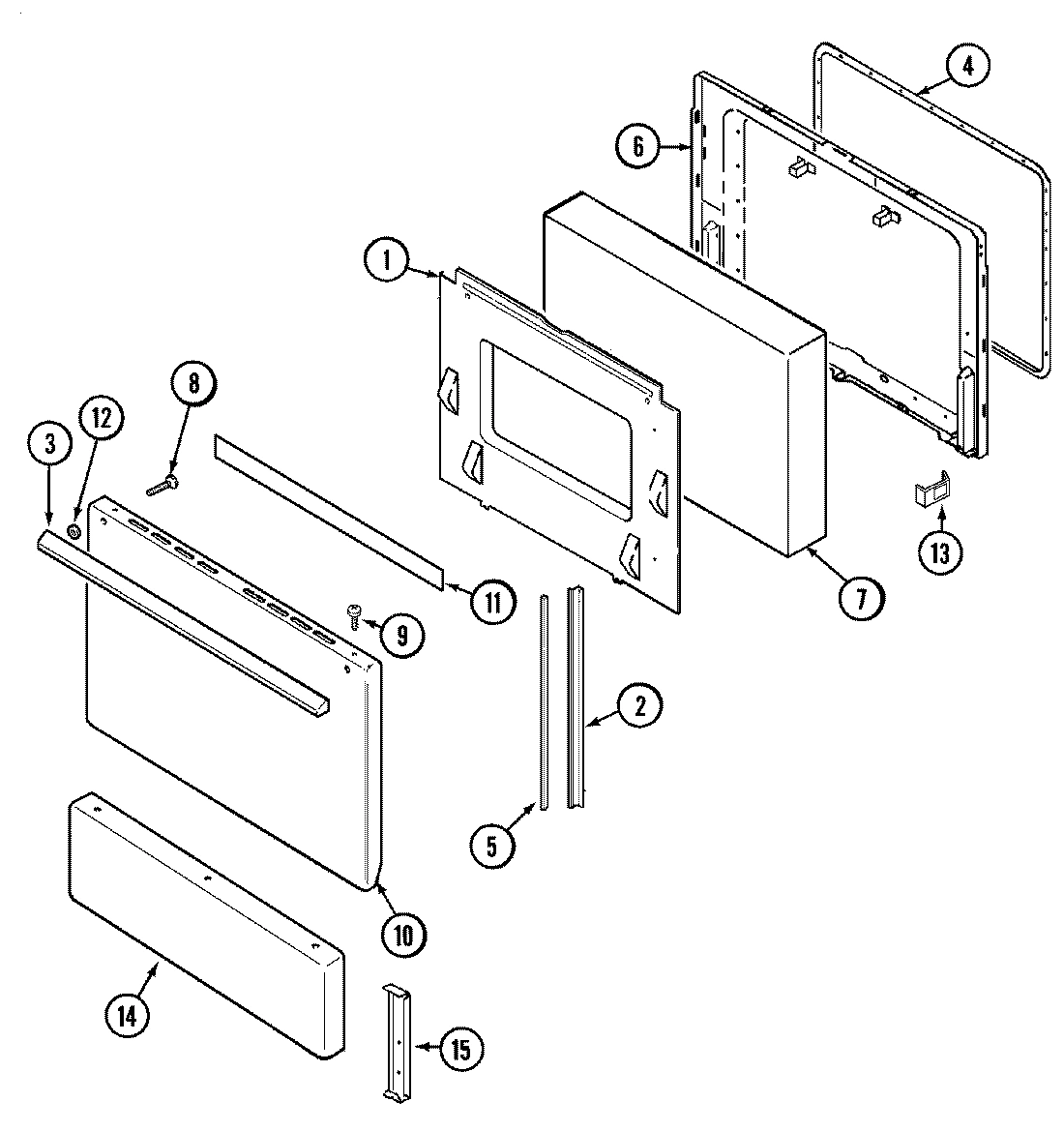

03 - DOOR/DRAWER

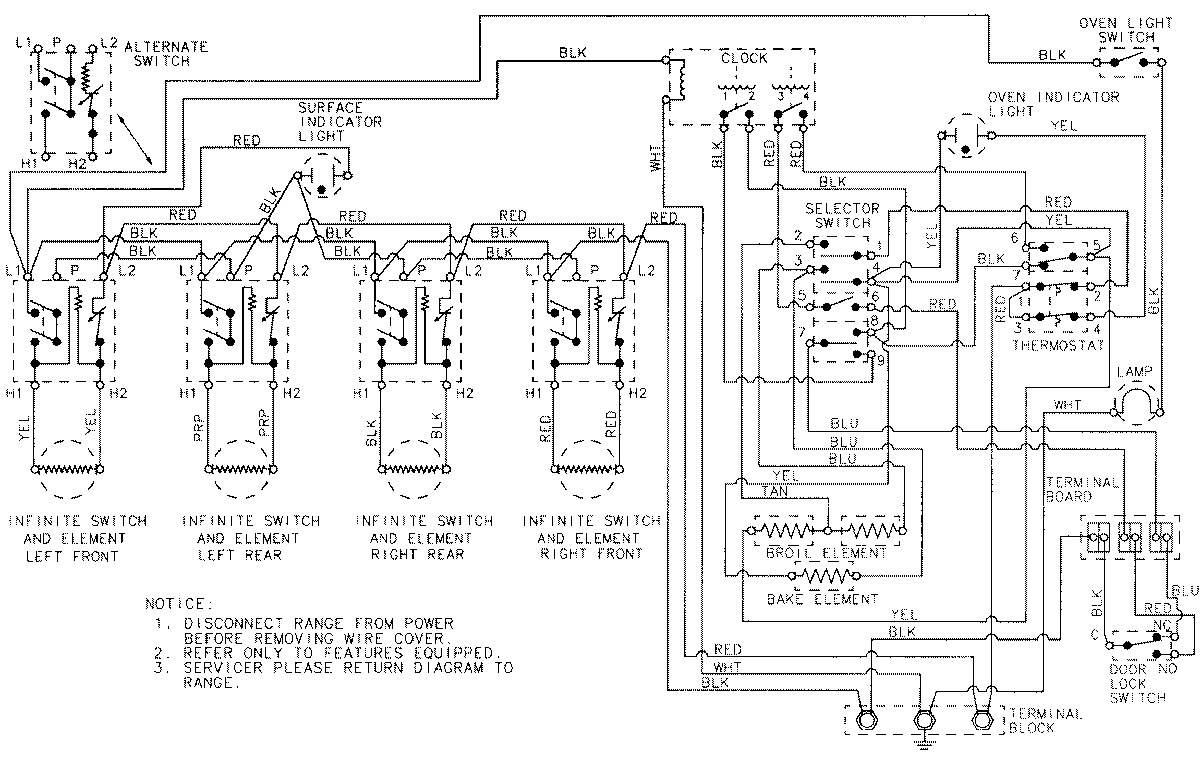

06 - WIRING INFORMATION
Common parts from model Whirlpool 3822KVA-D ELECTRIC RANGE
1
KNOB, THERM/BURNER (BLK) WPL 7731P08260 Contact Us For Availability
1
TUBE, VENT WPL 8026P01960 Contact Us For Availability
1
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SHIELD, WIRE WPL 74002334 Contact Us For Availability
1
BAFFLE, DOOR WPL 3601F21847 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
BOWL, DRIP (8``-CHR) WPL 7725P04760 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability
2
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
3
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
3
PANEL, CONTROL (BLK) WPL 74002564 Contact Us For Availability
3
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
3
ELEMENT (8``) WPL 7406P04060 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
HANDLE, DRAWER (BLK) WPL 2411F00370 Contact Us For Availability
4
SWITCH, SELECTOR WPL 7403P34260 Contact Us For Availability
4
ELEMENT (6``) WPL 7406P03860 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
5
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
5
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
5
SCREW WPL 7101P34960 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
SEAL WPL 7208P00260 Contact Us For Availability
6
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
6
RACK, OVEN WPL 7801P04760 Contact Us For Availability
6
SUPPORT, TOP WPL 74001170 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
LINING, DOOR WPL 2402W21019 Contact Us For Availability
7
SCREW WPL 7101P30960 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
7
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
7
TOP ASSY. (ALM) WPL 74001244 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
8
THERMOSTAT WPL 7404P10060 Contact Us For Availability
8
NUT, SPEED WPL 7103P04460 Contact Us For Availability
8
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
SCREW, CLAMP WPL 7101P08060 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
9
GLIDE WPL 8016P01560 Contact Us For Availability
9
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
10
LEG, LEVELING WPL 74001311 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
10
PANEL, DOOR (BLK) WPL 74002092 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
11
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
11
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
11
INSULATOR, DOOR LOCK SWITCH WPL 74001823 Contact Us For Availability
11
LATCH ASSY. WPL 74003032 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 74001800 Contact Us For Availability
12
SPACER, HANDLE (BLK) WPL 8010P08460 Contact Us For Availability
13
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
13
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
13
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
CLIP, DOOR WPL 7112P03460 Contact Us For Availability
14
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
14
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
14
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
14
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
PANEL, ACCESS (ALM) WPL 2416F04274 Contact Us For Availability
15
PLUG, HOLE WPL 7718P00960 Contact Us For Availability
15
BRACKET, PANEL WPL 3801F25751 Contact Us For Availability
16
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
16
CLOCK (BLK) WPL 74001560 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
17
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
19
HARNESS, CONTROL/TOP WPL 74001013 Contact Us For Availability
19
HARNESS, CONTROL PANEL WPL 74002565 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
20
MANUAL, USE & CARE WPL 74002251 Contact Us For Availability
20
INSERT, INSTRUCTION SHEET WPL 8113P03860 Contact Us For Availability
20
HINGE WPL 7106P05560 Contact Us For Availability
21
GUIDE, QUICK REF. - MAGIC CHEF WPL 16000329 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
22
SWITCH, DOOR LOCK WPL 74001822 Contact Us For Availability
23
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
25
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
25
COVER, VENT WPL 4005F43245 Contact Us For Availability
26
CLAMP, WIRE WPL 7111P02060 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001147 Contact Us For Availability
× ![]()
