Model GE 362.75970690 Gas Range (Kenmore 36275970690) – Common Parts & Diagrams

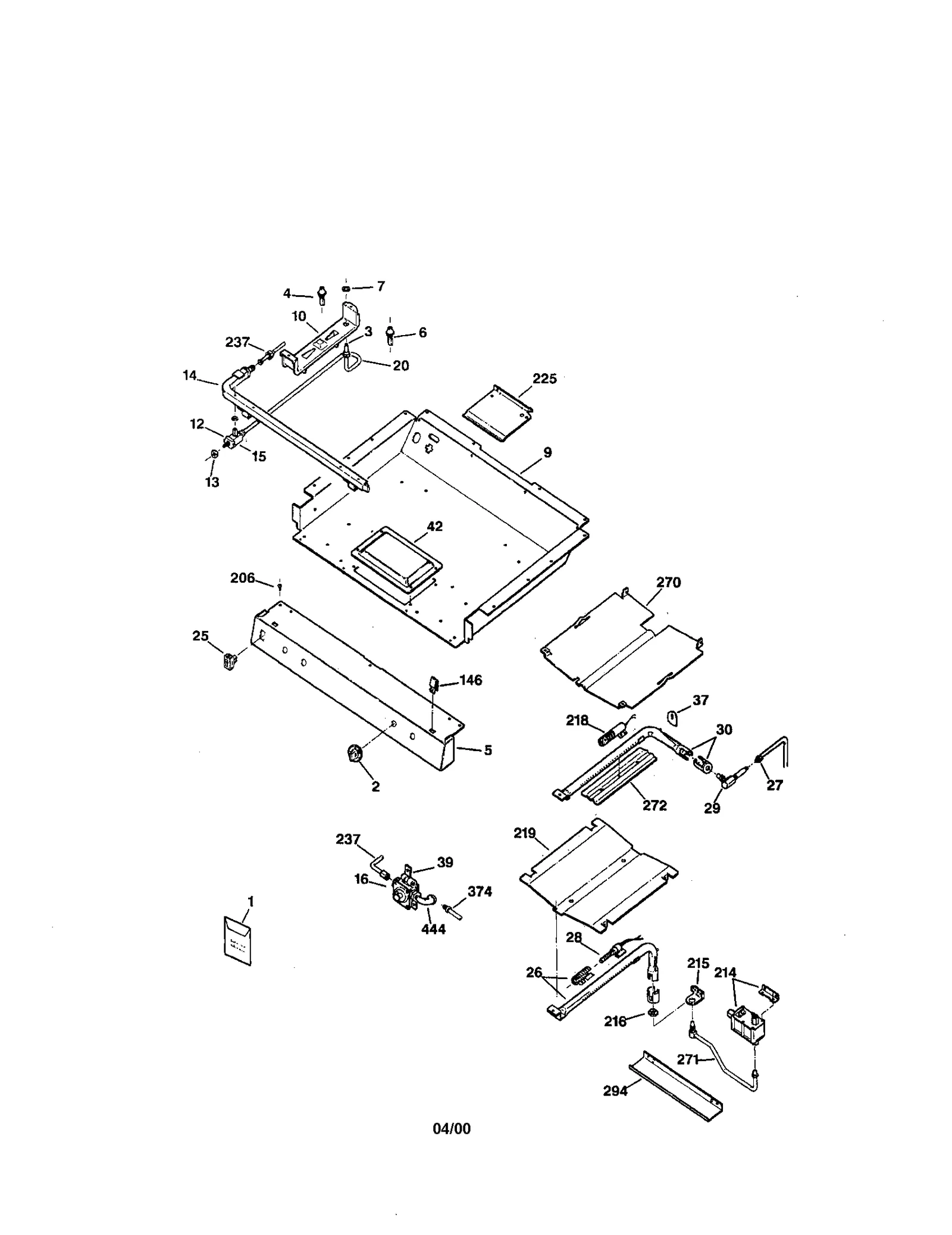

GAS BURNER
CONTROL PANEL AND COOKTOP
DOOR AND DRAWER
BODY
Common parts from model GE 362.75970690 Gas Range (Kenmore 36275970690)
1A
Mini Manual GEN 31-20140 Contact Us For Availability
1B
User's Manual GEN SR4236 Contact Us For Availability
2
Surface Knob GEN WB03K0188 Contact Us For Availability
3
Orif Spd Rrc GEN WB28K0141 Contact Us For Availability
3A
Orifice Spud GEN WB28K0142 Contact Us For Availability
3B
Orifice Spud GEN WB28K0143 Contact Us For Availability
3C
Orif Spud Lg GEN WB28K0144 Contact Us For Availability
3D
LP Orifice Spud GEN WB28K0145 Contact Us For Availability
3E
Orifice Spud GEN WB28K0146 Contact Us For Availability
4
Air Mix Tube GEN WB16K0013 Contact Us For Availability
5
Pnl Manif Cr GEN WB07K0221 Contact Us For Availability
6
Air Mix Tube GEN WB16K0014 Contact Us For Availability
7
Nut GEN WB01K0004 Contact Us For Availability
10
Burner Bracket GEN WB02K0099 Contact Us For Availability
10A
Orifice Holder Bracket GEN WB02K0098 Contact Us For Availability
12
Burner Valve Switch GEN WB24K0014 Contact Us For Availability
14
Manifold GEN WB28K0065 Contact Us For Availability
15A
Vlv Burner L GEN WB21K0020 Contact Us For Availability
15B
Vlv Burner R GEN WB21K0021 Contact Us For Availability
16
Reg Pressure GEN WB19K0028 Contact Us For Availability
20
Tube Orifice GEN WB28K0188 Contact Us For Availability
20A
Tube Orifice GEN WB28K0187 Contact Us For Availability
20B
Tube Orifice GEN WB28K0186 Contact Us For Availability
20C
Tube Orifice GEN WB28K0189 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
26
Bake Burner GEN WB16K0026 Contact Us For Availability
27
Tube Burner Support GEN WB28K0055 Contact Us For Availability
29
Hi Broiler Elbow GEN WB28K0030 Contact Us For Availability
30
Broil Burner GEN WB16K0008 Contact Us For Availability
39
Washer GEN WB01K0036 Contact Us For Availability
39A
Bracket Reg GEN WB02K0088 Contact Us For Availability
42
Cover Burner Box GEN WB63K0022 Contact Us For Availability
100
End Lamp Cover GEN WB07K0050 Contact Us For Availability
100A
End Lamp Cover GEN WB07K0049 Contact Us For Availability
101
End Plate GEN WB37K0011 Contact Us For Availability
101A
End Plate GEN WB37K0012 Contact Us For Availability
102
Lwr Frt Trim GEN WB07K0005 Contact Us For Availability
103
Timer Bracket GEN WB37K0009 Contact Us For Availability
104
Control Trim GEN WB36K0162 Contact Us For Availability
105
Timer Erc2 GEN WB12K0005 Contact Us For Availability
106
Cover GEN WB36K0017 Contact Us For Availability
107
Lower Cover GEN WB36K0002 Contact Us For Availability
108
Screw GEN WB01X5716 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
110
Spark Module GEN WB13K0025 Contact Us For Availability
110A
Wire Harness GEN WB18K0006 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
113
Cast Iron Grate GEN WB31K0042 Contact Us For Availability
114
Cooktop (cr) GEN WB62K0074 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
124
Pan Unit GEN WB32K0016 Contact Us For Availability
125
Pan Unit GEN WB32K0015 Contact Us For Availability
133
Palnut GEN WB01K0022 Contact Us For Availability
134
Lamp Shield GEN WB07K0040 Contact Us For Availability
135
Brace Backguard GEN WB37K0010 Contact Us For Availability
136
Overlay Blk GEN WB11K0018 Contact Us For Availability
138
Sckt Fl Lamp GEN WB08K0006 Contact Us For Availability
140
T-8 Fl Lamp GEN WB08K0008 Contact Us For Availability
141
Base Starter GEN WB08K0010 Contact Us For Availability
142
Starter GEN WB06K0007 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
151
Burner Cap GEN WB29K0041 Contact Us For Availability
153
Burner Cap GEN WB29K0047 Contact Us For Availability
155
Burner Head GEN WB16K0012 Contact Us For Availability
156
Burner Head GEN WB16K0011 Contact Us For Availability
157
Brnr Head Lg GEN WB16K0010 Contact Us For Availability
168
Electrode Clip GEN WB01K0056 Contact Us For Availability
199
Timer Bracket GEN WB02K0086 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
205
Cvr Back Pnl GEN WB34K0006 Contact Us For Availability
209
Panel GEN WB63K0052 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0005 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Tube Valve Support GEN WB28K0148 Contact Us For Availability
239
Pnl Rr Broil GEN WB63K0025 Contact Us For Availability
240
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
243
Base Supp Lf GEN WB63K0007 Contact Us For Availability
243A
Support Base GEN WB63K0006 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0036 Contact Us For Availability
247
Oventop GEN WB53K0014 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
250
Oven GEN WB53K0019 Contact Us For Availability
254
Hinge Screw GEN WB01K0053 Contact Us For Availability
254A
Support Rivet GEN WB10K0013 Contact Us For Availability
254B
Support Rivet GEN WB10K0014 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
257
Vent GEN WB38K0001 Contact Us For Availability
259
Chassis Rail GEN WB39K0040 Contact Us For Availability
259A
Screw Chassi GEN WB01K0086 Contact Us For Availability
259B
Chassis Rail GEN WB39K0039 Contact Us For Availability
261
Insul Ov Wrp GEN WB35K0007 Contact Us For Availability
262
Insul Ov Bck GEN WB35K0008 Contact Us For Availability
266
Screw GEN WB01K0012 Contact Us For Availability
266A
Screw GEN WZ05X0124 Contact Us For Availability
270
Deflector GEN WB34K0033 Contact Us For Availability
271
Tube Burner Support GEN WB28K0060 Contact Us For Availability
272
Shield Broil GEN WB34K0010 Contact Us For Availability
273
Guard Ins Rh GEN WB53K0011 Contact Us For Availability
273A
Guard Insulation GEN WB53K0012 Contact Us For Availability
274
Scew Latch GEN WB01K0044 Contact Us For Availability
277
Oven Door Gasket GEN WB32K0005 Contact Us For Availability
278
Grd Top Insu GEN WB53K0018 Contact Us For Availability
279
Latch GEN WB02K0042 Contact Us For Availability
280
Latch Shield GEN WB02K0029 Contact Us For Availability
281
Latch Switch GEN WB24K0015 Contact Us For Availability
282
Retainer GEN WB02K0030 Contact Us For Availability
285
Latch Handle GEN WB15K0028 Contact Us For Availability
286
Latch Knob GEN WB03K0017 Contact Us For Availability
287A
Gusard Radia GEN WB34K0031 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
294
Guard Valve GEN WB63K0019 Contact Us For Availability
295
Reflector Vent GEN WB38K0005 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
300
Drawer Body GEN WB39K0021 Contact Us For Availability
306
Pnl Drawr Cr GEN WB39K0038 Contact Us For Availability
313
Screw GEN WB01K0016 Contact Us For Availability
314
Pad GEN WB02X1222 Contact Us For Availability
314A
Gldr Mirrord GEN WB56K0030 Contact Us For Availability
315
Liner GEN WB55K0007 Contact Us For Availability
316
Oven Drive Handle GEN WB15K0016 Contact Us For Availability
317
Trim Top Dr GEN WB07K0078 Contact Us For Availability
319
Brace GEN WB55K0003 Contact Us For Availability
320
Spacer GEN WB02K0019 Contact Us For Availability
322
Brace Side R GEN WB55K0004 Contact Us For Availability
322A
Brace Side L GEN WB55K0005 Contact Us For Availability
323
End Cap GEN WB07K0079 Contact Us For Availability
324
End Cap GEN WB07K0080 Contact Us For Availability
325
Door Trim GEN WB07K0010 Contact Us For Availability
326
Trim Clip GEN WB02X6574 Contact Us For Availability
328
Screw Dbl Ld GEN WB01K0015 Contact Us For Availability
330
Reflector GEN WB55K0012 Contact Us For Availability
332
Insulation GEN WB35K0010 Contact Us For Availability
332A
Insulation GEN WB35K0012 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
341
Cover Drive Vent GEN WB02K0040 Contact Us For Availability
342
Screw Rail GEN WB01K0085 Contact Us For Availability
343
Drawer Rail GEN WB39K0041 Contact Us For Availability
343A
Drawer Rail GEN WB39K0042 Contact Us For Availability
345
Drawer Shield GEN WB39K0022 Contact Us For Availability
355
Drawer Trim GEN WB07K0118 Contact Us For Availability
356
Window Clip GEN WB02K0069 Contact Us For Availability
363
Handle Cap GEN WB07K0219 Contact Us For Availability
364
Handle Support GEN WB06K0005 Contact Us For Availability
374
Tube Valve Support GEN WB28K0150 Contact Us For Availability
397
Screw GEN WZ04X0384 Contact Us For Availability
444
Elbow GEN WB28K0061 Contact Us For Availability
700
Clip Vent GEN WB02K0034 Contact Us For Availability
701
Shield Switch GEN WB02K0039 Contact Us For Availability
702
Washer GEN WB01K0024 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
× ![]()
