Model GE 362.75691892 Gas Range (Kenmore 36275691892) – Common Parts & Diagrams
All Parts

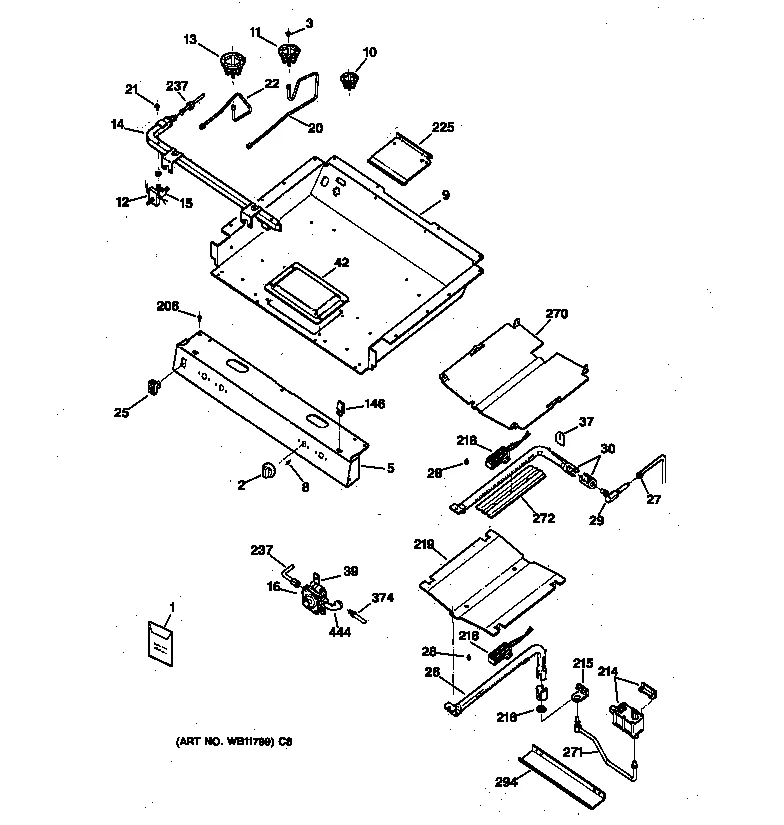

BURNER PARTS

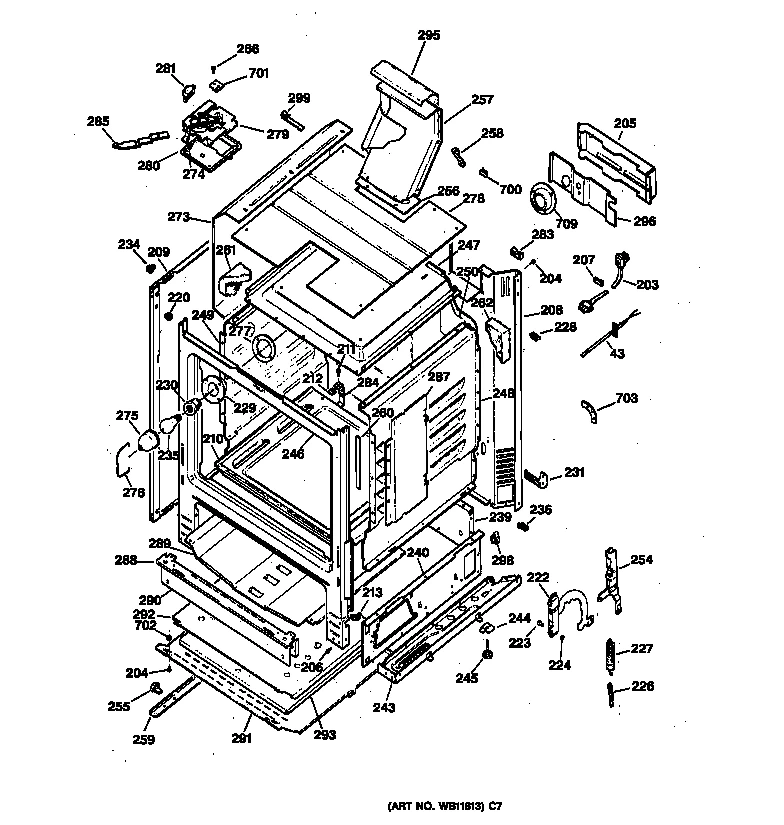

BODY PARTS

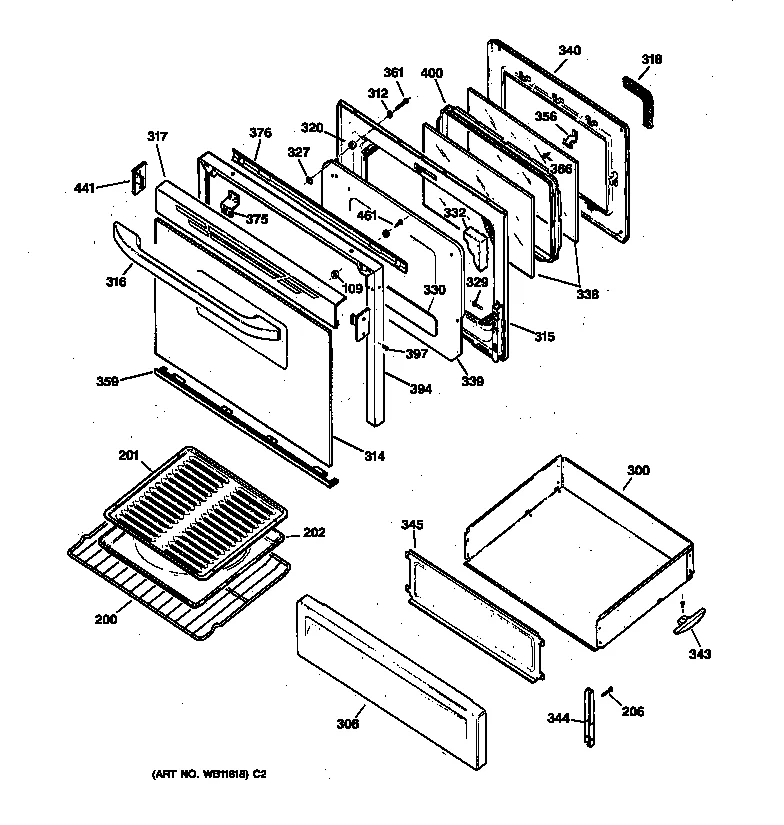

DOOR & DRAWER PARTS

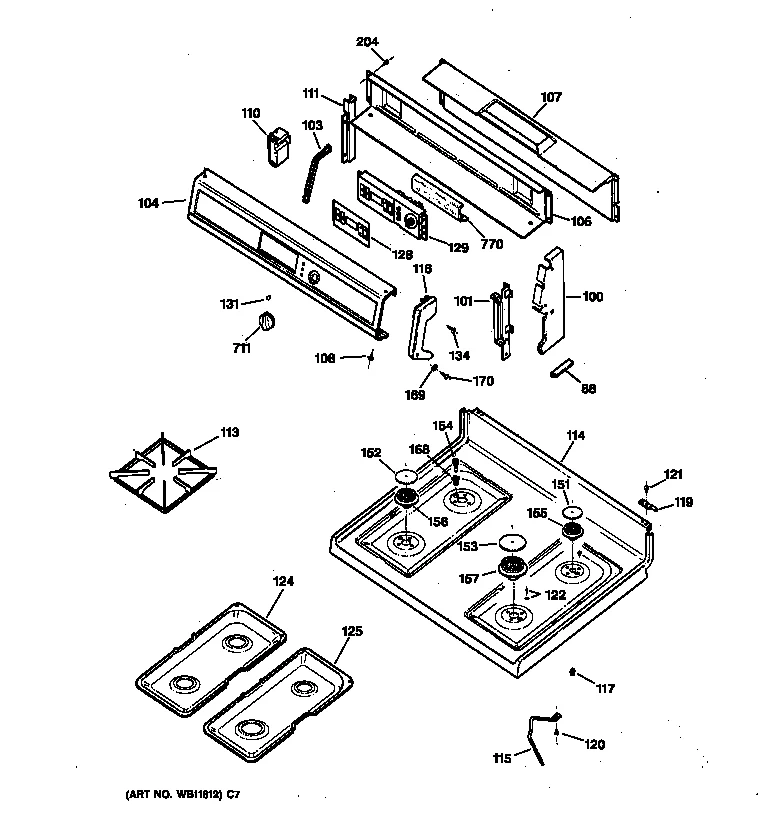

CONTROL PANEL & COOKTOP
Common parts from model GE 362.75691892 Gas Range (Kenmore 36275691892)
1
Range Oven Door Foil Tape GEN WB35K33 Contact Us For Availability
1B
Range LP Conversion Kit GEN WB28K10045 Contact Us For Availability
1C
Range Anti-Tip Bracket GEN WB2K20 Contact Us For Availability
3A
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
3C
Range Surface Burner Orifice GEN WB28K10029 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
14
Manifold Pipe GEN WB28K10028 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20A
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
20B
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
27
Range Broil Burner Gas Supply Tube GEN WB28K55 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
88
Felt Pad GEN WB2K85 Contact Us For Availability
100
End Cover GEN WB7K10008 Contact Us For Availability
100
End Cover GEN WB7K10009 Contact Us For Availability
100A
Range Control Panel End Cap (White) GEN WB7K10001 Contact Us For Availability
100B
End Cover GEN WB7K10002 Contact Us For Availability
101A
End Plate GEN WB37K18 Contact Us For Availability
101B
End Plate GEN WB37K17 Contact Us For Availability
103
Range Oven Control Board Bracket GEN WB2K10005 Contact Us For Availability
104
Control Trim GEN WB36K10030 Contact Us For Availability
104
Control Trim GEN WB36K10031 Contact Us For Availability
104
Control Trim GEN WB36K10032 Contact Us For Availability
107
Lower Cover GEN WB34K10007 Contact Us For Availability
110A
Range Spark Module GEN WB13K25 Contact Us For Availability
110B
Igniter Harness GEN WB18K10005 Contact Us For Availability
111
Wire Cover GEN WB34K05 Contact Us For Availability
113
Range Burner Grate GEN WB31K10019 Contact Us For Availability
113
Grate (Gray) GEN WB31K10020 Contact Us For Availability
113
Grate (Taupe) GEN WB31K10021 Contact Us For Availability
114
Cooktop (wh) GEN WB62K10027 Contact Us For Availability
115
Support GEN WB2K91 Contact Us For Availability
116
End Cap GEN WB7K10005 Contact Us For Availability
116
End Cap GEN WB7K10007 Contact Us For Availability
116A
End Cap GEN WB7K10003 Contact Us For Availability
116A
Cap-end R GEN WB7K10011 Contact Us For Availability
116B
End Cap GEN WB7K10004 Contact Us For Availability
116B
Cap-end L GEN WB7K10012 Contact Us For Availability
117
Range Main Top Guide Pin GEN WB2K17 Contact Us For Availability
119
Hinge Pin GEN WB14K05 Contact Us For Availability
121
Screw GEN WB1K01 Contact Us For Availability
122
Mounting Screw GEN WB1K10008 Contact Us For Availability
124
Range Drip Pan, Left (Taupe) GEN WB34K10016 Contact Us For Availability
125
Range Drip Pan, Right (Taupe) GEN WB34K10015 Contact Us For Availability
128
Range Control Overlay GEN WB11K10005 Contact Us For Availability
128
Overlay (wh) GEN WB11K10006 Contact Us For Availability
128
Overlay (alm GEN WB11K10007 Contact Us For Availability
129
Control To8 GEN WB11K10012 Contact Us For Availability
131
Lens GEN WB25K02 Contact Us For Availability
134
Mounting Screw GEN WB1K10003 Contact Us For Availability
134
Screw 8-1 GEN WB1K10004 Contact Us For Availability
134
Screw 8-1 GEN WB1K10010 Contact Us For Availability
146
Range Clip GEN WB2K52 Contact Us For Availability
151
Range Surface Burner Cap GEN WB29K10003 Contact Us For Availability
152
Range Surface Burner Cap GEN WB29K10005 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
155
Range Surface Burner Head GEN WB16K10006 Contact Us For Availability
156
Range Burner Head GEN WB16K10005 Contact Us For Availability
157
Range Burner Head GEN WB16K10007 Contact Us For Availability
168
Mounting Clip GEN WB1K10007 Contact Us For Availability
169
Clear Washer GEN WB1K57 Contact Us For Availability
170
Screw GEN WB1X5716 Contact Us For Availability
170
End Screw GEN WB1X5874 Contact Us For Availability
170
Scr 8-18 GEN WB1X5902 Contact Us For Availability
210
Range Oven Bottom Liner GEN WB53K35 Contact Us For Availability
222
Range Oven Door Hinge Roller GEN WB10K12 Contact Us For Availability
223
Hinge Pin GEN WB2X6195 Contact Us For Availability
224
Range Oven Door Hinge Retainer GEN WB2X1082 Contact Us For Availability
226
Range Oven Door Spring Retainer GEN WB2K11 Contact Us For Availability
231
Anti-Tip Arm GEN WB2K12 Contact Us For Availability
234
Gd Supt R GEN WB2K66 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
254A
Range Oven Door Hinge Screw GEN WB1K53 Contact Us For Availability
254B
Range Oven Door Hinge Support Bracket, Right GEN WB10K13 Contact Us For Availability
254C
Range Oven Door Hinge Support Bracket, Left GEN WB10K14 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
271A
Range Surface Burner Orifice GEN WB28K202 Contact Us For Availability
271B
Range Bake Burner Gas Supply Tube GEN WB28K60 Contact Us For Availability
272
Shield Broil GEN WB34K10 Contact Us For Availability
285
Latch Handle GEN WB15K10014 Contact Us For Availability
288
Oven Brace GEN WB63K15 Contact Us For Availability
290
Radiant Shield GEN WB34K12 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
306
Drawer Panel GEN WB36K10033 Contact Us For Availability
306
Drawer Panel GEN WB55K10001 Contact Us For Availability
314
Range Oven Door Outer Panel (White) GEN WB57K10013 Contact Us For Availability
315
Liner GEN WB55K25 Contact Us For Availability
316
Oven Door Handle GEN WB15K10005 Contact Us For Availability
316
Oven Door Handle GEN WB15K10006 Contact Us For Availability
316
Door Handle GEN WB15K10007 Contact Us For Availability
317
Trim-vent Do GEN WB36K10029 Contact Us For Availability
317
Trim-vent Do GEN WB36K10037 Contact Us For Availability
317
Trim-vent Do GEN WB36K10038 Contact Us For Availability
318
Door Gasket GEN WB4K01 Contact Us For Availability
327
Screw GEN WB1X5736 Contact Us For Availability
330
Reflector GEN WB35K22 Contact Us For Availability
332A
Insulation GEN WB35K25 Contact Us For Availability
332B
Insul Sd GEN WB35K24 Contact Us For Availability
345
Drawer Cover GEN WB35K10010 Contact Us For Availability
356
Range Oven Door Glass Clip GEN WB2K56 Contact Us For Availability
359
Oven Door Trim GEN WB7K385 Contact Us For Availability
374
Range Oven Gas Supply Tube GEN WB28K150 Contact Us For Availability
375
Door Bracket GEN NOT-STOCKED Contact Us For Availability
394
Drive Trim GEN WB7K268 Contact Us For Availability
394
Drive Trim GEN WB7K265 Contact Us For Availability
394
Door Trim GEN WB7K337 Contact Us For Availability
397
Mounting Screw GEN WB1K71 Contact Us For Availability
441A
End Cap GEN WB7K262 Contact Us For Availability
441B
End Cap GEN WB7K261 Contact Us For Availability
441B
Cap End D GEN WB7K267 Contact Us For Availability
461
Scr 8-22 GEN WB1K10012 Contact Us For Availability
711
Control Knob GEN WB3K10018 Contact Us For Availability
711
Control Knob GEN WB3K10019 Contact Us For Availability
711
Range Control Knob GEN WB3K10022 Contact Us For Availability
770
Range Electronic Control Insulation GEN WB35K10004 Contact Us For Availability
× ![]()
