Model GE 362.75691891 Gas Range (Kenmore 36275691891) – Common Parts & Diagrams

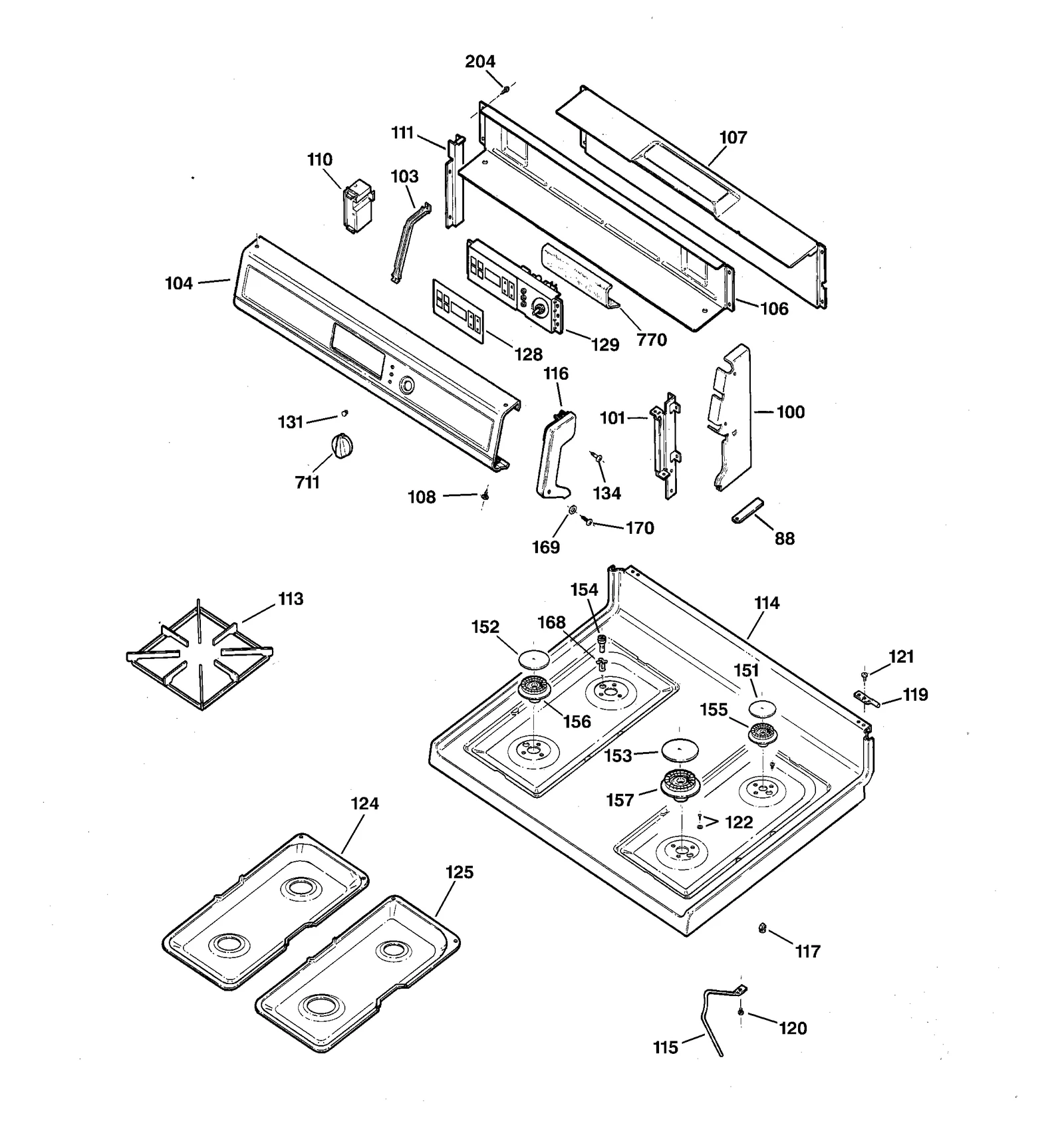

CONTROL PANEL & COOKTOP

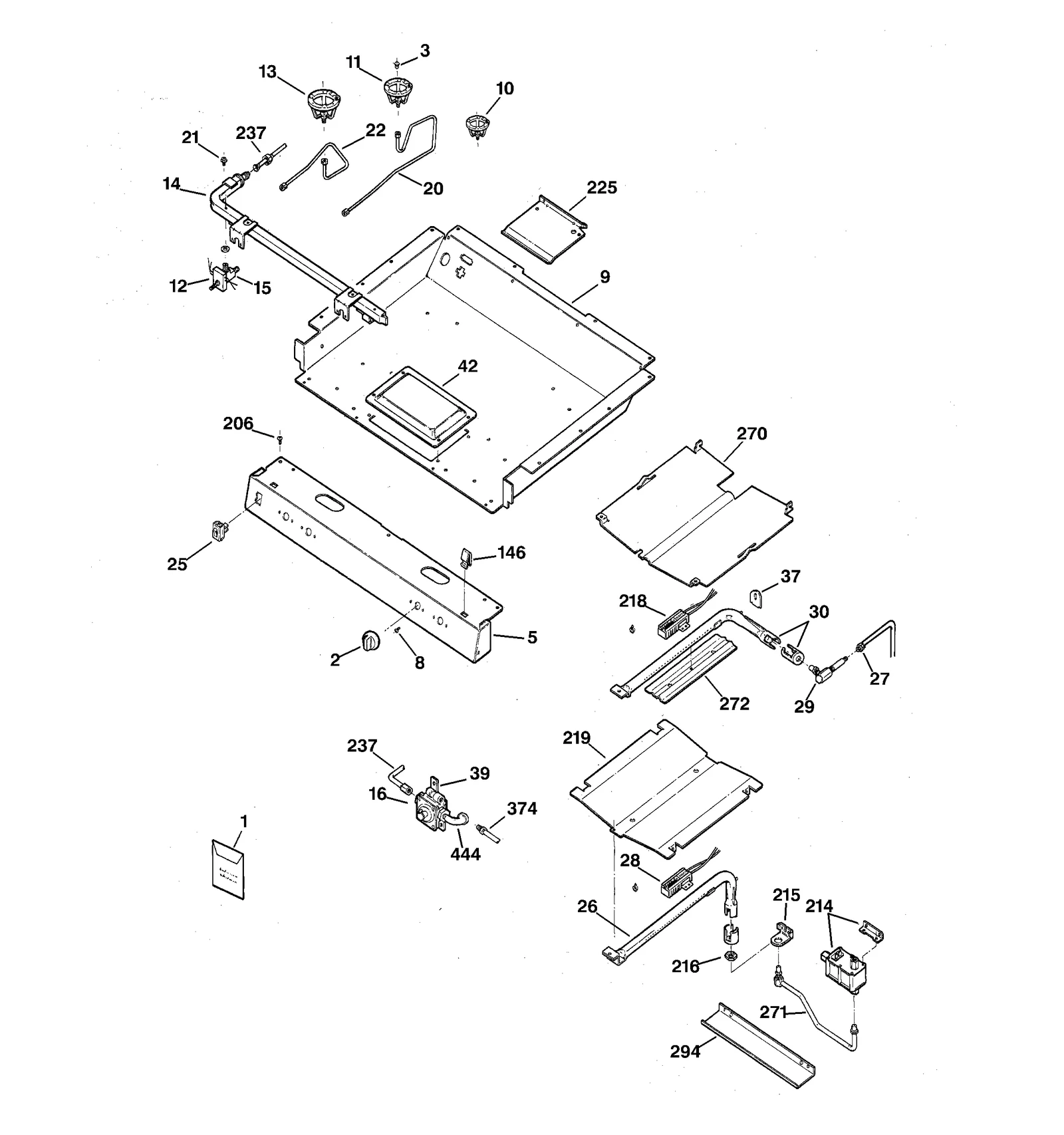

BURNER PARTS

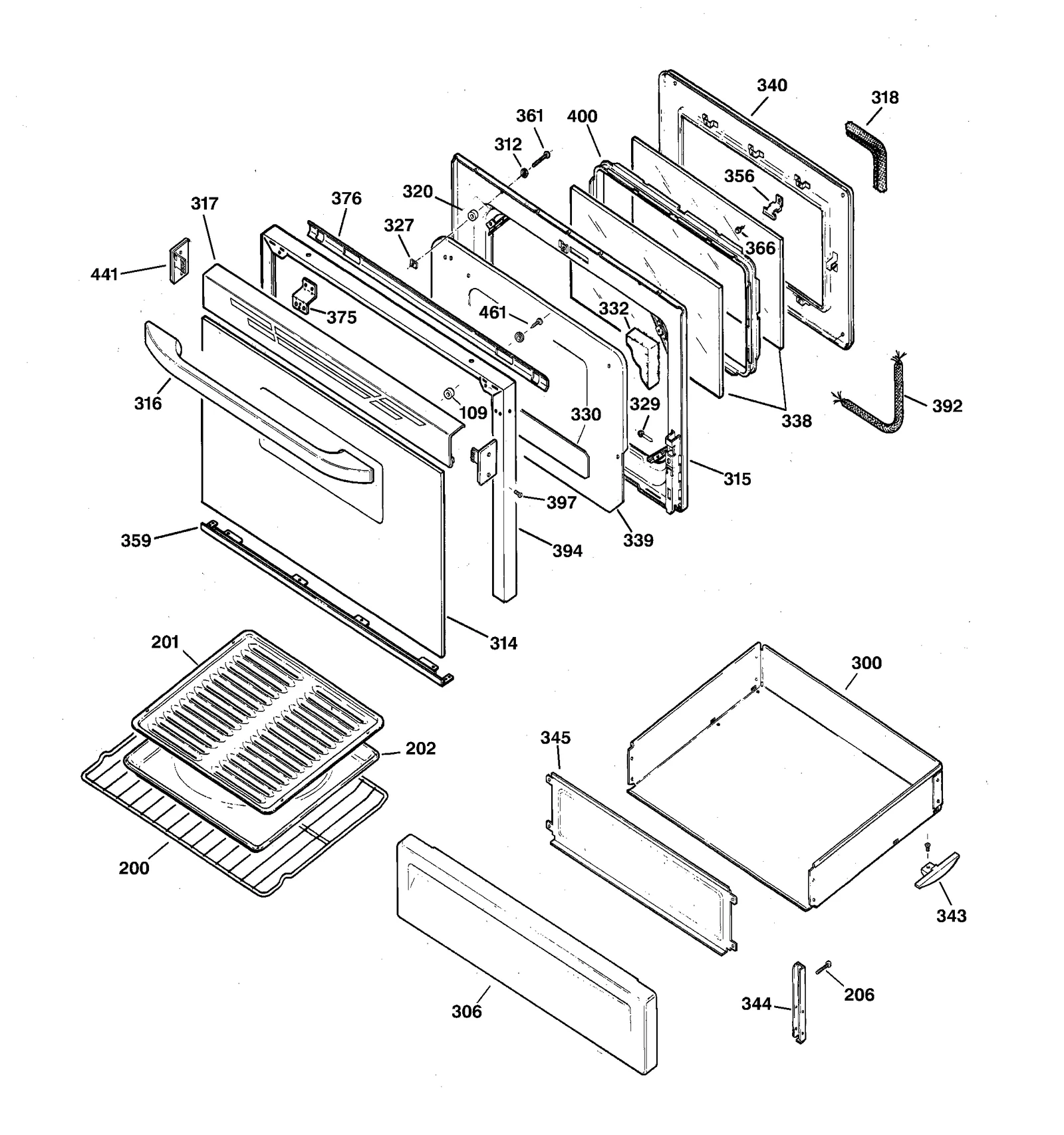

DOOR & DRAWER PARTS

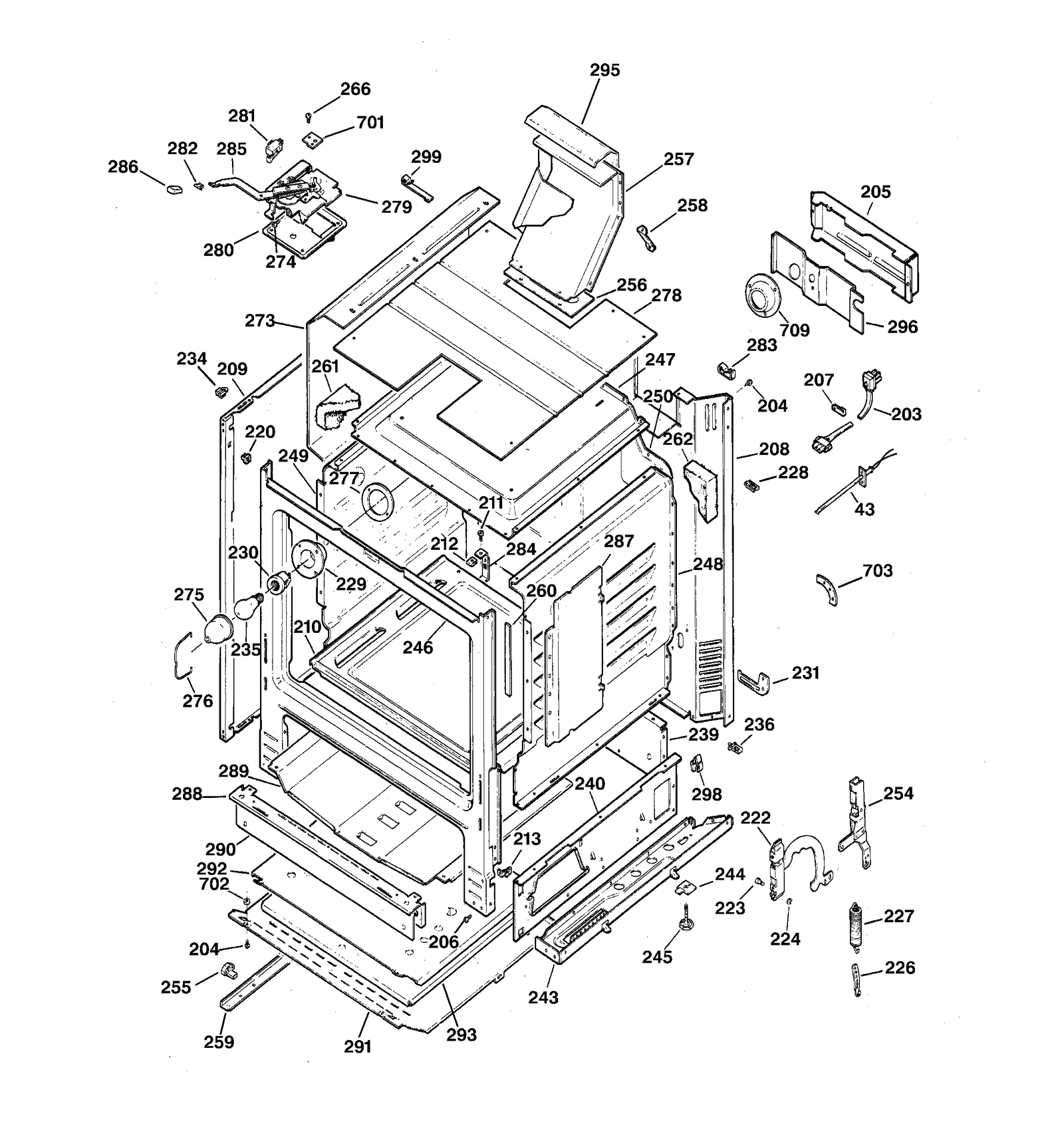

BODY PARTS
Common parts from model GE 362.75691891 Gas Range (Kenmore 36275691891)
1
Range LP Conversion Kit GEN WB28K10045 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10013 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10021 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10029 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
13
Range Surface Burner Support GEN WB02K10008 Contact Us For Availability
14
Manifold Pipe GEN WB28K10028 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
25
Sw Rocker Al GEN WB24K0020 Contact Us For Availability
27
Tube Burner Support GEN WB28K0055 Contact Us For Availability
29
Hi Broiler Elbow GEN WB28K10018 Contact Us For Availability
29
Oven Orifice GEN WB28K10019 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
39
Bracket Reg GEN WB02K0088 Contact Us For Availability
42
Cover Burner Box GEN WB63K0022 Contact Us For Availability
100
End Cover GEN WB07K10001 No Longer Available
100
Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
124
Range Drip Pan, Left (Taupe) GEN WB34K10016 Contact Us For Availability
125
Range Drip Pan, Right (Taupe) GEN WB34K10015 Contact Us For Availability
128
Range Control Overlay GEN WB11K10005 Contact Us For Availability
134
Range Screw GEN WB01K10004 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
151
Range Surface Burner Cap GEN WB29K10003 Contact Us For Availability
152
Range Surface Burner Cap GEN WB29K10005 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
155
Range Surface Burner Head GEN WB16K10006 Contact Us For Availability
157
Range Burner Head GEN WB16K10007 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
205
Cvr Back Pnl GEN WB34K0006 Contact Us For Availability
209
Panel GEN WB63K0050 Contact Us For Availability
209
Panel GEN WB63K0051 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0005 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
239
Pnl Rr Broil GEN WB63K0025 Contact Us For Availability
240
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
243
Base Supp Lf GEN WB63K0007 Contact Us For Availability
243
Support Base GEN WB63K0006 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0036 Contact Us For Availability
247
Oven GEN WB53K10004 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Oven GEN WB53K0019 Contact Us For Availability
254
Hinge Screw GEN WB01K0053 Contact Us For Availability
254
Support Rivet GEN WB10K0013 Contact Us For Availability
254
Support Rivet GEN WB10K0014 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
261
Insul Ov Wrp GEN WB35K0007 Contact Us For Availability
262
Insul Ov Bck GEN WB35K0008 Contact Us For Availability
266
Screw GEN WZ05X0124 Contact Us For Availability
266
Screw GEN WB01K0012 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
271
Tube Burner Support GEN WB28K0060 Contact Us For Availability
271
Oven Orifice GEN WB28K0202 Contact Us For Availability
272
Shield Broil GEN WB34K0010 Contact Us For Availability
273
Guard Ins Rh GEN WB53K0011 Contact Us For Availability
273
Guard Insulation GEN WB53K0012 Contact Us For Availability
274
Scew Latch GEN WB01K0044 Contact Us For Availability
277
Oven Door Gasket GEN WB32K0005 Contact Us For Availability
278
Grd Top Insu GEN WB53K0018 Contact Us For Availability
279
Latch GEN WB02K0042 Contact Us For Availability
280
Latch Shield GEN WB02K0029 Contact Us For Availability
281
Latch Switch GEN WB24K0015 Contact Us For Availability
282
Retainer GEN WB02K0030 Contact Us For Availability
285
Latch Handle GEN WB15K0028 Contact Us For Availability
286
Latch Knob GEN WB03K10045 Contact Us For Availability
286
Latch Knob GEN WB03K10046 Contact Us For Availability
286
Latch Knob GEN WB03K10047 Contact Us For Availability
287
Gusard Radia GEN WB34K0031 Contact Us For Availability
288
Brace GEN WB63K0015 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
294
Guard Valve GEN WB63K0019 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
300
Drawer Body GEN WB58K10001 Contact Us For Availability
306
Drawer Panel GEN WB36K10033 Contact Us For Availability
306
Drawer Panel GEN WB55K10001 Contact Us For Availability
306
Drawer Panel GEN WB55K10002 Contact Us For Availability
314
Range Oven Door Outer Panel (White) GEN WB57K10013 Contact Us For Availability
314
Door Glass GEN WB57K10014 Contact Us For Availability
315
Liner GEN WB55K0025 Contact Us For Availability
316
Oven Door Handle GEN WB15K10005 Contact Us For Availability
316
Oven Door Handle GEN WB15K10006 Contact Us For Availability
316
Door Handle GEN WB15K10007 Contact Us For Availability
317
Trim-vent Do GEN WB36K10029 Contact Us For Availability
317
Trim-vent Do GEN WB36K10037 Contact Us For Availability
317
Trim-vent Do GEN WB36K10038 Contact Us For Availability
330
Reflector GEN WB35K0022 Contact Us For Availability
330
Reflector GEN WB35K0033 Contact Us For Availability
332
Insul Sd Dr GEN WB35K0024 Contact Us For Availability
332
Insul Bot Dr GEN WB35K0025 Contact Us For Availability
338
Oven Door Glass GEN WB56K0020 Contact Us For Availability
345
Deflector-dr GEN WB35K10007 Contact Us For Availability
356
Window Clip GEN WB02K0069 Contact Us For Availability
359
Door Trim GEN WB07K0385 Contact Us For Availability
374
Tube Valve Support GEN WB28K0150 Contact Us For Availability
375
Door Bracket GEN NOT-STOCKED Contact Us For Availability
392
Window Pack Seal GEN WB04K0003 Contact Us For Availability
394
Trim Dr (blk GEN WB07K0265 Contact Us For Availability
394
Trim Dr (wh) GEN WB07K0268 Contact Us For Availability
394
Door Trim Al GEN WB07K0337 Contact Us For Availability
397
Mounting Screw GEN WB01K0071 Contact Us For Availability
441
End Cap GEN WB07K0261 Contact Us For Availability
441
End Cap Lft GEN WB07K0262 Contact Us For Availability
444
Elbow GEN WB28K0061 Contact Us For Availability
701
Shield Switch GEN WB02K0039 Contact Us For Availability
702
Washer GEN WB01K0024 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
711
Range Surface Burner Knob GEN WB03K10018 Contact Us For Availability
711
Range Burner Control Knob GEN WB03K10019 Contact Us For Availability
× ![]()
