Model GE 362.75585891 Gas Range (Kenmore 36275585891) – Common Parts & Diagrams
BODY PARTS

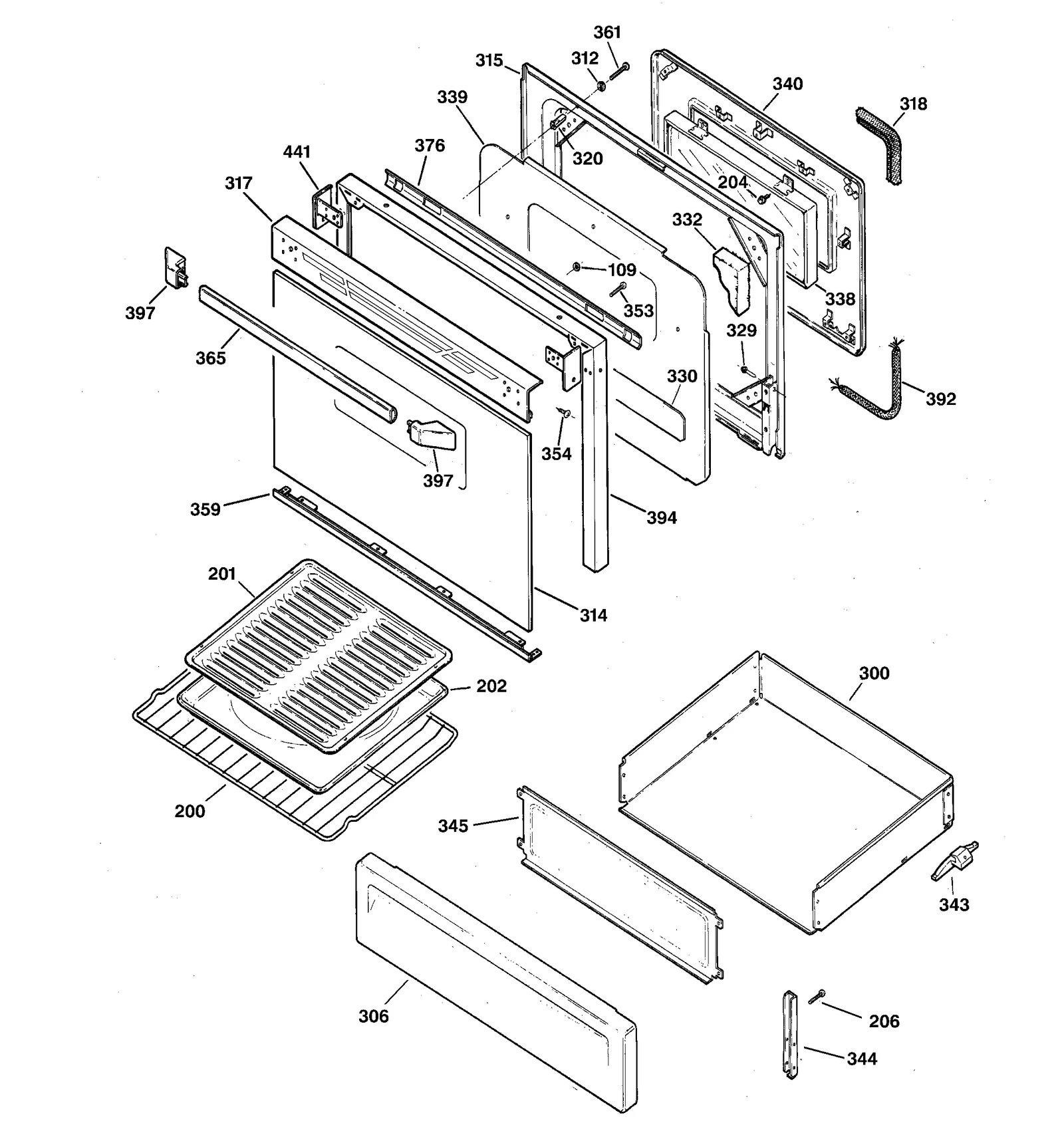

DOOR & DRAWER PARTS

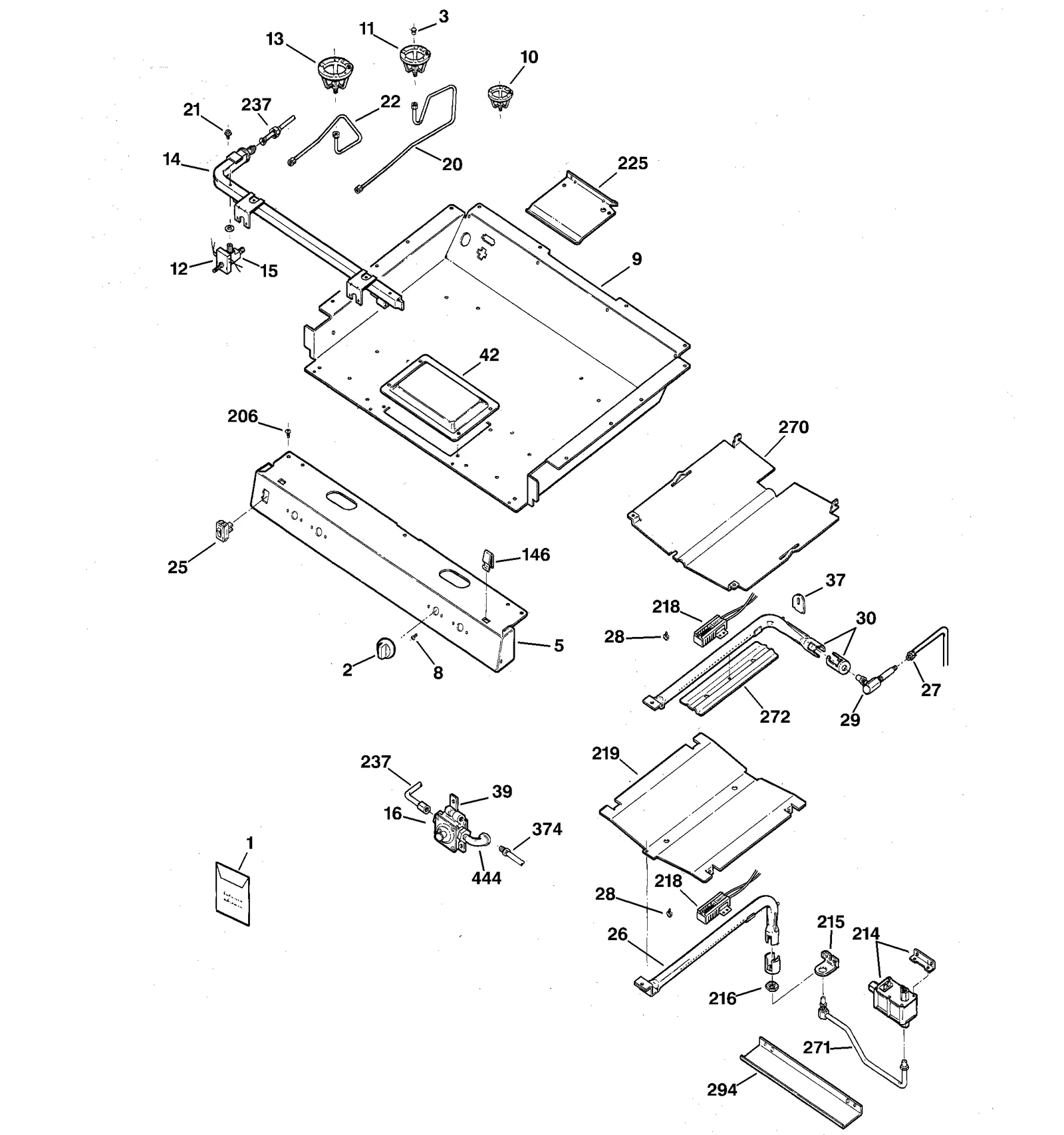

GAS & BURNER PARTS

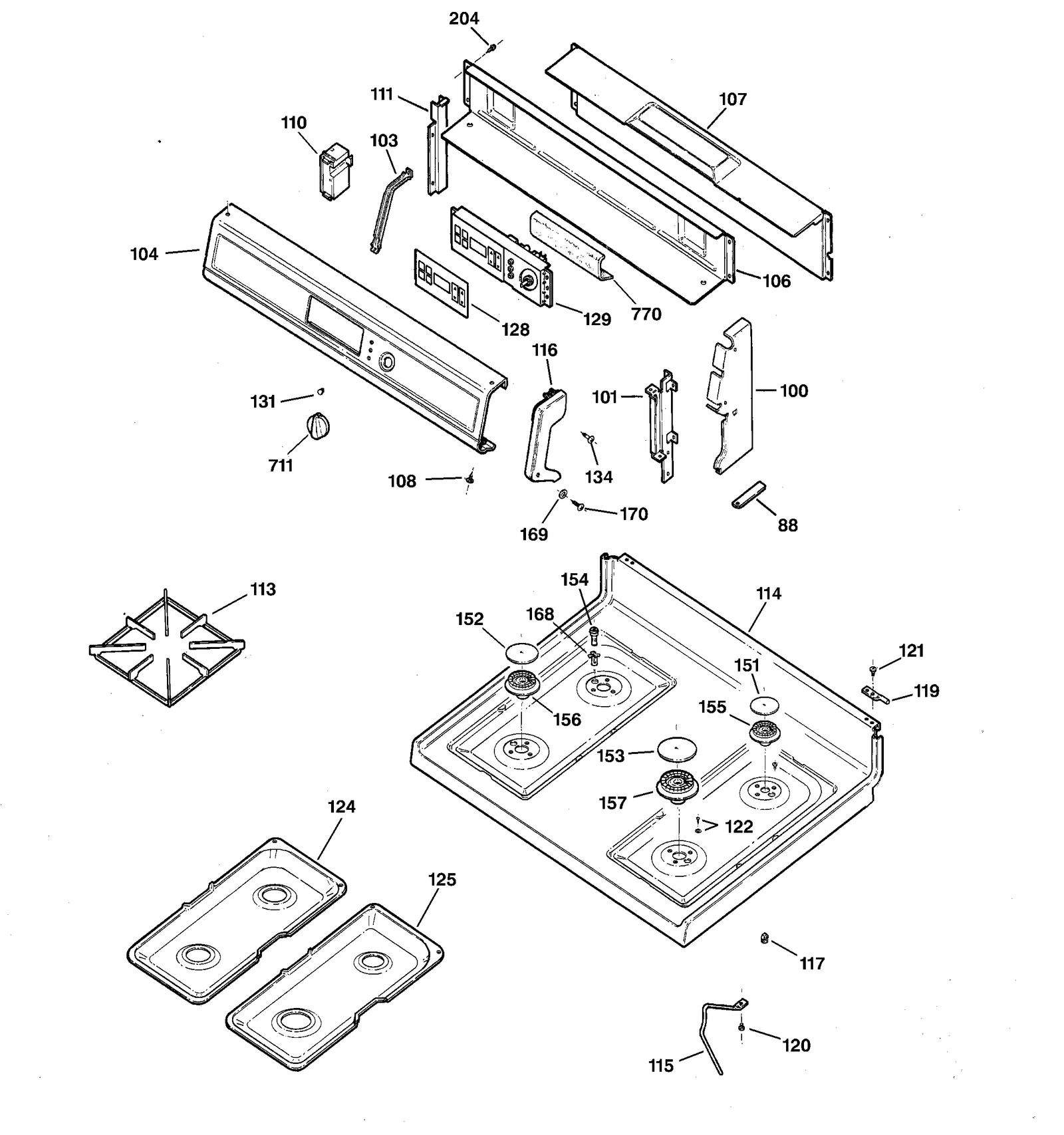

CONTROL PANEL & COOKTOP
Common parts from model GE 362.75585891 Gas Range (Kenmore 36275585891)
1
Range LP Conversion Kit GEN WB28K10045 Contact Us For Availability
1
Mini Manual GEN 31-20631 Contact Us For Availability
1
User's Manual GEN SR4247 Contact Us For Availability
1
Parts List GEN SR4541 Contact Us For Availability
1
Brkt Asm A-t GEN WB02K0020 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10013 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10021 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10022 Contact Us For Availability
3
Range Surface Burner Orifice GEN WB28K10029 Contact Us For Availability
5
Manifold Panel GEN WB36K10034 Contact Us For Availability
5
Manifold Panel GEN WB36K10035 Contact Us For Availability
5
Manifold Panel GEN WB36K10036 Contact Us For Availability
9
Burner Speed Box GEN WB63K0023 Contact Us For Availability
10
Burner Bracket GEN WB02K10007 Contact Us For Availability
11
Burner Bracket GEN WB02K10006 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
13
Range Surface Burner Support GEN WB02K10008 Contact Us For Availability
14
Manifold Pipe GEN WB28K10028 Contact Us For Availability
15
Vlv Burner L GEN WB21K0041 Contact Us For Availability
15
Vlv Burner R GEN WB21K0042 Contact Us For Availability
16
Range Pressure Regulator GEN WB19K10001 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10027 Contact Us For Availability
20
Range Surface Burner Supply Tube GEN WB28K10026 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
25
Sw Rocker Al GEN WB24K0020 Contact Us For Availability
27
Tube Burner Support GEN WB28K0055 Contact Us For Availability
29
Hi Broiler Elbow GEN WB28K10018 Contact Us For Availability
29
Oven Orifice GEN WB28K10019 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
39
Bracket Reg GEN WB02K0088 Contact Us For Availability
42
Cover Burner Box GEN WB63K0022 Contact Us For Availability
88
Felt Pad GEN WB02K0085 Contact Us For Availability
100
End Cover GEN WB07K10001 No Longer Available
100
Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability
100
End Cover GEN WB07K10008 Contact Us For Availability
100
End Cover GEN WB07K10009 Contact Us For Availability
101
End Plate GEN WB37K0017 Contact Us For Availability
101
End Plate GEN WB37K0018 Contact Us For Availability
103
Bracket-time GEN WB02K10005 Contact Us For Availability
104
Control Trim GEN WB36K10030 Contact Us For Availability
104
Control Trim GEN WB36K10031 Contact Us For Availability
104
Control Trim GEN WB36K10032 Contact Us For Availability
107
Lower Cover GEN WB34K10007 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
110
Spark Module GEN WB13K0025 Contact Us For Availability
110
Igniter Harness GEN WB18K10005 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
113
Range Surface Burner Grate GEN WB31K10018 Contact Us For Availability
114
Cooktop (wh) GEN WB62K10027 Contact Us For Availability
115
Support GEN WB02K0091 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
116
Cap-end Rt A GEN WB07K10011 Contact Us For Availability
116
Cap-end Lf A GEN WB07K10012 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
122
Range Screw GEN WB01K10008 Contact Us For Availability
124
Range Drip Pan, Left (Taupe) GEN WB34K10016 Contact Us For Availability
125
Range Drip Pan, Right (Taupe) GEN WB34K10015 Contact Us For Availability
128
Range Control Overlay GEN WB11K10005 Contact Us For Availability
128
Overlay (wh) GEN WB11K10006 Contact Us For Availability
128
Overlay (alm GEN WB11K10007 Contact Us For Availability
129
Control To8 GEN WB11K10012 Contact Us For Availability
134
Range Screw GEN WB01K10004 Contact Us For Availability
134
Screw-mtg En GEN WB01K10003 Contact Us For Availability
134
Screw, #8-18 GEN WB01K10010 Contact Us For Availability
146
Clip Rngetop GEN WB02K0052 Contact Us For Availability
151
Range Surface Burner Cap GEN WB29K10003 Contact Us For Availability
152
Range Surface Burner Cap GEN WB29K10005 Contact Us For Availability
154
Range Surface Burner Igniter GEN WB13K10003 Contact Us For Availability
155
Range Surface Burner Head GEN WB16K10006 Contact Us For Availability
156
Range Burner Head GEN WB16K10005 Contact Us For Availability
157
Range Burner Head GEN WB16K10007 Contact Us For Availability
169
Clear Washer GEN WB01K0057 Contact Us For Availability
170
Screw End Cap GEN WB01X5874 Contact Us For Availability
170
Screw GEN WB01X5716 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
237
Range Surface Burner Manifold Supply Tube GEN WB28K10021 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
271
Tube Burner Support GEN WB28K0060 Contact Us For Availability
271
Oven Orifice GEN WB28K0202 Contact Us For Availability
272
Shield Broil GEN WB34K0010 Contact Us For Availability
282
Retainer GEN WB02K0030 Contact Us For Availability
285
Latch Handle GEN WB15K0028 Contact Us For Availability
286
Latch Knob GEN WB03K10045 Contact Us For Availability
286
Latch Knob GEN WB03K10046 Contact Us For Availability
286
Latch Knob GEN WB03K10047 Contact Us For Availability
287
Gusard Radia GEN WB34K0031 Contact Us For Availability
288
Brace GEN WB63K0015 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
294
Guard Valve GEN WB63K0019 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
300
Drawer Body GEN WB58K10001 Contact Us For Availability
306
Drawer Panel GEN WB36K10033 Contact Us For Availability
306
Drawer Panel GEN WB55K10001 Contact Us For Availability
306
Drawer Panel GEN WB55K10002 Contact Us For Availability
314
Door Glass GEN WB57K10009 Contact Us For Availability
314
Door Glass GEN WB57K10011 Contact Us For Availability
315
Liner GEN WB55K0025 Contact Us For Availability
317
Door Vent Trim GEN WB36K10295 Contact Us For Availability
317
Trim-vent Do GEN WB36K10297 Contact Us For Availability
317
Trim-vent Do GEN WB36K10298 Contact Us For Availability
330
Reflector GEN WB35K0022 Contact Us For Availability
330
Reflector GEN WB35K0033 Contact Us For Availability
332
Drive Insulation GEN WB35K0020 Contact Us For Availability
338
Wind Pack Sm GEN WB56K0019 Contact Us For Availability
339
Guard Insulation GEN WB56K0008 Contact Us For Availability
340
Panel Assembly Weld GEN WB55K0020 Contact Us For Availability
345
Deflector-dr GEN WB35K10007 Contact Us For Availability
353
Screw-mtg Hd GEN WB01K10013 Contact Us For Availability
354
Mounting Screw GEN WB01K0071 Contact Us For Availability
359
Door Trim GEN WB07K0385 Contact Us For Availability
365
Range Oven Door Handle GEN WB15K10002 Contact Us For Availability
365
Door Handle GEN WB15K10003 Contact Us For Availability
365
Door Handle GEN WB15K10004 Contact Us For Availability
374
Tube Valve Support GEN WB28K0150 Contact Us For Availability
392
Window Pack Seal GEN WB04K0002 Contact Us For Availability
394
Trim Dr (blk GEN WB07K0265 Contact Us For Availability
394
Trim Dr (wh) GEN WB07K0268 Contact Us For Availability
394
Door Trim Al GEN WB07K0337 Contact Us For Availability
397
Range Oven Door Handle End Cap (Black) GEN WB07K10013 Contact Us For Availability
397
End Cap Handle GEN WB07K10014 Contact Us For Availability
397
End Cap Handle GEN WB07K10015 Contact Us For Availability
441
End Cap GEN WB07K0261 Contact Us For Availability
441
End Cap Lft GEN WB07K0262 Contact Us For Availability
444
Elbow GEN WB28K0061 Contact Us For Availability
701
Shield Switch GEN WB02K0039 Contact Us For Availability
702
Washer GEN WB01K0024 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
711
Range Surface Burner Knob GEN WB03K10018 Contact Us For Availability
711
Range Burner Control Knob GEN WB03K10019 Contact Us For Availability
711
Control Knob GEN WB03K10022 Contact Us For Availability
770
Range Electronic Control Insulation GEN WB35K10004 Contact Us For Availability
× ![]()
