Model GE 362.73288890 Gas Range (Kenmore 36273288890) – Common Parts & Diagrams

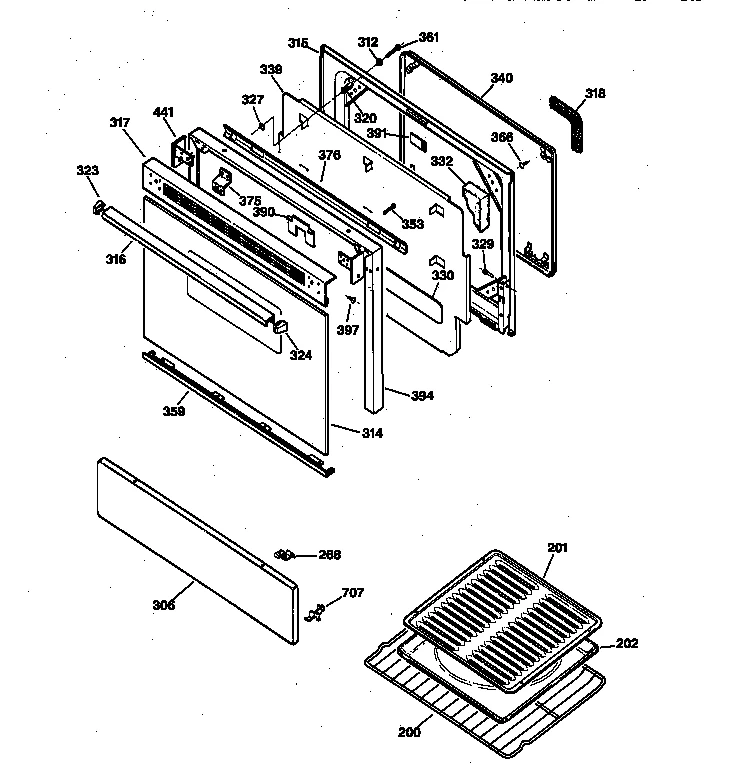

DOOR PARTS

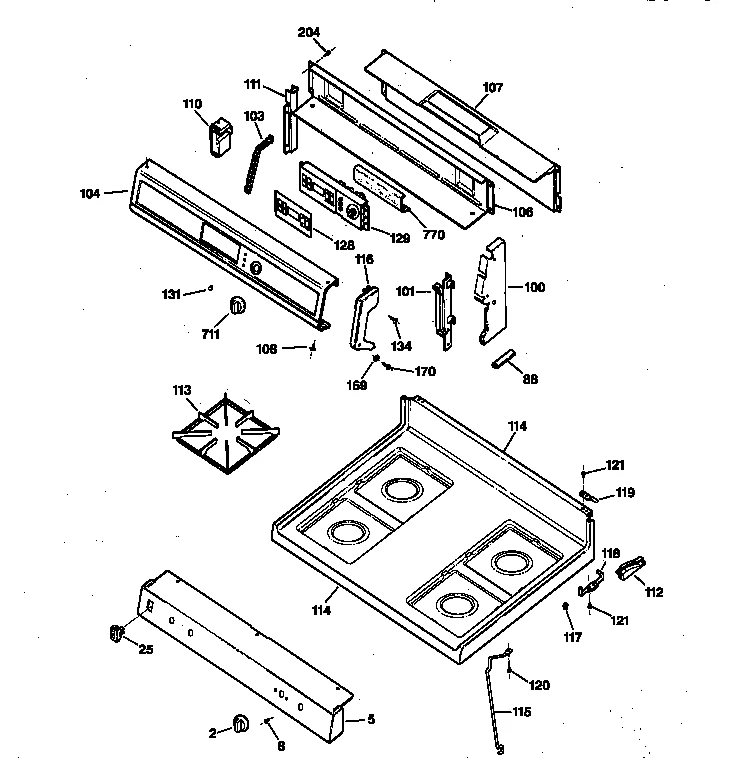

CONTROL PANEL & COOKTOP
All Parts

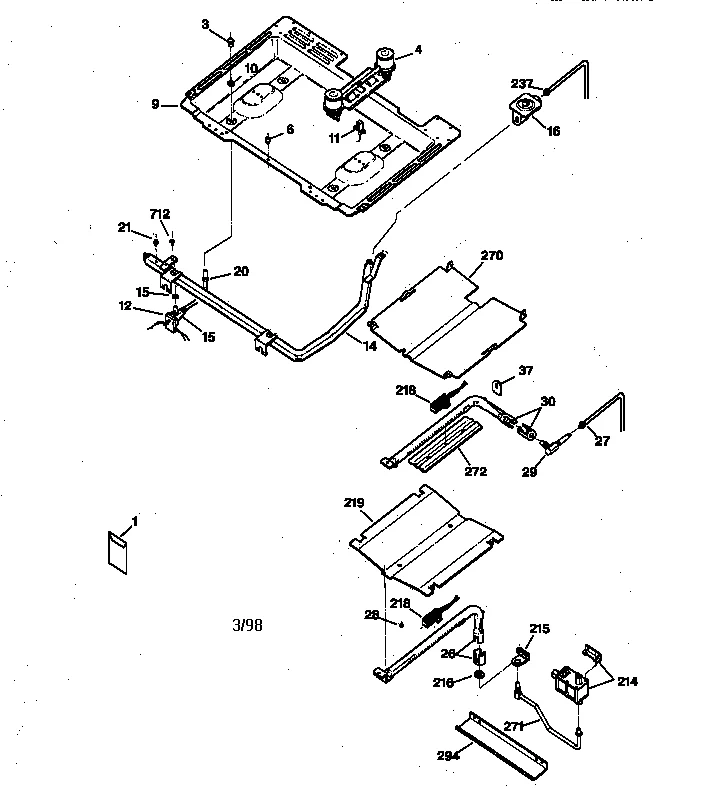

GAS & BURNER PARTS

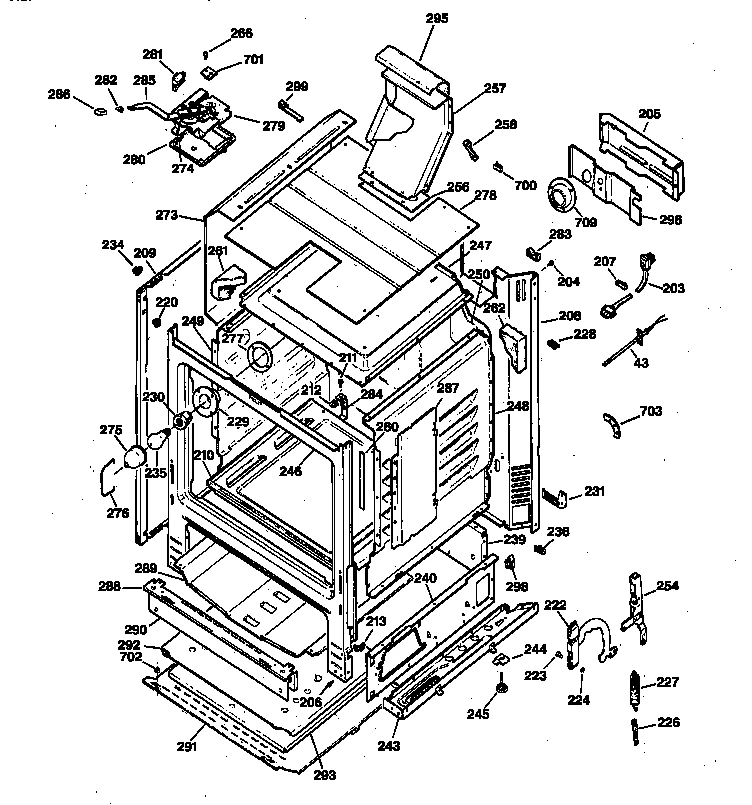

BODY PARTS
Common parts from model GE 362.73288890 Gas Range (Kenmore 36273288890)
1A
Brkt Asm A-t GEN WB02K0020 Contact Us For Availability
1B
User's Manual GEN SR4242 Contact Us For Availability
1C
Range Parts GEN SR4518 Contact Us For Availability
1D
MANUAL-MINI/ELEC. DIAG. GEN 31-20628 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
5
Manifold Panel GEN WB36K10021 Contact Us For Availability
6
Grommet GEN WB02K0009 Contact Us For Availability
10
Nut GEN WB01K0004 Contact Us For Availability
12
Range Surface Burner Igniter Switch GEN WB24K10003 Contact Us For Availability
14
Manifold Pipe GEN WB28K10017 Contact Us For Availability
25
Rocker Switch GEN WB24K0003 Contact Us For Availability
27
Tube Burner Support GEN WB28K0055 Contact Us For Availability
29A
Oven Orifice GEN WB28K10019 Contact Us For Availability
29B
Hi Broiler Elbow GEN WB28K10018 Contact Us For Availability
30
Range Broil Burner GEN WB16K10004 Contact Us For Availability
88
Felt Pad GEN WB02K0085 Contact Us For Availability
100A
End Cover GEN WB07K10009 Contact Us For Availability
100B
End Cover GEN WB07K10008 Contact Us For Availability
101A
End Plate GEN WB37K0014 Contact Us For Availability
101B
End Plate GEN WB37K0015 Contact Us For Availability
103
Bracket-time GEN WB02K10005 Contact Us For Availability
104
Control Trim GEN WB36K10023 Contact Us For Availability
107
Lower Cover GEN WB34K10007 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
112B
Gd Hldr Rgth GEN WB14K0001 Contact Us For Availability
114
Cooktop (ad) GEN WB62K10004 Contact Us For Availability
115
Range Support GEN WB06K0008 Contact Us For Availability
116A
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
128
Overlay ( Bl GEN WB27K10002 Contact Us For Availability
129
Control GEN WB11K10011 Contact Us For Availability
134
Screw-mtg En GEN WB01K10003 Contact Us For Availability
169
Clear Washer GEN WB01K0057 Contact Us For Availability
170
Screw GEN WB01X5716 Contact Us For Availability
205
Cvr Back Pnl GEN WB34K0006 Contact Us For Availability
209
Panel GEN WB63K0051 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
216
Lock Nut GEN WB01K0006 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0005 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
231
Anti-Tip Arm GEN WB02K0012 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
237
Tube Oven Support GEN WB28K0151 Contact Us For Availability
239
Rear Broiler Panel GEN WB63K0001 Contact Us For Availability
240A
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
243A
Support Base GEN WB63K0006 Contact Us For Availability
243B
Base Supp Lf GEN WB63K0007 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0036 Contact Us For Availability
247
Oven GEN WB53K10004 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Oven GEN WB53K0019 Contact Us For Availability
254A
Hinge Screw GEN WB01K0053 Contact Us For Availability
254B
Support Rivet GEN WB10K0014 Contact Us For Availability
254C
Support Rivet GEN WB10K0013 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
261
Insul Ov Wrp GEN WB35K0007 Contact Us For Availability
262
Insul Ov Bck GEN WB35K0008 Contact Us For Availability
266A
Screw GEN WB01K0012 Contact Us For Availability
266B
Screw GEN WZ05X0124 Contact Us For Availability
270
Deflector-br GEN WB49K10003 Contact Us For Availability
271A
Oven Orifice GEN WB28K0202 Contact Us For Availability
271B
Tube Burner Support GEN WB28K0060 Contact Us For Availability
272
Shield Broil GEN WB34K0010 Contact Us For Availability
273A
Guard Insulation GEN WB53K0012 Contact Us For Availability
273B
Guard Ins Rh GEN WB53K0011 Contact Us For Availability
274
Scew Latch GEN WB01K0044 Contact Us For Availability
277
Oven Door Gasket GEN WB32K0005 Contact Us For Availability
278
Grd Top Insu GEN WB53K0018 Contact Us For Availability
279
Latch GEN WB02K0042 Contact Us For Availability
280
Latch Shield GEN WB02K0029 Contact Us For Availability
281
Latch Switch GEN WB24K0015 Contact Us For Availability
282
Retainer GEN WB02K0030 Contact Us For Availability
285
Latch Handle GEN WB15K0028 Contact Us For Availability
286
Latch Knob GEN WB03K10045 Contact Us For Availability
287B
Gusard Radia GEN WB34K0031 Contact Us For Availability
288
Brace GEN WB63K0015 Contact Us For Availability
290
Radiant Shield GEN WB34K0012 Contact Us For Availability
292
Guard Bot In GEN WB63K0017 Contact Us For Availability
293
Guard Bot Md GEN WB63K0018 Contact Us For Availability
294
Guard Valve GEN WB63K0019 Contact Us For Availability
295
Insulation Vent Tube GEN WB35K10003 Contact Us For Availability
296
Cvr B Pnl Sp GEN WB34K0013 Contact Us For Availability
298
Spacer Clip GEN WB02K0037 Contact Us For Availability
299
Wire Clip GEN WB02K0038 Contact Us For Availability
330B
Reflector GEN WB35K0022 Contact Us For Availability
330C
Reflector GEN WB55K0001 Contact Us For Availability
332
Door Insulation GEN WB35K0026 Contact Us For Availability
339
Guard Insulation GEN WB56K0007 Contact Us For Availability
340
Drive Liner GEN WB55K0022 Contact Us For Availability
375
Door Bracket GEN WB02K0067 Contact Us For Availability
394
Trim Dr (blk GEN WB07K0265 Contact Us For Availability
701
Shield Switch GEN WB02K0039 Contact Us For Availability
702
Washer GEN WB01K0024 Contact Us For Availability
703
Oven Bracket GEN WB02K0041 Contact Us For Availability
707
Brkt Kick Pn GEN WB02K0033 Contact Us For Availability
709
Lamp Retainer Insert GEN WB08K0004 Contact Us For Availability
711
Range Burner Control Knob GEN WB03K10019 Contact Us For Availability
770
Range Electronic Control Insulation GEN WB35K10004 Contact Us For Availability
× ![]()
