Model GE 362.71671891 Gas Range (Kenmore 36271671891) – Common Parts & Diagrams
GAS & BURNER PARTS

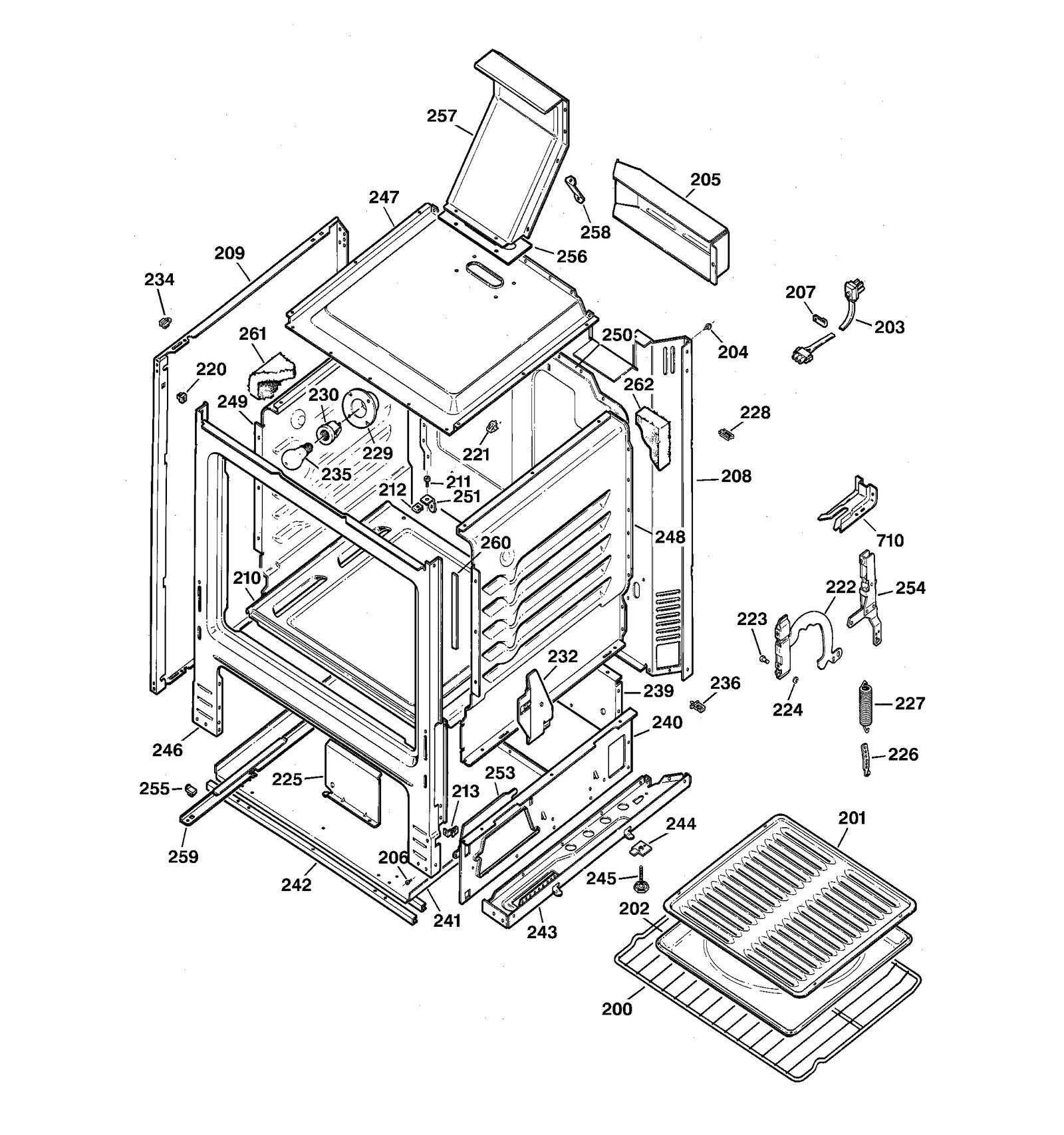

BODY PARTS

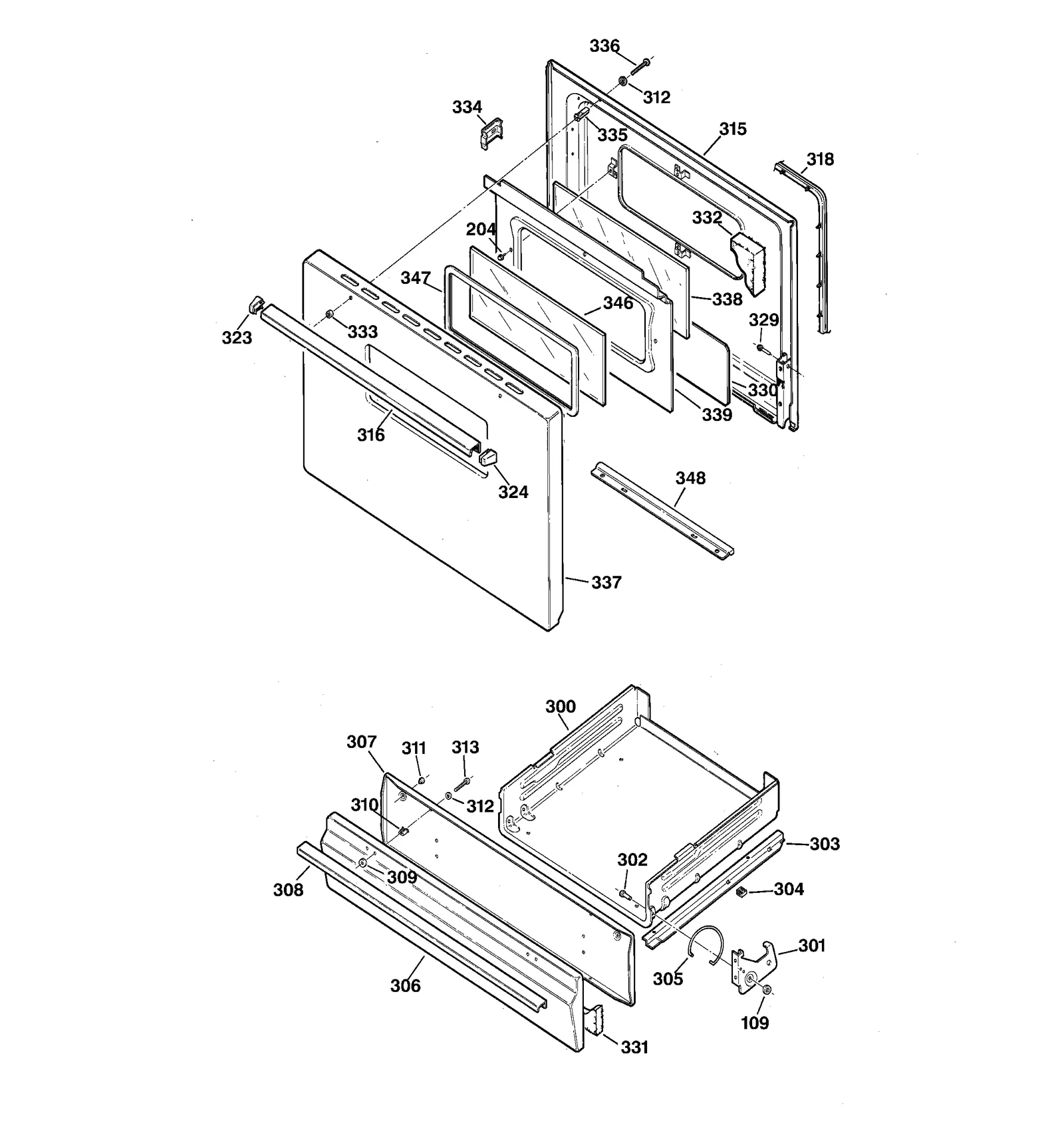

DOOR & DRAWER PARTS

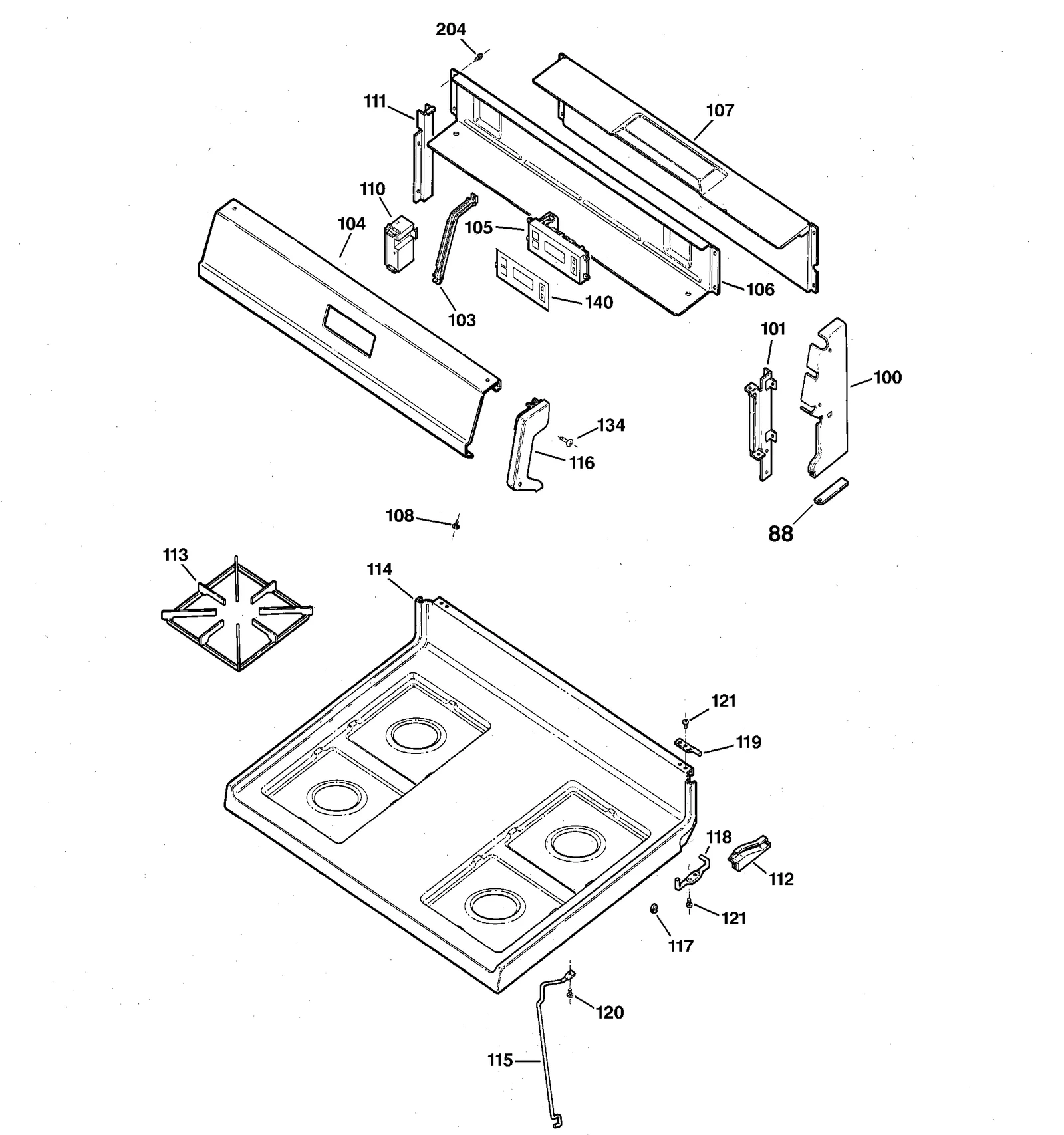

CONTROL PANEL & COOKTOP
Common parts from model GE 362.71671891 Gas Range (Kenmore 36271671891)
2
Range Surface Burner Knob GEN WB03K10010 Contact Us For Availability
2
Range Surface Burner Knob GEN WB03K10013 Contact Us For Availability
88
Felt Pad GEN WB02K0085 Contact Us For Availability
100
End Cover GEN WB07K10001 No Longer Available
100
Range Control Panel Left End Cap (White) GEN WB07K10002 Contact Us For Availability
100
End Cover GEN WB07K10008 Contact Us For Availability
100
End Cover GEN WB07K10009 Contact Us For Availability
101
End Plate GEN WB37K0014 Contact Us For Availability
101
End Plate GEN WB37K0015 Contact Us For Availability
103
Bracket-time GEN WB02K10005 Contact Us For Availability
104
Control Trim GEN WB36K10017 Contact Us For Availability
104
Control Trim GEN WB36K10019 Contact Us For Availability
108
Screw End Cap GEN WB01X5874 Contact Us For Availability
108
Screw GEN WB01X5716 Contact Us For Availability
109
Speed Nut GEN WB01X5743 Contact Us For Availability
111
Wire Cover GEN WB34K0005 Contact Us For Availability
112
Gd Hldr Rgth GEN WB14K0001 Contact Us For Availability
113
Range Surface Burner Grate GEN WB31K10013 Contact Us For Availability
114
Cooktop (ad) GEN WB62K10004 Contact Us For Availability
115
Range Support GEN WB06K0008 Contact Us For Availability
116
Range Control Panel End Cap, Left GEN WB07K10004 Contact Us For Availability
117
Locator Pin GEN WB02K0017 Contact Us For Availability
119
Hinge Pin GEN WB14K0005 Contact Us For Availability
134
Range Screw GEN WB01K10004 Contact Us For Availability
134
Screw-mtg En GEN WB01K10003 Contact Us For Availability
140
Range Oven Control Overlay GEN WB11K10002 Contact Us For Availability
140
Overlay (wh) GEN WB11K10003 Contact Us For Availability
201
Rack Broil P GEN WB48K0002 Contact Us For Availability
202
Broiler Pan GEN WB49K0002 Contact Us For Availability
205
Cvr Bck Pnl GEN WB34K0021 Contact Us For Availability
209
Panel GEN WB63K0050 Contact Us For Availability
209
Panel GEN WB63K0051 Contact Us For Availability
210
Oven GEN WB53K0035 Contact Us For Availability
219
Flame Spread GEN WB49K0044 Contact Us For Availability
220
GROMMET GEN WB02K0008 Contact Us For Availability
222
Hinge Asm Gd GEN WB10K0012 Contact Us For Availability
223
Hinge Pin GEN WB02X6195 Contact Us For Availability
224
Retainer GEN WB02X1082 Contact Us For Availability
225
SHIELD VALVE GEN WB34K0002 Contact Us For Availability
226
Hook Drive Spring GEN WB02K0011 Contact Us For Availability
227
Door Spring GEN WB09K0001 Contact Us For Availability
228
Wire Clip GEN WB02X7066 Contact Us For Availability
229
Hous Receptl GEN WB08K0001 Contact Us For Availability
230
Pushin Receptacle GEN WB08K0002 Contact Us For Availability
232
Range Hinge Bushing GEN WB34K0003 Contact Us For Availability
232
Hnge Grd Lft GEN WB34K0004 Contact Us For Availability
234
Gd Supt Rgtp GEN WB02K0066 Contact Us For Availability
236
Wire Clip GEN WB02K0022 Contact Us For Availability
239
Rear Broiler Panel GEN WB63K0001 Contact Us For Availability
240
Pnl Sd Bro R GEN WB63K0002 Contact Us For Availability
241
Range Bottom GEN WB63K0004 Contact Us For Availability
242
Brace GEN WB63K0005 Contact Us For Availability
243
Base Supp Lf GEN WB63K0007 Contact Us For Availability
243
Support Base GEN WB63K0006 Contact Us For Availability
244
Bracket Glide GEN WB02K0001 Contact Us For Availability
245
Leveling Leg GEN WB02X7701 Contact Us For Availability
246
Weld Frame GEN WB63K0031 Contact Us For Availability
248
Oven GEN WB53K0002 Contact Us For Availability
249
Oven Side Lf GEN WB53K0003 Contact Us For Availability
250
Ov Back 24" GEN WB53K0004 Contact Us For Availability
254
Hinge Screw GEN WB01K0053 Contact Us For Availability
254
Support Rivet GEN WB10K0013 Contact Us For Availability
254
Support Rivet GEN WB10K0014 Contact Us For Availability
256
Vent Gasket GEN WB32K0001 Contact Us For Availability
259
Slide GEN WB39K0001 Contact Us For Availability
259
Slide Bot Lf GEN WB39K0002 Contact Us For Availability
261
Insert Oven Wrap GEN WB35K0001 Contact Us For Availability
301
Hnge Broil L GEN WB10K0006 Contact Us For Availability
302
Broiler Pin GEN WB01K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0007 Contact Us For Availability
303
Slide Brlr P GEN WB39K0008 Contact Us For Availability
304
Broiler Slide GEN WB39K0009 Contact Us For Availability
305
Sprg Broil R GEN WB09K0002 Contact Us For Availability
306
Pnl Drwr Ad GEN WB39K0004 Contact Us For Availability
307
Drawer Liner GEN WB39K0005 Contact Us For Availability
308
Broiler Handle GEN WB15K0015 Contact Us For Availability
308
Broiler Handle GEN WB15K0017 Contact Us For Availability
309
Washer GEN WB01X0560 Contact Us For Availability
315
Liner Asm Wd GEN WB55K0006 Contact Us For Availability
316
Door Handle GEN WB15K0020 Contact Us For Availability
316
Hndl Dr Blk GEN WB15K0024 Contact Us For Availability
323
Cap Handle L GEN WB07K0087 Contact Us For Availability
323
Handle Cap GEN WB07K5339 Contact Us For Availability
324
Cap Handle R GEN WB07K0088 Contact Us For Availability
324
Handle Cap GEN WB07K5338 Contact Us For Availability
330
Reflector GEN WB55K0001 Contact Us For Availability
331
Drawer Insert GEN WB35K0003 Contact Us For Availability
332
Door Insulation GEN WB35K0005 Contact Us For Availability
334
Door Spacer GEN WB02K0013 Contact Us For Availability
335
Spacer GEN WB02K0002 Contact Us For Availability
336
Handle Screw GEN WZ04X0423 Contact Us For Availability
337
Panel Dr Ad GEN WB56K0017 Contact Us For Availability
337
Panel Dr Wh GEN WB56K0018 Contact Us For Availability
347
Crystal Trim GEN WB07K0086 Contact Us For Availability
348
Crystal Clip GEN WB02K0050 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10009 Contact Us For Availability
711
Range Oven Temperature Knob GEN WB03K10011 Contact Us For Availability
× ![]()
