Model Electrolux 253.77137790 Top-Mount Refrigerator (Kenmore 25377137790) – Common Parts & Diagrams
All Parts

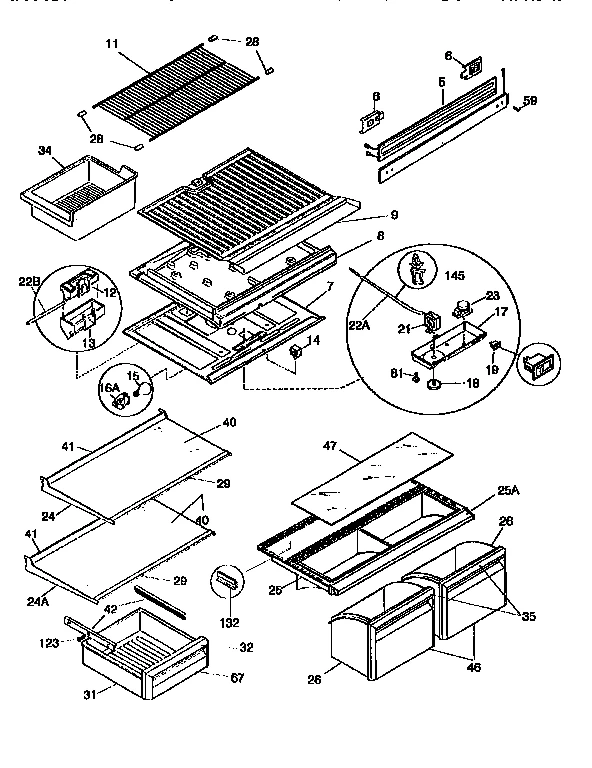

SHELVES AND ACCESSORIES

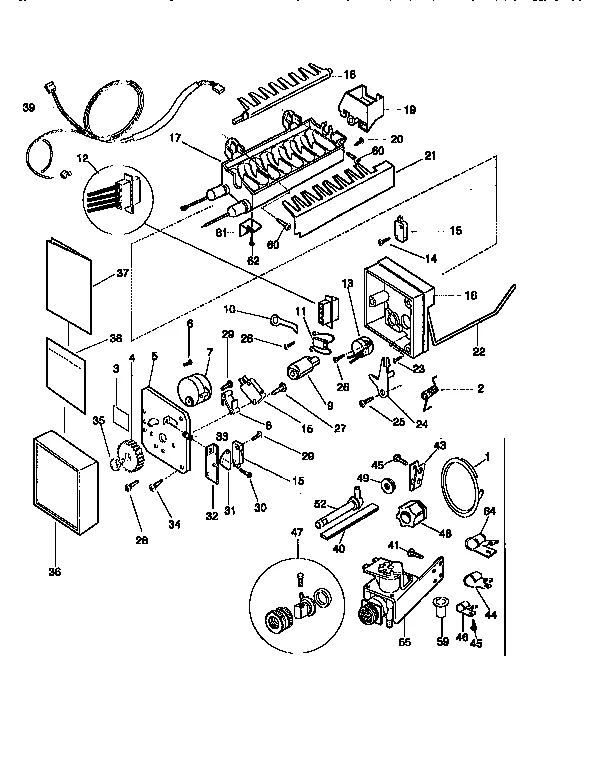

ICEMAKER

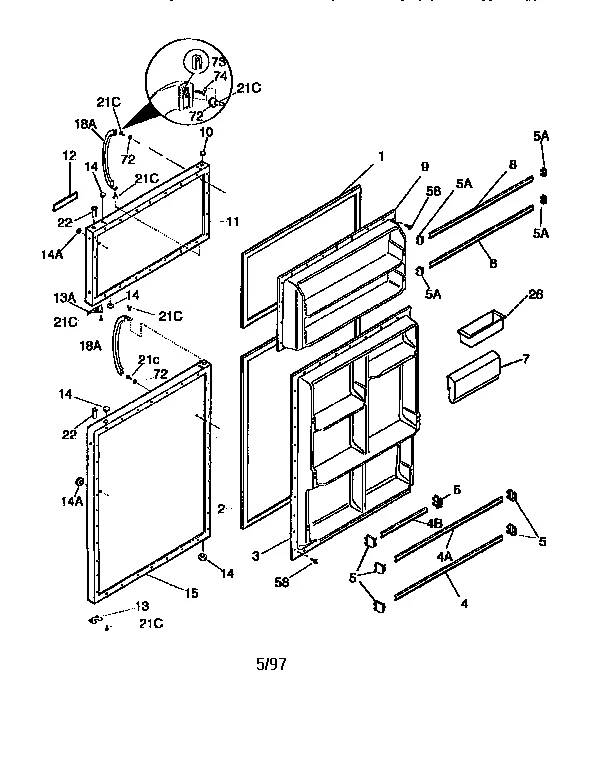

DOORS

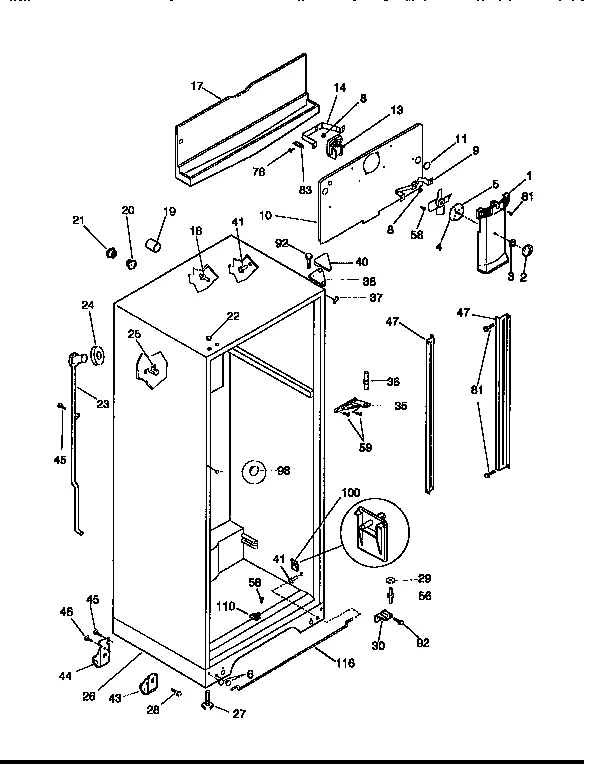

CABINET PARTS

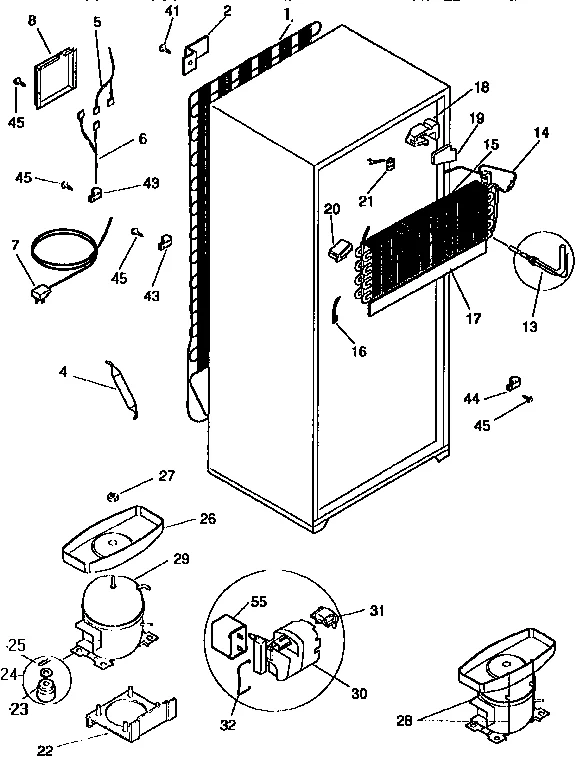

UNIT PARTS
Common parts from model Electrolux 253.77137790 Top-Mount Refrigerator (Kenmore 25377137790)
1
Refrigerator Freezer Gasket WCI 215608903 Contact Us For Availability
1
Refrigerator Fan Cover WCI 5303307435 Contact Us For Availability
1
External Condenser Coil WCI 218657100 Contact Us For Availability
2
Refrigerator Gasket WCI 215732403 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
2
Refrigerator Bracket WCI 5308000296 Contact Us For Availability
2A
Washer WCI 5308009617 Contact Us For Availability
3
Refrigerator Inner Panel WCI 215393201 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
5
Refrigerator Control Box Wire Harness WCI 218767600 Contact Us For Availability
6
Refrigerator Button WCI 5303001389 Contact Us For Availability
6
Refrigerator Wiring Harness WCI 215257001 Contact Us For Availability
7
Refrigerator Dairy Door WCI 215058116 Contact Us For Availability
7
Refrigerator Cord WCI 5316254901 Contact Us For Availability
8
Spacer WCI 3206312 Contact Us For Availability
8
RACK, DOOR (2) WCI 25687411 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
8
Refrigerator Cover WCI 5303001197 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
9
Refrigerator Freezer Inner Panel WCI 215530301 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
10
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
10
Refrigerator Control Cover Evaporator WCI 218802800 Contact Us For Availability
11
Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability
11
Refrigerator Freezer Panel WCI 5303917811 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3203649 Contact Us For Availability
12
Kenmore Logo WCI 216482502 Contact Us For Availability
12A
Refrigerator Ice Maker Wire Harness Connector WCI 3206321 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability
13
Refrigerator Door Stop WCI 5303212491 Contact Us For Availability
13
Refrigerator Heat Exchange WCI 215076402 Contact Us For Availability
13A
Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability
14
Refrigerator Ice Maker Motor Screw WCI 3206323 Contact Us For Availability
14
Refrigerator Door Hinge Hole Plug WCI 5308000181 Contact Us For Availability
14
Refrigerator Bracket WCI 5303205119 Contact Us For Availability
14A
Refrigerator Button Plug WCI 215352211 Contact Us For Availability
15
Refrigerator Door Panel WCI 5303917813 Contact Us For Availability
15
Refrigerator Evaporator WCI 218765400 Contact Us For Availability
16
Support WCI 3206326 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Trough WCI 5303001470 Contact Us For Availability
18
Ejector WCI 3206328 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
18
Kelvinator Refrigerator Insulation Block, Rig WCI 218773700 Contact Us For Availability
18A
Refrigerator Door Handle WCI 218397502 Contact Us For Availability
19
Bearing WCI 3206330 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
19
Refrigerator Plug WCI 5303007287 Contact Us For Availability
20
Screw WCI 3206331 Contact Us For Availability
20
Refrigerator Ferrule WCI 5303001286 Contact Us For Availability
20
Refrigerator Block WCI 5308017227 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
21
Refrigerator Ferrule WCI 5303001287 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22
Arm WCI 3206333 Contact Us For Availability
22
Refrigerator Plate WCI 5308013663 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
23
Screw WCI 3206334 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Refrigerator Washer WCI 5308003633 Contact Us For Availability
25
Screw WCI 3206336 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
25
Refrigerator Compressor Mounting Clip WCI 5308003596 Contact Us For Availability
26
Screw WCI 3206337 Contact Us For Availability
26
Refrigerator Egg Bin WCI 3204522 Contact Us For Availability
26
Refrigerator Cabinet Base WCI 218605102 Contact Us For Availability
26
Defrost Drai WCI 215372500 Contact Us For Availability
27
Refrigerator Level Screw WCI 5303212922 Contact Us For Availability
27
Screw WCI 3206338 Contact Us For Availability
27
Refrigerator Nut WCI 5303001348 Contact Us For Availability
28
Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
28
Screw WCI 3206339 Contact Us For Availability
28
Refrigerator Bolt WCI 5303271412 Contact Us For Availability
29
Screw WCI 3206340 Contact Us For Availability
29
Washer WCI 218666700 Contact Us For Availability
29A
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
30
Screw WCI 3206341 Contact Us For Availability
30
Refrigerator Lower Bracket WCI 218220200 Contact Us For Availability
30
Freezer Compressor Start Relay WCI 216008900 Contact Us For Availability
30A
Tapping Plate WCI 218605300 Contact Us For Availability
30B
Tapping Plate WCI 218605200 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
31
Overload WCI 5303299560 Contact Us For Availability
32
Refrigerator Ice Maker Fill Switch Bracket WCI 3206343 Contact Us For Availability
32
Refrigerator Overload Relay Cover Clamp WCI 215012000 Contact Us For Availability
33
Spring WCI 3206344 Contact Us For Availability
34
Screw WCI 3206345 Contact Us For Availability
35
Screw WCI 3206346 Contact Us For Availability
35
Refrigerator Bracket WCI 218220102 Contact Us For Availability
36
Cover WCI 3206347 Contact Us For Availability
37
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37
Technical Data Sheet WCI 5303320544 Contact Us For Availability
38
Envelope WCI 5303207445 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
38A
Refrigerator Plate WCI 5308012296 Contact Us For Availability
39
Refrigerator Wire Harness WCI 3206358 Contact Us For Availability
40
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
43
Refrigerator Roller Assembly WCI 218703001 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 218713600 Contact Us For Availability
46
Refrigerator Crisper Drawer Panel, Front WCI 215363406 Contact Us For Availability
46
Refrigerator Screw WCI 5308009762 Contact Us For Availability
47
Refrigerator Water Inlet Valve Connection WCI 3206360 Contact Us For Availability
47
Refrigerator Shelf Mounting Channel WCI 218233300 Contact Us For Availability
48
Nut WCI 5308000200 Contact Us For Availability
52
Water Tube WCI 218462000 Contact Us For Availability
55
Refrigerator Water Valve WCI 218720300 Contact Us For Availability
55A
Refrigerator Ice Maker Water Inlet Valve Cap WCI 5303015102 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
58
Refrigerator Door Inner Liner Screw WCI 218749600 Contact Us For Availability
59
Sleeve WCI 5303001191 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
110
Refrigerator Crisper Drawer Cover Support Stu WCI 215363501 Contact Us For Availability
116
Refrigerator Crisper Drawer Support Rod WCI 215426703 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
× ![]()
