Model Electrolux 253.77132790 Top-Mount Refrigerator (Kenmore 25377132790) – Common Parts & Diagrams

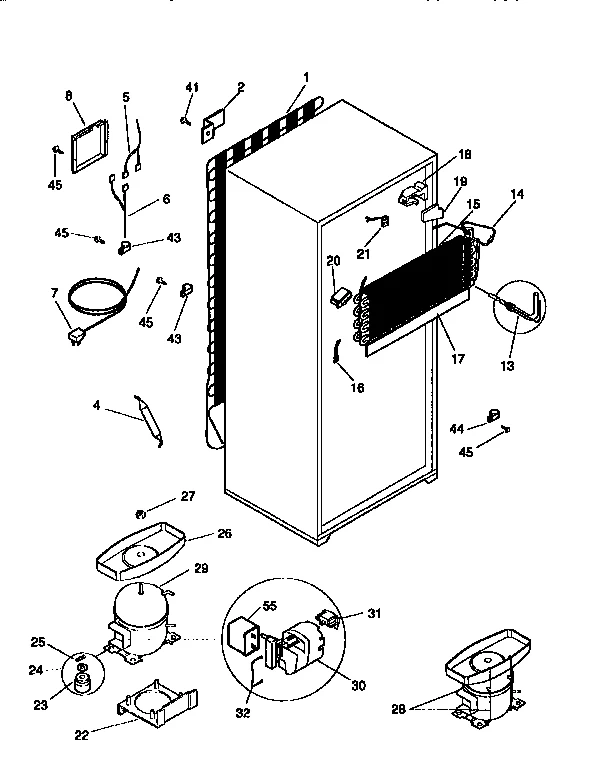

UNIT PARTS
ICEMAKER

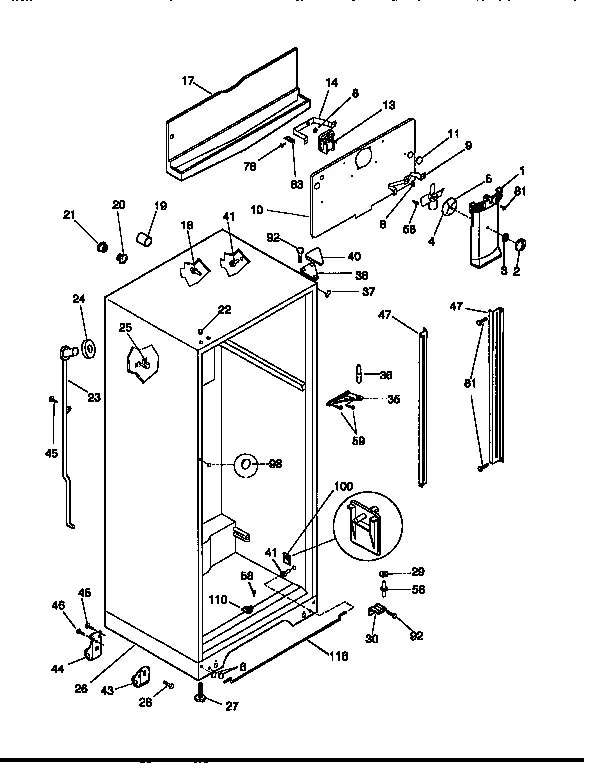

CABINET PARTS
All Parts

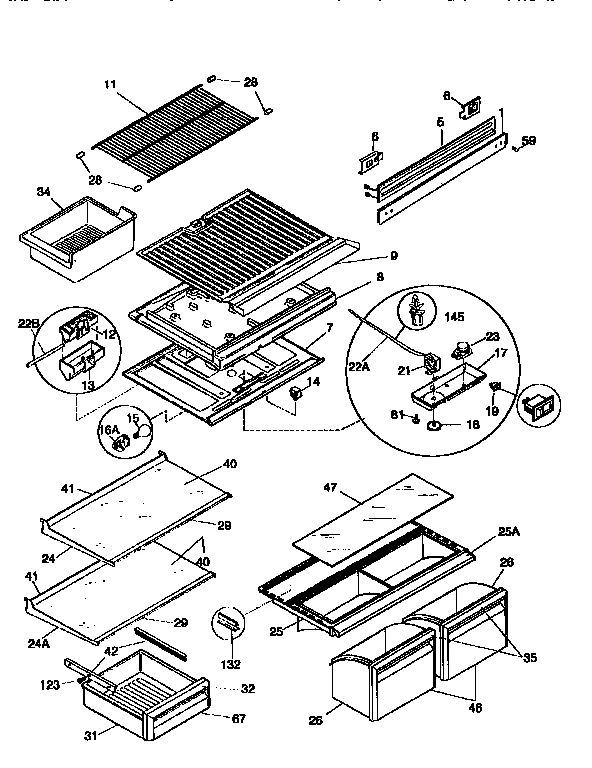

SHELVES AND ACCESSORIES

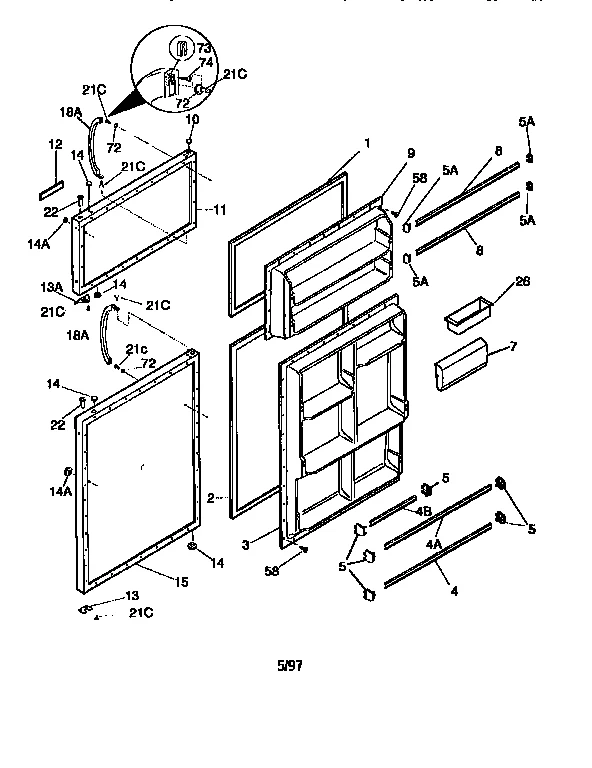

DOORS
Common parts from model Electrolux 253.77132790 Top-Mount Refrigerator (Kenmore 25377132790)
1
Refrigerator Fan Cover WCI 5303307435 Contact Us For Availability
1
Refrigerator Mullion WCI 218651900 Contact Us For Availability
1
Refrigerator Freezer Gasket WCI 215608913 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
2
Refrigerator Gasket WCI 215732413 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
3
Refrigerator Inner Panel WCI 215393201 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
5
Heater Mullion WCI 218781002 Contact Us For Availability
6
Refrigerator Button (White) WCI 5303001388 Contact Us For Availability
6
Tapping Plate WCI 218279800 Contact Us For Availability
7
Top Panel-re WCI 218738800 Contact Us For Availability
7
Refrigerator Dairy Door WCI 215058116 Contact Us For Availability
7A
Refrigerator Screw WCI 5303001380 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
8
Refrigerator Divider WCI 218781400 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
9
Frz Bottom WCI 5303210641 Contact Us For Availability
9
Refrigerator Freezer Inner Panel WCI 215530301 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10
Refrigerator Control Cover Evaporator WCI 218802800 Contact Us For Availability
11
Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability
11
Refrigerator Freezer Shelf WCI 5303288243 Contact Us For Availability
11
Refrigerator Freezer Panel WCI 5303917810 Contact Us For Availability
11A
Refrigerator Spacer WCI 218159700 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness WCI 3206349 Contact Us For Availability
12
Refrigerator Nameplate WCI 216482501 Contact Us For Availability
12A
Refrigerator Ice Maker Wire Harness Connector WCI 3206321 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability
13
Refrigerator Door Stop WCI 5303212491 Contact Us For Availability
13A
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
14
Refrigerator Bracket WCI 5303205119 Contact Us For Availability
15
Refrigerator Door Panel WCI 5303917812 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Trough WCI 5303001470 Contact Us For Availability
17
Refrigerator Control Box WCI 5303321455 Contact Us For Availability
17A
Refrigerator Nut Anchor WCI 5308016567 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18A
Refrigerator Door Handle WCI 218397501 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
20
Refrigerator Ferrule WCI 5303001286 Contact Us For Availability
21
Refrigerator Ferrule WCI 5303001287 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Frame-full S WCI 215919117 Contact Us For Availability
24A
Meat Keeper Frame WCI 215919122 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
25
Refrigerator Crisper Cover WCI 215363203 Contact Us For Availability
25A
Refrigerator Crisper Trim WCI 5303325637 Contact Us For Availability
26
Refrigerator Cabinet Base WCI 218605101 Contact Us For Availability
26
Refrigerator Crisper Pan WCI 215363301 Contact Us For Availability
26
Refrigerator Egg Bin WCI 3204522 Contact Us For Availability
27
Refrigerator Level Screw WCI 5303212922 Contact Us For Availability
27
Screw WCI 3206338 Contact Us For Availability
28
Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
28
Screw WCI 3206339 Contact Us For Availability
28
Refrigerator Bolt WCI 5303271412 Contact Us For Availability
29
Screw WCI 3206340 Contact Us For Availability
29
Washer WCI 218666700 Contact Us For Availability
29
Trim-refr Sh WCI 215919405 Contact Us For Availability
29A
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
30
Screw WCI 3206341 Contact Us For Availability
30
Refrigerator Lower Bracket WCI 218220200 Contact Us For Availability
30A
Tapping Plate WCI 218605300 Contact Us For Availability
30B
Tapping Plate WCI 218605200 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Refrigerator Ice Maker Fill Switch Bracket WCI 3206343 Contact Us For Availability
32
Refrigerator Deli Drawer Trim WCI 5303307361 Contact Us For Availability
33
Spring WCI 3206344 Contact Us For Availability
34
Screw WCI 3206345 Contact Us For Availability
35
Screw WCI 3206346 Contact Us For Availability
35
Refrigerator Bracket WCI 218220101 Contact Us For Availability
35
Refrigerator Crisper Trim WCI 5303325636 Contact Us For Availability
36
Cover WCI 3206347 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37
Technical Data Sheet WCI 5303320544 Contact Us For Availability
38
Envelope WCI 5303207445 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
38A
Refrigerator Plate WCI 5308012296 Contact Us For Availability
39
Refrigerator Wire Harness WCI 3206358 Contact Us For Availability
40
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
40
Refrigerator Glass Shelf WCI 215723583 Contact Us For Availability
41
Trim-full Sh WCI 215919805 Contact Us For Availability
43
Refrigerator Roller Assembly WCI 218703001 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 218713600 Contact Us For Availability
46
Refrigerator Crisper Drawer Panel, Front WCI 215363406 Contact Us For Availability
46
Refrigerator Screw WCI 5308009762 Contact Us For Availability
47
Refrigerator Water Inlet Valve Connection WCI 3206360 Contact Us For Availability
47
Refrigerator Shelf Mounting Channel WCI 218233300 Contact Us For Availability
47
Refrigerator Insert Control Panel WCI 215723585 Contact Us For Availability
48
Nut WCI 5308000200 Contact Us For Availability
52
Water Tube WCI 218462000 Contact Us For Availability
55
Refrigerator Water Valve WCI 218720300 Contact Us For Availability
55A
Refrigerator Ice Maker Water Inlet Valve Cap WCI 5303015102 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
58
Refrigerator Door Inner Liner Screw WCI 218749600 Contact Us For Availability
59
Sleeve WCI 5303001191 Contact Us For Availability
67
Refrigerator Deli Drawer Front Cover WCI 5303307363 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
110
Refrigerator Crisper Drawer Cover Support Stu WCI 215363501 Contact Us For Availability
116
Refrigerator Crisper Drawer Support Rod WCI 215426703 Contact Us For Availability
132
Crisper Support WCI 215426600 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Owner's Manual WCI 218651100 Contact Us For Availability
NI
Technical Data Sheet WCI 218755000 Contact Us For Availability
NI
Hot Tube WCI 5300189383 Contact Us For Availability
NI
Refrigerator Label WCI 5303270944 Contact Us For Availability
NI
Refrigerator Repair Parts List WCI 5995295697 Contact Us For Availability
× ![]()
