Model Electrolux 253.69132990 Top-Mount Refrigerator (Kenmore 25369132990) – Common Parts & Diagrams

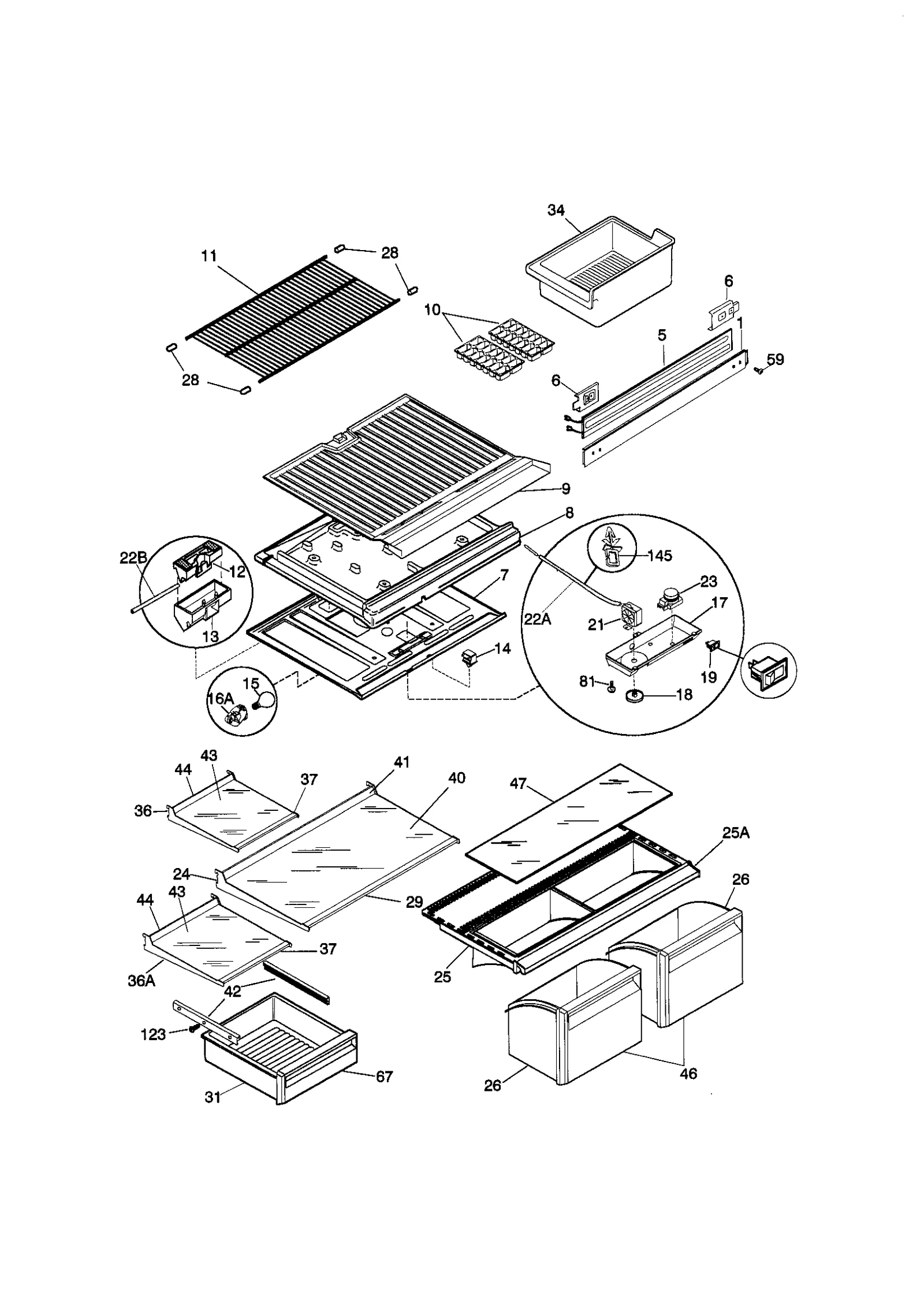

SHELVES

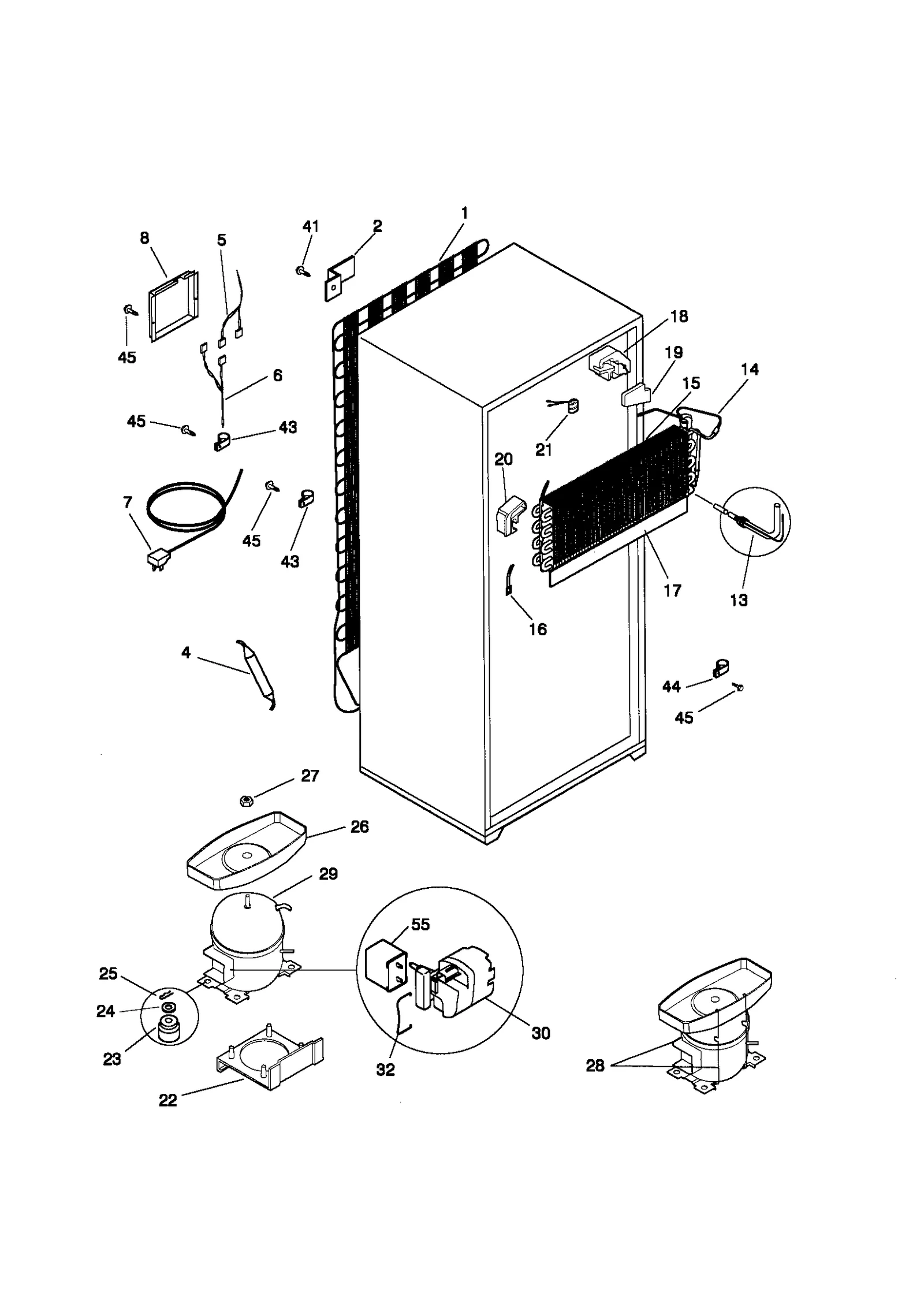

SYSTEM

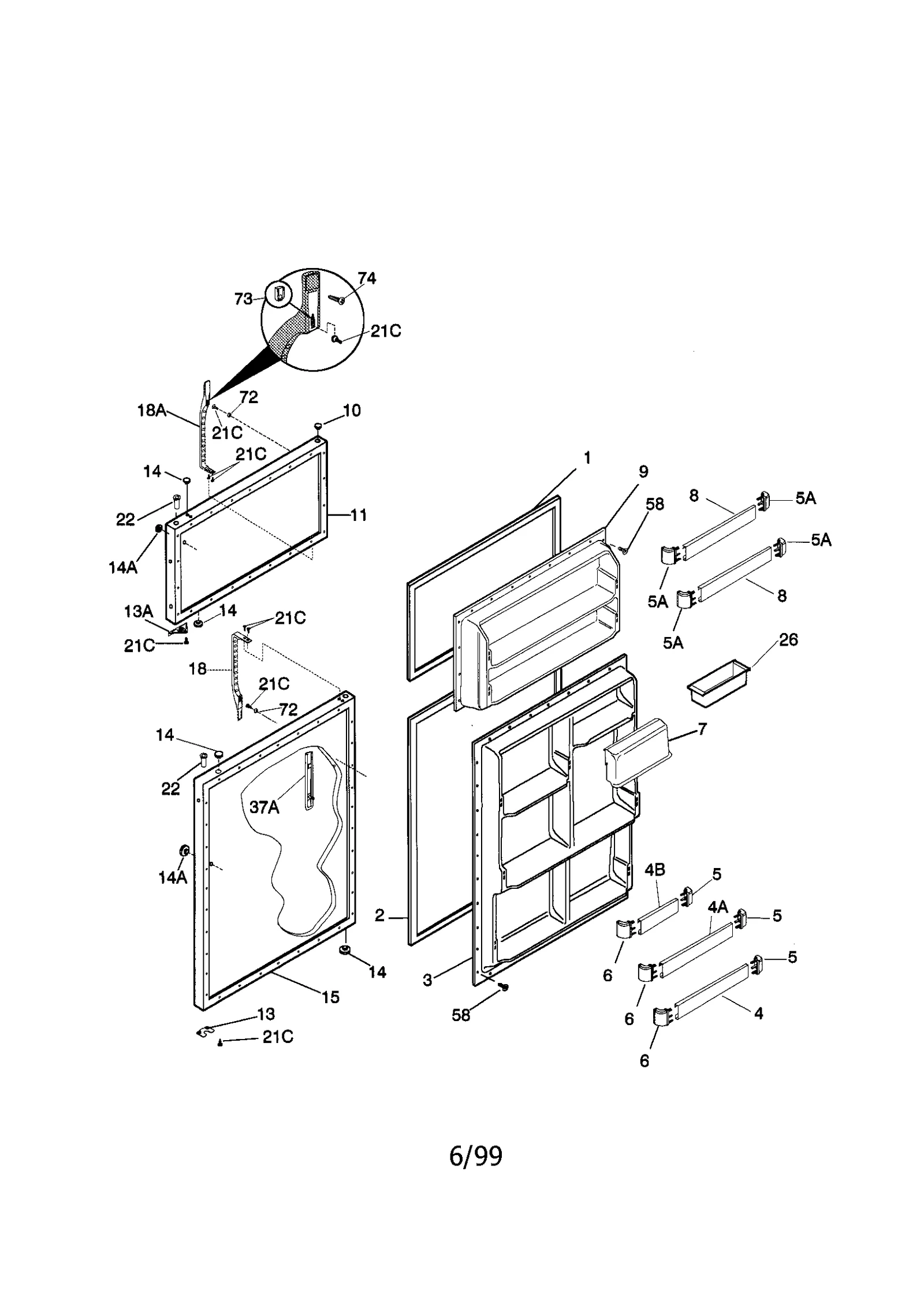

DOOR
All Parts

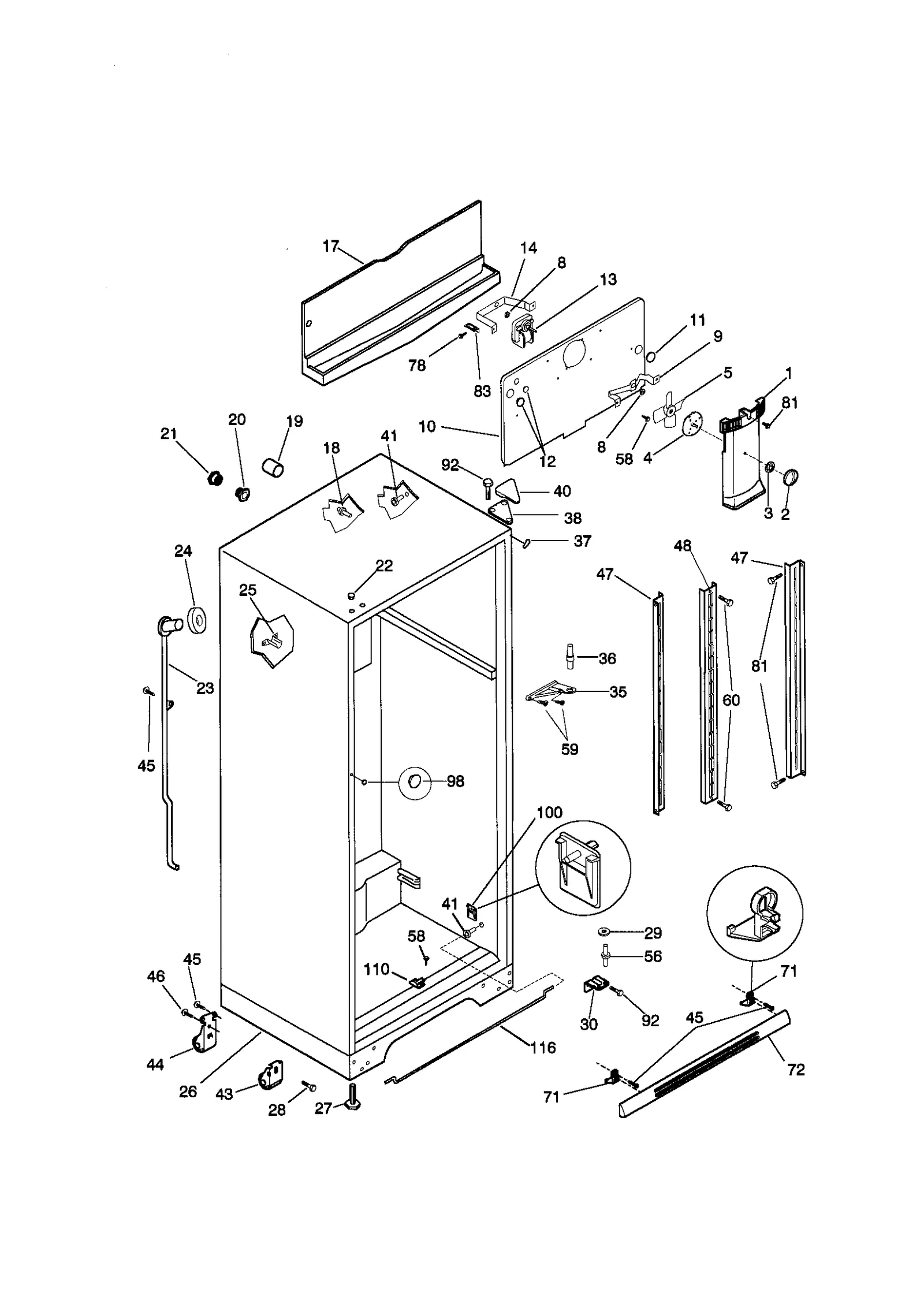

CABINET
Common parts from model Electrolux 253.69132990 Top-Mount Refrigerator (Kenmore 25369132990)
1
Refrigerator Freezer Gasket WCI 215608913 Contact Us For Availability
1
Kelvinator Refrigerator Fan Cover WCI 5304402655 Contact Us For Availability
1A
Refrigerator Freezer Gasket WCI 215608903 Contact Us For Availability
2
Kelvinator Refrigerator Door Gasket (White) WCI 218730609 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
2A
Refrigerator Door Gasket (Almond) WCI 218730610 Contact Us For Availability
3
Refrigerator Inner Panel WCI 215393201 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
4A
Refrigerator Door Rack WCI 218763633 Contact Us For Availability
4B
Ff Door Rack WCI 218763632 Contact Us For Availability
7
Refrigerator Dairy Door WCI 215058116 Contact Us For Availability
8
Refrigerator Freezer Door Rack WCI 218763635 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
9
Refrigerator Freezer Inner Panel WCI 215530301 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10
Refrigerator Control Cover Evaporator WCI 218802800 Contact Us For Availability
10A
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10A
Refrigerator Nut WCI 5303209814 Contact Us For Availability
11
Refrigerator Freezer Door Panel WCI 5303918009 Contact Us For Availability
11A
Refrigerator Freezer Door Panel WCI 5303918010 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
13
Refrigerator Evaporator Fan Motor WCI 218878801 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Door Stop WCI 218800300 Contact Us For Availability
13A
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
13AA
Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
14AA
Refrigerator Button Plug WCI 215352211 Contact Us For Availability
14B
Refrigerator Button Plug WCI 218915702 Contact Us For Availability
15
Rr Dr Panel WCI 5303917999 Contact Us For Availability
15A
Out Door Panel WCI 5303918000 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Trough WCI 5303001470 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
18A
Refrigerator Freezer Handle WCI 218779804 Contact Us For Availability
18AA
Refrigerator Handle WCI 218779805 Contact Us For Availability
18AB
Refrigerator Door Handle WCI 218778201 Contact Us For Availability
18AC
Refrigerator Door Handle WCI 218778202 Contact Us For Availability
18B
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
20
Refrigerator Ferrule WCI 5303001286 Contact Us For Availability
21
Refrigerator Ferrule WCI 5303001287 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22A
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
26
Refrigerator Egg Bin WCI 3204522 Contact Us For Availability
26
Refrigerator Cabinet Base WCI 218605101 Contact Us For Availability
26A
Refrigerator Cabinet Base WCI 218605102 Contact Us For Availability
27
Refrigerator Level Screw WCI 5303212922 Contact Us For Availability
28
Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
28
Refrigerator Bolt WCI 5303271412 Contact Us For Availability
29
Washer WCI 218666700 Contact Us For Availability
29A
Refrigerator Door Hinge Pin Washer WCI 218875801 Contact Us For Availability
30
Kelvinator Refrigerator Compressor Overload a WCI 218721101 Contact Us For Availability
30
Refrigerator Lower Bracket WCI 218220202 Contact Us For Availability
30A
Tapping Plate WCI 218605200 Contact Us For Availability
30B
Tapping Plate WCI 218605300 Contact Us For Availability
35
Refrigerator Bracket WCI 218220101 Contact Us For Availability
35A
Refrigerator Bracket WCI 218220102 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37A
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
37A
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37AA
Lo Trim Hand WCI 218771202 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
38A
Refrigerator Plate WCI 5308012296 Contact Us For Availability
40
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
40A
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
43
Refrigerator Roller Assembly WCI 218703001 Contact Us For Availability
43A
Refrigerator Spring WCI 5308009790 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 218713600 Contact Us For Availability
46
Refrigerator Crisper Drawer Panel, Front WCI 215363406 Contact Us For Availability
46
Refrigerator Screw WCI 5308009762 Contact Us For Availability
47
Refrigerator Shelf Mounting Channel WCI 218233300 Contact Us For Availability
48
Refrigerator Shelf Channel WCI 5303292395 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
58
Refrigerator Door Inner Liner Screw WCI 218749600 Contact Us For Availability
71
Refrigerator Mounting Clip WCI 218896704 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
72
Refrigerator Kick Plate WCI 218896501 Contact Us For Availability
72A
Refrigerator Kick Plate WCI 218896502 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
98A
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
110
Refrigerator Crisper Drawer Cover Support Stu WCI 215363501 Contact Us For Availability
116
Refrigerator Crisper Drawer Support Rod WCI 215426703 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Sound Cover WCI 218905701 Contact Us For Availability
NI
Technical Data Sheet WCI 218755000 Contact Us For Availability
NI
Refrigerator Owner's Manual WCI 218905300 Contact Us For Availability
NI
Hot Tube WCI 5300189383 Contact Us For Availability
NI
Refrigerator Label WCI 5303270944 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Refrigerator Repair Parts List WCI 5995317558 Contact Us For Availability
× ![]()
