Model Electrolux 253.688087990 Top-Mount Refrigerator (Kenmore 253688087990) – Common Parts & Diagrams
All Parts

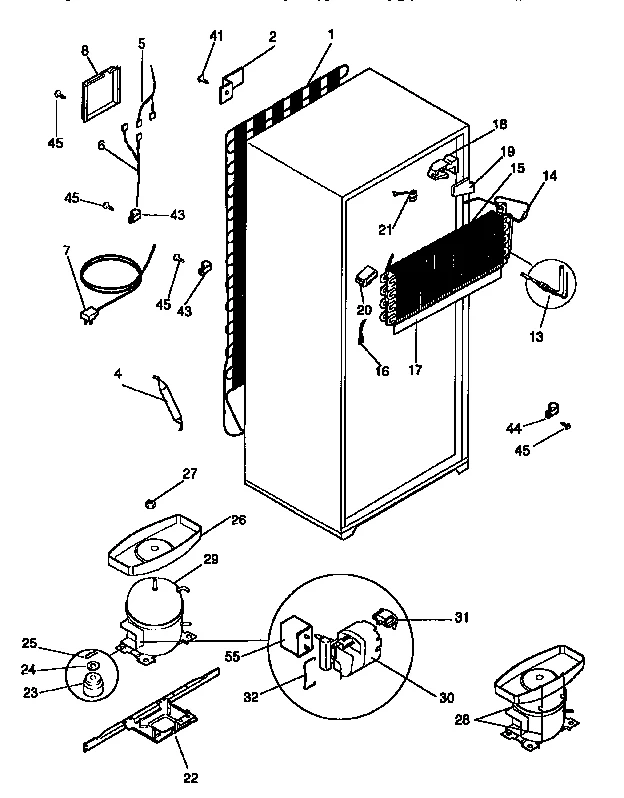

UNIT PARTS

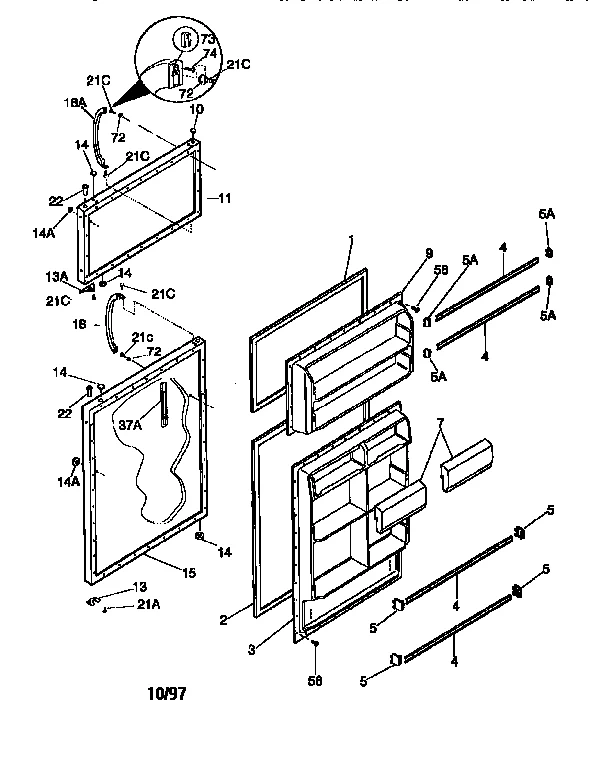

DOORS

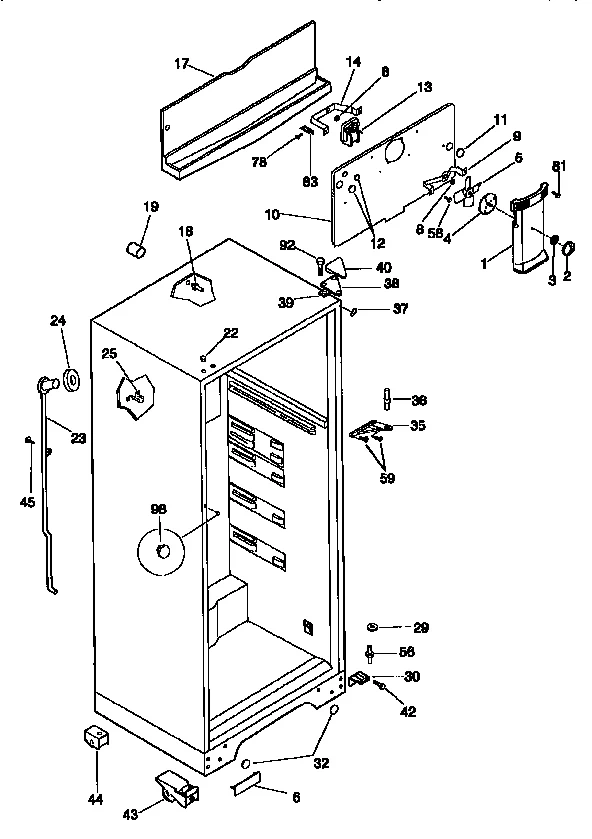

CABINET PARTS

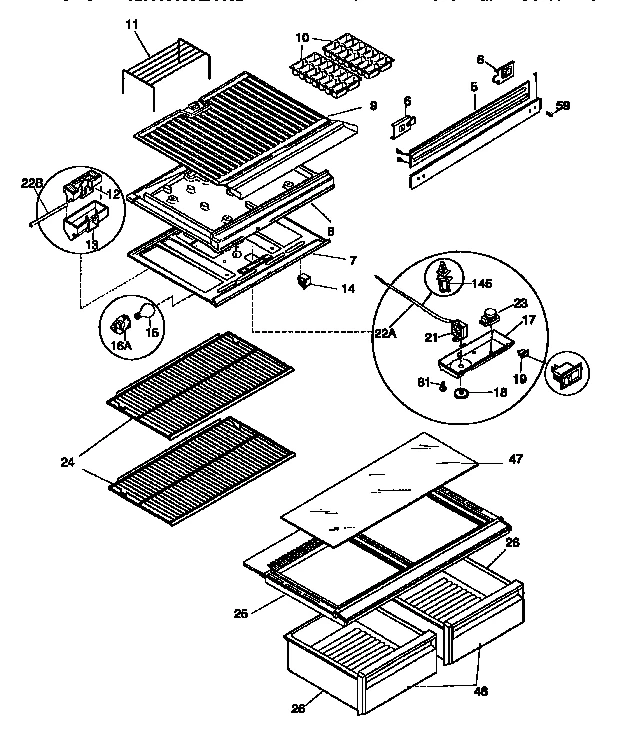

SHELVES AND ACCESSORIES
Common parts from model Electrolux 253.688087990 Top-Mount Refrigerator (Kenmore 253688087990)
1
Refrigerator Fan Cover WCI 218672501 Contact Us For Availability
1
Refrigerator Mullion WCI 218430811 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
3
Refrigerator Inner Panel WCI 218360001 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
5
Heater Mullion WCI 218271403 Contact Us For Availability
6
Refrigerator Cover WCI 218448302 Contact Us For Availability
6
Tapping Plate WCI 218279800 Contact Us For Availability
7
Refrigerator Dairy Bin Cover WCI 218287801 Contact Us For Availability
7
Refrigerator Panel WCI 218814800 Contact Us For Availability
7A
Refrigerator Screw WCI 5303001380 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
8
Foam Divider WCI 218814600 Contact Us For Availability
8A
Refrigerator Harness WCI 3018900 Contact Us For Availability
9
Refrigerator Inner Panel WCI 218360101 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
9
Bottom Freezer Panel WCI 218814700 Contact Us For Availability
10
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10
Refrigerator Cover WCI 3206451 Contact Us For Availability
10A
Refrigerator Nut WCI 5303209814 Contact Us For Availability
11
Refrigerator Freezer Door Panel WCI 5303917964 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Door Stop WCI 5308000255 Contact Us For Availability
13A
Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability
14
Refrigerator Door Hinge Hole Plug WCI 5308000181 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
14A
Refrigerator Button Plug WCI 218110902 Contact Us For Availability
15
Refrigerator Drive Panel WCI 5303917994 Contact Us For Availability
17
Refrigerator Drain Trough WCI 218725700 Contact Us For Availability
17
Refrigerator Control Box WCI 5303321455 Contact Us For Availability
17A
Refrigerator Nut Anchor WCI 5308016567 Contact Us For Availability
18
Refrigerator Door Handle (Charcoal Gray) WCI 218779903 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18A
Refrigerator Door Handle WCI 218779803 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
21A
Refrigerator Screw WCI 218251900 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Tube WCI 218731101 Contact Us For Availability
23
Refrigerator Drain Tube WCI 5303269702 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Refrigerator Sliding Shelf WCI 5303307451 Contact Us For Availability
25
Refrigerator Crisper Drawer Cover Frame WCI 5303207340 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
29
Washer WCI 5308000007 Contact Us For Availability
30
Refrigerator Bracket WCI 3206136 Contact Us For Availability
30A
Tapping Plate WCI 215882300 Contact Us For Availability
30B
Refrigerator Door Hinge Shim, Lower WCI 218368500 Contact Us For Availability
32
Refrigerator Button Plug WCI 215217703 Contact Us For Availability
35
Refrigerator Bracket WCI 218220102 Contact Us For Availability
37
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37A
Refrigerator Door Handle Trim Cap (Black) WCI 218771203 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
39
Refrigerator Shim WCI 5303001037 Contact Us For Availability
40
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
43
Refrigerator Roller WCI 218724000 Contact Us For Availability
43A
Refrigerator Roller WCI 218703002 Contact Us For Availability
43B
Refrigerator Screw WCI 5308009761 Contact Us For Availability
43C
Refrigerator Spring WCI 5308009790 Contact Us For Availability
43D
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 5303283014 Contact Us For Availability
46
Tappan Refrigerator Crisper Drawer Front WCI 5303304709 Contact Us For Availability
47
Refrigerator Insert WCI 5303207339 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
× ![]()
