Model Electrolux 253.60137994 Refrigerator (Kenmore 25360137994) – Common Parts & Diagrams

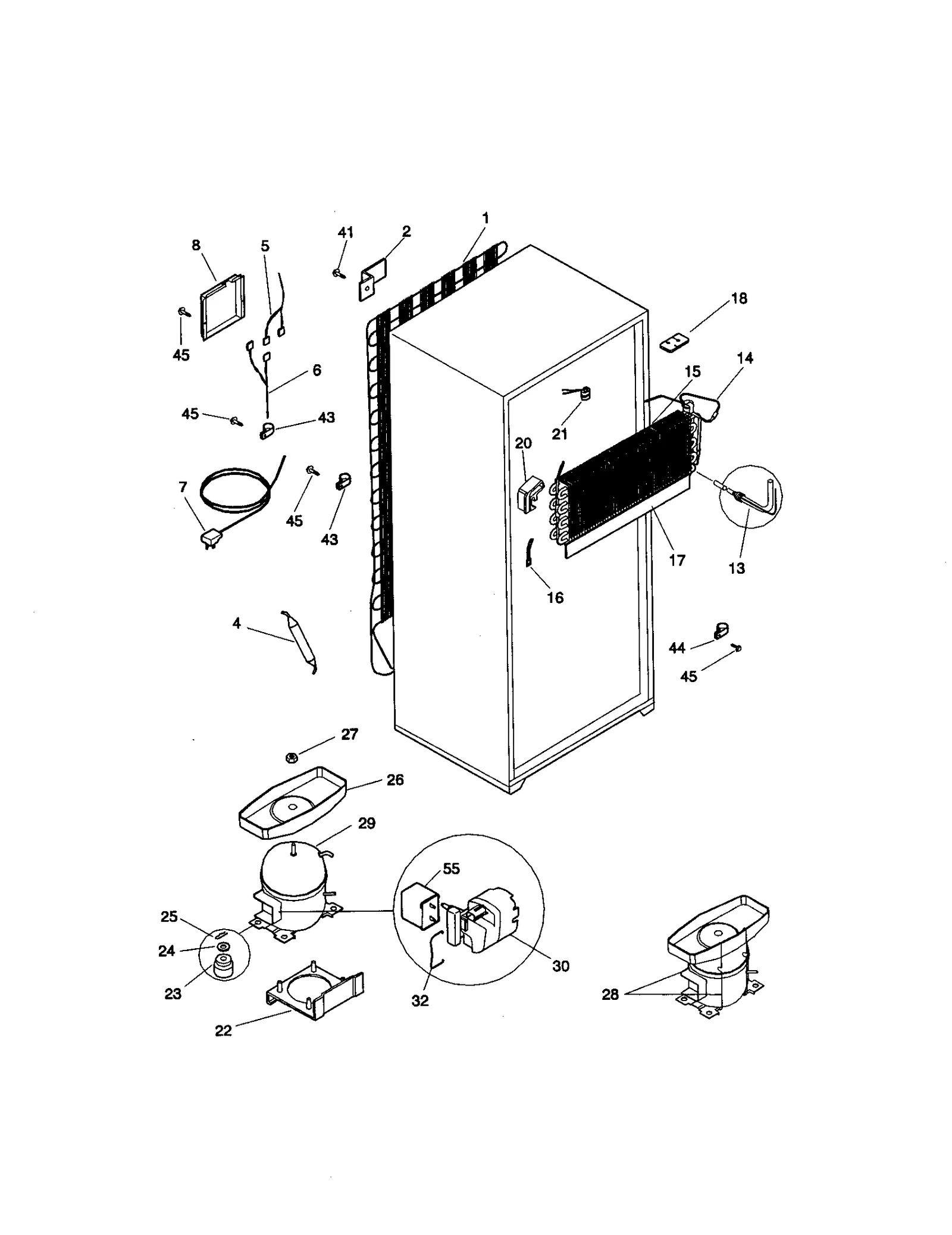

SYSTEM

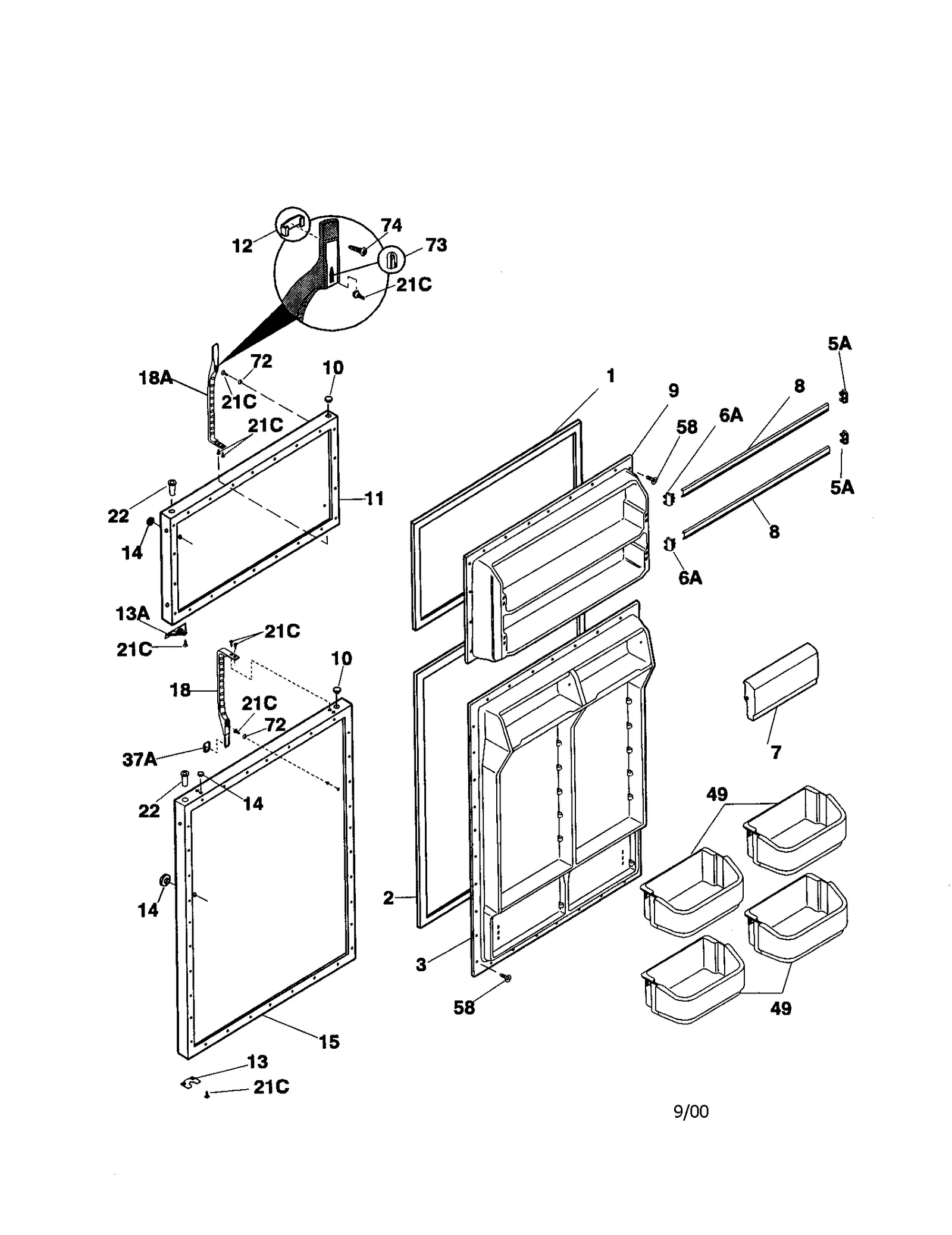

DOOR

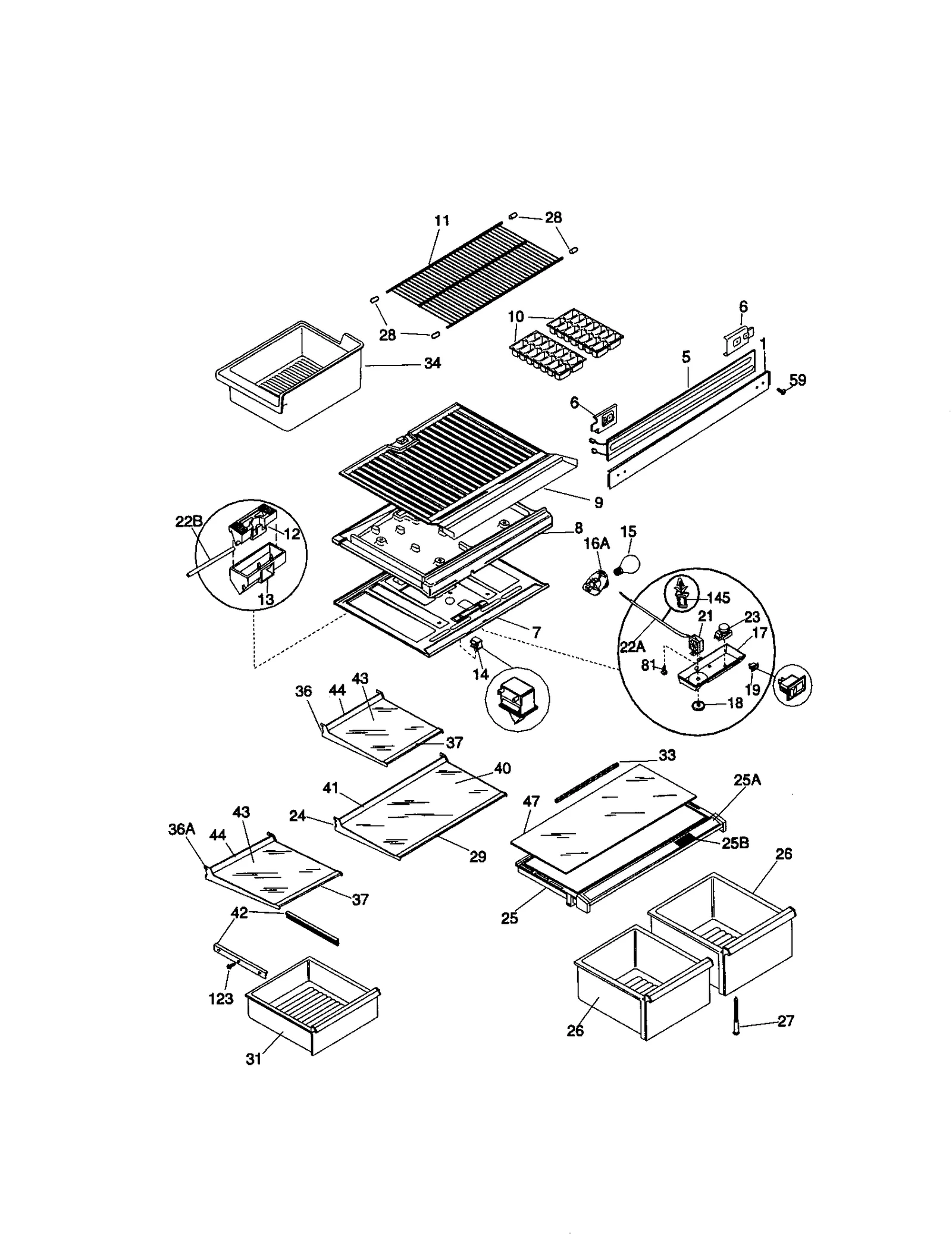

SHELVES
All Parts

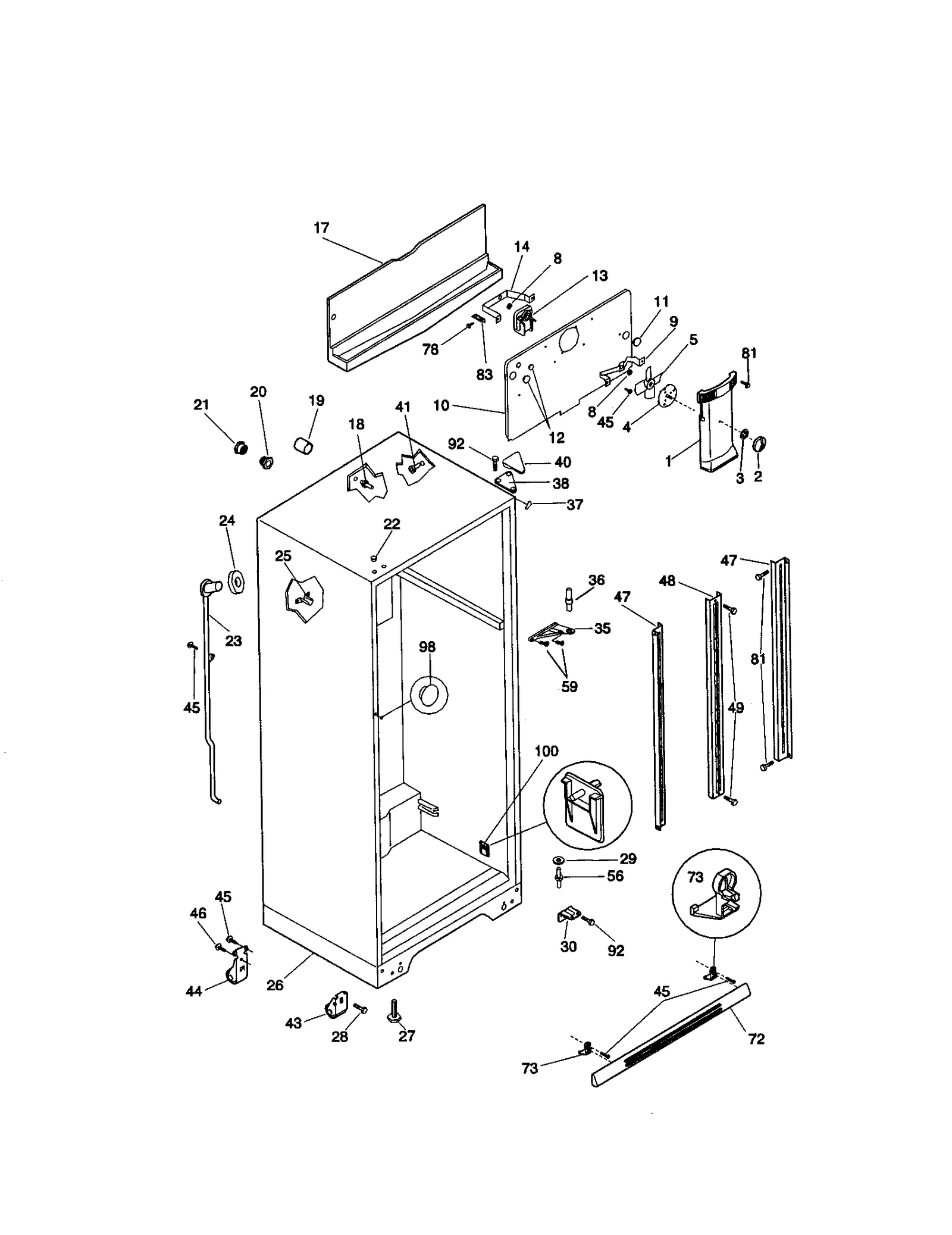

CABINET
Common parts from model Electrolux 253.60137994 Refrigerator (Kenmore 25360137994)
1
Kelvinator Refrigerator Fan Cover WCI 5304402655 Contact Us For Availability
2
Kelvinator Refrigerator Door Gasket (White) WCI 218730609 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
8
Refrigerator Divider WCI 218909706 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
8A
Refrigerator Electronic Harness WCI 218878600 Contact Us For Availability
9
Refrigerator Freezer Bottom Panel WCI 218865900 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10
Refrigerator Control Cover Evaporator WCI 218973801 Contact Us For Availability
10A
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
11
Refrigerator Freezer Shelf WCI 5303288243 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
13
Refrigerator Evaporator Fan Motor WCI 218878801 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13A
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
17
Refrigerator Control Box WCI 5304414816 Contact Us For Availability
17
Refrigerator Drain Trough WCI 218974001 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
18A
Refrigerator Freezer Handle WCI 218779804 Contact Us For Availability
18B
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
20
Refrigerator Ferrule WCI 5303001286 Contact Us For Availability
21
Refrigerator Ferrule WCI 5303001287 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22A
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Frame-full S WCI 215919117 Contact Us For Availability
25
Refrigerator Crisper Cover WCI 5303206538 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
25A
Refrigerator Crisper Trim WCI 5304413858 Contact Us For Availability
25B
Refrigerator Humidity Control WCI 5303301490 Contact Us For Availability
26
R Crisper Pn WCI 218884502 Contact Us For Availability
26
Refrigerator Cabinet Base WCI 218605101 Contact Us For Availability
26A
Refrigerator Crisper Drawer, Left WCI 218884611 Contact Us For Availability
26A
Refrigerator Cabinet Base WCI 218605102 Contact Us For Availability
27
Refrigerator Crisper Drawer Cover Support Pos WCI 5303205987 Contact Us For Availability
27
Refrigerator Level Screw WCI 5303212922 Contact Us For Availability
28
Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
28
Refrigerator Bolt WCI 5303271412 Contact Us For Availability
29
Trim-refr Sh WCI 215919405 Contact Us For Availability
29
Refrigerator Door Hinge Pin Washer WCI 218875801 Contact Us For Availability
30
Refrigerator Compressor Start Relay WCI 218721108 Contact Us For Availability
30
Refrigerator Lower Bracket WCI 218220203 Contact Us For Availability
30A
Tapping Plate WCI 218605200 Contact Us For Availability
30B
Tapping Plate WCI 218605300 Contact Us For Availability
31
Refrigerator Meat Pan WCI 218884402 Contact Us For Availability
33
Crisper Gasket WCI 5303200329 Contact Us For Availability
35
Refrigerator Bracket WCI 218220101 Contact Us For Availability
35A
Refrigerator Bracket WCI 218220102 Contact Us For Availability
36
Frame-half S WCI 215919115 Contact Us For Availability
36A
Frame-half S WCI 215919175 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37
Refrigerator Shelf Trim WCI 215919411 Contact Us For Availability
37A
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
37A
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
40
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
40
Refrigerator Glass Shelf WCI 218498144 Contact Us For Availability
40A
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
41
Trim-full Sh WCI 215919805 Contact Us For Availability
43
Refrigerator Glass Shelf WCI 218498168 Contact Us For Availability
43
Refrigerator Roller Assembly WCI 218703001 Contact Us For Availability
43A
Refrigerator Spring WCI 5308009790 Contact Us For Availability
44
Trim-half Sh WCI 215919811 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 218713600 Contact Us For Availability
46
Refrigerator Screw WCI 5308009762 Contact Us For Availability
47
Refrigerator Glass WCI 218498187 Contact Us For Availability
47
Refrigerator Shelf Mounting Channel WCI 218233300 Contact Us For Availability
48
Refrigerator Shelf Channel WCI 5303292395 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
72
Grille Wht WCI 218916404 Contact Us For Availability
72A
Refrigerator Kick Plate WCI 218916405 Contact Us For Availability
73
Refrigerator Mounting Clip WCI 218896704 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
98A
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Sound Cover WCI 218905701 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
NI
Technical Data Sheet WCI 218755000 Contact Us For Availability
NI
Refrigerator Owner's Manual WCI 218972600 Contact Us For Availability
NI
Hot Tube WCI 5300189383 Contact Us For Availability
NI
LABEL-USE AND CARE WCI 530270944 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Parts Catalog WCI 5995341087 Contact Us For Availability
× ![]()
