Model Electrolux 253.58685892 Side-By-Side Refrigerator (Kenmore 25358685892) – Common Parts & Diagrams
FREEZER DOOR
CONTROLS

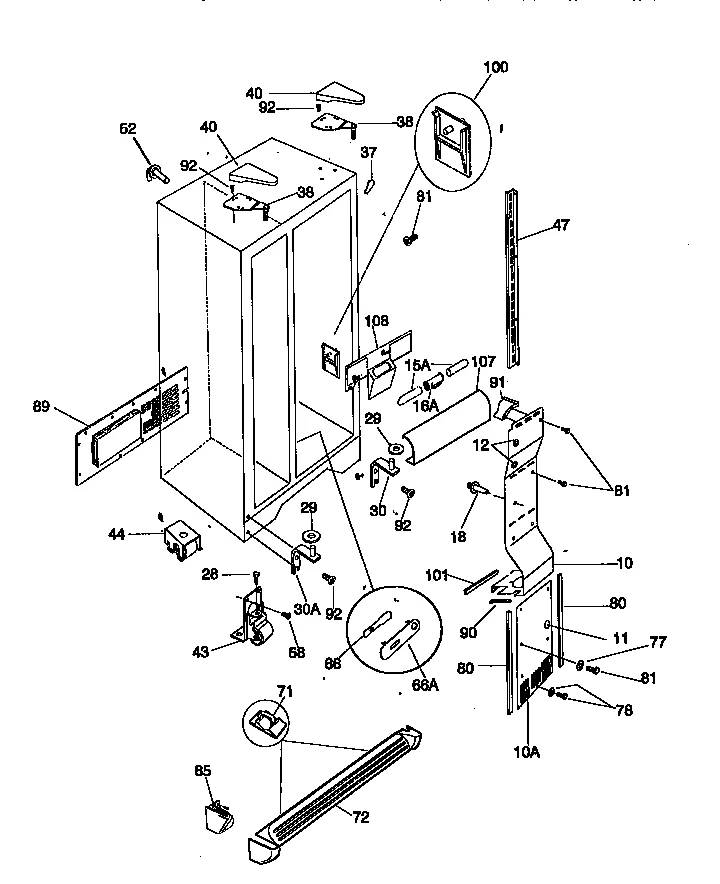

CABINET

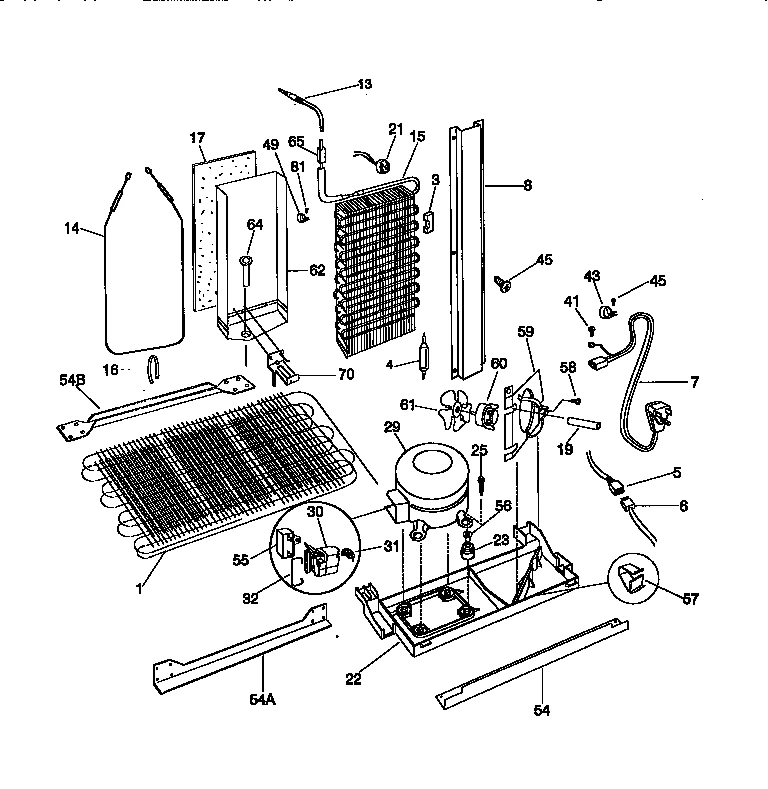

SYSTEM

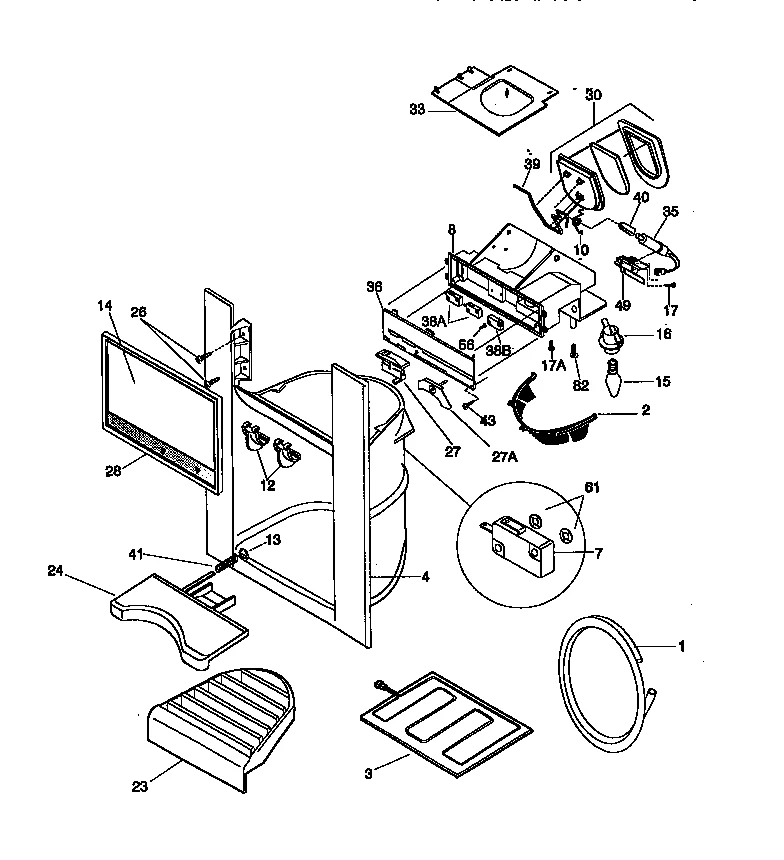

DISPENSER

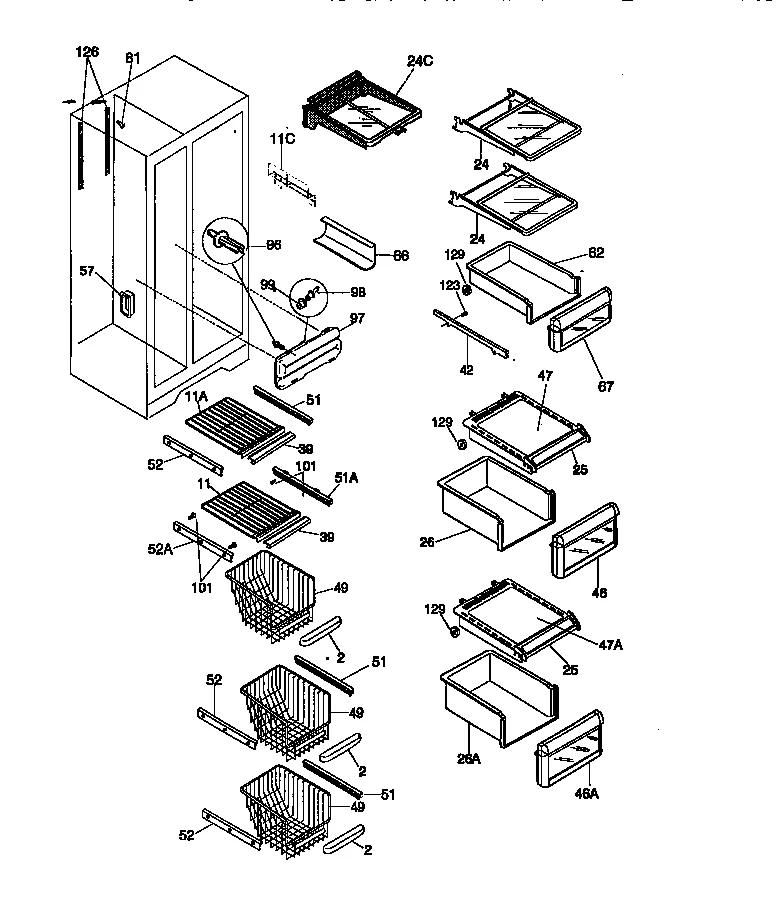

SHELVES

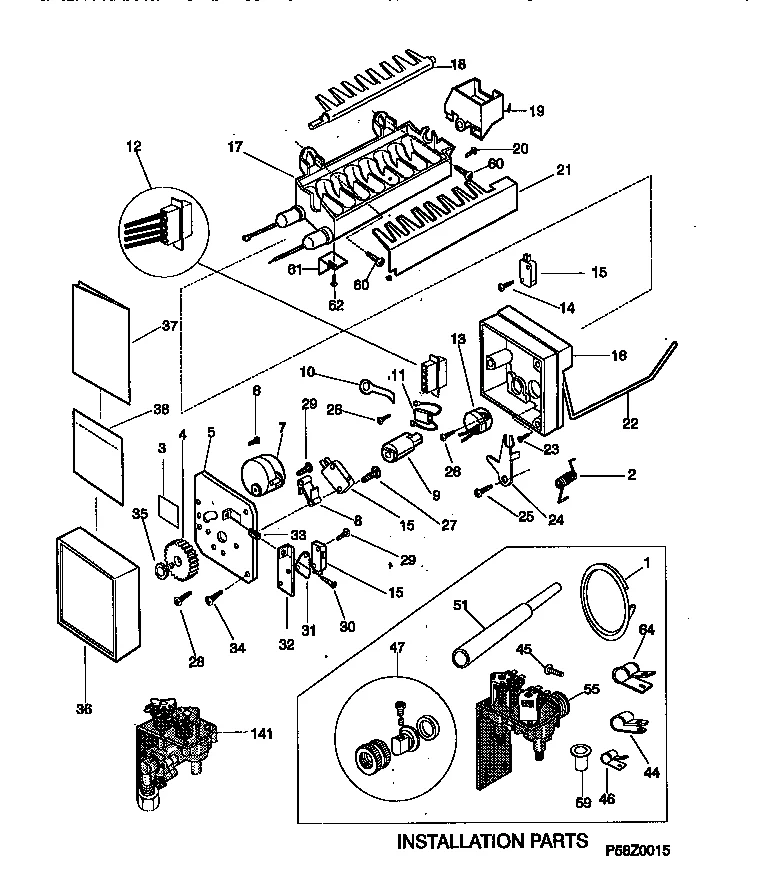

ICE MAKER

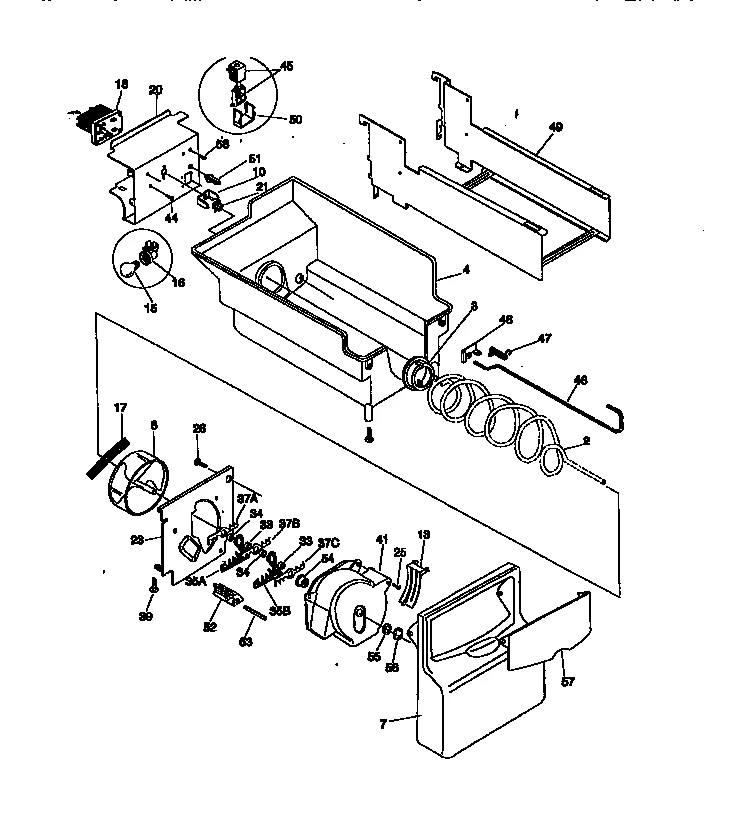

ICE CONTAINER

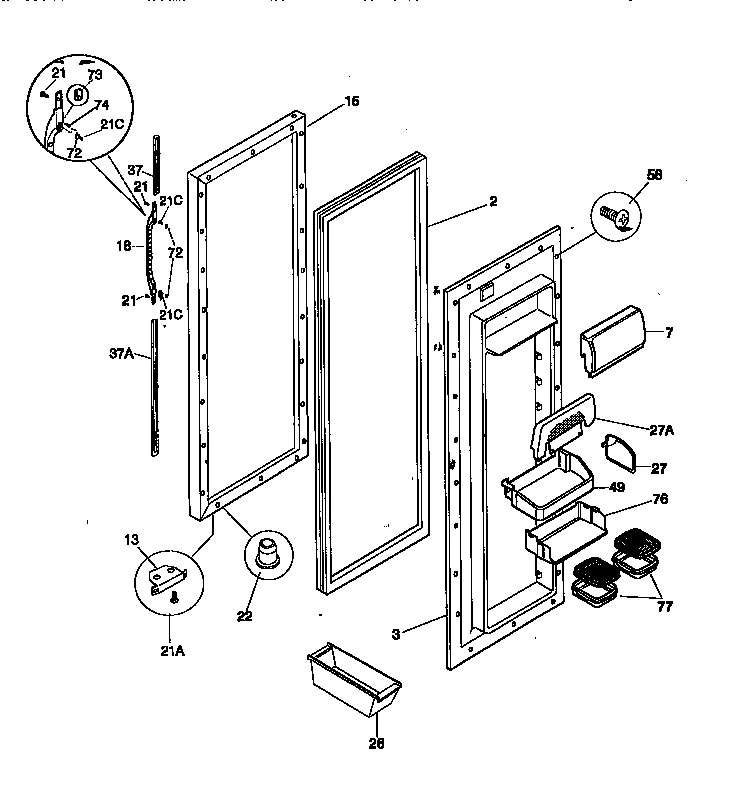

REFRIGERATOR DOOR
All Parts
Common parts from model Electrolux 253.58685892 Side-By-Side Refrigerator (Kenmore 25358685892)
1
Refrigerator Freezer Door Gasket (Black) WCI 215734323 Contact Us For Availability
1
Refrigerator Condenser Coil WCI 218787900 Contact Us For Availability
1A
Refrigerator Water Tubing WCI 215294101 Contact Us For Availability
1A
Refrigerator Spacer Tube WCI 5303289026 Contact Us For Availability
1B
Refrigerator Ice Maker Water Tubing WCI 218658301 Contact Us For Availability
1C
Water Tube WCI 218703400 Contact Us For Availability
1D
Refrigerator Water Inlet Tube WCI 218770401 Contact Us For Availability
2
Refrigerator Freezer Door Gasket (Black) WCI 215734324 Contact Us For Availability
2
Refrigerator Deflector WCI 218505303 Contact Us For Availability
2
Refrigerator Basket Trim WCI 5303298147 Contact Us For Availability
2
Spring WCI 3206348 Contact Us For Availability
3
Refrigerator Control Block Evaporator WCI 218679602 Contact Us For Availability
3
Refrigerator Door Heater WCI 215484300 Contact Us For Availability
3
Refrigerator Ice Maker Decal WCI 3206299 Contact Us For Availability
3
Refrigerator Door Panel WCI 215403201 Contact Us For Availability
4
Refrigerator Housing WCI 218432103 Contact Us For Availability
5
Refrigerator Door Shelf Retainer Clip WCI 5303288950 Contact Us For Availability
5
Refrigerator Wiring Harness WCI 218646100 Contact Us For Availability
5
Refrigerator Ice Maker Cover Bracket WCI 3206303 Contact Us For Availability
5A
Refrigerator Wiring Harness WCI 215005200 Contact Us For Availability
5B
Refrigerator Wiring Harness WCI 218463600 Contact Us For Availability
5D
Refrigerator Freezer Harness WCI 218815101 Contact Us For Availability
6
Refrigerator Wire Harness WCI 218741400 Contact Us For Availability
7
Refrigerator Evaporator Fan Ring WCI 5308000124 Contact Us For Availability
7
Refrigerator Power Cord WCI 215459201 Contact Us For Availability
7
Refrigerator Switch WCI 218841901 Contact Us For Availability
7
Refrigerator Dairy Door WCI 5303323265 Contact Us For Availability
7A
Refrigerator Shield WCI 215944300 Contact Us For Availability
8
Refrigerator Dispenser Ice Chute WCI 218835701 Contact Us For Availability
8
Refrigerator Wiring Cover WCI 218803400 Contact Us For Availability
8
Spacer WCI 3206312 Contact Us For Availability
8A
Wiring Screw WCI 218754500 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Refrigerator Dispenser Spring WCI 218209800 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
11
Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability
11
Refrigerator Freezer Shelf WCI 218298003 Contact Us For Availability
11A
Refrigerator Freezer Shelf WCI 218298004 Contact Us For Availability
11C
Pizza Shelf WCI 218815501 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Connector WCI 3206321 Contact Us For Availability
12
Blk Sel Knob WCI 218836203 Contact Us For Availability
12A
Refrigerator Ice Maker Wire Harness WCI 3206349 Contact Us For Availability
13
Refrigerator Door Stop WCI 5303289522 Contact Us For Availability
13
Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability
13
Refrigerator Heat Exchange WCI 215006701 Contact Us For Availability
13
Refrigerator Dispenser Lever Retainer WCI 215748101 Contact Us For Availability
14
Refrigerator Module Cover WCI 218416177 Contact Us For Availability
14
Refrigerator Ice Maker Motor Screw WCI 3206323 Contact Us For Availability
15
Refrigerator Evaporator WCI 218691301 Contact Us For Availability
15
Refrigerator Bulb WCI 218284900 Contact Us For Availability
15
Refrigerator Drive Panel WCI 5303918052 Contact Us For Availability
15A
Refrigerator Light Bulb WCI 218708700 Contact Us For Availability
15A
Refrigerator Inlet Tube WCI 3206414 Contact Us For Availability
16
Support WCI 3206326 Contact Us For Availability
16A
Refrigerator Light Socket WCI 5303299157 Contact Us For Availability
17
Refrigerator Insulator Evaporator WCI 5303289496 Contact Us For Availability
17
Dispenser Screw WCI 215794400 Contact Us For Availability
17A
Refrigerator Screw WCI 215840700 Contact Us For Availability
17AA
Flat Washer WCI 215923400 Contact Us For Availability
18
Ejector WCI 3206328 Contact Us For Availability
18
Refrigerator Door Handle (Gray) WCI 218803903 Contact Us For Availability
18A
Wiring-hrnes WCI 5304404335 Contact Us For Availability
19
Refrigerator Spacer Tube WCI 218631200 Contact Us For Availability
19
Bearing WCI 3206330 Contact Us For Availability
20
Screw WCI 3206331 Contact Us For Availability
20
Refrigerator Motor Cover WCI 5304404332 Contact Us For Availability
21
Refrigerator Temperature Control Thermostat WCI 5303300027 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
21A
Refrigerator Door Stop Screw, #10-16 x 3/4-in WCI 218578600 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 5303289320 Contact Us For Availability
22
Temperature Housing WCI 5303319683 Contact Us For Availability
22
Comp Mountng WCI 218811100 Contact Us For Availability
22
Arm WCI 3206333 Contact Us For Availability
23
Refrigerator Dispenser Drip Tray WCI 5303299660 Contact Us For Availability
23
Screw WCI 3206334 Contact Us For Availability
23A
Defrost Cover WCI 215277000 Contact Us For Availability
24
Refrigerator Dispenser Actuator (Black) WCI 218796503 Contact Us For Availability
24
Refrigerator Shelf WCI 215029007 Contact Us For Availability
24C
Aspect Shelf WCI 218842401 Contact Us For Availability
24CA
Refrigerator Spill Shelf WCI 218836901 Contact Us For Availability
24CB
Shelf Knob WCI 218841001 Contact Us For Availability
25
Refrigerator Drawer Cover WCI 218147701 Contact Us For Availability
25
Clip-compres WCI 215014200 Contact Us For Availability
25
Screw WCI 3206336 Contact Us For Availability
25A
Trim-storage WCI 5303289586 Contact Us For Availability
25C
Trim Storage WCI 5303323279 Contact Us For Availability
26
Screw WCI 3206337 Contact Us For Availability
26
Refrigerator Egg Bin WCI 3204522 Contact Us For Availability
27
Slide Cam WCI 218432600 Contact Us For Availability
27
Screw WCI 3206338 Contact Us For Availability
27
Refrigerator Door Bin Divider WCI 218370101 Contact Us For Availability
27A
Refrigerator Dispenser Rocker Switch WCI 218814901 Contact Us For Availability
27A
Refrigerator Tall Bottle Retainer WCI 218714201 Contact Us For Availability
28
Refrigerator Module Cover WCI 218700603 Contact Us For Availability
28
Screw WCI 3206339 Contact Us For Availability
29
Refrigerator Washer WCI 215003200 Contact Us For Availability
29
Refrigerator Compressor WCI 218763102 Contact Us For Availability
29
Screw WCI 3206340 Contact Us For Availability
29A
Refrigerator Door Hinge Washer WCI 215314301 Contact Us For Availability
30
Refrigerator PTC Starter WCI 216008903 Contact Us For Availability
30
Door Assy-ic WCI 215753600 Contact Us For Availability
30
Screw WCI 3206341 Contact Us For Availability
31
Refrigerator Compressor Overload Protector WCI 5303322093 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Bale Wire WCI 5304405233 Contact Us For Availability
32
Refrigerator Ice Maker Fill Switch Bracket WCI 3206343 Contact Us For Availability
33
Heater Dispenser WCI 218849801 Contact Us For Availability
33
Spring WCI 3206344 Contact Us For Availability
34
Screw WCI 3206345 Contact Us For Availability
35
Refrigerator Ice Dispenser Door Heat Motor WCI 218740003 Contact Us For Availability
35
Screw WCI 3206346 Contact Us For Availability
36
Refrigerator Selector Switch Cover WCI 218835601 Contact Us For Availability
36
Cover WCI 3206347 Contact Us For Availability
37
Refrigerator Hand Trim WCI 218779309 Contact Us For Availability
37
Technical Data Sheet WCI 5303320544 Contact Us For Availability
37A
Lo Hand Trim WCI 218779306 Contact Us For Availability
37AA
Refrigerator Lock Handle WCI 215940700 Contact Us For Availability
38
Envelope WCI 5303207445 Contact Us For Availability
38A
Refrigerator Dispenser Switch WCI 218479900 Contact Us For Availability
39
Wire-ice Doo WCI 218284600 Contact Us For Availability
39
Refrigerator Freezer Shelf Trim WCI 215217543 Contact Us For Availability
40
Refrigerator Dispenser Ice Chute Door Motor Y WCI 218284500 Contact Us For Availability
41
Spring-actua WCI 215765400 Contact Us For Availability
42
Refrigerator Deli Drawer Hanger WCI 215002301 Contact Us For Availability
42A
Refrigerator Deli Drawer Slide Rail WCI 215002401 Contact Us For Availability
43
Refrigerator Screw WCI 215760300 Contact Us For Availability
44
Refrigerator Screw WCI 218359200 Contact Us For Availability
45B
Bolt Compres WCI 218773500 Contact Us For Availability
46
Refrigerator Control Rod WCI 5304404341 Contact Us For Availability
47
Refrigerator Glass Shelf WCI 218498159 Contact Us For Availability
47
Refrigerator Water Inlet Valve Connection WCI 5308000205 Contact Us For Availability
47
Refrigerator Rod Spring WCI 5304404342 Contact Us For Availability
47A
Crisper Insert WCI 5303289387 Contact Us For Availability
48A
Refrigerator Bracket Screw WCI 5304404364 Contact Us For Availability
49
Refrigerator Bracket Evaporator WCI 215506900 Contact Us For Availability
49
Heat Bracket WCI 215794000 Contact Us For Availability
49
Refrigerator Sliding Basket WCI 5303296573 Contact Us For Availability
49
Refrigerator Rail Assembly WCI 5304404329 Contact Us For Availability
49
Refrigerator Door Bin WCI 218592317 Contact Us For Availability
51
Refrigerator Freezer Basket Support Rail WCI 5303296575 Contact Us For Availability
51
Fill Tube WCI 215811600 Contact Us For Availability
51
Rotation Stop WCI 5304404336 Contact Us For Availability
51A
Refrigerator Freezer Basket Hanger, Right WCI 5303307887 Contact Us For Availability
52
Refrigerator Ice Maker Fill Tube WCI 215454600 Contact Us For Availability
52A
Refrigerator Freezer Basket Hanger WCI 215162504 Contact Us For Availability
54
Cabinet Rail WCI 5303289027 Contact Us For Availability
54A
Rail-compr S WCI 5303289311 Contact Us For Availability
54B
Cabinet Rail WCI 5303289292 Contact Us For Availability
55
Refrigerator Water Inlet Valve WCI 218658000 Contact Us For Availability
55
Refrigerator Run Capacitor WCI 218764602 Contact Us For Availability
55A
Refrigerator Ice Maker Water Inlet Valve Cap WCI 218835800 Contact Us For Availability
56
Compressor Insert WCI 218769300 Contact Us For Availability
56
Micro Screw WCI 218434300 Contact Us For Availability
57
Wiring Clip WCI 218247300 Contact Us For Availability
57
Inner Ferrule WCI 5303271653 Contact Us For Availability
58
Solenoid Screw WCI 5304404331 Contact Us For Availability
58
Refrigerator Door Inner Liner Screw WCI 218749600 Contact Us For Availability
59
Refrigerator Shroud Condenser WCI 5303289031 Contact Us For Availability
59
Sleeve WCI 5303001191 Contact Us For Availability
60
Refrigerator Condenser Fan Motor WCI 215501901 Contact Us For Availability
61
Blade-cond F WCI 5303289032 Contact Us For Availability
61
Refrigerator Retainer Ring WCI 215766000 Contact Us For Availability
61A
Refrigerator Nut WCI 215004700 Contact Us For Availability
61B
Grommet WCI 215004800 Contact Us For Availability
62
Refrigerator Drain Trough WCI 215048701 Contact Us For Availability
62
Refrigerator Deli Tray WCI 218285701 Contact Us For Availability
65
Refrigerator Spacer Tube WCI 5303289301 Contact Us For Availability
66
Refrigerator Wine Rack WCI 5304402116 Contact Us For Availability
67
Strg Pan Frt WCI 218278503 Contact Us For Availability
70
Refrigerator Bracket Evaporator WCI 5303289041 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
72
Refrigerator Toe Grille WCI 218359609 Contact Us For Availability
76
Refrigerator Microwave Dishrack WCI 218423600 Contact Us For Availability
77
Mw Dishes WCI 218423501 Contact Us For Availability
82
Refrigerator Screw WCI 215296300 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
90
Refrigerator Foam Seal WCI 215022602 Contact Us For Availability
90A
Refrigerator Foam Tape WCI 5303322647 Contact Us For Availability
91
Air Deflector WCI 218770000 Contact Us For Availability
96
Refrigerator Water Reservoir Support WCI 215192600 Contact Us For Availability
98
Refrigerator Water Reservoir Tube Connector WCI 5308015614 Contact Us For Availability
99
Grommet Tank WCI 5300186057 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
101
Refrigerator Foam Seal WCI 215305702 Contact Us For Availability
107
Refrigerator Light Shield WCI 218835901 Contact Us For Availability
108
Refrigerator Wiring Cover WCI 218710800 Contact Us For Availability
115
Refrigerator Air Damper Control Assembly WCI 215011502 Contact Us For Availability
125
Refrigerator Auger Kill Switch WCI 215334201 Contact Us For Availability
129
Refrigerator Deli Drawer Roller WCI 5303299152 Contact Us For Availability
129A
Refrigerator Drawer Roller Bearing WCI 5303299153 Contact Us For Availability
138A
Refrigerator Water Filter Cup O-Ring WCI 218720100 Contact Us For Availability
140
Refrigerator Water Line Elbow Fitting WCI 218518700 Contact Us For Availability
141
Refrigerator Water Inlet Valve WCI 218698900 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Tape WCI 5300460947 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
NI
Refrigerator Wiring Harness WCI 218646000 Contact Us For Availability
NI
Refrigerator Screw Control WCI 215188300 Contact Us For Availability
NI
Solenoid Screw WCI 215290100 Contact Us For Availability
NI
Refrigerator Shelf Clip WCI 215328300 Contact Us For Availability
NI
Refrigerator Tube Clip WCI 215781700 Contact Us For Availability
NI
Service Data WCI 218789700 Contact Us For Availability
NI
Air Deflector WCI 218836401 Contact Us For Availability
NI
Refrigerator Owner's Manual WCI 218860000 Contact Us For Availability
NI
Refrigerator Freezer Door Wire Harness WCI 218863101 Contact Us For Availability
NI
Refrigerator Washer, 0.28 x 62 x 0.19-in WCI 5303001038 Contact Us For Availability
NI
Refrigerator Nut WCI 5303209814 Contact Us For Availability
NI
Hot Tube Rep WCI 5303917166 Contact Us For Availability
NI
Sleeve Conne WCI 5304405234 Contact Us For Availability
NI
Washer WCI 5308009617 Contact Us For Availability
NI
Refrigerator Repair Parts List WCI 5995306015 Contact Us For Availability
× ![]()
Login and Registration Form
