Model Electrolux 253.58085892 Side-By-Side Refrigerator (Kenmore 25358085892) – Common Parts & Diagrams

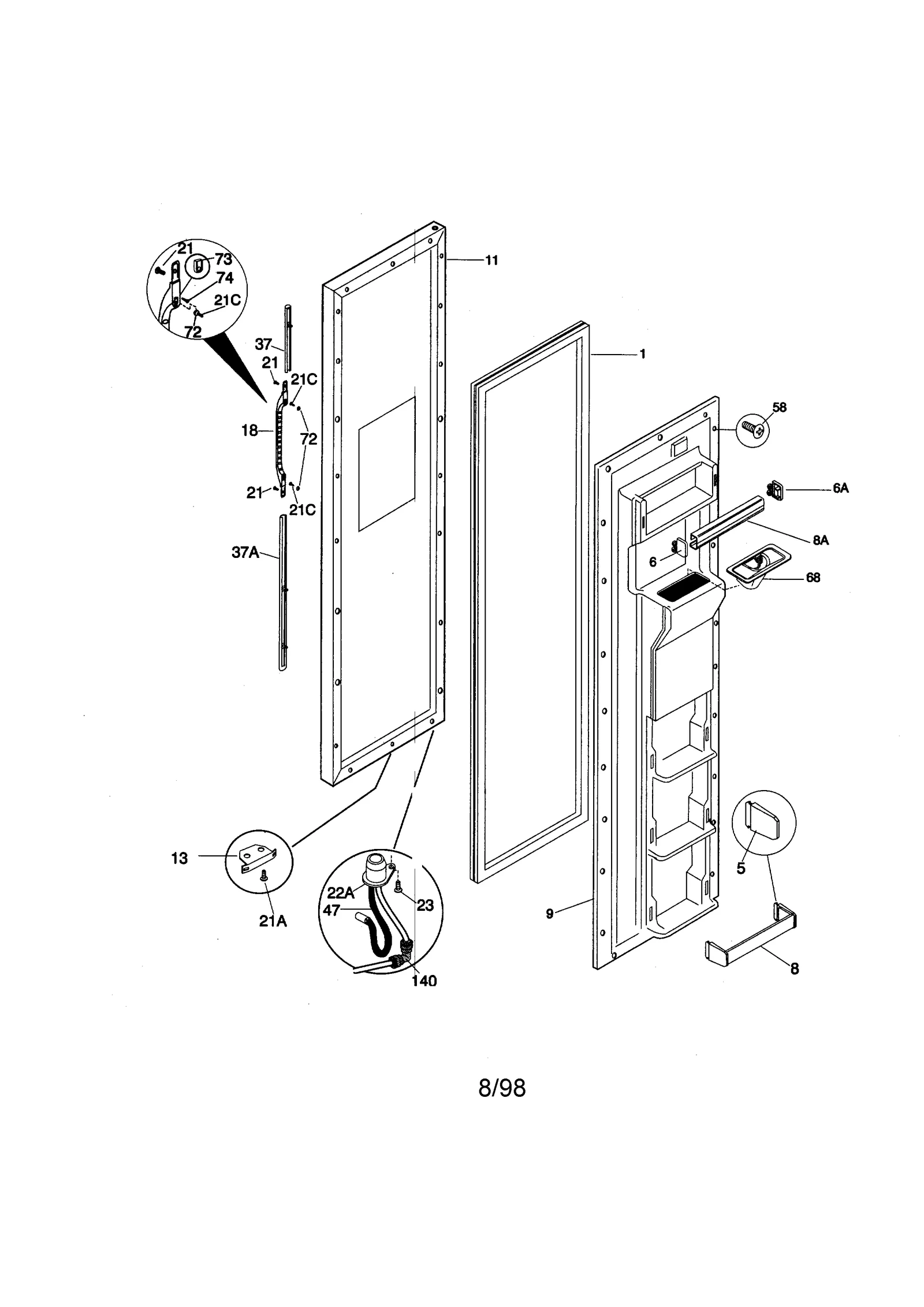

FREEZER DOOR

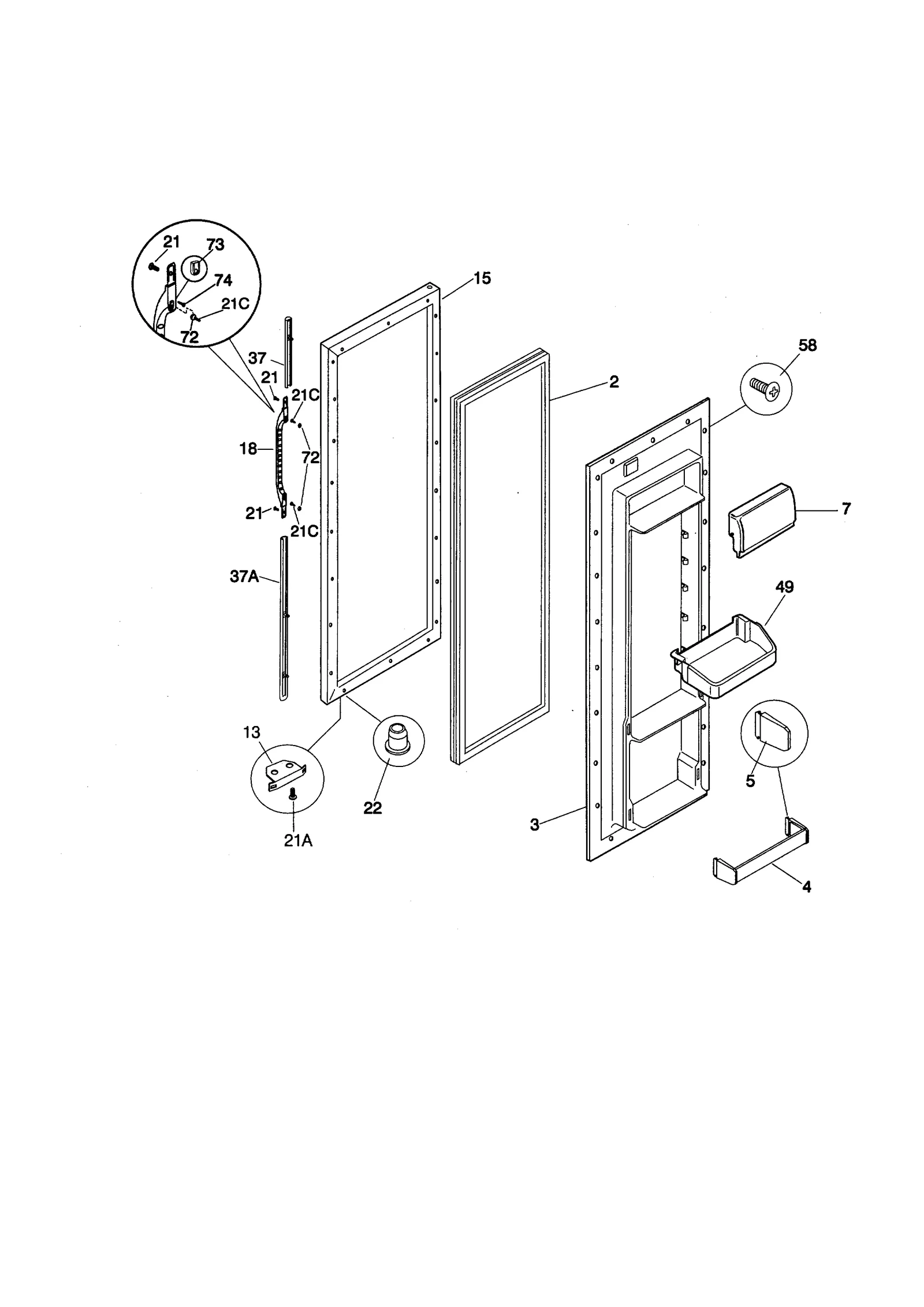

REFRIGERATOR DOOR

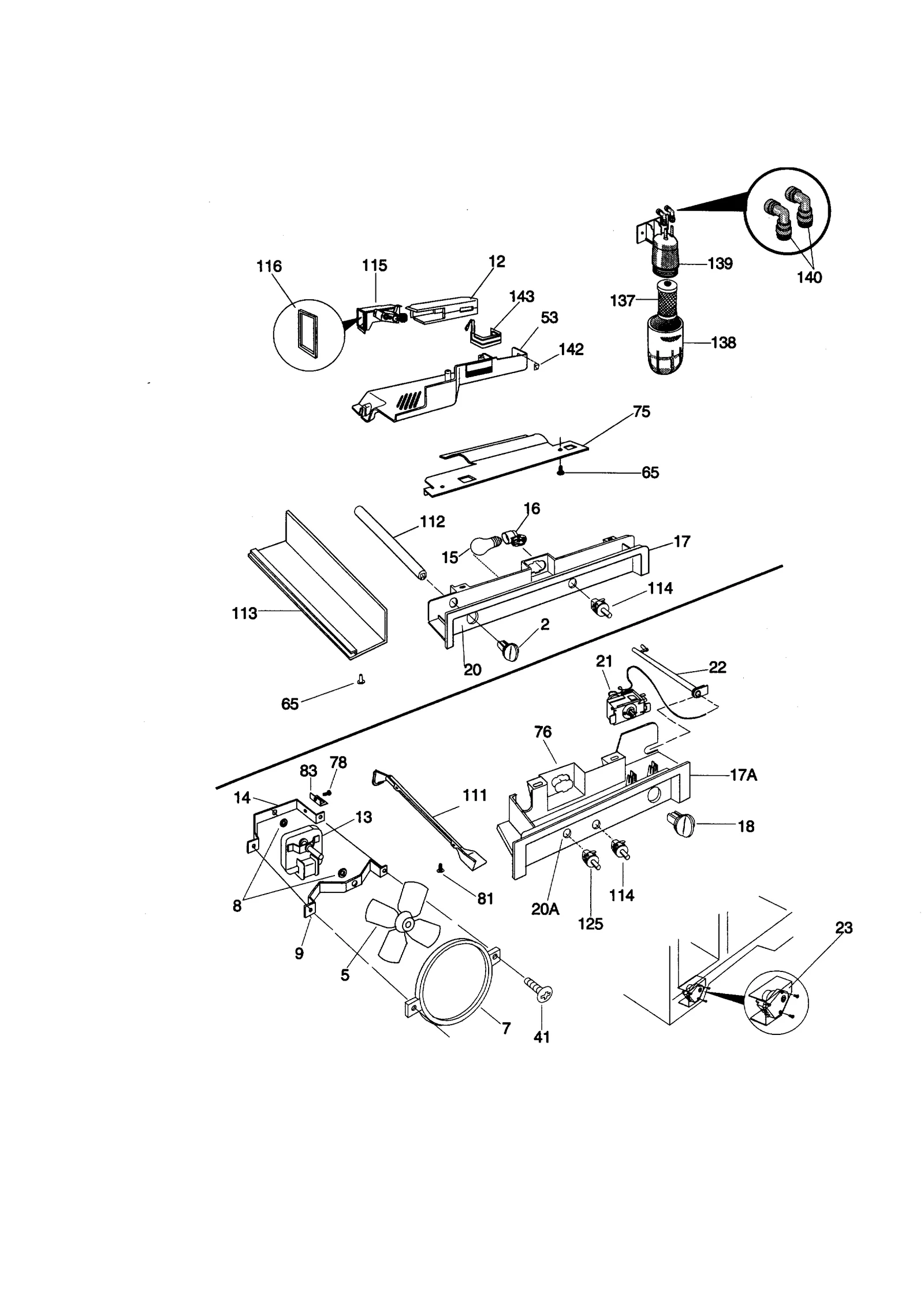

CONTROLS

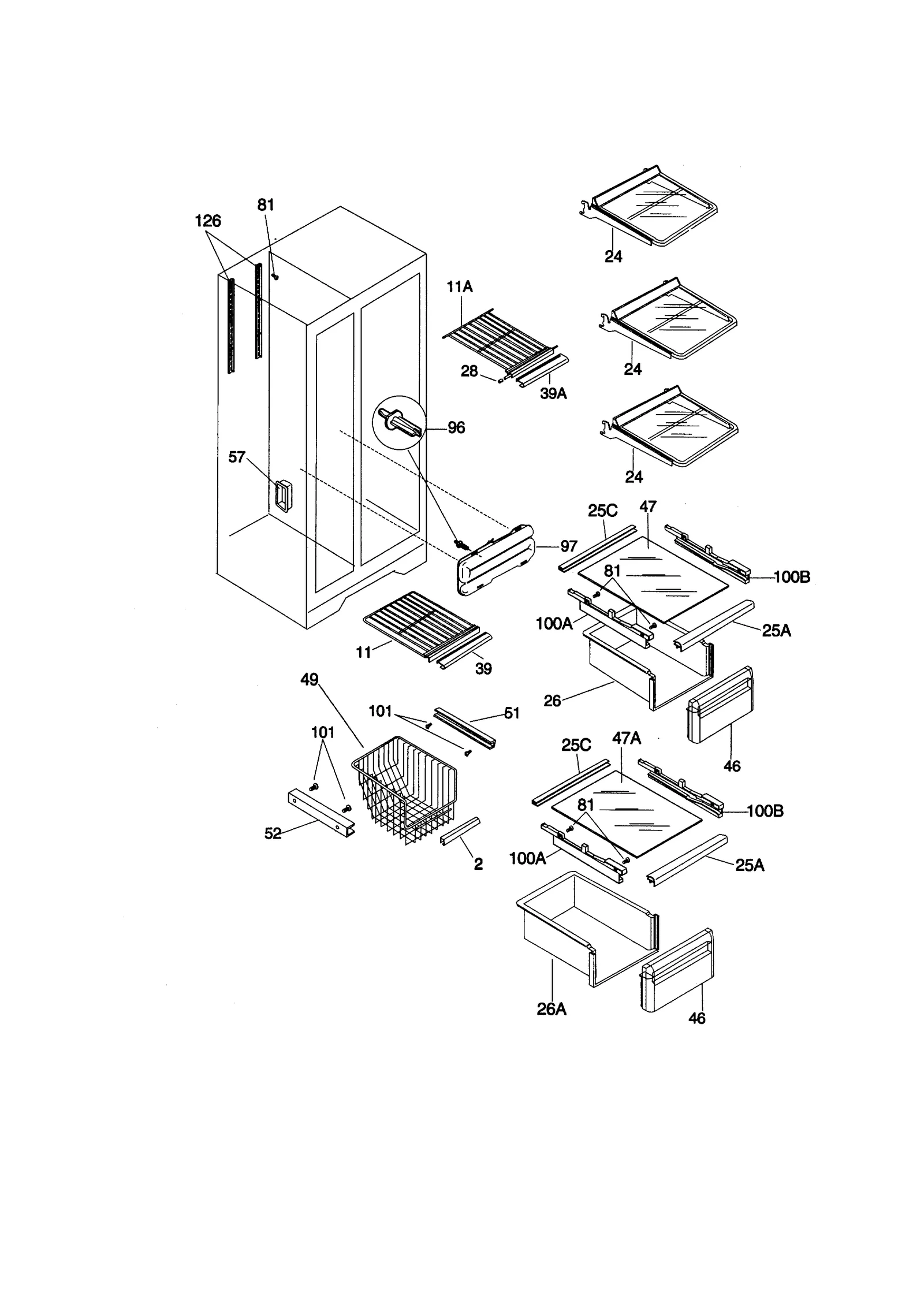

SHELVES

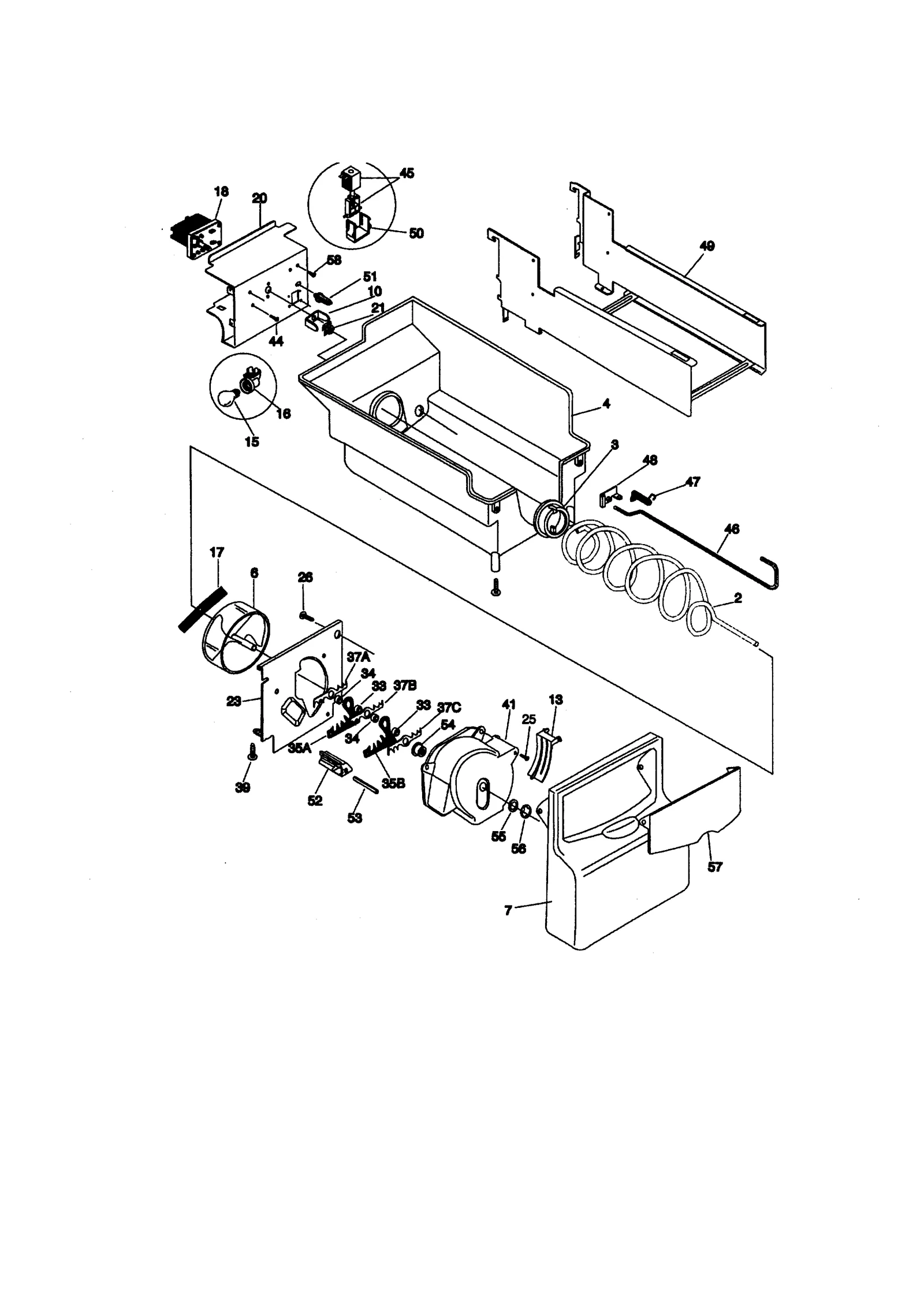

ICE CONTAINER

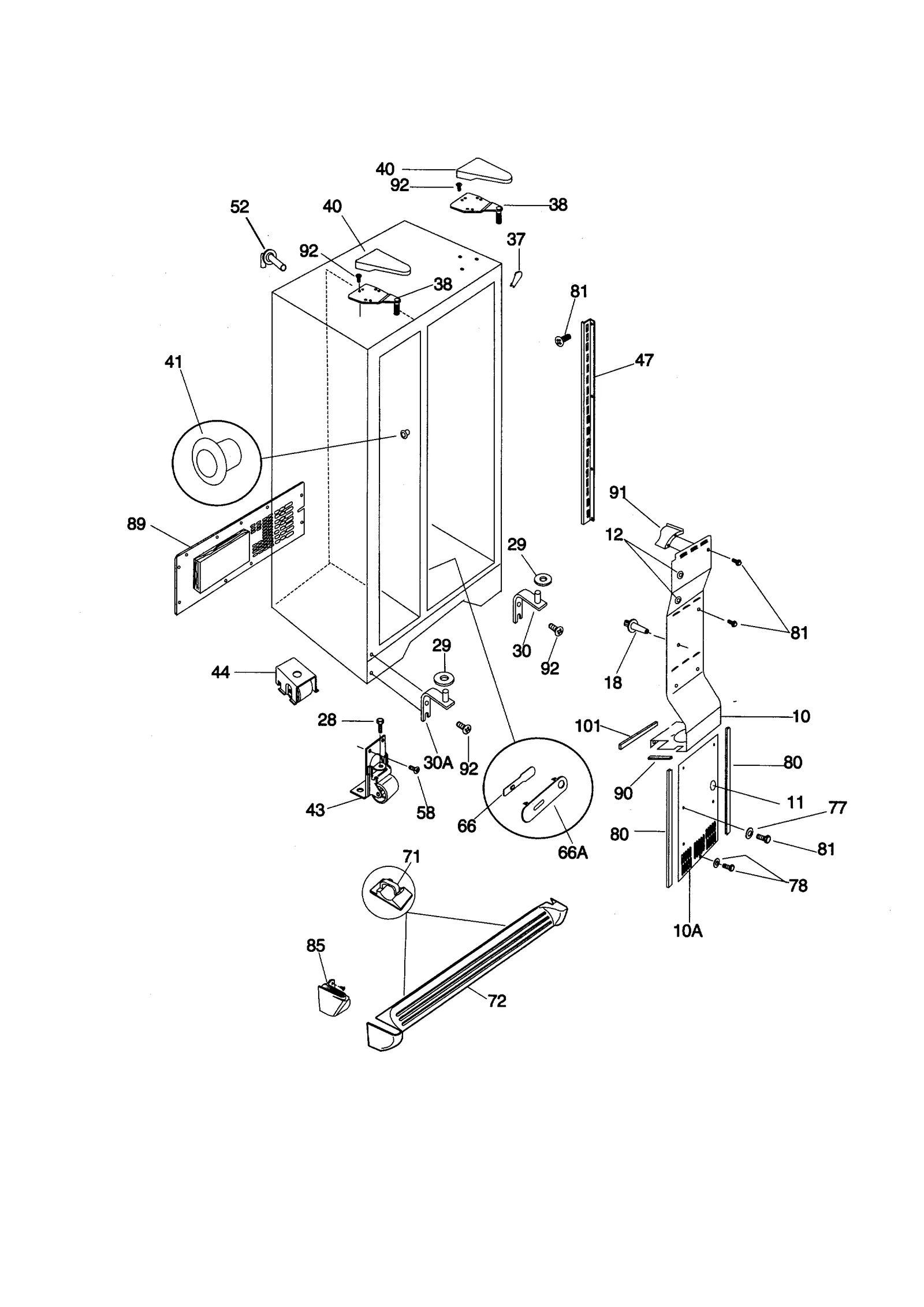

CABINET

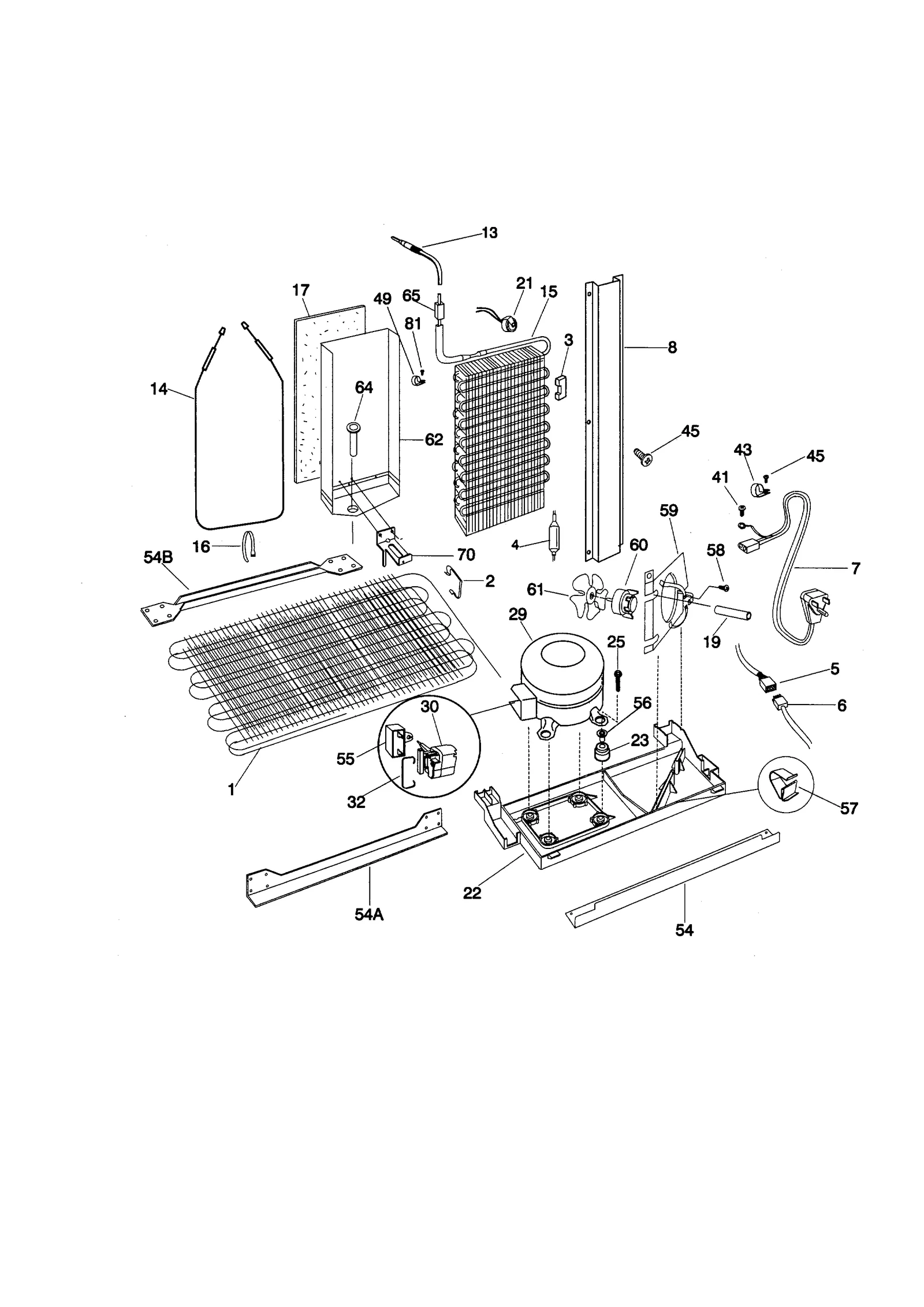

SYSTEM

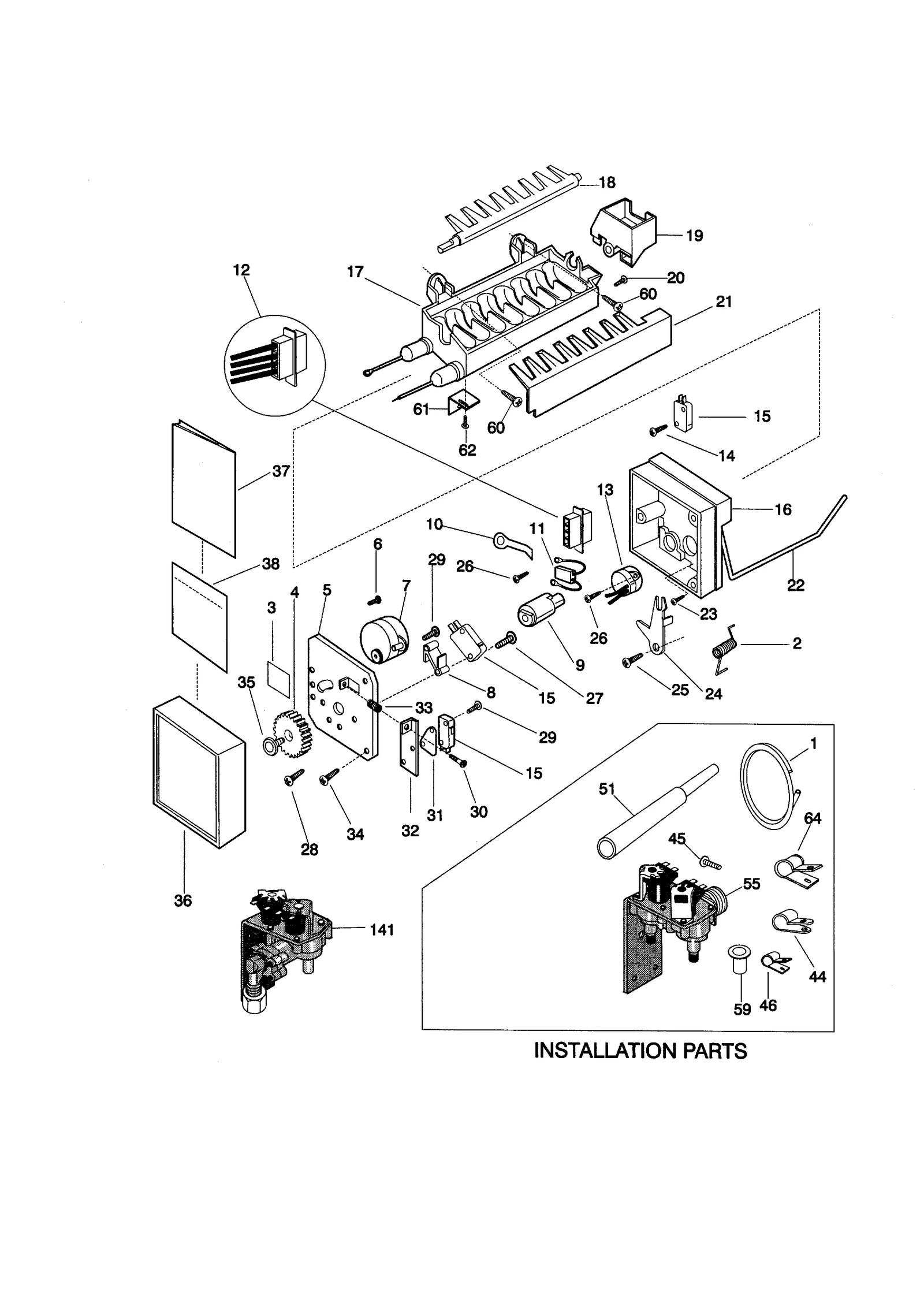

ICE MAKER

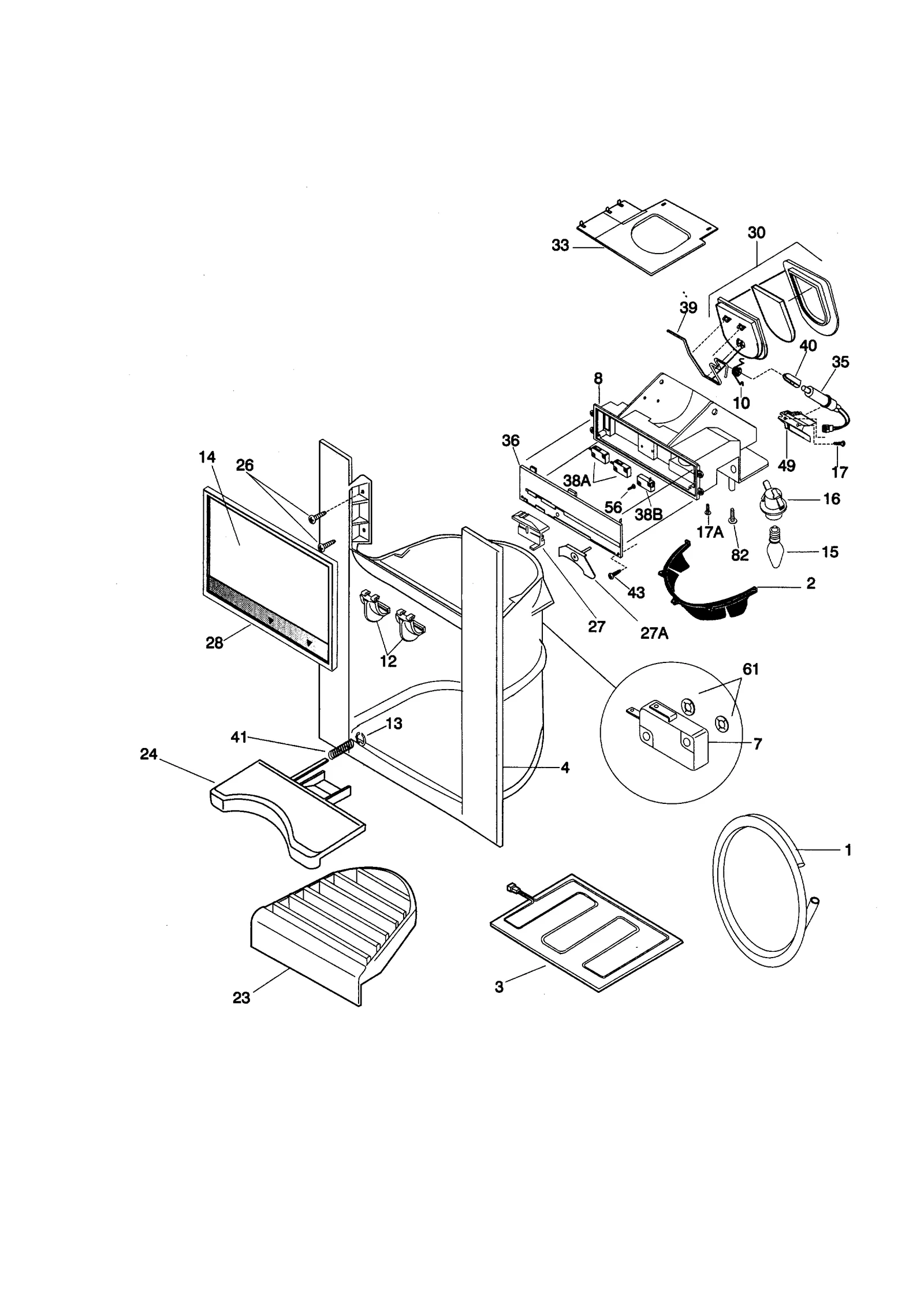

DISPENSER
Common parts from model Electrolux 253.58085892 Side-By-Side Refrigerator (Kenmore 25358085892)
1
Refrigerator Condenser WCI 218787700 Contact Us For Availability
1A
Refrigerator Water Tubing WCI 215294101 Contact Us For Availability
1A
Refrigerator Spacer Tube WCI 5303289026 Contact Us For Availability
1B
Water Tube WCI 218832202 Contact Us For Availability
2
Refrigerator Basket Trim WCI 5303300707 Contact Us For Availability
2
Clip-cond Mt WCI 5303289029 Contact Us For Availability
2
Spring WCI 3206348 Contact Us For Availability
2
Deflector-ic WCI 218505301 Contact Us For Availability
2A
Refrigerator Door Gasket (Black) WCI 215734322 Contact Us For Availability
2A
Refrigerator Deflector WCI 218505303 Contact Us For Availability
2B
Refrigerator Deflector WCI 218505302 Contact Us For Availability
3
Refrigerator Control Block Evaporator WCI 218679603 Contact Us For Availability
3
Refrigerator Ice Maker Decal WCI 3206299 Contact Us For Availability
3
Refrigerator Door Heater WCI 215484300 Contact Us For Availability
4
Refrigerator Door Shelf Rail WCI 215472100 Contact Us For Availability
4
Refrigerator Dispenser Housing WCI 218432101 Contact Us For Availability
4A
Refrigerator Housing WCI 218432103 Contact Us For Availability
4B
Housing Dispenser WCI 218432102 Contact Us For Availability
5
Refrigerator Wiring Harness WCI 218646100 Contact Us For Availability
5
Refrigerator Ice Maker Cover Bracket WCI 3206303 Contact Us For Availability
5A
Refrigerator Wiring Harness WCI 215005200 Contact Us For Availability
5B
Refrigerator Wiring Harness WCI 218646000 Contact Us For Availability
5C
Refrigerator Freezer Harness WCI 218815101 Contact Us For Availability
6
Refrigerator Wire Harness WCI 218741400 Contact Us For Availability
7
Refrigerator Evaporator Fan Ring WCI 5308000124 Contact Us For Availability
7
Refrigerator Power Cord WCI 215459201 Contact Us For Availability
7
Refrigerator Switch WCI 218841901 Contact Us For Availability
7A
Refrigerator Shield WCI 215944300 Contact Us For Availability
7B
Slide Cam WCI 218432600 Contact Us For Availability
8
Refrigerator Dispenser Ice Chute WCI 218835701 Contact Us For Availability
8
Refrigerator Freezer Door Rack WCI 215472200 Contact Us For Availability
8
Refrigerator Wiring Cover WCI 218803400 Contact Us For Availability
8
Spacer WCI 3206312 Contact Us For Availability
8A
Wiring Screw WCI 218754500 Contact Us For Availability
9
Cam WCI 3206313 Contact Us For Availability
10
Cover-air Du WCI 218748901 Contact Us For Availability
10
Clamp WCI 3206315 Contact Us For Availability
10
Refrigerator Dispenser Spring WCI 218209800 Contact Us For Availability
10A
Refrigerator Control Cover Evaporator WCI 218751301 Contact Us For Availability
10AA
Refrigerator Nut WCI 5303209814 Contact Us For Availability
11
Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability
11
Refrigerator Freezer Wire Shelf WCI 218298005 Contact Us For Availability
11A
Refrigerator Freezer Shelf WCI 5303288962 Contact Us For Availability
11B
Refrigerator Spacer WCI 218159700 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness WCI 3206349 Contact Us For Availability
12
Refrigerator Select Knob WCI 218836201 Contact Us For Availability
12A
CONNECTOR PLUG, WIRING HARNESS WCI 2306321 Contact Us For Availability
12A
Blk Sel Knob WCI 218836203 Contact Us For Availability
12B
Refrigerator Dispenser Control Knob (Almond) WCI 218836202 Contact Us For Availability
13
Refrigerator Door Stop WCI 5303289522 Contact Us For Availability
13
Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability
13
Refrigerator Heat Exchange WCI 215746800 Contact Us For Availability
13
Refrigerator Dispenser Lever Retainer WCI 215748101 Contact Us For Availability
14
Refrigerator Ice Maker Motor Screw WCI 3206323 Contact Us For Availability
14
Cover Label WCI 218416175 Contact Us For Availability
14A
Refrigerator Module Cover WCI 218416177 Contact Us For Availability
14B
Refrigerator Label WCI 218416176 Contact Us For Availability
15
Refrigerator Evaporator WCI 218691302 Contact Us For Availability
15
Refrigerator Bulb WCI 218284900 Contact Us For Availability
15A
Refrigerator Inlet Tube WCI 3206414 Contact Us For Availability
16
Support WCI 3206326 Contact Us For Availability
17
Refrigerator Insulator Evaporator WCI 5303289042 Contact Us For Availability
17
Dispenser Screw WCI 215794400 Contact Us For Availability
17A
Refrigerator Screw WCI 215840700 Contact Us For Availability
17AA
Flat Washer WCI 215923400 Contact Us For Availability
18
Air Support WCI 5303289043 Contact Us For Availability
18
Ejector WCI 3206328 Contact Us For Availability
18A
Wiring-hrnes WCI 5304404335 Contact Us For Availability
18A
Air Support WCI 5303289044 Contact Us For Availability
19
Refrigerator Spacer Tube WCI 218631200 Contact Us For Availability
19
Bearing WCI 3206330 Contact Us For Availability
20
Refrigerator Motor Cover WCI 5304404881 Contact Us For Availability
20
Screw WCI 3206331 Contact Us For Availability
21
Refrigerator Temperature Control Thermostat WCI 5303300027 Contact Us For Availability
21
Ice Stripper WCI 3206332 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 5303289320 Contact Us For Availability
22
Temperature Housing WCI 5303319683 Contact Us For Availability
22
Comp Mountng WCI 218811100 Contact Us For Availability
22
Arm WCI 3206333 Contact Us For Availability
23
Refrigerator Dispenser Drip Tray WCI 5303297844 Contact Us For Availability
23
Screw WCI 3206334 Contact Us For Availability
23A
Refrigerator Dispenser Drip Tray WCI 5303299660 Contact Us For Availability
23A
Defrost Cover WCI 215277000 Contact Us For Availability
23B
Refrigerator Dispenser Drip Tray (Almond) WCI 5303297845 Contact Us For Availability
24
Spill Safe S WCI 218746204 Contact Us For Availability
24
Refrigerator Dispenser Lever Actuator (White) WCI 218796501 Contact Us For Availability
24A
Refrigerator Dispenser Actuator (Black) WCI 218796503 Contact Us For Availability
24B
Refrigerator Dispenser Actuator (Almond) WCI 218796502 Contact Us For Availability
25
Bolt Compres WCI 218773500 Contact Us For Availability
25
Screw WCI 3206336 Contact Us For Availability
25A
Refrigerator Crisper Drawer Trim WCI 218015301 Contact Us For Availability
25C
Refrigerator Pan Cover Trim WCI 218015401 Contact Us For Availability
26
Screw WCI 3206337 Contact Us For Availability
26A
Refrigerator Crisper Drawer WCI 5303288968 Contact Us For Availability
27
Screw WCI 3206338 Contact Us For Availability
27A
Refrigerator Dispenser Rocker Switch WCI 218814901 Contact Us For Availability
28
Refrigerator Cap WCI 08013638 Contact Us For Availability
28
Refrigerator Bolt Roller WCI 5303289062 Contact Us For Availability
28
Screw WCI 3206339 Contact Us For Availability
28
Refrigerator Module Cover WCI 218700601 Contact Us For Availability
28A
Refrigerator Module Cover WCI 218700603 Contact Us For Availability
28B
Refrigerator Module Cover WCI 218700602 Contact Us For Availability
29
Refrigerator Washer WCI 215003200 Contact Us For Availability
29
Screw WCI 3206340 Contact Us For Availability
29A
Refrigerator Door Hinge Washer WCI 215314301 Contact Us For Availability
29B
Washer WCI 218871201 Contact Us For Availability
30
Refrigerator Lower Bracket WCI 5303289060 Contact Us For Availability
30
Refrigerator PTC Starter WCI 216008904 Contact Us For Availability
30
Screw WCI 3206341 Contact Us For Availability
30
Door Assy-ic WCI 215753600 Contact Us For Availability
30A
Refrigerator Lower Bracket WCI 215009000 Contact Us For Availability
30B
Refrigerator Door Left Hinge Plate WCI 218730700 Contact Us For Availability
30C
Tapping Plate WCI 218730800 Contact Us For Availability
31
Refrigerator Overload Protector WCI 5303321892 Contact Us For Availability
31
Insulator WCI 3206342 Contact Us For Availability
32
Bale Wire WCI 218762900 Contact Us For Availability
32
Refrigerator Ice Maker Fill Switch Bracket WCI 3206343 Contact Us For Availability
33
Spring WCI 3206344 Contact Us For Availability
33
Refrigerator Dispenser Heater WCI 218870201 Contact Us For Availability
34
Screw WCI 3206345 Contact Us For Availability
35
Refrigerator Ice Dispenser Door Heat Motor WCI 218740003 Contact Us For Availability
35
Screw WCI 3206346 Contact Us For Availability
36
Cover WCI 3206347 Contact Us For Availability
36
Refrigerator Selector Switch Cover WCI 218835601 Contact Us For Availability
37
Refrigerator Door Handle Trim, Upper (White) WCI 218779307 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37
Technical Data Sheet WCI 5303320544 Contact Us For Availability
37A
Refrigerator Corner Trim (Black) WCI 5303321083 Contact Us For Availability
37B
Refrigerator Hand Trim WCI 218779309 Contact Us For Availability
37B
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
38
Bracket-uppe WCI 218215213 Contact Us For Availability
38
Envelope WCI 5303207445 Contact Us For Availability
38A
Refrigerator Dispenser Switch WCI 218479900 Contact Us For Availability
38A
Brkt Upr Hin WCI 218215215 Contact Us For Availability
38B
Bracket-uppe WCI 218215214 Contact Us For Availability
38C
Bracket-uppe WCI 218215216 Contact Us For Availability
38D
Bracket-uppe WCI 218215221 Contact Us For Availability
38E
Bracket-uppe WCI 218215223 Contact Us For Availability
39
Refrigerator Freezer Shelf Trim WCI 215217562 Contact Us For Availability
39
Wire-ice Doo WCI 218284600 Contact Us For Availability
39A
Trim-frzr Sh WCI 215217563 Contact Us For Availability
40
Refrigerator Door Hinge Cover, Upper (White) WCI 5303318773 Contact Us For Availability
40
Refrigerator Dispenser Ice Chute Door Motor Y WCI 218284500 Contact Us For Availability
40A
Refrigerator Cover WCI 5303323268 Contact Us For Availability
40B
Refrigerator Door Hinge Cover, Upper (Almond) WCI 5303318774 Contact Us For Availability
41
Spring-actua WCI 215765400 Contact Us For Availability
43
Refrigerator Roller WCI 218615300 Contact Us For Availability
43
Refrigerator Plate Screw WCI 5303001083 Contact Us For Availability
43A
Refrigerator Screw WCI 5308017044 Contact Us For Availability
44
Refrigerator Screw WCI 218359200 Contact Us For Availability
44
Refrigerator Roller WCI 218738300 Contact Us For Availability
45A
Refrigerator Screw WCI 218769200 Contact Us For Availability
45B
SCREW, HEX WSHR HD, 8-32 X .625, SPEC WCI 530141713 Contact Us For Availability
46
Refrigerator Crisper Drawer Window WCI 5303317753 Contact Us For Availability
46
Refrigerator Control Rod WCI 5304404341 Contact Us For Availability
46A
Lo Store Pan WCI 5303423114 Contact Us For Availability
46B
Refrigerator Trim WCI 5303423115 Contact Us For Availability
47
Refrigerator Glass Shelf WCI 218498151 Contact Us For Availability
47
Refrigerator Rod Spring WCI 5304404342 Contact Us For Availability
47
Refrigerator Shelf Support WCI 218659500 Contact Us For Availability
47A
Refrigerator Glass Shelf WCI 215723551 Contact Us For Availability
48A
Refrigerator Bracket Screw WCI 5304404364 Contact Us For Availability
49
Refrigerator Sliding Basket WCI 5303288957 Contact Us For Availability
49
Refrigerator Rail Assembly WCI 5304404880 Contact Us For Availability
49
Refrigerator Bracket Evaporator WCI 215506900 Contact Us For Availability
49
Heat Bracket WCI 215794000 Contact Us For Availability
51
Refrigerator Hanger Basket WCI 5303288960 Contact Us For Availability
51
Rotation Stop WCI 5304404336 Contact Us For Availability
51
Fill Tube WCI 215811600 Contact Us For Availability
52
Refrigerator Ice Maker Fill Tube WCI 215454600 Contact Us For Availability
52
Refrigerator Hanger Basket WCI 215162501 Contact Us For Availability
54
Cabinet Rail WCI 5303289027 Contact Us For Availability
54A
Rail-compr S WCI 5303289311 Contact Us For Availability
54B
Cabinet Rail WCI 5303289292 Contact Us For Availability
55
Refrigerator Capacitor WCI 218764601 Contact Us For Availability
56
Compressor Insert WCI 218769300 Contact Us For Availability
56
Micro Screw WCI 218434300 Contact Us For Availability
57
Inner Ferrule WCI 5303271653 Contact Us For Availability
57
Wiring Clip WCI 218247300 Contact Us For Availability
58
Solenoid Screw WCI 5304404331 Contact Us For Availability
59
Refrigerator Shroud Condenser WCI 5303289031 Contact Us For Availability
59
Sleeve WCI 5303001191 Contact Us For Availability
60
Refrigerator Condenser Fan Motor WCI 215501901 Contact Us For Availability
61
Blade-cond F WCI 5303289032 Contact Us For Availability
61
Refrigerator Retainer Ring WCI 215766000 Contact Us For Availability
61A
Refrigerator Nut WCI 215004700 Contact Us For Availability
61B
Grommet WCI 215004800 Contact Us For Availability
62
Refrigerator Drain Trough WCI 215048201 Contact Us For Availability
65
Refrigerator Spacer Tube WCI 5303289301 Contact Us For Availability
66
Meat Damper WCI 215050201 Contact Us For Availability
66A
Meat Keeper Cover WCI 218171301 Contact Us For Availability
70
Refrigerator Bracket Evaporator WCI 5303289041 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
72
Refrigerator Toe Grille WCI 218359613 Contact Us For Availability
72A
Refrigerator Grille Kick Plate WCI 218359615 Contact Us For Availability
72B
Refrigerator Grille Kick Plate WCI 218359614 Contact Us For Availability
77
Washer WCI 5303001216 Contact Us For Availability
80
Complete Seal Coil WCI 218249802 Contact Us For Availability
82
Refrigerator Screw WCI 215296300 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
85
Cov-lo Hi,wh WCI 218359801 Contact Us For Availability
85A
Refrigerator Lower Cover WCI 218359805 Contact Us For Availability
85B
Lower Hinge Cover WCI 218359803 Contact Us For Availability
89
Cover-machin WCI 5303288947 Contact Us For Availability
90
Refrigerator Foam Seal WCI 215022602 Contact Us For Availability
90A
Refrigerator Foam Tape WCI 5303322647 Contact Us For Availability
96
Refrigerator Water Reservoir Support WCI 215192600 Contact Us For Availability
100A
Refrigerator Crisper Drawer Cover Support WCI 218015501 Contact Us For Availability
100B
Refrigerator Crisper Drawer Shelf Frame Suppo WCI 218015601 Contact Us For Availability
101
Refrigerator Foam Seal WCI 215305701 Contact Us For Availability
116
SEAL-DAMPER, FOAM WCI 215001400 Contact Us For Availability
125
Refrigerator Auger Kill Switch WCI 215334201 Contact Us For Availability
126A
CHANNEL, AUGER MTG, RH WCI 21867402 Contact Us For Availability
138
Refrigerator Filter Cup WCI 218657404 Contact Us For Availability
138A
Refrigerator Water Filter Cup O-Ring WCI 218720100 Contact Us For Availability
139
Refrigerator Filter Housing WCI 218657500 Contact Us For Availability
140
Refrigerator Water Line Elbow Fitting WCI 218518700 Contact Us For Availability
142
Refrigerator Indicator Knob WCI 218657701 Contact Us For Availability
143
Refrigerator Water Heater WCI 218696700 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
NI
Tape WCI 5300460947 Contact Us For Availability
NI
Refrigerator Screw Control WCI 215188300 Contact Us For Availability
NI
Refrigerator Shelf Clip WCI 215328300 Contact Us For Availability
NI
Refrigerator Owner's Manual WCI 218860000 Contact Us For Availability
NI
Technical Data Sheet WCI 218877000 Contact Us For Availability
NI
Refrigerator Washer, 0.28 x 62 x 0.19-in WCI 5303001038 Contact Us For Availability
NI
Refrigerator Parts List WCI 5995309316 Contact Us For Availability
NI
Refrigerator Tube Clip WCI 215781700 Contact Us For Availability
NI
Air Deflector WCI 218836401 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Washer WCI 5308009617 Contact Us For Availability
NI
Hot Tube Rep WCI 5303917166 Contact Us For Availability
NI
Solenoid Screw WCI 215290100 Contact Us For Availability
NI
Refrigerator Nut WCI 218731600 Contact Us For Availability
NI
Nut WCI 5308000200 Contact Us For Availability
NI
Refrigerator Freezer Door Wire Harness WCI 218863101 Contact Us For Availability
× ![]()
Login and Registration Form
