Model Electrolux 253.54362401 Refrigerator (Kenmore 25354362401) – Common Parts &amp; Diagrams

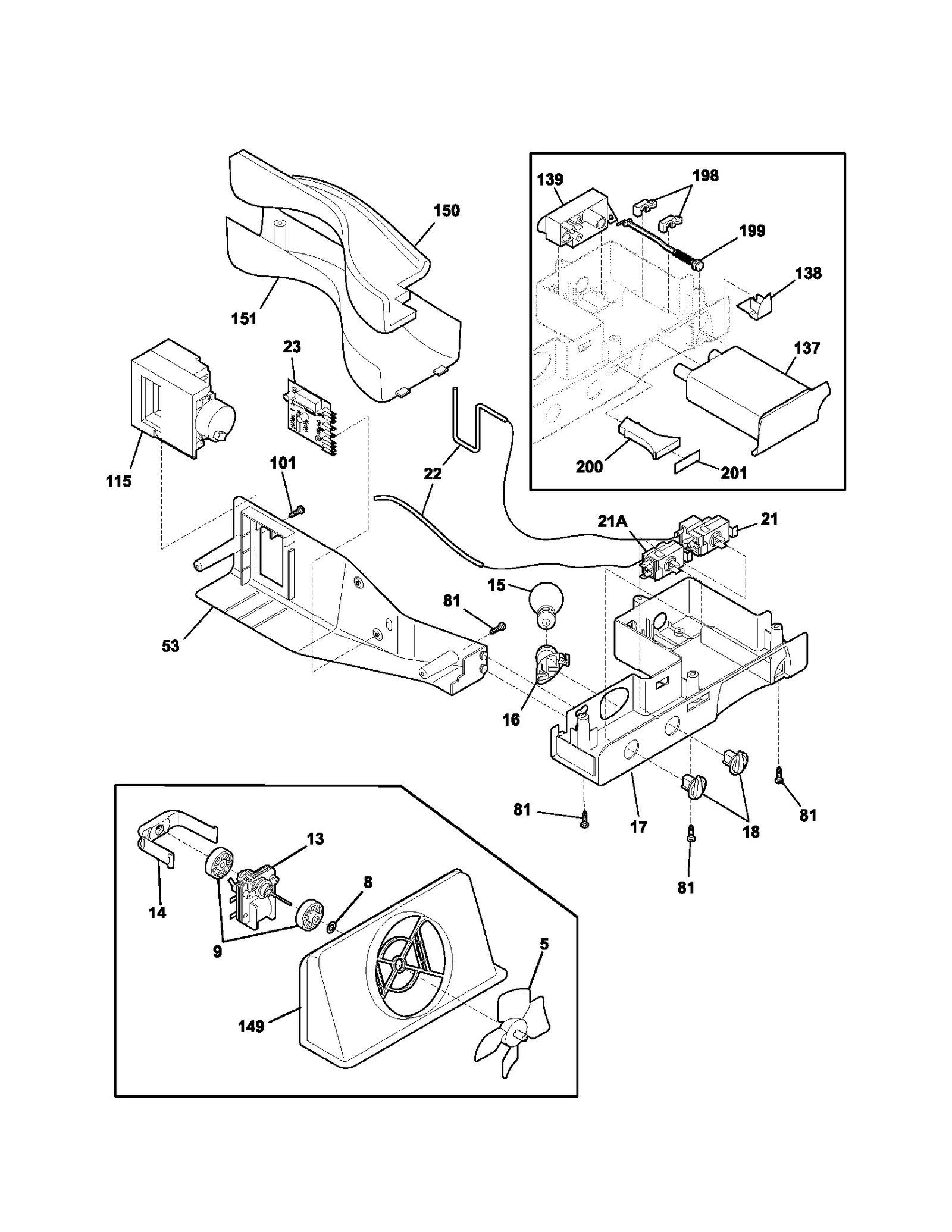

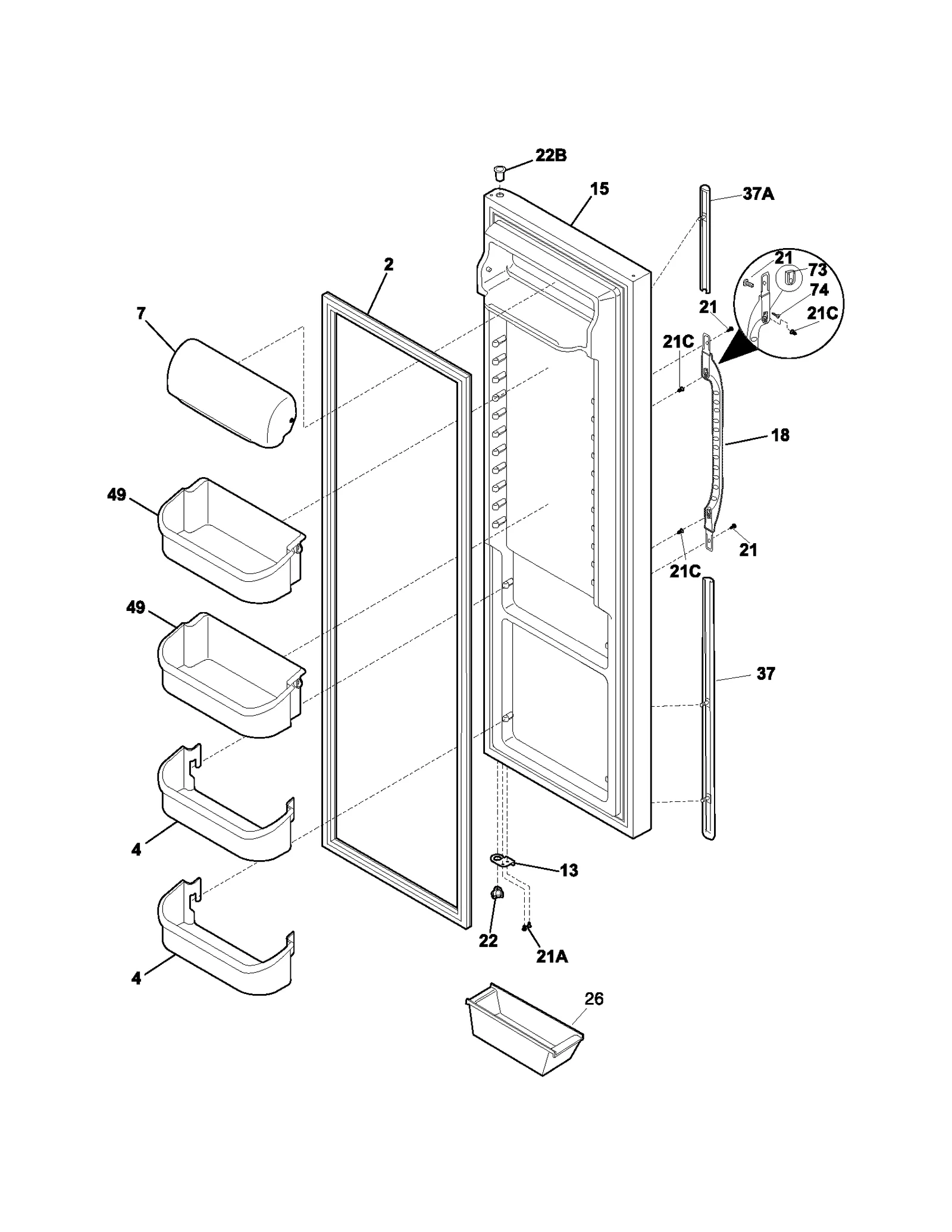

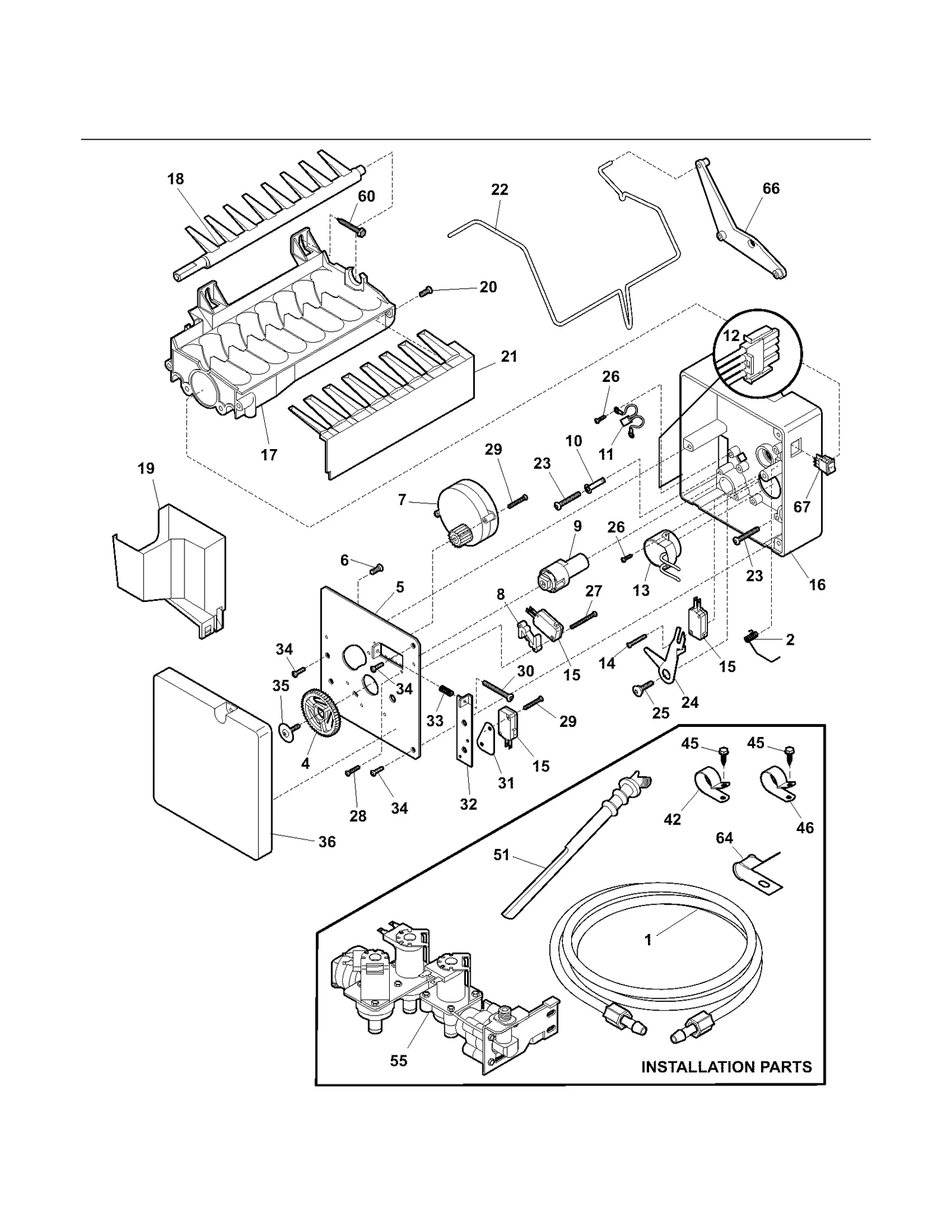

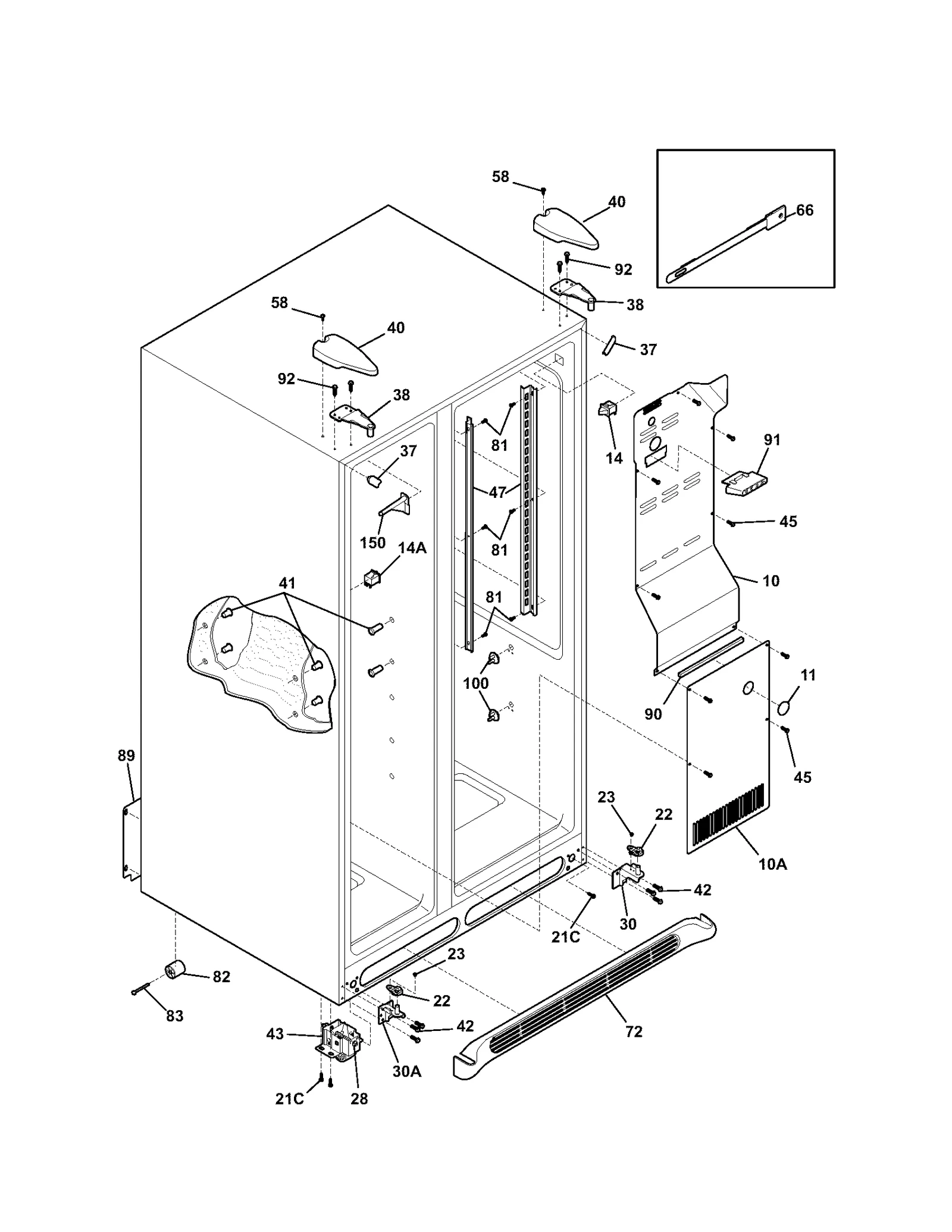

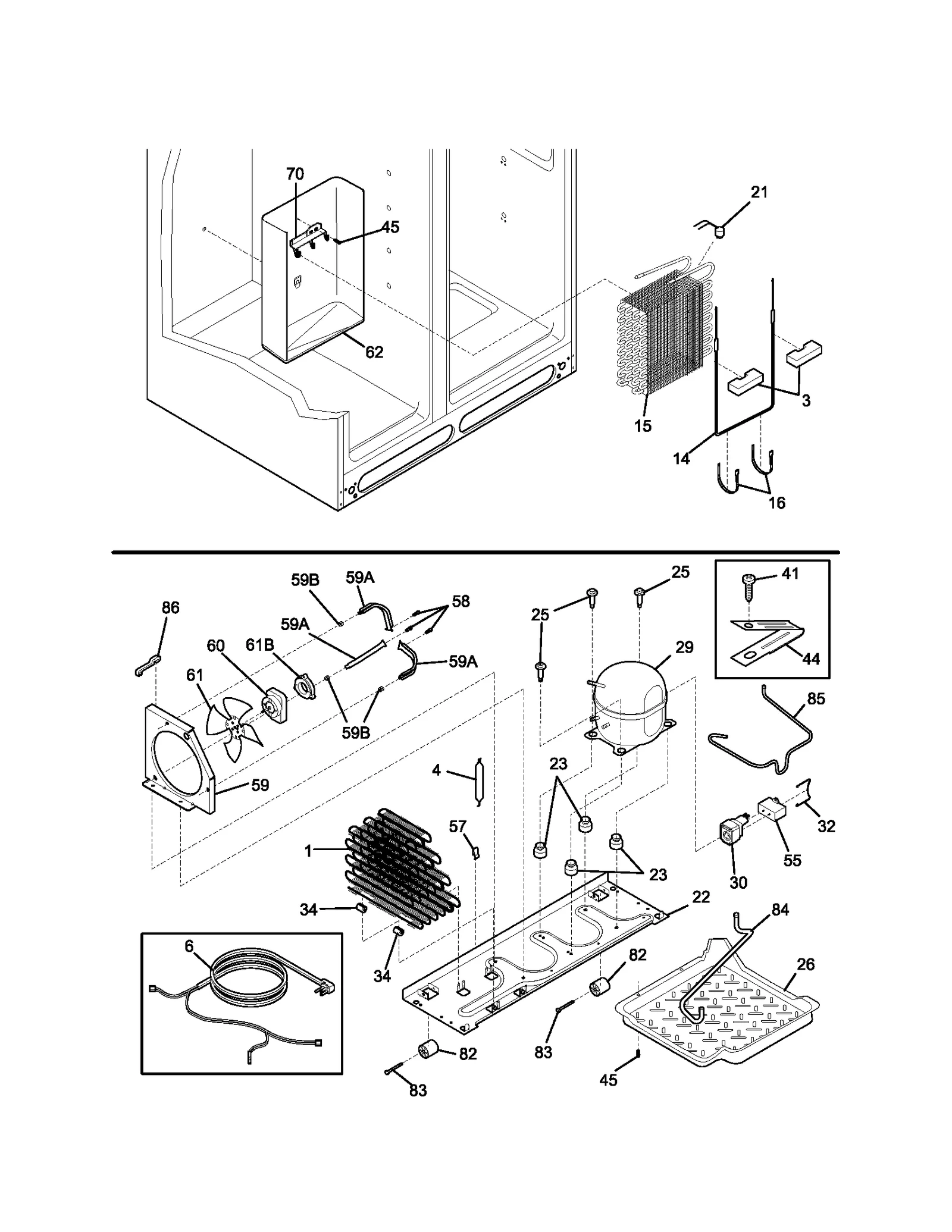

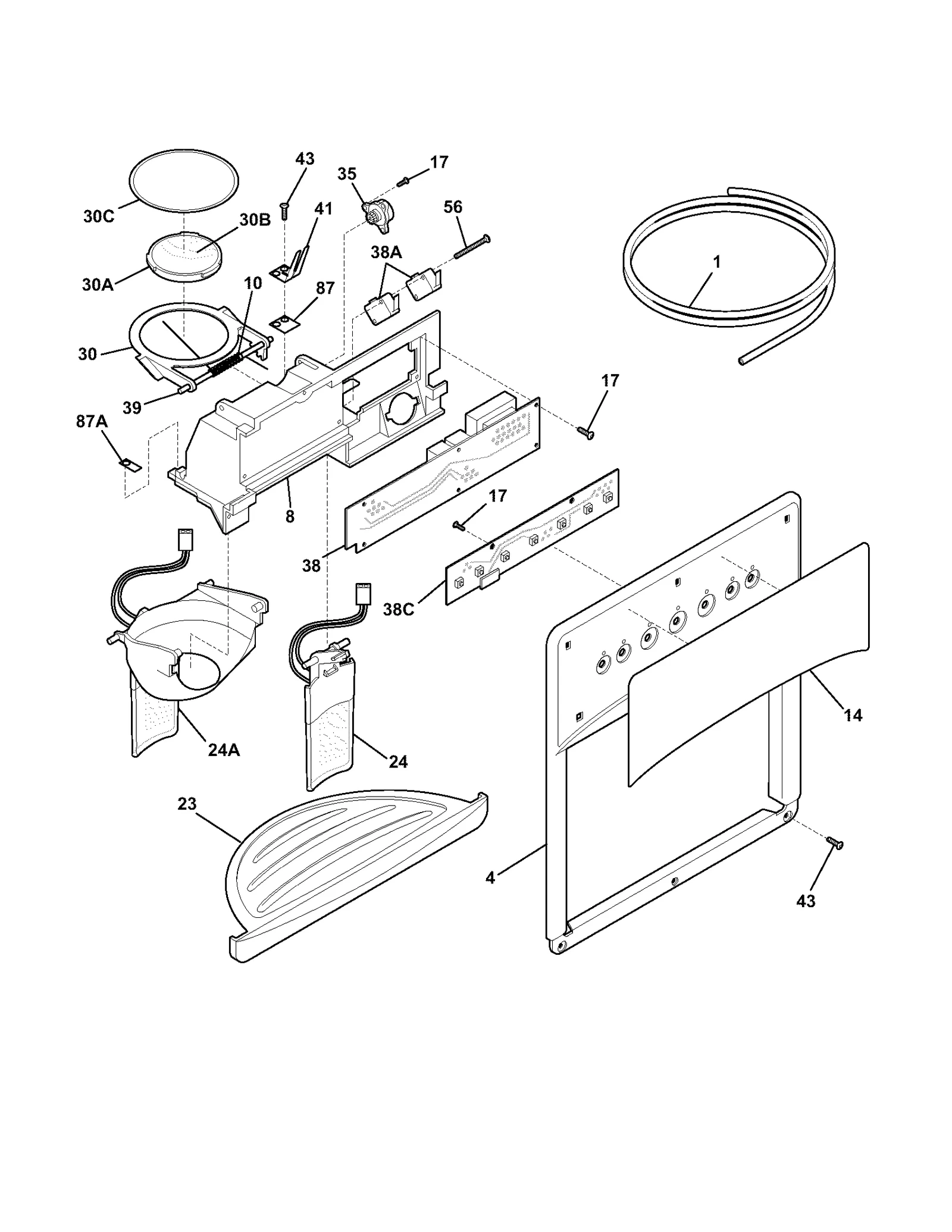

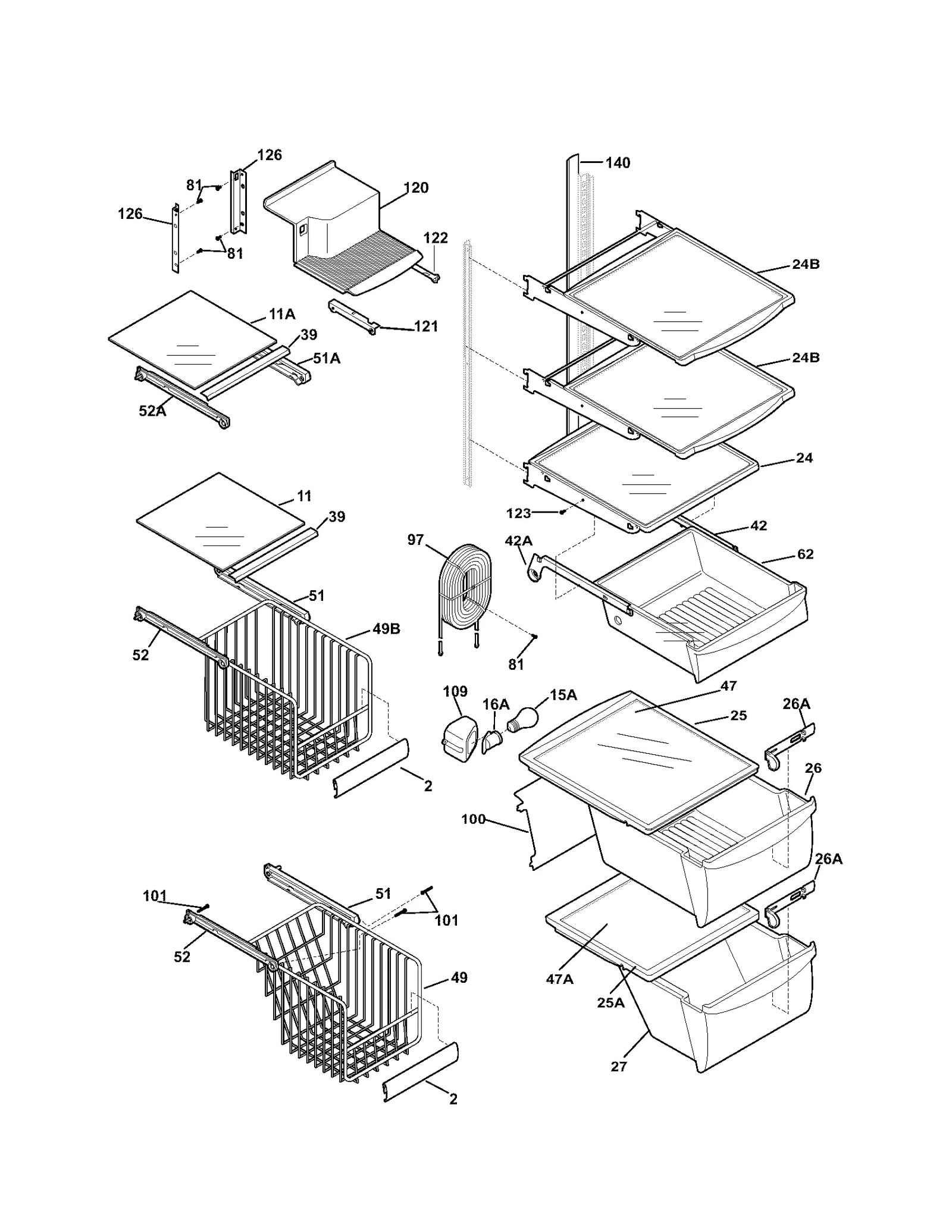

2

Refrigerator Spring WCI 5304436616 Contact Us For Availability

2

Refrigerator Basket Trim WCI 241510603 Contact Us For Availability

4

240363702 Frigidaire Refrigerator 2 Liter Doo In Stock WCI 240363702 $53.85

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $14.78

4

Refrigerator Dispenser Cover (Black) WCI 5304421643 Contact Us For Availability

4

Refrigerator Module Cover WCI 5304421641 Contact Us For Availability

4

Refrigerator Module Cover WCI 5304421642 Contact Us For Availability

4A

240367301 Frigidaire Refrigerator Door Bin Backorder WCI 240367301 $31.49

4B

240359001 Frigidaire Refrigerator White Door In Stock WCI 240359001 $47.36

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $43.01

5

Refrigerator Mounting Plate WCI 5304436604 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $7.86

7

241561402 Frigidaire Refrigerator Front Ice C Backorder WCI 241561402 $59.31

7

5304469407 Frigidaire Refrigerator Ice Maker Backorder WCI 5304469407 $117.30

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $13.64

8

Spacer WCI 3206312 Contact Us For Availability

8

Dispenser Module WCI 5304433616 Contact Us For Availability

8

Dispenser Module WCI 5304433617 Contact Us For Availability

8

Dispenser Module WCI 5304433618 Contact Us For Availability

9

241563601 Frigidaire Refrigerator Motor Mount Backorder WCI 241563601 $13.11

9

Refrigerator Detent WCI 5304436610 Contact Us For Availability

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $15.74

10

Clamp WCI 3206315 Contact Us For Availability

10

Cover-air Du WCI 240435907 Contact Us For Availability

10A

Refrigerator Evaporator Cover Coil, Lower WCI 240475906 Contact Us For Availability

11

5303208309 Frigidaire Refrigerator Plug Hole In Stock WCI 5303208309 $31.49

11

Refrigerator Ice Maker Thermal Cut-Off WCI 5304436618 Contact Us For Availability

11

Refrigerator Lower Shelf WCI 240350684 Contact Us For Availability

11A

Refrigerator Freezer Glass WCI 240350683 Contact Us For Availability

12

Refrigerator Wiring Harness WCI 5304436614 Contact Us For Availability

13

Refrigerator Thermostat WCI 5304436613 Contact Us For Availability

240418323 Frigidaire Refrigerator Module Cove Backorder WCI 240418323 $2.61

240418325 Frigidaire Refrigerator Module Cove Backorder WCI 240418325 $2.61

240505801 Frigidaire Light Switch In Stock WCI 240505801 $49.34

Screw WCI 5304420652 Contact Us For Availability

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $17.21

15

5303918286 Frigidaire Refrigerator Evaporator In Stock WCI 5303918286 $266.33

15

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $64.04

15A

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $12.40

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.49

16

Refrigerator Housing WCI 5304436609 Contact Us For Availability

16A

218906802 Frigidaire Light Lamp Socket In Stock WCI 218906802 $15.24

16A

Refrigerator Wiring Harness WCI 241537602 Contact Us For Availability

17

241679801 Frigidaire Screw Backorder WCI 241679801 $10.49

18

Refrigerator Temperature Control Knob WCI 240360801 Contact Us For Availability

18

Refrigerator Ice Ejector WCI 5304436607 Contact Us For Availability

19

Refrigerator Ice Maker Fill Cup WCI 5304436606 Contact Us For Availability

20

Refrigerator Screw WCI 5304408581 Contact Us For Availability

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $22.06

21

5304473031 Frigidaire Refrigerator Ice Stripp Backorder WCI 5304473031 $20.46

21C

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $10.49

240328201 Frigidaire Refrigerator Hinge Beari In Stock WCI 240328201 $13.10

240328203 Frigidaire Refrigerator Door Hinge In Stock WCI 240328203 $18.28

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $48.79

Refrigerator Base Plate WCI 240330007 Contact Us For Availability

Refrigerator Shut-Off Arm WCI 5304436602 Contact Us For Availability

22B

Refrigerator Door Hinge Bushing WCI 240328403 Contact Us For Availability

22B

Refrigerator Door Hinge Bushing, Upper WCI 240328401 Contact Us For Availability

22C

240328402 Frigidaire Refrigerator Bearing Hin Backorder WCI 240328402 $14.69

22C

240328404 Frigidaire Refrigerator Upper Door In Stock WCI 240328404 $16.92

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $31.49

241659103 Frigidaire Refrigerator Drip Tray Backorder WCI 241659103 $48.81

Refrigerator Screw, #10-32 x 1/4-in WCI 240402701 Contact Us For Availability

Refrigerator Ice Maker Mounting Screw WCI 5304408582 Contact Us For Availability

Refrigerator Drip Tray WCI 240411701 Contact Us For Availability

Refrigerator Drip Tray WCI 240411702 Contact Us For Availability

241685701 Frigidaire Refrigerator White Water In Stock WCI 241685701 $158.62

241685703 Frigidaire Refrigerator Lighted Wat In Stock WCI 241685703 $110.76

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $49.34

Refrigerator Actuator WCI 5304433614 Contact Us For Availability

Refrigerator Shelf WCI 240355216 Contact Us For Availability

24A

241682303 Frigidaire Refrigerator Actuator Backorder WCI 241682303 $165.36

24A

Refrigerator Actuator WCI 5304433611 Contact Us For Availability

24A

Refrigerator Actuator WCI 5304433612 Contact Us For Availability

24B

Refrigerator Spill-Safe Shelf WCI 240350112 Contact Us For Availability

25

240354502 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354502 $65.82

25

Compressor Screw WCI 240491501 Contact Us For Availability

25A

240354602 Frigidaire Lower Crisper Cover Fram Backorder WCI 240354602 $62.34

26

240354723 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354723 $128.90

26

241697603 Frigidaire Defrost Pan Backorder WCI 241697603 $55.86

26

Screw-ther WCI 5304420654 Contact Us For Availability

26A

240351101 Frigidaire Refrigerator Air Flow Co Backorder WCI 240351101 $32.54

27

240354805 Frigidaire Refrigerator Pan In Stock WCI 240354805 $124.18

27

Screw WCI 3206338 Contact Us For Availability

28

Screw WCI 3206339 Contact Us For Availability

29

5304511983 Frigidaire Refrigerator Compressor Backorder WCI 5304511983 $595.69

29

Refrigerator Ice Maker Motor Screw WCI 3206323 Contact Us For Availability

216954235 Frigidaire Refrigerator Compressor Backorder WCI 216954235 $63.43

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $35.89

5303918455 Frigidaire Refrigerator Adjustable In Stock WCI 5303918455 $100.69

Screw WCI 3206341 Contact Us For Availability

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $40.14

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $51.41

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $28.50

31

Insulator WCI 3206342 Contact Us For Availability

32

241544101 Frigidaire Refrigerator Clamp In Stock WCI 241544101 $6.36

32

Refrigerator Ice Maker Fill Switch Bracket WCI 3206343 Contact Us For Availability

33

Thermostat Spring WCI 5304436615 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $14.69

34

Screw WCI 5304420655 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

35

Damper-rot WCI 5304421620 Contact Us For Availability

36

Refrigerator Ice Maker Cover WCI 5304436605 Contact Us For Availability

242161201 Frigidaire Refrigerator Cabinet Cor In Stock WCI 242161201 $2.15

242161203 Frigidaire Refrigerator Corner Cabi In Stock WCI 242161203 $5.24

Refrigerator Door Handle Trim, Lower (Black) WCI 218779320 Contact Us For Availability

Freezer Door Handle Trim, Lower WCI 218779318 Contact Us For Availability

Refrigerator Corner Trim (Black) WCI 240337603 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $15.21

37A

Refrigerator Hand Trim WCI 218779309 Contact Us For Availability

37A

Refrigerator Door Handle Trim, Upper (White) WCI 218779307 Contact Us For Availability

38

240327207 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327207 $42.57

38

Refrigerator Door Hinge, Upper WCI 240327206 Contact Us For Availability

38

Refrigerator Electronic Control Board WCI 5304433619 Contact Us For Availability

38A

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $6.87

38C

Harness Ring WCI 5304430811 Contact Us For Availability

38C

Cntol Board WCI 5304431856 Contact Us For Availability

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $32.01

39

Refrigerator Freezer Shelf Trim WCI 240367601 Contact Us For Availability

40

240327005 Frigidaire Refrigerator Upper P-1 H In Stock WCI 240327005 $43.88

40

240327007 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327007 $39.89

40

Cover-uppe WCI 240327006 Contact Us For Availability

41

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $9.96

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $44.09

41

241689001 Frigidaire Refrigerator Actuator Sp Backorder WCI 241689001 $16.26

42

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $39.32

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $10.49

42A

240349701 Frigidaire Refrigerator Left Hand M Backorder WCI 240349701 $43.04

42A

Refrigerator Deli Drawer Hanger WCI 240349901 Contact Us For Availability

42A

Refrigerator Deli Drawer Slide Rail Spring WCI 240350001 Contact Us For Availability

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $23.19

43

Refrigerator Screw WCI 215296300 Contact Us For Availability

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $48.81

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $3.14

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $12.06

47

240350613 Frigidaire Refrigerator Insert In Stock WCI 240350613 $85.56

47

Refrigerator Shelf Bracket WCI 240349402 Contact Us For Availability

47A

240350614 Frigidaire Refrigerator Insert Backorder WCI 240350614 $100.79

49

240324502 Frigidaire Gallon Door Shelf Bin In Stock WCI 240324502 $72.31

49

Refrigerator Freezer Basket WCI 240530401 Contact Us For Availability

49B

Refrigerator Freezer Basket, Upper WCI 240530503 Contact Us For Availability

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $45.14

51

241796407 Frigidaire Refrigerator Fill Water Backorder WCI 241796407 $14.69

51A

240395502 Frigidaire Refrigerator Basket Hang Backorder WCI 240395502 $54.06

52

240343102 Frigidaire Basket Hanger Backorder WCI 240343102 $52.38

52A

240395602 Frigidaire Refrigerator Basket Hang Backorder WCI 240395602 $45.66

53

240369501 Frigidaire Refrigerator Control Box Backorder WCI 240369501 $54.24

55

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $41.25

55

297286803 Frigidaire Refrigerator Run Capacit In Stock WCI 297286803 $21.41

56

Refrigerator Dispenser Micro-Switch Screw WCI 5304421830 Contact Us For Availability

57

240542601 Frigidaire Wiring Harness Clip Backorder WCI 240542601 $67.19

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $12.20

58

240569202 Frigidaire Refrigerator Screw In Stock WCI 240569202 $1.65

59

Shroud Control WCI 240315501 Contact Us For Availability

59A

Refrigerator Condenser Fan Motor Bracket WCI 240346501 Contact Us For Availability

59B

Grommet Bracket WCI 240346601 Contact Us For Availability

60

5304448483 Frigidaire Refrigerator Condenser Backorder WCI 5304448483 $201.02

60

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $9.96

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $15.37

61B

Refrigerator Bracket Support WCI 240564001 Contact Us For Availability

62

240355527 Frigidaire Meat Crisper Pan In Stock WCI 240355527 $158.65

62

Trough-dra WCI 240429401 Contact Us For Availability

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $7.86

66

Ice Bracket WCI 5304436611 Contact Us For Availability

66

Refrigerator Pantry Drawer Temperature Contro WCI 5304424968 Contact Us For Availability

67

5304465210 Frigidaire Refrigerator Switch Kit Backorder WCI 5304465210 $166.94

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $56.93

70

218990801 Frigidaire Refrigerator Evaporator/ Backorder WCI 218990801 $47.24

72

240324409 Frigidaire Refrigerator Grille Kick Backorder WCI 240324409 $44.09

72

241521603 Frigidaire Refrigerator Kickplate G Backorder WCI 241521603 $97.11

72

Kick Grille WCI 240324403 Contact Us For Availability

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $39.05

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $10.49

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $35.90

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $26.16

84

241957901 Frigidaire Refrigerator Drain Tube Backorder WCI 241957901 $45.14

85

241856901 Frigidaire Refrigerator Connector T Backorder WCI 241856901 $54.06

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $46.71

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $14.69

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $14.69

89

Refrigerator Access Cover WCI 240326103 Contact Us For Availability

90

218249808 Frigidaire Refrigerator Coil Cover Backorder WCI 218249808 $6.29

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $51.96

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $9.96

97

240545302 Frigidaire Water Reservoir Assembly Backorder WCI 240545302 $207.89

100

240326303 Frigidaire Refrigerator Cover Backorder WCI 240326303 $45.38

100

241993001 Frigidaire Refrigerator Left Crispe In Stock WCI 241993001 $7.47

100

241993101 Frigidaire Refrigerator Right Crisp In Stock WCI 241993101 $4.66

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $10.50

109

Refrigerator Crisper Lamp Socket Base WCI 240351301 Contact Us For Availability

120

241691801 Frigidaire Refrigerator Ice Cream S Backorder WCI 241691801 $180.59

121

Refrigerator Freezer Ice Cream Shelf Slide Ra WCI 241561001 Contact Us For Availability

122

241561101 Frigidaire Refrigerator Ice Cream S Backorder WCI 241561101 $54.59

123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $11.01

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $35.16

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $32.01

137

Frigidaire WF2CB PureSource Water Filter In Stock WCI WF2CB $50.53

138

Refrigerator Water Filter Release Button WCI 240397301 Contact Us For Availability

140

240430501 Frigidaire Refrigerator Channel Backorder WCI 240430501 $72.44

150

Guide Control WCI 240368701 Contact Us For Availability

198

240397401 Frigidaire Refrigerator Retainer As Backorder WCI 240397401 $44.09

199

240398401 Frigidaire Refrigerator Filter Rele Backorder WCI 240398401 $40.94

199

Refrigerator Water Filter Bypass Valve WCI 240397501 Contact Us For Availability

218709101 Frigidaire Refrigerator Handle Moun Backorder WCI 218709101 $4.71

218769500 Frigidaire Use and Care Label Backorder WCI 218769500 $3.66

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $60.36

218976903 Frigidaire Refrigerator Water Inlet Backorder WCI 218976903 $51.96

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $22.04

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $14.16

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.61

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $32.54

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.44

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $14.16

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $12.59

240518802 Frigidaire Refrigerator Push Pin Backorder WCI 240518802 $12.06

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $13.11

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $15.21

241550701 Frigidaire Refrigerator Shelf Mount Backorder WCI 241550701 $12.59

241579600 Frigidaire Owners Manual Backorder WCI 241579600 $3.66

241583301 Frigidaire Refrigerator Air Deflect Backorder WCI 241583301 $34.64

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.96

5303321321 Frigidaire Refrigerator Black Touc In Stock WCI 5303321321 $16.26

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $351.21

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $271.97

5303918344 Frigidaire Refrigerator Kit Ice Ma In Stock WCI 5303918344 $125.36

Refrigerator Hot Tube Repair Kit WCI 5303918222 Contact Us For Availability

Appliance Touch-Up Paint, 0.6-oz (Bisque) WCI 5304414035 Contact Us For Availability

Refrigerator Water Tubing WCI 218976907 Contact Us For Availability

Refrigerator Wire Harness WCI 240449601 Contact Us For Availability

Refrigerator Screw WCI 240569501 Contact Us For Availability

Refrigerator Control Box Wire Harness WCI 241537801 Contact Us For Availability

Refrigerator Water Tubing Clip WCI 218515402 Contact Us For Availability

Refrigerator Wiring Harness WCI 240352601 Contact Us For Availability

Lower Shim WCI 240481601 Contact Us For Availability

Refrigerator Ice and Water Dispenser Cover Cl WCI 240411501 Contact Us For Availability

Refrigerator Insulator WCI 5304426535 Contact Us For Availability

Refrigerator Service Data Sheet WCI 240389618 Contact Us For Availability

Refrigerator Energy Guide WCI 241538766 Contact Us For Availability

Refrigerator Repair Parts List WCI 5995407813 Contact Us For Availability
