Model Electrolux 253.51234101 Side-By-Side Refrigerator (Kenmore 25351234101) – Common Parts &amp; Diagrams

1

241786016 Frigidaire Door Gasket In Stock WCI 241786016 $65.69

1A

218976904 Frigidaire Refrigerator Water Inlet Backorder WCI 218976904 $81.89

1B

Refrigerator Water Tubing WCI 218976907 Contact Us For Availability

1C

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $60.36

2

241786015 Frigidaire Door Gasket In Stock WCI 241786015 $63.91

2

Spring WCI 5304420650 Contact Us For Availability

2

Refrigerator Basket Trim WCI 240434601 Contact Us For Availability

3

Refrigerator Ice Maker Decal WCI 3206299 Contact Us For Availability

4

240363701 Frigidaire 2 Liter Door Shelf Bin In Stock WCI 240363701 $41.88

4

5304469403 Frigidaire Gear Backorder WCI 5304469403 $14.78

4

Refrigerator Module Cover WCI 5304421641 Contact Us For Availability

4A

240367301 Frigidaire Refrigerator Door Bin Backorder WCI 240367301 $31.49

4A

Refrigerator Module Cover WCI 5304421642 Contact Us For Availability

4B

240359001 Frigidaire Refrigerator White Door In Stock WCI 240359001 $47.36

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $43.01

5

Refrigerator Ice Maker Cover Bracket WCI 3206303 Contact Us For Availability

6

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $7.86

7

240338313 Frigidaire Refrigerator Dairy Door In Stock WCI 240338313 $54.44

8

Refrigerator Bushing WCI 5300157666 Contact Us For Availability

8

Dispenser Module WCI 5304421632 Contact Us For Availability

8

Spacer WCI 3206312 Contact Us For Availability

8A

Dispenser Module WCI 5304421638 Contact Us For Availability

9

Refrigerator Evaporator Fan Motor Bracket, Fr WCI 5303292396 Contact Us For Availability

9

Cam WCI 3206313 Contact Us For Availability

10

241688901 Frigidaire Refrigerator Torsion Spr Backorder WCI 241688901 $15.74

10

Refrigerator Air Cover WCI 240435901 Contact Us For Availability

10

Clamp WCI 3206315 Contact Us For Availability

10A

241719710 Frigidaire Refrigerator Evaporator Backorder WCI 241719710 $83.29

241657601 Frigidaire Refrigerator Shelf Backorder WCI 241657601 $58.86

5303208309 Frigidaire Refrigerator Plug Hole In Stock WCI 5303208309 $31.49

Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability

Refrigerator Freezer Door WCI 240451821 Contact Us For Availability

11A

Refrigerator Freezer Door WCI 240451827 Contact Us For Availability

11B

5304532464 Frigidaire Refrigerator Shelf and Backorder WCI 5304532464 $38.01

12

Refrigerator Wiring Harness WCI 240352601 Contact Us For Availability

13

240312421 Frigidaire Refrigerator Door Stop Backorder WCI 240312421 $10.49

13

5303918549 Frigidaire Refrigerator Evaporator In Stock WCI 5303918549 $46.47

13

Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability

13A

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $13.64

13A

240312414 Frigidaire Refrigerator Door Stop Backorder WCI 240312414 $14.16

240438003 Frigidaire Refrigerator Bracket and Backorder WCI 240438003 $12.06

240494001 Frigidaire Refrigerator Plug Button In Stock WCI 240494001 $12.59

240505801 Frigidaire Light Switch In Stock WCI 240505801 $49.34

Refrigerator Label Module WCI 240418307 Contact Us For Availability

Screw WCI 5304420652 Contact Us For Availability

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $17.21

14A

Refrigerator Label Module WCI 240418308 Contact Us For Availability

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $12.40

5304456667 Frigidaire Refrigerator Micro Swit Backorder WCI 5304456667 $64.04

Refrigerator Light Bulb WCI 5304421616 Contact Us For Availability

Refrigerator Door Assembly (White) WCI 240451914 Contact Us For Availability

15A

Refrigerator Light Bulb, 25-watt WCI 215812200 Contact Us For Availability

15A

Refrigerator Door WCI 240451918 Contact Us For Availability

16

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $44.09

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $39.49

16

Support WCI 5304420653 Contact Us For Availability

16A

218906802 Frigidaire Light Lamp Socket In Stock WCI 218906802 $15.24

17

241679801 Frigidaire Screw Backorder WCI 241679801 $10.49

17

241798231 Frigidaire Refrigerator Ice Maker A In Stock WCI 241798231 $145.94

17

Refrigerator Box WCI 240374005 Contact Us For Availability

18

297272500 Frigidaire Refrigerator Door Handle In Stock WCI 297272500 $58.26

18

Refrigerator Temperature Control Knob WCI 240360801 Contact Us For Availability

18

Ejector WCI 3206328 Contact Us For Availability

18A

Handle Ff &f WCI 218803904 Contact Us For Availability

19

Bearing WCI 3206330 Contact Us For Availability

20

Refrigerator Screw WCI 5304408581 Contact Us For Availability

21

Refrigerator Temperature Control WCI 240375902 Contact Us For Availability

21

Ice Stripper WCI 3206332 Contact Us For Availability

21A

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $10.49

21A

5304496561 Frigidaire Refrigerator Cold Tempe In Stock WCI 5304496561 $85.18

21C

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $10.49

21C

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $12.20

218660704 Frigidaire Refrigerator Insulator T Backorder WCI 218660704 $11.01

240328201 Frigidaire Refrigerator Hinge Beari In Stock WCI 240328201 $13.10

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $48.79

Arm WCI 3206333 Contact Us For Availability

22A

242000501 Frigidaire Refrigerator Hinge Beari Backorder WCI 242000501 $5.28

22B

Refrigerator Door Hinge Bushing, Upper WCI 240328401 Contact Us For Availability

22C

240328402 Frigidaire Refrigerator Bearing Hin Backorder WCI 240328402 $14.69

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $31.49

Refrigerator Screw, #10-32 x 1/4-in WCI 240402701 Contact Us For Availability

De Control WCI 240375803 Contact Us For Availability

Refrigerator Drip Tray WCI 240411701 Contact Us For Availability

Refrigerator Ice Maker Mounting Screw WCI 5304408582 Contact Us For Availability

23A

5304455649 Frigidaire Refrigerator Screw Backorder WCI 5304455649 $12.59

23A

Refrigerator Drip Tray WCI 240411702 Contact Us For Availability

24

5304456675 Frigidaire Refrigerator Lever Arm Backorder WCI 5304456675 $49.34

24

Refrigerator Dispenser Actuator WCI 5304421631 Contact Us For Availability

24

Refrigerator Spill-Safe Shelf WCI 240355215 Contact Us For Availability

24A

Refrigerator Dispenser Actuator WCI 5304421630 Contact Us For Availability

24A

Refrigerator Spill-Safe Shelf WCI 240350112 Contact Us For Availability

24AA

Refrigerator Actuator WCI 5304421634 Contact Us For Availability

24B

Refrigerator Actuator WCI 5304421636 Contact Us For Availability

25

240354502 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354502 $65.82

25

Screw WCI 3206336 Contact Us For Availability

25A

240354602 Frigidaire Lower Crisper Cover Fram Backorder WCI 240354602 $62.34

25B

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $32.54

26

240354723 Frigidaire Refrigerator Crisper Pan In Stock WCI 240354723 $128.90

26

Screw-ther WCI 5304420654 Contact Us For Availability

26

Container-eg WCI 5303288969 Contact Us For Availability

26A

240351101 Frigidaire Refrigerator Air Flow Co Backorder WCI 240351101 $32.54

26B

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $14.16

27

Screw WCI 3206338 Contact Us For Availability

27

Refrigerator Crisper WCI 240354810 Contact Us For Availability

28

Screw WCI 3206339 Contact Us For Availability

29

Refrigerator Ice Maker Motor Screw WCI 3206323 Contact Us For Availability

30

241688401 Frigidaire Ice Door Bracket In Stock WCI 241688401 $35.89

30

5303918455 Frigidaire Refrigerator Adjustable In Stock WCI 5303918455 $100.69

30

Screw WCI 3206341 Contact Us For Availability

30A

241688501 Frigidaire Refrigerator Door Center In Stock WCI 241688501 $40.14

30B

241688601 Frigidaire Refrigerator Door Insula In Stock WCI 241688601 $51.41

30C

241688701 Frigidaire Refrigerator Door Seal In Stock WCI 241688701 $28.50

31

Insulator WCI 3206342 Contact Us For Availability

32

Refrigerator Ice Maker Fill Switch Bracket WCI 3206343 Contact Us For Availability

33

Spring-timin WCI 5304408583 Contact Us For Availability

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $14.69

34

Screw WCI 5304420655 Contact Us For Availability

35

Damper-rot WCI 5304421620 Contact Us For Availability

35

Screw WCI 5304408585 Contact Us For Availability

36

Cover WCI 3206347 Contact Us For Availability

37

242161201 Frigidaire Refrigerator Cabinet Cor In Stock WCI 242161201 $2.15

37

Freezer Door Handle Trim, Lower WCI 218779318 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $15.21

37A

242161203 Frigidaire Refrigerator Corner Cabi In Stock WCI 242161203 $5.24

37A

Refrigerator Door Handle Trim, Upper (White) WCI 218779307 Contact Us For Availability

37AA

Refrigerator Handle Trim WCI 218779315 Contact Us For Availability

37AB

Tri Snap WCI 218776600 Contact Us For Availability

37B

Refrigerator Freezer Door Handle Trim, Lower WCI 218779321 Contact Us For Availability

38

240327207 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327207 $42.57

38

Refrigerator PC Board WCI 5304421633 Contact Us For Availability

38A

241689106 Frigidaire Refrigerator Micro Switc In Stock WCI 241689106 $6.87

38C

Refrigerator Control Board WCI 5304421640 Contact Us For Availability

39

241688801 Frigidaire Refrigerator Hinge Pin Backorder WCI 241688801 $32.01

39

Refrigerator Shelf Trim, Front WCI 240430701 Contact Us For Availability

40

240327005 Frigidaire Refrigerator Upper P-1 H In Stock WCI 240327005 $43.88

40A

Cover-uppe WCI 240327002 Contact Us For Availability

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $44.09

41

5308000039 Frigidaire Refrigerator Screw Backorder WCI 5308000039 $8.91

41

Lead Spring WCI 5304421623 Contact Us For Availability

41A

241550701 Frigidaire Refrigerator Shelf Mount Backorder WCI 241550701 $12.59

42

240356501 Frigidaire Tray Hanger Pan In Stock WCI 240356501 $39.32

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $10.49

42A

240365401 Frigidaire Refrigerator Left-Hand M In Stock WCI 240365401 $43.04

43

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $11.01

43

5304499445 Frigidaire Refrigerator Roller Ass Backorder WCI 5304499445 $23.19

44

5303001199 Frigidaire Refrigerator Wiring Har Backorder WCI 5303001199 $48.81

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $3.14

45

5304455651 Frigidaire Refrigerator Screw In Stock WCI 5304455651 $9.96

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $47.76

46

5303001193 Frigidaire Refrigerator Clamp Backorder WCI 5303001193 $12.06

46

Refrigerator Control Rod WCI 5304404341 Contact Us For Availability

47

240350613 Frigidaire Refrigerator Insert In Stock WCI 240350613 $85.56

47

Refrigerator Rod Spring WCI 5304404342 Contact Us For Availability

47

Refrigerator Shelf Support WCI 218659500 Contact Us For Availability

47A

240350614 Frigidaire Refrigerator Insert Backorder WCI 240350614 $100.79

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $79.26

48A

Refrigerator Bracket Screw WCI 5304404364 Contact Us For Availability

49

240324501 Frigidaire Bin Door Shelf In Stock WCI 240324501 $55.36

49

Refrigerator Rail Assembly WCI 5304404329 Contact Us For Availability

49

Basket-sli WCI 240338401 Contact Us For Availability

49B

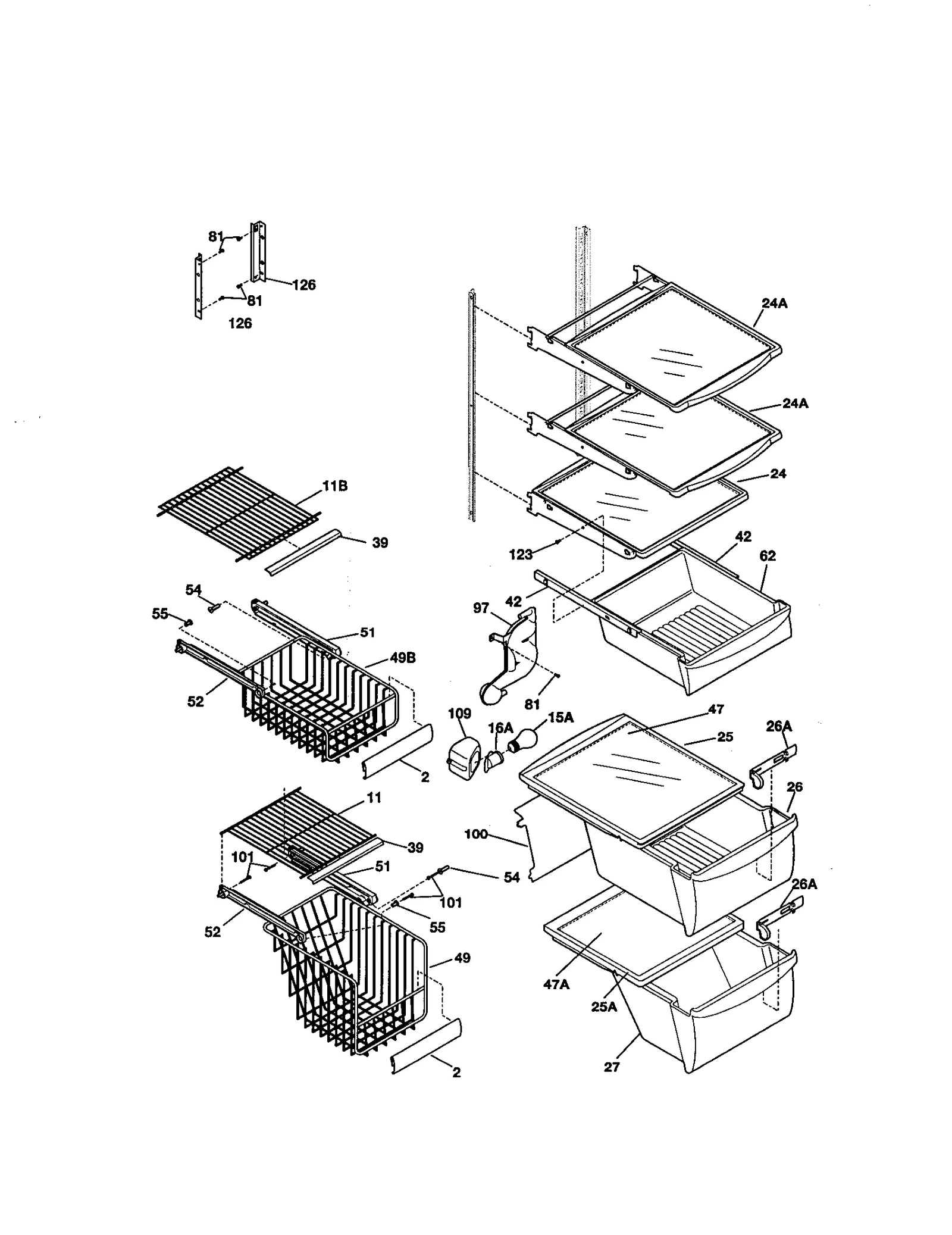

Refrigerator Slide Basket WCI 240338501 Contact Us For Availability

50

241675601 Frigidaire Refrigerator Solenoid Gu Backorder WCI 241675601 $59.31

51

240343002 Frigidaire Hanger Basket Backorder WCI 240343002 $45.14

51

241796405 Frigidaire Refrigerator Fill Water In Stock WCI 241796405 $12.83

51

Rotation Stop WCI 5304404336 Contact Us For Availability

52

240343102 Frigidaire Basket Hanger Backorder WCI 240343102 $52.38

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $20.99

53

240369501 Frigidaire Refrigerator Control Box Backorder WCI 240369501 $54.24

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $14.16

54

241685001 Frigidaire Auger Nut In Stock WCI 241685001 $14.69

55

241690306 Frigidaire Refrigerator Washer In Stock WCI 241690306 $36.74

55

242252702 Frigidaire Refrigerator Water Inlet In Stock WCI 242252702 $41.25

55A

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.44

55B

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $13.11

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $14.16

58

Solenoid Screw WCI 5304404331 Contact Us For Availability

58

Refrigerator Door Inner Liner Screw WCI 218749600 Contact Us For Availability

59C

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $22.04

60

5304455852 Frigidaire Refrigerator Screw Backorder WCI 5304455852 $9.44

61

218721500 Frigidaire Refrigerator Leveling Br Backorder WCI 218721500 $54.06

61

Refrigerator Condenser Fan Blade WCI 240315401 Contact Us For Availability

62

240355527 Frigidaire Meat Crisper Pan In Stock WCI 240355527 $158.65

62

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $9.96

64

5304455846 Frigidaire Refrigerator Clamp In Stock WCI 5304455846 $7.86

66B

Refrigerator Air Duct Diffuser WCI 240374301 Contact Us For Availability

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $56.93

72

Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available

72

240324409 Frigidaire Refrigerator Grille Kick Backorder WCI 240324409 $44.09

72

Refrigerator Dovetail WCI 240421701 Contact Us For Availability

72A

Kick Grille WCI 240324403 Contact Us For Availability

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $39.05

74

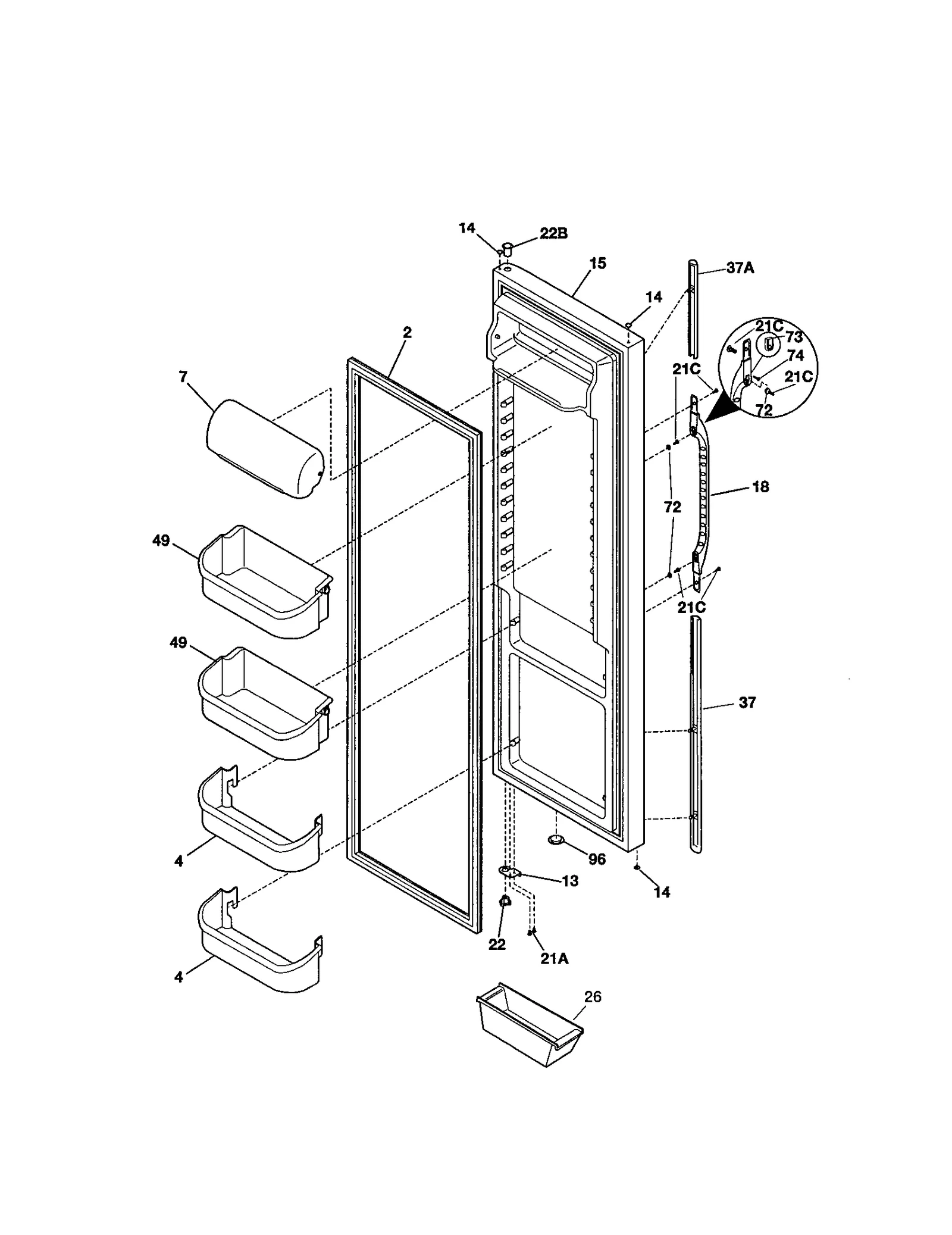

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $5.24

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $35.90

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $26.16

87

241688302 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688302 $14.69

87A

241688301 Frigidaire Refrigerator Bearing Pla Backorder WCI 241688301 $14.69

88

Light Shield WCI 5304421615 Contact Us For Availability

89

Refrigerator Access Cover WCI 240326103 Contact Us For Availability

89A

241500305 Frigidaire Refrigerator Screw In Stock WCI 241500305 $2.09

90

218249808 Frigidaire Refrigerator Coil Cover Backorder WCI 218249808 $6.29

91

240380101 Frigidaire Refrigerator Ice Maker D Backorder WCI 240380101 $51.96

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $9.96

96

Refrigerator Foam Plug WCI 240345501 Contact Us For Availability

97

240545302 Frigidaire Water Reservoir Assembly Backorder WCI 240545302 $207.89

100

240326303 Frigidaire Refrigerator Cover Backorder WCI 240326303 $45.38

100

241993101 Frigidaire Refrigerator Right Crisp In Stock WCI 241993101 $4.66

100A

241993001 Frigidaire Refrigerator Left Crispe In Stock WCI 241993001 $7.47

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $10.50

109

Refrigerator Crisper Lamp Socket Base WCI 240351301 Contact Us For Availability

115

Refrigerator Damper WCI 240440701 Contact Us For Availability

115A

Switch-mic WCI 5304421593 Contact Us For Availability

123

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $11.01

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $35.16

126A

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $32.01

137

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $39.24

137A

218904301 Frigidaire Refrigerator O-Ring Cup In Stock WCI 218904301 $9.96

138

Refrigerator Cup WCI 240370201 Contact Us For Availability

139

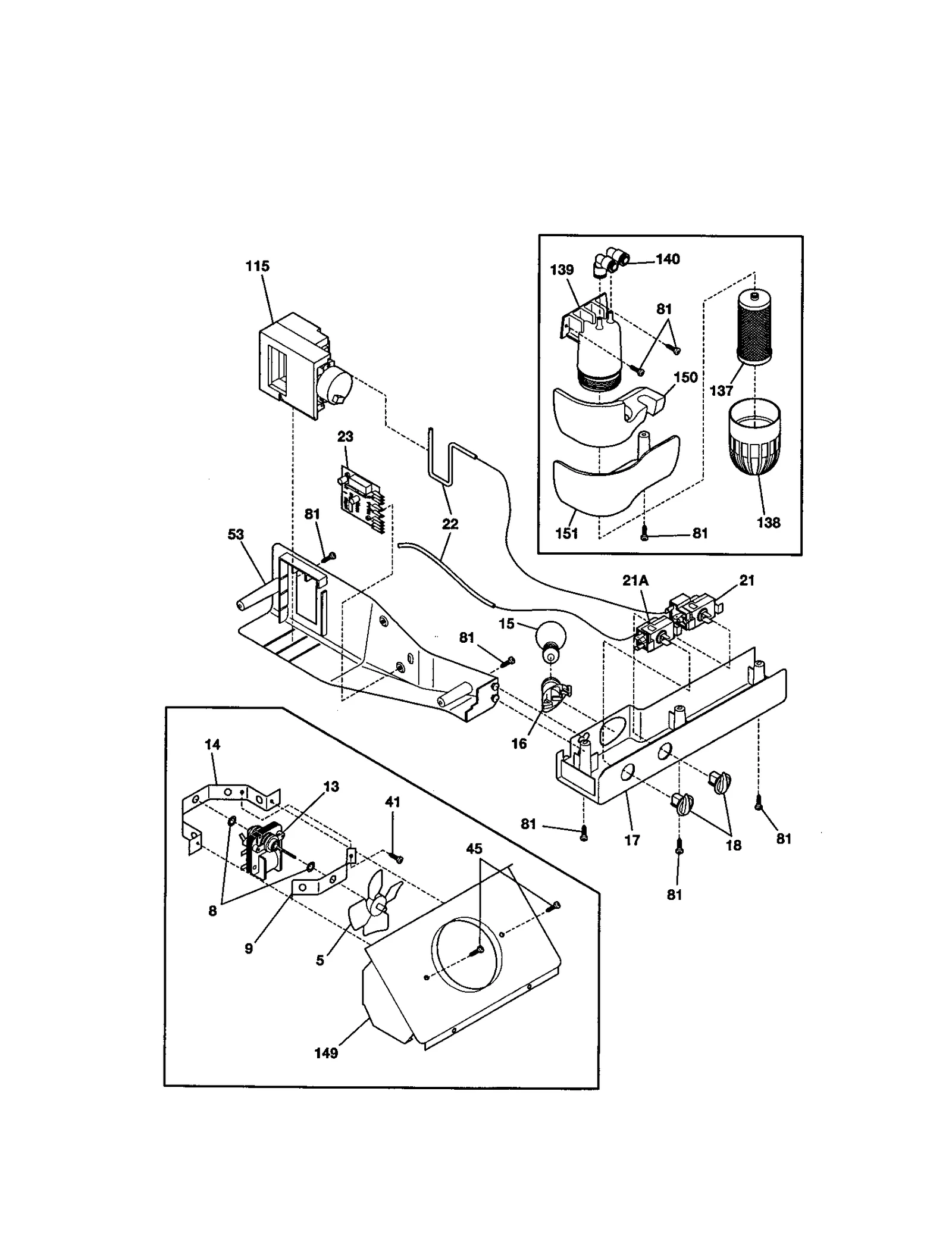

Refrigerator Filter Housing WCI 240369901 Contact Us For Availability

149

Evaporator Fan Shroud WCI 240331601 Contact Us For Availability

150

Guide Control WCI 240368701 Contact Us For Availability

150

Refrigerator Insulation WCI 240394101 Contact Us For Availability

151

Refrigerator Water Filter Cover WCI 240376002 Contact Us For Availability

218769500 Frigidaire Use and Care Label Backorder WCI 218769500 $3.66

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $14.16

240545201 Frigidaire Refrigerator Elbow P-1 In Stock WCI 240545201 $54.59

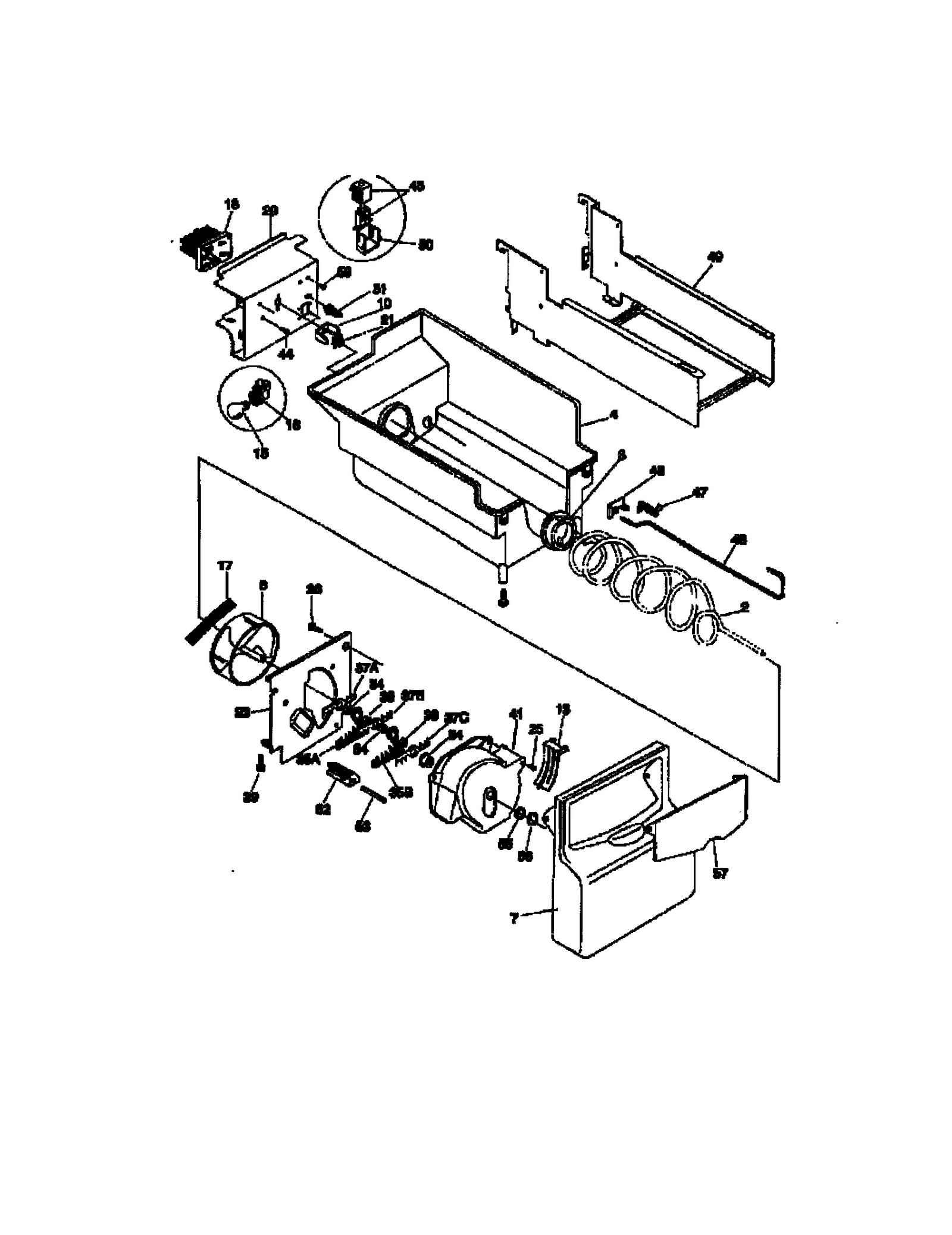

241860803 Frigidaire Refrigerator Ice Contain In Stock WCI 241860803 $95.00

3205266 Frigidaire Refrigerator Edge Protecto Backorder WCI 3205266 $59.31

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $9.96

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $22.06

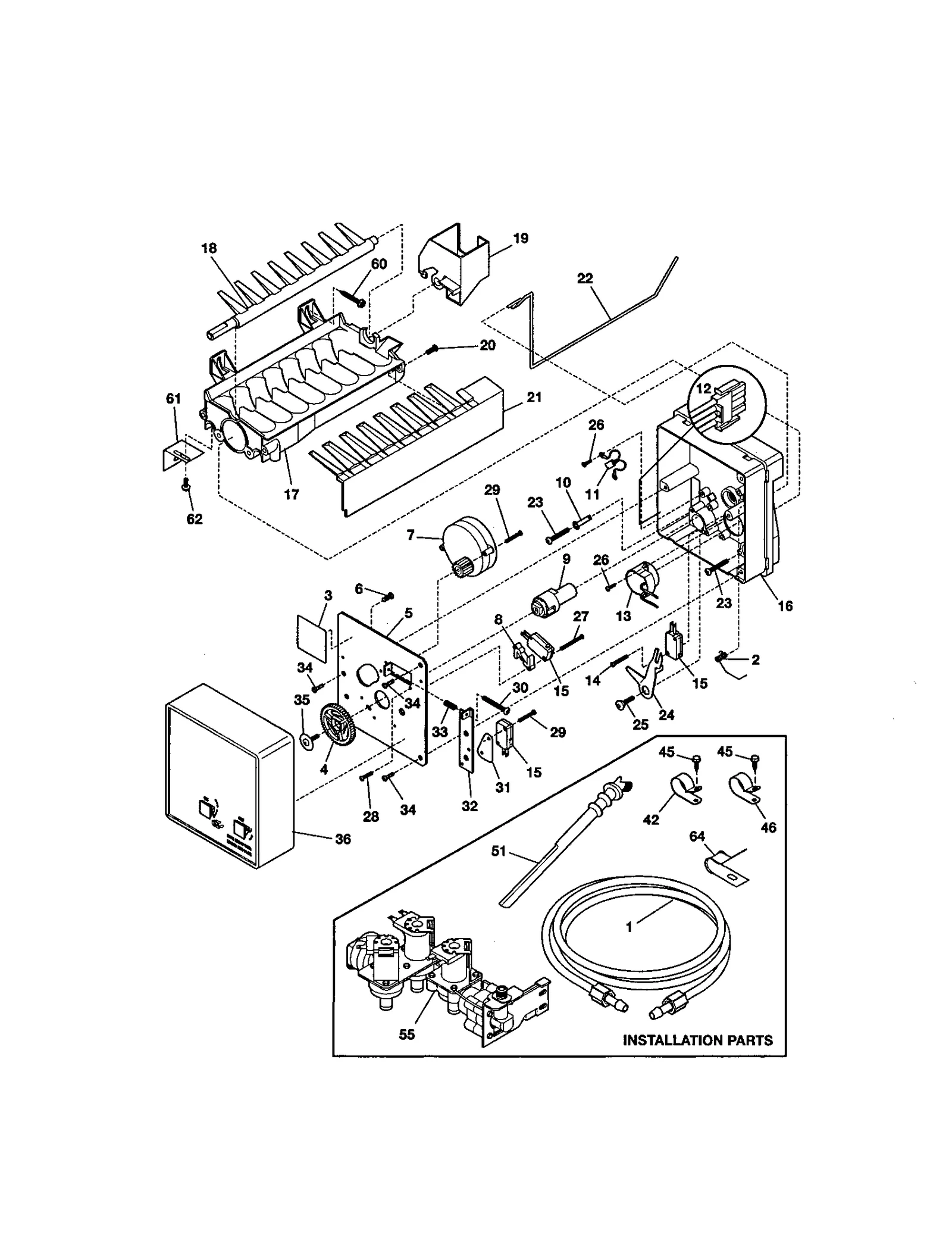

5303918277 Frigidaire Refrigerator Ice Maker In Stock WCI 5303918277 $68.28

5303918328 Frigidaire Refrigerator OS1 Heat E In Stock WCI 5303918328 $271.97

Appliance Touch-Up Paint, 0.6-oz (Bisque) WCI 5304414035 Contact Us For Availability

Refrigerator Wiring Harness WCI 240323201 Contact Us For Availability

Refrigerator Service Data Sheet WCI 240389603 Contact Us For Availability

Wiring Harness WCI 240425701 Contact Us For Availability

Refrigerator Owner's Manual WCI 240433000 Contact Us For Availability

Refrigerator Repair Parts List WCI 5995350567 Contact Us For Availability
