Model Electrolux 253.48022892 Side-By-Side Refrigerator (Kenmore 25348022892) – Common Parts & Diagrams
FREEZER DOOR

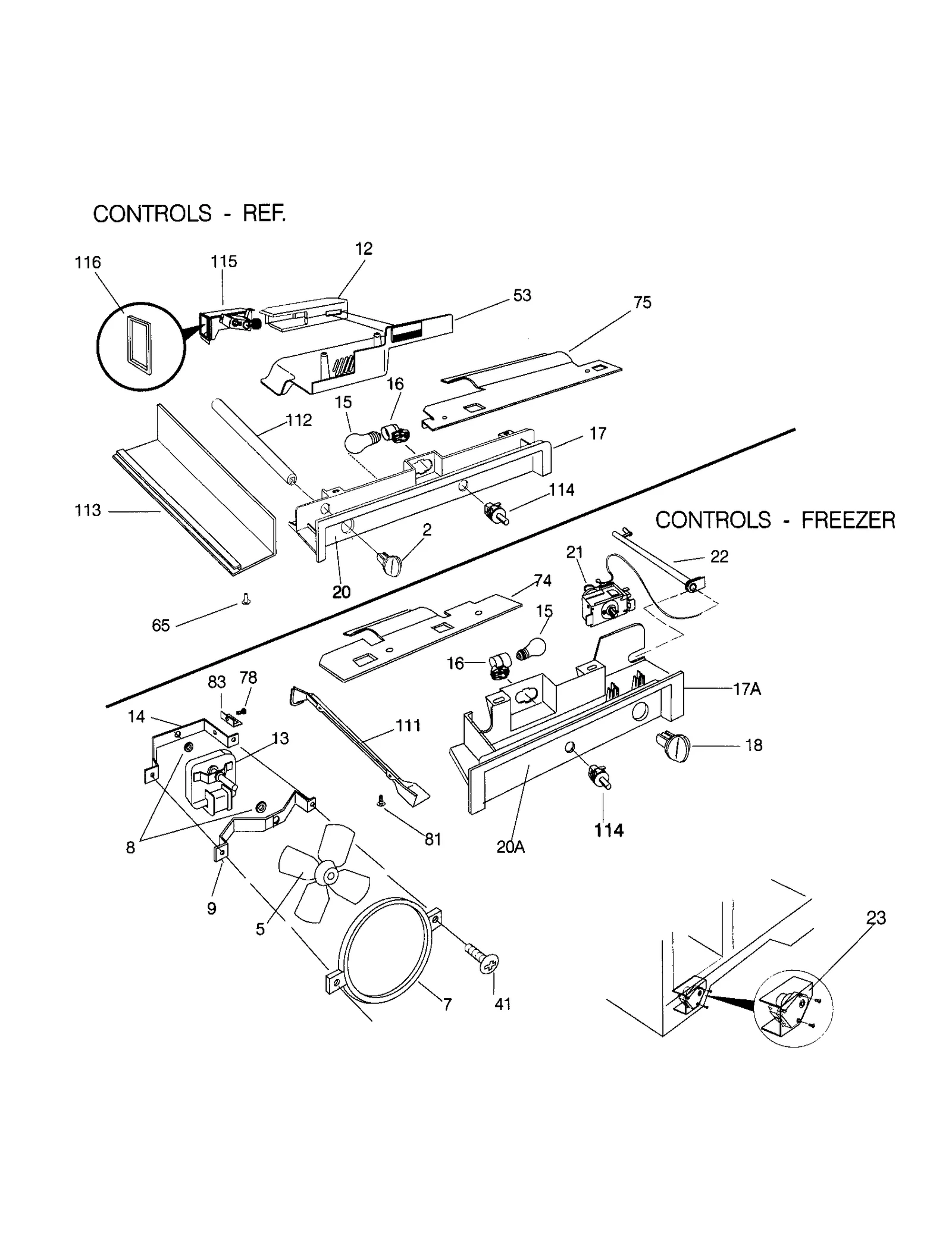

CONTROLS
All Parts

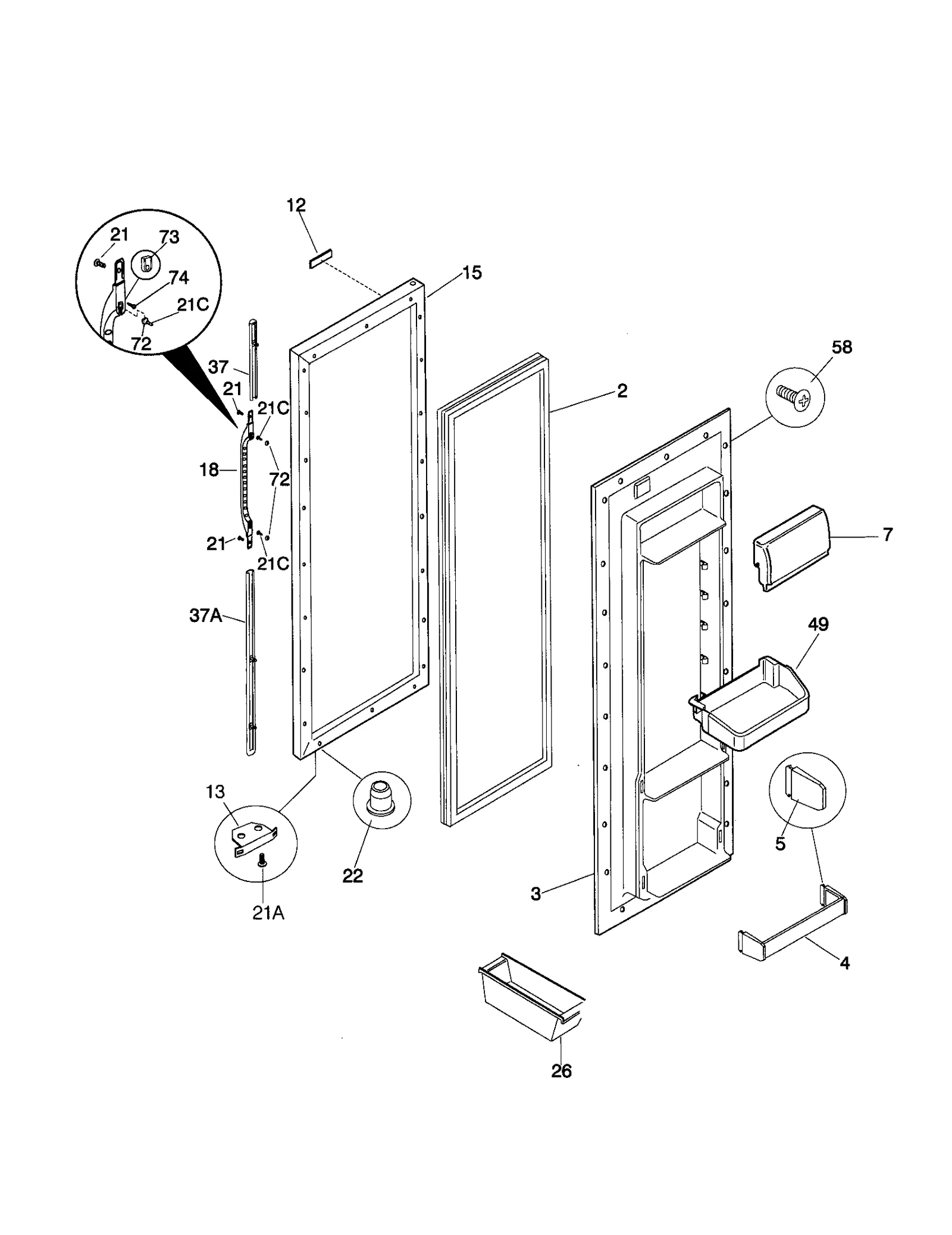

REFRIGERATOR DOOR

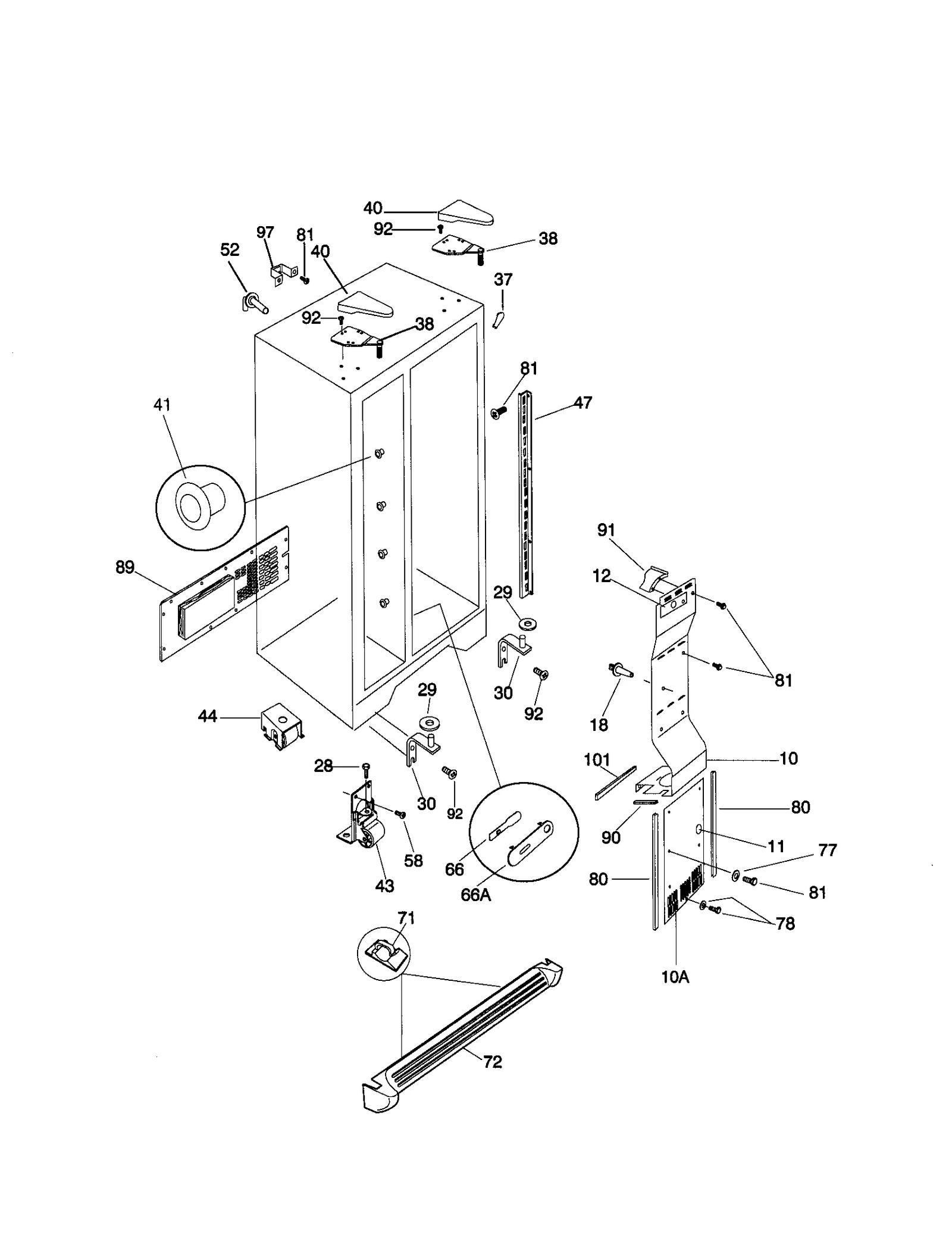

CABINET
SYSTEM

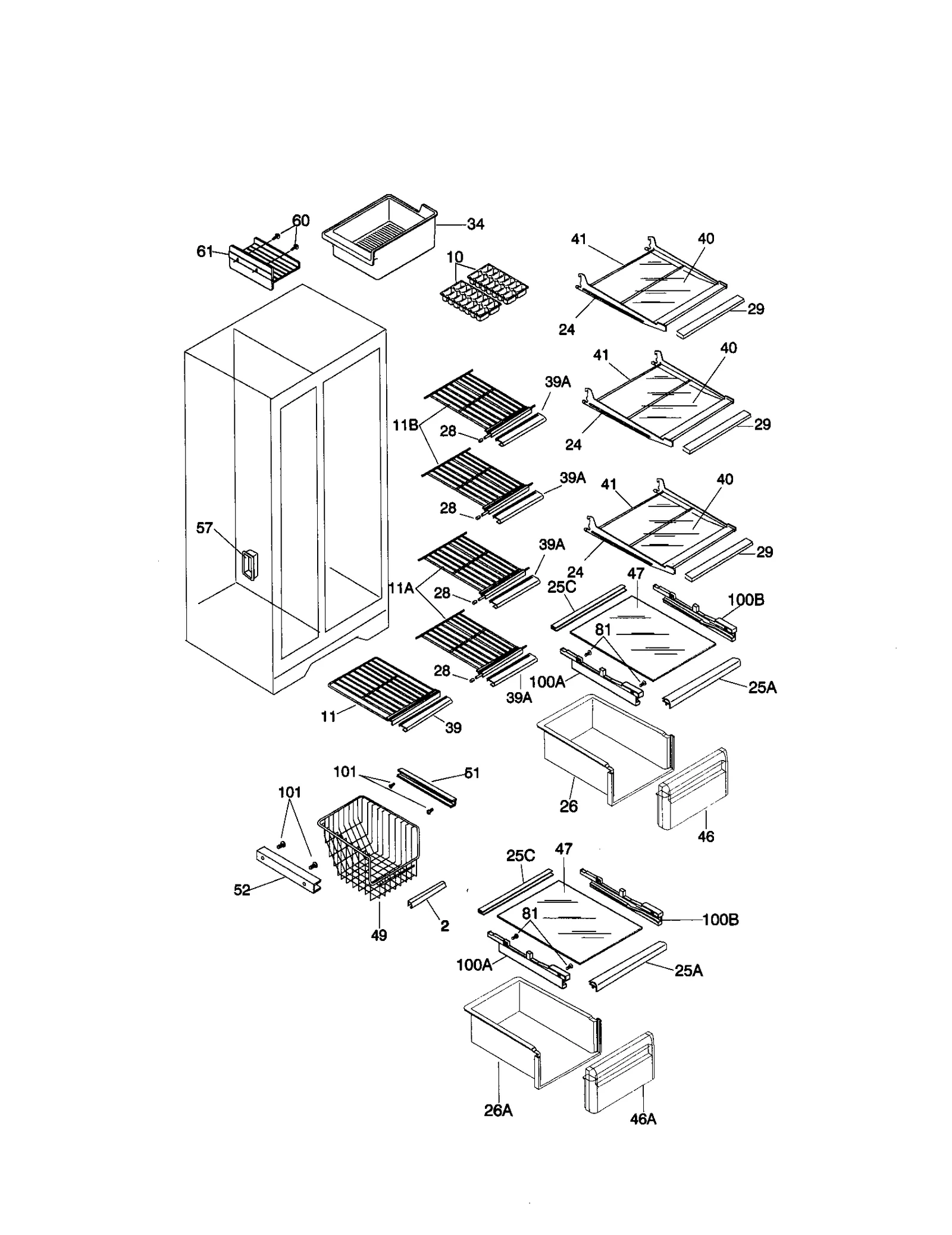

SHELVES
Common parts from model Electrolux 253.48022892 Side-By-Side Refrigerator (Kenmore 25348022892)
1
Refrigerator Condenser WCI 218787700 Contact Us For Availability
1A
Refrigerator Spacer Tube WCI 5303208866 Contact Us For Availability
1B
Refrigerator Spacer Tube WCI 5304406039 Contact Us For Availability
1C
Spacer Condenser WCI 5304406721 Contact Us For Availability
2
Refrigerator Gasket WCI 215734312 Contact Us For Availability
2
Clip-cond Mt WCI 5303289029 Contact Us For Availability
2
Refrigerator Basket Trim WCI 5303300707 Contact Us For Availability
2A
Refrigerator Gasket WCI 215734302 Contact Us For Availability
3
Refrigerator Inner Panel WCI 215379101 Contact Us For Availability
3
Refrigerator Control Block Evaporator WCI 218679603 Contact Us For Availability
4
Refrigerator Door Shelf Rail WCI 215472100 Contact Us For Availability
5
Refrigerator Wiring Harness WCI 215458801 Contact Us For Availability
5A
Refrigerator Wiring Harness WCI 215013800 Contact Us For Availability
5B
Refrigerator Wiring Harness WCI 215226000 Contact Us For Availability
6
Refrigerator Wiring Harness WCI 215501601 Contact Us For Availability
7
Refrigerator Evaporator Fan Ring WCI 5308000124 Contact Us For Availability
7
Refrigerator Power Cord WCI 215459201 Contact Us For Availability
7
Refrigerator Dairy Door WCI 5304403490 Contact Us For Availability
8
Refrigerator Freezer Door Rack WCI 215472200 Contact Us For Availability
8
Refrigerator Wiring Cover WCI 218803400 Contact Us For Availability
10
Cover-air Du WCI 218748902 Contact Us For Availability
10A
Refrigerator Control Cover Evaporator WCI 218751301 Contact Us For Availability
11
Refrigerator Freezer Wire Shelf WCI 218298005 Contact Us For Availability
11A
Refrigerator Freezer Shelf WCI 5304405989 Contact Us For Availability
11B
Refrigerator Freezer Shelf WCI 5304405990 Contact Us For Availability
11C
Refrigerator Spacer WCI 218159700 Contact Us For Availability
12
Insert Nameplate WCI 218835101 Contact Us For Availability
12
Decorative Plug WCI 5303291143 Contact Us For Availability
12A
Insert Nameplate WCI 218835102 Contact Us For Availability
13
Refrigerator Door Stop WCI 5303289522 Contact Us For Availability
13
Refrigerator Heat Exchange WCI 215006701 Contact Us For Availability
15
Refrigerator Door Panel WCI 5303918028 Contact Us For Availability
15
Refrigerator Evaporator WCI 218691302 Contact Us For Availability
15A
Refrigerator Door Panel WCI 5303918029 Contact Us For Availability
15A
Refrigerator Inlet Tube WCI 3206414 Contact Us For Availability
17
Refrigerator Insulator Evaporator WCI 5303289042 Contact Us For Availability
18
Air Support WCI 5303289043 Contact Us For Availability
18A
Ald Dr Handl WCI 218803902 Contact Us For Availability
18A
Air Support WCI 5303289044 Contact Us For Availability
19
Refrigerator Spacer Tube WCI 218631200 Contact Us For Availability
21
Refrigerator Temperature Control Thermostat WCI 5303300027 Contact Us For Availability
21A
Refrigerator Door Stop Screw, #10-16 x 3/4-in WCI 218578600 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 5303289320 Contact Us For Availability
22
Temperature Housing WCI 5303319683 Contact Us For Availability
22
Comp Mountng WCI 218811100 Contact Us For Availability
23A
Defrost Cover WCI 215277000 Contact Us For Availability
24
Frame-refr S WCI 215919136 Contact Us For Availability
25
Bolt Compres WCI 218773500 Contact Us For Availability
25A
Refrigerator Crisper Drawer Trim WCI 218015301 Contact Us For Availability
25C
Refrigerator Pan Cover Trim WCI 218015401 Contact Us For Availability
26
Refrigerator Egg Bin WCI 3204522 Contact Us For Availability
26A
Refrigerator Crisper Drawer WCI 5303288968 Contact Us For Availability
28
Refrigerator Bolt Roller WCI 5303289062 Contact Us For Availability
28
Refrigerator Cap WCI 08013638 Contact Us For Availability
29
Refrigerator Washer WCI 215003200 Contact Us For Availability
29
Refrigerator Shelf Trim WCI 215919413 Contact Us For Availability
29A
Refrigerator Door Hinge Washer WCI 215314301 Contact Us For Availability
30
Refrigerator Lower Bracket WCI 5303289060 Contact Us For Availability
30A
Tapping Plate WCI 218730800 Contact Us For Availability
30B
Refrigerator Door Left Hinge Plate WCI 218730700 Contact Us For Availability
30C
Washer WCI 218730900 Contact Us For Availability
32
Bale Wire WCI 218888601 Contact Us For Availability
37
Refrigerator Door Handle Trim, Upper (White) WCI 218779307 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37A
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37A
Refrigerator Handle Trim WCI 218779304 Contact Us For Availability
37AA
Refrigerator Trim WCI 218779305 Contact Us For Availability
37AB
Tri Snap WCI 218776600 Contact Us For Availability
37B
Up Trim Hand WCI 218779308 Contact Us For Availability
38
Bracket-uppe WCI 218215213 Contact Us For Availability
38A
Bracket-uppe WCI 218215221 Contact Us For Availability
39
Refrigerator Freezer Shelf Trim WCI 215217562 Contact Us For Availability
39A
Trim-frzr Sh WCI 215217563 Contact Us For Availability
40
Refrigerator Door Hinge Cover, Upper (White) WCI 5303318773 Contact Us For Availability
40
Refrigerator Glass Shelf WCI 218498150 Contact Us For Availability
40A
Refrigerator Door Hinge Cover, Upper (Almond) WCI 5303318774 Contact Us For Availability
41
Refrigerator Shelf Trim WCI 215919813 Contact Us For Availability
43
Refrigerator Roller WCI 218615300 Contact Us For Availability
43A
Refrigerator Screw WCI 5308017044 Contact Us For Availability
44
Refrigerator Roller WCI 218738300 Contact Us For Availability
45
Refrigerator Screw WCI 218769200 Contact Us For Availability
45B
Wiring Screw WCI 218754500 Contact Us For Availability
46
Refrigerator Crisper Drawer Window WCI 5303317753 Contact Us For Availability
46A
Lo Store Pan WCI 5303423114 Contact Us For Availability
46B
Refrigerator Trim WCI 5303423115 Contact Us For Availability
47
Refrigerator Shelf Support WCI 218659500 Contact Us For Availability
47
Refrigerator Glass Shelf WCI 218498151 Contact Us For Availability
47A
Refrigerator Glass Shelf WCI 215723551 Contact Us For Availability
49
Refrigerator Door Bucket WCI 5304401374 Contact Us For Availability
49
Refrigerator Bracket Evaporator WCI 215506900 Contact Us For Availability
49
Refrigerator Sliding Basket WCI 5303288957 Contact Us For Availability
51
Refrigerator Hanger Basket WCI 5303288960 Contact Us For Availability
52
Refrigerator Ice Maker Fill Tube WCI 215454600 Contact Us For Availability
52
Refrigerator Hanger Basket WCI 215162501 Contact Us For Availability
52A
Refrigerator Water Inlet Plug WCI 215058000 Contact Us For Availability
54
Cabinet Rail WCI 5303289027 Contact Us For Availability
54A
Rail-compr S WCI 5303289311 Contact Us For Availability
54B
Cabinet Rail WCI 5303289292 Contact Us For Availability
54C
Refrigerator Screw WCI 215732700 Contact Us For Availability
55
Refrigerator Run Capacitor WCI 218909902 Contact Us For Availability
55A
Refrigerator Screw WCI 218897001 Contact Us For Availability
56
Compressor Insert WCI 218769300 Contact Us For Availability
57
Wiring Clip WCI 218247300 Contact Us For Availability
57
Inner Ferrule WCI 5303271653 Contact Us For Availability
59
Refrigerator Shroud Condenser WCI 5303289031 Contact Us For Availability
60
Condenser Motor WCI 215501800 Contact Us For Availability
61
Refrigerator Freezer Ice Tray Shelf WCI 215781501 Contact Us For Availability
61
Blade-cond F WCI 5303289032 Contact Us For Availability
61A
Refrigerator Nut WCI 215004700 Contact Us For Availability
61B
Grommet WCI 215223700 Contact Us For Availability
62
Refrigerator Drain Trough WCI 215048201 Contact Us For Availability
65
Refrigerator Spacer Tube WCI 5303289301 Contact Us For Availability
66
Meat Damper WCI 215050201 Contact Us For Availability
66A
Meat Keeper Cover WCI 218171301 Contact Us For Availability
70
Refrigerator Bracket Evaporator WCI 5303289041 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
72
Refrigerator Grille Kick Plate WCI 218359604 Contact Us For Availability
72A
Refrigerator Grille Kick Plate WCI 218359608 Contact Us For Availability
72B
Label Grille WCI 218554800 Contact Us For Availability
77
Washer WCI 5303001216 Contact Us For Availability
78A
Washer WCI 5308009617 Contact Us For Availability
80
Complete Seal Coil WCI 218249802 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
89
Cover-machin WCI 5303288947 Contact Us For Availability
90
Refrigerator Foam Seal WCI 215022602 Contact Us For Availability
90A
Refrigerator Foam Tape WCI 5303322647 Contact Us For Availability
91
Air Deflector WCI 218769900 Contact Us For Availability
97
Bracket-im P WCI 5303289299 Contact Us For Availability
100A
Refrigerator Crisper Drawer Cover Support WCI 218015501 Contact Us For Availability
100B
Refrigerator Crisper Drawer Shelf Frame Suppo WCI 218015601 Contact Us For Availability
101
Refrigerator Foam Seal WCI 215305701 Contact Us For Availability
101A
Gasket-air D WCI 218663103 Contact Us For Availability
115
Refrigerator Air Damper Control Assembly WCI 215011503 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Shelf Clip WCI 215328300 Contact Us For Availability
NI
Refrigerator Service Data Sheet WCI 218768300 Contact Us For Availability
NI
Refrigerator Owner's Manual WCI 218842000 Contact Us For Availability
NI
Cap Protector WCI 218902101 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Hot Tube Rep WCI 5303917166 Contact Us For Availability
NI
Refrigerator Repair Parts List WCI 5995326484 Contact Us For Availability
× ![]()
