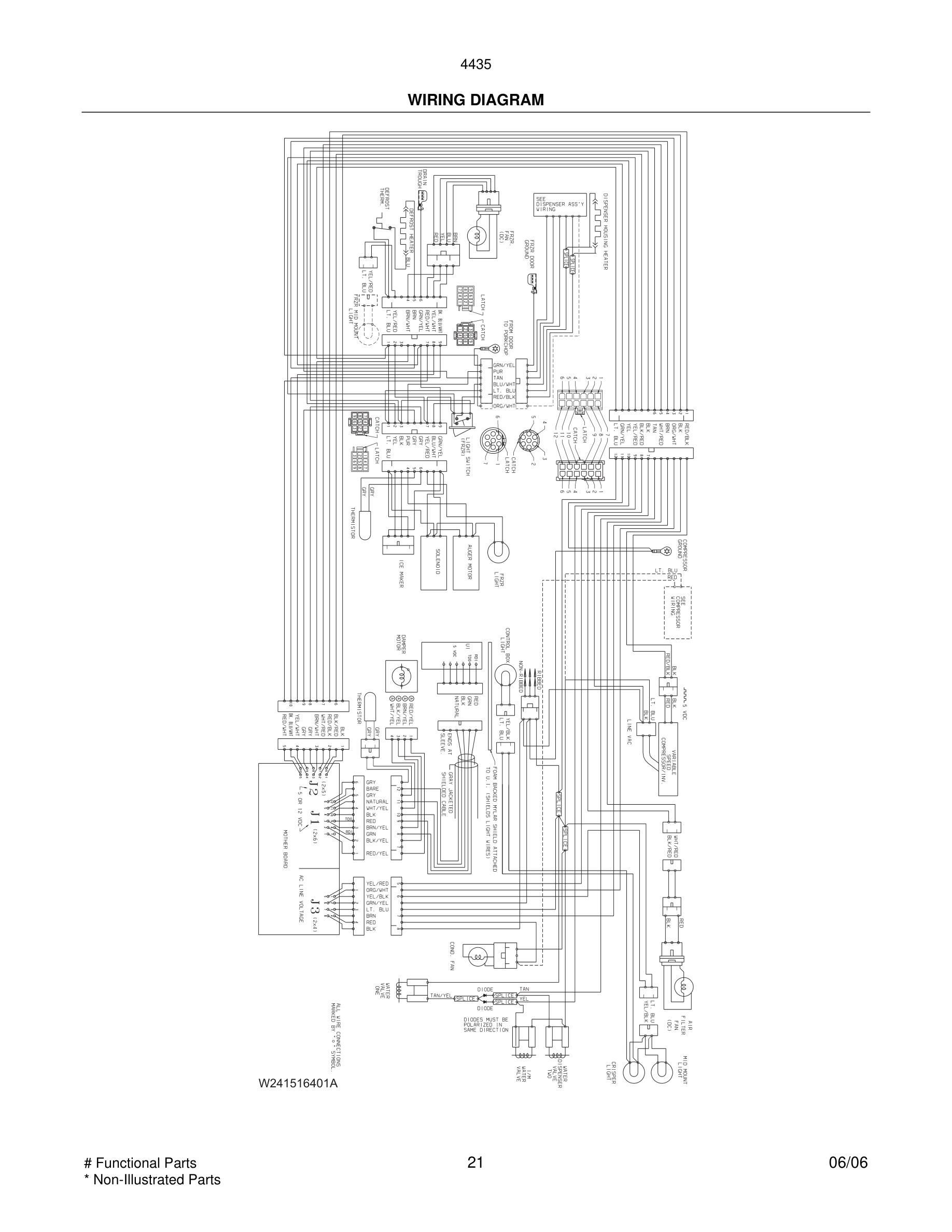

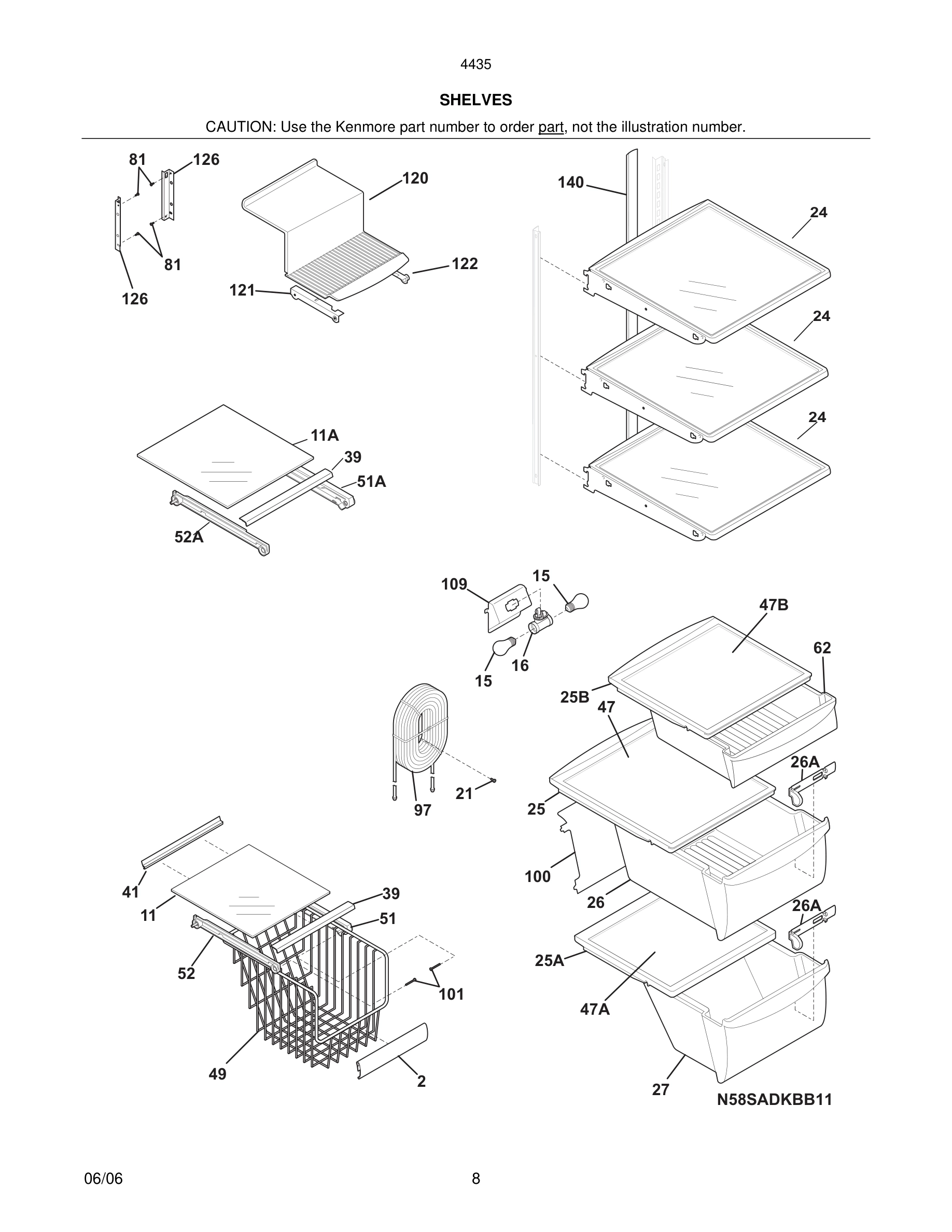

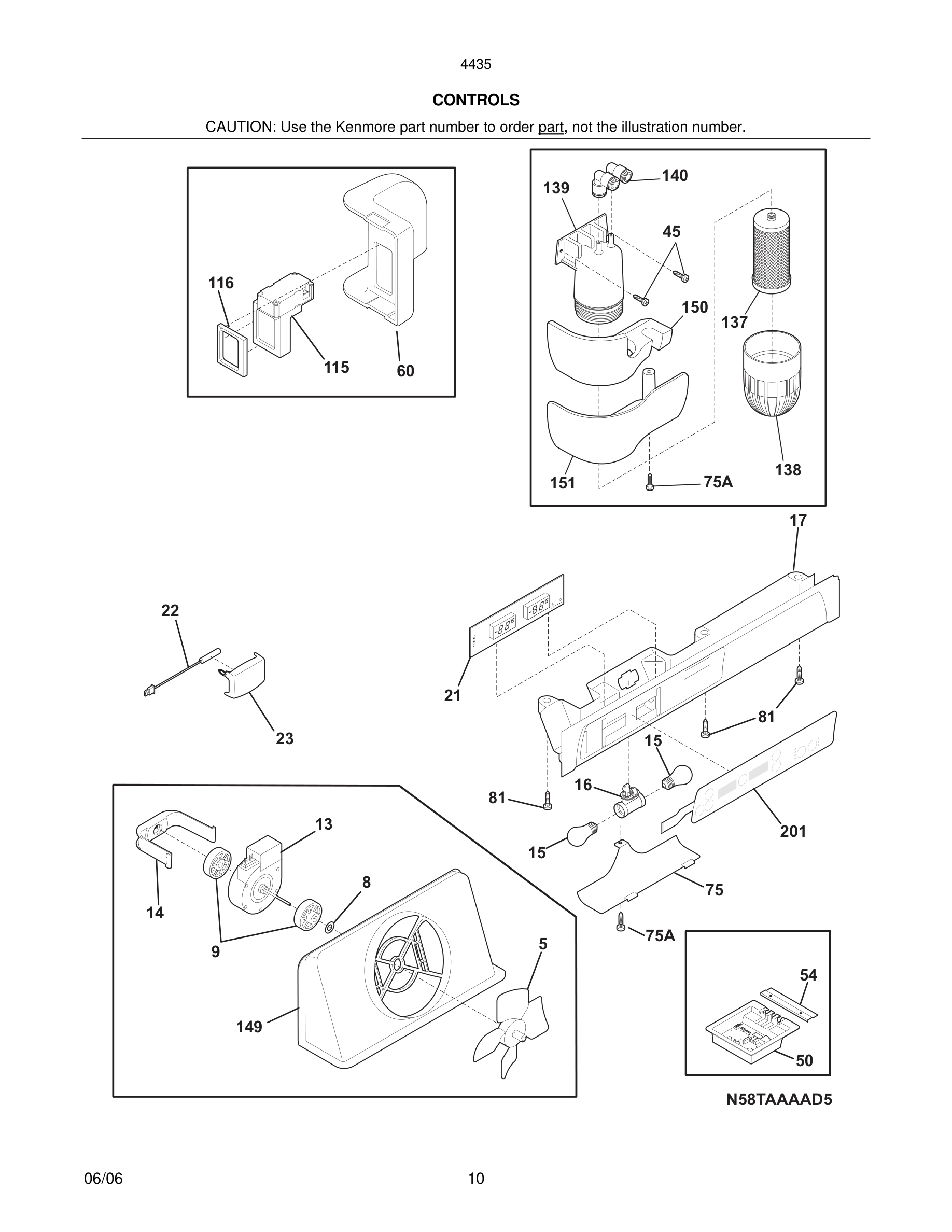

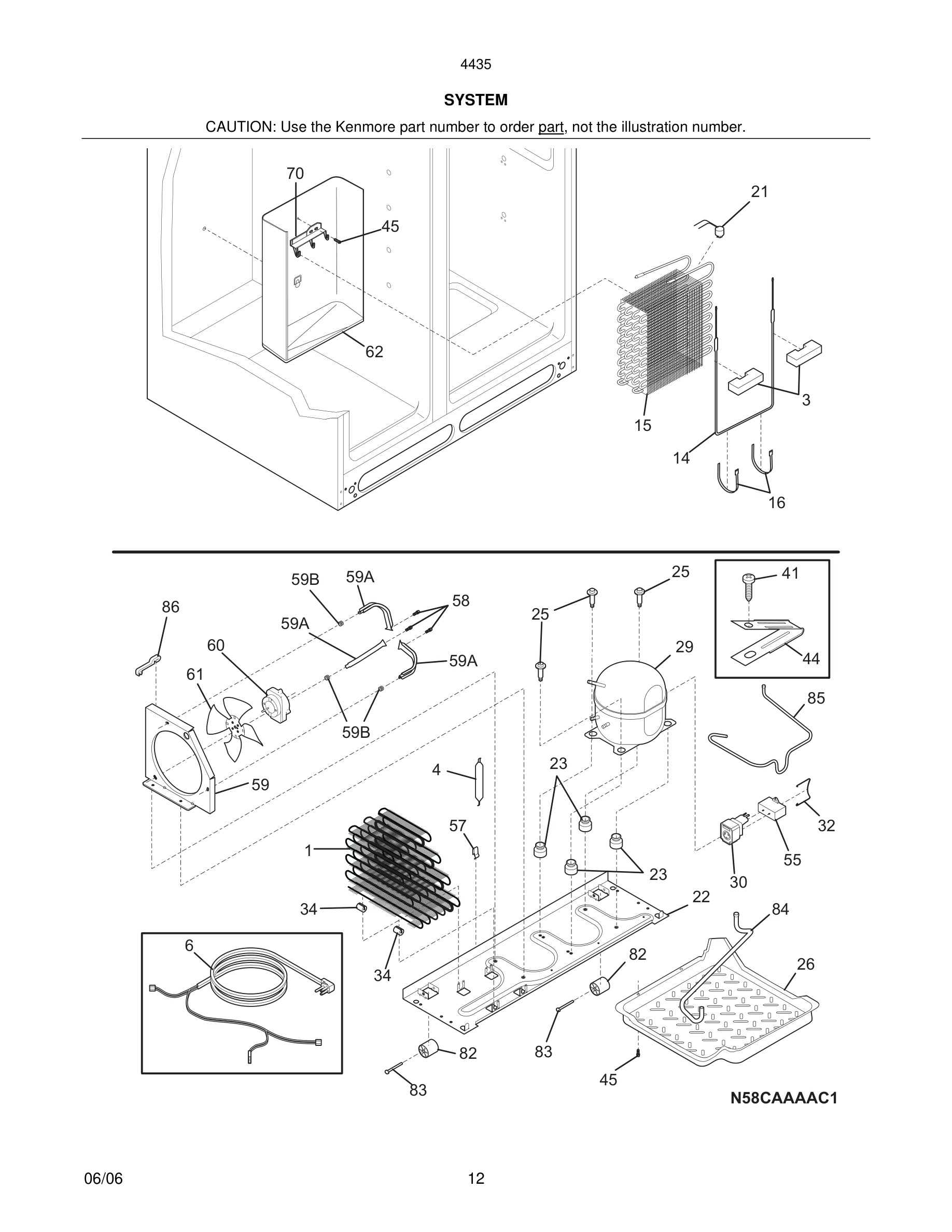

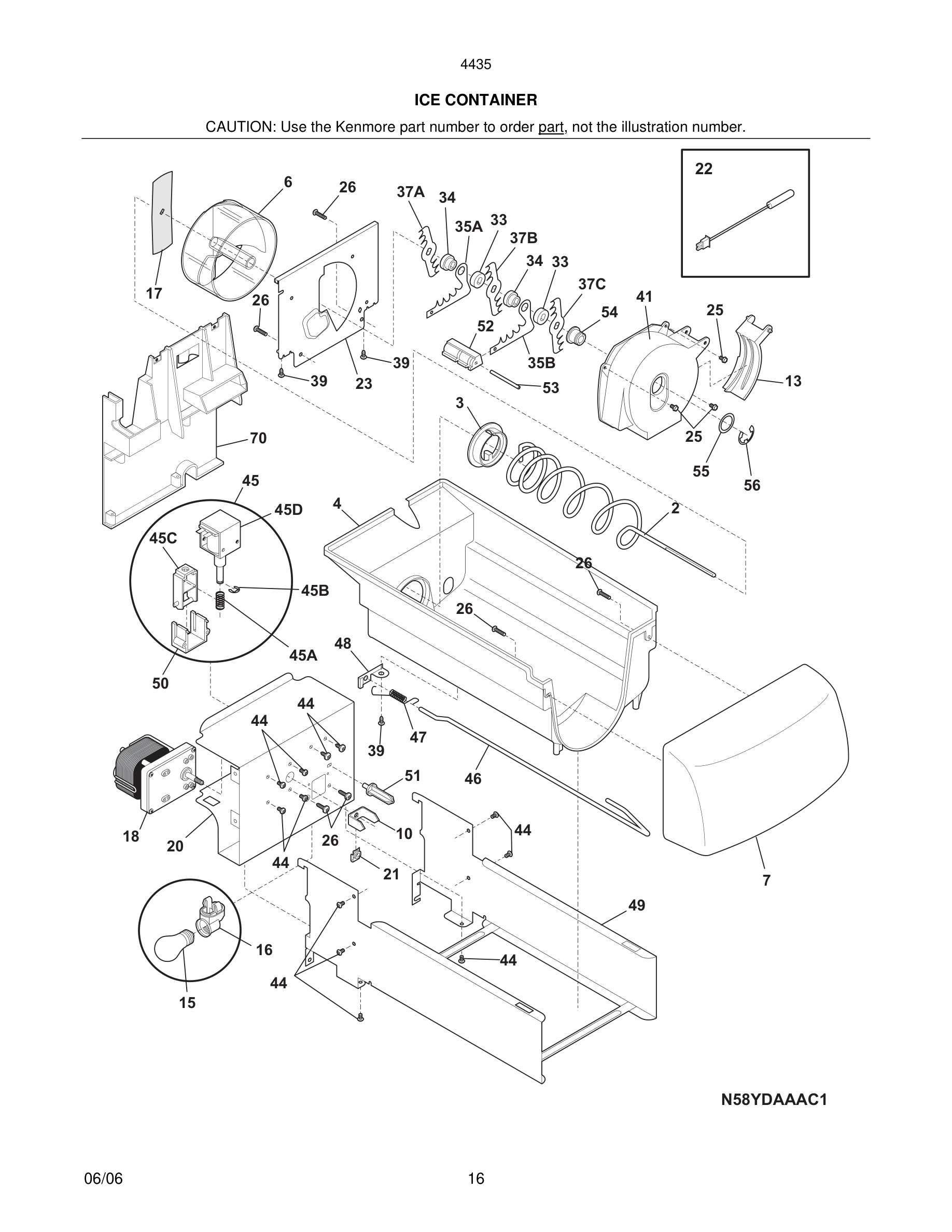

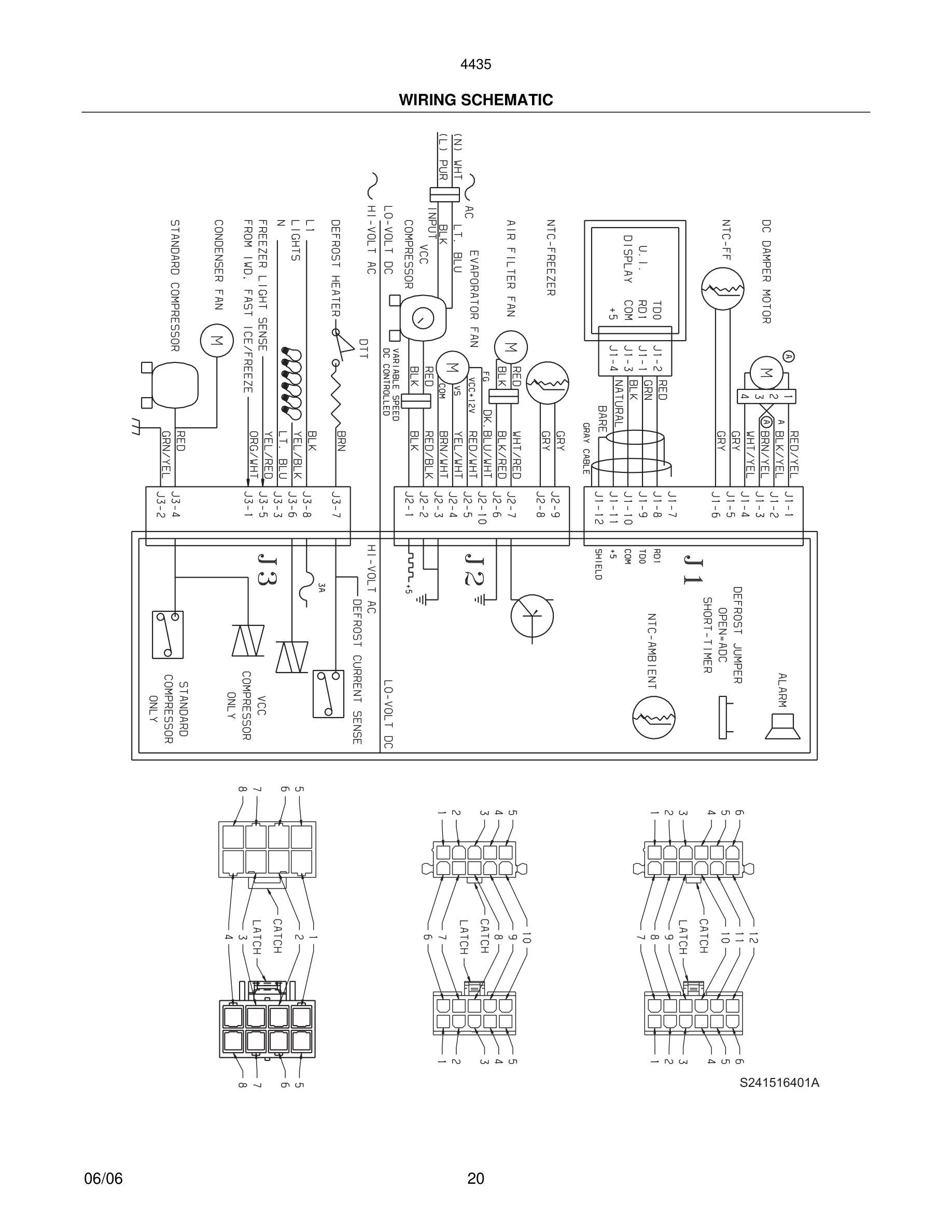

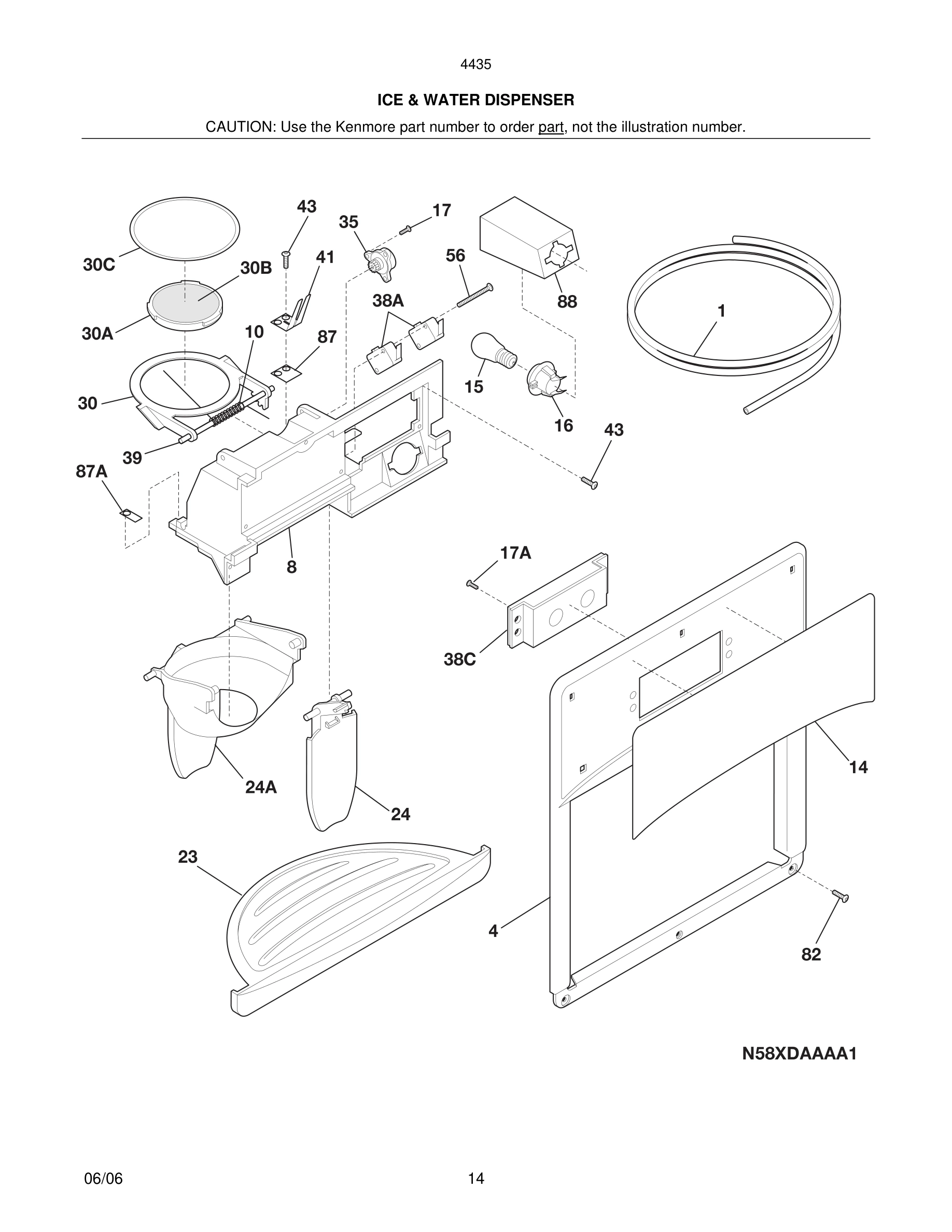

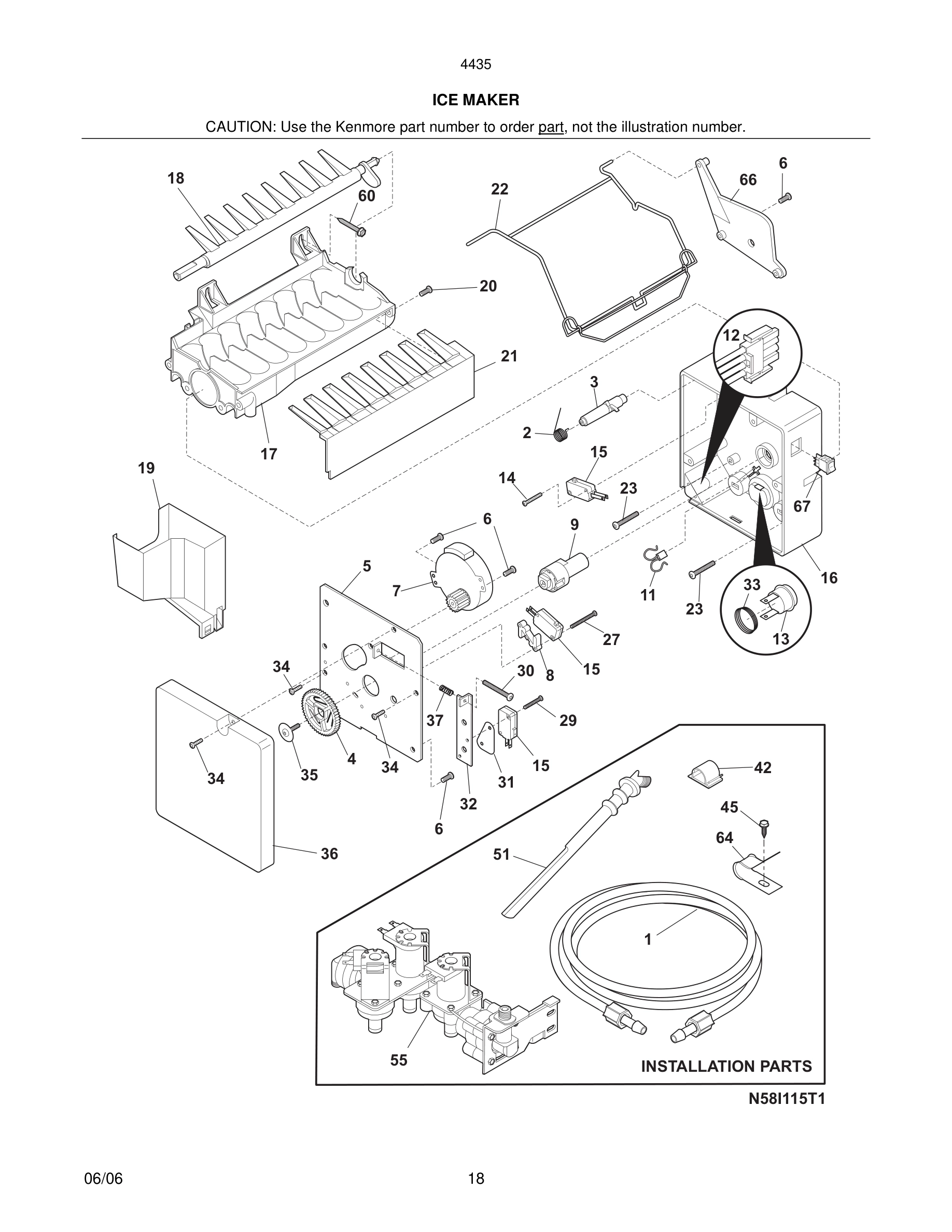

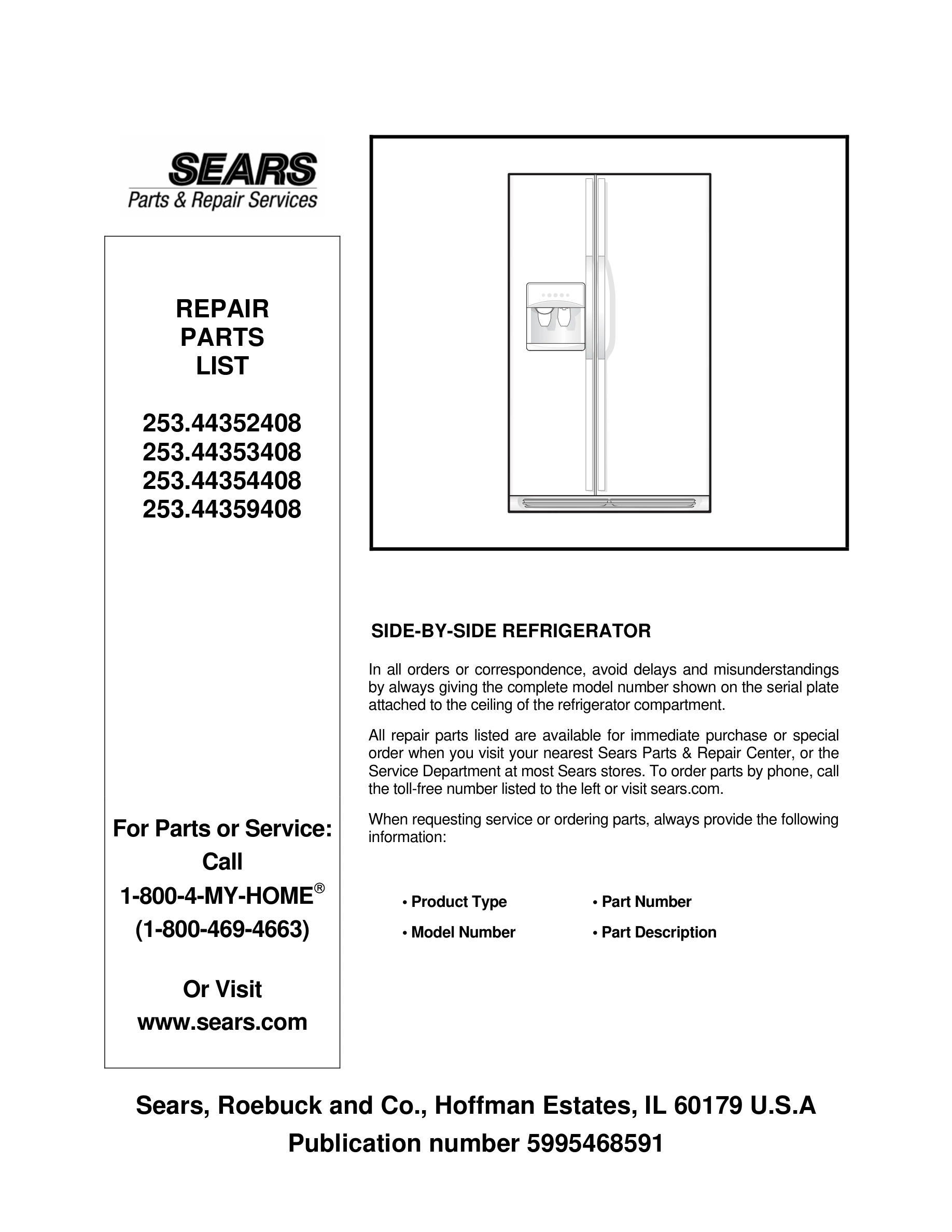

Model Kenmore 253.44352408 REFRIGERATOR – Common Parts &amp; Diagrams

*

241583301 Frigidaire Refrigerator Air Deflect Backorder WCI 241583301 $36.59

*

5303321319 Frigidaire Refrigerator White Touc In Stock WCI 5303321319 $11.30

*

5303918256 Frigidaire Refrigerator Heater Kit In Stock WCI 5303918256 $461.95

*

5304521763 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521763 $62.67

*

Hot Tube Repair Kit, service WCI 5303918222 Contact Us For Availability

*#

5303918327 Frigidaire Refrigerator Heat Excha In Stock WCI 5303918327 $237.83

*#

5303918344 Frigidaire Refrigerator Kit Ice Ma In Stock WCI 5303918344 $71.60

1

218976409 Frigidaire Refrigerator Water Tube In Stock WCI 218976409 $47.39

1#

241510202 Frigidaire Refrigerator Door Gasket Backorder WCI 241510202 $193.34

218976901 Frigidaire Refrigerator P1 Water In Backorder WCI 218976901 $63.75

218976904 Frigidaire Refrigerator Water Inlet Backorder WCI 218976904 $86.51

240561701 Frigidaire Refrigerator Seal Backorder WCI 240561701 $16.07

Tube-water inlet, valve to door WCI 218976917 Contact Us For Availability

2

241684701 Frigidaire Refrigerator Ice Auger Backorder WCI 241684701 $188.59

2

Spring, torsion WCI 5304436616 Contact Us For Availability

2#

241510201 Frigidaire Refrigerator Door Gasket In Stock WCI 241510201 $149.90

3

241685201 Frigidaire Refrigerator Drive Cam Backorder WCI 241685201 $32.71

3

Detent WCI 5304436610 Contact Us For Availability

4B

241511601 Frigidaire Refrigerator Door Bin Backorder WCI 241511601 $31.61

5

Rack-can WCI 241516101 Contact Us For Availability

5#

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $45.43

6

241515901 Frigidaire Refrigerator Dairy Compa Backorder WCI 241515901 $31.04

6

241685101 Frigidaire Refrigerator Ice Dispens In Stock WCI 241685101 $47.85

6#

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $39.85

6*#

Harness-wiring WCI 241519902 Contact Us For Availability

7

241515301 Frigidaire Refrigerator Cover Backorder WCI 241515301 $89.02

7

241515606 Frigidaire Refrigerator Door-Dairy In Stock WCI 241515606 $32.73

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $16.59

9

241518301 Frigidaire Refrigerator Bushing Backorder WCI 241518301 $52.12

11

5303208309 Frigidaire Refrigerator Plug Hole Backorder WCI 5303208309 $33.28

11A

240443358 Frigidaire Refrigerator Shelf In Stock WCI 240443358 $71.00

12

Harness-wiring WCI 5304436614 Contact Us For Availability

13

240581901 Frigidaire Refrigerator Door Stop Backorder WCI 240581901 $34.37

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $95.73

13A

240581902 Frigidaire Refrigerator Door Stop Backorder WCI 240581902 $34.37

14A

241547902 Frigidaire Refrigerator Light Switc In Stock WCI 241547902 $19.49

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $22.72

15

Light Bulb WCI 5304421616 Contact Us For Availability

15#

5303918284 Frigidaire Refrigerator Evaporator In Stock WCI 5303918284 $403.66

240548901 Frigidaire Refrigerator P-1 Socket In Stock WCI 240548901 $46.57

241559801 Frigidaire Light Socket Refrigerato Backorder WCI 241559801 $53.27

241622802 Frigidaire Refrigerator Light Socke Backorder WCI 241622802 $46.57

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $48.23

17

241684503 Frigidaire Ice Crusher Blade In Stock WCI 241684503 $12.72

18*

Harness-wiring, icmkr/container WCI 241522901 Contact Us For Availability

19

Cup-water inlet WCI 5304436606 Contact Us For Availability

21

5303918214 Frigidaire Refrigerator Defrost Th In Stock WCI 5303918214 $34.11

21A

240598402 Frigidaire Refrigerator Screw Backorder WCI 240598402 $2.76

21C

Screw, #8-18 x 3/4 WCI 240521304 Contact Us For Availability

22

240328201 Frigidaire Refrigerator Hinge Beari In Stock WCI 240328201 $24.65

22

240457701 Frigidaire Refrigerator Freezer Doo In Stock WCI 240457701 $52.55

22*

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $11.07

22*

241519401 Frigidaire Refrigerator Clip Backorder WCI 241519401 $6.61

22C

240328402 Frigidaire Refrigerator Bearing Hin Backorder WCI 240328402 $15.51

218513300 Frigidaire Refrigerator Compressor In Stock WCI 218513300 $33.26

241512901 Frigidaire Refrigerator Sensor Cove Backorder WCI 241512901 $62.17

241684001 Frigidaire Refrigerator Front Plate Backorder WCI 241684001 $117.03

Drip Tray, white WCI 241659101 Contact Us For Availability

Screw-#10-32 x 1/4 flat hd WCI 240402702 Contact Us For Availability

25

240555002 Frigidaire Refrigerator Screw #8-32 In Stock WCI 240555002 $10.50

25

240599301 Frigidaire Refrigerator Crisper Dra In Stock WCI 240599301 $72.72

25

Screw-compressor mtg, 1/4-28 x 1.16, (4) WCI 240491503 Contact Us For Availability

25*

240362101 Frigidaire Refrigerator Crisper Cov In Stock WCI 240362101 $34.37

26

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $8.31

26*

240349801 Frigidaire Refrigerator Clip In Stock WCI 240349801 $14.99

26A

240362201 Frigidaire Refrigerator Humidity Co Backorder WCI 240362201 $54.34

32

218973501 Frigidaire Refrigerator Clamp Backorder WCI 218973501 $17.21

33

241684802 Frigidaire Refrigerator Spacer Backorder WCI 241684802 $6.61

34

240405201 Frigidaire Refrigerator Grommet Backorder WCI 240405201 $15.51

34

241689802 Frigidaire Refrigerator Spacer Backorder WCI 241689802 $6.09

35A

241684303 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684303 $12.72

35B

241684203 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684203 $13.29

37

Trim-handle, 29.64", white, lower, w/mtg lock WCI 218779318 Contact Us For Availability

37A

241684107 Frigidaire Refrigerator Ice Crusher Backorder WCI 241684107 $16.07

37A

Trim-handle, 12.08", white, upper, w/mtg lock WCI 218779307 Contact Us For Availability

37B

241684108 Frigidaire Refrigerator Ice Crusher In Stock WCI 241684108 $16.07

37C

241684109 Frigidaire Ice Crusher Blade In Stock WCI 241684109 $16.07

38

240327207 Frigidaire Refrigerator Upper Hinge Backorder WCI 240327207 $44.96

39

240367603 Frigidaire Refrigerator Shelf Trim Backorder WCI 240367603 $58.25

40

240327005 Frigidaire Refrigerator Upper P-1 H In Stock WCI 240327005 $46.37

41

241550801 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550801 $46.57

41

Trim-shelf, rear WCI 241571201 Contact Us For Availability

41*

241550701 Frigidaire Refrigerator Shelf Mount In Stock WCI 241550701 $13.29

42

218515403 Frigidaire Refrigerator Grille Clip Backorder WCI 218515403 $22.73

42

240578902 Frigidaire Screw Mounting Hinge In Stock WCI 240578902 $11.07

43

Screw, plask h/l, #6 x 3/8 WCI 5304455699 Contact Us For Availability

44

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $8.31

45

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $3.33

45B

241676001 Frigidaire Refrigerator E-Ring Sole Backorder WCI 241676001 $54.88

45C

241676101 Frigidaire Refrigerator Solenoid-Ac In Stock WCI 241676101 $50.46

46

Control Rod WCI 241684402 Contact Us For Availability

47

241513001 Frigidaire Refrigerator Shelf Mount In Stock WCI 241513001 $82.09

47

Spring-control rod WCI 241690101 Contact Us For Availability

47A

240350603 Frigidaire Glass Shelf Backorder WCI 240350603 $81.93

48

241511706 Frigidaire Refrigerator Door Bin In Stock WCI 241511706 $53.75

48

241684602 Frigidaire Refrigerator Control Rod Backorder WCI 241684602 $83.77

49

241505306 Frigidaire Refrigerator Door Bin In Stock WCI 241505306 $53.75

49

241515001 Frigidaire Refrigerator Basket Slid Backorder WCI 241515001 $140.14

49

Rail Assy WCI 241676501 Contact Us For Availability

49A

241505506 Frigidaire Refrigerator Door Bin In Stock WCI 241505506 $62.56

50

Board-main power WCI 241511101 No Longer Available

50

Cover-magnet WCI 241508401 Contact Us For Availability

51

241514501 Frigidaire Refrigerator Basket Hang Backorder WCI 241514501 $57.69

51A

241514701 Frigidaire Refrigerator Glass Shelf Backorder WCI 241514701 $49.90

52

241514601 Frigidaire Refrigerator Basket Hang Backorder WCI 241514601 $59.88

52

241684901 Frigidaire Refrigerator Fixed Blade Backorder WCI 241684901 $22.19

52A

241514801 Frigidaire Refrigerator Glass Shelf Backorder WCI 241514801 $318.41

53

241690402 Frigidaire Refrigerator Spiral Pin Backorder WCI 241690402 $14.94

54

Channel WCI 241532401 No Longer Available

54

241685001 Frigidaire Auger Nut Backorder WCI 241685001 $15.51

55

241690306 Frigidaire Refrigerator Washer Backorder WCI 241690306 $38.83

55*

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.96

55*

240542901 Frigidaire Water Valve Cap Backorder WCI 240542901 $13.88

56

241690201 Frigidaire Refrigerator E-Ring Backorder WCI 241690201 $14.97

58

218781101 Frigidaire Handle Screw In Stock WCI 218781101 $12.20

59*

240346701 Frigidaire Refrigerator Foam Seal T Backorder WCI 240346701 $23.27

59*

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.76

60

Diffuser-air WCI 241510301 Contact Us For Availability

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $24.62

68

241525101 Frigidaire Refrigerator Ice Chute Backorder WCI 241525101 $60.13

70

241515801 Frigidaire Refrigerator Compartment Backorder WCI 241515801 $139.21

70

Plate-mounting WCI 241504601 Contact Us For Availability

70*

215005101 Frigidaire Refrigerator Screw Backorder WCI 215005101 $11.64

73

218396700 Frigidaire Door Handle Mounting Blo In Stock WCI 218396700 $42.64

74

215503203 Frigidaire Refrigerator Door Handle In Stock WCI 215503203 $5.52

81

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $11.09

82

5304418225 Frigidaire Refrigerator Roller P-1 In Stock WCI 5304418225 $35.90

82

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $11.64

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $28.21

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $49.36

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $10.53

101

218493101 Frigidaire Refrigerator Screw In Stock WCI 218493101 $10.50

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $59.84

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $14.45

120

241691701 Frigidaire Refrigerator Ice Cream S Backorder WCI 241691701 $58.86

121

Rail-ice cream shelf, LH WCI 241504701 Contact Us For Availability

122

Rail-ice cream shelf, RH WCI 241504702 Contact Us For Availability

126

241674401 Frigidaire Refrigerator Channel Backorder WCI 241674401 $37.17

126

241674402 Frigidaire Refrigerator Channel Backorder WCI 241674402 $33.82

137#

Frigidaire WFCB PureSource Plus Refrigerator In Stock WCI WFCB $39.24

137*

218710300 Frigidaire Refrigerator Water Filte In Stock WCI 218710300 $3.60

138

240434401 Frigidaire Refrigerator Primary Wat In Stock WCI 240434401 $59.34

138*

218904301 Frigidaire Refrigerator O-Ring Cup In Stock WCI 218904301 $10.12

139

240434301 Frigidaire Water Filter Housing In Stock WCI 240434301 $55.39

140

240545201 Frigidaire Refrigerator Elbow P-1 In Stock WCI 240545201 $53.77

149

242204504 Frigidaire Shroud Assembly Backorder WCI 242204504 $28.28

150

Insulation-water filter cover WCI 240394102 Contact Us For Availability

151

Cover-water filter WCI 240376002 Contact Us For Availability
