Model Electrolux 253.38657996 Top-Mount Refrigerator (Kenmore 25338657996) – Common Parts & Diagrams

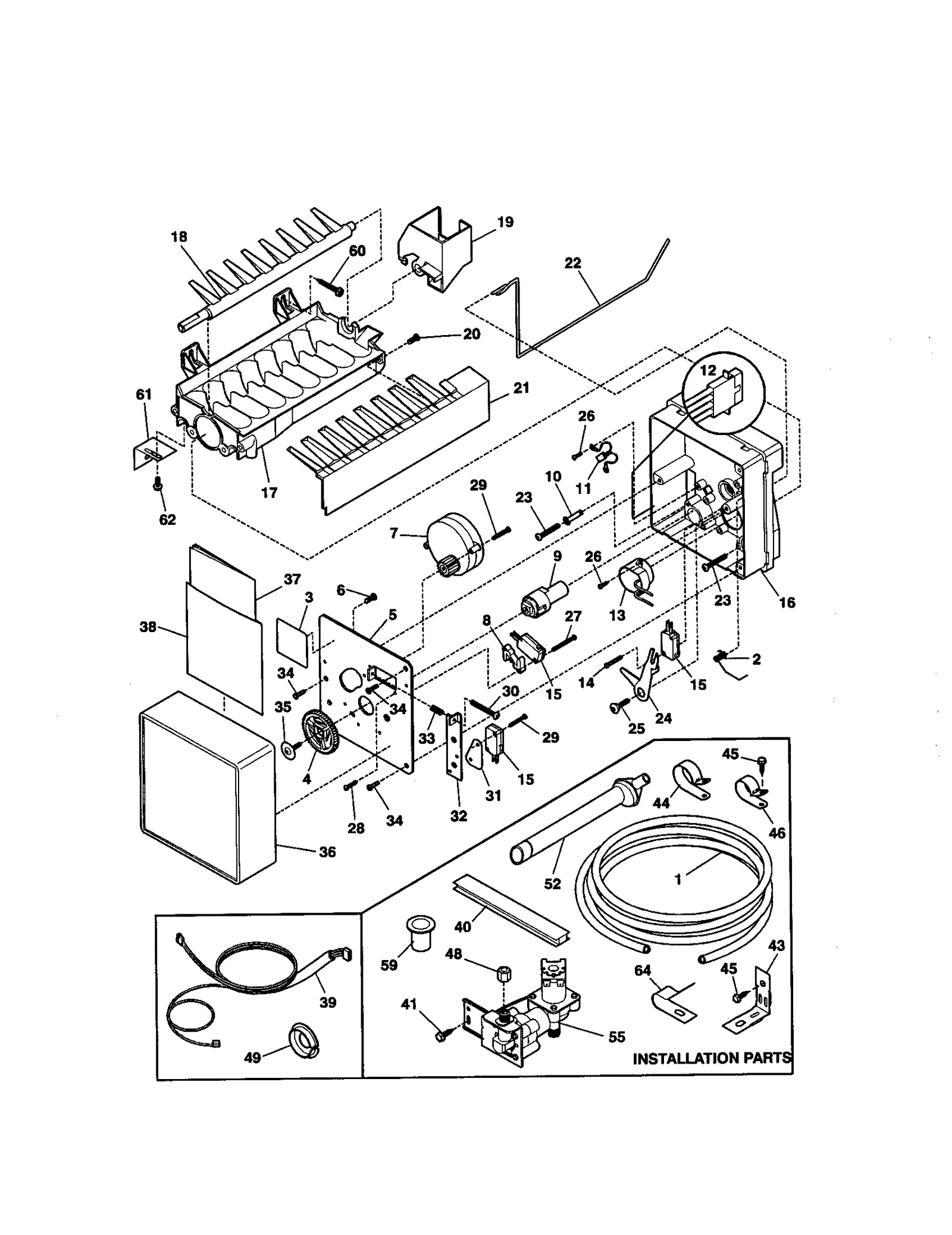

ICEMAKER

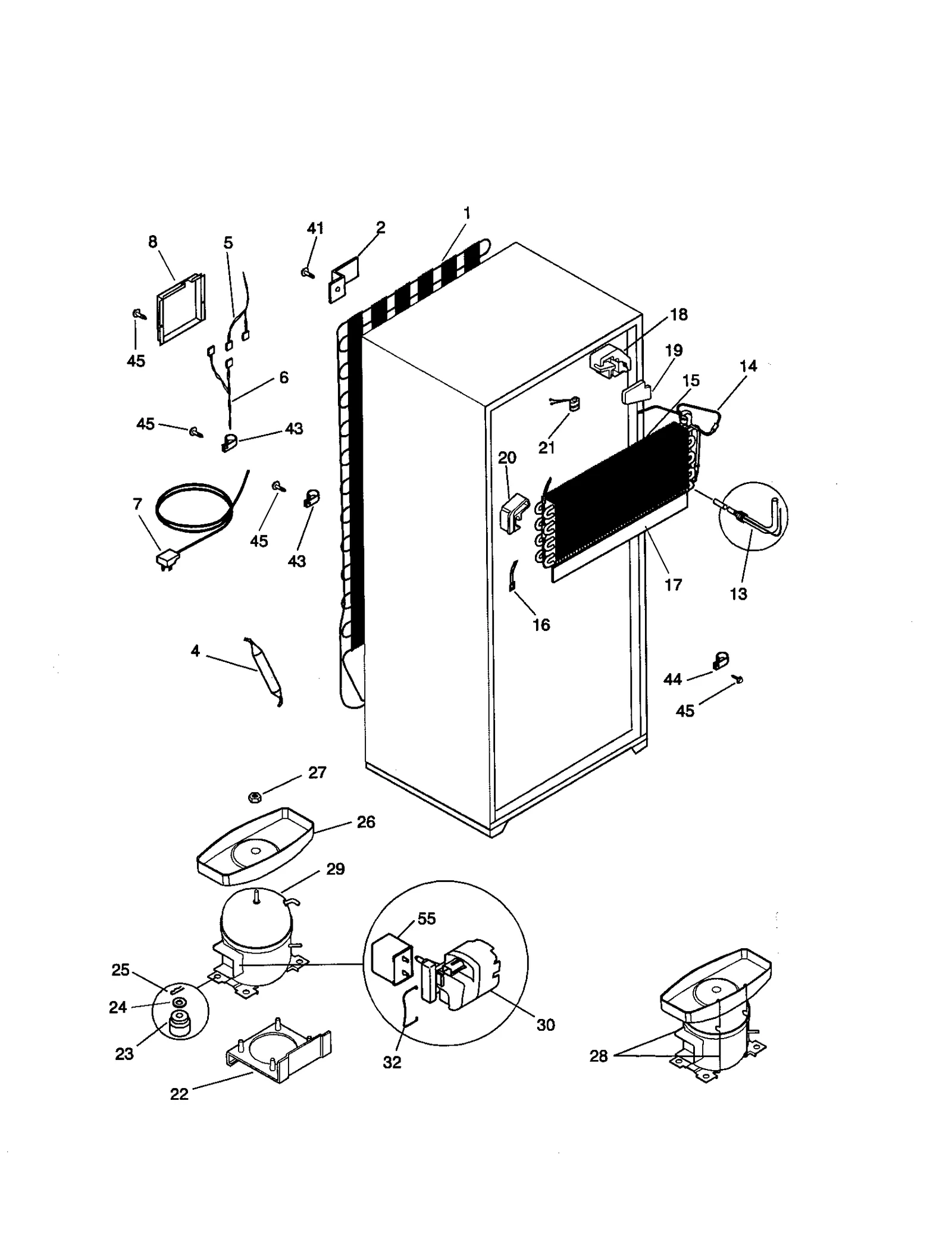

SYSTEM

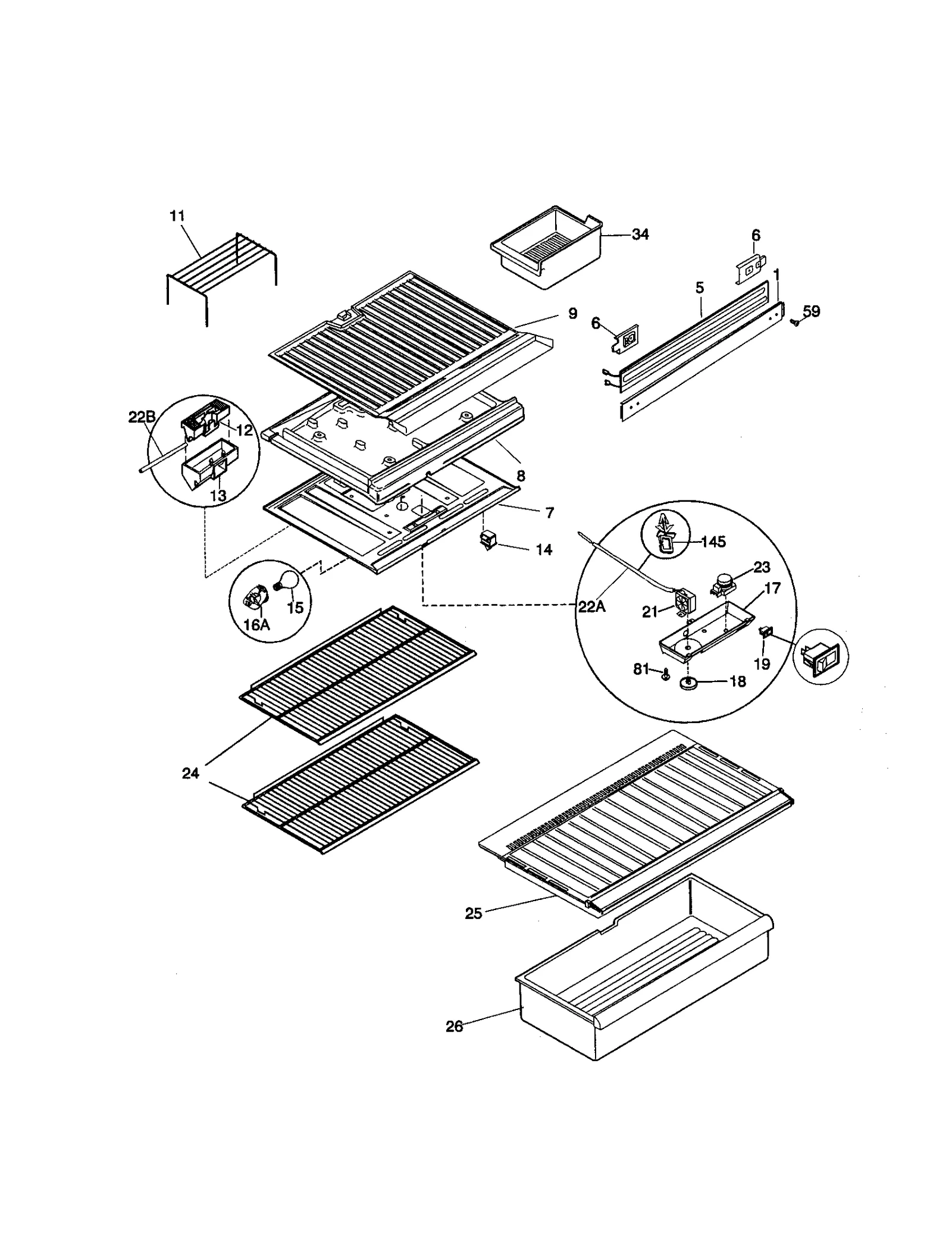

SHELVES
All Parts

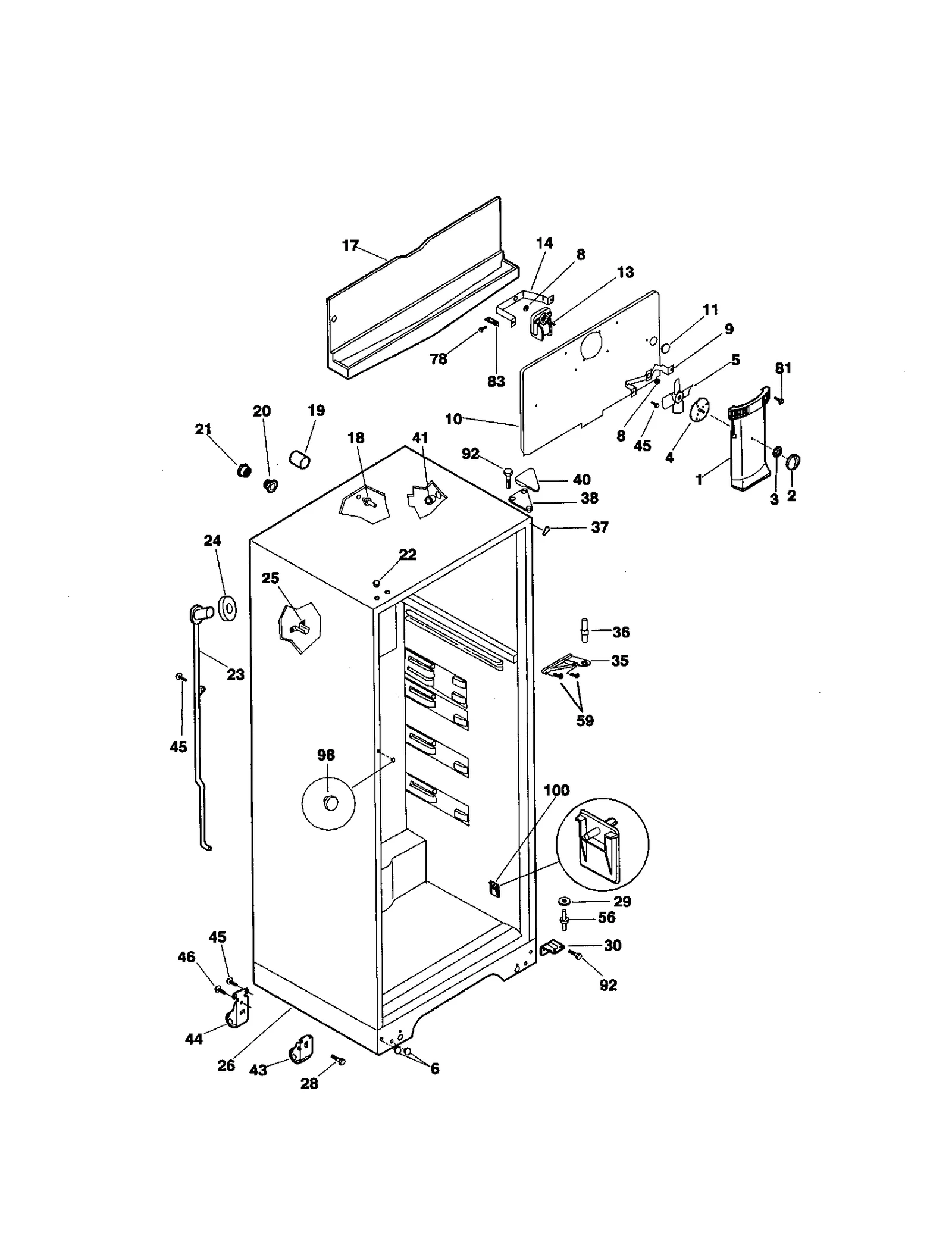

CABINET

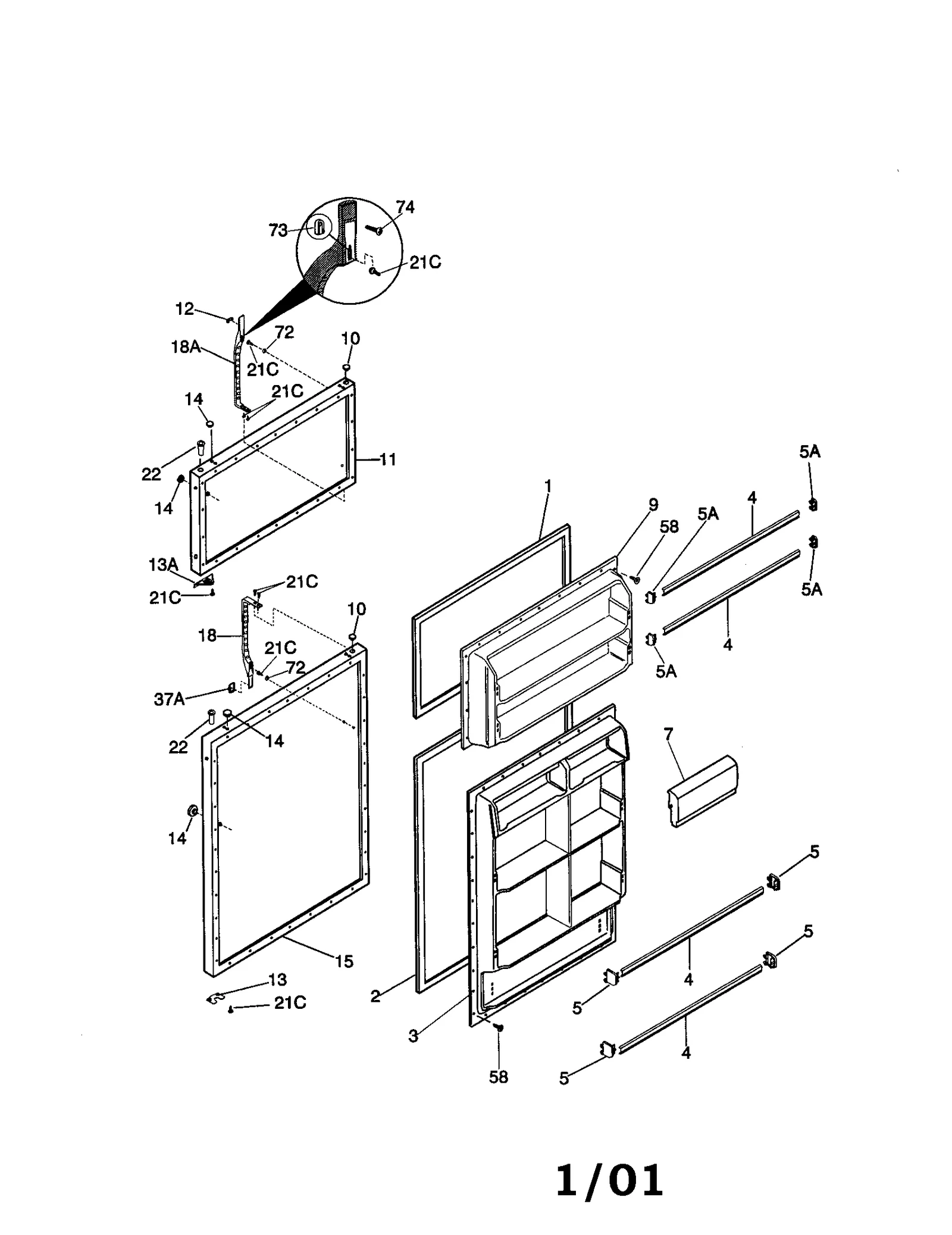

DOOR
Common parts from model Electrolux 253.38657996 Top-Mount Refrigerator (Kenmore 25338657996)
1
Refrigerator Freezer Door Gasket (White) WCI 5308007123 Contact Us For Availability
1
Refrigerator Mullion WCI 218651800 Contact Us For Availability
1
Refrigerator Fan Cover WCI 218672501 Contact Us For Availability
1A
Refrigerator Mullion WCI 218651801 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
3
Ff Inner Pnl WCI 218359001 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
5
Heater Mullion WCI 218781004 Contact Us For Availability
6
Tapping Plate WCI 218845602 Contact Us For Availability
6
Refrigerator Button (White) WCI 5303001388 Contact Us For Availability
6A
Refrigerator Button WCI 5303001389 Contact Us For Availability
7
Refrigerator Dairy Bin Cover WCI 218287801 Contact Us For Availability
7
Refrigerator Panel WCI 218865802 Contact Us For Availability
8
Divider Styl WCI 218909705 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
8A
Refrigerator Wire Harness WCI 218878500 Contact Us For Availability
9
Refrigerator Panel WCI 218865600 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
9
Refrigerator Inner Door Panel WCI 218358801 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10
Refrigerator Control Cover Evaporator WCI 218829701 Contact Us For Availability
10A
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10A
Refrigerator Nut WCI 5303209814 Contact Us For Availability
11
Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability
11
Refrigerator Freezer Shelf WCI 5303283280 Contact Us For Availability
11
Refrigerator Freezer Drive Panel WCI 5303918005 Contact Us For Availability
11A
Freezer Out Panel WCI 5303918006 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness WCI 3206349 Contact Us For Availability
12
Refrigerator Door Handle WCI 218778201 Contact Us For Availability
12A
Refrigerator Ice Maker Wire Harness Connector WCI 3206321 Contact Us For Availability
12A
Refrigerator Door Handle WCI 218778202 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability
13
Refrigerator Door Stop WCI 218800300 Contact Us For Availability
13A
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
13AA
Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability
14
Refrigerator Defrost Heater WCI 5308009754 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
14A
Refrigerator Button Plug WCI 218915702 Contact Us For Availability
15
Refrigerator Evaporator WCI 218818701 Contact Us For Availability
15
Refrigerator Drive Panel WCI 5303918007 Contact Us For Availability
15A
Ald Dr Panel WCI 5303918008 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Control Box WCI 5304414816 Contact Us For Availability
17
Refrigerator Drain Trough WCI 218725602 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
18A
Refrigerator Door Handle (White) WCI 218779801 Contact Us For Availability
18AA
Refrigerator Freezer Handle WCI 218779802 Contact Us For Availability
18B
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
20
Refrigerator Ferrule WCI 5303001286 Contact Us For Availability
21
Refrigerator Ferrule WCI 5303001287 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22A
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
24
Refrigerator Shelf WCI 218272502 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
25
Refrigerator Crisper Cover WCI 218227301 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
26
Refrigerator Cabinet Base WCI 218605001 Contact Us For Availability
26A
Refrigerator Cabinet Base WCI 218605002 Contact Us For Availability
27
Refrigerator Nut WCI 5303001348 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
28
Refrigerator Bolt WCI 5303271412 Contact Us For Availability
29
Refrigerator Door Hinge Pin Washer WCI 218875801 Contact Us For Availability
30
Refrigerator Compressor Start Relay WCI 218721108 Contact Us For Availability
30
Refrigerator Lower Bracket WCI 218220203 Contact Us For Availability
30A
Tapping Plate WCI 218605200 Contact Us For Availability
30B
Tapping Plate WCI 218605300 Contact Us For Availability
35
Refrigerator Door Hinge WCI 218998901 Contact Us For Availability
35A
Refrigerator Door Hinge Bracket, Center WCI 218998902 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37A
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
37A
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37AA
Lo Trim Hand WCI 218771202 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
40
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
40A
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
41A
Washer WCI 5308003607 Contact Us For Availability
43
Refrigerator Roller Assembly WCI 218703001 Contact Us For Availability
43A
Refrigerator Spring WCI 5308009790 Contact Us For Availability
43B
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 218713600 Contact Us For Availability
45A
Wiring Screw WCI 218754500 Contact Us For Availability
46
Refrigerator Screw WCI 5308009762 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
98A
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Sound Cover WCI 218905701 Contact Us For Availability
NI
Technical Data Sheet WCI 218755000 Contact Us For Availability
NI
Refrigerator Owner's Manual WCI 218972600 Contact Us For Availability
NI
Hot Tube WCI 5300189383 Contact Us For Availability
NI
Refrigerator Label WCI 5303270944 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Refrigerator Repair Parts List WCI 5995347423 Contact Us For Availability
× ![]()
