Model Electrolux 253.38657993 Top-Mount Refrigerator (Kenmore 25338657993) – Common Parts & Diagrams
DOOR
All Parts

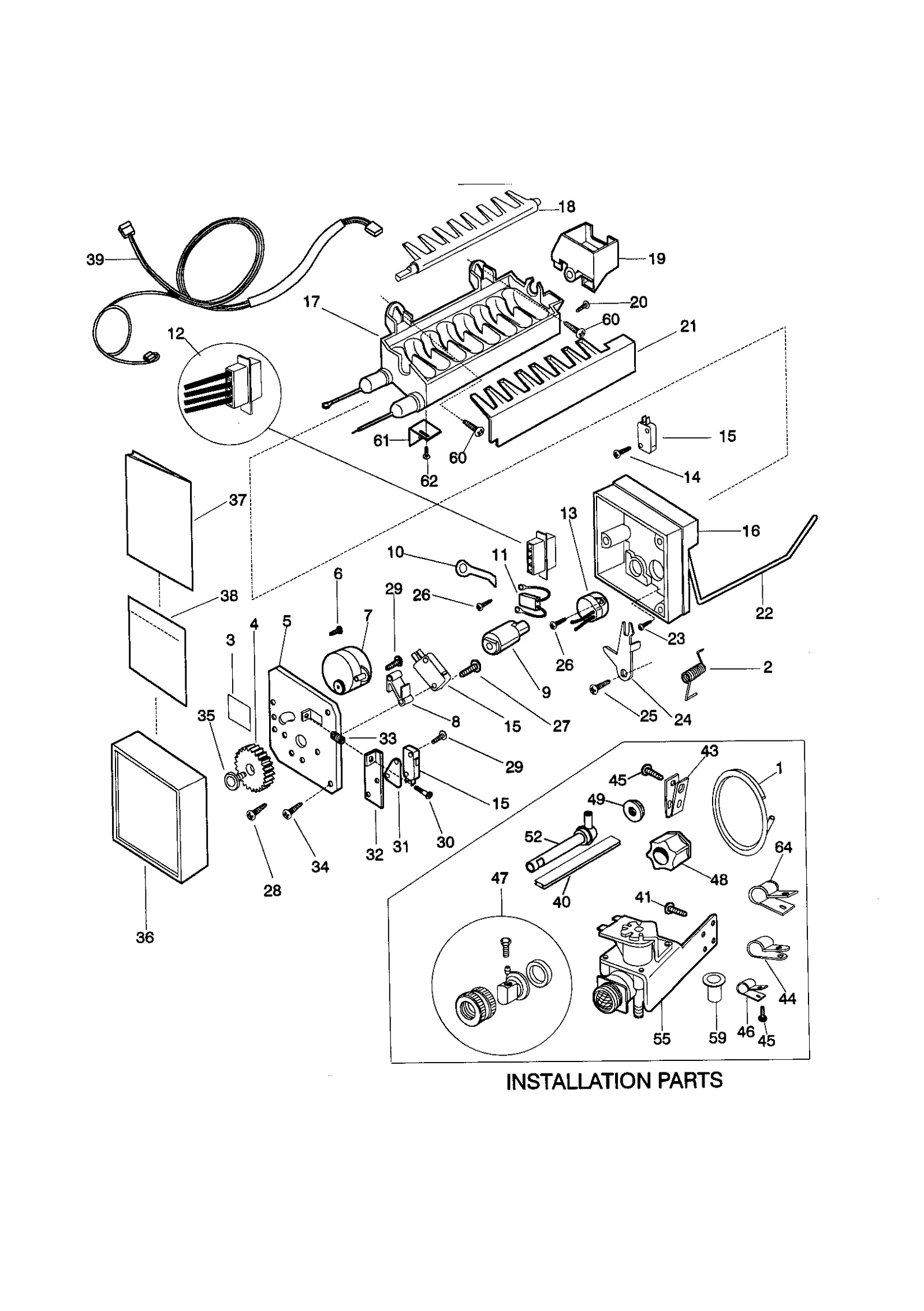

ICEMAKER

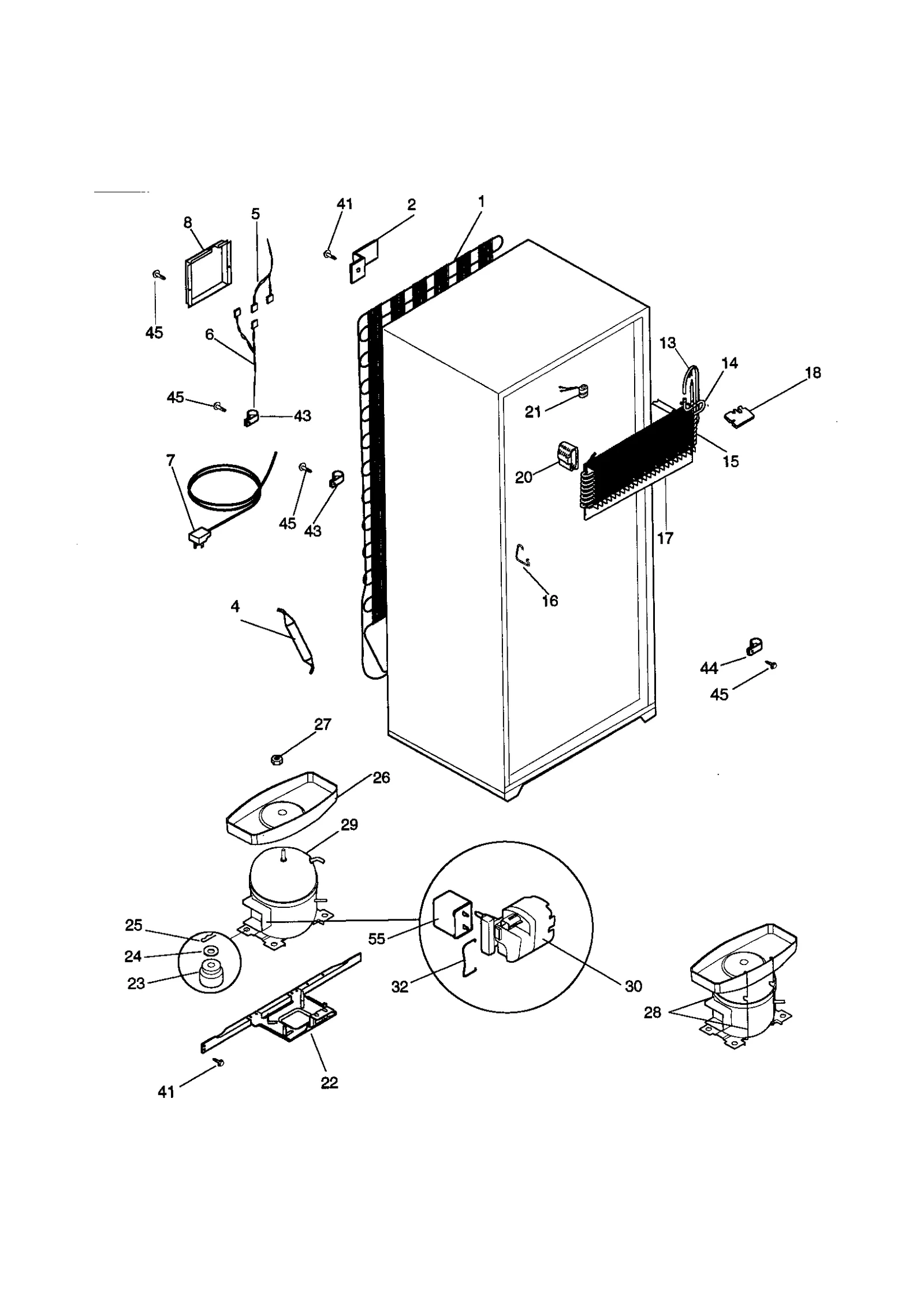

SYSTEM

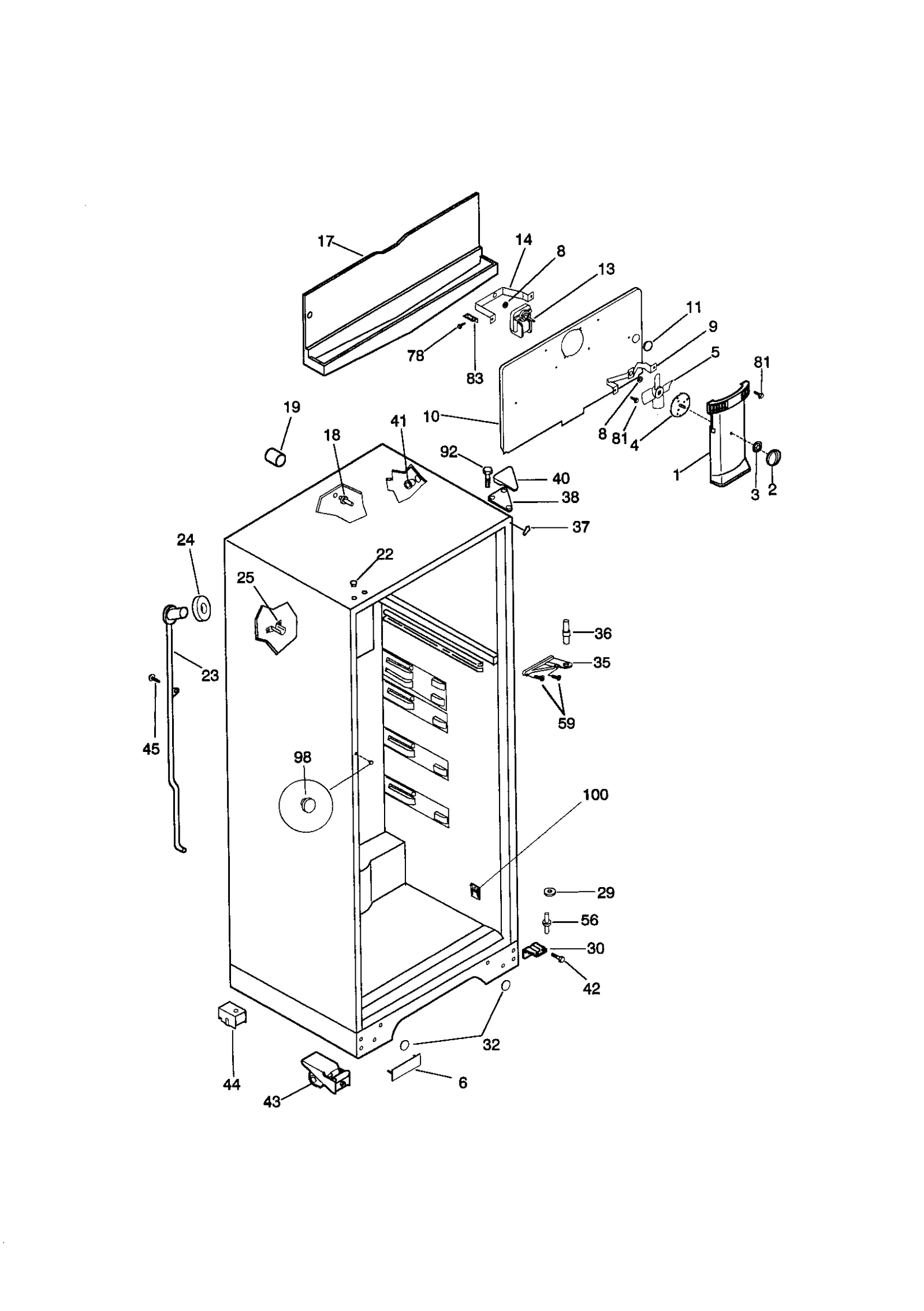

CABINET

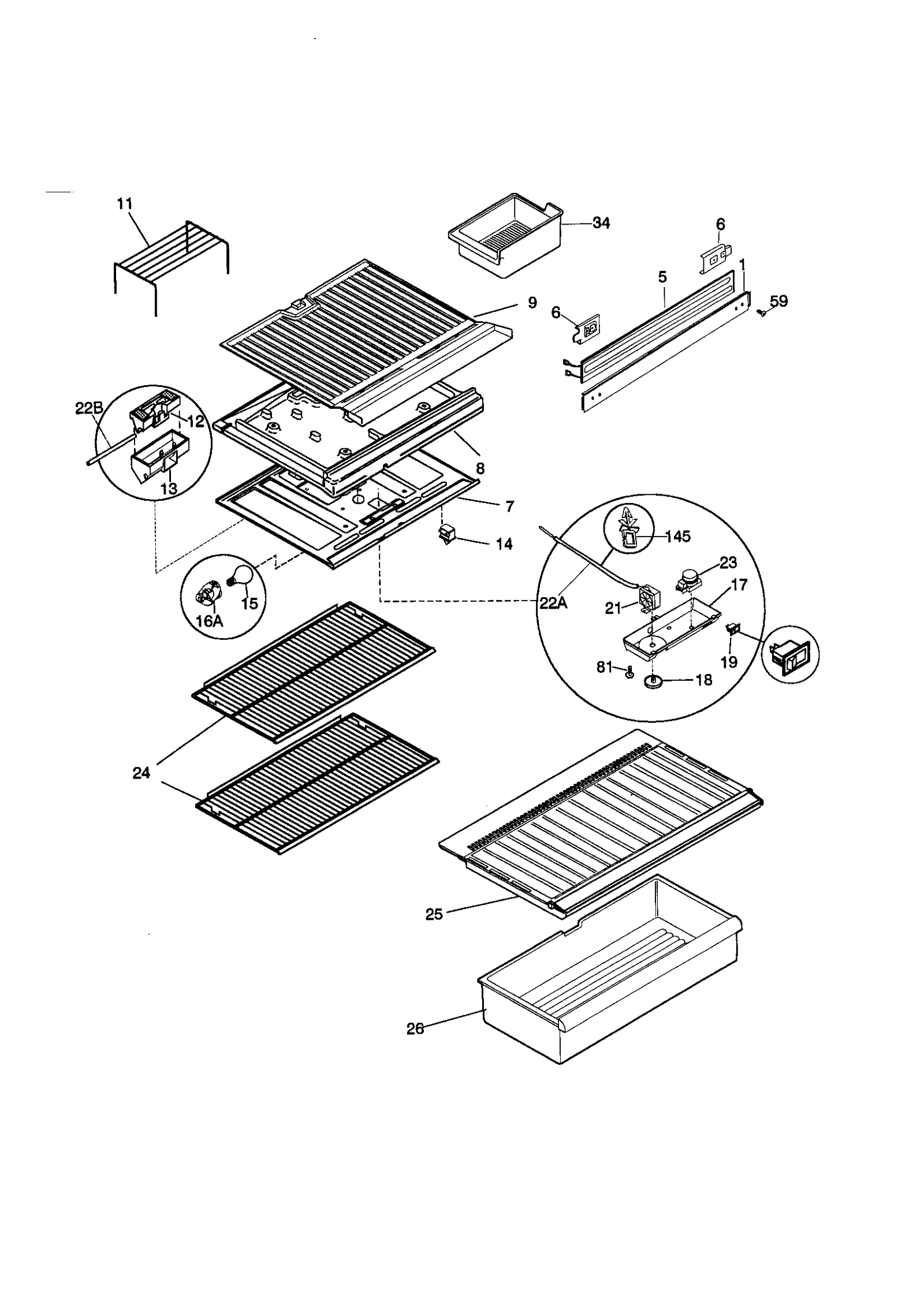

SHELVES
Common parts from model Electrolux 253.38657993 Top-Mount Refrigerator (Kenmore 25338657993)
1
Refrigerator Condenser WCI 218491000 Contact Us For Availability
1
Refrigerator Fan Cover WCI 218672501 Contact Us For Availability
1
Refrigerator Mullion WCI 218874401 Contact Us For Availability
1A
Refrigerator Mullion WCI 218874411 Contact Us For Availability
2
Refrigerator Bracket WCI 5308000296 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
2A
Washer WCI 5308009617 Contact Us For Availability
3
Refrigerator Door Inner Liner WCI 218460801 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
5
Heater Mullion WCI 218781001 Contact Us For Availability
6
Refrigerator Wire Harness WCI 215257004 Contact Us For Availability
6
Refrigerator Hole Cover WCI 218448301 Contact Us For Availability
6
Tapping Plate WCI 218845602 Contact Us For Availability
6A
Refrigerator Cover WCI 218448302 Contact Us For Availability
7
Refrigerator Dairy Bin Cover WCI 218287801 Contact Us For Availability
7
Refrigerator Cord WCI 5316254901 Contact Us For Availability
7
Ff Top Panel WCI 218865801 Contact Us For Availability
7A
Refrigerator Screw WCI 5303001380 Contact Us For Availability
8
Refrigerator Cover WCI 5303001197 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
8
Refrigerator Divider WCI 218872904 Contact Us For Availability
8A
Refrigerator Wire Harness WCI 218878500 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
9
Refrigerator Panel WCI 218865600 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10
Refrigerator Control Cover Evaporator WCI 218832002 Contact Us For Availability
10A
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10A
Refrigerator Nut WCI 5303209814 Contact Us For Availability
11
Kenmore Pro Refrigerator Ice Maker Thermal Cu WCI 3206319 Contact Us For Availability
11
Refrigerator Freezer Shelf WCI 5303283280 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Connector WCI 3206321 Contact Us For Availability
12A
Refrigerator Ice Maker Wire Harness WCI 3206349 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Ice Maker Thermostat WCI 3206322 Contact Us For Availability
13
Refrigerator Heat Exchange WCI 218429305 Contact Us For Availability
13A
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
14
Refrigerator Defrost Heater WCI 5304403171 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
15
Refrigerator Evaporator WCI 218831101 Contact Us For Availability
16
Refrigerator Defrost Clip WCI 218880900 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Drain Trough WCI 218725601 Contact Us For Availability
17
Refrigerator Control Box WCI 5303321455 Contact Us For Availability
17A
Refrigerator Nut Anchor WCI 5308016567 Contact Us For Availability
18
Refrigerator Control Block Evaporator WCI 218871800 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 218865000 Contact Us For Availability
18
Refrigerator Temperature Complete Knob WCI 5303311079 Contact Us For Availability
18A
Refrigerator Door Handle (White) WCI 218779801 Contact Us For Availability
18B
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
20
Refrigerator Control Block Evaporator WCI 218831400 Contact Us For Availability
21
Refrigerator Temperature Control WCI 5304410440 Contact Us For Availability
21A
Refrigerator Screw WCI 5303001260 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Compressor Plate WCI 218802500 Contact Us For Availability
22A
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube WCI 5303269702 Contact Us For Availability
24
Refrigerator Shelf WCI 218272502 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Refrigerator Washer WCI 5308003633 Contact Us For Availability
25
Refrigerator Compressor Mounting Clip WCI 5308003596 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
25
Refrigerator Crisper Cover WCI 218227301 Contact Us For Availability
26
Defrost Drai WCI 215372500 Contact Us For Availability
27
Refrigerator Nut WCI 5303001348 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
29
Washer WCI 5308000007 Contact Us For Availability
30
Refrigerator Door Hinge, Lower WCI 5304409595 Contact Us For Availability
30A
Tapping Plate WCI 215882300 Contact Us For Availability
32
Refrigerator Cabinet Hole Plug (White) WCI 215217701 Contact Us For Availability
32A
Refrigerator Button Plug WCI 215217703 Contact Us For Availability
33
Spring WCI 3206344 Contact Us For Availability
34
Screw WCI 3206345 Contact Us For Availability
35
Screw WCI 3206346 Contact Us For Availability
35
Refrigerator Bracket WCI 218220101 Contact Us For Availability
35A
Refrigerator Bracket WCI 218220102 Contact Us For Availability
36
Cover WCI 3206347 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37
Technical Data Sheet WCI 5303320544 Contact Us For Availability
37A
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
37A
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
38
Envelope WCI 5303207445 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
39
Refrigerator Wire Harness WCI 3206358 Contact Us For Availability
40
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
40A
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
43
ROLLER ASSEMBLY, FRONT, COMPLETE WCI 21872400 Contact Us For Availability
43A
Refrigerator Roller WCI 218703002 Contact Us For Availability
43B
Refrigerator Washer WCI 5308000186 Contact Us For Availability
43C
Refrigerator Screw WCI 5308009761 Contact Us For Availability
43D
Refrigerator Spring WCI 5308009790 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 5303283014 Contact Us For Availability
47
Refrigerator Water Inlet Valve Connection WCI 5308000205 Contact Us For Availability
48
Nut WCI 5308000200 Contact Us For Availability
55
Refrigerator Water Valve WCI 218720300 Contact Us For Availability
55A
Refrigerator Ice Maker Water Inlet Valve Cap WCI 5303015102 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
59
Sleeve WCI 5303001191 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
98A
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
× ![]()
