Model Electrolux 253.38622890 Top-Mount Refrigerator (Kenmore 25338622890) – Common Parts & Diagrams
All Parts

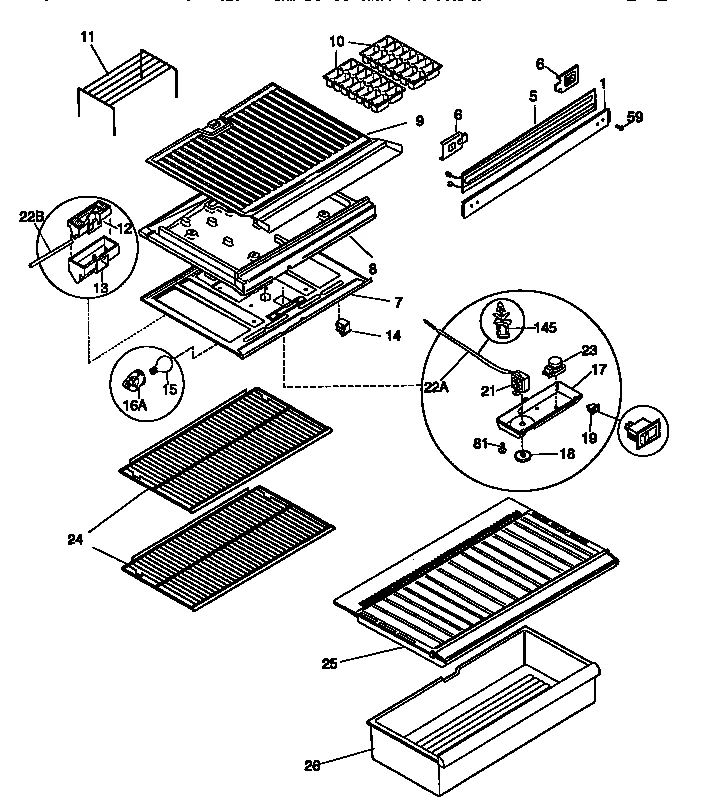

SHELVES AND DIVIDER BLOCK

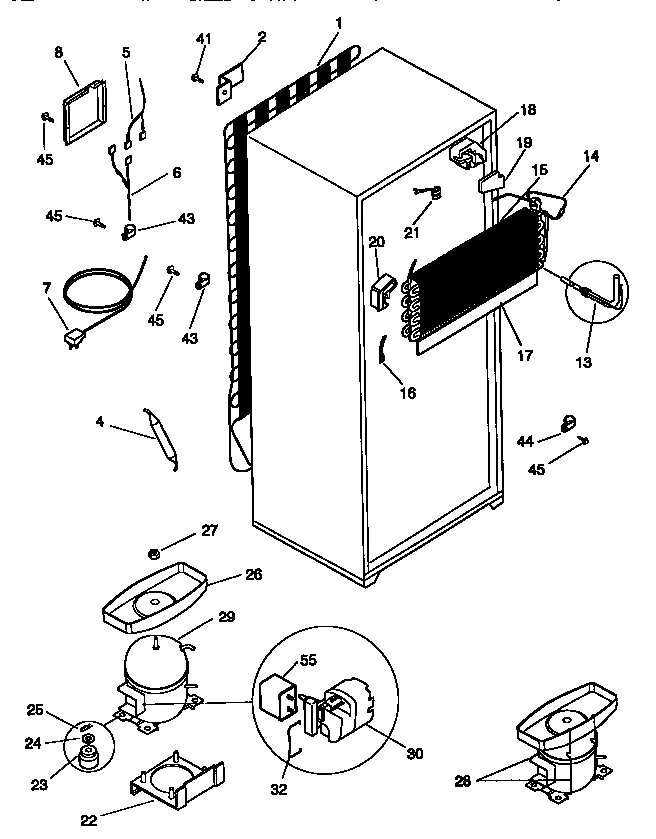

UNIT PARTS

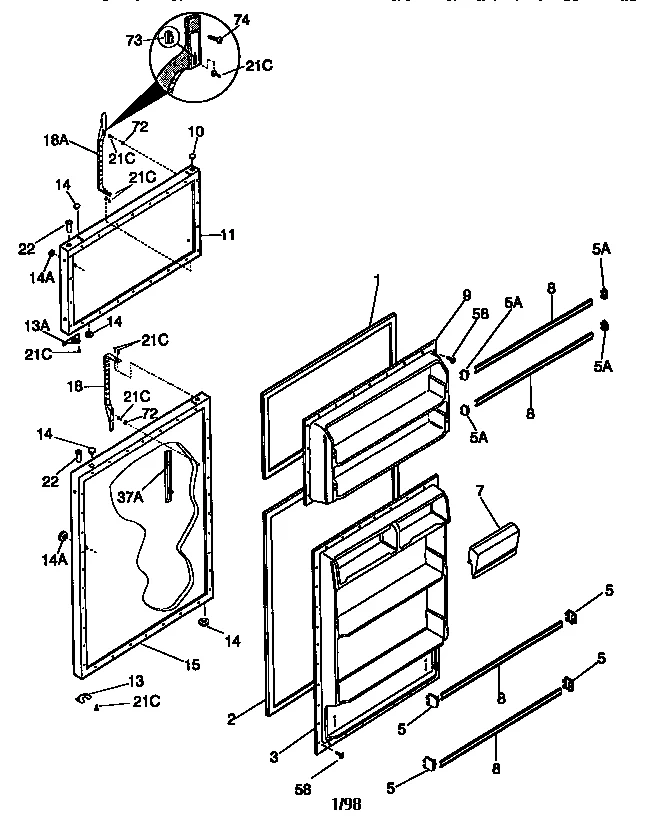

FRESH FOOD AND FREEZER DOORS

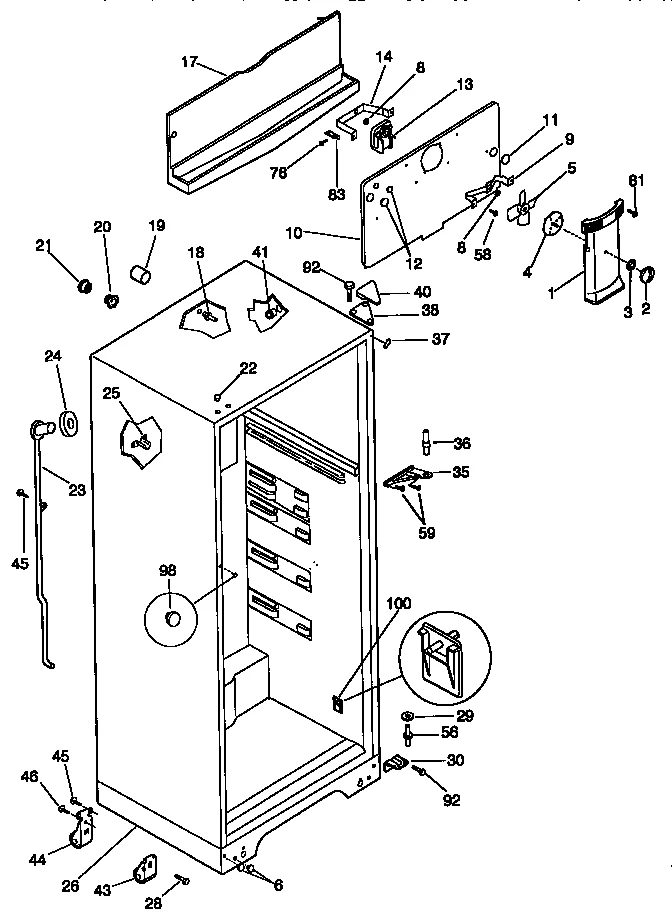

CABINET PARTS
CABINET PARTS
Common parts from model Electrolux 253.38622890 Top-Mount Refrigerator (Kenmore 25338622890)
1
Refrigerator Freezer Door Gasket (White) WCI 5308007123 Contact Us For Availability
1
Refrigerator Fan Cover WCI 218672501 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
3
Ff Inner Pnl WCI 218359001 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
5
Heater Mullion WCI 218781001 Contact Us For Availability
6
Refrigerator Button (White) WCI 5303001388 Contact Us For Availability
7
Refrigerator Dairy Bin Cover WCI 218287801 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
9
Refrigerator Inner Door Panel WCI 218358801 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
10
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10
Refrigerator Control Cover Evaporator WCI 218829701 Contact Us For Availability
10A
Refrigerator Nut WCI 5303209814 Contact Us For Availability
11
Refrigerator Freezer Drive Panel WCI 5303918005 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Door Stop WCI 5303212491 Contact Us For Availability
13A
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
14
Refrigerator Defrost Heater WCI 5308009754 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
15
Refrigerator Evaporator WCI 218818701 Contact Us For Availability
15
Refrigerator Drive Panel WCI 5303918007 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Drain Trough WCI 218725602 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
18A
Refrigerator Door Handle (White) WCI 218779801 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
20
Refrigerator Ferrule WCI 5303001286 Contact Us For Availability
21
Refrigerator Ferrule WCI 5303001287 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube and Seal WCI 5303210377 Contact Us For Availability
24
Refrigerator Shelf WCI 218272502 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
25
Refrigerator Crisper Drawer Cover WCI 218314101 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
26
Refrigerator Cabinet Base WCI 218605001 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
28
Refrigerator Bolt WCI 5303271412 Contact Us For Availability
29
Washer WCI 218666700 Contact Us For Availability
29A
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
30
Refrigerator Lower Bracket WCI 218220200 Contact Us For Availability
30A
Tapping Plate WCI 218605200 Contact Us For Availability
30B
Tapping Plate WCI 218605300 Contact Us For Availability
35
Refrigerator Bracket WCI 218220101 Contact Us For Availability
37
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37A
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
38A
Refrigerator Plate WCI 5308012296 Contact Us For Availability
40
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
43
Refrigerator Roller Assembly WCI 218703001 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 218713600 Contact Us For Availability
45
Wiring Screw WCI 218754500 Contact Us For Availability
46
Refrigerator Screw WCI 5308009762 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
58
Refrigerator Door Inner Liner Screw WCI 218749600 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
100
Refrigerator Crisper Drawer Cover Support Stu WCI 5303288973 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
× ![]()
