Model Electrolux 253.38300890 Top-Mount Refrigerator (Kenmore 25338300890) – Common Parts & Diagrams
SHELVES AND DIVIDER BLOCK

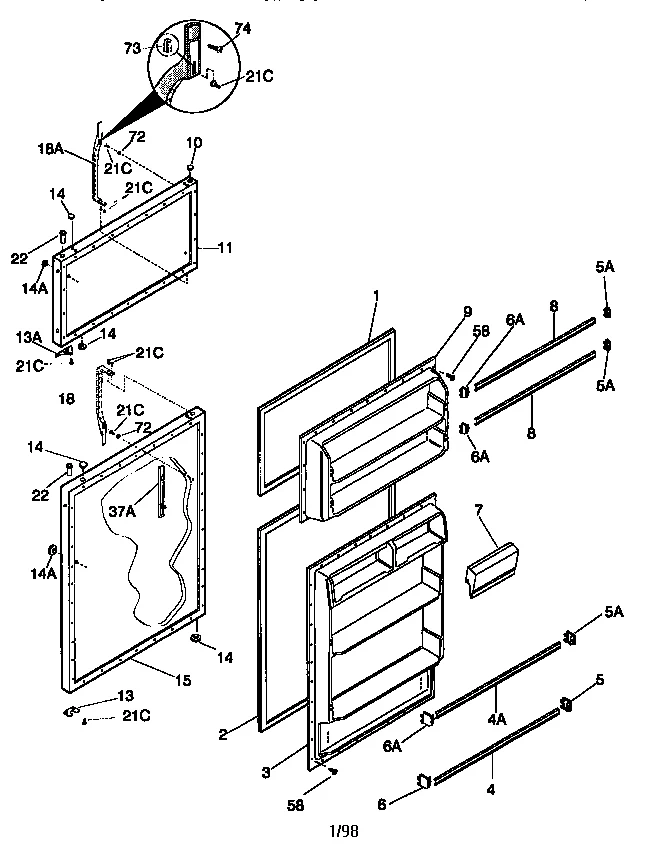

FRESH FOOD AND FREEZER DOORS

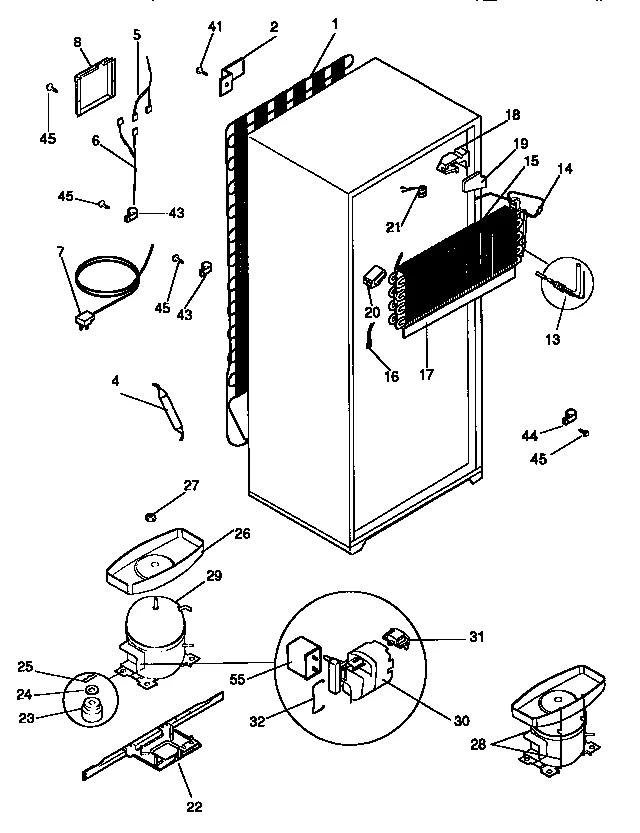

UNIT PARTS

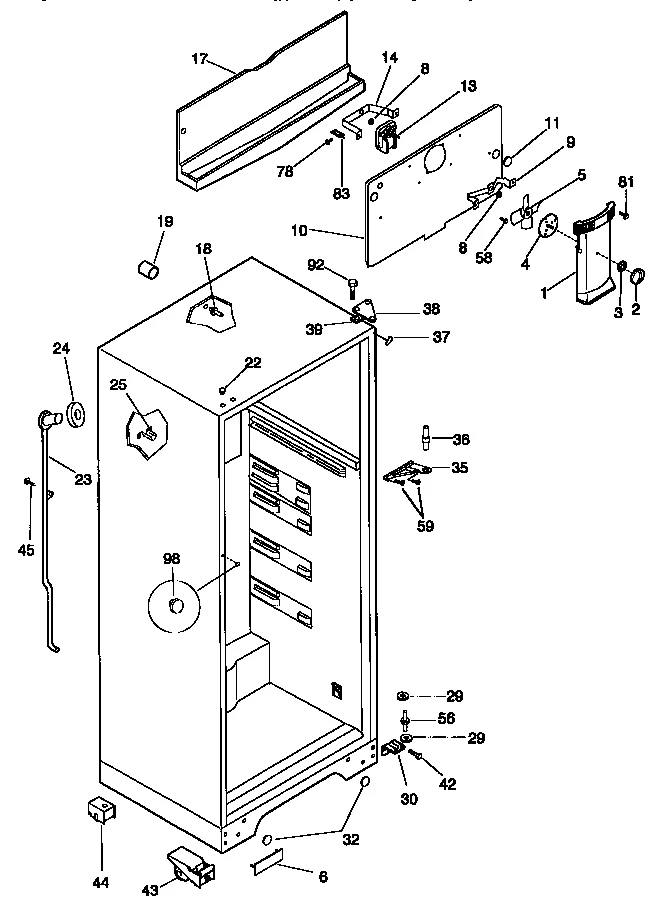

CABINET PARTS
All Parts
Common parts from model Electrolux 253.38300890 Top-Mount Refrigerator (Kenmore 25338300890)
1
Refrigerator Condenser WCI 5303270924 Contact Us For Availability
1
Refrigerator Fan Cover WCI 5303307350 Contact Us For Availability
2
Refrigerator Gasket WCI 218730602 Contact Us For Availability
2
Refrigerator Bracket WCI 5308000296 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
2A
Washer WCI 5308009617 Contact Us For Availability
3
Refrigerator Inner Panel WCI 5303271483 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
4
Refrigerator Fan Cover Damper WCI 218430000 Contact Us For Availability
5
Refrigerator Door Shelf Rail End Cap WCI 3206150 Contact Us For Availability
5
Heater Mullion WCI 218781001 Contact Us For Availability
5
Refrigerator Wiring Harness WCI 5303276174 Contact Us For Availability
6
Refrigerator Wiring Harness WCI 215257003 Contact Us For Availability
6
Refrigerator Cover WCI 218448302 Contact Us For Availability
7
Refrigerator Cord WCI 5316254901 Contact Us For Availability
8
Refrigerator Cover WCI 5303001197 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
10
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10
Refrigerator Control Cover Evaporator WCI 5303270917 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Heat Exchange WCI 218429302 Contact Us For Availability
14
Refrigerator Defrost Heater WCI 5308009754 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
15
Refrigerator Evaporator WCI 5308009756 Contact Us For Availability
17
Refrigerator Evaporator Insulation WCI 5316651102 Contact Us For Availability
17
Refrigerator Drain Trough WCI 218725601 Contact Us For Availability
18
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
18
Refrigerator Insulation WCI 5308013648 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Plug WCI 5303007287 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
20
Refrigerator Block WCI 5308017227 Contact Us For Availability
21A
Refrigerator Screw WCI 218251900 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22
Refrigerator Mounting Plate WCI 3206126 Contact Us For Availability
23
Refrigerator Drain Tube WCI 5303272327 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
24
Refrigerator Washer WCI 5308003633 Contact Us For Availability
25
Refrigerator Crisper Drawer Cover WCI 5303270897 Contact Us For Availability
25
Refrigerator Compressor Mounting Clip WCI 5308003596 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
26
Defrost Drai WCI 215372500 Contact Us For Availability
27
Refrigerator Nut WCI 5303001348 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
29
Washer WCI 5308000007 Contact Us For Availability
30
Freezer Compressor Start Relay WCI 216008900 Contact Us For Availability
30
Refrigerator Bracket WCI 3206136 Contact Us For Availability
30A
Tapping Plate WCI 215882300 Contact Us For Availability
30B
Refrigerator Door Hinge Shim, Lower WCI 218368500 Contact Us For Availability
31
Overload WCI 5303299560 Contact Us For Availability
32
Refrigerator Overload Relay Cover Clamp WCI 215012000 Contact Us For Availability
32
Refrigerator Button Plug WCI 215217703 Contact Us For Availability
35
Refrigerator Bracket WCI 218220102 Contact Us For Availability
37
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37A
Lo Trim Hand WCI 218771202 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
39
Refrigerator Shim WCI 5303001037 Contact Us For Availability
43
Refrigerator Roller WCI 218724000 Contact Us For Availability
43A
Refrigerator Roller WCI 218703002 Contact Us For Availability
43B
Refrigerator Screw WCI 5308009761 Contact Us For Availability
43C
Refrigerator Spring WCI 5308009790 Contact Us For Availability
43D
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 5303283014 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Technical Data Sheet WCI 218758400 Contact Us For Availability
NI
Refrigerator Heater WCI 3916557 Contact Us For Availability
NI
Refrigerator Label WCI 5303270944 Contact Us For Availability
NI
Touch Paint WCI 5303305325 Contact Us For Availability
NI
Refrigerator Parts Catalog WCI 5995302352 Contact Us For Availability
× ![]()
