Model Electrolux 253.37842893 Top-Mount Refrigerator (Kenmore 25337842893) – Common Parts & Diagrams
All Parts

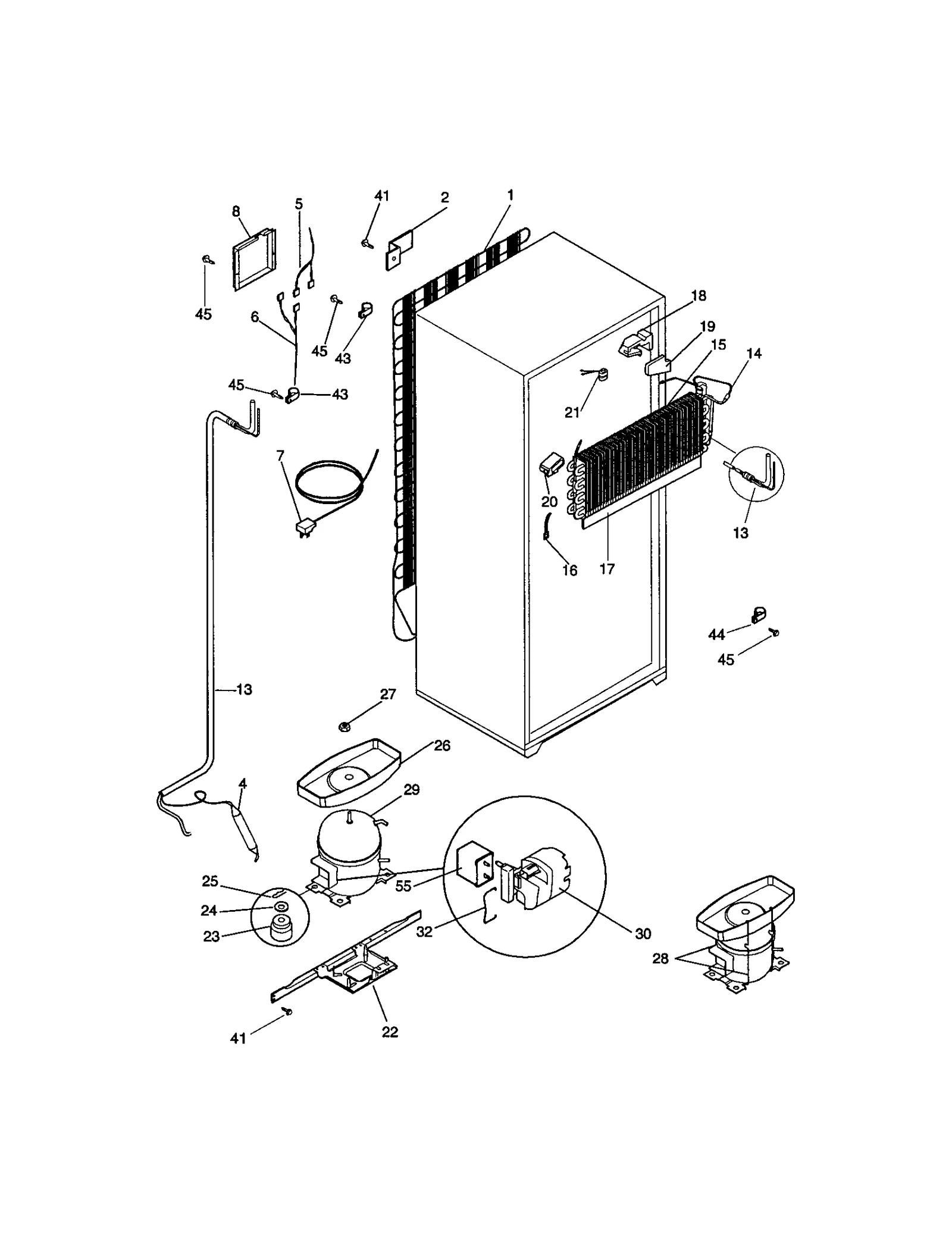

SYSTEM

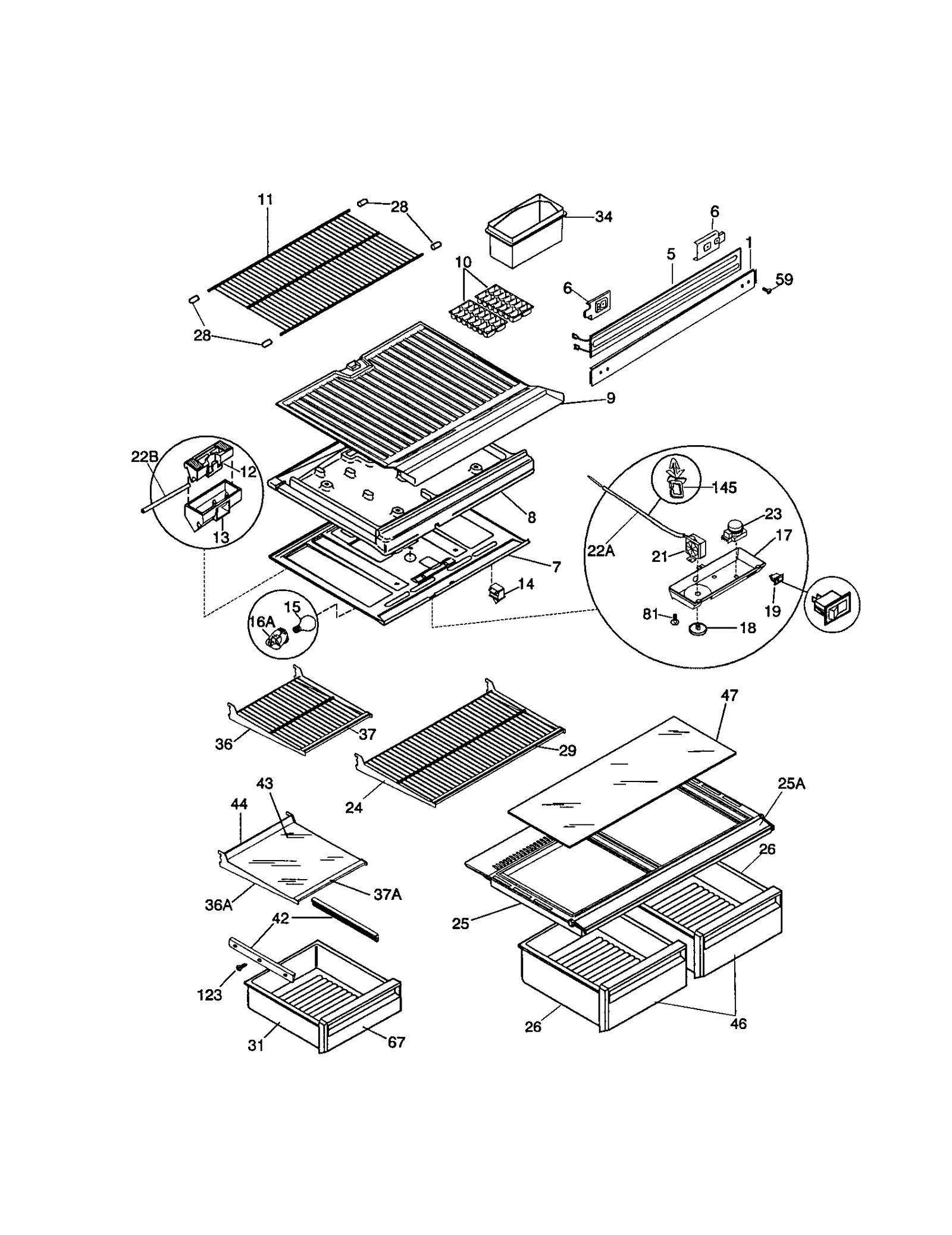

SHELVES

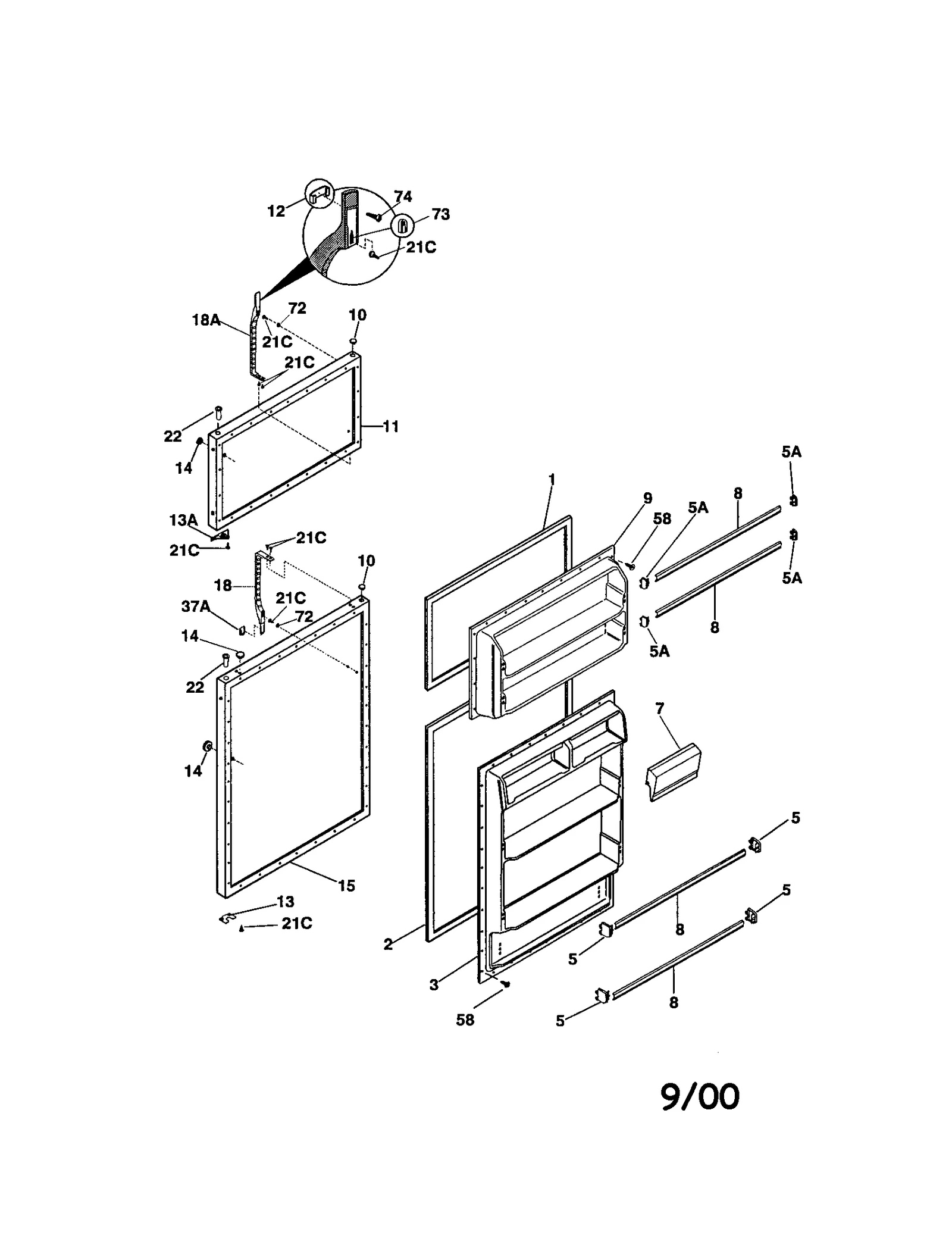

DOOR

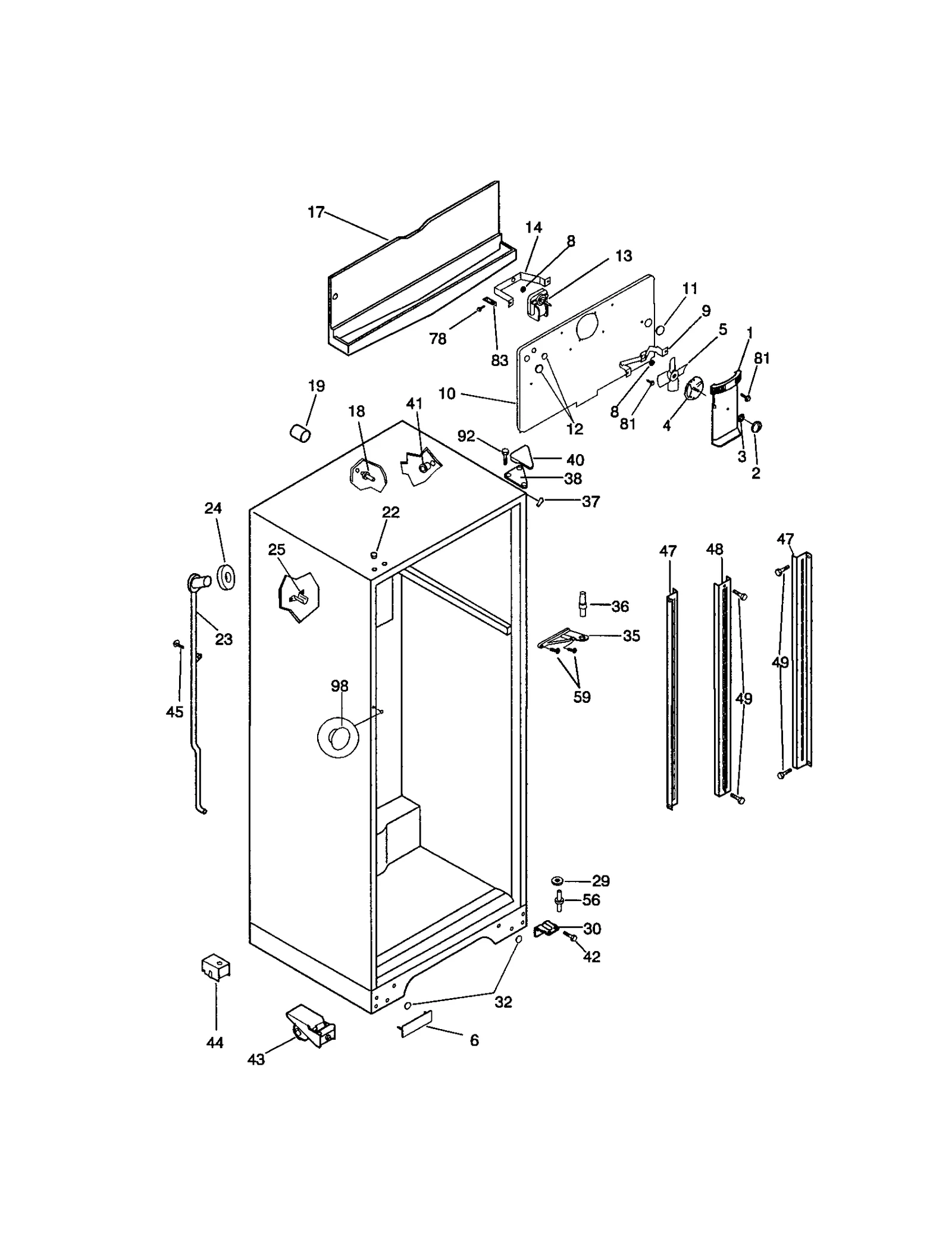

CABINET
Common parts from model Electrolux 253.37842893 Top-Mount Refrigerator (Kenmore 25337842893)
1
Refrigerator Freezer Door Gasket (White) WCI 215608916 Contact Us For Availability
1
Refrigerator Fan Cover WCI 218672501 Contact Us For Availability
2
Refrigerator Knob Damper WCI 5303307351 Contact Us For Availability
3
Refrigerator Panel WCI 218360002 Contact Us For Availability
3
Refrigerator Push Nut WCI 5303001028 Contact Us For Availability
4
Refrigerator Air Damper Control WCI 218722200 Contact Us For Availability
6
Refrigerator Cover WCI 218448302 Contact Us For Availability
6A
Refrigerator Hole Cover WCI 218448301 Contact Us For Availability
7
Refrigerator Dairy Door WCI 218287818 Contact Us For Availability
8
Refrigerator Divider WCI 218872903 Contact Us For Availability
8
Refrigerator Bushing WCI 5300157666 Contact Us For Availability
9
Refrigerator Inner Panel WCI 218360101 Contact Us For Availability
9
Refrigerator Bracket WCI 5303205118 Contact Us For Availability
10
Refrigerator Button (Almond) WCI 5303001308 Contact Us For Availability
10
COVER-EVAP COIL WCI 218973301 Contact Us For Availability
10A
Refrigerator Door Hinge Hole Cover (White) WCI 5308000134 Contact Us For Availability
10A
Refrigerator Nut WCI 5303209814 Contact Us For Availability
11
Refrigerator Freezer Door Panel WCI 5303917964 Contact Us For Availability
11A
Wh Fz Dr Pnl WCI 5303917963 Contact Us For Availability
12
Refrigerator Air Deflector WCI 218730000 Contact Us For Availability
12
Refrigerator Ice Maker Wire Harness Hole Plug WCI 215079000 Contact Us For Availability
12
Refrigerator Door Handle WCI 218778202 Contact Us For Availability
12A
Refrigerator Evaporator Cover Water Supply Tu WCI 215079100 Contact Us For Availability
12A
Refrigerator Door Handle WCI 218778201 Contact Us For Availability
13
Refrigerator Air Damper Cover WCI 218631001 Contact Us For Availability
13
Refrigerator Door Stop WCI 218800300 Contact Us For Availability
13A
Refrigerator Door Stop (Red) WCI 218249002 Contact Us For Availability
13AA
Refrigerator Door Stop (White) WCI 218249001 Contact Us For Availability
14
Refrigerator Button Plug WCI 218915702 Contact Us For Availability
14
Refrigerator Mounting Bracket WCI 5303322992 Contact Us For Availability
15
Refrigerator Drive Panel WCI 5303917994 Contact Us For Availability
15A
Refrigerator Drive Panel WCI 5303917965 Contact Us For Availability
17
TROUGH - DRAIN WCI 218973201 Contact Us For Availability
18
Refrigerator Door Handle (Almond) WCI 218779902 Contact Us For Availability
18
Refrigerator Support Evaporator WCI 215245000 Contact Us For Availability
18A
Refrigerator Freezer Handle WCI 218779802 Contact Us For Availability
18AA
Refrigerator Door Handle (White) WCI 218779801 Contact Us For Availability
19
Refrigerator Rocker Switch WCI 5303286905 Contact Us For Availability
19
Refrigerator Tube WCI 5303001198 Contact Us For Availability
22
Refrigerator Door Hinge Bushing WCI 218519300 Contact Us For Availability
22
Refrigerator Button Plug WCI 215774911 Contact Us For Availability
22B
Refrigerator Air Deflector Tube WCI 218731104 Contact Us For Availability
23
Refrigerator Drain Tube WCI 5303269702 Contact Us For Availability
24
Refrigerator Drain Tube Seal WCI 5303207353 Contact Us For Availability
25
Refrigerator Crisper Drawer Cover Frame WCI 5303207340 Contact Us For Availability
25
Spout Drain WCI 215774100 Contact Us For Availability
28
Refrigerator Freezer Shelf End Cap WCI 3201150 Contact Us For Availability
28
Refrigerator Defrost Drain Pan Retainer Kit WCI 5303916001 Contact Us For Availability
29
Washer WCI 5308000007 Contact Us For Availability
29A
Refrigerator Washer WCI 5308000186 Contact Us For Availability
30
Hinge Drive Bracket WCI 5303917777 Contact Us For Availability
30A
Tapping Plate WCI 215882300 Contact Us For Availability
32
Refrigerator Button Plug WCI 215217703 Contact Us For Availability
32A
Refrigerator Cabinet Hole Plug (White) WCI 215217701 Contact Us For Availability
34
Refrigerator Container WCI 3018945 Contact Us For Availability
35
Refrigerator Bracket WCI 218220102 Contact Us For Availability
35A
Refrigerator Bracket WCI 218220101 Contact Us For Availability
36
Refrigerator Shelf WCI 5303307356 Contact Us For Availability
36A
Frame-half S WCI 215919160 Contact Us For Availability
37
Refrigerator Corner Trim (Almond) WCI 5303321082 Contact Us For Availability
37
Refrigerator Wire Shelf Trim, Front WCI 215217564 Contact Us For Availability
37A
Refrigerator Corner Trim WCI 5303321081 Contact Us For Availability
37A
Refrigerator Frame WCI 218830309 Contact Us For Availability
37A
Lo Trim Hand WCI 218771202 Contact Us For Availability
37AA
Refrigerator Door Handle Trim WCI 218771201 Contact Us For Availability
38
Refrigerator Bracket WCI 3206100 Contact Us For Availability
40
Refrigerator Door Hinge Cover WCI 3206105 Contact Us For Availability
40A
Refrigerator Hinge Cover (White) WCI 3206101 Contact Us For Availability
43
Refrigerator Glass Shelf WCI 218498152 Contact Us For Availability
43
Refrigerator Roller WCI 218724000 Contact Us For Availability
43A
Refrigerator Roller WCI 218703002 Contact Us For Availability
43B
Refrigerator Screw WCI 5308009761 Contact Us For Availability
43C
Refrigerator Spring WCI 5308009790 Contact Us For Availability
43D
Refrigerator Roller Wheel Washer WCI 5308011326 Contact Us For Availability
44
Refrigerator Glass Shelf Trim, Rear, 12.13-in WCI 215919809 Contact Us For Availability
44
Refrigerator Roller Assembly WCI 5303283014 Contact Us For Availability
46
Refrigerator Crisper Drawer Front WCI 5303307359 Contact Us For Availability
47
Refrigerator Pan Insert WCI 218498140 Contact Us For Availability
47
Refrigerator Shelf Mounting Channel WCI 218233300 Contact Us For Availability
48
Refrigerator Shelf Channel WCI 5303292395 Contact Us For Availability
56
Lower Hinge Pin WCI 218220300 Contact Us For Availability
58
Refrigerator Door Inner Liner Screw WCI 218749600 Contact Us For Availability
67
Refrigerator Deli Drawer Front Cover WCI 5303307363 Contact Us For Availability
72
Refrigerator Door Handle Mounting Grommet WCI 218397000 No Longer Available
81
Refrigerator Screw WCI 5303001380 Contact Us For Availability
83
Refrigerator Bracket WCI 5308000107 Contact Us For Availability
98
Refrigerator Plug Button (Red) WCI 215099711 Contact Us For Availability
98A
Refrigerator Door Hole Plug WCI 215099701 Contact Us For Availability
145
Refrigerator Clip WCI 218660800 Contact Us For Availability
NI
Refrigerator Door Insulation WCI 5303917276 Contact Us For Availability
NI
Refrigerator Liner Button Hole Plug WCI 5308016571 Contact Us For Availability
× ![]()
