Model Whirlpool 15GY-1 ELECTRIC RANGE – Common Parts & Diagrams

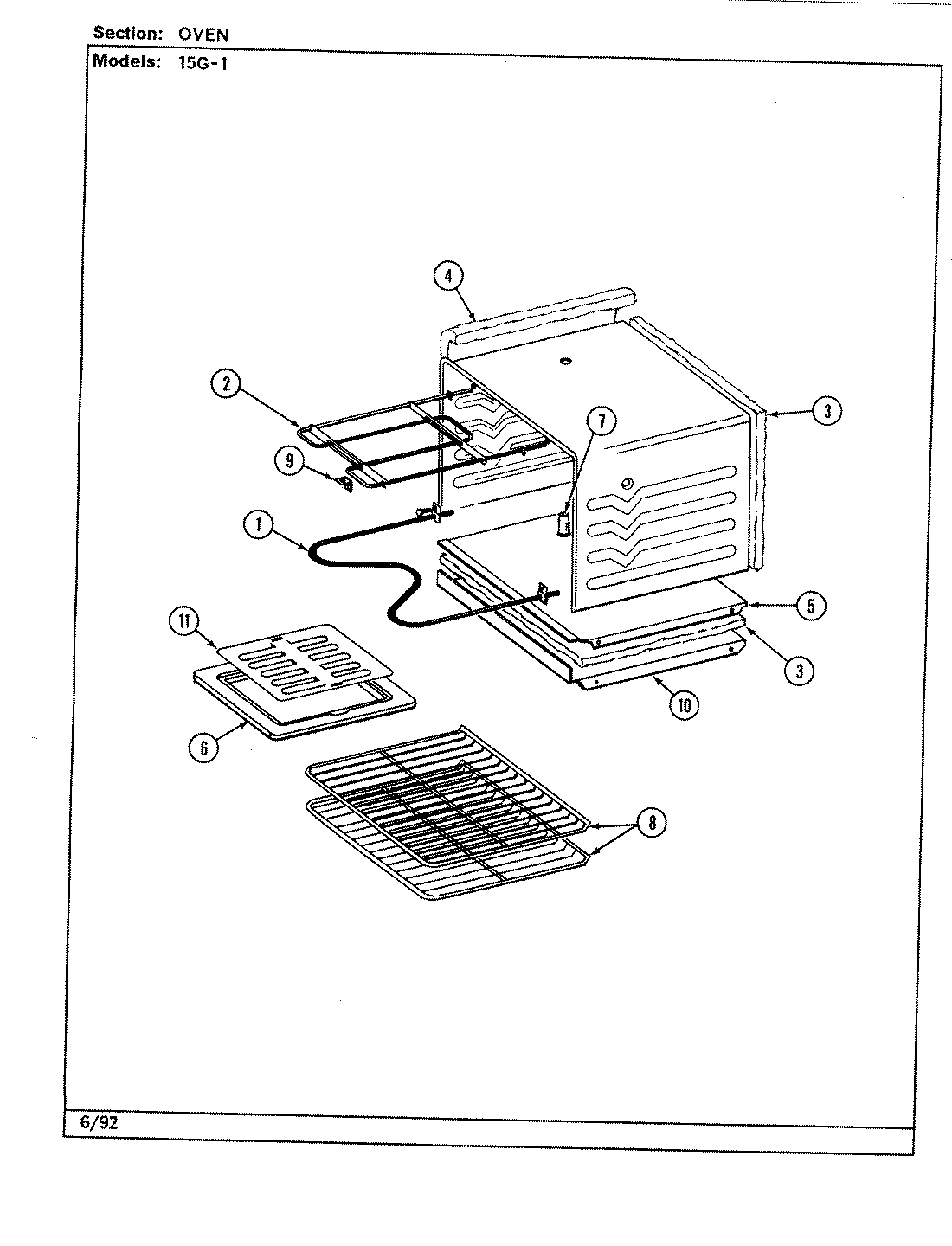

07 - OVEN

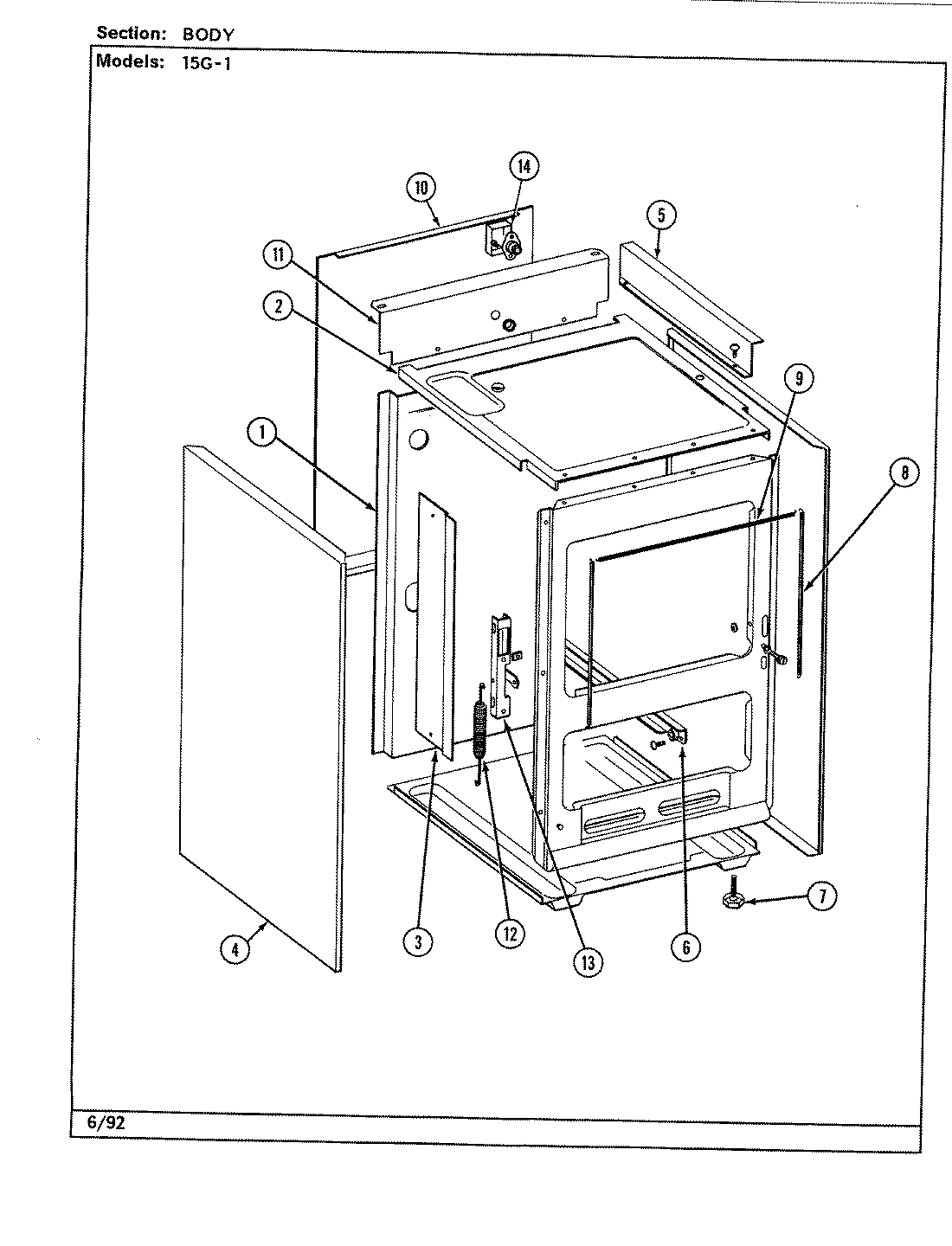

01 - BODY

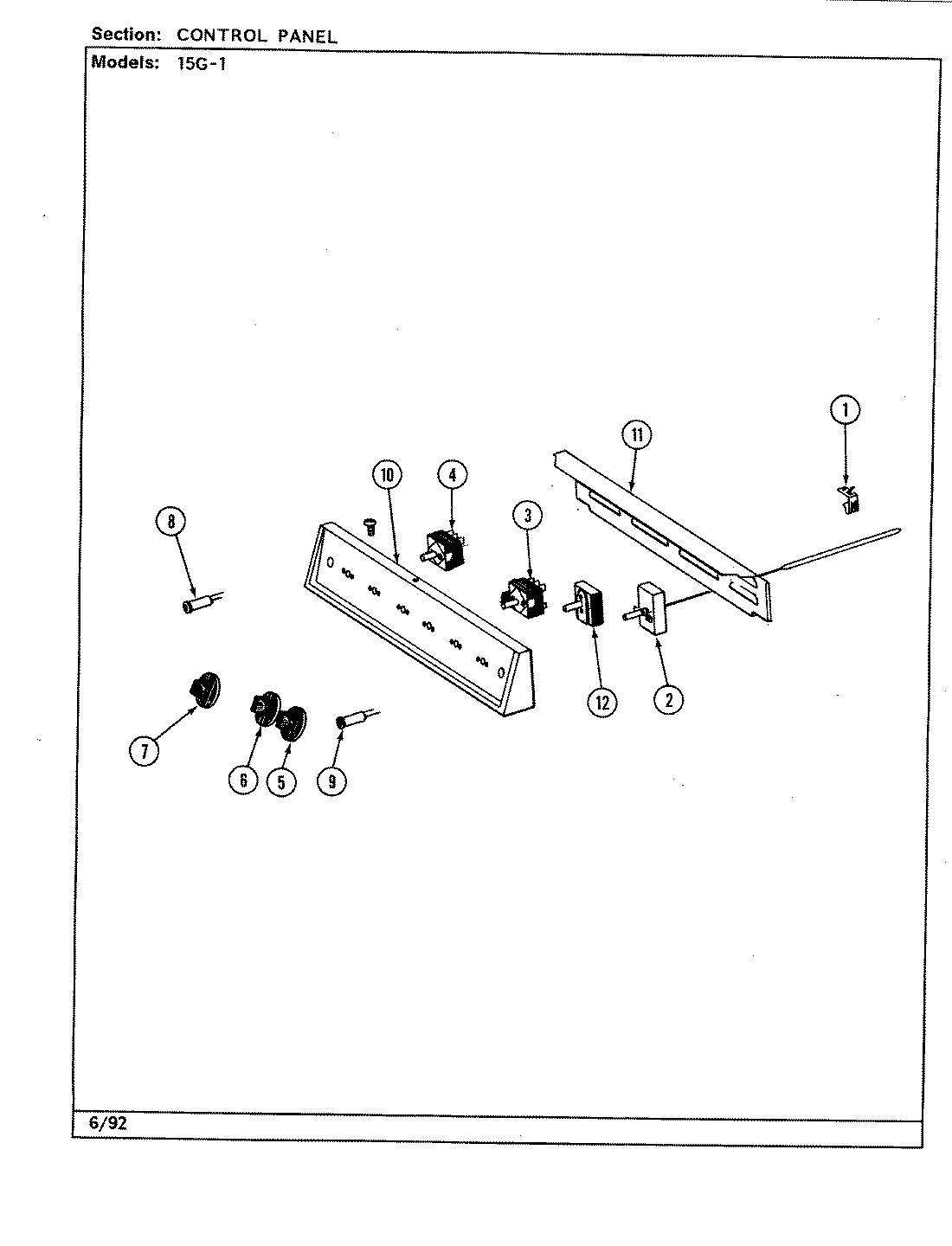

03 - CONTROL PANEL

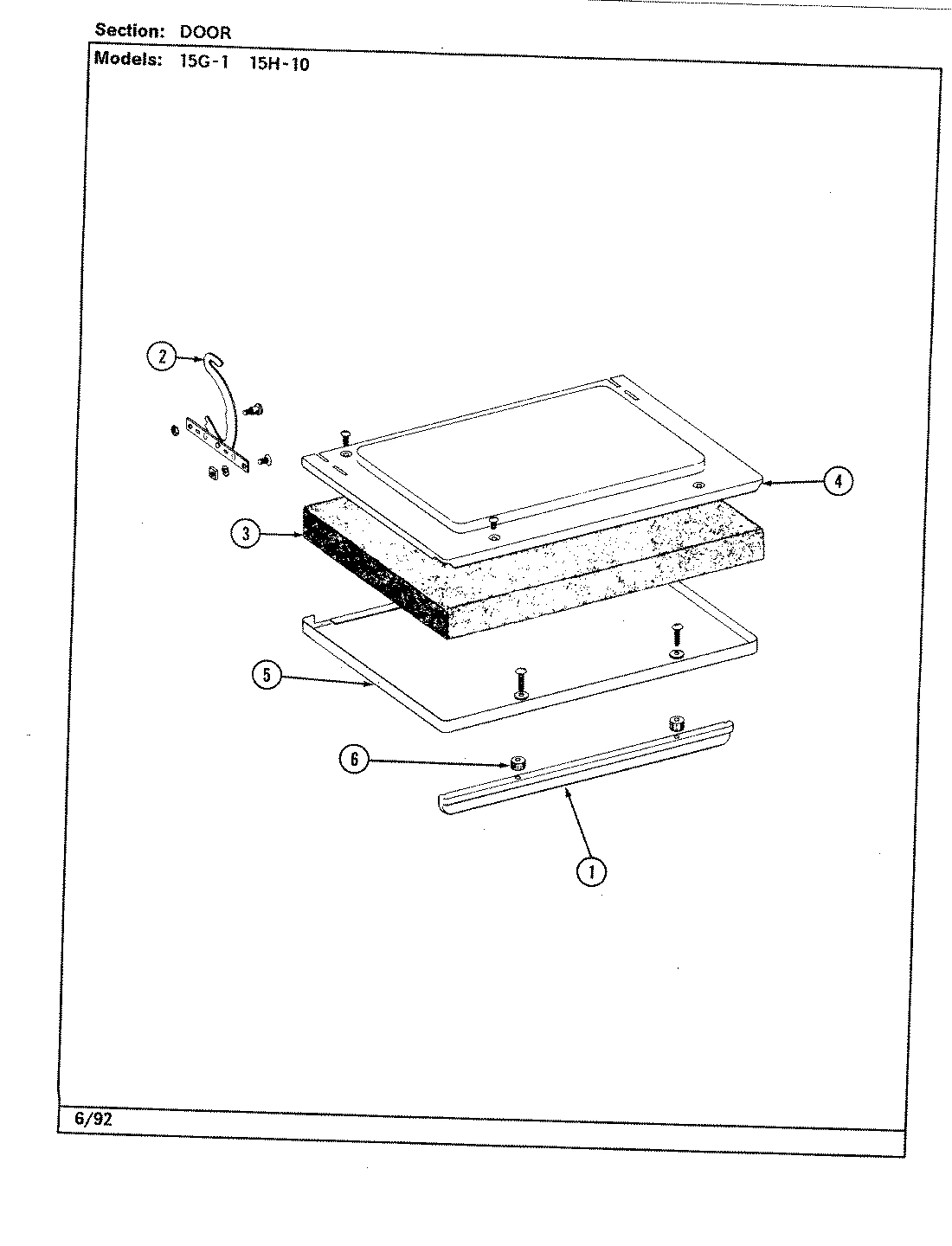

05 - DOOR

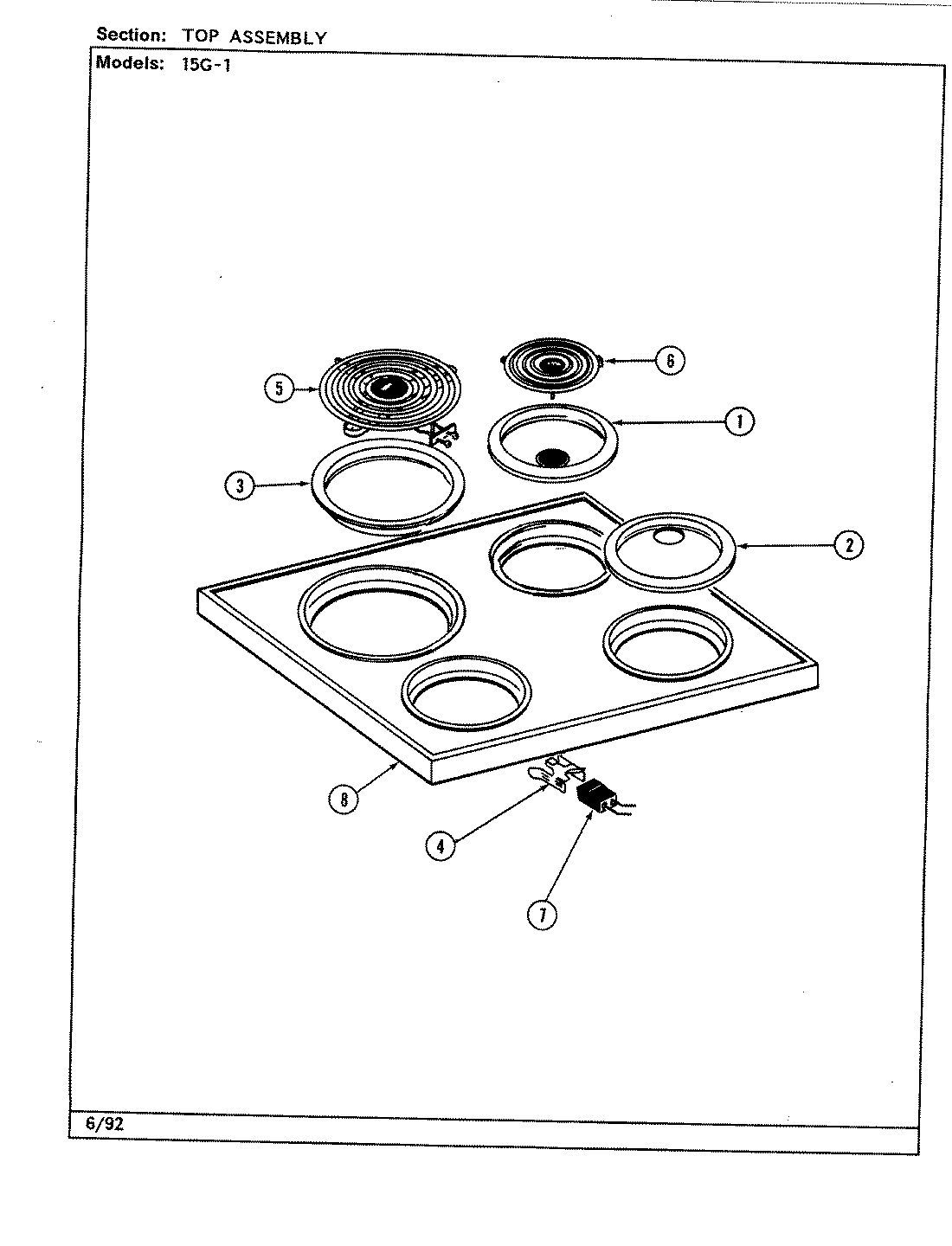

08 - TOP ASSEMBLY

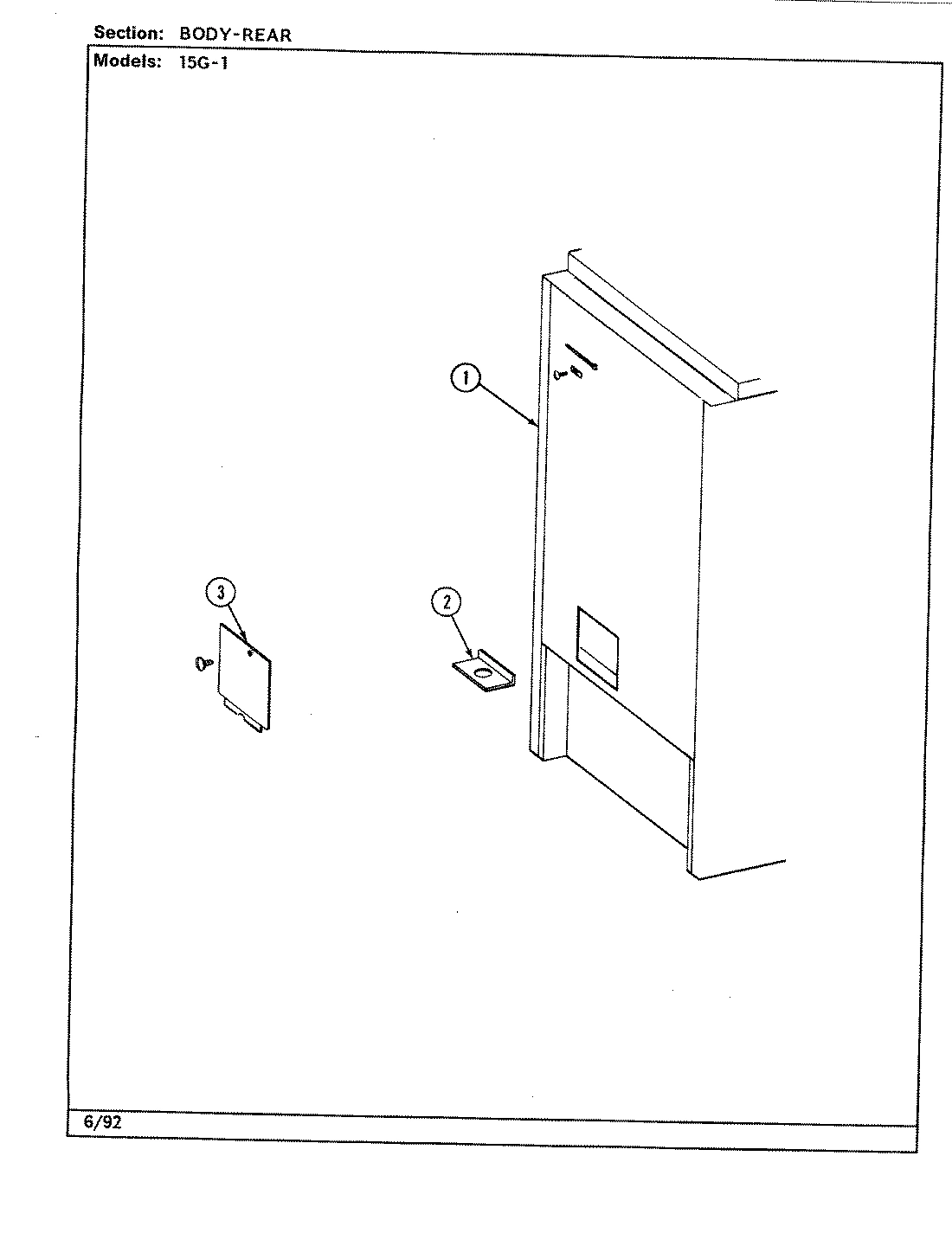

02 - BODY (REAR)

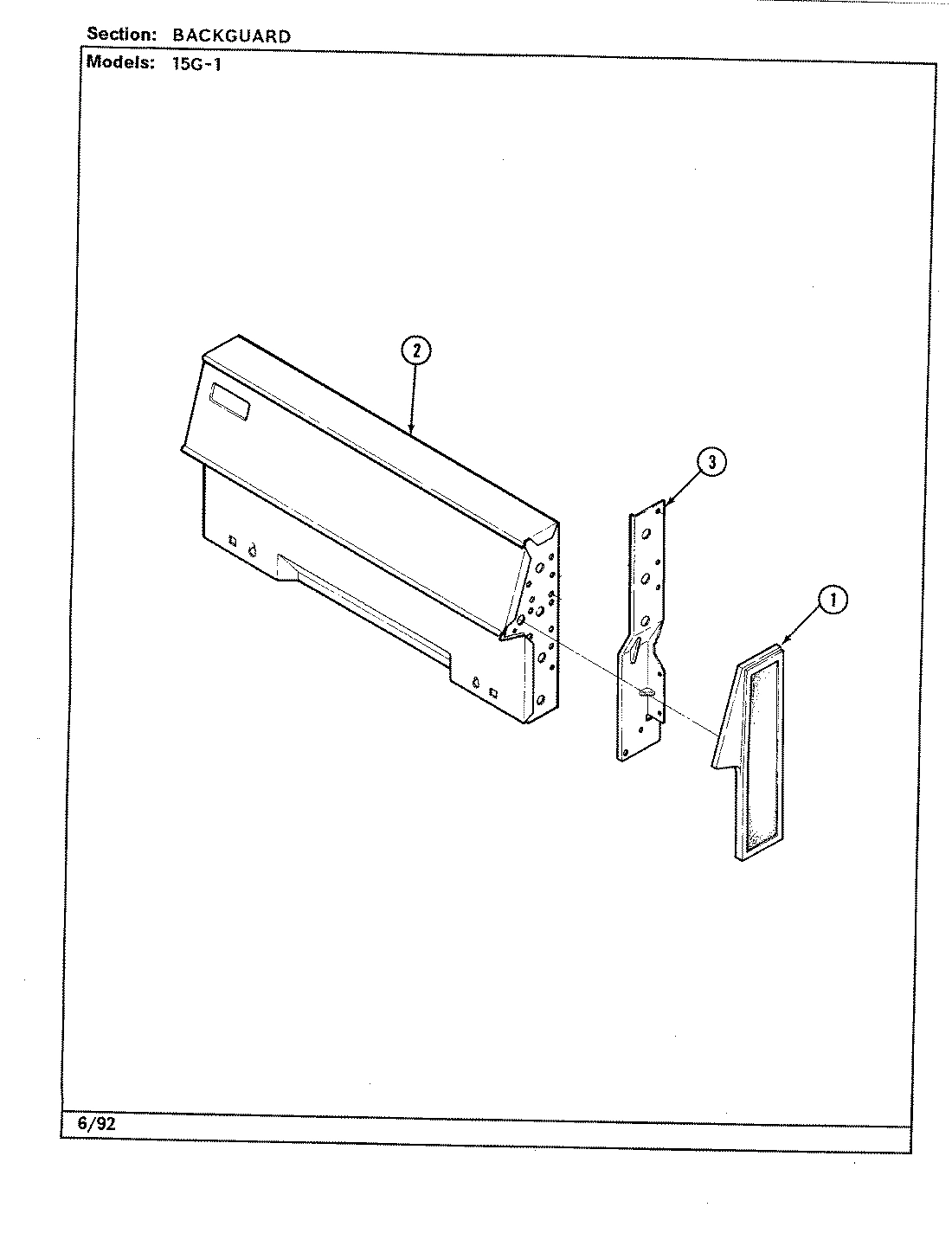

04 - CONTROL PANEL

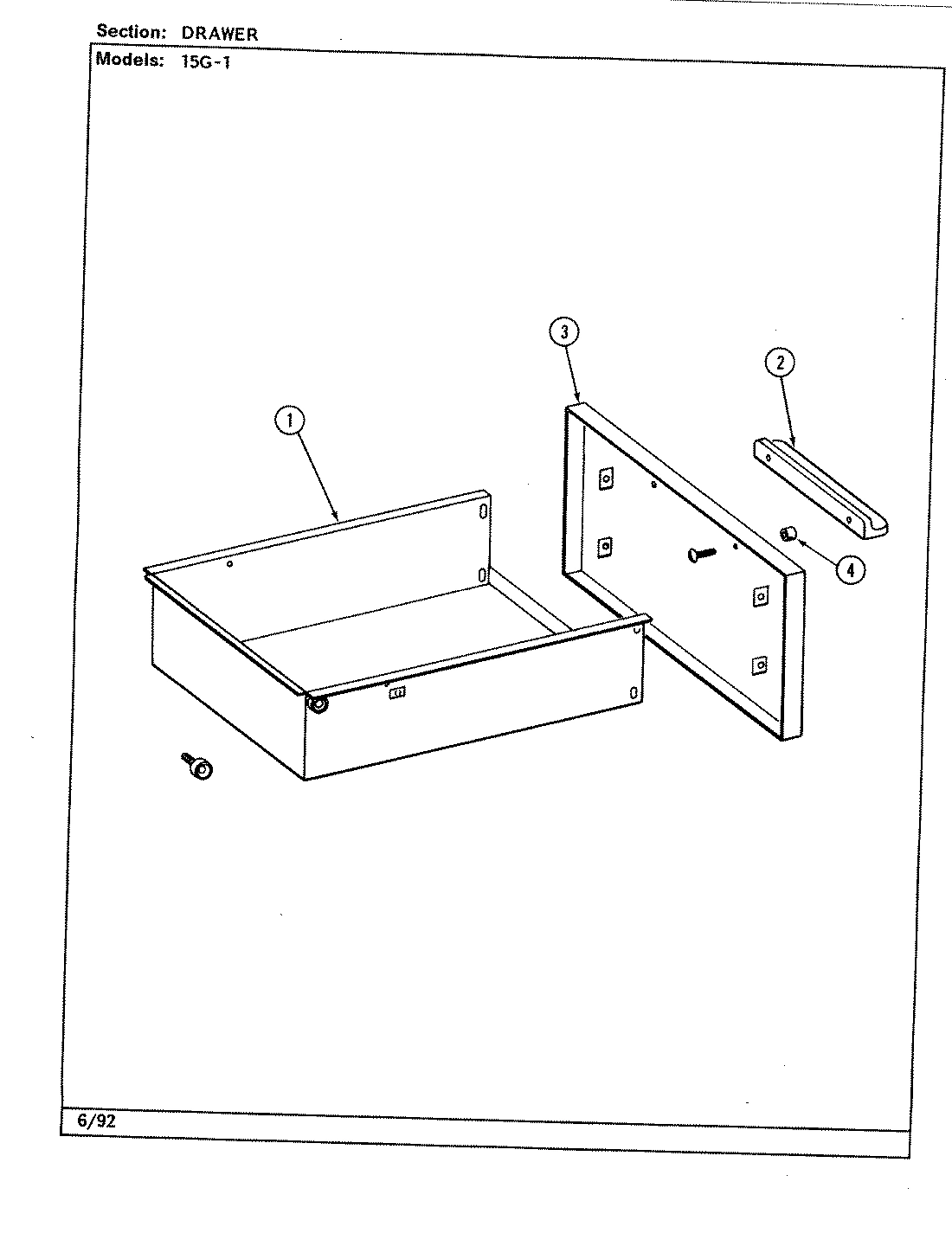

06 - DRAWER
Common parts from model Whirlpool 15GY-1 ELECTRIC RANGE
1
BACK, MAIN WPL 1E10009945 Contact Us For Availability
1
BACK, MAIN WPL 4002F10780 Contact Us For Availability
1
BACK MAIN WPL 4002F12080 Contact Us For Availability
1
CLIP, O C CAP SET WPL Y0C00100199 Contact Us For Availability
1
HANDLE WPL 0H03029211 Contact Us For Availability
1
CAP, END BKGD LT WPL 0C04302143 Contact Us For Availability
1
CAP, END BKGD RIGHT WPL 0C04302243 Contact Us For Availability
1
DRAWER, UTILITY WPL 3405W01080 Contact Us For Availability
2
ELEMENT, BROIL WPL Y0E00216099 Contact Us For Availability
2
BOTTOM, BURNER BOX WPL 1E10105153 Contact Us For Availability
2
BOTTOM BURNER BOX WPL 4011F15080 Contact Us For Availability
2
CONTROL, OVEN WPL 0C01605099 Contact Us For Availability
2
SCREW, THERMOSTAT WPL 7101P12560 Contact Us For Availability
2
THERMOSTAT WPL 7404P05660 Contact Us For Availability
2
HINGE, LEFT WPL 9E10707122 Contact Us For Availability
2
HINGE DR ASSBY RT WPL 9E10707222 Contact Us For Availability
2
BRACKET, DISCONNECT WPL 1E49700141 Contact Us For Availability
2
PANEL, BACKGUARD WPL 1E040109MY Contact Us For Availability
2
HANDLE, DRAWER (CHR) WPL 7701P01260 Contact Us For Availability
3
INSULATION OVEN BACK WPL 0I10030132 Contact Us For Availability
3
CHUTE AIR SIDE WPL 1E40900141 Contact Us For Availability
3
CONTROL, INFINITE-24 WPL Y0C01503499 Contact Us For Availability
3
INSULATION O DOOR WPL 0I00610124 Contact Us For Availability
3
COVER TERM BLOCK AC WPL 9E50500145 Contact Us For Availability
3
SUPPORT, BKGD - RT WPL 1G55405345 Contact Us For Availability
3
SUPPORT, BACKGUARD (RT) WPL 3807F33980 Contact Us For Availability
3
PANEL, UTILITY DRAWE WPL 2403W01776 Contact Us For Availability
4
INSULATION O WRAP A WPL 0I09010132 Contact Us For Availability
4
PANEL END WPL 1G060027MY Contact Us For Availability
4
PANEL, SIDE HVT WHEAT WPL 2618F07076 Contact Us For Availability
4
CONTROL, INFINITE-24 WPL Y0C01503599 Contact Us For Availability
4
LINING OVEN DOOR WPL 1G01601753 Contact Us For Availability
4
CLIP, UNIT BLOCK WPL 7112P02660 Contact Us For Availability
4
CLIP, RECEPTACLE WPL 7112P05960 Contact Us For Availability
4
SUPPORT, BKGD - LT WPL 1G55405245 Contact Us For Availability
4
SUPPORT, BACKGUARD (LT) WPL 3807F33880 Contact Us For Availability
4
SPACER, DOOR HANDLE WPL 8010P02960 Contact Us For Availability
5
BOTTOM, OVEN WPL 1E07600553 Contact Us For Availability
5
RACEWAY, WIRE WPL 1E17701441 Contact Us For Availability
5
KNOB, OVEN CONTROL WPL 0K00603243 Contact Us For Availability
5
PANEL, OVEN DOOR WPL 1G006006MY Contact Us For Availability
5
SCREW WPL 7101P11560 Contact Us For Availability
5
BEARING, BROILER ROL WPL 8014P00960 Contact Us For Availability
6
RUNNER, UTIL. DRAWER WPL 9E55100345 Contact Us For Availability
6
RUNNER, UTIL DRAWER- WPL 9E55100445 Contact Us For Availability
6
KNOB, SELECTOR SWITC WPL 0K01106443 Contact Us For Availability
6
SPACER DOOR HANDLE WPL Y0S02100543 Contact Us For Availability
7
PIPE, OVEN HEAT WPL 1E58700319 Contact Us For Availability
7
SCREW LEVELING WPL Y0S01500126 Contact Us For Availability
7
KNOB, INFININTE SWIT WPL Y0K00506043 Contact Us For Availability
7
BLOCK, SURFACE UNIT WPL 7401P01460 Contact Us For Availability
8
RACK OVEN WPL Y0R01001611 Contact Us For Availability
8
SEAL, OVEN DOOR WPL Y0S00643599 Contact Us For Availability
8
LIGHT, INDICATOR 125V WPL 7407P04260 Contact Us For Availability
8
LIGHT, INDICATOR WPL 7407P07160 Contact Us For Availability
8
TOP, MAIN WPL 1E080083MY Contact Us For Availability
8
TOP, MAIN (HW) WPL 2002F06586 Contact Us For Availability
9
SUPPORT BROILER UNIT WPL 7E55400141 Contact Us For Availability
9
SEAL OVEN DOOR WPL Y0S00643499 Contact Us For Availability
9
LIGHT, INDICATOR WPL 0L00604299 Contact Us For Availability
9
LIGHT, INDICATOR WPL 7407P07260 Contact Us For Availability
10
SUPPORT OVEN INSULA WPL 1E17800141 Contact Us For Availability
10
SHIELD, BACK WIRE WPL 1E17501245 Contact Us For Availability
10
SHIELD, BACK WPL 3604F13580 Contact Us For Availability
10
CONTROL PANEL ASSY, HVT WHEAT WPL 2614W01086 Contact Us For Availability
10
PANEL, BKGD HVT WHEAT WPL 2614W01586 Contact Us For Availability
11
TRAY BROILER PAN WPL 5G06700153 Contact Us For Availability
11
SHIELD, BURNER BOX WIRE (R) WPL 1E17401241 Contact Us For Availability
11
SHIELD, REAR WPL 3604F13480 Contact Us For Availability
11
SHIELD CONTROL WPL 1E17600641 Contact Us For Availability
12
MANUAL, USE & CARE WPL 8110P05960 Contact Us For Availability
12
SPRING, OVEN DOOR WPL 0S00104599 Contact Us For Availability
12
SCREW WPL 7101P15360 Contact Us For Availability
12
SWITCH, SELECTOR,3 P WPL Y0S03006499 Contact Us For Availability
13
SUPPORT OV DOOR HIN WPL 7E12705922 Contact Us For Availability
13
SUPPORT OV DOOR HIN WPL 7E12706022 Contact Us For Availability
13
SCREW WPL 7101P06160 Contact Us For Availability
14
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
× ![]()
