Model Whirlpool 1151AH-36G ELECTRIC COOK-TOP – Common Parts & Diagrams

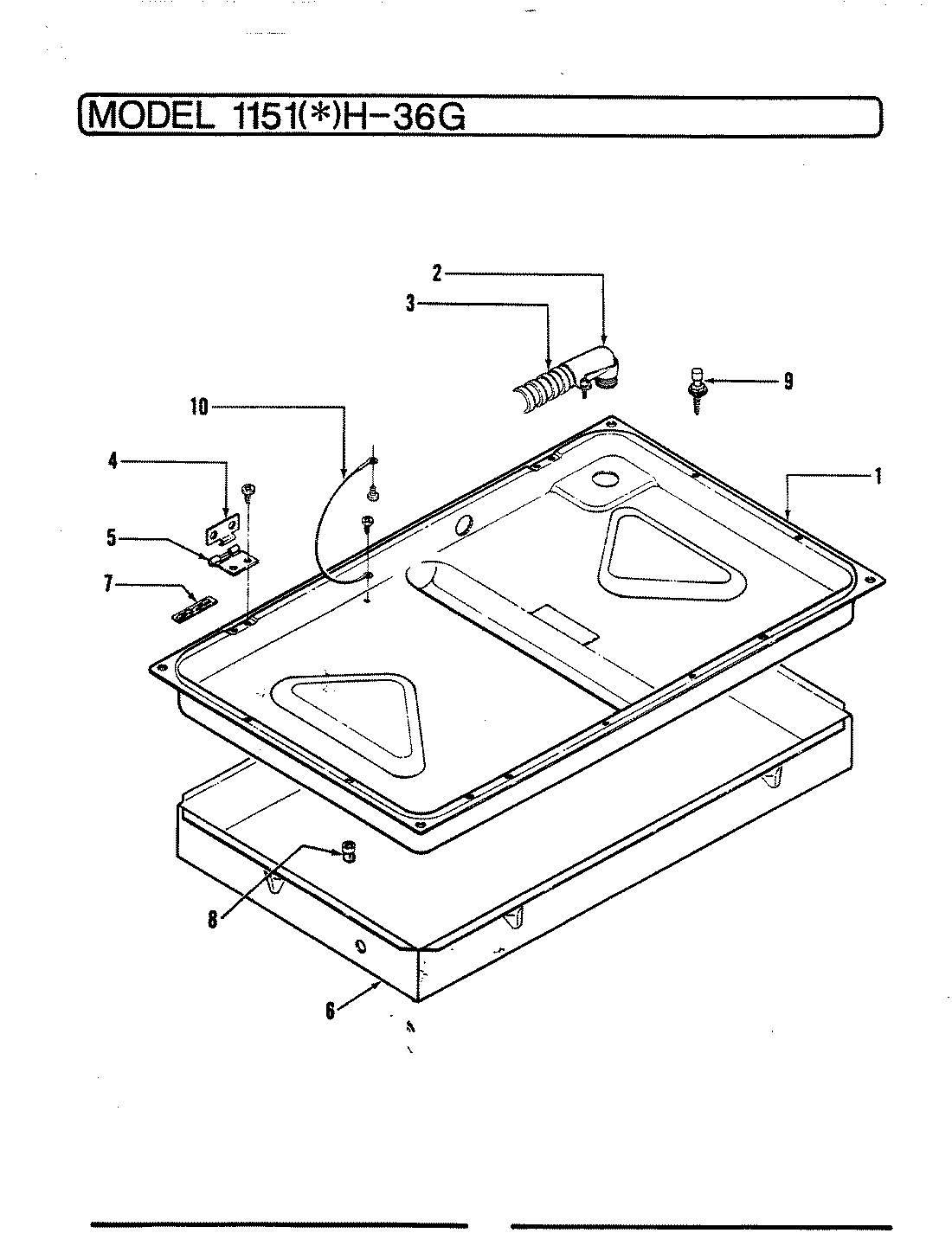

01 - BURNER BOX ASSY.

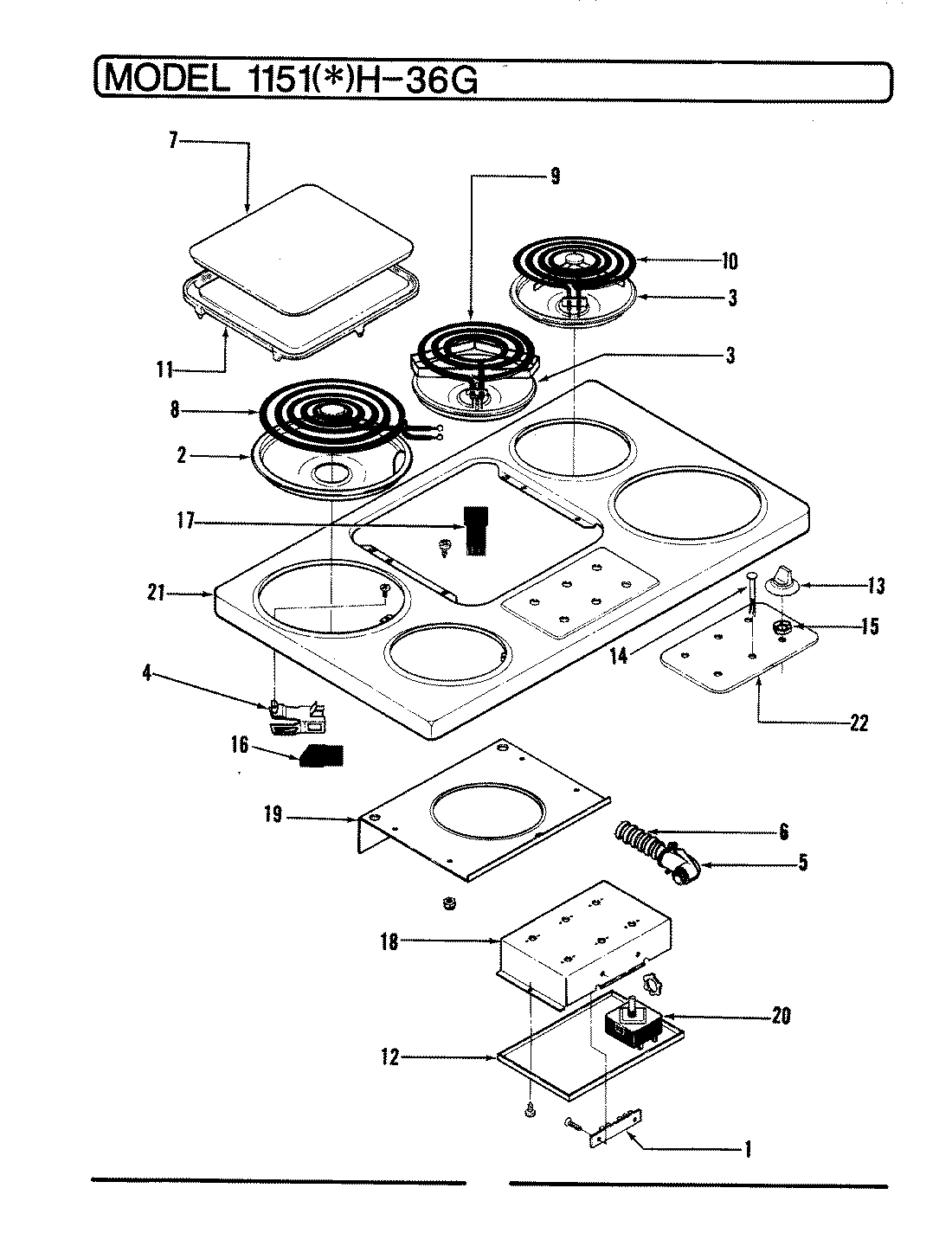

02 - TOP ASSEMBLY
Common parts from model Whirlpool 1151AH-36G ELECTRIC COOK-TOP
1
BOTTOM, BURNER BOX WPL 4E10104245 Contact Us For Availability
1
BLOCK, TERMINAL WPL 0B00200699 Contact Us For Availability
2
CONDUIT, CONNECTOR WPL 0G02600341 Contact Us For Availability
2
BOWL, DRIP (8``) WPL 7725P01460 Contact Us For Availability
3
CONDUIT, FLEXIBLE WPL 4G44400216 Contact Us For Availability
3
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
4
HINGE, TOP WPL Y0H01400311 Contact Us For Availability
4
CLIP, UNIT BLOCK WPL 7112P02660 Contact Us For Availability
5
HINGE, TOP W/PIN WPL Y0H01400411 Contact Us For Availability
5
CONDUIT, CONNECTOR WPL 0C20600341 Contact Us For Availability
6
HOUSING, UNIT WPL 4E23000341 Contact Us For Availability
6
CONDUIT, FLEXIBLE WPL 4E44400216 Contact Us For Availability
7
NUT, TWIN SPEED WPL 0N10001499 Contact Us For Availability
7
COVER, GRIDDLE WPL 4G276025MB Contact Us For Availability
8
NUT, SNAP 1/4X1/4 WPL 0N10001199 Contact Us For Availability
9
SPACER, TOP WPL 0S03501722 Contact Us For Availability
9
ELEMENT, UNIT GRIDDL WPL 0E00601999 Contact Us For Availability
10
STRAP, CABLE WPL 0S05200199 Contact Us For Availability
11
GRIDDLE WPL Y0G00501916 Contact Us For Availability
14
LIGHT, SIGNAL WPL Y0L00605499 Contact Us For Availability
15
NUT, SWITCH MOUNTING WPL Y0N03600426 Contact Us For Availability
16
RECEPTACLE, SURFACE WPL 0R01200299 Contact Us For Availability
17
RECEPTACLE, SURFACE ELEMENT WPL 0R01200499 Contact Us For Availability
18
HOUSING, SWITCH WPL 4E23000145 Contact Us For Availability
19
SUPPORT, GRIDDLE WPL 4E554056MB Contact Us For Availability
21
TOP, MAIN ALMOND WPL 4E080086MA Contact Us For Availability
× ![]()
