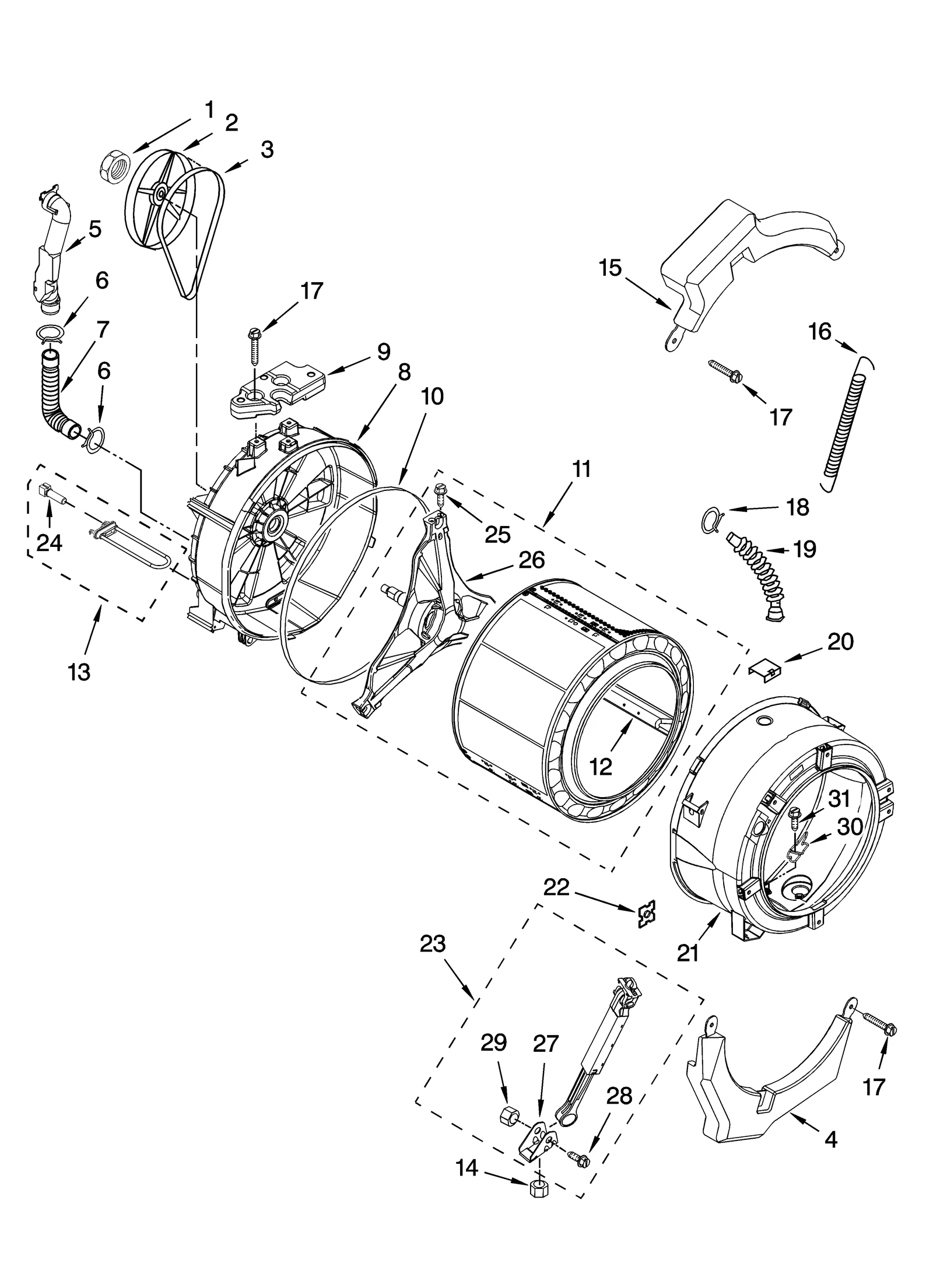

Model Whirlpool 110.47577700 Washer (Kenmore 11047577700) – Common Parts &amp; Diagrams

1

Washer Water Inlet Valve WPL WP8540751 No Longer Available

1

WPW10140581 Whirlpool Drive Motor Backorder WPL WPW10140581 $287.02

1

Console (Blue) WPL W10135100 Contact Us For Availability

2

W10135730 Whirlpool Knob Backorder WPL W10135730 $55.09

2

W10803052 Whirlpool Hose Backorder WPL W10803052 $7.68

2

WP8540088C Whirlpool Pulley Backorder WPL WP8540088C $146.68

2

WPW10111435 Whirlpool Washer Door Boot Seal In Stock WPL WPW10111435 $103.45

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

3

WP8540101 Whirlpool Washer Drive Belt In Stock WPL WP8540101 $32.47

3

WPW10253483 Whirlpool Latch In Stock WPL WPW10253483 $133.28

3

Washer User Interface WPL 8540490 Contact Us For Availability

4

W10846488 Whirlpool Bracket Backorder WPL W10846488 $58.33

4

W11032829 Whirlpool Clamp Assembly In Stock WPL W11032829 $11.98

4

Washer Tub-to-Pump Hose Check Ball WPL 8540013 Contact Us For Availability

5

W10112169 Whirlpool Vent Pipe Backorder WPL W10112169 $136.74

5

WP696392 Whirlpool Hose Clamp Backorder WPL WP696392 $4.58

5

WP8183181 Whirlpool Nozzle Backorder WPL WP8183181 $69.02

5

WP8540725 Whirlpool Screw Assembly In Stock WPL WP8540725 $4.99

5

Diverter WPL 8540722 Contact Us For Availability

6

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $8.89

6

W11366249 Whirlpool Washer Tub to Pump Hose In Stock WPL W11366249 $31.18

6

WP8540393 Whirlpool Cam Backorder WPL WP8540393 $4.82

6

WPW10679605-includeCORE Whirlpool WPW10679605 Backorder WPL WPW10679605-includeCORE $282.99

7

W11398765 Whirlpool Hose Backorder WPL W11398765 $19.46

7

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

7

WP489442 Whirlpool Refrigerator Screw Backorder WPL WP489442 $6.83

7

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

7

WP8540221 Whirlpool Door Strike Assembly In Stock WPL WP8540221 $7.05

7

WP8540394 Whirlpool Lever In Stock WPL WP8540394 $5.99

8

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

8

WP8540282 Whirlpool Screw Backorder WPL WP8540282 $7.75

8

WPW10143586 Whirlpool Washer Switch Backorder WPL WPW10143586 $141.64

8

Wire Harness WPL 8540524 Contact Us For Availability

9

8518891 Whirlpool Rivet Backorder WPL 8518891 $8.89

9

8526417 Whirlpool Washer Backorder WPL 8526417 $9.15

9

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $4.99

10

W10034820 Whirlpool Grommet Backorder WPL W10034820 $8.46

10

W11622908 Whirlpool Dishwasher Clamp Backorder WPL W11622908 $14.02

10

WPW10138523 Whirlpool Frame Backorder WPL WPW10138523 $171.83

WP8540115 Whirlpool Clamp Backorder WPL WP8540115 $4.82

WP8540357 Whirlpool Basket Assembly Backorder WPL WP8540357 $372.51

WP8540395 Whirlpool Lever Assembly In Stock WPL WP8540395 $5.99

Washer Pump Grommet WPL W10034830 Contact Us For Availability

8540033 Whirlpool Cap Backorder WPL 8540033 $11.90

W11665946 Whirlpool Clamp Backorder WPL W11665946 $13.15

WP8540360 Whirlpool Baffle In Stock WPL WP8540360 $51.16

Washer Dispenser Drawer Housing WPL 8540058 Contact Us For Availability

13

8533964 Whirlpool Screw Backorder WPL 8533964 $7.77

13

WP8540053 Whirlpool Nozzle Backorder WPL WP8540053 $73.65

13

WPW10388315 Whirlpool Glass Door Backorder WPL WPW10388315 $230.72

W11366227 Whirlpool Washer Dispenser Hose In Stock WPL W11366227 $22.62

WPW10730972 Whirlpool Washer Water Pump In Stock WPL WPW10730972 $96.74

Nut WPL 8534084 Contact Us For Availability

Hinge WPL 8540416 Contact Us For Availability

15

Handle WPL W10135102 Contact Us For Availability

16

WP8540402 Whirlpool Washer Detergent Dispense Backorder WPL WP8540402 $115.32

16

WPW10204534 Whirlpool Wire Harness Backorder WPL WPW10204534 $130.56

16

Frame WPL 8540792 Contact Us For Availability

17

W10082060 Whirlpool Door Handle Backorder WPL W10082060 $160.52

17

WP8540399 Whirlpool Cover Assembly In Stock WPL WP8540399 $55.27

18

WP8540429 Whirlpool Dispenser Assembly In Stock WPL WP8540429 $10.22

18

WPW10079810 Whirlpool Frame Backorder WPL WPW10079810 $227.23

18

WPW10114608 Whirlpool Drain Hose In Stock WPL WPW10114608 $41.25

19

WP8540015 Whirlpool Hose Assembly In Stock WPL WP8540015 $24.54

19

Retainer WPL 8540607 Contact Us For Availability

19

Retainer WPL 8540400 Contact Us For Availability

20

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

20

WP8540092 Whirlpool Clamp In Stock WPL WP8540092 $5.99

24

W11252474 Whirlpool Hose Assembly In Stock WPL W11252474 $21.83

25

8540479 Whirlpool Screw Backorder WPL 8540479 $5.85

25

WP8540382 Whirlpool Screw Backorder WPL WP8540382 $4.82

28

8540841 Whirlpool Bolt Backorder WPL 8540841 $8.19

28

WPW10085220 Whirlpool Switch Backorder WPL WPW10085220 $20.55

30

Bracket WPL 8540322 Contact Us For Availability

36

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

40

8540644 Whirlpool Bracket Backorder WPL 8540644 $59.91

NI

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $24.96

NI

4396816 Whirlpool Touch-Up Backorder WPL 4396816 $8.00
