Samsung WF520ABW/XAA-06 Washer Parts List

1

DC61-01995A Samsung Bleach Case Washer Backorder SMG DC61-01995A $7.27

View on Model

1

DC67-00560A Samsung Washer Weight Balancer Backorder SMG DC67-00560A $147.85

View on Model

1

Dryer encoder board SMG DC92-00320A Contact Us For Availability

View on Model

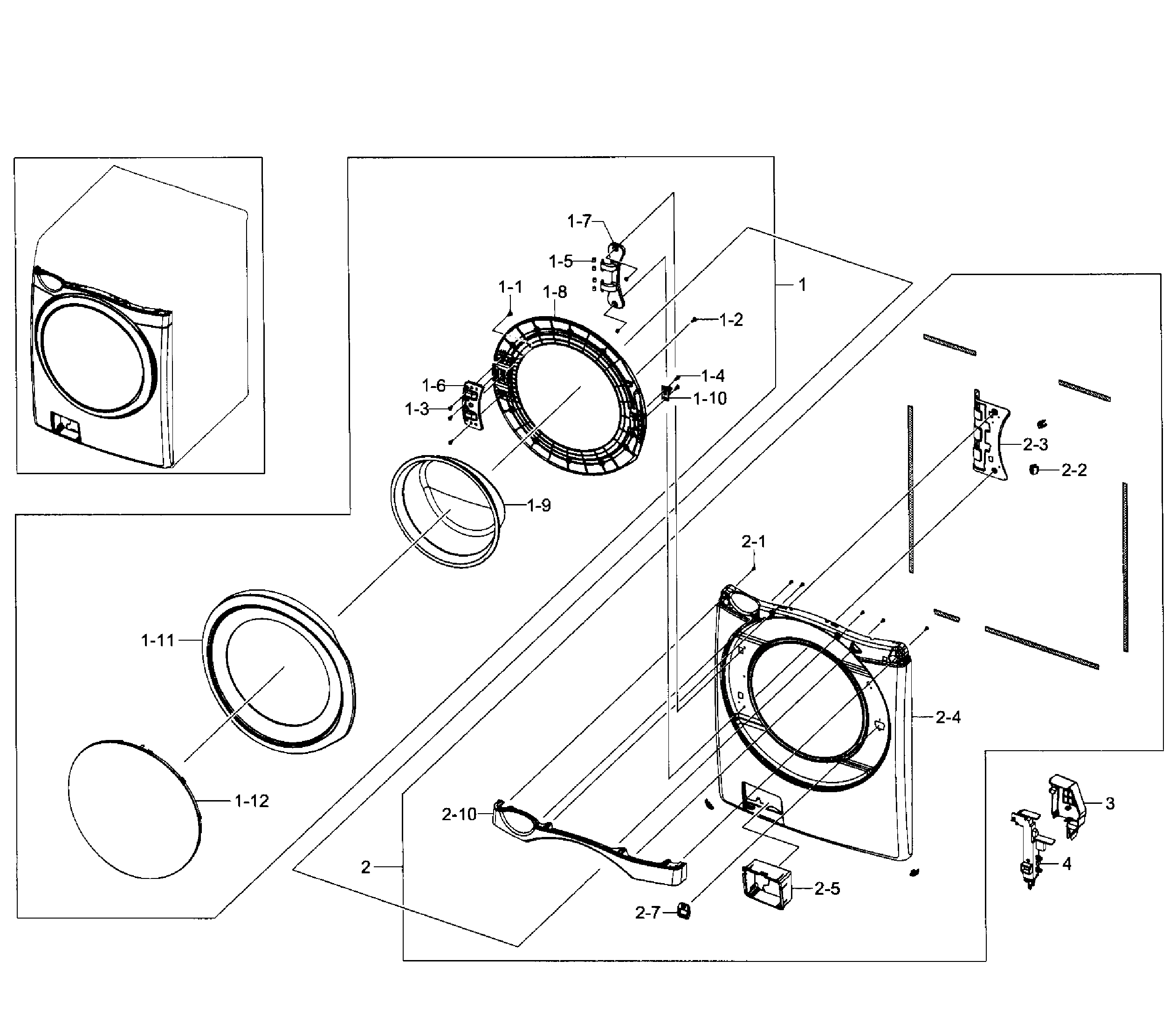

1-1

6001-001668 Samsung Washer Dryer Machine Scre Backorder SMG 6001-001668 $1.69

View on Model

1-2

DC99-00815A Samsung Washer Pump Cushion Assem Backorder SMG DC99-00815A $9.50

View on Model

1-5

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $1.69

View on Model

1-6

DC61-02635A Samsung Support Hinge Assembly Backorder SMG DC61-02635A $8.94

View on Model

1-8

DC61-02634A Samsung Washer Glass Holder Assem Backorder SMG DC61-02634A $127.53

View on Model

1-10

DC66-00375A Samsung Washer Door Lock Strike L Backorder SMG DC66-00375A $36.30

View on Model

1-12

Dryer Door Glass SMG DC64-02144A Contact Us For Availability

View on Model

2

DC61-02427D Samsung Washer Liquid Soap Tray In Stock SMG DC61-02427D $17.32

View on Model

2

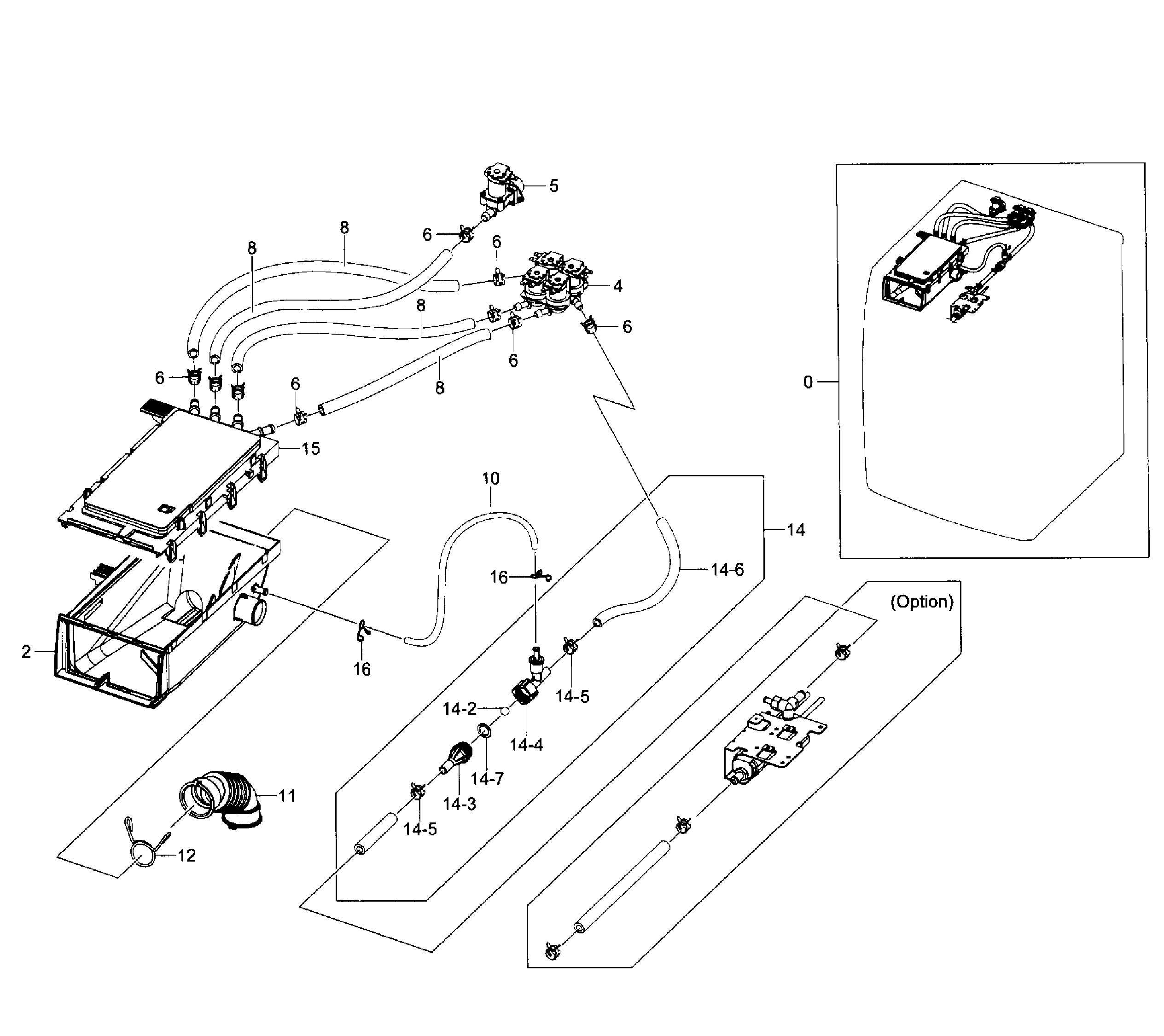

DC61-02636B Samsung Drawer Housing Assembly Backorder SMG DC61-02636B $112.05

View on Model

2-1

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

2-1

DC31-00124A Samsung Washer BLDC Motor Stator In Stock SMG DC31-00124A $256.49

View on Model

2-1

DC61-02008B Samsung Dryer Guide Panel Backorder SMG DC61-02008B $24.49

View on Model

2-2

DC31-00125A Samsung Motor Brushless Direct Cu Backorder SMG DC31-00125A $310.13

View on Model

2-3

DC31-00098A Samsung Washer Motor Rotor Positi In Stock SMG DC31-00098A $81.34

View on Model

2-3

DC61-02615A Samsung Hinge Bracket Backorder SMG DC61-02615A $62.04

View on Model

2-5

DC61-02621A Samsung Appliance Guide Cover Fil Backorder SMG DC61-02621A $33.31

View on Model

2-7

DC63-00960A Samsung Washer Switch Cover Assem In Stock SMG DC63-00960A $3.35

View on Model

2-10

DC64-02162A Samsung Washer Front Decoration A Backorder SMG DC64-02162A $217.59

View on Model

3

DC47-00006P Samsung Washer Heater Backorder SMG DC47-00006P $192.81

View on Model

3

DC63-01156A Samsung Cover Door Switch Backorder SMG DC63-01156A $35.30

View on Model

3

DC67-00499A Samsung Washer Rinse Dispenser Ca Backorder SMG DC67-00499A $23.47

View on Model

3-1

DC47-00006Y Samsung Heater Wash Backorder SMG DC47-00006Y $144.97

View on Model

3-2

DC63-00820A Samsung Cover Heater WF337AAW PC+ Backorder SMG DC63-00820A $11.19

View on Model

4

DC61-02432A Samsung Guide Spring Assembly Backorder SMG DC61-02432A $2.23

View on Model

4

DC62-00142G Samsung Washer Water Inlet Fill V In Stock SMG DC62-00142G $155.70

View on Model

4

DC64-00519B Samsung Washer Assembly Door Lock In Stock SMG DC64-00519B $34.63

View on Model

5

DC61-01257E Samsung Washer Hanger Spring Etc Backorder SMG DC61-01257E $57.68

View on Model

5

DC62-30314K Samsung Washer Hot Water Inlet Fi In Stock SMG DC62-30314K $94.99

View on Model

5

DC97-02412A Samsung Washer Bolt Assembly In Stock SMG DC97-02412A $14.15

View on Model

5

DC97-14481E Samsung Assembly Semi Drawer Backorder SMG DC97-14481E $95.91

View on Model

5

DC97-16401A Samsung Washer Assembly Filter Co Backorder SMG DC97-16401A $44.98

View on Model

5-1

DC61-01992C Samsung Drawer Body Backorder SMG DC61-01992C $55.70

View on Model

5-1

DC63-01264A Samsung Cover-Filter WF520 ABS HB Backorder SMG DC63-01264A $13.44

View on Model

5-2

DC61-02445A Samsung Pre-Wash Case Assembly Backorder SMG DC61-02445A $14.90

View on Model

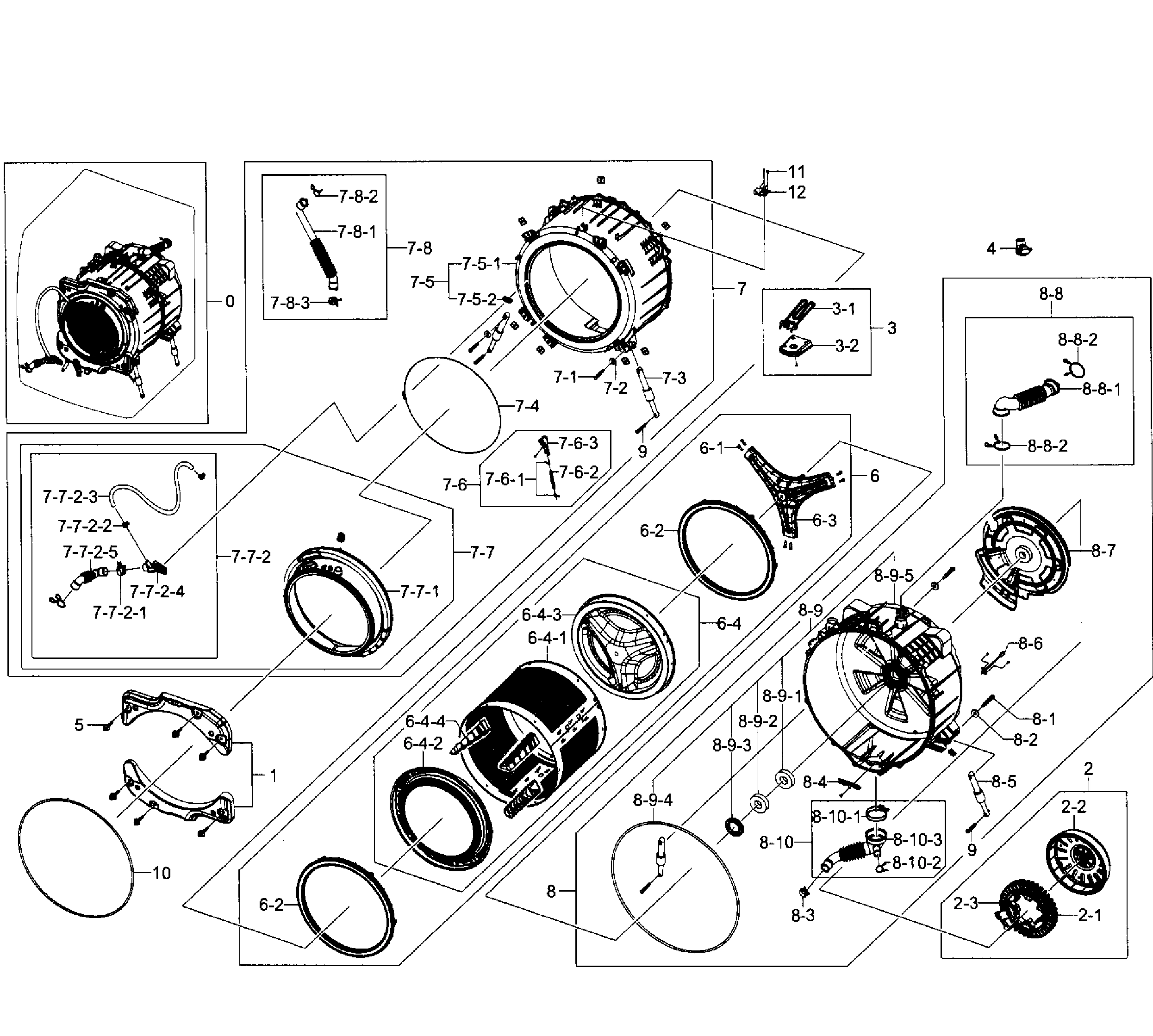

6

DC97-16086A Samsung Washer Drum Assembly Backorder SMG DC97-16086A $434.75

View on Model

6-1

DC60-40137A Samsung Washer Hex Bolt Spider In Stock SMG DC60-40137A $9.22

View on Model

6-2

DC97-12135A Samsung Front Load Washer Basket Backorder SMG DC97-12135A $234.75

View on Model

6-3

DC97-16509A Samsung Washer Spider Mount Flang Backorder SMG DC97-16509A $213.76

View on Model

6-44

DC66-00598A Samsung Drum Lifter Assembly Backorder SMG DC66-00598A $33.06

View on Model

7-3

DC66-00470A Samsung Washer Shock Absorber In Stock SMG DC66-00470A $70.70

View on Model

7-4

DC97-04981F Samsung Washer Door Boot Gasket D In Stock SMG DC97-04981F $18.08

View on Model

7-6

DC97-14545H Samsung Washer Pressure Hose Asse Backorder SMG DC97-14545H $30.83

View on Model

7-7

DC97-16140C Samsung Washing Machine Diaphragm Backorder SMG DC97-16140C $269.17

View on Model

7-8

DC97-16106A Samsung Assembly Air Hose Backorder SMG DC97-16106A $65.59

View on Model

7-52

DC62-00268A Samsung Seal Connector for SEW-HA Backorder SMG DC62-00268A $4.25

View on Model

7-61

DC61-70029C Samsung Clip Ring for SEW-HW125 H Backorder SMG DC61-70029C $1.18

View on Model

7-62

Water Hose SMG DC67-00230F Contact Us For Availability

View on Model

7-63

Hose Joint SMG DC67-00492A Contact Us For Availability

View on Model

7-71

DC64-02174A Samsung Washer Door Diaphragm Backorder SMG DC64-02174A $214.45

View on Model

7-72

DC97-16103C Samsung Air Hose Assembly Backorder SMG DC97-16103C $67.87

View on Model

7-81

Air Hose SMG DC67-00468A Contact Us For Availability

View on Model

7-82

DC65-60118J Samsung Clip Ring Backorder SMG DC65-60118J $2.66

View on Model

7-83

DC61-00158A Samsung Hose Clamp Assembly Backorder SMG DC61-00158A $2.79

View on Model

8

DC29-00013B Samsung EMI Filter Backorder SMG DC29-00013B $144.92

View on Model

8

DC67-00051B Samsung Drawer Hose Assembly Backorder SMG DC67-00051B $32.33

View on Model

8

Tub SMG DC97-16150A Contact Us For Availability

View on Model

8-3

DC61-00219D Samsung Hose Clip In Stock SMG DC61-00219D $5.33

View on Model

8-4

DC61-01482A Samsung Heater Bracket Assembly Backorder SMG DC61-01482A $5.85

View on Model

8-6

DC90-10128H Samsung Thermistor Assembly Rubbe Backorder SMG DC90-10128H $32.74

View on Model

8-7

DC61-02006A Samsung Bracket Tub Backorder SMG DC61-02006A $26.63

View on Model

8-8

DC97-16104A Samsung Washer Overflow Hose Asse Backorder SMG DC97-16104A $52.66

View on Model

8-9

DC97-16151A Samsung Back S Tub Assembly Backorder SMG DC97-16151A $384.81

View on Model

8-10

DC97-16105A Samsung Drain Hose Assembly Backorder SMG DC97-16105A $85.99

View on Model

8-81

DC67-00466A Samsung Washer Exhaust Hose O.F. Backorder SMG DC67-00466A $47.74

View on Model

8-82

DC72-00001F Samsung Heater Clip Ring Assembly Backorder SMG DC72-00001F $4.48

View on Model

8-91

6601-002632 Samsung Ball Bearing Backorder SMG 6601-002632 $130.87

View on Model

8-92

6601-002516 Samsung Washer Ball Bearing Backorder SMG 6601-002516 $109.82

View on Model

8-93

DC62-00156A Samsung Washer Rear Tub Oil Seal In Stock SMG DC62-00156A $36.66

View on Model

8-94

DC69-00804A Samsung Washer Tub Packing Seal A In Stock SMG DC69-00804A $27.70

View on Model

8-95

Assy Semi SMG DC97-16155A Contact Us For Availability

View on Model

9

6011-001644 Samsung Bolt Hex In Stock SMG 6011-001644 $7.82

View on Model

9

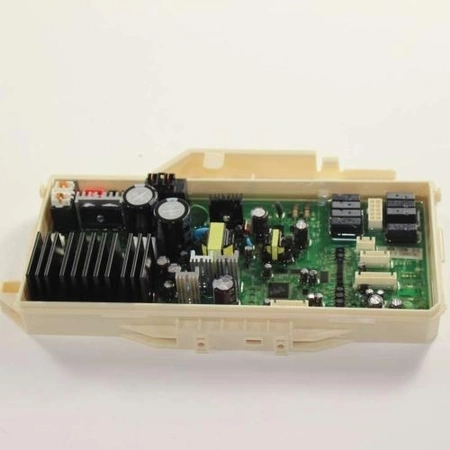

DC92-00321J Samsung Assembly Main Printed Cir Backorder SMG DC92-00321J $349.82

View on Model

10

DC62-10278A Samsung Hose Hanger Assembly In Stock SMG DC62-10278A $5.59

View on Model

10

DC97-04973B Samsung Boot Spring Clamp In Stock SMG DC97-04973B $7.86

View on Model

11

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

View on Model

11

DC67-00307A Samsung Cap Fixer WF438AAC/XAA PP Backorder SMG DC67-00307A $1.69

View on Model

11

DC67-00467A Samsung Tub Hose In Stock SMG DC67-00467A $64.18

View on Model

11

DC97-15974D Samsung Drain Pump Assembly Grace Backorder SMG DC97-15974D $225.44

View on Model

11-2

DC31-00030E Samsung Washer Drain Pump Assembl Backorder SMG DC31-00030E $157.69

View on Model

11-3

DC31-00054D Samsung Washer Water Drain Pump In Stock SMG DC31-00054D $48.40

View on Model

11-4

DC61-02017D Samsung Pump Case Backorder SMG DC61-02017D $37.79

View on Model

11-5

DC61-10673A Samsung Washer Drain Cap Assembly Backorder SMG DC61-10673A $1.69

View on Model

11-6

DC62-00299A Samsung Washer Check Valve In Stock SMG DC62-00299A $5.54

View on Model

11-8

DC63-01375A Samsung Cover Pump Assembly Backorder SMG DC63-01375A $16.50

View on Model

12

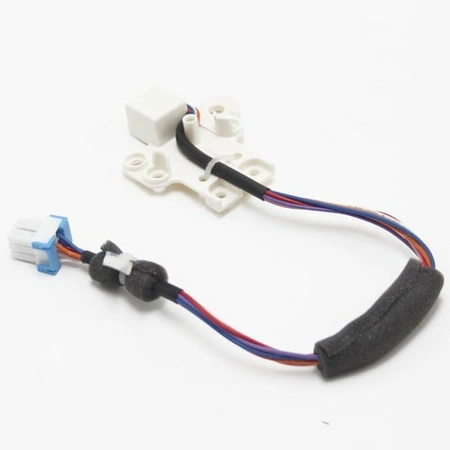

DC92-00354A Samsung Assembly Printed Circuit Backorder SMG DC92-00354A $130.38

View on Model

12

DC97-00920N Samsung Washer Rear Levelling Leg Backorder SMG DC97-00920N $39.29

View on Model

12-2

DC62-40178A Samsung Seal Water Backorder SMG DC62-40178A $1.60

View on Model

13

DC97-14293A Samsung Washer Leveling Leg Assem Backorder SMG DC97-14293A $42.14

View on Model

14

DC97-12578G Samsung Washer Hose Assembly Backorder SMG DC97-12578G $42.27

View on Model

14

DC97-14489A Samsung Bolt Backorder SMG DC97-14489A $28.32

View on Model

14-2

DC62-00167A Samsung Washer Nozzle Ball Assemb Backorder SMG DC62-00167A $2.66

View on Model

14-3

DC62-00182A Samsung Washer Upper Nozzle Conne Backorder SMG DC62-00182A $5.59

View on Model

14-4

DC62-00310A Samsung Nozzle Connector In Stock SMG DC62-00310A $7.82

View on Model

15

DC97-16141A Samsung Drawer Sub Housing Assemb Backorder SMG DC97-16141A $49.72

View on Model

15

Washer Shipping Bolt SMG DC97-14489B Contact Us For Availability

View on Model

17

DC97-12534F Samsung Washer Drain Hose Assembl Backorder SMG DC97-12534F $69.58

View on Model

18

DC61-02084A Samsung Guide Hose Backorder SMG DC61-02084A $1.18

View on Model

19

DC96-00757A Samsung Washer Power Cord Backorder SMG DC96-00757A $97.70

View on Model

20-1

DC26-00009H Samsung Transformer Reactor Backorder SMG DC26-00009H $93.39

View on Model

1110

DC67-00244A Samsung Washer Drain Hose Assembl Backorder SMG DC67-00244A $8.38

View on Model

1111

DC93-00150C Samsung Pump Door Main Wire Harne Backorder SMG DC93-00150C $45.45

View on Model

1112

DC97-14976A Samsung Washer Drain Pump Filter In Stock SMG DC97-14976A $31.30

View on Model

1113

DD65-00001F Samsung Hose Clamper HSWR Backorder SMG DD65-00001F $1.69

View on Model

7721

DC61-00219F Samsung Clamper Hose Backorder SMG DC61-00219F $5.85

View on Model

7722

Washer Hose Clamp SMG DC65-00008A Contact Us For Availability

View on Model

7723

Air Hose SMG DC67-00351C Contact Us For Availability

View on Model

7724

DC67-00353A Samsung Hose Connector Assembly Backorder SMG DC67-00353A $6.39

View on Model

7725

DC67-00645A Samsung Washer Air Tub Hose Backorder SMG DC67-00645A $25.70

View on Model

8101

DC65-00014A Samsung Clamper Joint Hose Assemb Backorder SMG DC65-00014A $12.24

View on Model

8102

DC65-60125B Samsung Clip Ring Assembly Backorder SMG DC65-60125B $2.23

View on Model

8103

DC67-00465A Samsung Hose Filter Tub Backorder SMG DC67-00465A $112.89

View on Model

NI

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $1.69

View on Model
