Samsung WF511ABR/XAA-04 Washer Parts List

1

DC67-00560A Samsung Washer Weight Balancer Backorder SMG DC67-00560A $147.85

View on Model

1-1

DC61-00891A Samsung Washer Dryer Hinge Guide In Stock SMG DC61-00891A $1.69

View on Model

1-2

DC61-02634A Samsung Washer Glass Holder Assem Backorder SMG DC61-02634A $127.53

View on Model

1-2

DC62-10278A Samsung Hose Hanger Assembly In Stock SMG DC62-10278A $5.59

View on Model

1-3

DC61-02635A Samsung Support Hinge Assembly Backorder SMG DC61-02635A $8.94

View on Model

1-3

DC67-00307A Samsung Cap Fixer WF438AAC/XAA PP Backorder SMG DC67-00307A $1.69

View on Model

1-4

DC61-03203A Samsung Door Hinge Backorder SMG DC61-03203A $73.57

View on Model

1-6

DC64-00504C Samsung Washer Door Glass Window Backorder SMG DC64-00504C $157.65

View on Model

1-7

Dryer door glass SMG DC64-02144A Contact Us For Availability

View on Model

1-8

DC66-00375A Samsung Washer Door Lock Strike L Backorder SMG DC66-00375A $36.30

View on Model

1-41

DC62-40178A Samsung Seal Water Backorder SMG DC62-40178A $1.60

View on Model

2

DC61-02636B Samsung Drawer Housing Assembly Backorder SMG DC61-02636B $112.05

View on Model

2-1

DC31-00125A Samsung Motor Brushless Direct Cu Backorder SMG DC31-00125A $310.13

View on Model

2-1

DC64-02162A Samsung Washer Front Decoration A Backorder SMG DC64-02162A $217.59

View on Model

2-2

DC31-00098A Samsung Washer Motor Rotor Positi In Stock SMG DC31-00098A $81.34

View on Model

2-2

DC61-02615A Samsung Hinge Bracket Backorder SMG DC61-02615A $62.04

View on Model

2-3

DC63-00960A Samsung Washer Switch Cover Assem In Stock SMG DC63-00960A $3.35

View on Model

2-5

DC61-02621A Samsung Appliance Guide Cover Fil Backorder SMG DC61-02621A $33.31

View on Model

3

DC47-00006P Samsung Washer Heater Backorder SMG DC47-00006P $192.81

View on Model

3

DC63-01156A Samsung Cover Door Switch Backorder SMG DC63-01156A $35.30

View on Model

3

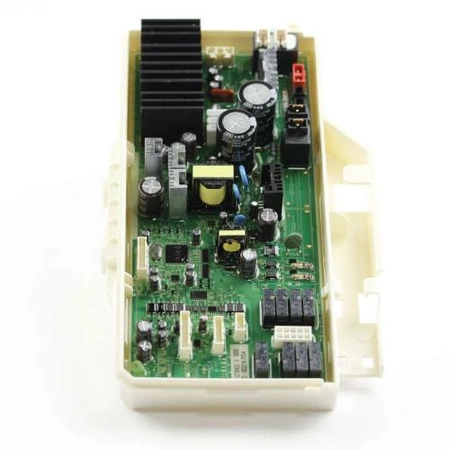

DC92-00321K Samsung Assembly Main Printed Cir Backorder SMG DC92-00321K $362.06

View on Model

3-1

DC47-00006Y Samsung Heater Wash Backorder SMG DC47-00006Y $144.97

View on Model

4

DC29-00013B Samsung EMI Filter Backorder SMG DC29-00013B $144.92

View on Model

4

DC61-00133A Samsung Clamp Hose Backorder SMG DC61-00133A $1.69

View on Model

4

DC62-00142G Samsung Washer Water Inlet Fill V In Stock SMG DC62-00142G $155.70

View on Model

4

DC64-00519B Samsung Washer Assembly Door Lock In Stock SMG DC64-00519B $34.63

View on Model

4

DC67-00499A Samsung Washer Rinse Dispenser Ca Backorder SMG DC67-00499A $23.47

View on Model

5

DC62-30314K Samsung Washer Hot Water Inlet Fi In Stock SMG DC62-30314K $94.99

View on Model

5

DC92-00775A Samsung PCB Assembly Backorder SMG DC92-00775A $300.26

View on Model

5

DC97-00920S Samsung Washer Leg Leveling Assem Backorder SMG DC97-00920S $31.23

View on Model

5

DC97-02412A Samsung Washer Bolt Assembly In Stock SMG DC97-02412A $14.15

View on Model

5

DC97-14481E Samsung Assembly Semi Drawer Backorder SMG DC97-14481E $95.91

View on Model

5-2

DC61-02445A Samsung Pre-Wash Case Assembly Backorder SMG DC61-02445A $14.90

View on Model

6

DC97-14293D Samsung Washer Leveling Leg Assem Backorder SMG DC97-14293D $29.35

View on Model

6

DC97-16086A Samsung Washer Drum Assembly Backorder SMG DC97-16086A $434.75

View on Model

6-1

DC60-40137A Samsung Washer Hex Bolt Spider In Stock SMG DC60-40137A $9.22

View on Model

6-2

DC97-12135A Samsung Front Load Washer Basket Backorder SMG DC97-12135A $234.75

View on Model

6-3

DC97-16509A Samsung Washer Spider Mount Flang Backorder SMG DC97-16509A $213.76

View on Model

6-44

DC66-00598A Samsung Drum Lifter Assembly Backorder SMG DC66-00598A $33.06

View on Model

7

DC97-17022B Samsung Washer Detergent Dispense In Stock SMG DC97-17022B $14.15

View on Model

7-1

DC67-00444A Samsung Washer Max Fill Cap Assem Backorder SMG DC67-00444A $3.90

View on Model

7-2

DC61-02427D Samsung Washer Liquid Soap Tray In Stock SMG DC61-02427D $17.32

View on Model

7-3

DC66-00470A Samsung Washer Shock Absorber In Stock SMG DC66-00470A $70.70

View on Model

7-4

DC97-04981F Samsung Washer Door Boot Gasket D In Stock SMG DC97-04981F $18.08

View on Model

7-5

DC97-16156G Samsung Assembly Front Semi Tub Backorder SMG DC97-16156G $299.18

View on Model

7-6

DC97-14545H Samsung Washer Pressure Hose Asse Backorder SMG DC97-14545H $30.83

View on Model

7-7

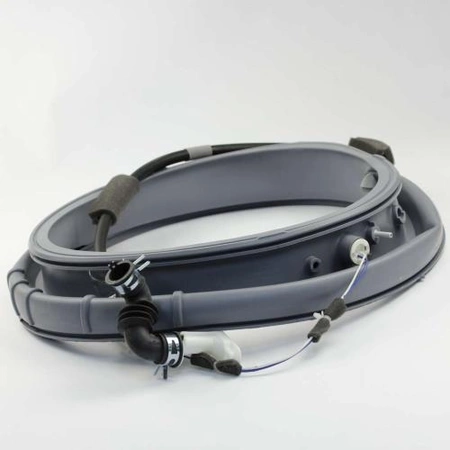

DC97-16140C Samsung Washing Machine Diaphragm Backorder SMG DC97-16140C $269.17

View on Model

7-51

DC61-00201A Samsung Bracket Nut Assembly In Stock SMG DC61-00201A $1.86

View on Model

7-61

DC61-70029C Samsung Clip Ring for SEW-HW125 H Backorder SMG DC61-70029C $1.18

View on Model

7-72

DC62-00229A Samsung Washer Nozzle Diaphragm A Backorder SMG DC62-00229A $1.69

View on Model

7-73

DC64-02174A Samsung Washer Door Diaphragm Backorder SMG DC64-02174A $214.45

View on Model

8

DC67-00051B Samsung Drawer Hose Assembly Backorder SMG DC67-00051B $32.33

View on Model

8

DC97-12534F Samsung Washer Drain Hose Assembl Backorder SMG DC97-12534F $69.58

View on Model

8-8

DC97-16104A Samsung Washer Overflow Hose Asse Backorder SMG DC97-16104A $52.66

View on Model

8-9

DC97-16151A Samsung Back S Tub Assembly Backorder SMG DC97-16151A $384.81

View on Model

8-10

DC97-16105A Samsung Drain Hose Assembly Backorder SMG DC97-16105A $85.99

View on Model

8-93

DC62-00156A Samsung Washer Rear Tub Oil Seal In Stock SMG DC62-00156A $36.66

View on Model

9

6011-001644 Samsung Bolt Hex In Stock SMG 6011-001644 $7.82

View on Model

10

DC97-04973B Samsung Boot Spring Clamp In Stock SMG DC97-04973B $7.86

View on Model

11

DC67-00467A Samsung Tub Hose In Stock SMG DC67-00467A $64.18

View on Model

11

Washer Drain Pump SMG DC97-15974E Contact Us For Availability

View on Model

11-2

DC31-00054D Samsung Washer Water Drain Pump In Stock SMG DC31-00054D $48.40

View on Model

11-3

DC31-00030E Samsung Washer Drain Pump Assembl Backorder SMG DC31-00030E $157.69

View on Model

11-4

DC61-02017F Samsung Pump Case Backorder SMG DC61-02017F $43.57

View on Model

11-6

DC62-00299A Samsung Washer Check Valve In Stock SMG DC62-00299A $5.54

View on Model

11-8

DC93-00150C Samsung Pump Door Main Wire Harne Backorder SMG DC93-00150C $45.45

View on Model

14

DC97-12578G Samsung Washer Hose Assembly Backorder SMG DC97-12578G $42.27

View on Model

14-3

DC62-00182A Samsung Washer Upper Nozzle Conne Backorder SMG DC62-00182A $5.59

View on Model

14-4

DC62-00310A Samsung Nozzle Connector In Stock SMG DC62-00310A $7.82

View on Model

15

DC97-16141A Samsung Drawer Sub Housing Assemb Backorder SMG DC97-16141A $49.72

View on Model

15-1

DC61-01200B Samsung Guide Wire Backorder SMG DC61-01200B $14.13

View on Model

15-2

Washer Vibration Sensor SMG DC93-00278D Contact Us For Availability

View on Model

16-4

DC61-02008B Samsung Dryer Guide Panel Backorder SMG DC61-02008B $24.49

View on Model

17

DC97-14489A Samsung Bolt Backorder SMG DC97-14489A $28.32

View on Model

18

Washer Shipping Bolt SMG DC97-14489B Contact Us For Availability

View on Model

19

DC96-00757A Samsung Washer Power Cord Backorder SMG DC96-00757A $97.70

View on Model

20

DC61-02084A Samsung Guide Hose Backorder SMG DC61-02084A $1.18

View on Model

21

DC61-02432A Samsung Guide Spring Assembly Backorder SMG DC61-02432A $2.23

View on Model

22

DC61-01257E Samsung Washer Hanger Spring Etc Backorder SMG DC61-01257E $57.68

View on Model

1110

DC67-00244A Samsung Washer Drain Hose Assembl Backorder SMG DC67-00244A $8.38

View on Model

1112

DC97-16991A Samsung Washer Drain Pump Filter In Stock SMG DC97-16991A $32.59

View on Model

1531

DC26-00009H Samsung Transformer Reactor Backorder SMG DC26-00009H $93.39

View on Model

8101

DC65-00014A Samsung Clamper Joint Hose Assemb Backorder SMG DC65-00014A $12.24

View on Model
