Model Samsung WF395BTPASU/A1-01 Washer – Common Parts & Diagrams
Control Panel

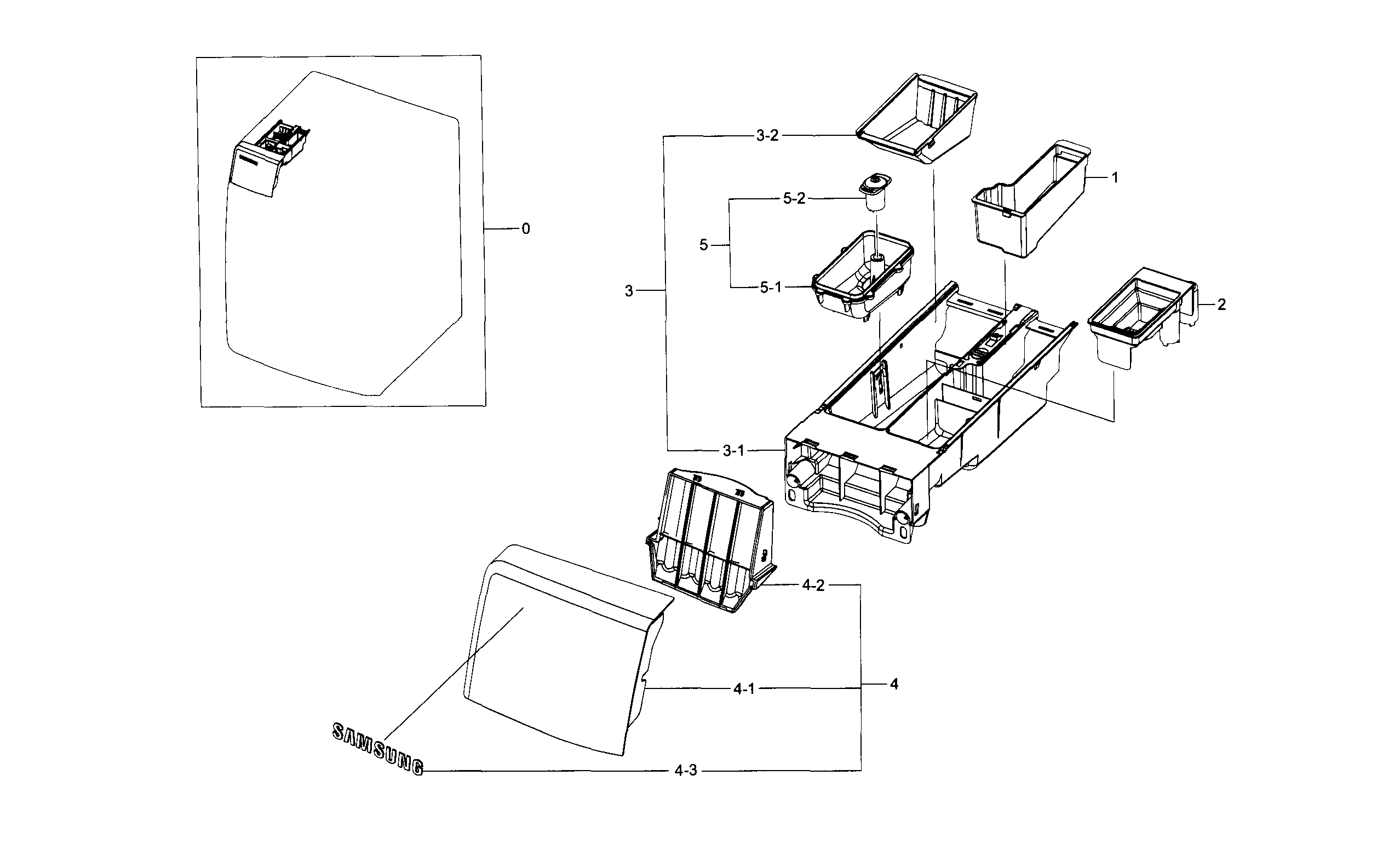

Drawer

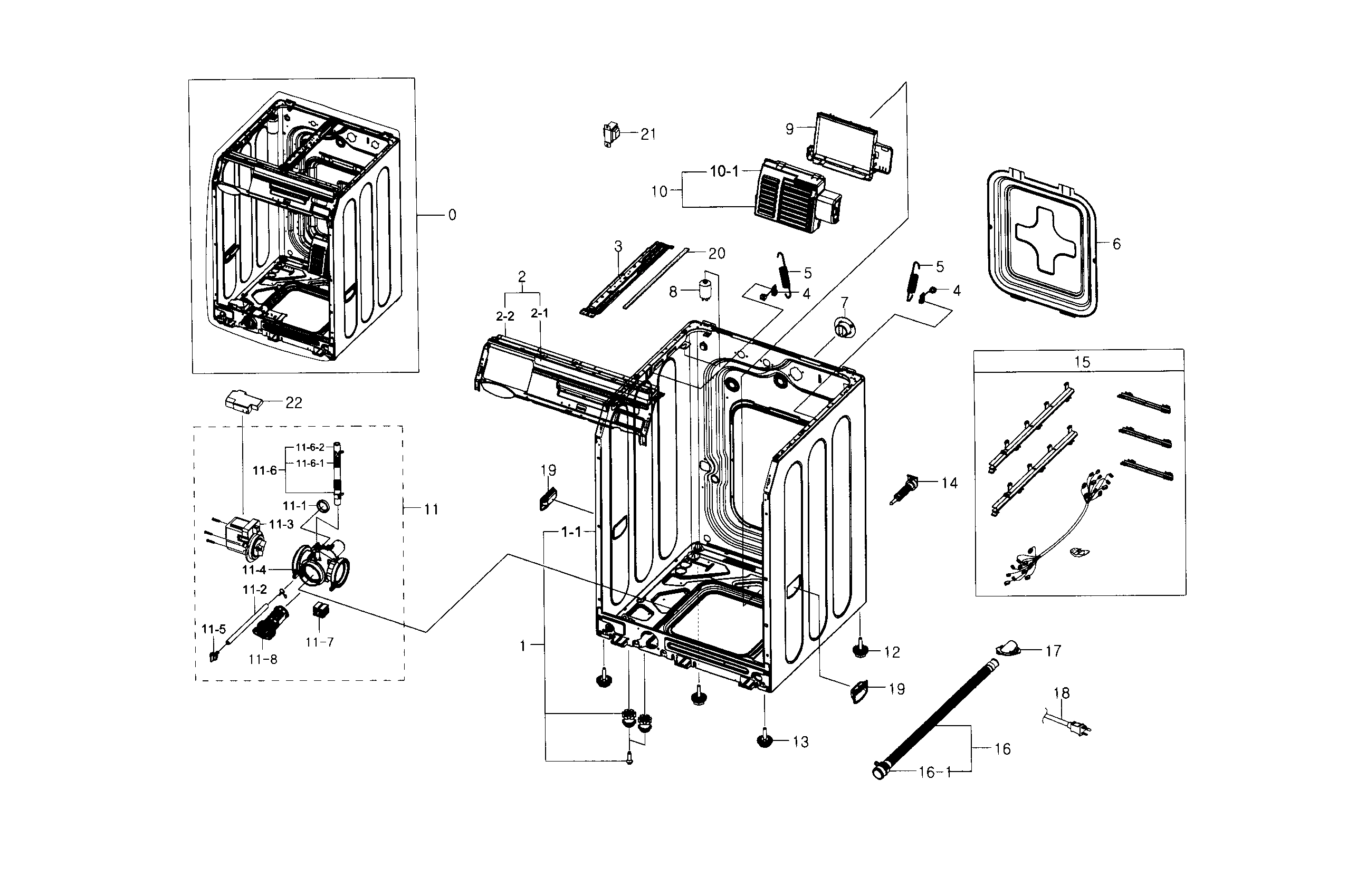

Frame & Cover

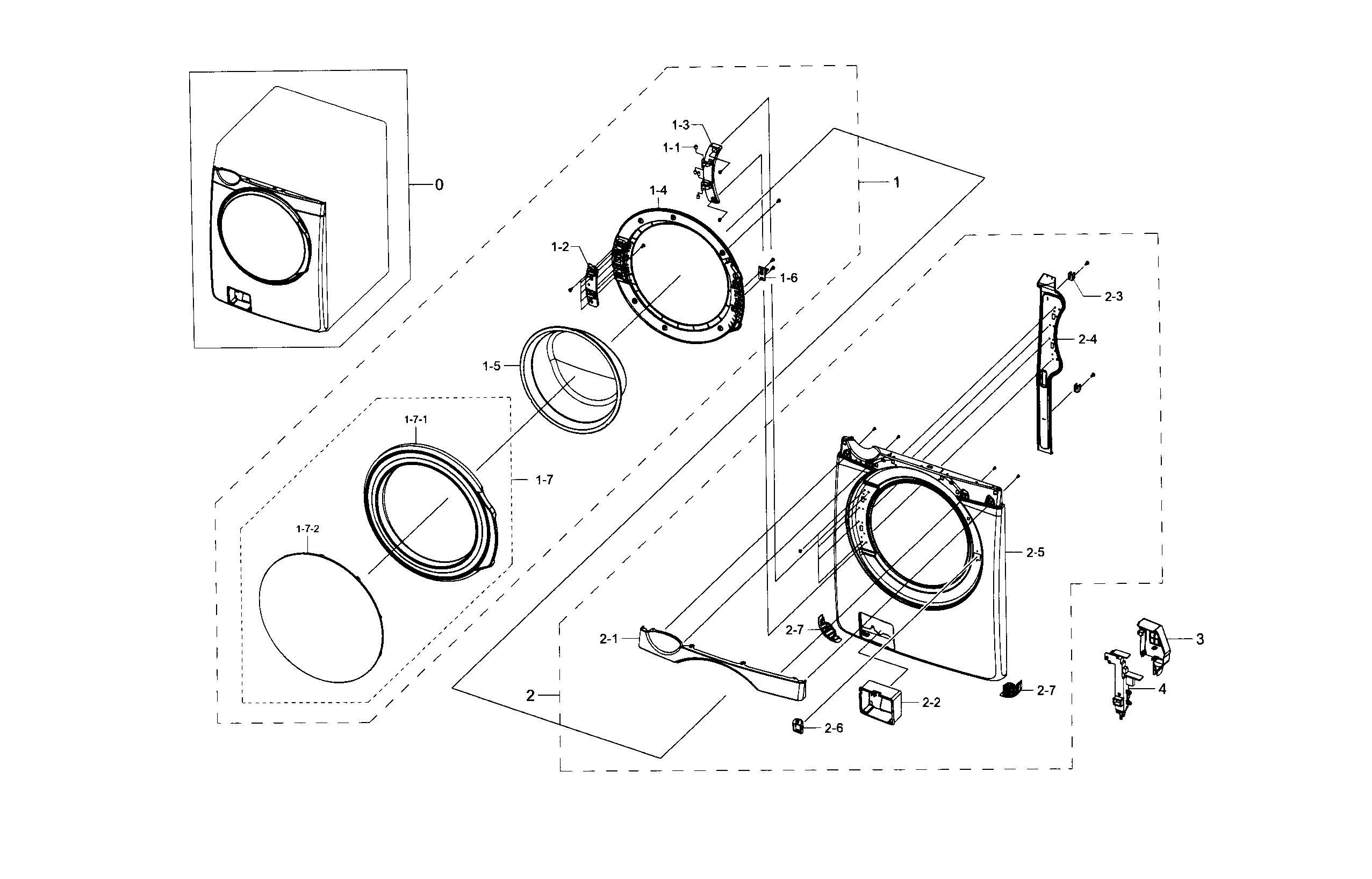

Frame Front & Door

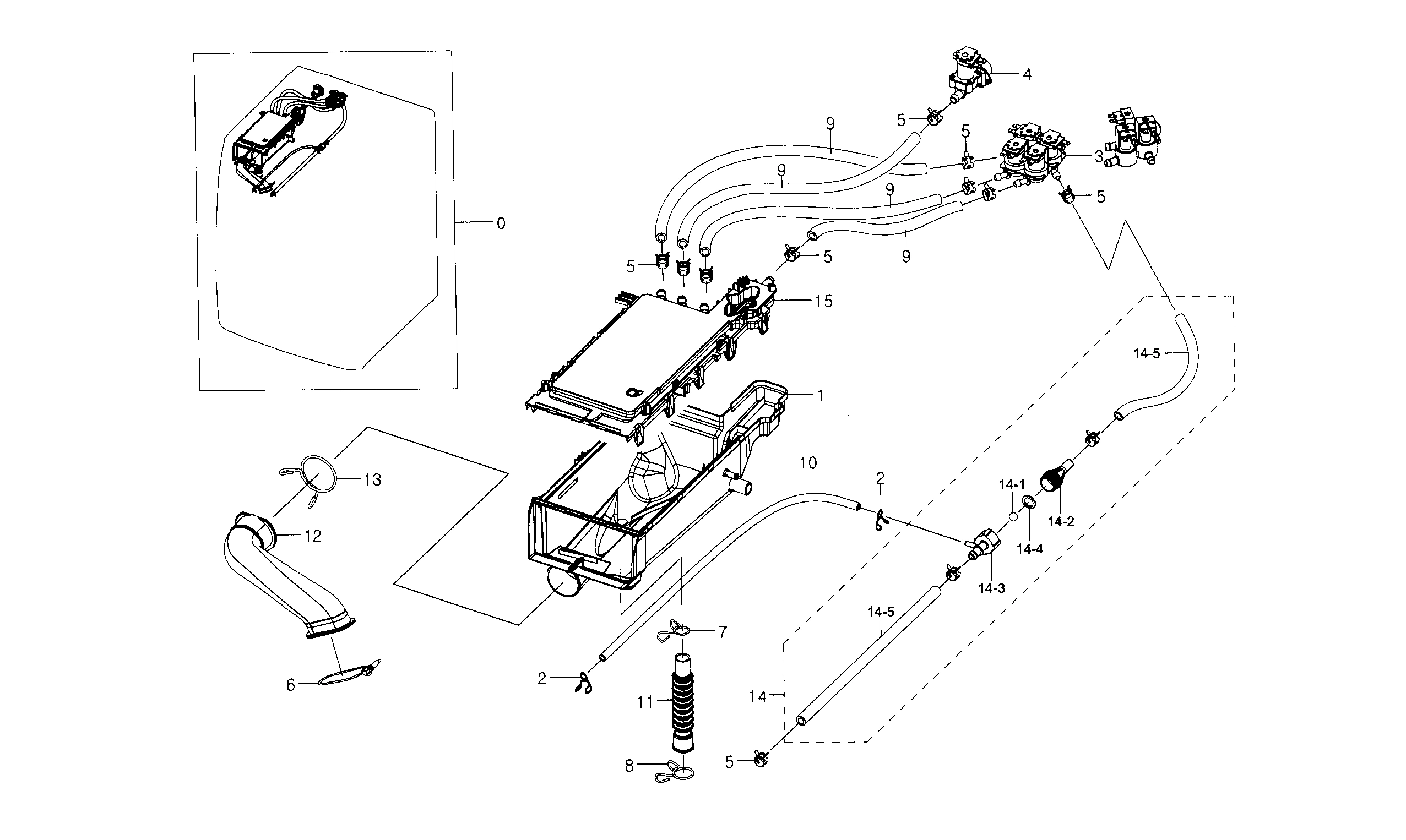

Housing-Drawer

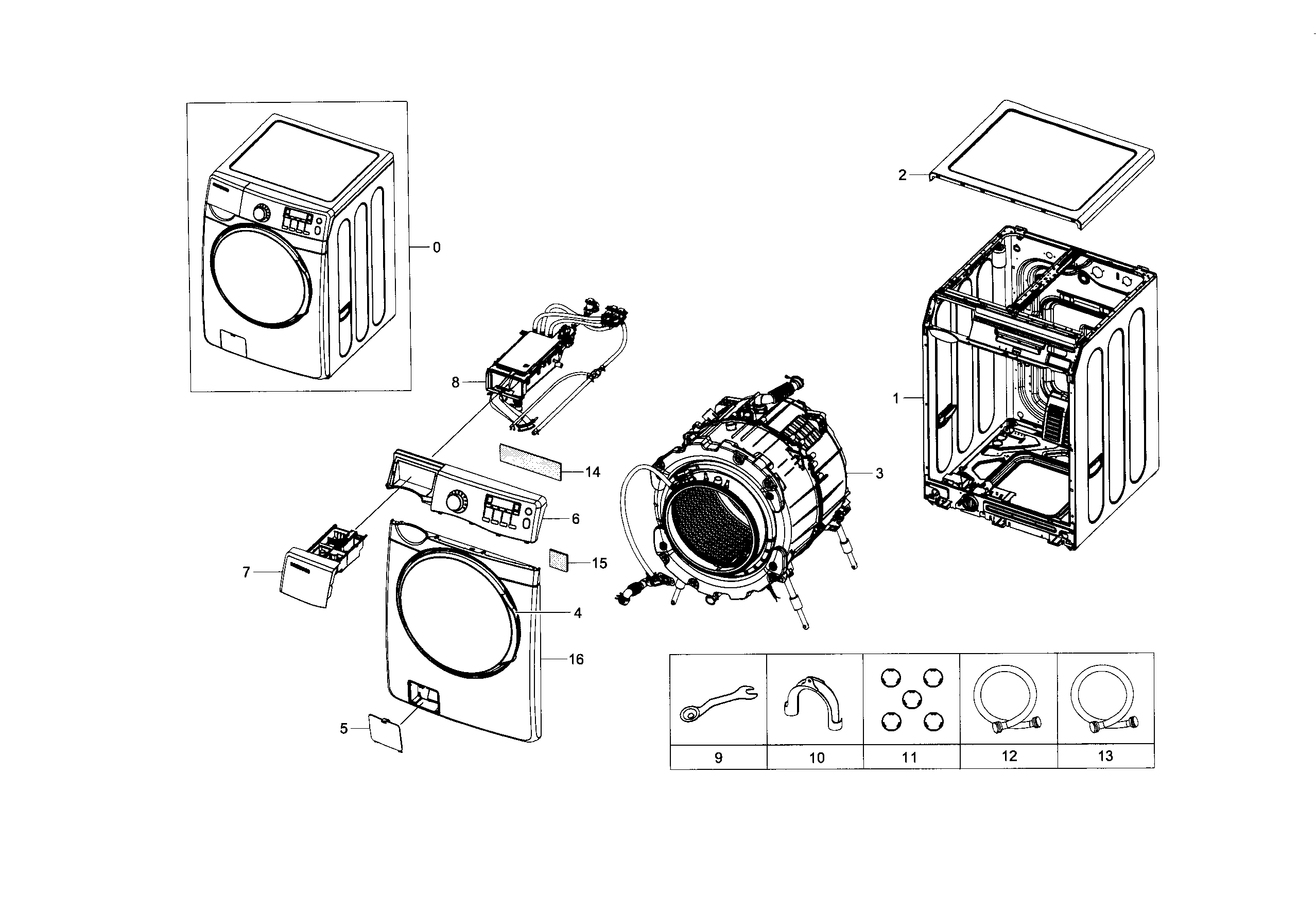

Main Assembly

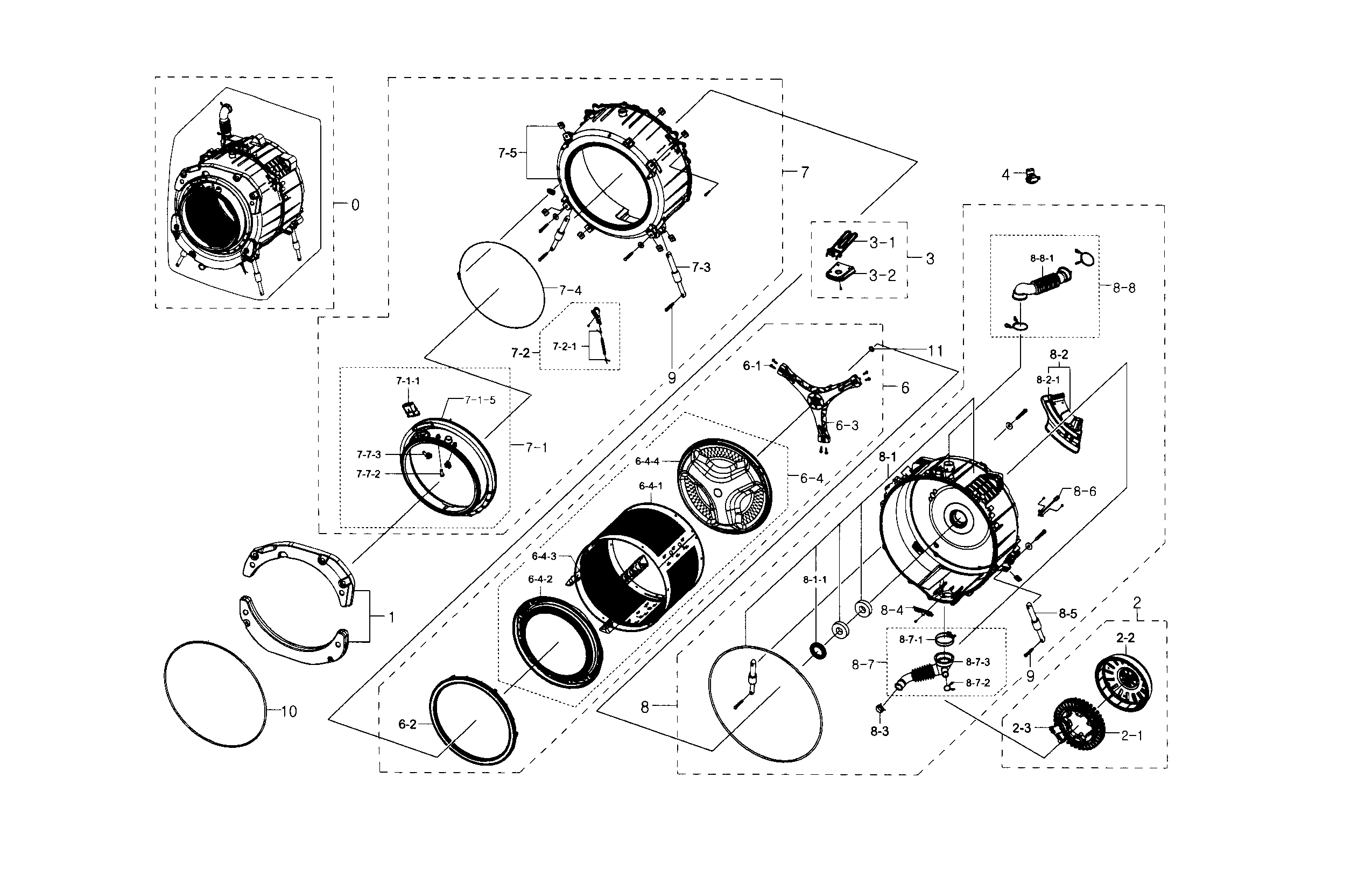

Tub & Drum
Common parts from model Samsung WF395BTPASU/A1-01 Washer
0
Drive housing SMG DC97-14522K Contact Us For Availability
1
Washer dispenser siphon cup SMG DC61-01995A Contact Us For Availability
1
Drive housing SMG DC61-01987B Contact Us For Availability
1
Washer user interface assembly SMG DC92-00773N Contact Us For Availability
1
Washer counterweight SMG DC67-00621B Contact Us For Availability
1-1
Dryer door hinge guide SMG DC61-00891A Contact Us For Availability
1-2
Dryer door hinge support SMG DC61-01576A Contact Us For Availability
1-4
Washer door inner frame SMG DC61-01972A Contact Us For Availability
1-5
Washer door glass SMG DC64-00504C Contact Us For Availability
1-6
Door latch SMG DC66-00375A Contact Us For Availability
1-72
Dryer door outer panel SMG DC64-02215A Contact Us For Availability
2
Washer hose clamp SMG DC61-70029C Contact Us For Availability
2
Washer motor assembly SMG DC93-00168B Contact Us For Availability
2
Washer fabric softener dispenser cup SMG DC67-00305A Contact Us For Availability
2-1
Washer motor stator SMG DC31-00111B Contact Us For Availability
2-1
Dryer guide panel SMG DC61-02008B Contact Us For Availability
2-2
washer motor rotor SMG DC31-00112A Contact Us For Availability
2-3
Washer motor rotor position sensor SMG DC31-00098A Contact Us For Availability
2-6
Washer door lock flange cover SMG DC63-00960A Contact Us For Availability
2-32
Button SMG DC64-02671A Contact Us For Availability
3
Washer water inlet valve assembly SMG DC62-00142G Contact Us For Availability
3
Washer dispenser drawer assembly SMG DC97-14481E Contact Us For Availability
3
Washer control panel bracket SMG DC61-01200B Contact Us For Availability
3-1
Washer heating element SMG DC47-00006Y Contact Us For Availability
3-2
Washer heater cover SMG DC63-00820A Contact Us For Availability
3-2
Washer detergent dispenser reservoir SMG DC61-02445A Contact Us For Availability
4
Washer water inlet valve SMG DC62-30314K Contact Us For Availability
4
Washer door lock switch SMG DC34-00024B Contact Us For Availability
4
washer suspension spring bracket SMG DC61-02432A Contact Us For Availability
4-3
Door glass SMG DC64-02707A Contact Us For Availability
5
Washer suspension spring SMG DC61-01257M Contact Us For Availability
5
Washer detergent dispenser SMG DC97-17022B Contact Us For Availability
5-1
Washer detergent dispenser SMG DC61-02427D Contact Us For Availability
6
Clamper hose joint SMG DC65-00020A Contact Us For Availability
6
Washer spin basket SMG DC97-17037A Contact Us For Availability
6-1
Washer bolt SMG DC60-40137A Contact Us For Availability
6-2
Washer basket balance ring SMG DC97-12135A Contact Us For Availability
6-3
Washer drum shaft assembly SMG DC97-17004A Contact Us For Availability
6-43
Washer baffle SMG DC66-00508A Contact Us For Availability
7
Washer air vent cap SMG DC67-00605A Contact Us For Availability
7-1
Washer door boot SMG DC97-17041B Contact Us For Availability
7-2
Washer water-level pressure switch hose SMG DC97-14545F Contact Us For Availability
7-3
Samsung washer shock absorber SMG DC66-00470A Contact Us For Availability
7-4
Washer door boot spring clamp SMG DC97-04981F Contact Us For Availability
7-5
Washer outer front tub SMG DC97-14541M Contact Us For Availability
7-11
Water guide SMG DC61-01993B Contact Us For Availability
7-15
Samsung washer door boot SMG DC64-02805A Contact Us For Availability
7-72
Washer recirculation pump hose nozzle SMG DC62-00229A Contact Us For Availability
8
Ring clip SMG DC65-60125B Contact Us For Availability
8
Washer noise filter SMG DC29-00013H Contact Us For Availability
8-5
Samsung washer shock absorber SMG DC66-00470B Contact Us For Availability
8-6
Washer thermistor SMG DC90-10128N Contact Us For Availability
8-7
Washer drain hose SMG DC97-15298A Contact Us For Availability
8-8
Washer outer tub overflow hose SMG DC97-16104A Contact Us For Availability
8-11
Washer rear tub gasket SMG DC62-00156A Contact Us For Availability
8-71
Washer hose clamp SMG DC65-00014A Contact Us For Availability
8-73
Washer drain hose SMG DC67-00312A Contact Us For Availability
8-81
Washer exhaust hose SMG DC67-00466A Contact Us For Availability
9

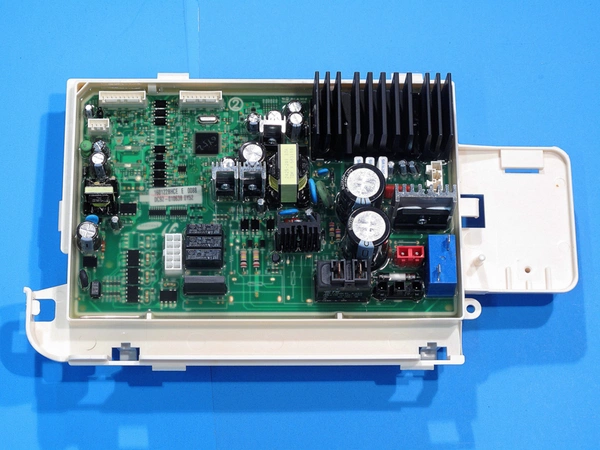

Washer electronic control board SMG DC92-01063B Contact Us For Availability
9
Washer bolt SMG 6011-001644 Contact Us For Availability
10
Washer door boot spring clamp SMG DC97-04973B Contact Us For Availability
10
Washer dispenser hose SMG DC67-00089A Contact Us For Availability
10
Washer drain hose u-bend bracket SMG DC62-10278A Contact Us For Availability
11
Washer vent bellows SMG DC67-00275A Contact Us For Availability
11
Washer drain pump assembly SMG DC96-01585Q Contact Us For Availability
11
Washer cabinet hole plug SMG DC67-00307A Contact Us For Availability
11-1
washer drain pump check valve SMG DC62-00299A Contact Us For Availability
11-2
Washer pump drain hose SMG DC67-00244A Contact Us For Availability
11-3
Washer drain pump SMG DC31-00054D Contact Us For Availability
11-4
Washer drain pump filter SMG DC61-02017E Contact Us For Availability
11-5
Washer drain pump filter drain hose plug SMG DC61-10673A Contact Us For Availability
11-8
Washer drain pump filter SMG DC97-16991A Contact Us For Availability
12
Washer leveling leg assembly SMG DC97-00920S Contact Us For Availability
12
Washer dispenser hose SMG DC67-00317A Contact Us For Availability
13
Washer leveling leg SMG DC97-14293D Contact Us For Availability
14
Washer shipping bolt SMG DC97-14489A Contact Us For Availability
14
washer dispenser inlet hose assembly SMG DC97-12578G Contact Us For Availability
14-1
Washer dispenser hose check valve ball SMG DC62-00167A Contact Us For Availability
14-2
Washer tub fill nozzle elbow SMG DC62-00182A Contact Us For Availability
14-3
washer tub fill nozzle elbow SMG DC62-00310A Contact Us For Availability
15
Washer dispenser housing cover SMG DC97-14493B Contact Us For Availability
15
Washer wire harness SMG DC93-00251Q Contact Us For Availability
16
Washer drain hose SMG DC97-12534D Contact Us For Availability
17
hose guide SMG DC61-02084A Contact Us For Availability
18
Washer power cord SMG DC96-00757A Contact Us For Availability
21
Trans-reac SMG DC26-00009G Contact Us For Availability
22
Washer drain pump cover SMG DC63-01375A Contact Us For Availability
NI
Washer dispenser inlet hose SMG DC67-00051B Contact Us For Availability
NI
Dryer retainer clip SMG DC61-00133A Contact Us For Availability
× ![]()
