Samsung WA50F9A8DSP/A2-01 Washer Parts List

1

DC29-00021A Samsung Washer Noise Filter Assem Backorder SMG DC29-00021A $163.11

View on Model

1

DC61-03174A Samsung Fixer Cover Top Backorder SMG DC61-03174A $5.04

View on Model

1

Outer Tub SMG DC90-12929A Contact Us For Availability

View on Model

1-1

6021-001588 Samsung Washer Hexagon Nut Backorder SMG 6021-001588 $5.04

View on Model

1-2

DC60-60011B Samsung Washer Wave Assembly Backorder SMG DC60-60011B $5.04

View on Model

1-3

DC31-00090B Samsung Washer Drain Clutch Motor In Stock SMG DC31-00090B $99.87

View on Model

1-4

DC60-40133A Samsung Washer Pulsator Bolt Backorder SMG DC60-40133A $6.71

View on Model

1-5

DC61-02329A Samsung Cushion Support Backorder SMG DC61-02329A $32.33

View on Model

1-6

DC66-00777A Samsung Washer Pulsator Cap In Stock SMG DC66-00777A $19.69

View on Model

1-8

DC90-10128N Samsung Washer Water Temperature In Stock SMG DC90-10128N $38.30

View on Model

1-9

DC93-00376A Samsung Dryer Touch Sensor Assemb Backorder SMG DC93-00376A $165.39

View on Model

1-10

DC93-00278B Samsung Washer Vibration MEMS Sen In Stock SMG DC93-00278B $98.42

View on Model

1-11

DC97-05280S Samsung Washer Damper Assembly In Stock SMG DC97-05280S $40.30

View on Model

1-12

DC97-17423A Samsung Outer Tub Assembly Backorder SMG DC97-17423A $269.76

View on Model

1-14

DC97-15606A Samsung Clutch Lever Assembly Backorder SMG DC97-15606A $76.83

View on Model

2

DC92-00544A Samsung Assembly Bracket PCB Main Backorder SMG DC92-00544A $113.72

View on Model

2

Washer Door Lock Assembly SMG DC34-00025A Contact Us For Availability

View on Model

2

Drive Motor SMG DC90-12930A Contact Us For Availability

View on Model

2-1

6011-001627 Samsung Appliance Bolt, Etc In Stock SMG 6011-001627 $5.59

View on Model

2-3

DC60-60046A Samsung Washer Spring Backorder SMG DC60-60046A $1.69

View on Model

2-4

6031-001531 Samsung WASHER-PLAIN;CR-SPCC,ZPC, Backorder SMG 6031-001531 $1.18

View on Model

2-5

DC97-14006C Samsung Assembly Screw Backorder SMG DC97-14006C $2.49

View on Model

2-6

Washer Drive Motor SMG DC93-00236B Contact Us For Availability

View on Model

2-7

DC97-15494E Samsung Clutch Assembly Backorder SMG DC97-15494E $353.38

View on Model

2-8

DC63-01069A Samsung Cushion Clutch Assembly Backorder SMG DC63-01069A $17.32

View on Model

2-61

DC31-00098A Samsung Washer Motor Rotor Positi In Stock SMG DC31-00098A $81.34

View on Model

2-62

DC31-00124B Samsung Motor Backorder SMG DC31-00124B $325.40

View on Model

2-63

DC31-00125B Samsung Motor Brushless Direct Cu Backorder SMG DC31-00125B $264.42

View on Model

3

DC61-03400A Samsung Clip Backorder SMG DC61-03400A $29.82

View on Model

3

DC97-17374A Samsung Washer Pulsator Assembly Backorder SMG DC97-17374A $188.18

View on Model

4

DC63-01430A Samsung Washer Switch Cover Backorder SMG DC63-01430A $4.25

View on Model

4

DC90-12733A Samsung Assembly Semi Base F900 Backorder SMG DC90-12733A $196.15

View on Model

4

DC92-01021H Samsung Washer Main PCB Assembly Backorder SMG DC92-01021H $383.98

View on Model

4

Washer Spin Basket SMG DC97-17360A Contact Us For Availability

View on Model

4-1

Basket SMG DC61-03551A Contact Us For Availability

View on Model

4-2

DC61-01722B Samsung Washer Adjustable Levelin In Stock SMG DC61-01722B $7.38

View on Model

4-2

DC97-15567A Samsung Balancer Assembly Backorder SMG DC97-15567A $204.19

View on Model

4-3

DC61-03191B Samsung Washer Rubber Leveling Le In Stock SMG DC61-03191B $29.58

View on Model

4-4

Balancer Up SMG DC63-01019A Contact Us For Availability

View on Model

4-5

Balancer-low SMG DC63-01014A Contact Us For Availability

View on Model

4-31

Washer Drum Shaft Assembly SMG DC60-00067A Contact Us For Availability

View on Model

4-32

Basket Bowl SMG DC61-03178B Contact Us For Availability

View on Model

5

DC61-70184A Samsung Spring Clip Assembly Backorder SMG DC61-70184A $1.50

View on Model

5

DC97-16778A Samsung Assembly Pump Drain Circu Backorder SMG DC97-16778A $145.39

View on Model

5

DC97-16931B Samsung Dryer Knob Encoder Assemb In Stock SMG DC97-16931B $50.15

View on Model

5-1

DC61-00201A Samsung Bracket Nut Assembly In Stock SMG DC61-00201A $1.86

View on Model

5-1

DC61-03385A Samsung Washer Pump Case Backorder SMG DC61-03385A $40.73

View on Model

5-2

DC63-01377A Samsung Pump Cover Assembly Backorder SMG DC63-01377A $25.54

View on Model

5-3

DC31-00054D Samsung Washer Water Drain Pump In Stock SMG DC31-00054D $48.40

View on Model

6

DC64-02763A Samsung Decoration Bleach Backorder SMG DC64-02763A $31.82

View on Model

6

DC92-01089A Samsung Assembly PCB Cover (M) Backorder SMG DC92-01089A $64.55

View on Model

6

DC97-17345A Samsung Assembly Hose Backorder SMG DC97-17345A $105.15

View on Model

6

DC97-17353A Samsung Hose Guide Assembly Backorder SMG DC97-17353A $113.11

View on Model

6

Washer Recirculation Pump Hose SMG DC97-17354A Contact Us For Availability

View on Model

6-4

DC67-00601A Samsung Washer Drain Hose Backorder SMG DC67-00601A $39.46

View on Model

7

DC65-00038A Samsung Clamper Hose Fix Assembly In Stock SMG DC65-00038A $2.74

View on Model

7

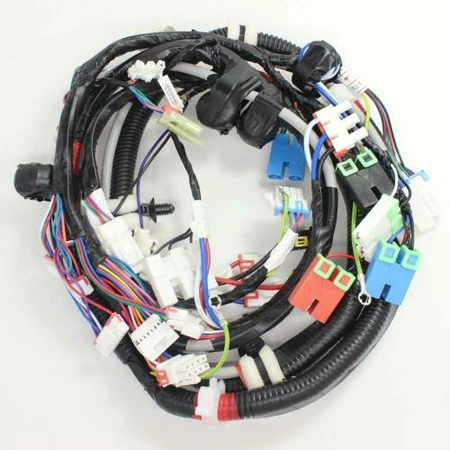

DC93-00356A Samsung Washer Automatic Main Wir Backorder SMG DC93-00356A $362.69

View on Model

7

DC97-16979A Samsung Hose Assembly (O) Backorder SMG DC97-16979A $91.67

View on Model

8

DC96-00757A Samsung Washer Power Cord Backorder SMG DC96-00757A $97.70

View on Model

9

DC96-01703H Samsung Washer Pressure Sensor In Stock SMG DC96-01703H $97.14

View on Model

9

DC97-19289F Samsung Washer Drain Pump Assembl In Stock SMG DC97-19289F $108.28

View on Model

9-1

DC98-01438A Samsung F900 Pump Cushion Assembl Backorder SMG DC98-01438A $7.99

View on Model

9-2

DC61-03550A Samsung Washer Pump Bracket Assem Backorder SMG DC61-03550A $25.54

View on Model

9-5

DC31-00030E Samsung Washer Drain Pump Assembl Backorder SMG DC31-00030E $157.69

View on Model

9-6

DC62-00328A Samsung Washer Drain Check Valve Backorder SMG DC62-00328A $99.66

View on Model

10

DC63-01375A Samsung Cover Pump Assembly Backorder SMG DC63-01375A $16.50

View on Model

10

DC97-15459G Samsung Washer Inlet Valve Water In Stock SMG DC97-15459G $127.38

View on Model

11

DC97-16923C Samsung Washing Machine Hinge Ass Backorder SMG DC97-16923C $66.43

View on Model

12

Washer Lid Assembly SMG DC97-17380A Contact Us For Availability

View on Model

12-1

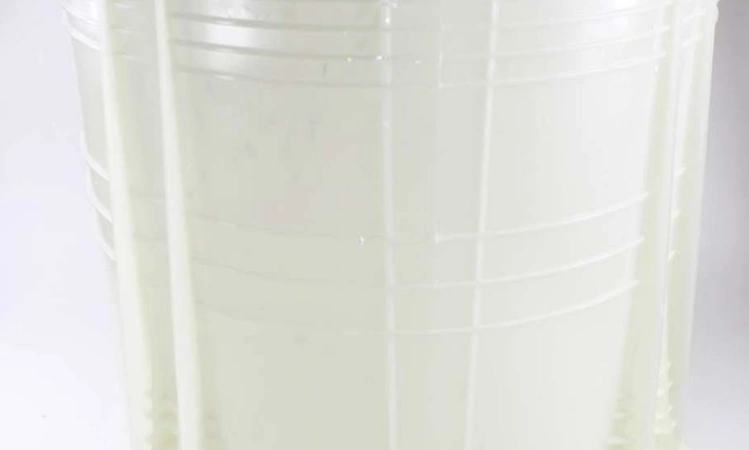

DC61-03557A Samsung Tub Outer Assembly Backorder SMG DC61-03557A $230.30

View on Model

12-1

DC64-02886A Samsung Assembly Door Glass Backorder SMG DC64-02886A $270.70

View on Model

12-2

DC47-00036A Samsung AC120V 1200W Wash Heater Backorder SMG DC47-00036A $135.42

View on Model

12-3

DC61-01447B Samsung Bracket HEATER;WA5471ABP, Backorder SMG DC61-01447B $4.79

View on Model

12-4

DC63-01351A Samsung Heater Cover Assembly Backorder SMG DC63-01351A $11.73

View on Model

12-7

DC61-03184A Samsung Washer/Dishwasher R.S. Ma Backorder SMG DC61-03184A $7.27

View on Model

13

DC97-16962A Samsung Assembly Body Detergent Backorder SMG DC97-16962A $82.24

View on Model

13-1

DC61-03556A Samsung Cover Tub Holder F900 PP Backorder SMG DC61-03556A $162.44

View on Model

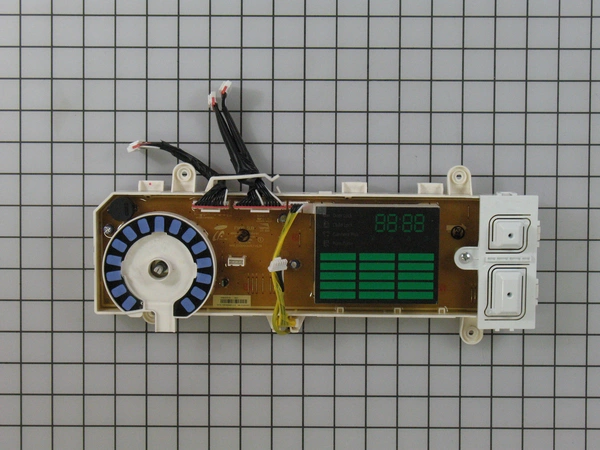

14

DC92-01311A Samsung Washer Printed Circuit Bo Backorder SMG DC92-01311A $343.29

View on Model

15-3

Clamper Hood SMG DC65-00029B Contact Us For Availability

View on Model

15-4

DC67-00051B Samsung Drawer Hose Assembly Backorder SMG DC67-00051B $32.33

View on Model

16

DC97-16972A Samsung Assembly Drawer Bleach Backorder SMG DC97-16972A $72.25

View on Model

16-1

Bleach Case SMG DC61-03274A Contact Us For Availability

View on Model

16-2

Bleach Case SMG DC61-03275A Contact Us For Availability

View on Model

17

Semi Cover SMG DC97-17057E Contact Us For Availability

View on Model

17-1

DC63-01418E Samsung Washer Top Cover Backorder SMG DC63-01418E $418.66

View on Model

17-2

DC63-01431A Samsung Cover Plate Assembly Backorder SMG DC63-01431A $118.81

View on Model

18

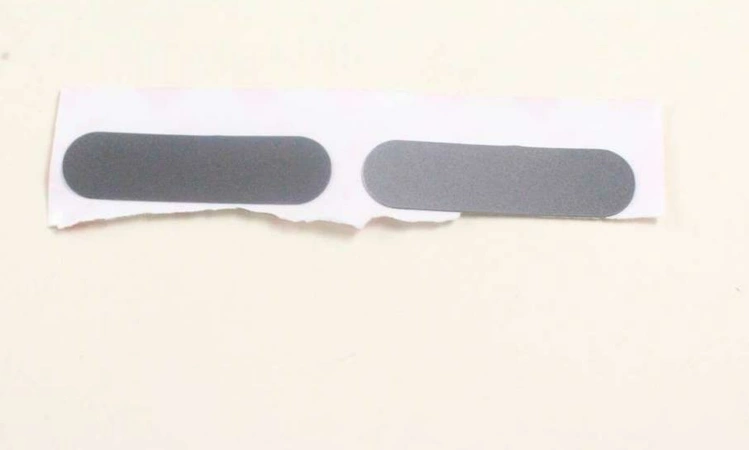

DC64-02822D Samsung Inlay - Door Side Backorder SMG DC64-02822D $7.99

View on Model

NI

6002-000213 Samsung Air Conditioner Tapping S Backorder SMG 6002-000213 $1.32

View on Model

NI

6002-000239 Samsung Air Conditioner Tapping S Backorder SMG 6002-000239 $1.18

View on Model

NI

6002-000241 Samsung Self Tapping Screw Backorder SMG 6002-000241 $1.18

View on Model

NI

6002-000445 Samsung Tapping Screw Backorder SMG 6002-000445 $1.69

View on Model

NI

6002-001306 Samsung Washer Tapping Screw Backorder SMG 6002-001306 $1.69

View on Model

O

DC97-17390C Samsung Assembly Control Semi Pan Backorder SMG DC97-17390C $363.94

View on Model

O

Cover SMG DC97-17415A Contact Us For Availability

View on Model
