Model Bosch SECD302BB/01 Range Oven – Common Parts & Diagrams

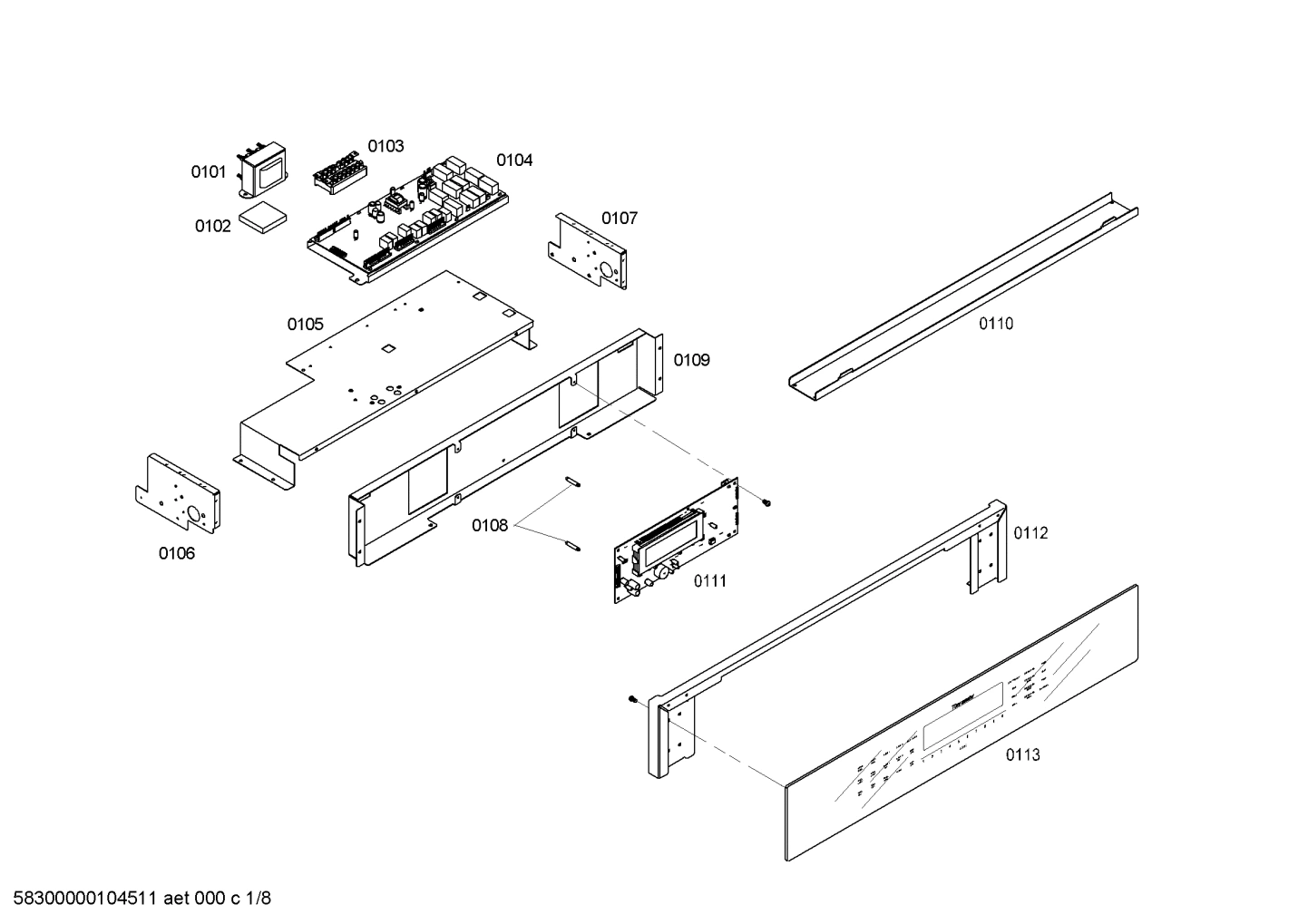

0103
Terminal
Terminal BOS 00484615 Contact Us For Availability
View on Model
0104
Relay
Relay BOS 00427199 Contact Us For Availability
View on Model
0105
Panel
Panel BOS 00473697 Contact Us For Availability
View on Model
0113
Glass panel
Glass panel BOS 00474078 Contact Us For Availability
View on Model
0152
Cable harness
Cable harness BOS 00499092 Contact Us For Availability
View on Model
0155
Cable harness
Cable harness BOS 00640589 Contact Us For Availability
View on Model
0156
Cable harness
Cable harness BOS 00640590 Contact Us For Availability
View on Model
0157
Cable harness
Cable harness BOS 00662765 Contact Us For Availability
View on Model

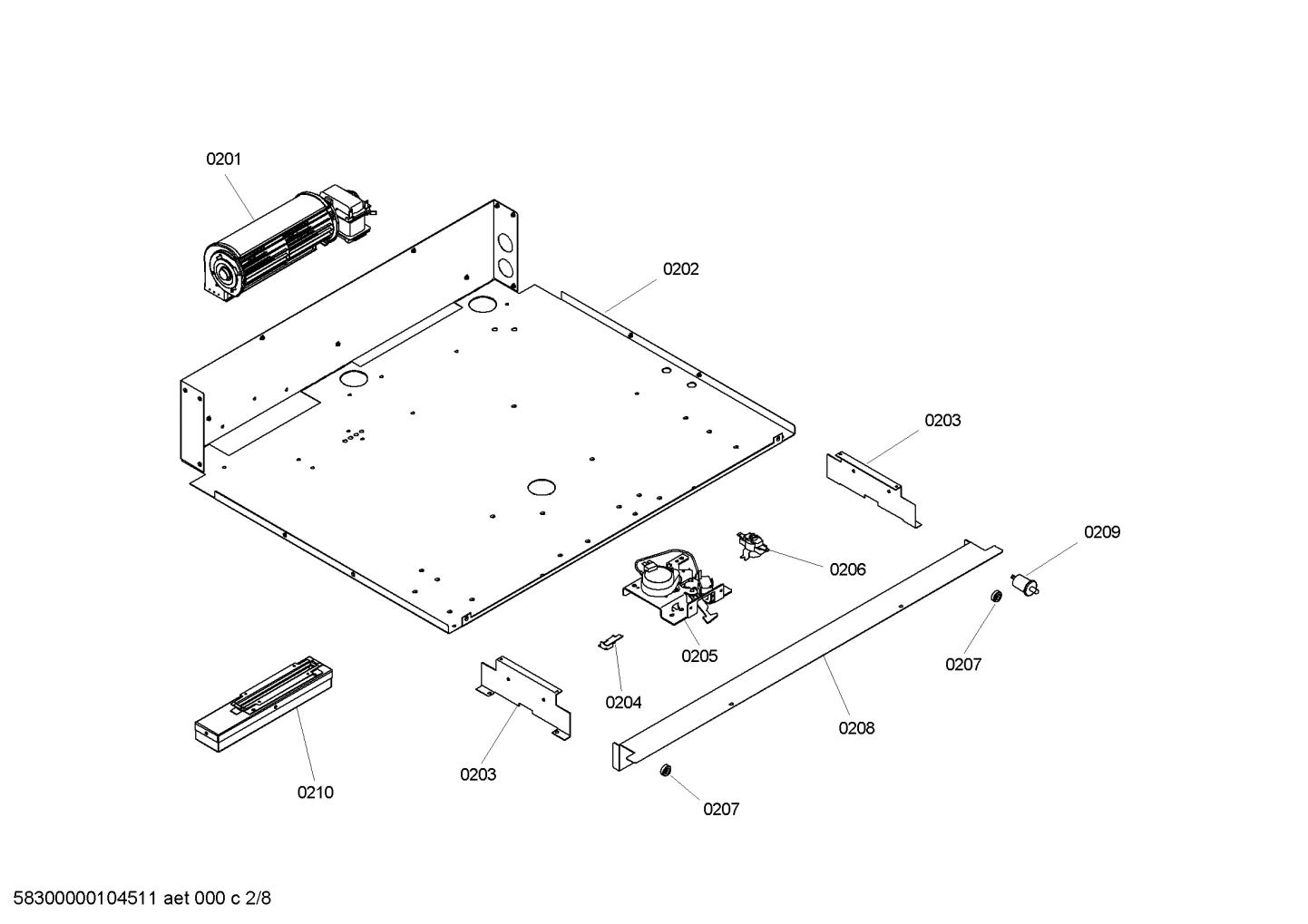

0202
Glass panel
Glass panel BOS 00144632 Contact Us For Availability
View on Model
0205
Electric lock
Electric lock BOS 00489102 Contact Us For Availability
View on Model

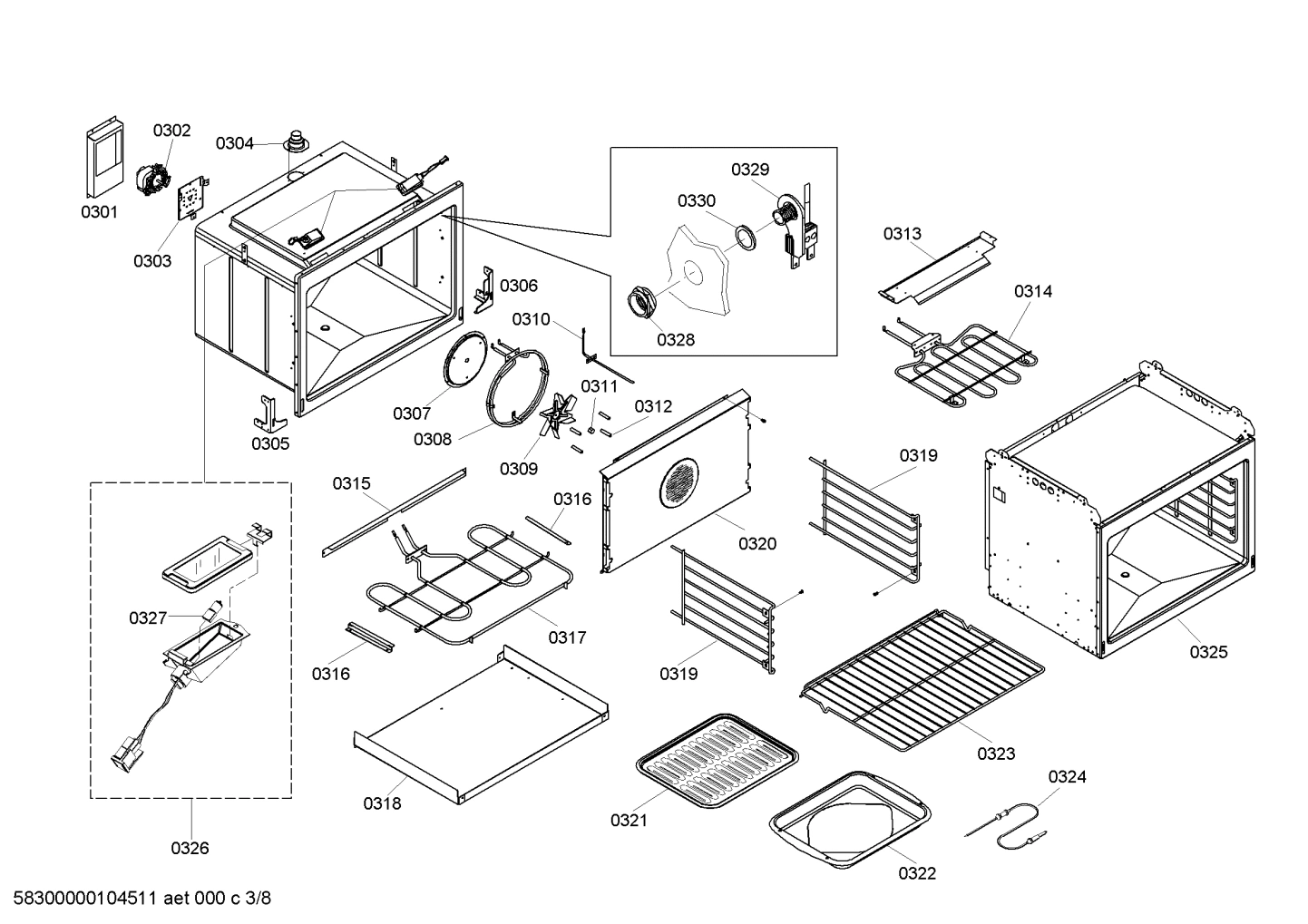

0302
Motor
Motor BOS 00494266 Contact Us For Availability
View on Model
0304
Catalyzer
Catalyzer BOS 00411220 Contact Us For Availability
View on Model
0317
Heating element
Heating element BOS 00440215 Contact Us For Availability
View on Model
0321
Grill tray
Grill tray BOS 00449756 Contact Us For Availability
View on Model
0322
Universal pan
Universal pan BOS 00449757 Contact Us For Availability
View on Model
0323
Shelf
Shelf BOS 00478315 Contact Us For Availability
View on Model
0704
Insulating part
Insulating part BOS 00241974 Contact Us For Availability
View on Model
0705
Insulating part
Insulating part BOS 00241975 Contact Us For Availability
View on Model
0708
Door hinge
Door hinge BOS 00425990 Contact Us For Availability
View on Model
0713
Glass panel
Glass panel BOS 00241934 Contact Us For Availability
View on Model
0718
Handle-cap shaped
Handle-cap shaped BOS 00414390 Contact Us For Availability
View on Model
0719
Handle-cap shaped
Handle-cap shaped BOS 00414391 Contact Us For Availability
View on Model
0721
Frame
Frame BOS 00473551 Contact Us For Availability
View on Model
0722
Frame
Frame BOS 00473549 Contact Us For Availability
View on Model
0723
Glass panel
Glass panel BOS 00144633 Contact Us For Availability
View on Model
0724
Handle
Handle BOS 00144619 Contact Us For Availability
View on Model
0750
Seal-door
Seal-door BOS 00144078 Contact Us For Availability
View on Model

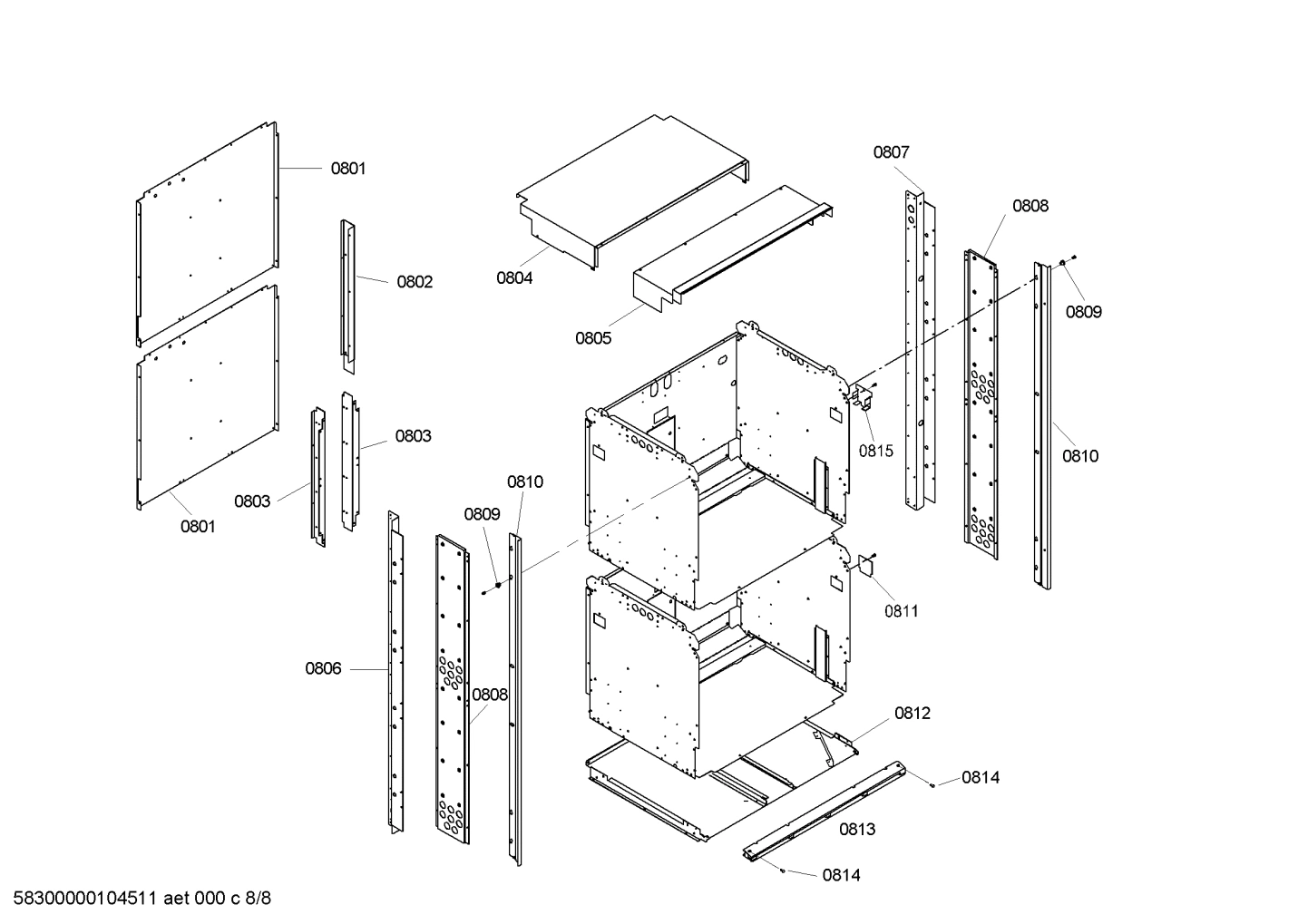

0803
Duct
Duct BOS 00473441 Contact Us For Availability
View on Model
0804
Cover
Cover BOS 00242356 Contact Us For Availability
View on Model
0805
Cover
Cover BOS 00473704 Contact Us For Availability
View on Model
0806
Support
Support BOS 00474117 Contact Us For Availability
View on Model
0807
Support
Support BOS 00474118 Contact Us For Availability
View on Model
0808
Duct
Duct BOS 00473541 Contact Us For Availability
View on Model
0810
Frame-decor
Frame-decor BOS 00473768 Contact Us For Availability
View on Model
0811
Plate
Plate BOS 00425302 Contact Us For Availability
View on Model
0812
Base
Base BOS 00241973 Contact Us For Availability
View on Model
0813
Trimplate
Trimplate BOS 00664798 Contact Us For Availability
View on Model
